FAUN ATF 110G-5 - Schot

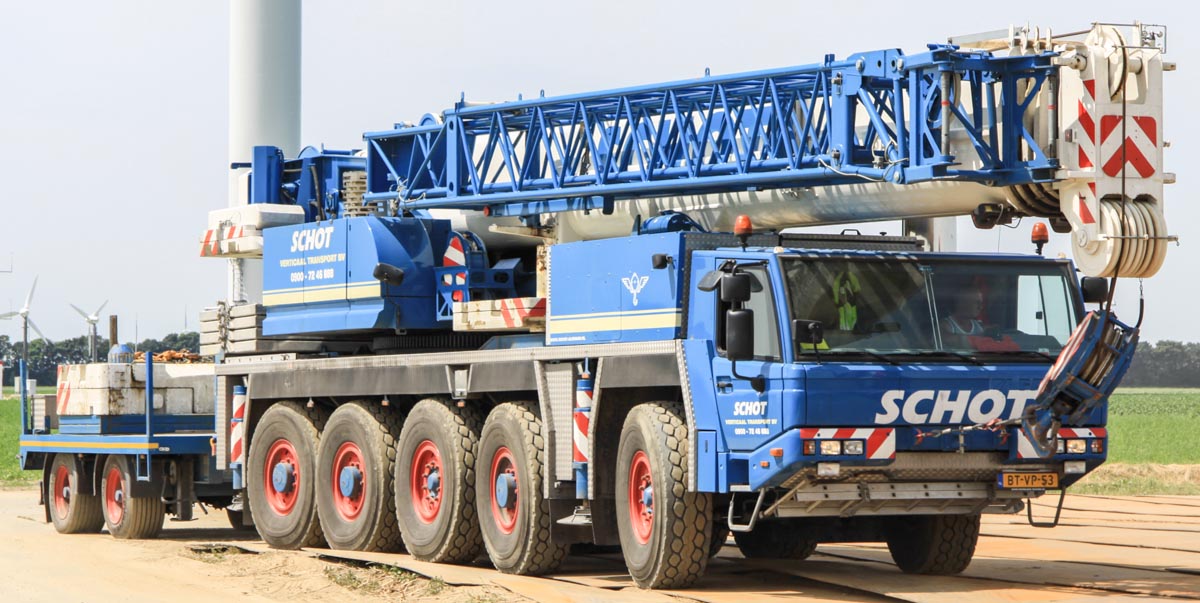

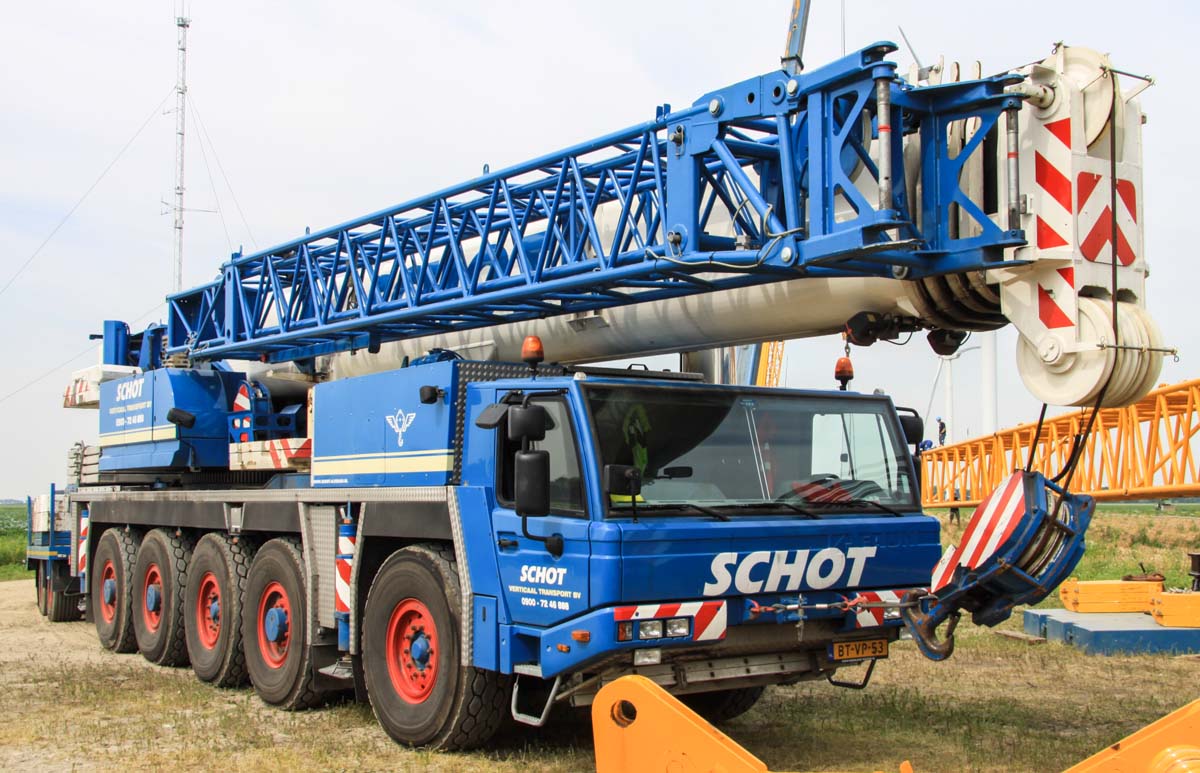

This FAUN ATF 110G-5 of Schot from Alkmaar (NL) was used by the assembly of a Liebherr LG 1550.

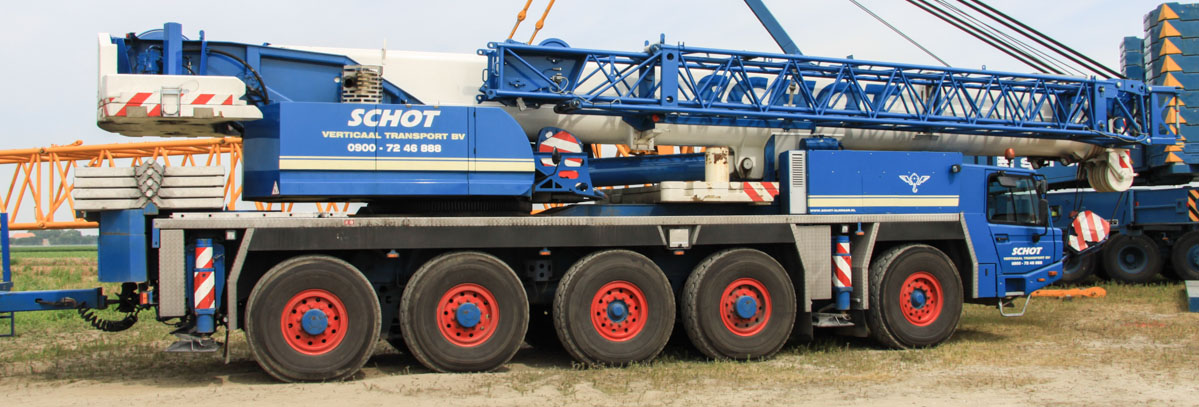

It is a 110-tonne crane on a 5-axle carrier. The carrier is powered by a Mercedes-Benz OM 502 LA, an 8-cylinder diesel engine with 517 hp. The engine powers three of the five axles, the axles 1, 2, 4 and 5 are steerable.

The 5-part main boom has a 13 meter base length and a maximum length of 52 meters. The main boom can be extended by a 16.2 meter jib, that can be transported by the crane itself. With additional extensions, the jib has a maximum length of 30.1 meters.

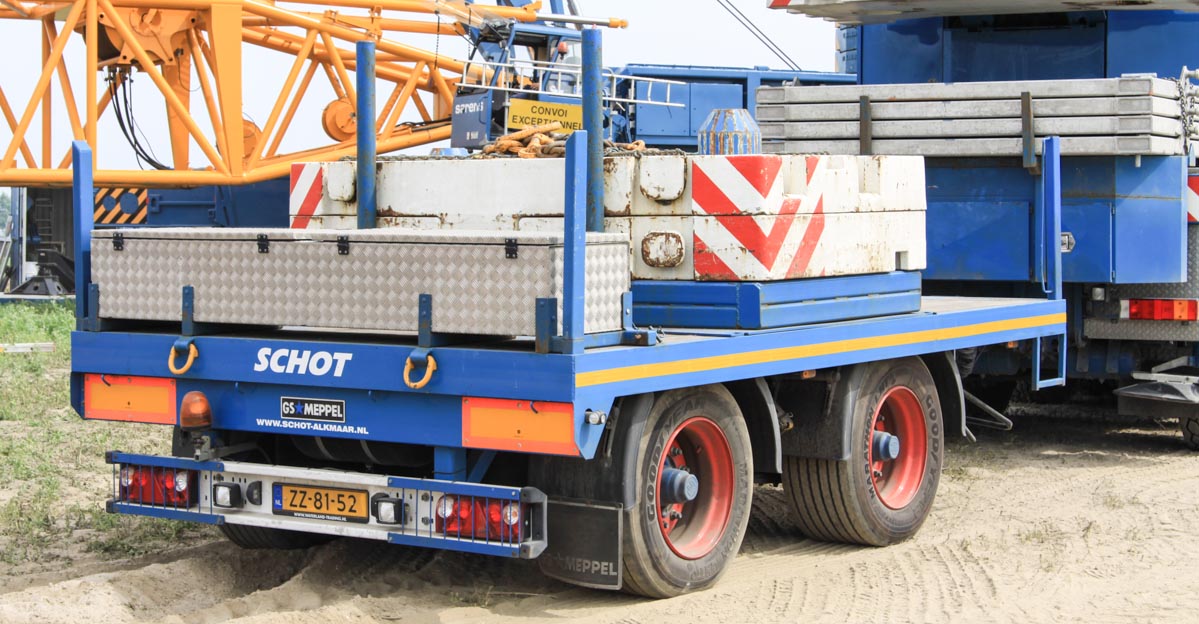

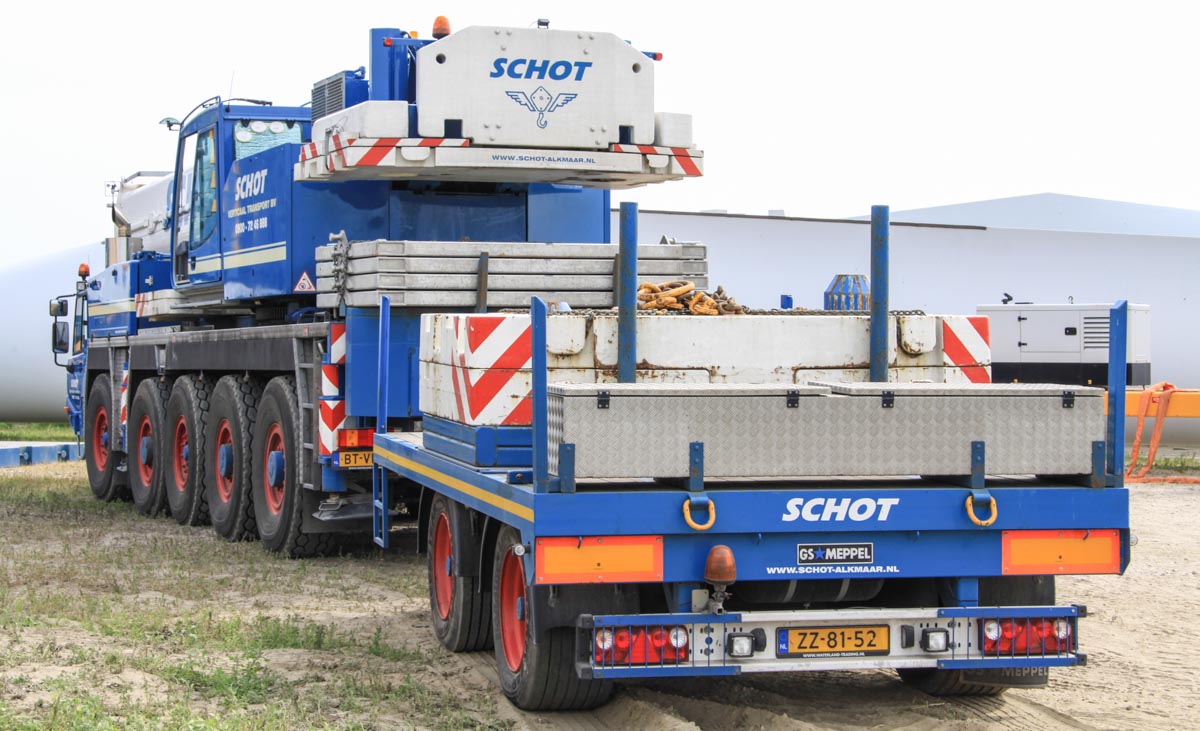

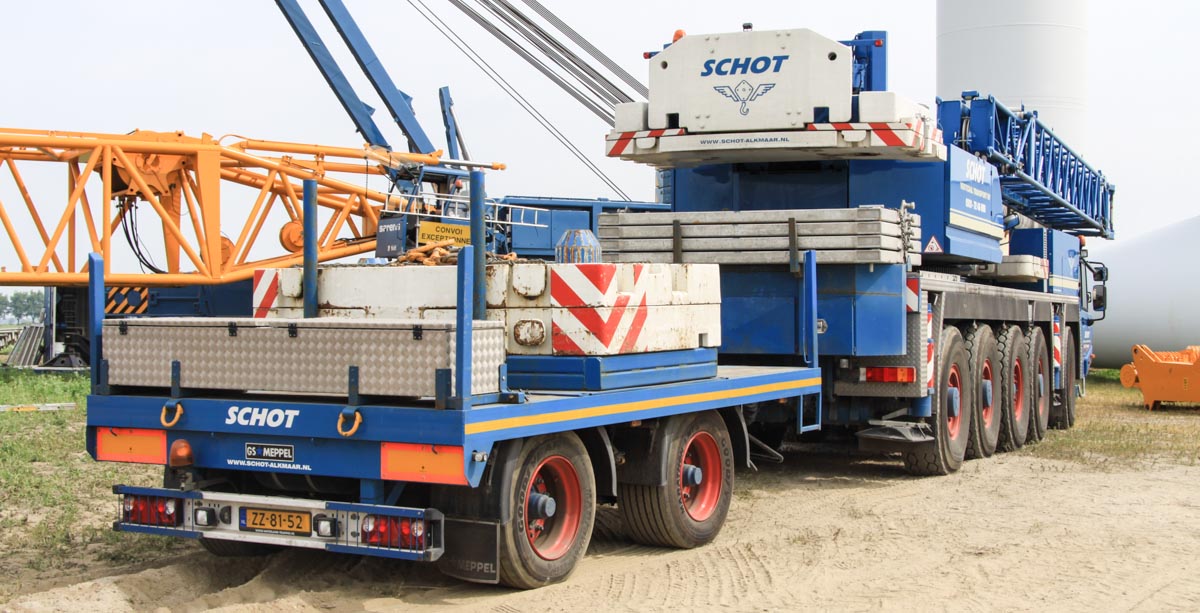

The maximum counterweight of the crane weights 35 tonnes with a 4.1 meter tailswing. The crane itself takes 28.8 tonnes with it. To reduce the axle loads are 14.4 tonnes transported on a 2-axle GS Meppel trailer.

Packed is the crane 14.95 meters long, 2.75 meters wide and 4 meters high. The transport mass of the crane is 60 tonnes. The outrigger base measures 7.75 x 7.5 meters.

Previously Schot was also operating older FAUN models, an ATF 100-5 and an ATF 120-5.
