FAUN HK 60 - Hellmich Kranservice

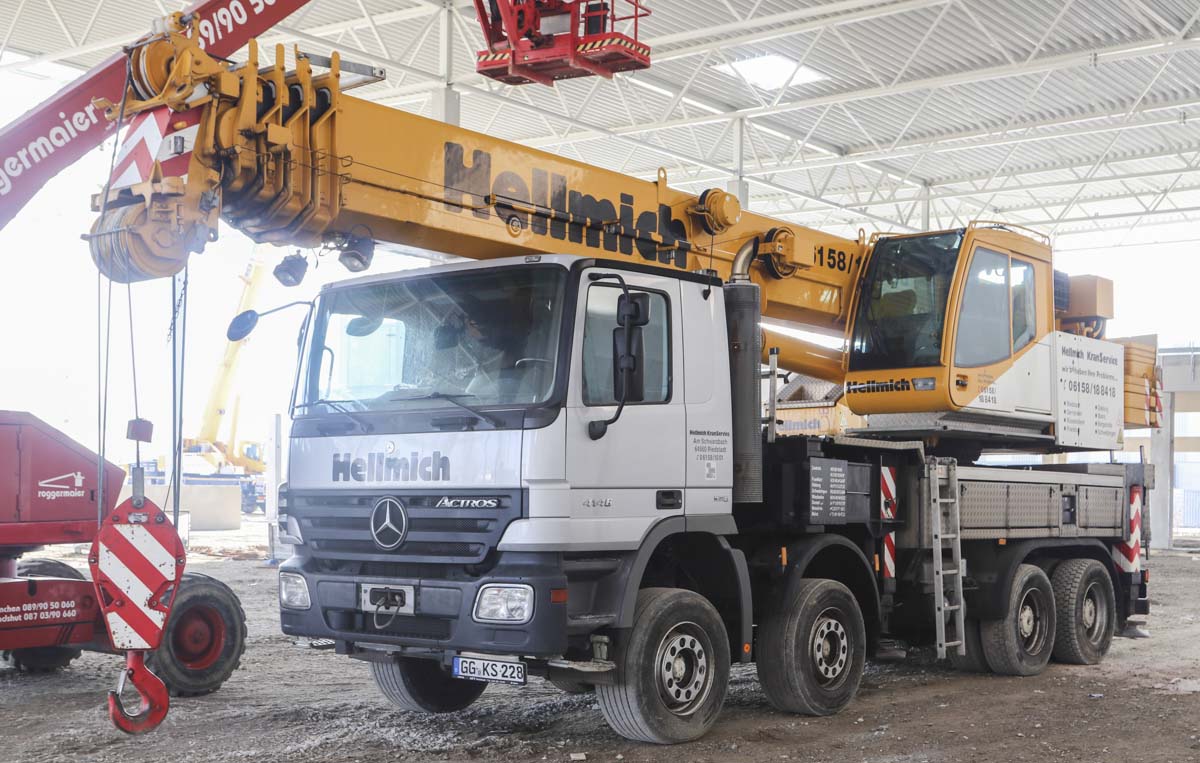

This FAUN HK 60 of Hellmich Kranservice from Riedstadt-Erfelden (DE) stood together with a Tadano ATF 110G-5 on a construction site in Augsburg (DE). It is a 60-tonne crane with year of manufacture 2008.

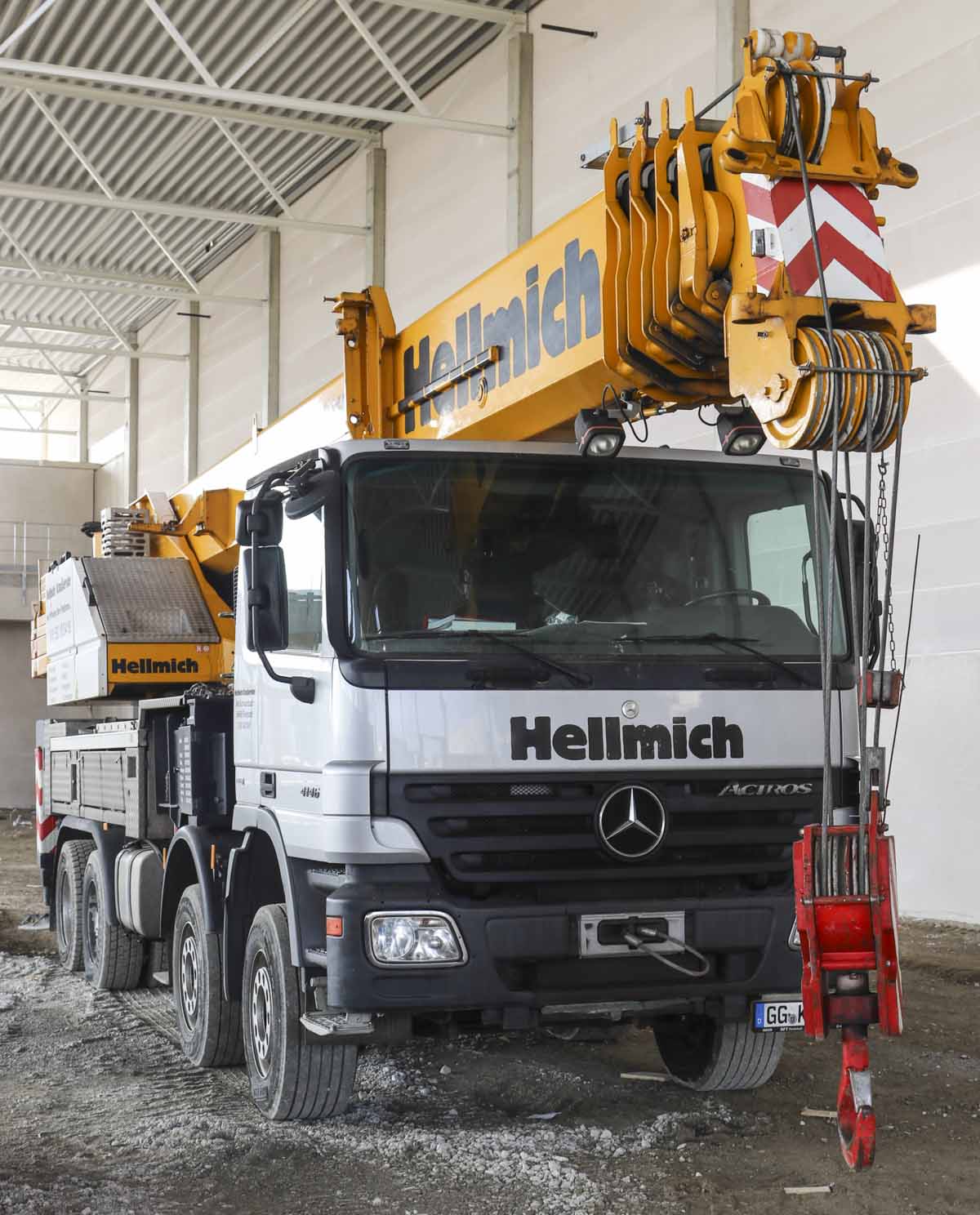

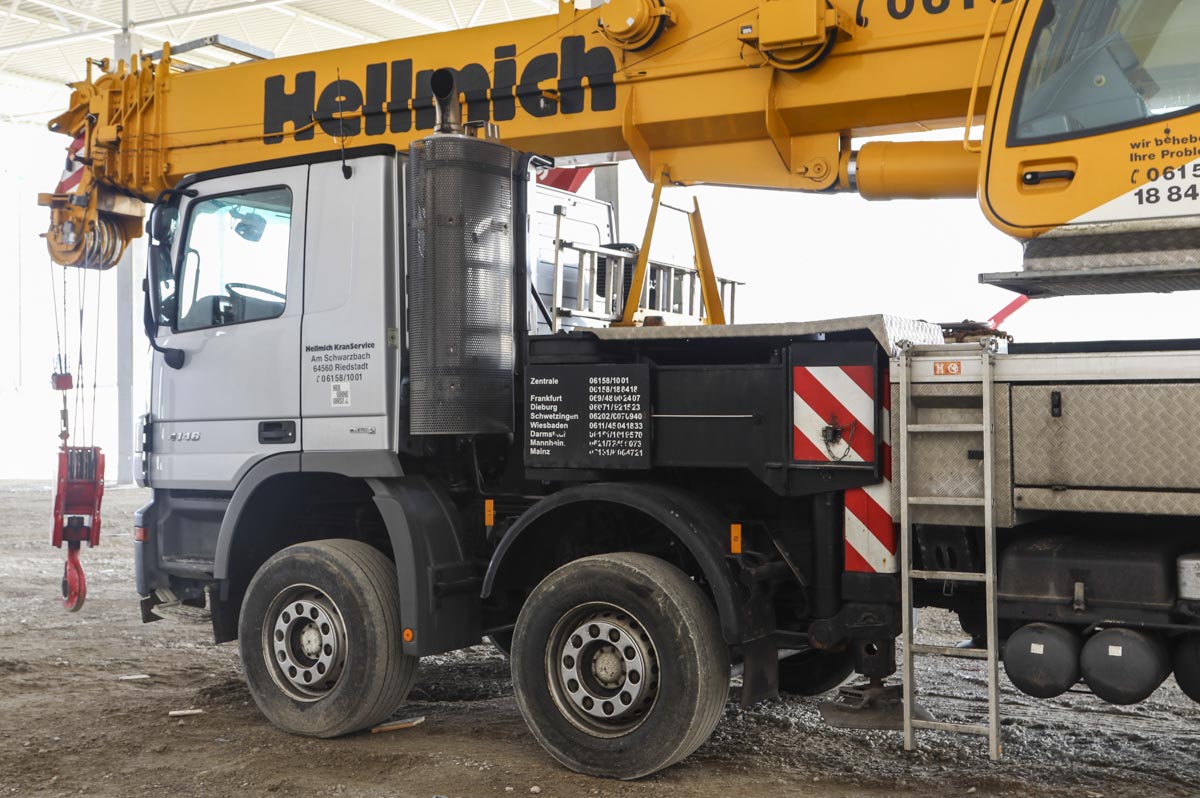

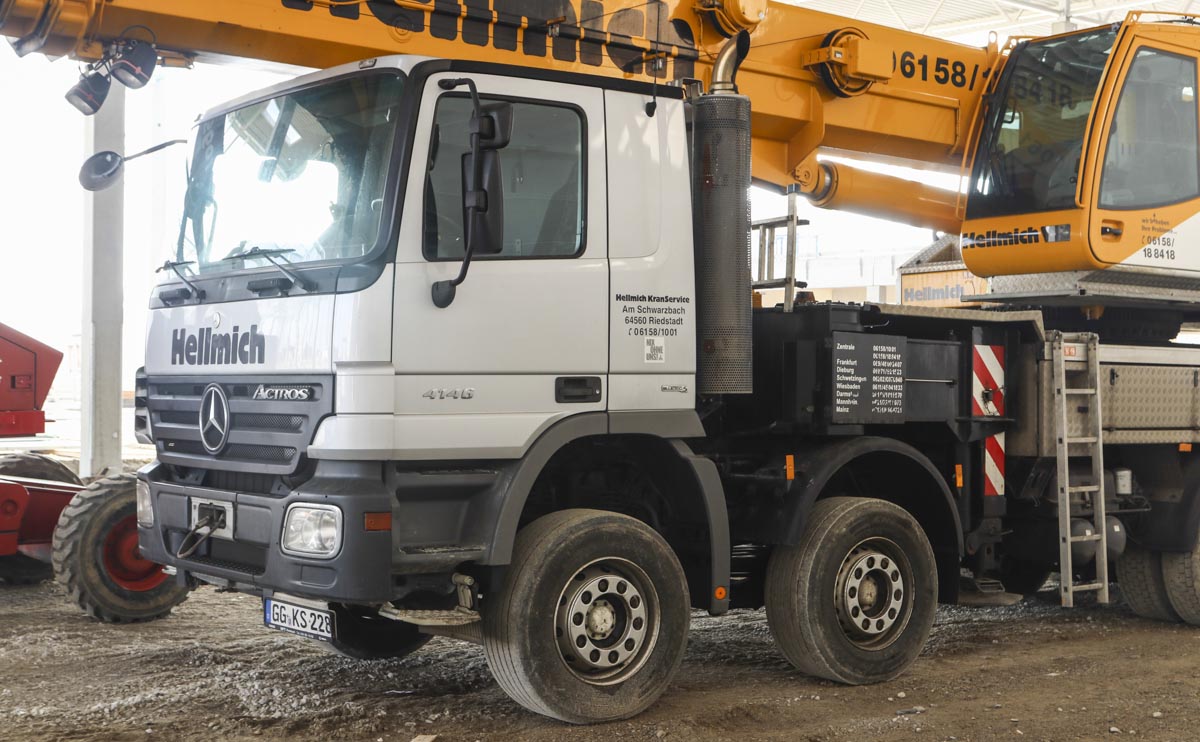

The crane is installed on a 4-axle Mercedes-Benz Actros 4146 chassis with 8x4-drive line. The crane carrier is powered by a Mercedes-Benz OM 501 LA, a 11.9-liter 6-cylinder diesel engine with a power of 335 kW (456 hp).

The outrigger base of the crane measures 6.45 x 6.28 meters and has a K-shape. The front outriggers must be rotated forwards for crane operation.

In transit is the crane 11.9 meters long, 2.55 meters wide and maximum 4 meters tall. The transport mass is approx. 42 tonnes.

The superstructure is powered by a Mercedes-Benz OM 904 LA, a diesel engine with a power of 90 kW (122 hp).

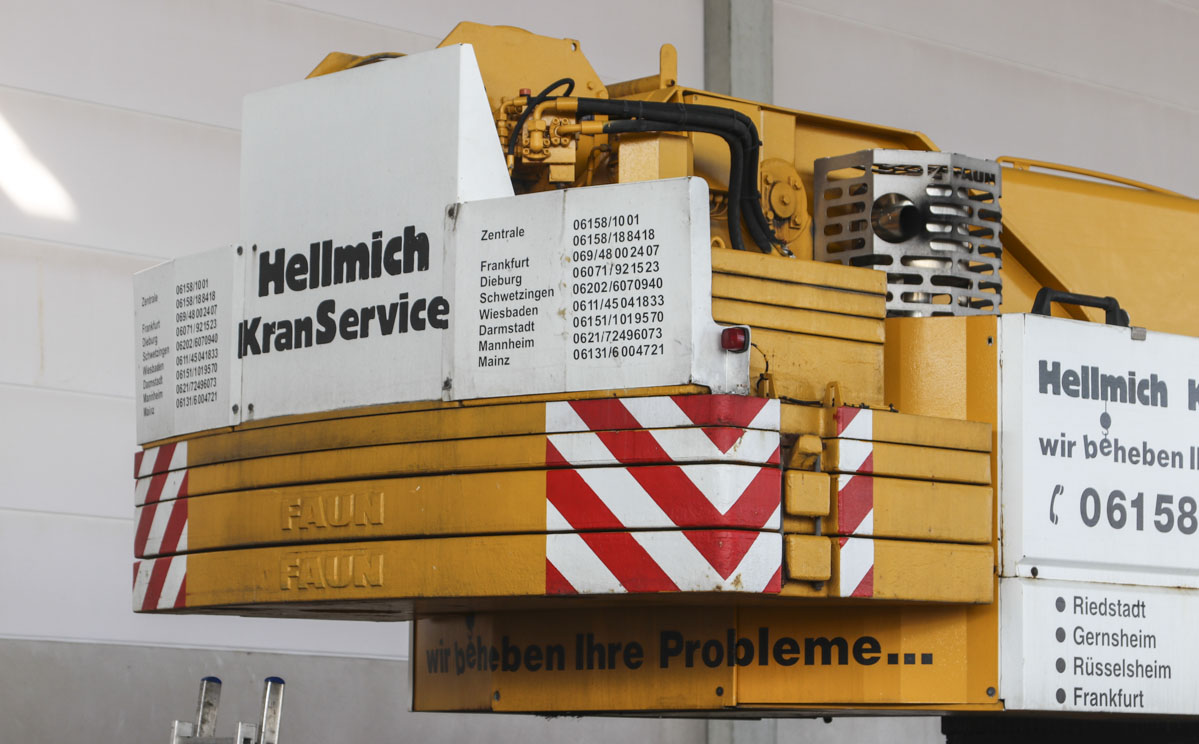

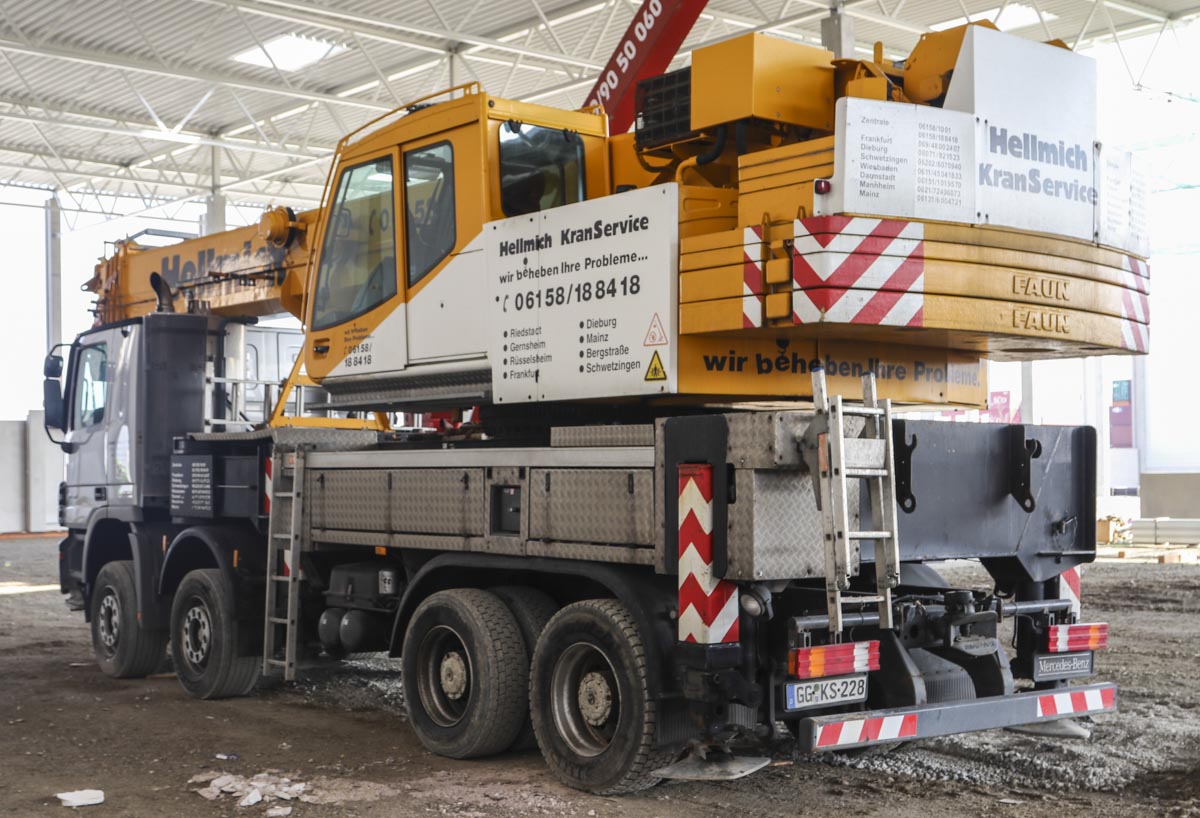

The counterweight weights 8.4 tonnes and has a 3.45 meter tailswing. The crane is fitted with a 6-tonne hoist winch.

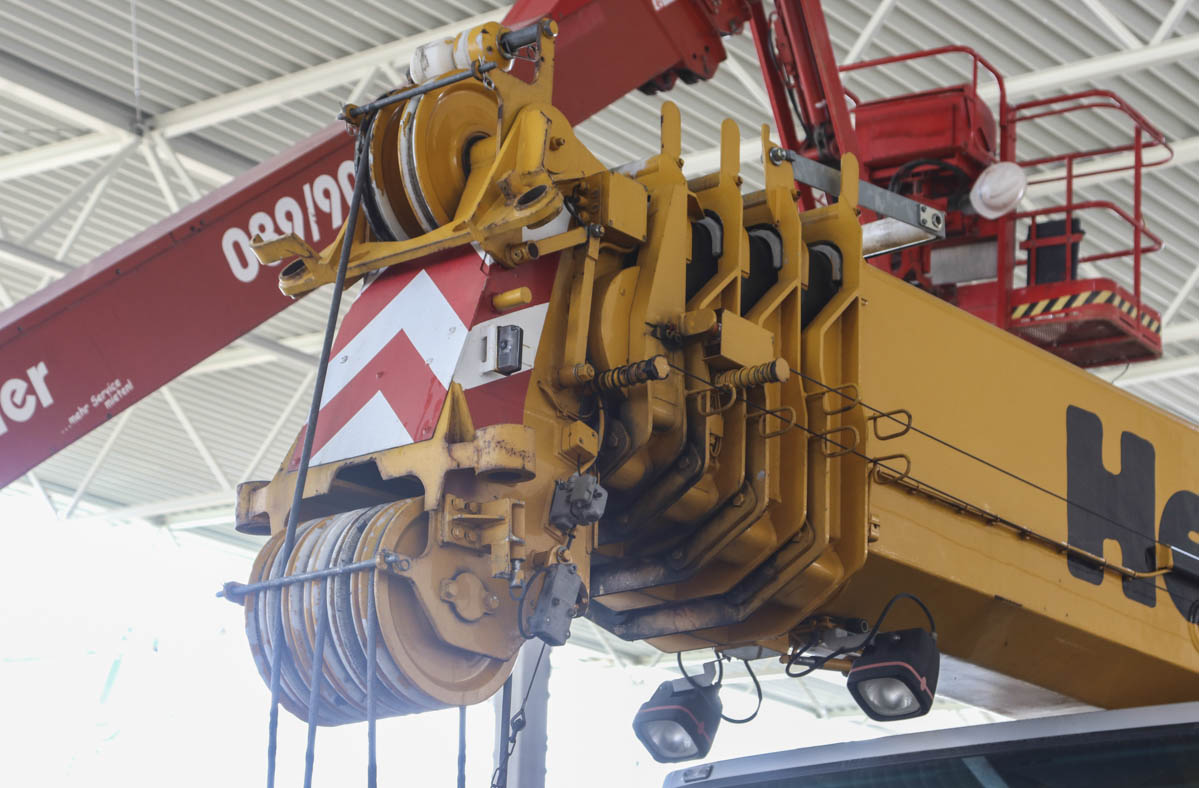

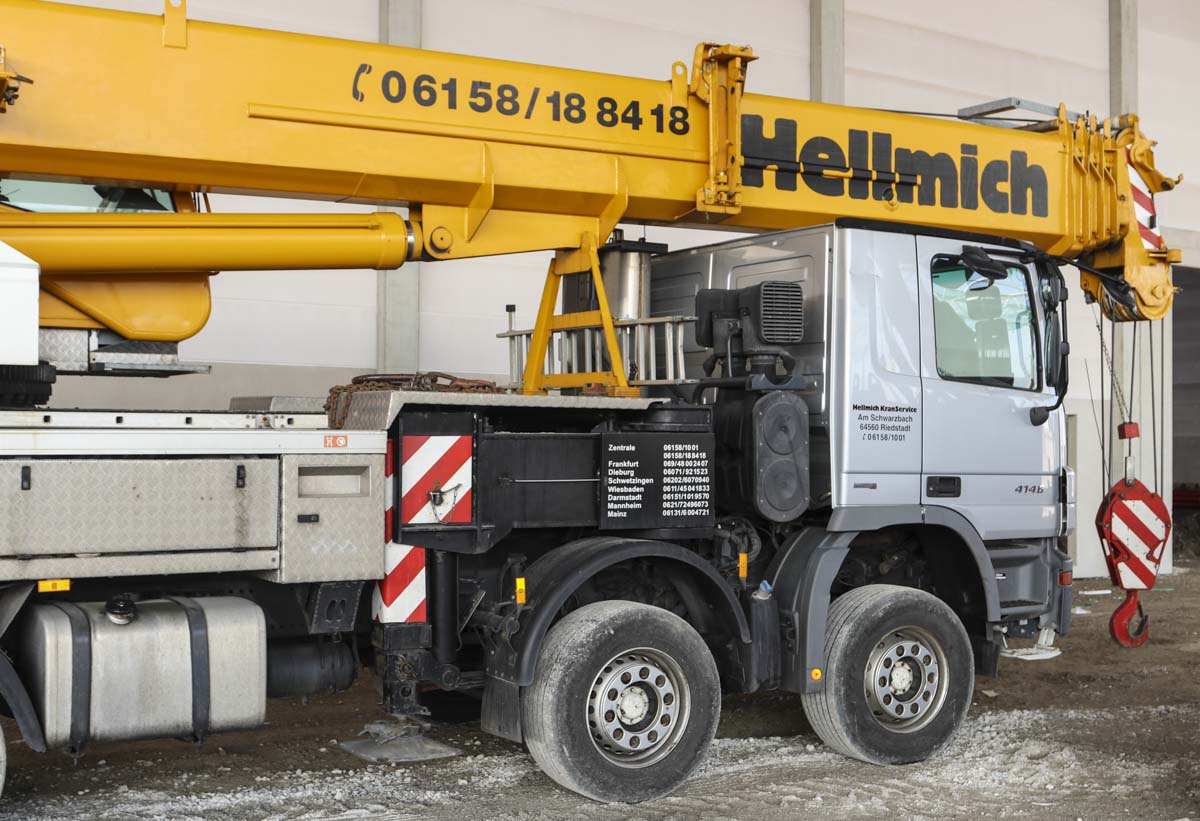

The main boom has a 10.4 meter base length and extends four times to a maximum length of 40.2 meters. Optionally can the 9 or 16 meter long jib be installed to the main boom head and is under 0, 20 oder 40 degrees mountable.

A sharp crane of Hellmich!
