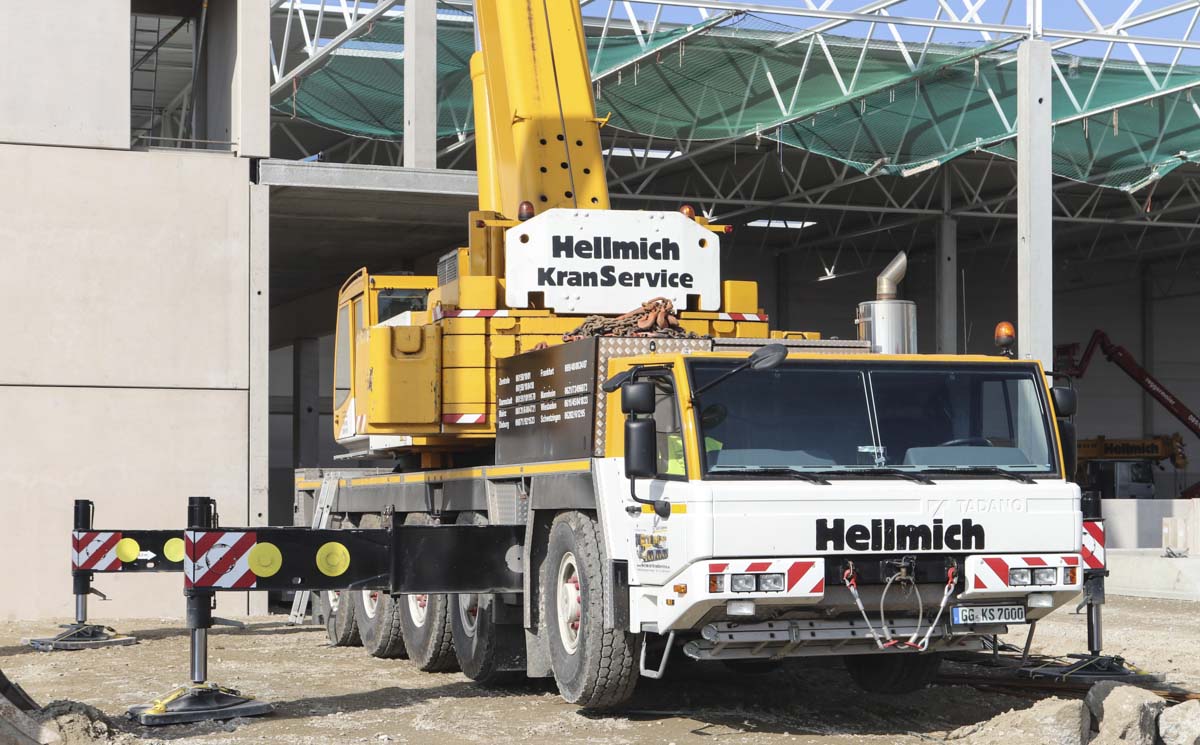

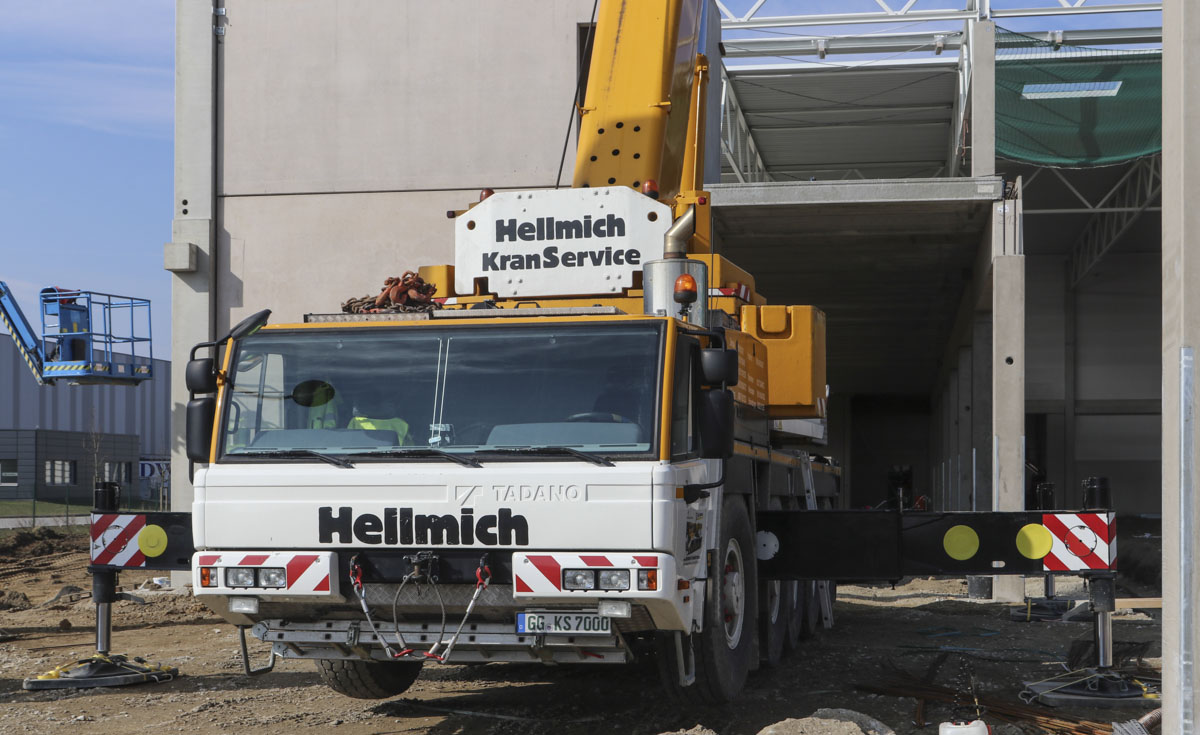

This sharp Tadano ATF 110G-5 of Hellmich Kranservice from Riedstadt-Erfelden (DE) was used on a construction site in Augsburg (DE) for the installation of precast concrete elements. It is a 110-tonne crane with year of manufacture 2015.

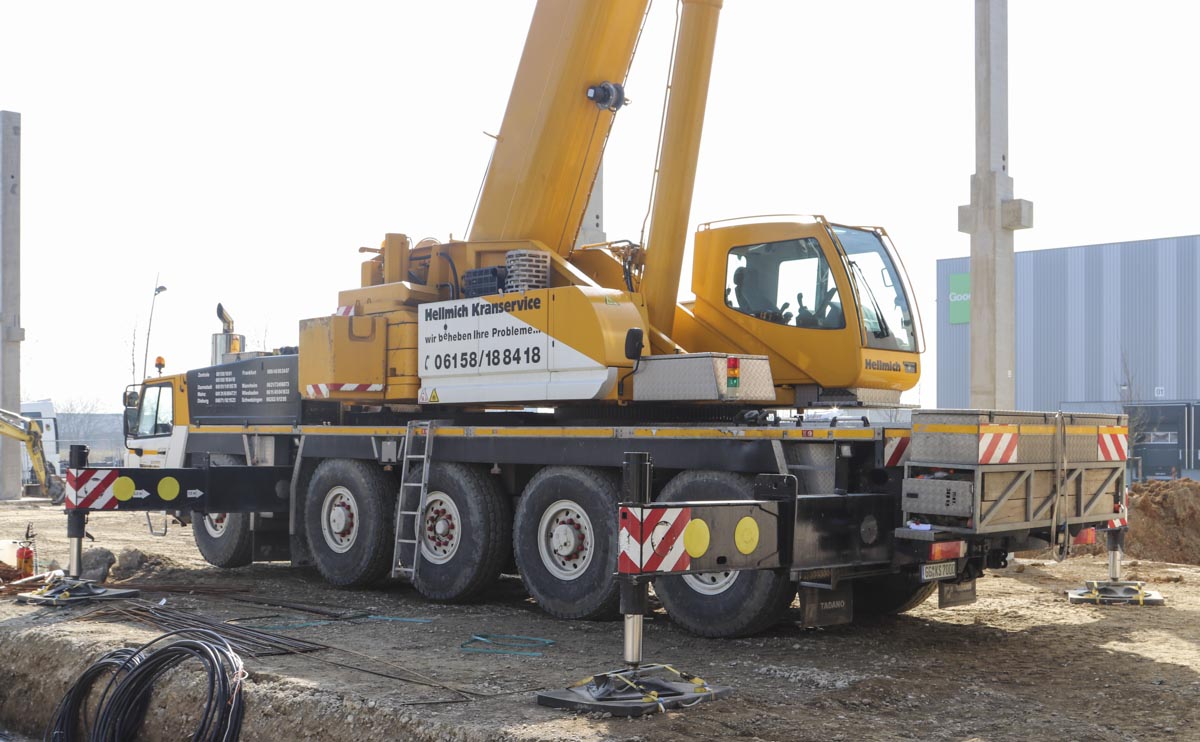

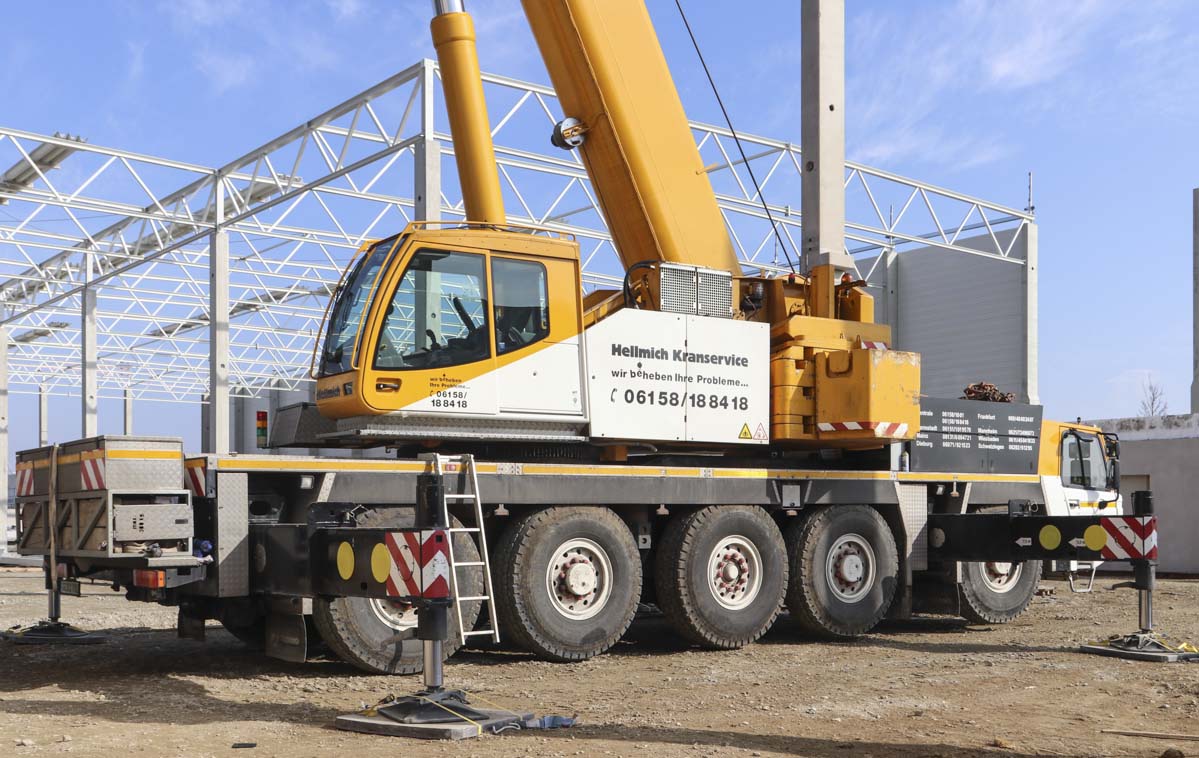

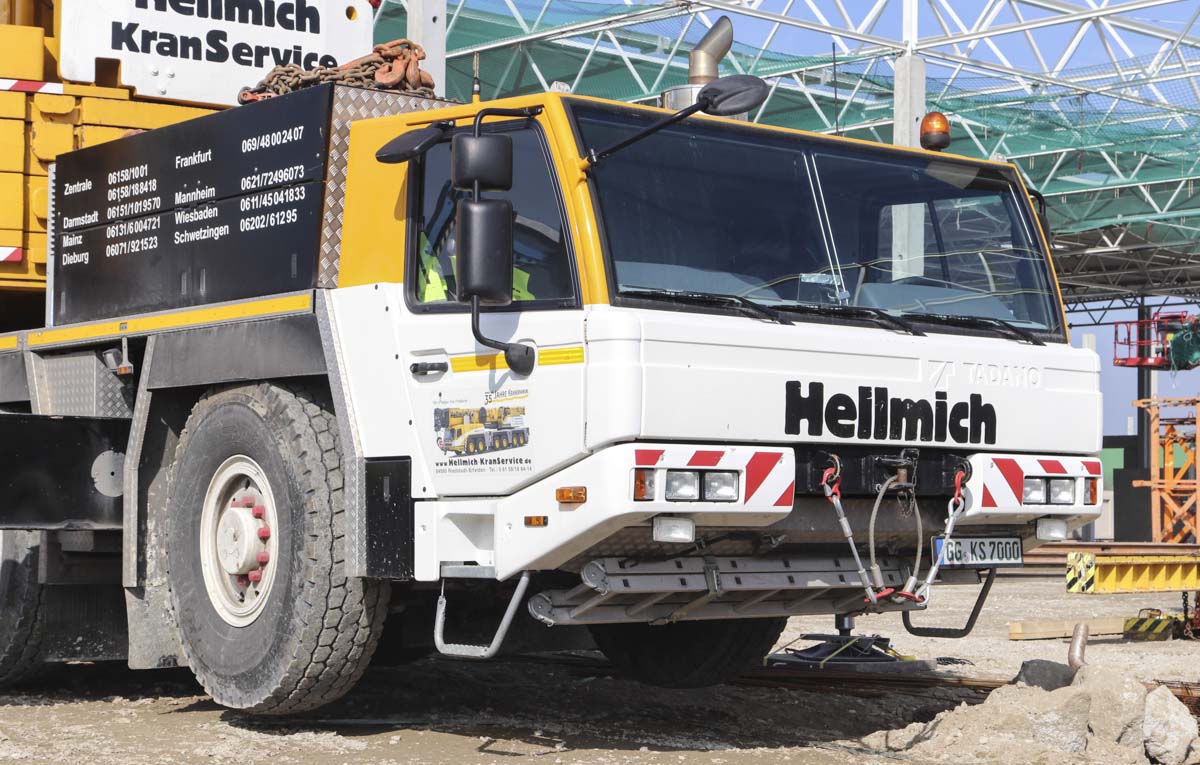

The undercarriage is powered by a Mercedes-Benz OM 502 LA, an 8-cylinder diesel engine with a power of 390 kW (530 hp). The undercarriage has a 10x8x8-drive line, where the axles 1, 2, 4 and 5 are powered and steerable. The third axle is rigid and can be lifted.

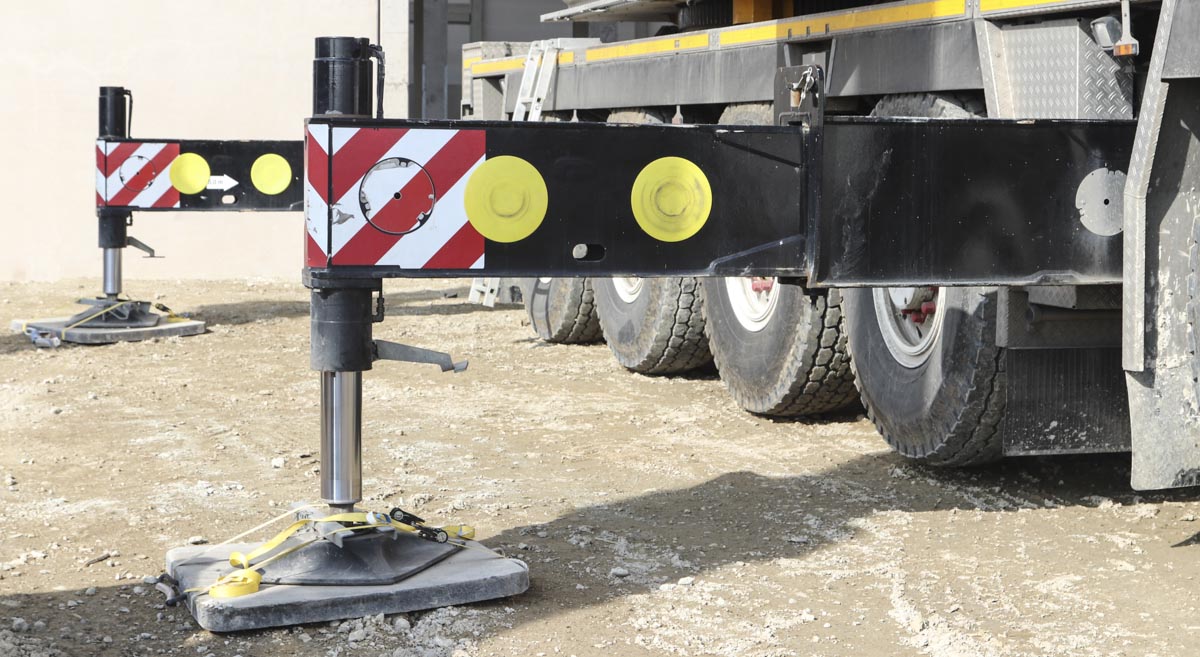

The outrigger base measures 7.75 x 7.5 meters, or half 7.75 x 5.02 meters. The smaller outrigger pads are attached to the outriggers, to make relocation on the job site easier and faster.
In transit is the crane 14.91 meters long, 2.75 meters wide and 4 meters tall. The transport mass of the crane is around 60 tonnes.
Hellmich is deploying multiple Tadano ATF 110G-5 cranes.

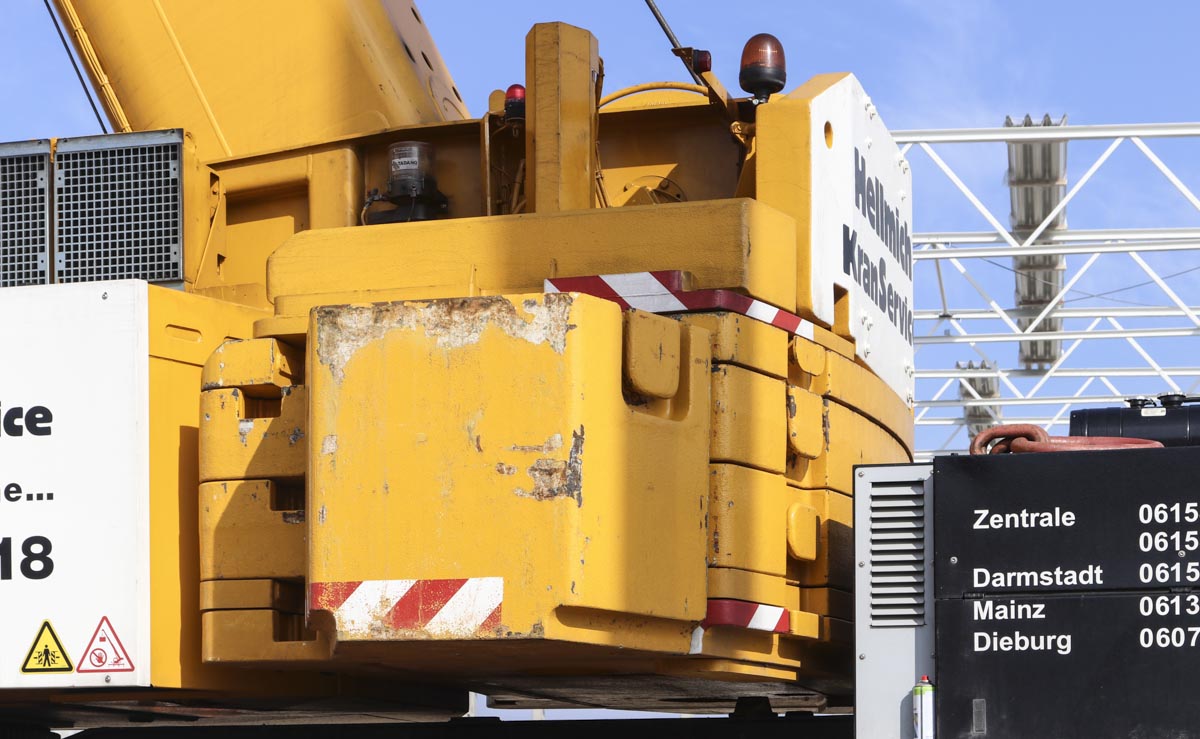

The crane was fitted with the full counterweight of 35 tonnes. The counterweight has a 4.1 meter tailswing.

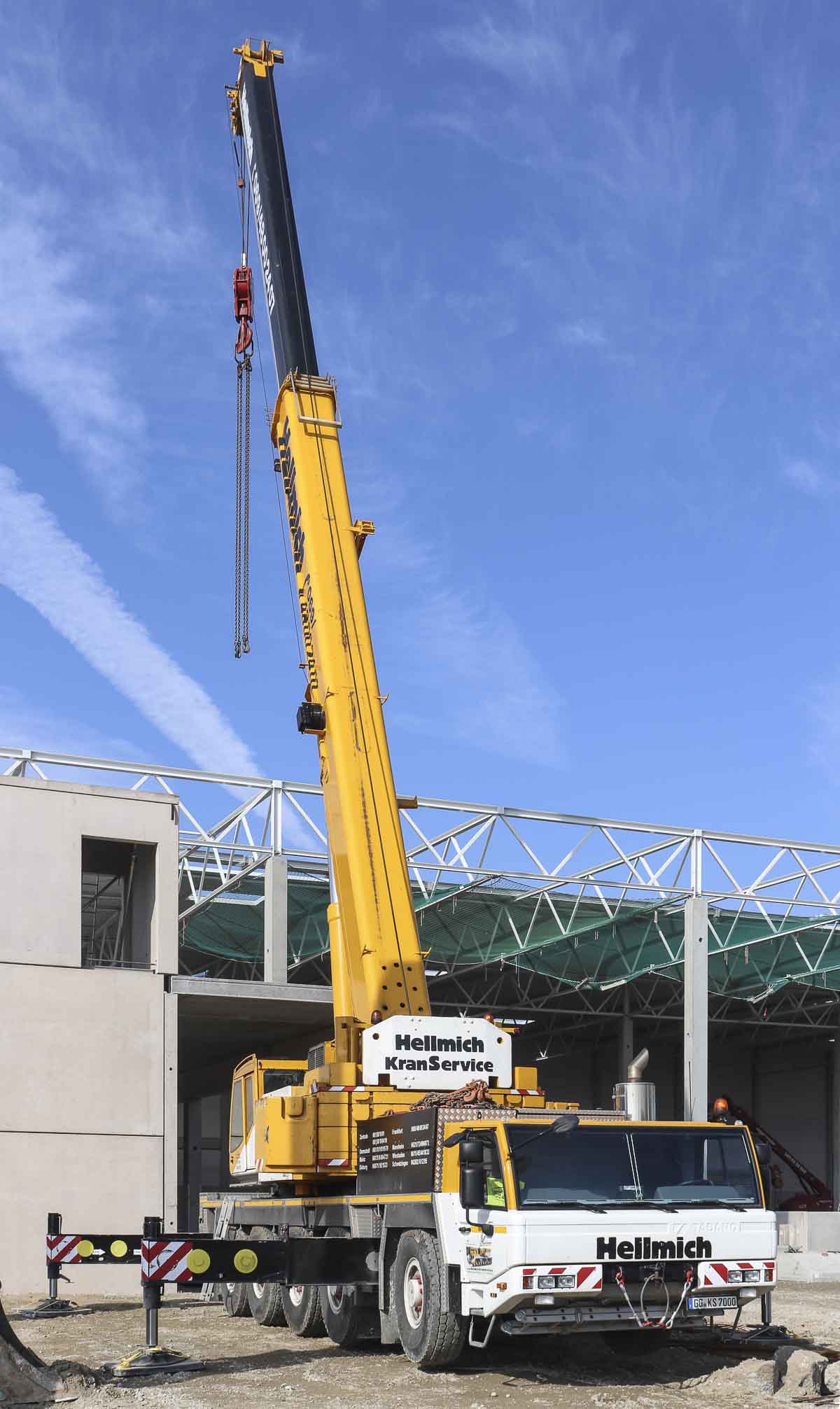

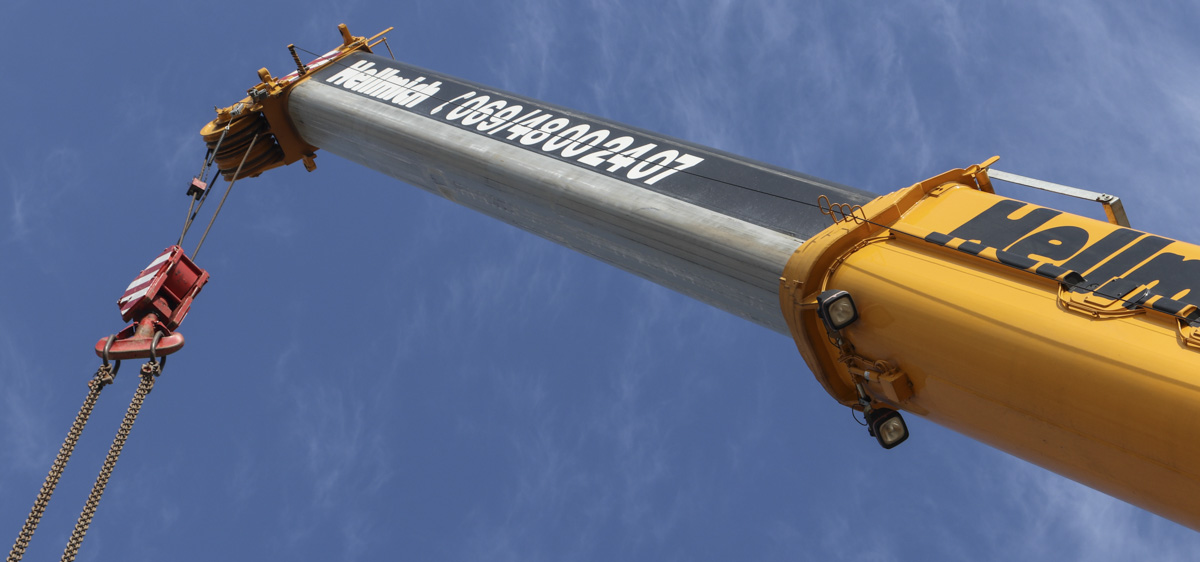

The main boom has a 13 meter base length and extends four times to a full length of 52 meters. The main boom can be extended by a maximum 30.1 meter long lattice jib.
A sharp crane in the colours of Hellmich!
