Zoomlion QY25E - Lin Sheng

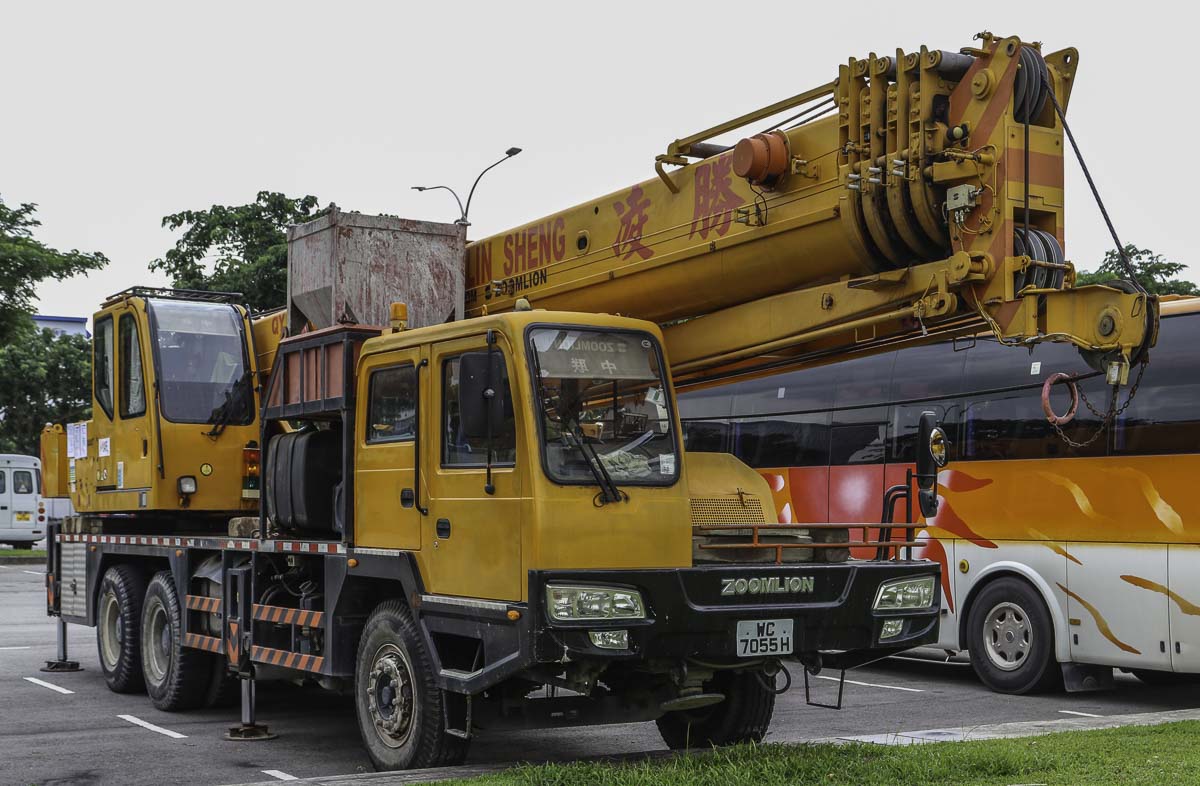

This Zoomlion QY25E belongs to Lin Sheng from Singapore (SG). It is a 25-tonne truck crane mounted on a 3-axle undercarriage with year of manufacture 2013.

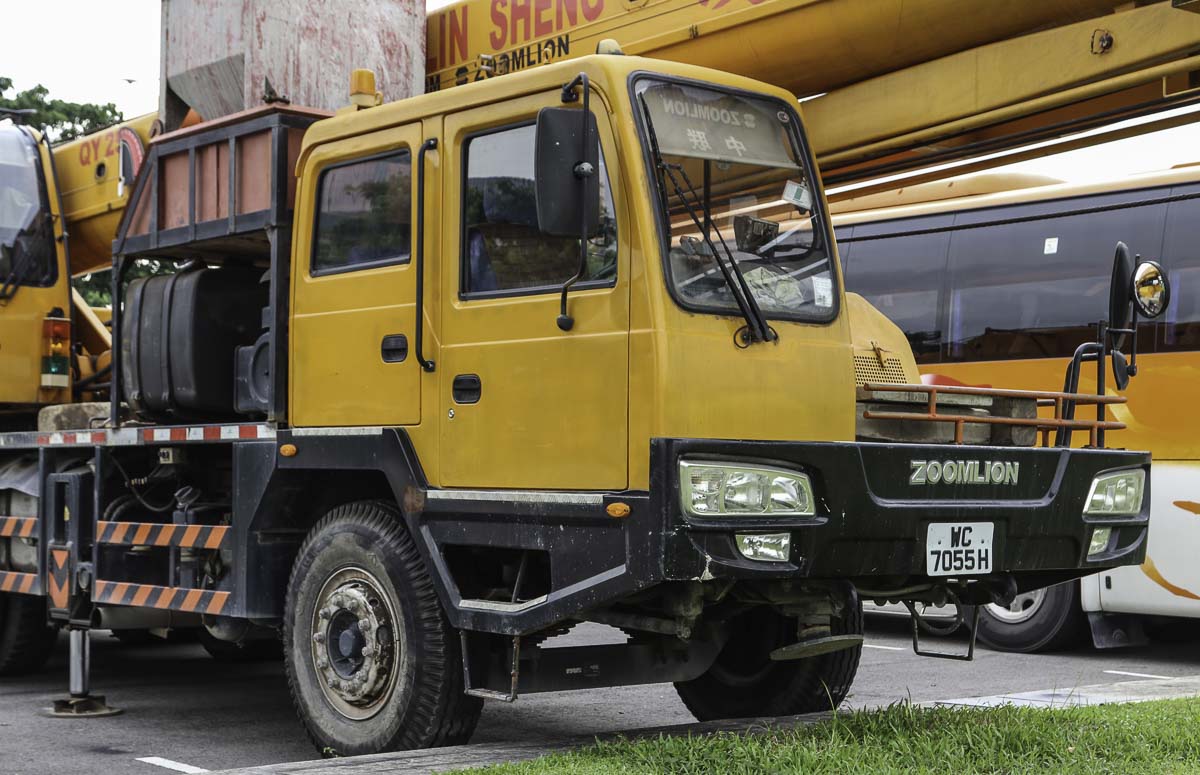

The 3-axle undercarriage is powered by a Wechai WP7.270E40 diesel engine with a power of 201 kW (270 hp). Both rear axles are powered, only the front axle is steerable.
In transit is the crane 12.9 meters long, 2.55 meters wide and 3.5 meters tall. The total mass of the crane is 31.87 tonnes.

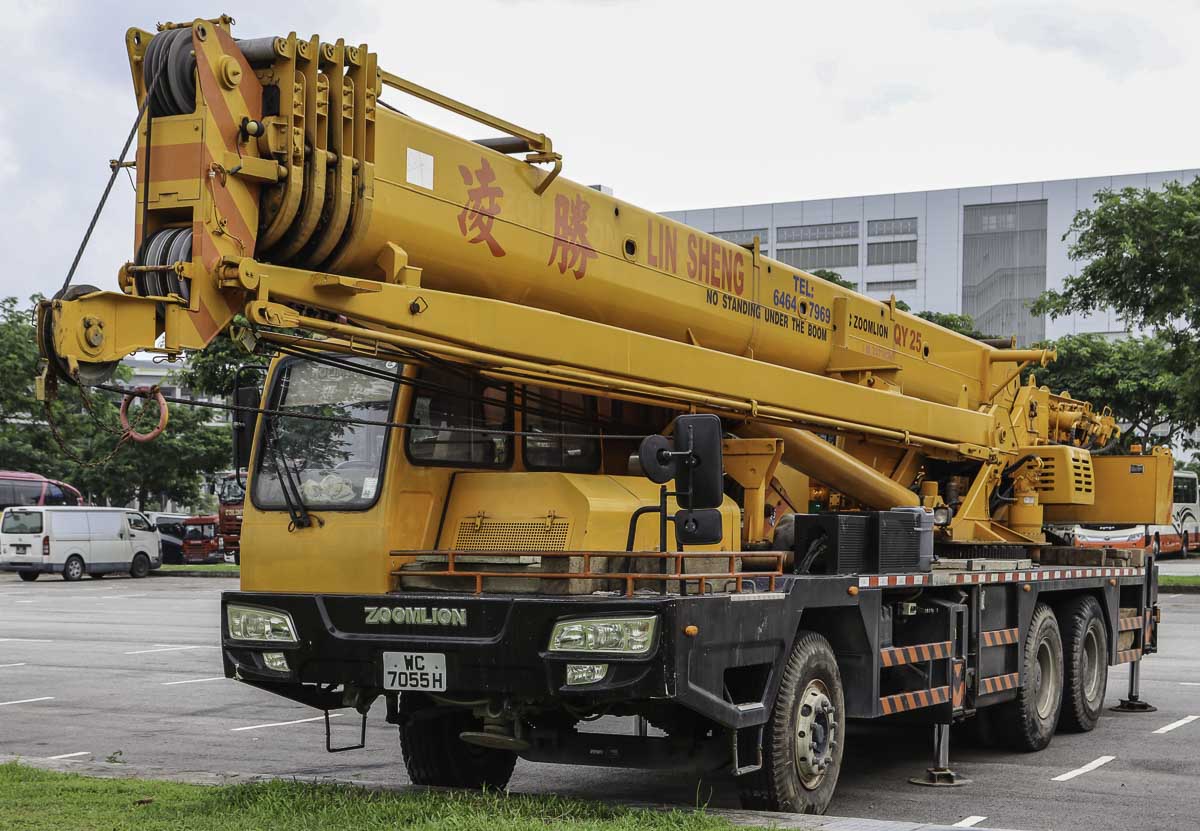

The 5-part main boom has a 10.5 meter base length and extends four times to a maximum length of 33.3 meters. The main boom can be extended by an 8 meter long jib, the jib is mountable under a 0 or 30 degree angle to the main boom.

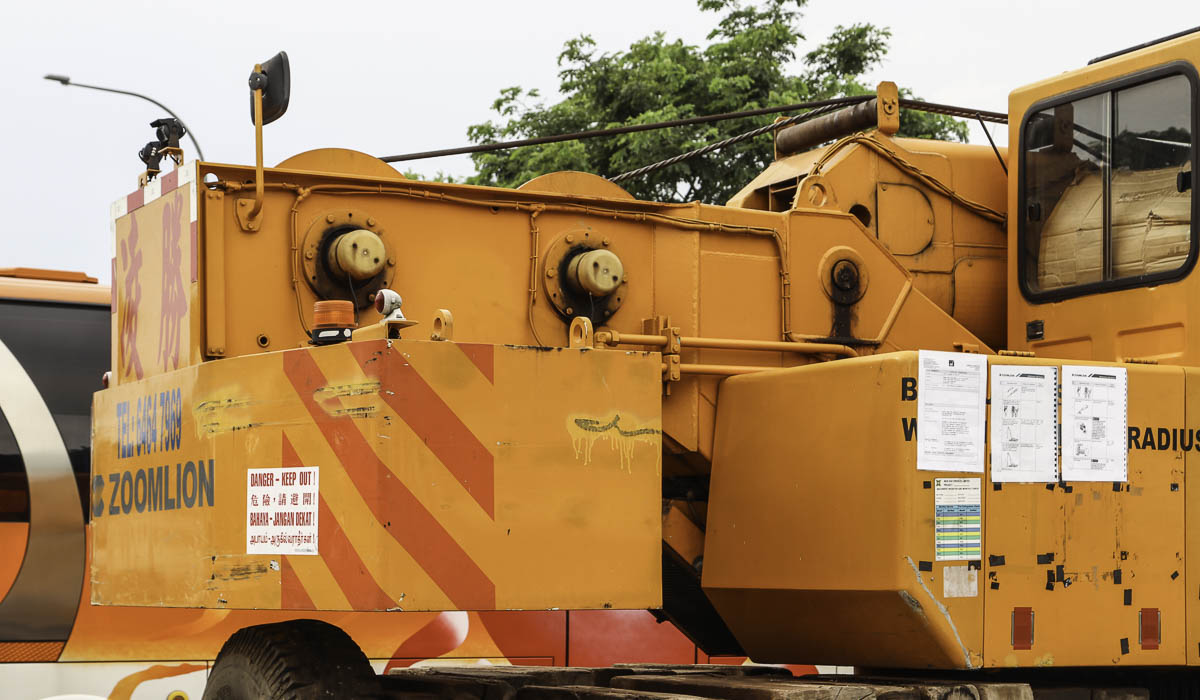

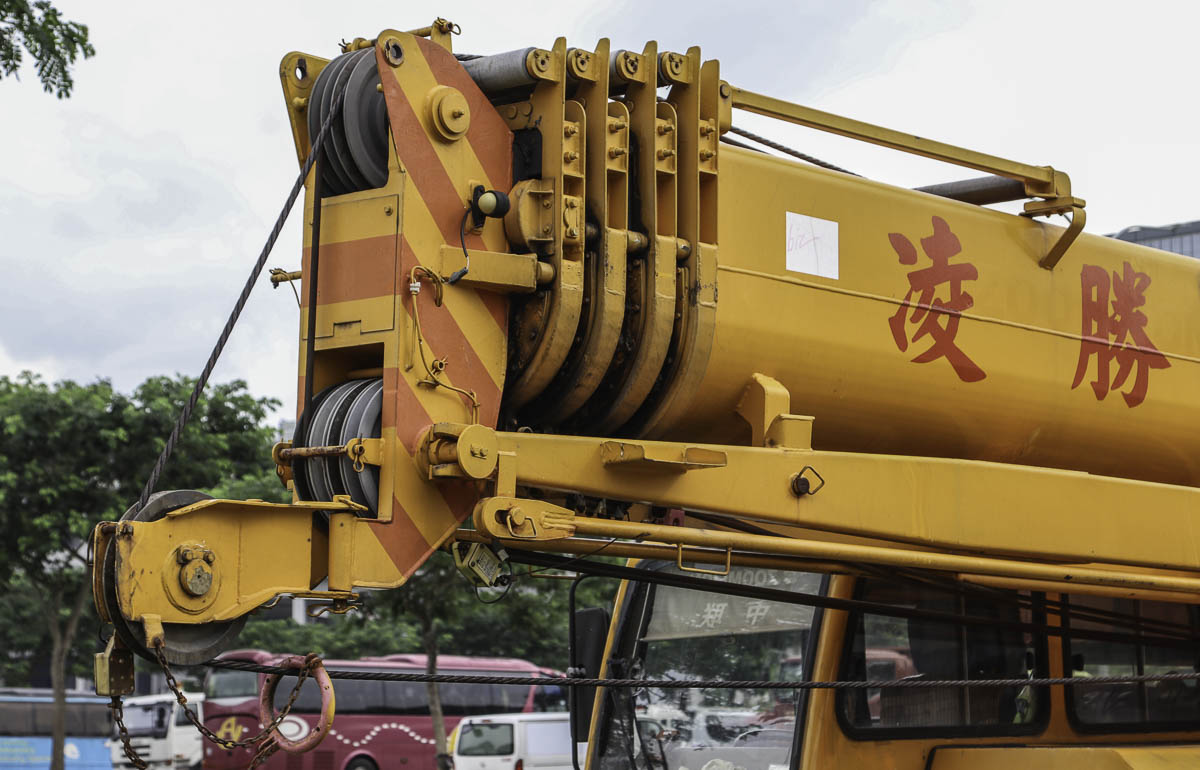

The crane is fitted with two 4-tonne hoist winches each equipped with a 17 mm hoist wire rope. During the transport over the road are both hook blocks stored on the deck, this is for a better vision from the cab during travel over the road.

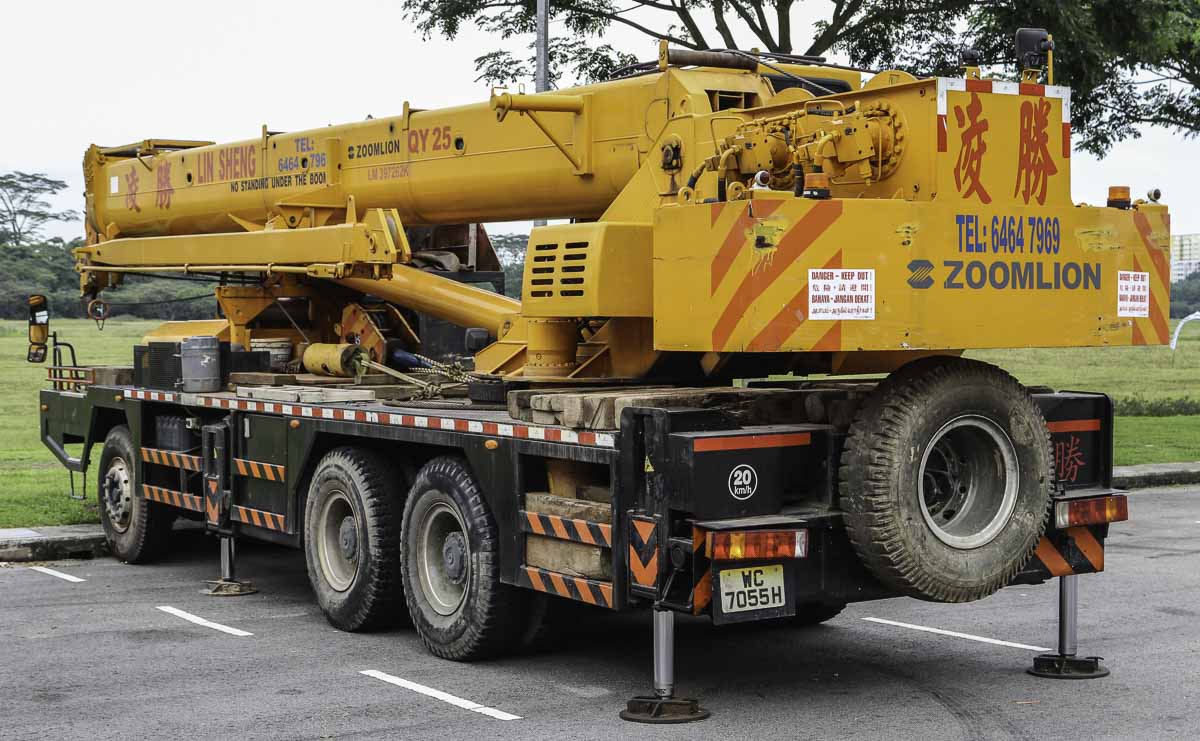

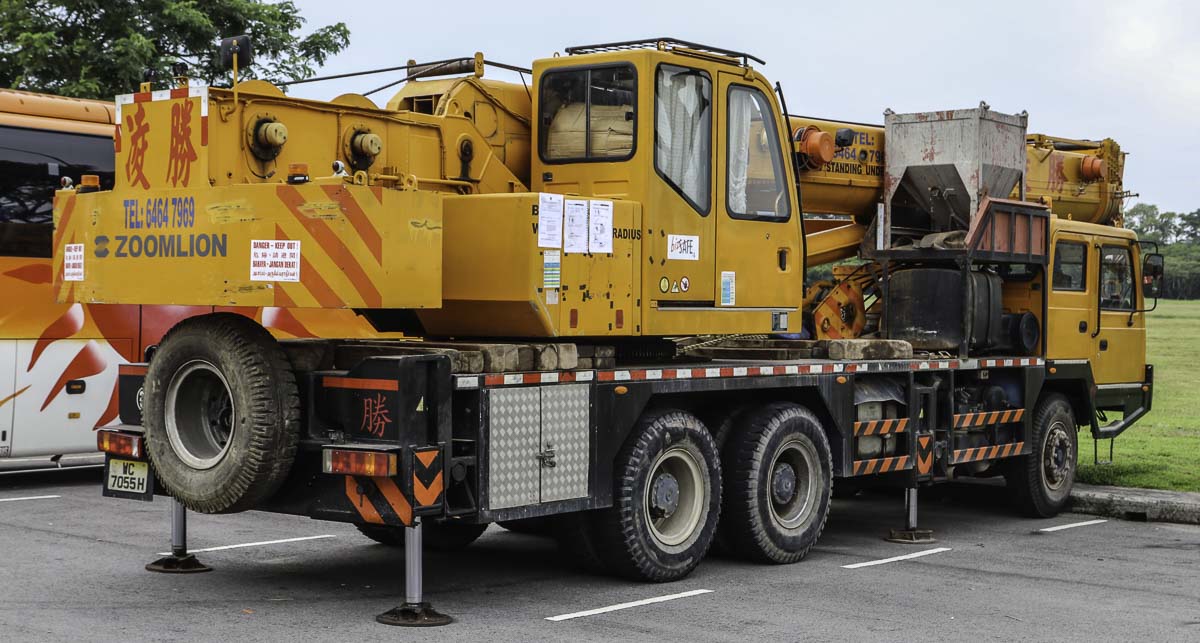

The outrigger base of the crane measures 5.36 x 6.1 meters. Below the cabin is a fifth jack mounted for incresed stability forwards.
An interesting crane of Lin Sheng!
