Terex AC 700
Tiong Woon
This very fine Terex AC 700 belongs to Tiong Woon from Singapore (SG) and was deployed there for the dismantling of a tower crane. It is a 700-tonne crane mounted on a 9-axle carrier.

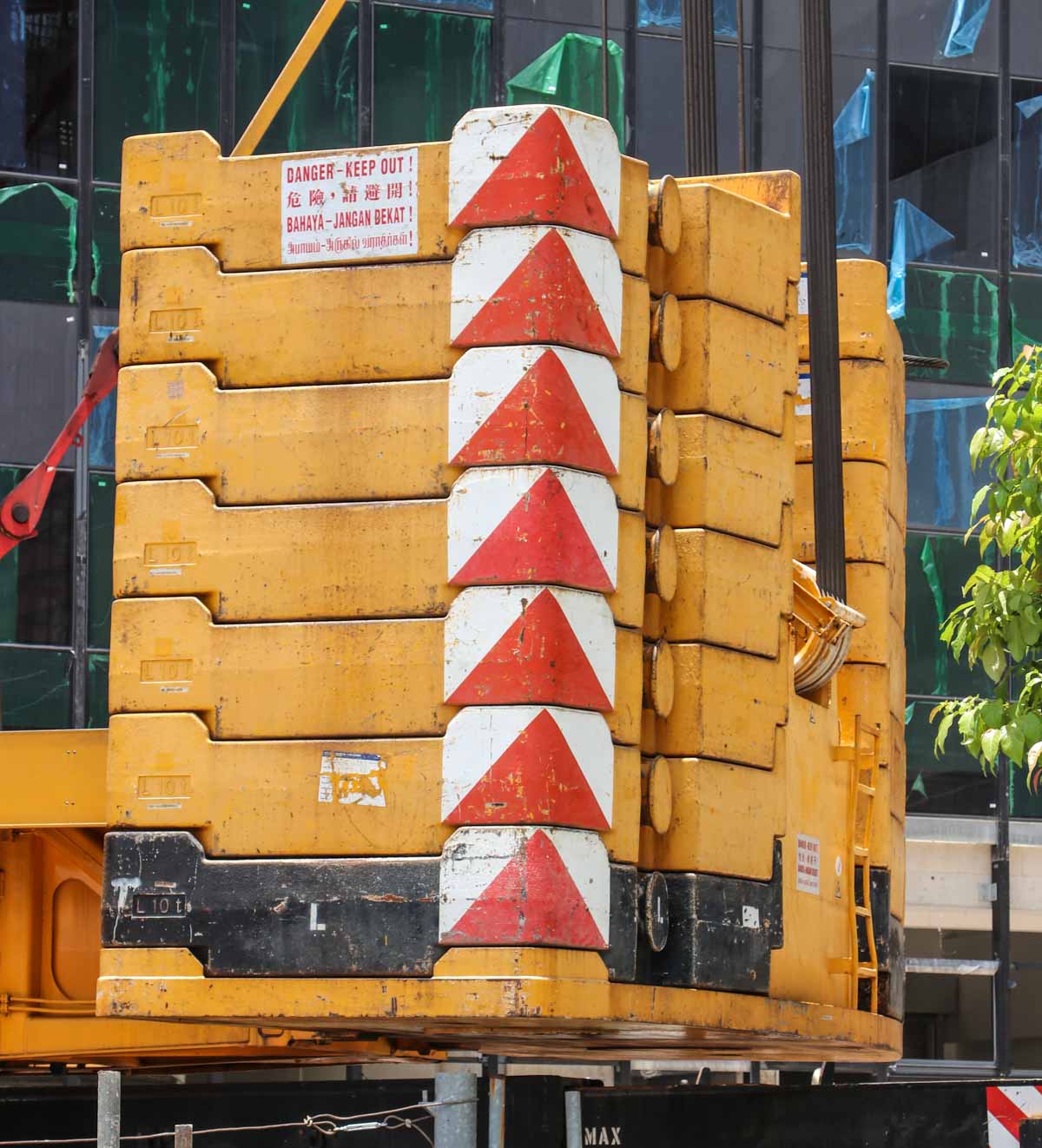

Here, the crane was erected with the full ballast of 160 tonnes; the ballast consists of a 20-tonne base plate and a total of fourteen blocks of 10 tonnes each. The ballast has a slewing radius of 7.5 metres.

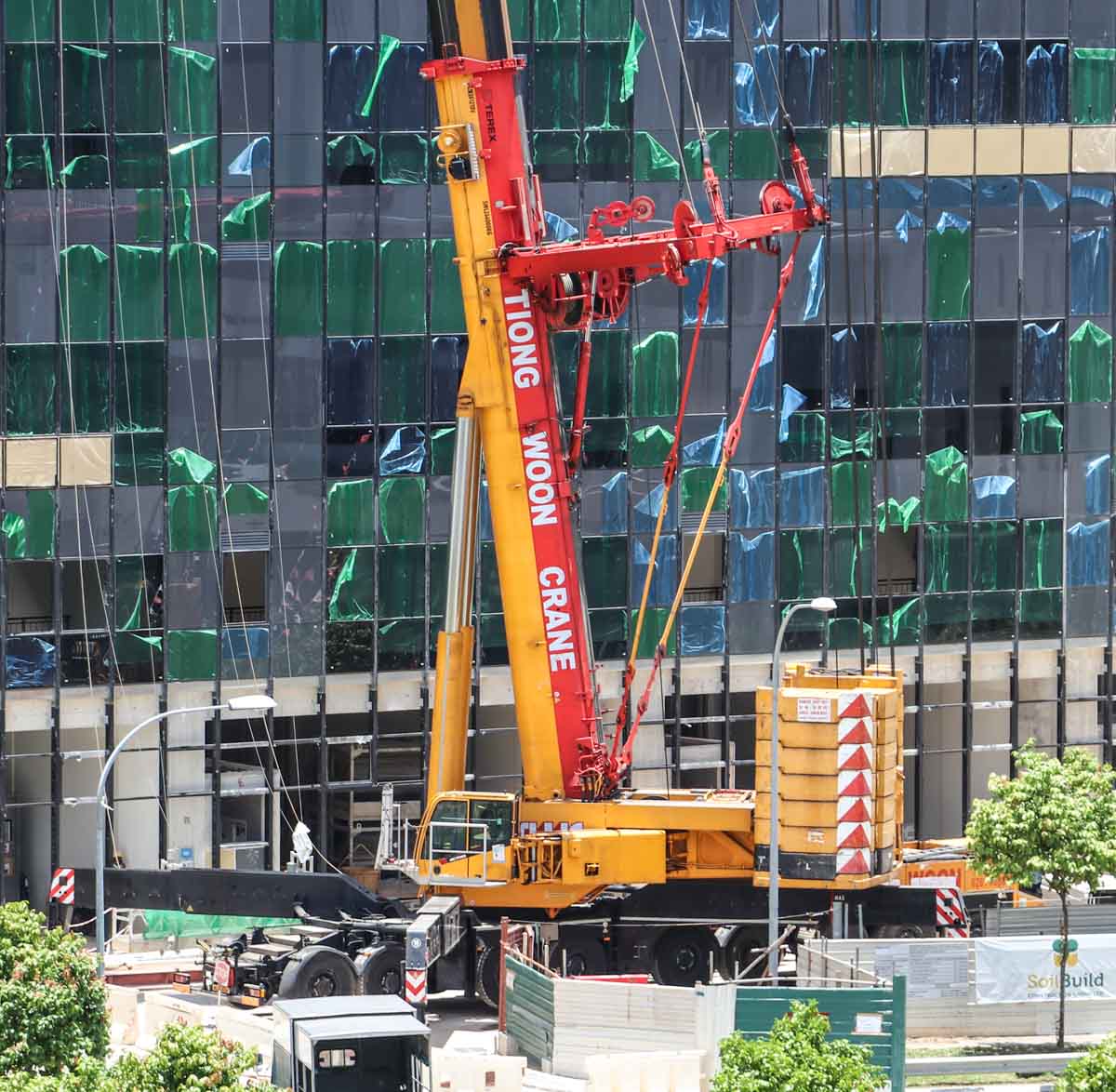

Here, the crane was set up in WIHISSL configuration, with a luffing jib mounted on the guyed main boom. The main boom was telescoped to a length of 55.5 metres.

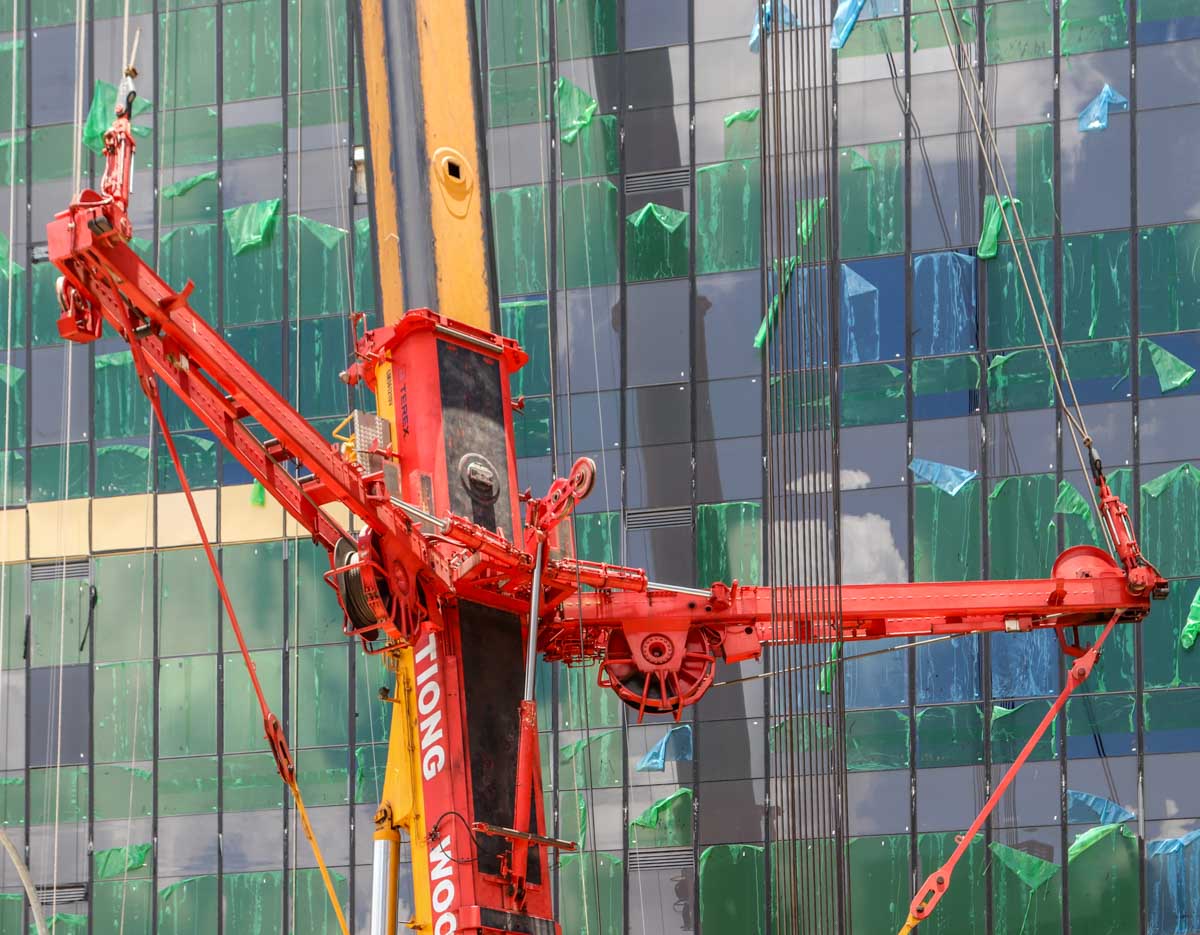

The arms of the SSL guying system are each opened to 60 degrees here.
The outrigger base measures 12.2 x 11.64 metres (front) and 12.36 metres (rear).

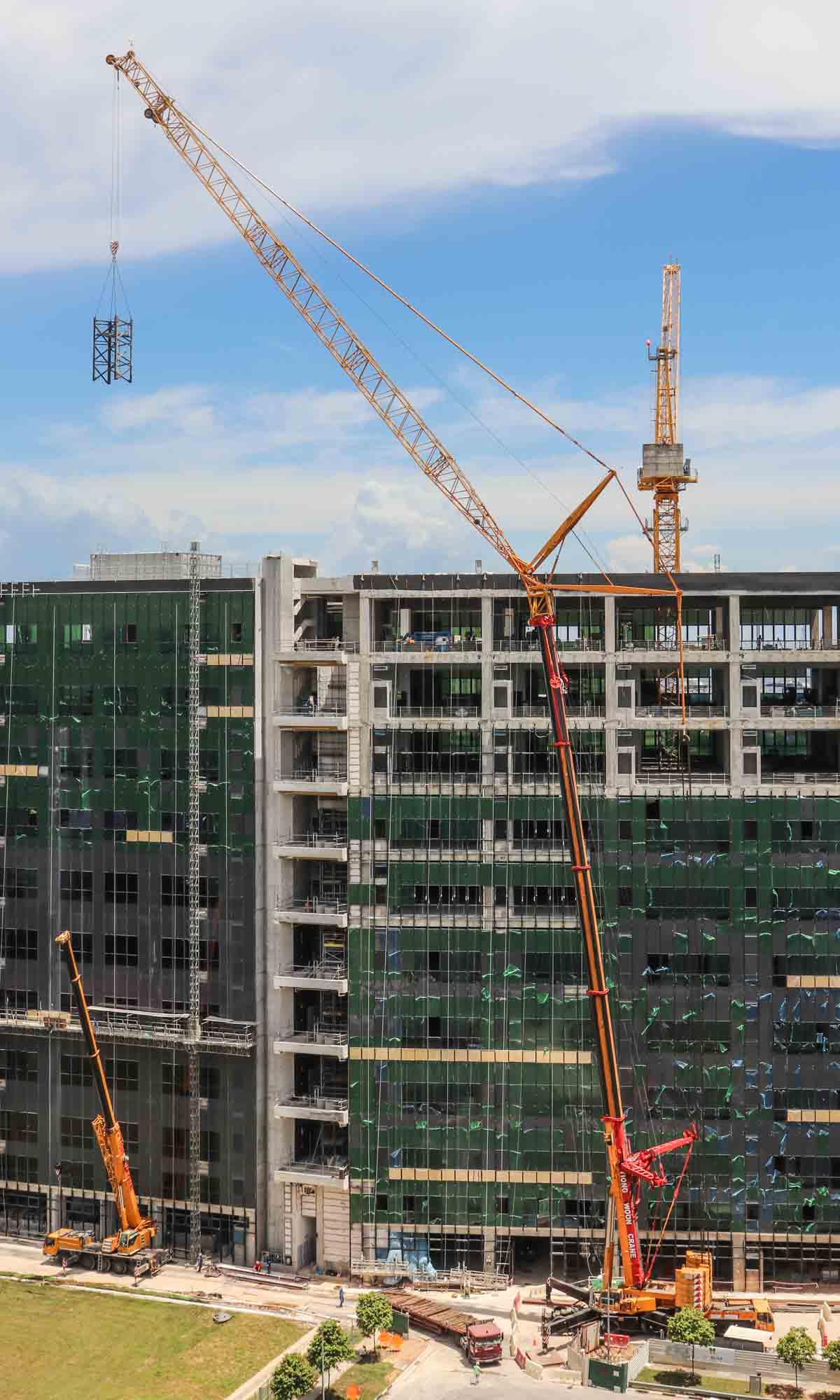

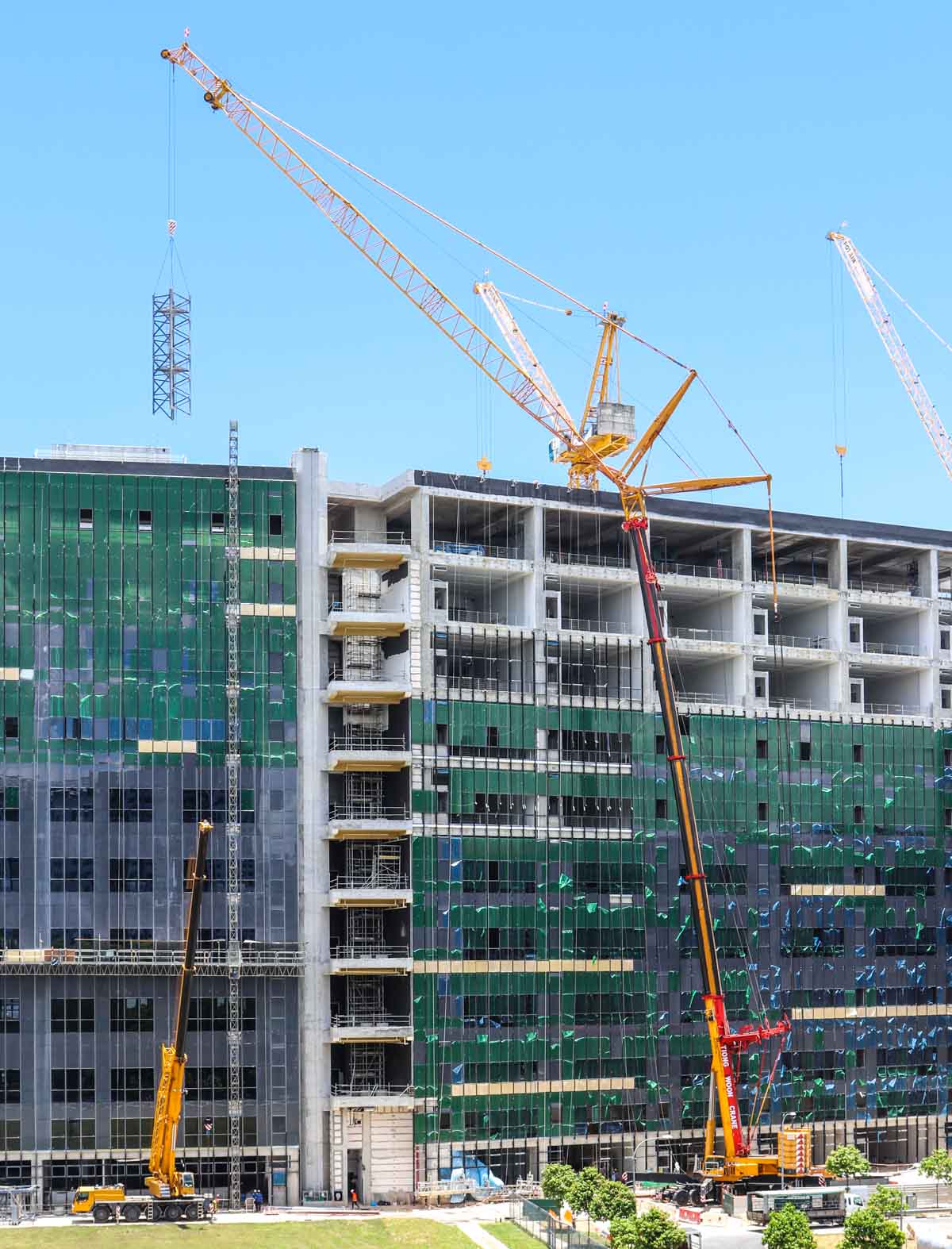

Here, the crane was used to dismantle a tower crane at large radius and height.

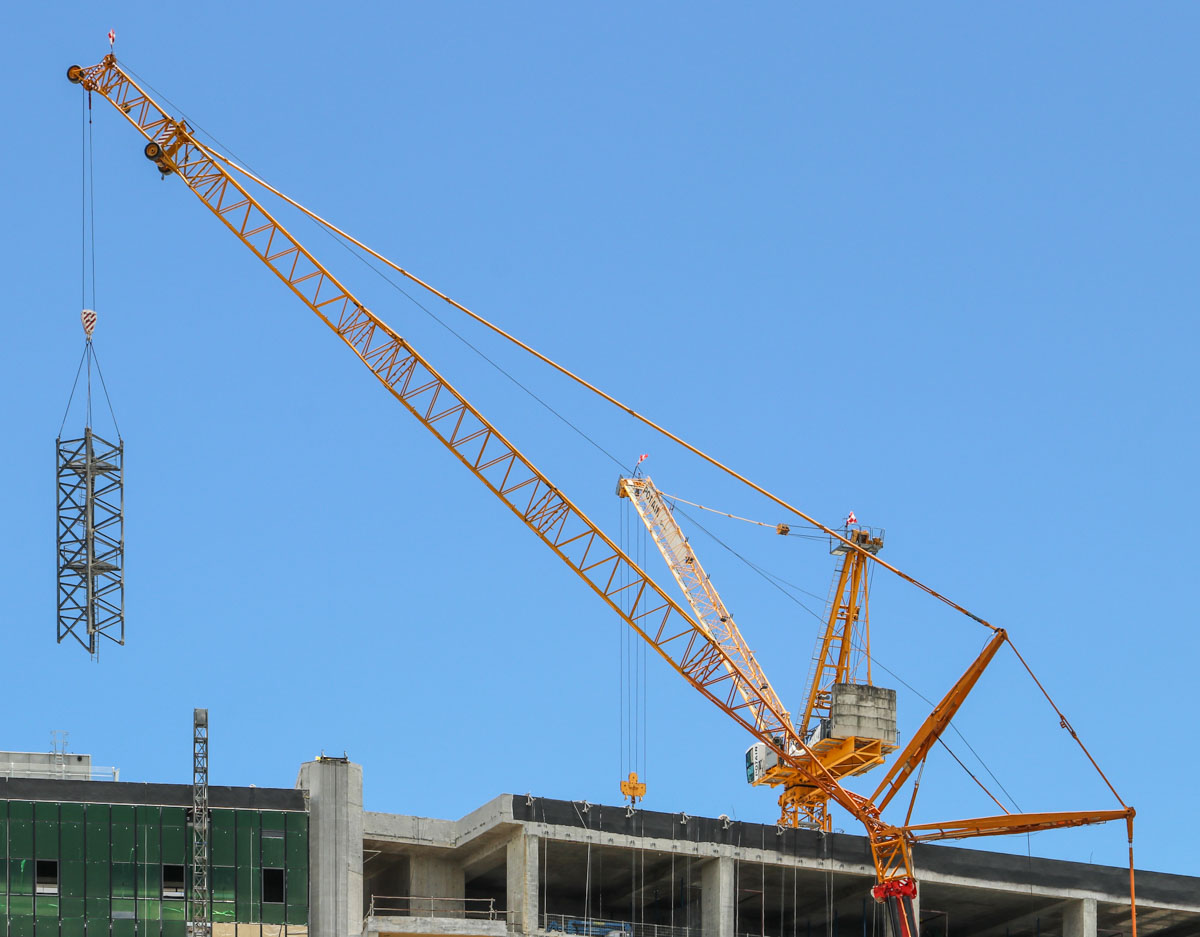

The luffing jib has a base length of 24 metres and a maximum length of 96 metres. Here, the luffing jib has a length of 60 metres.
In this configuration, the crane can lift a maximum of 21.9 tonnes at a radius of 30 metres or 12.9 tonnes up to a radius of 62 metres.

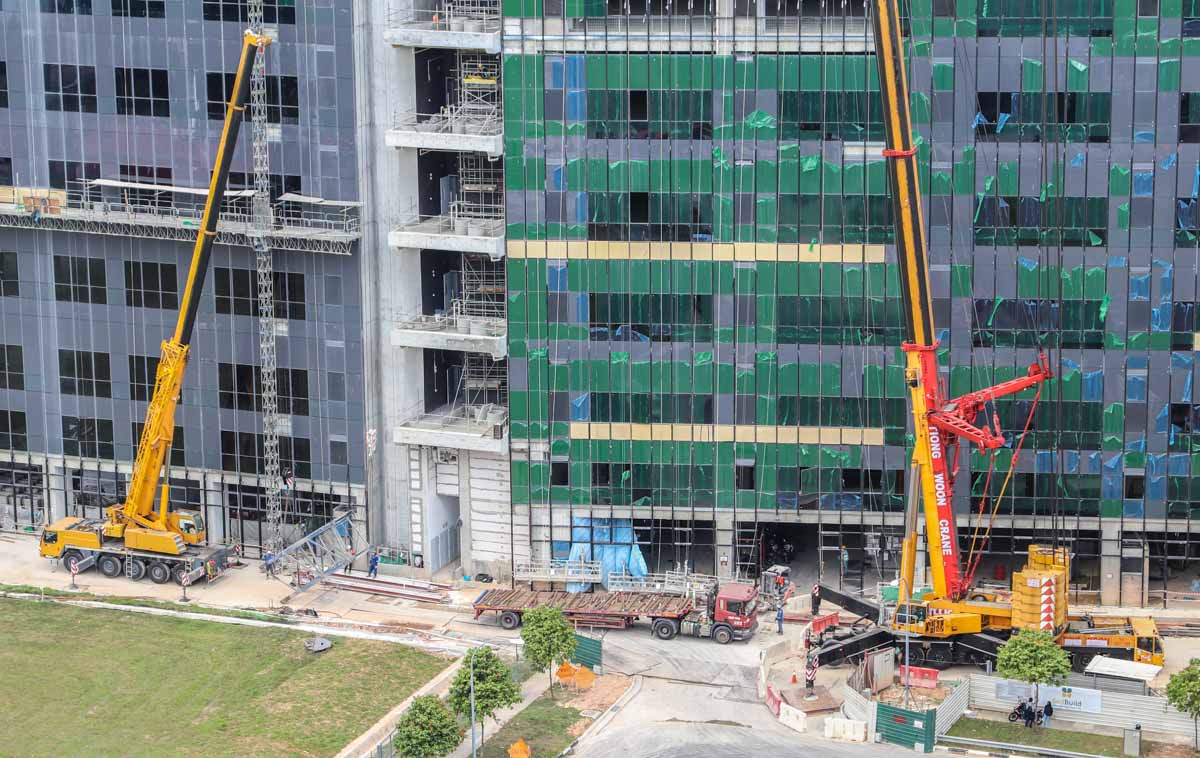

A Liebherr LTM 1100-5.1 from Tiong Woon was sent along as an auxiliary crane. An impressive crane and job by Tiong Woon!
