Terex AC 55 L
Pollisum

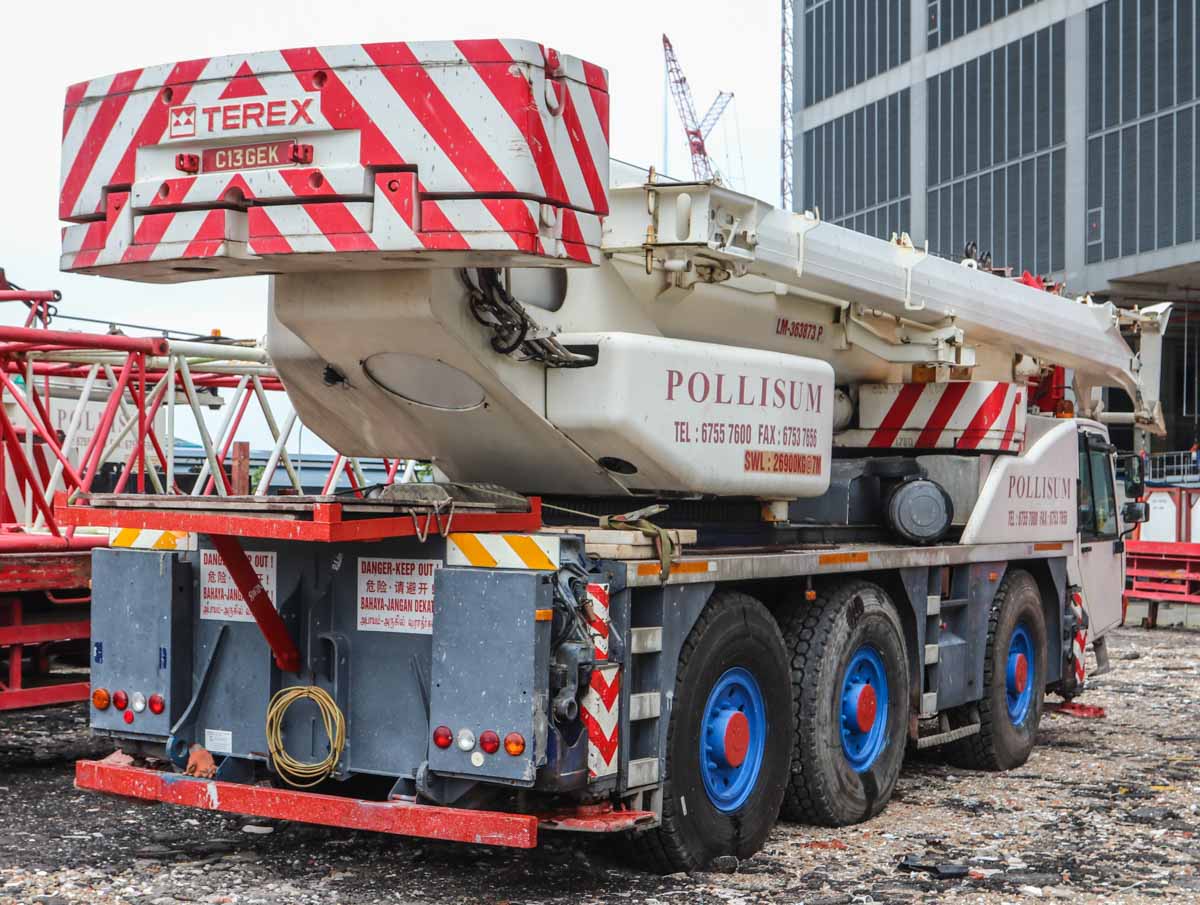

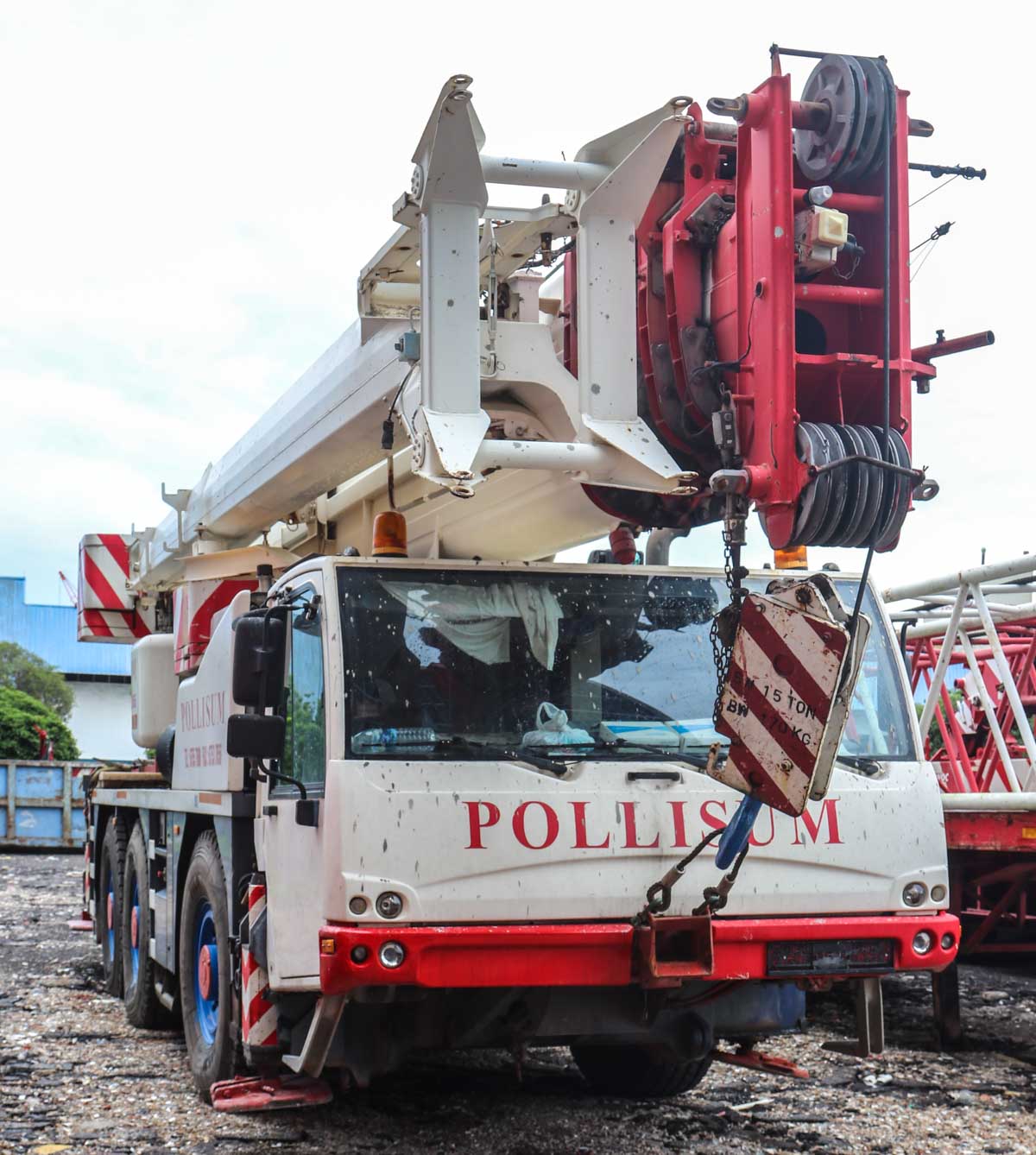

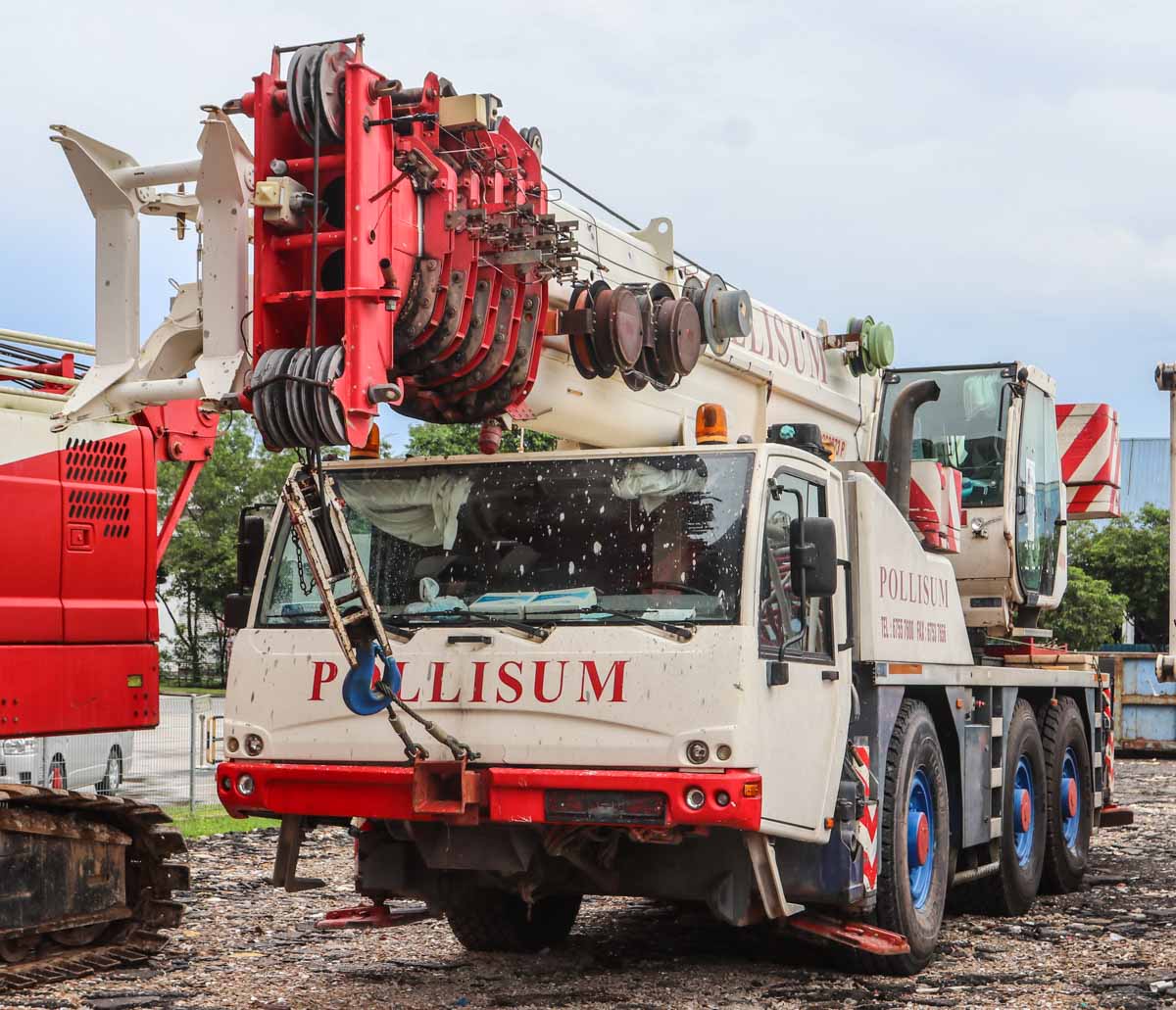

This interesting Terex AC 55 L belongs to Pollisum from Singapore (SG). It is a 55-tonne telescopic crane mounted on a 3-axle carrier. The crane was built in 2010, but has only been deployed by Pollisum since 2013.

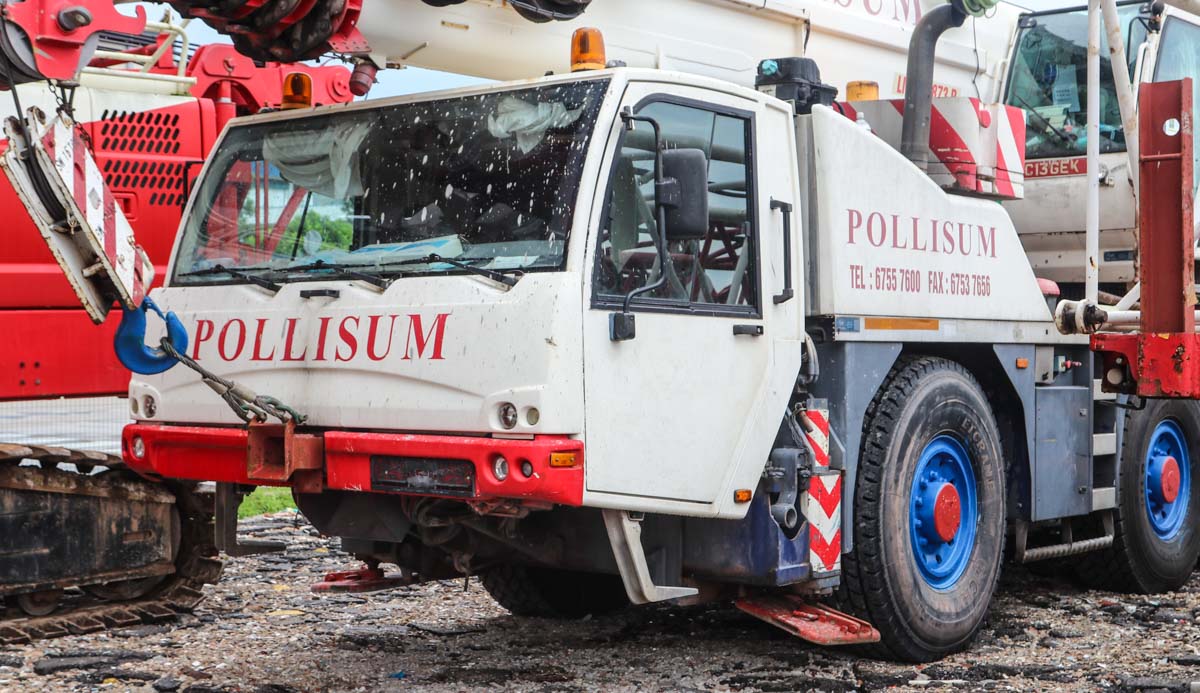

The 3-axle carrier is powered by a Mercedes-Benz OM 501 LA, an 11.9-litre 6-cylinder diesel engine with an output of 260 kW (353 hp). The carrier has 6x6x6 drive, meaning that all axles are driven and steerable. This crane does not have its own registration and is towed on the road.
In transport condition, this crane is 11.24 metres long, 2.55 metres wide and 3.9 metres high. The crane weighs approximately 42 tonnes.

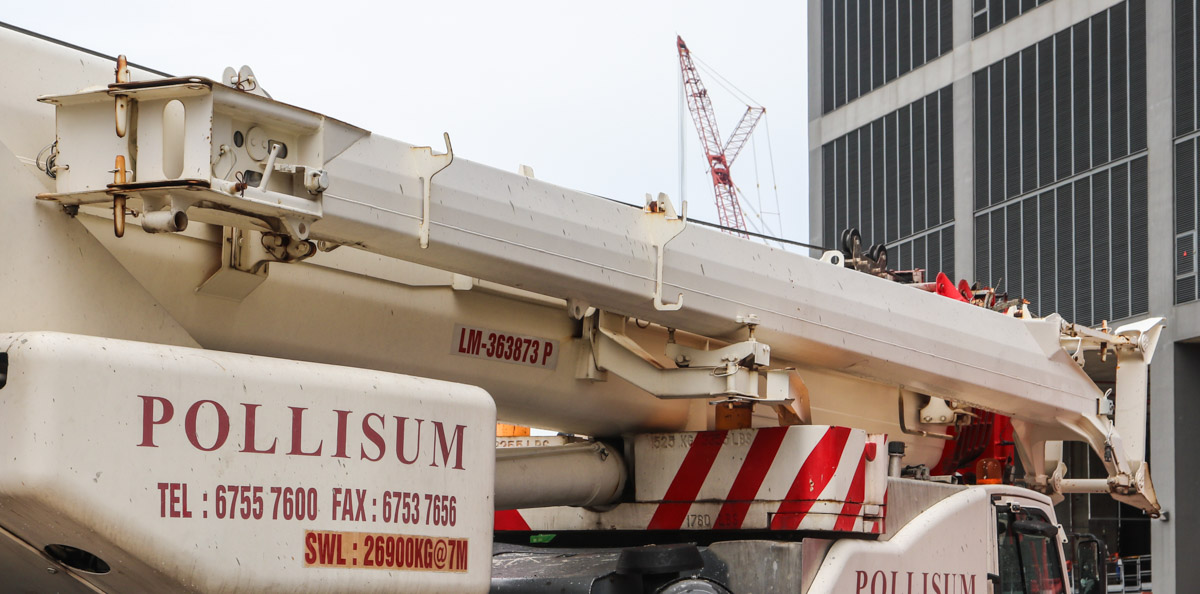

The crane has a 6-section main boom with a base length of 9.9 metres and telescopes five times to a maximum length of 44 metres.

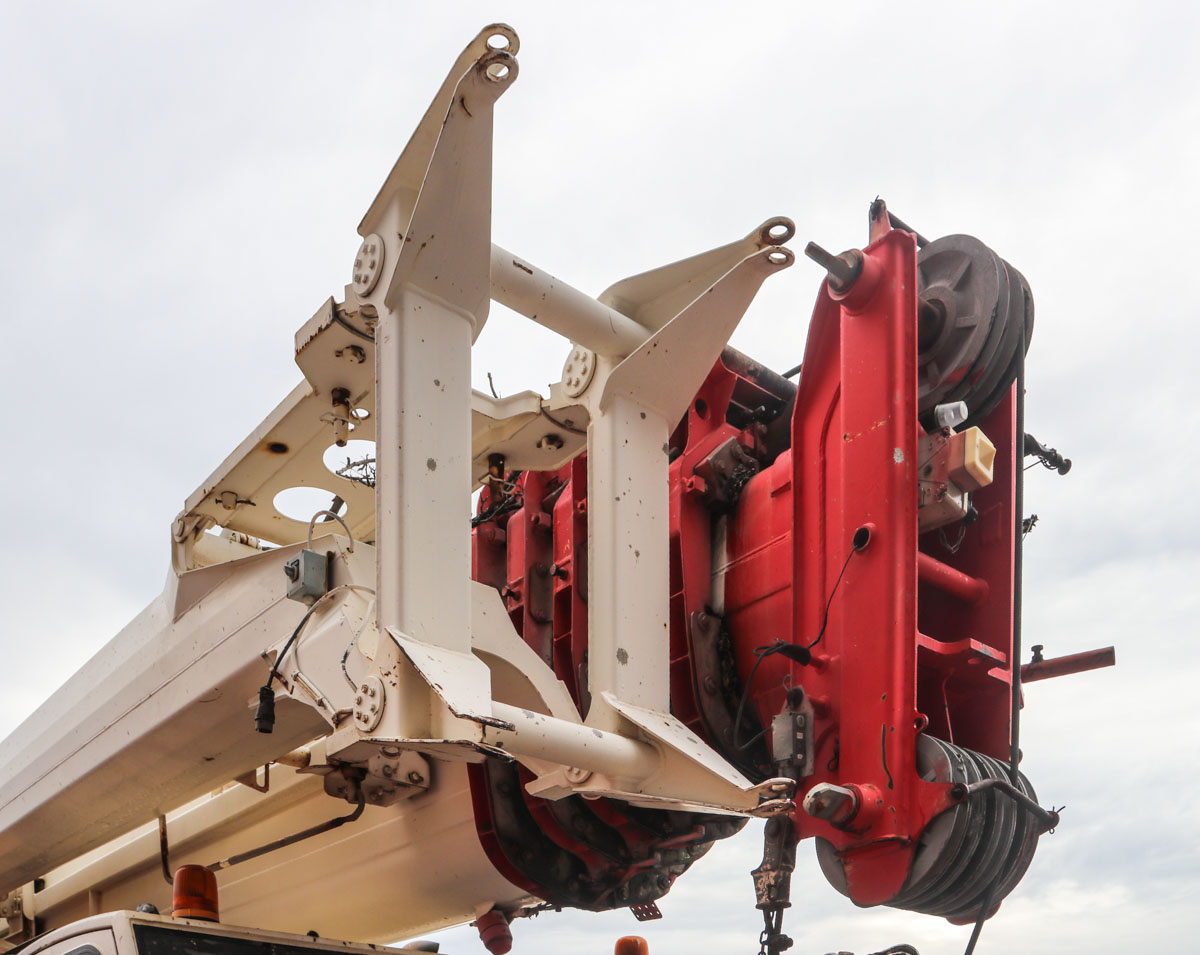

Optionally, the main boom can be extended with an 8- or 15-metre folding jib. The jib can be mounted to the main boom at an angle of 0, 20 or 40 degrees.
The outrigger base measures 7.23 x 6 metres.

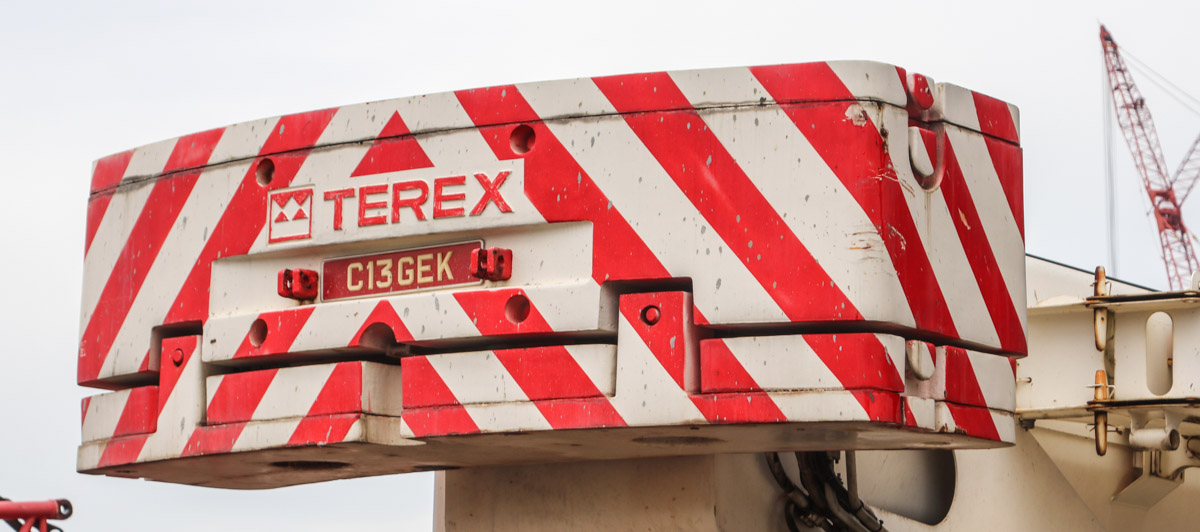

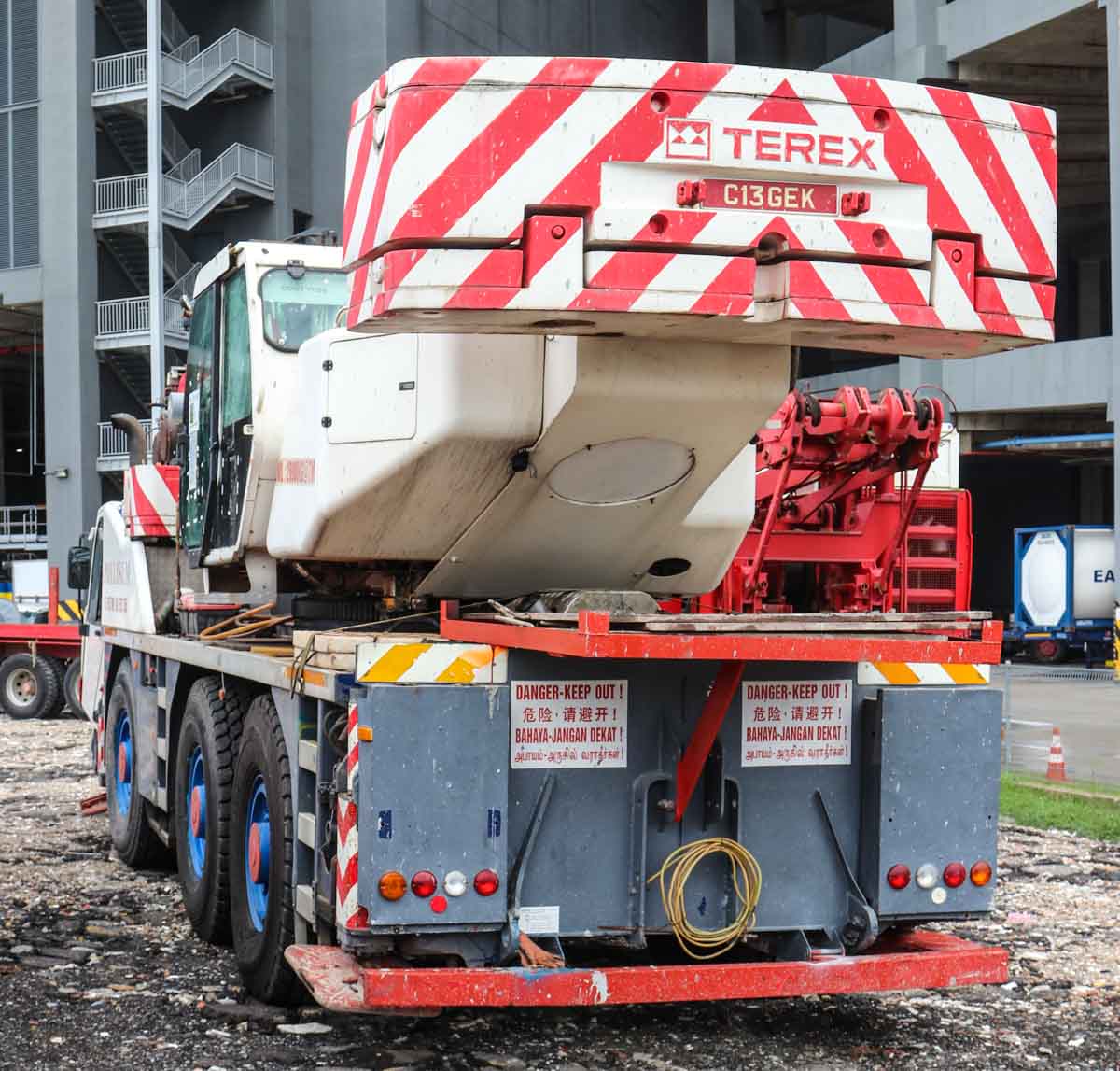

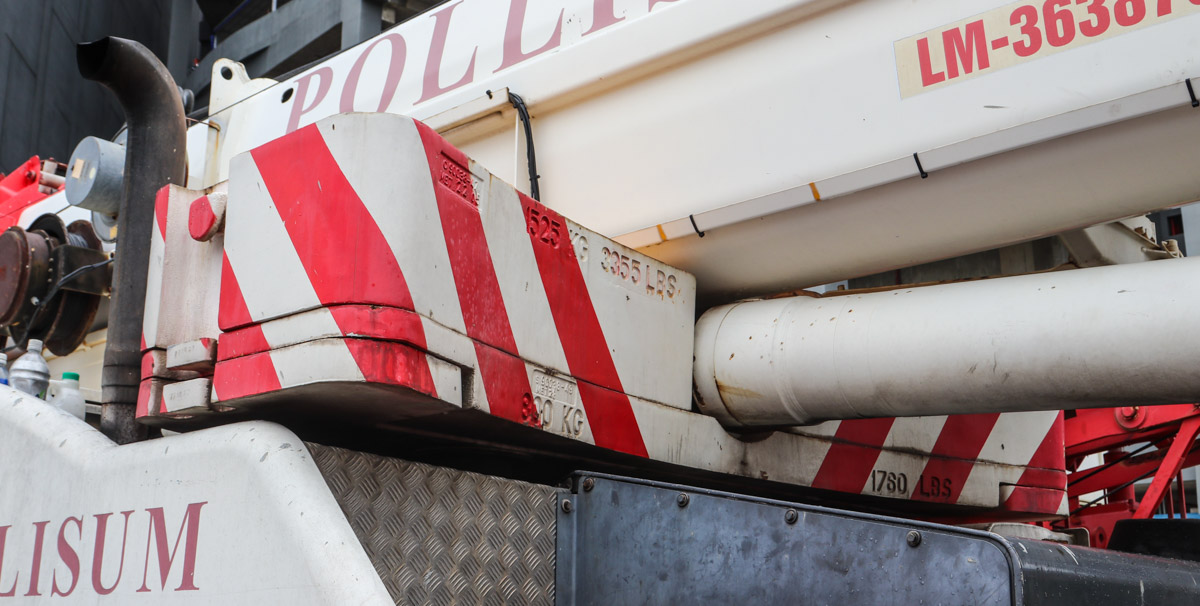

The full ballast of the crane weighs 11.6 tonnes and has a swing radius of 3.5 metres. The crane is equipped with a 5.5-tonne hoist winch.
This crane was built in the Terex factory in Montceau-les-Mines (FR), where the PPM cranes used to be built. Nowadays, this crane is no longer deployed by Pollisum and is being offered for sale.
