Terex AC 1000 - Asiagroup

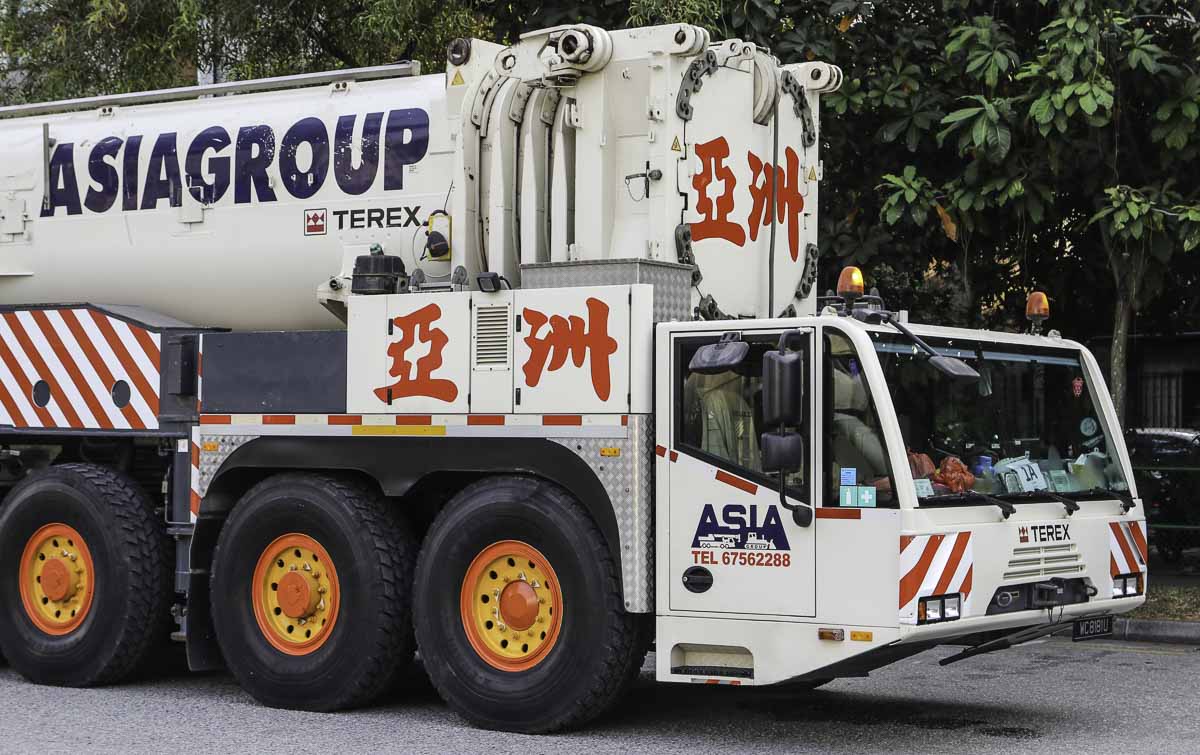

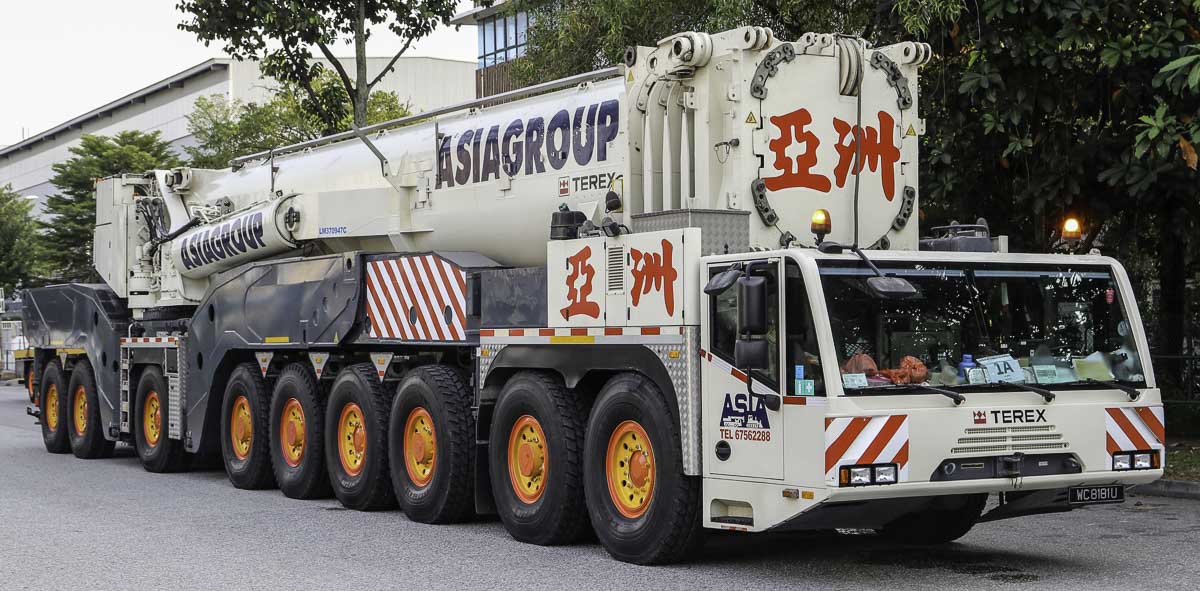

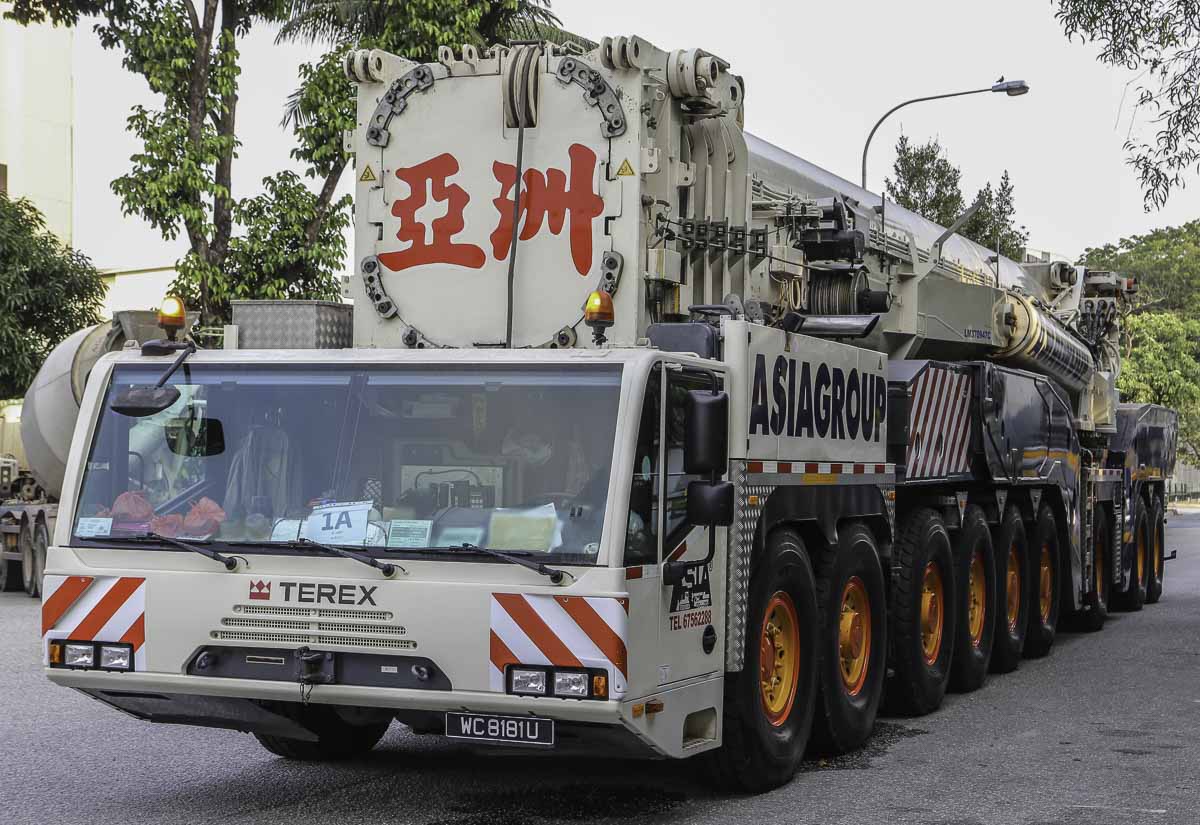

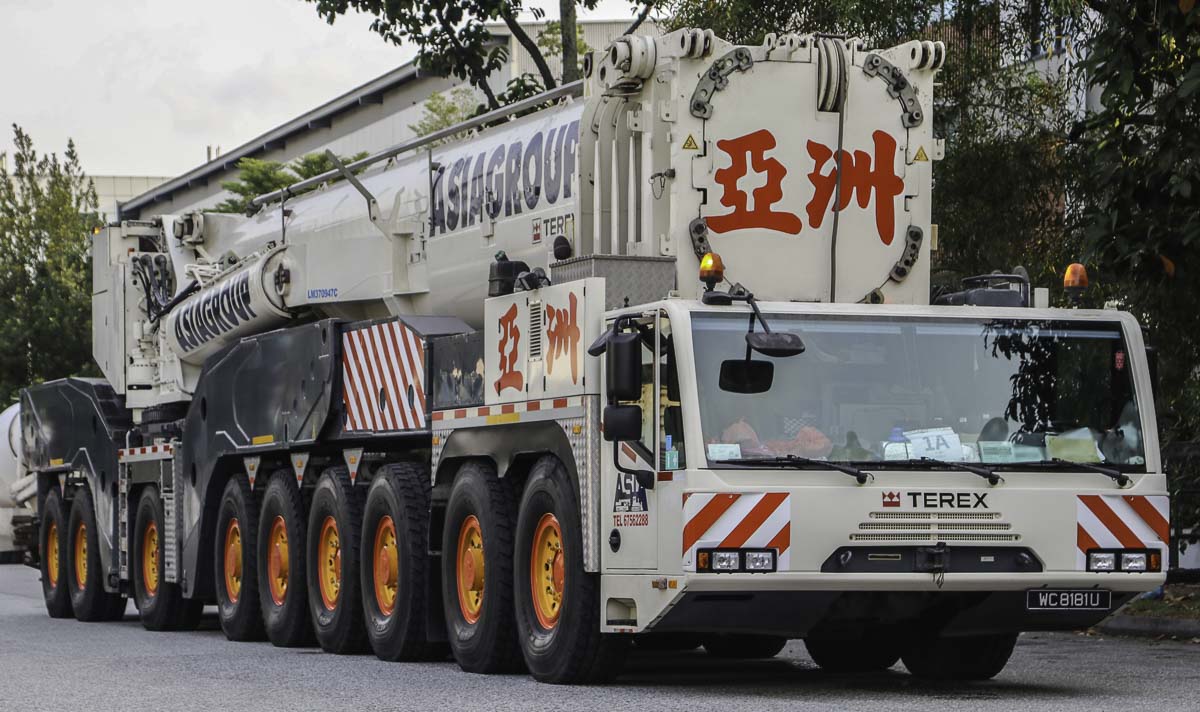

The largest crane that is used by Asiagroup from Singapore (SG) is this sharp and interesting Terex AC 1000 with year of manufacture 2012 and serial number 5. It is a 1000-tonne crane mounted on a 9-axle carrier.
The undercarriage is powered by a Mercedes-Benz 8-cylinder diesel engine with a power of 480 kW (653 hp). The crane has a 18x8x18-drive line, where the axles 2, 3, 5 and 6 are powered. All axles are steerable.
In transit is the crane 20.48 meters long, 3 meters wide and 4 meters tall. In this configuration has a crane a total mass of 138.5 tonnes.

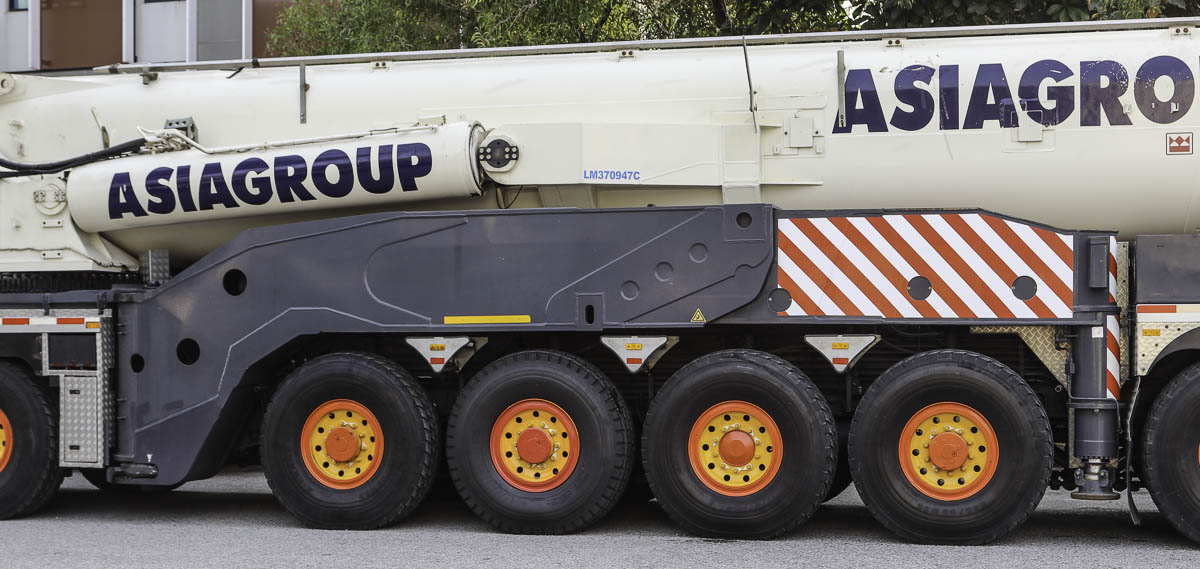

The outrigger base measures 13.5 x 13.5 meters, or half 9.8 x 9.7 meters. During the transport over the road are the front outriggers extended, over the axles 3 to 6.

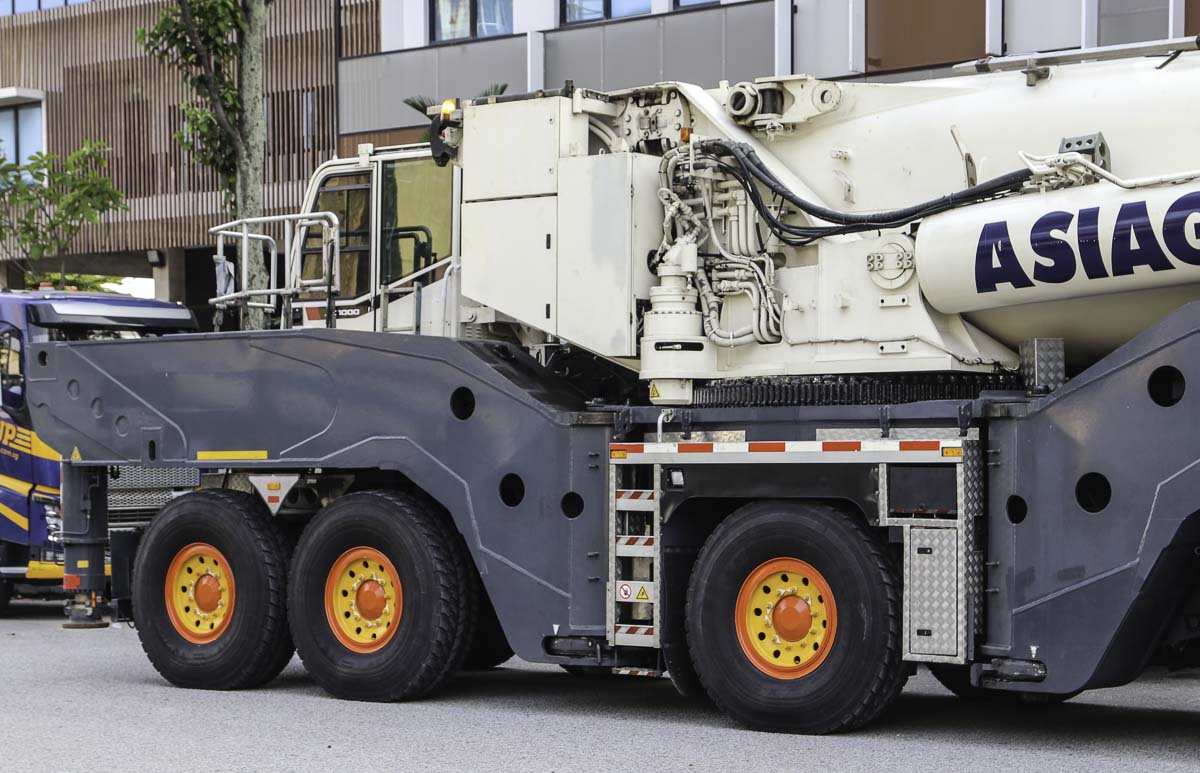

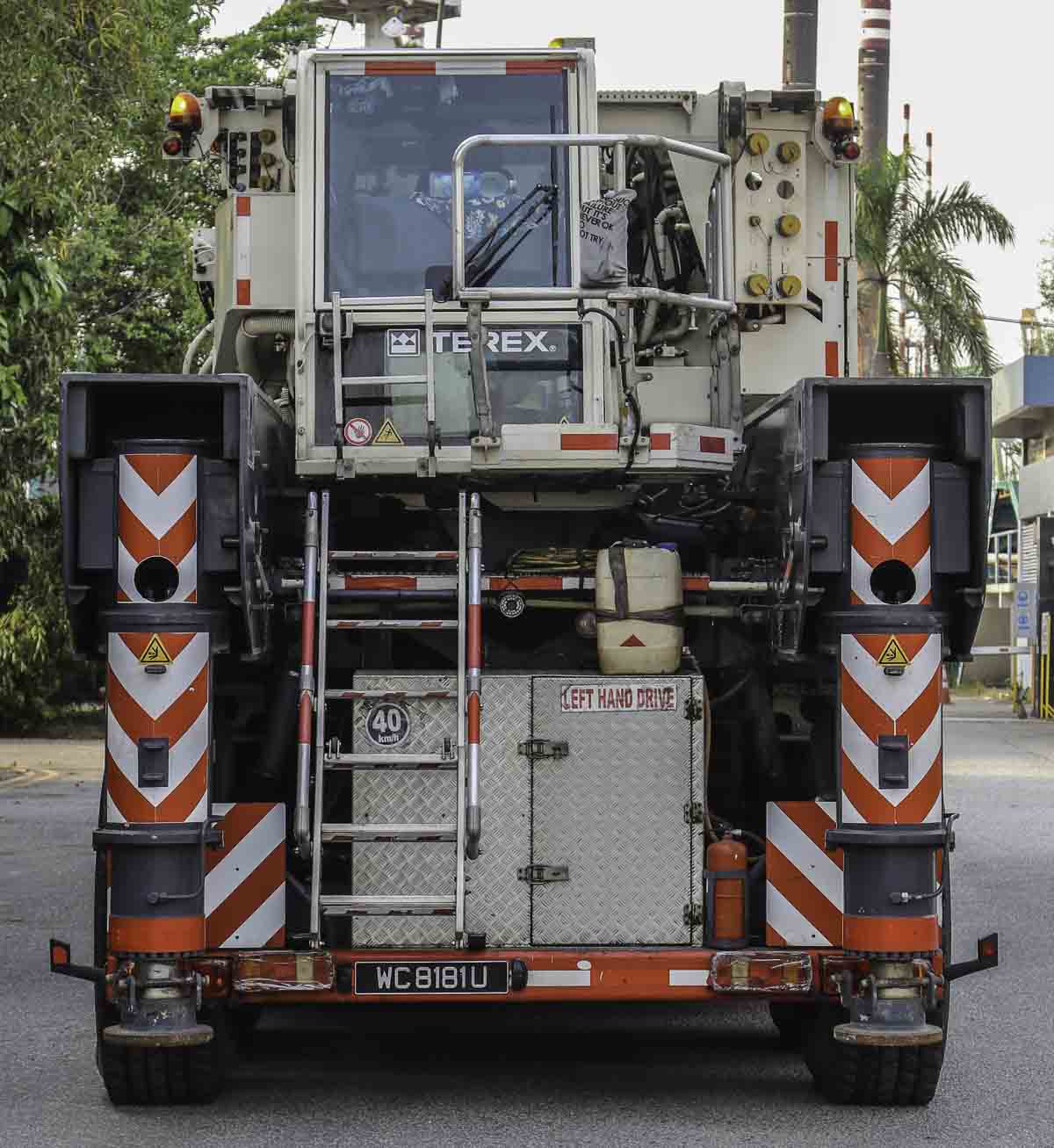

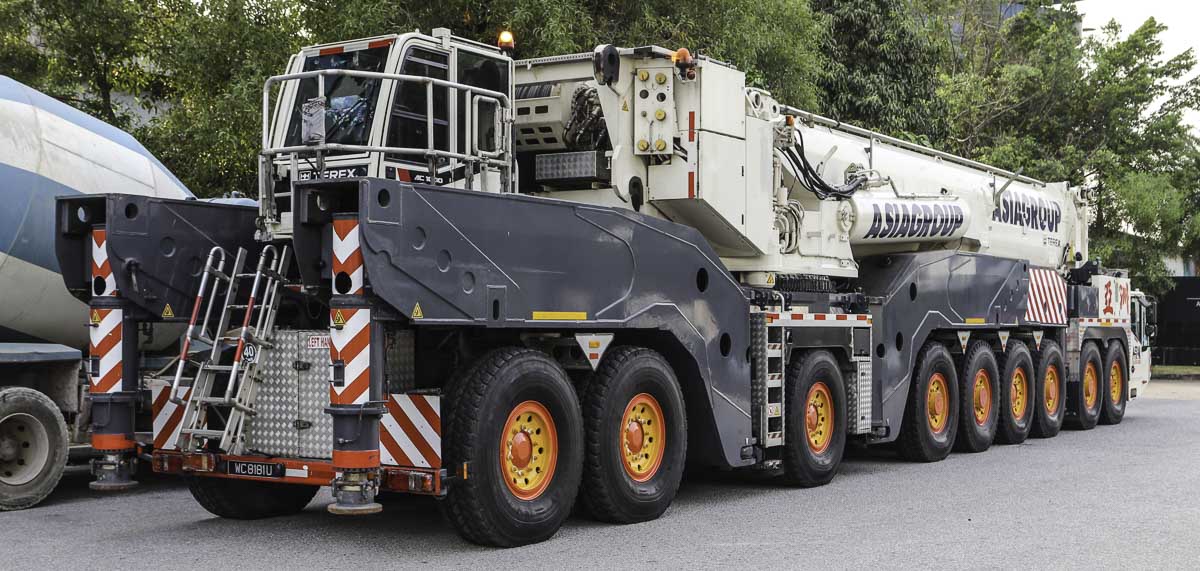

Below the slewing ring is the seventh axle mounted. The rear outriggers are taken retracked over the axles 8 and 9.
The crane brings a 5-part main boom with a length of 50 meters. Optionally is the main boom to be extended by another four sections to a total length of 100 meters.
During crane operation is a maximum of 228 tonnes of counterweight mounted to the superstructure.
A very sharp crane of Asiagroup!
