Sumitomo SC 800 - Zwagerman VMT

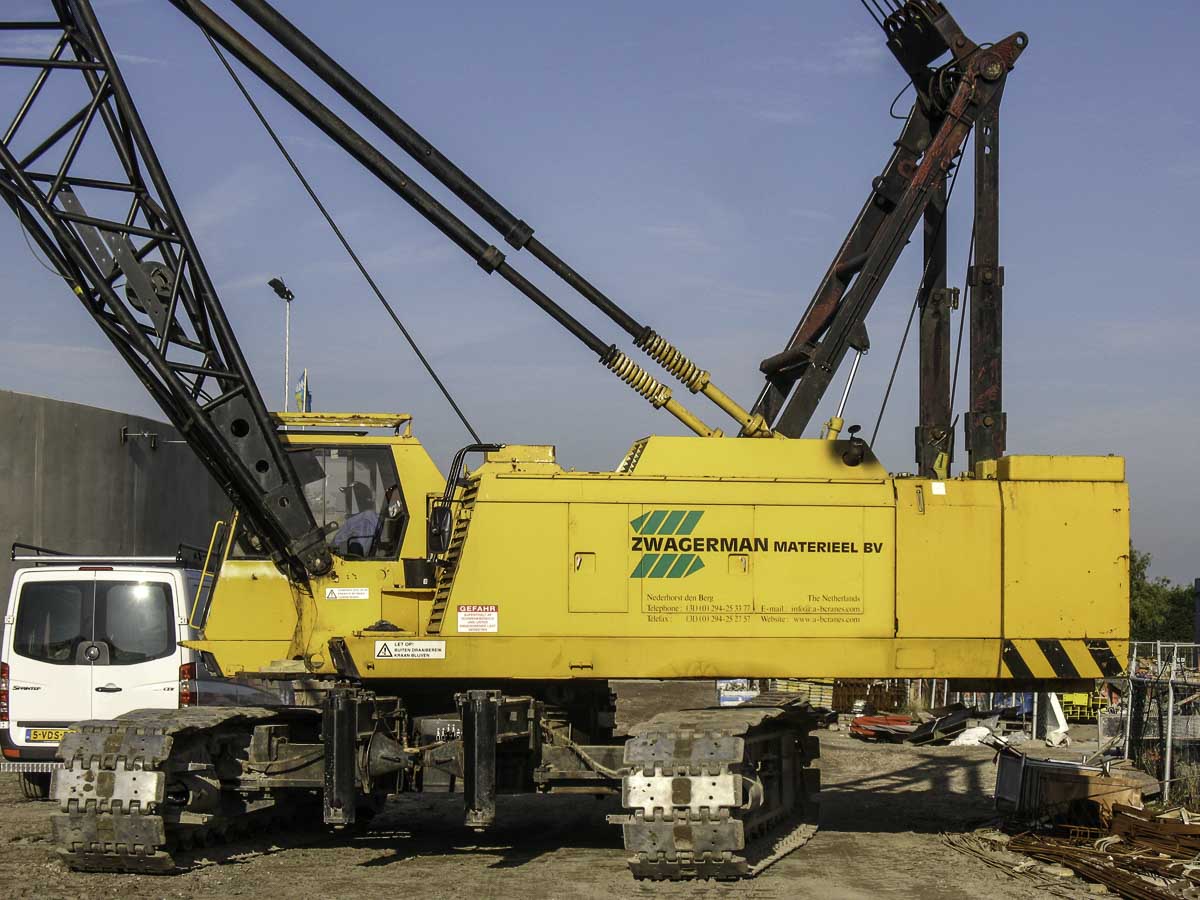

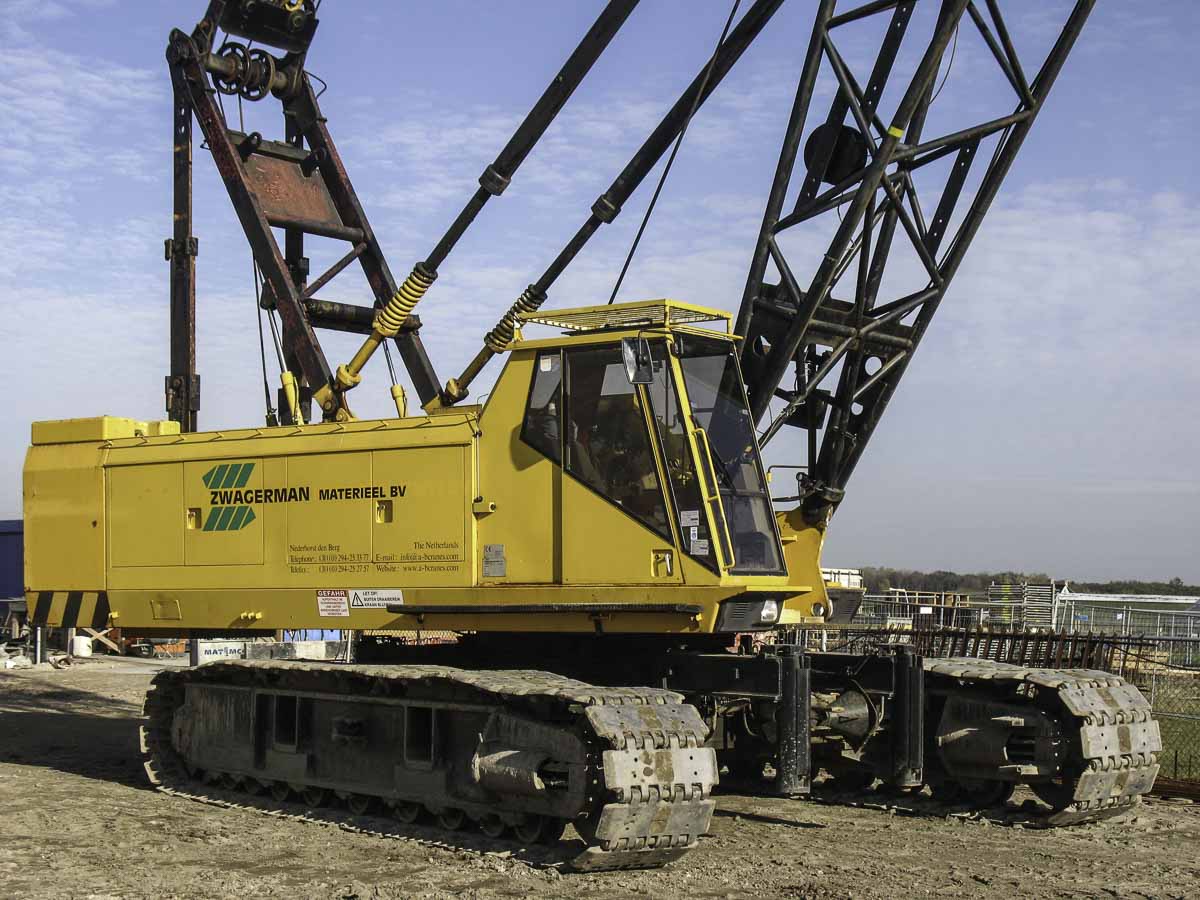

This sharp Sumitomo SC 800 of Zwagerman VMT from Nederhorst den Berg (NL) was used on a construction site in Noordwijk (NL). It is an 80-tonne crawler crane with year of manufacture 1995.

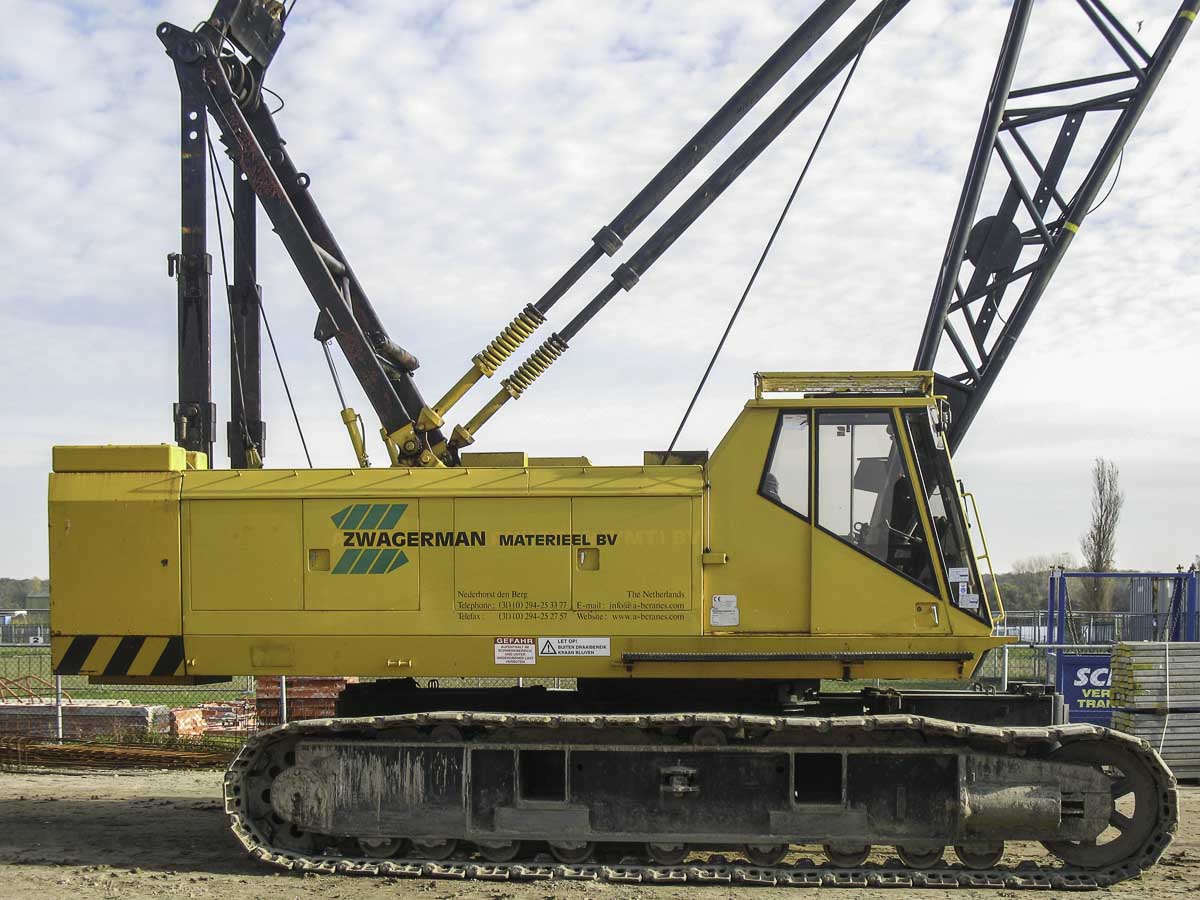

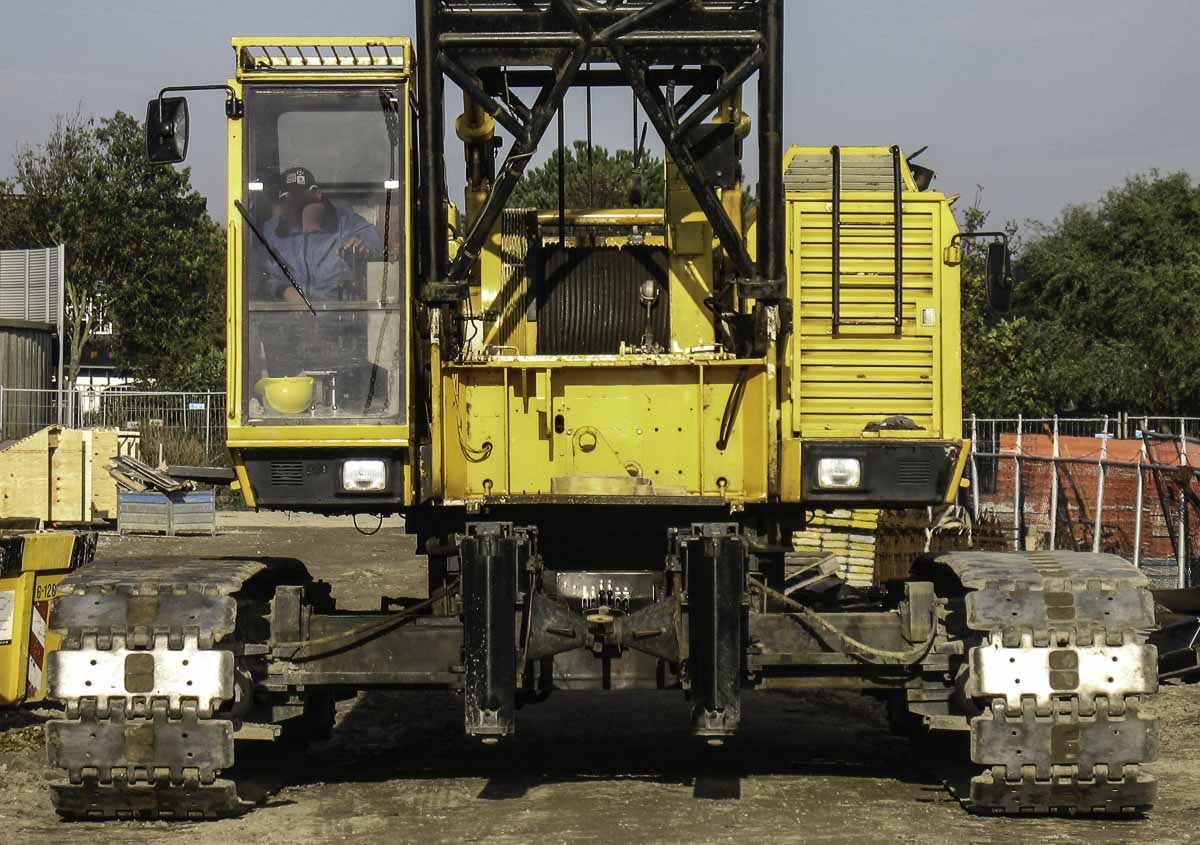

The undercarriage is 6.415 meters long and 4.81 meters wide. The tracks are each 0.81 meters wide.

The crane is powered by a Mitsubishi 6D22CT, a 6-cylinder diesel engine with a power of 184 kW (250 hp).

The main boom has a 12.2 meter base length and can be extended to a maximum length of 57.9 meters.

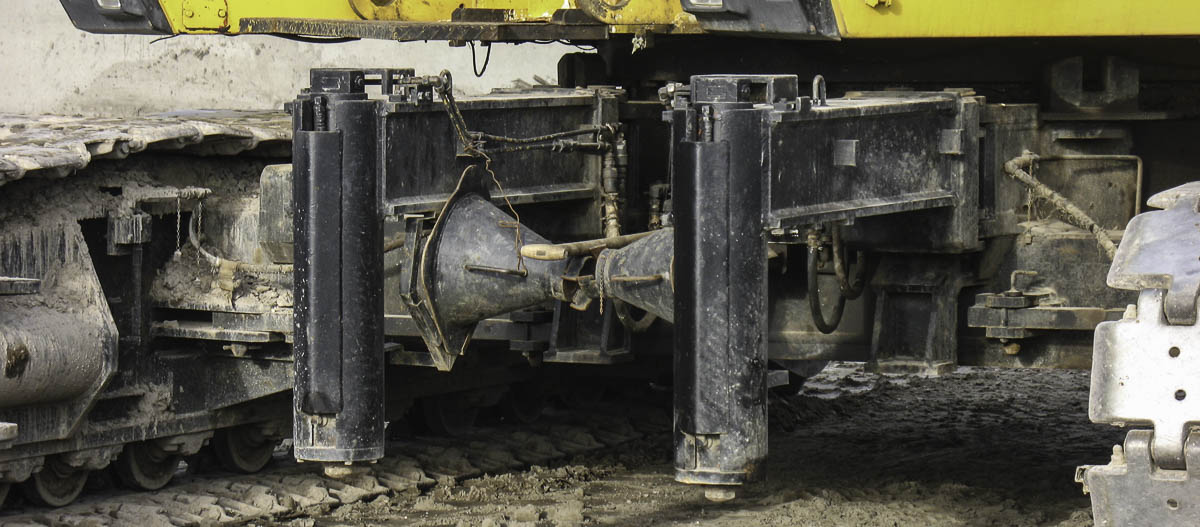

For the transport over the road is the width of the undercarriage to be reduced to 3.47 meters. To unload the undercarriage are four hydraulic jacks attached to the body.

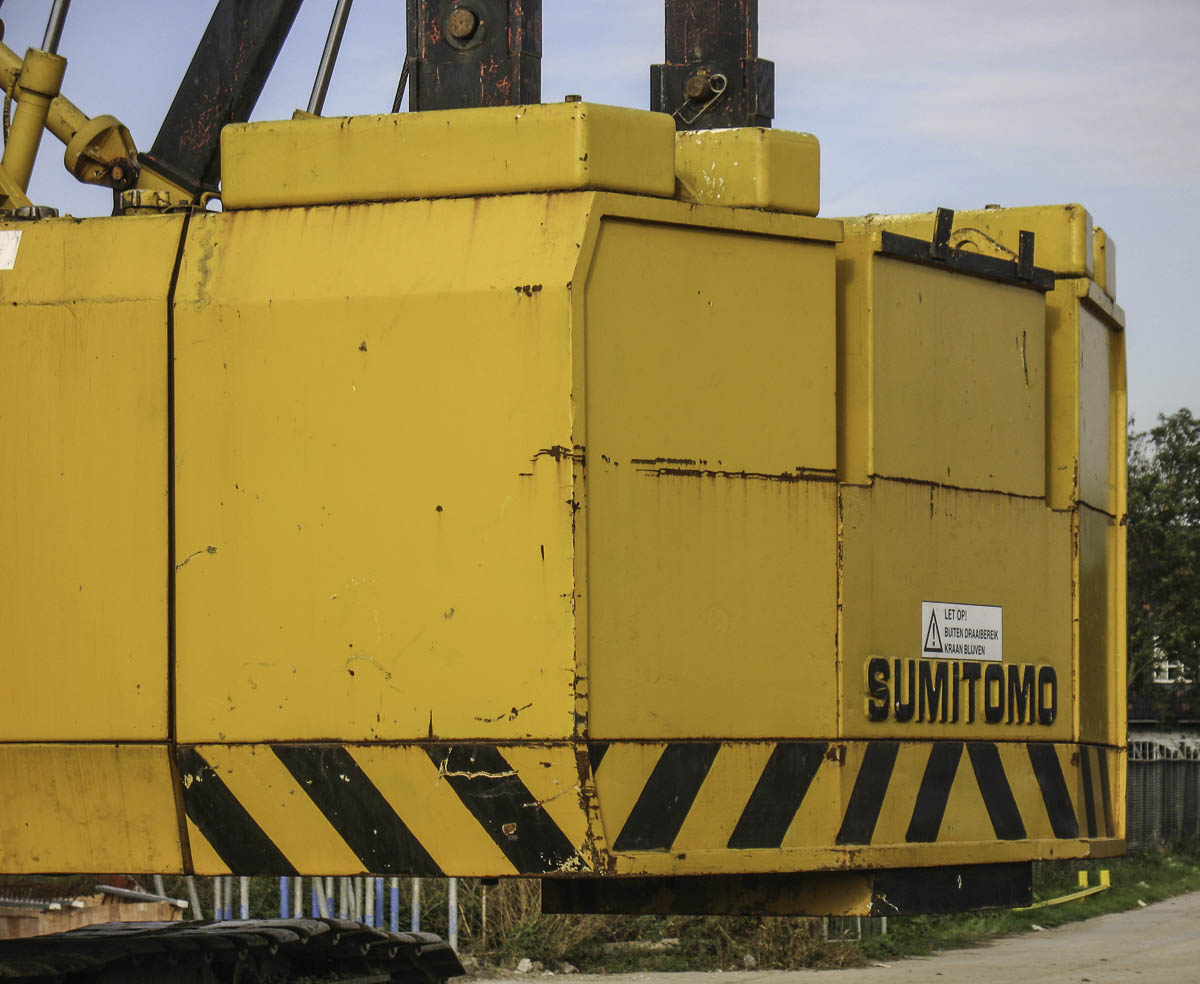

The 7-part counterweight has a total mass of 25 tonnes, the tailswing is 5 meters.

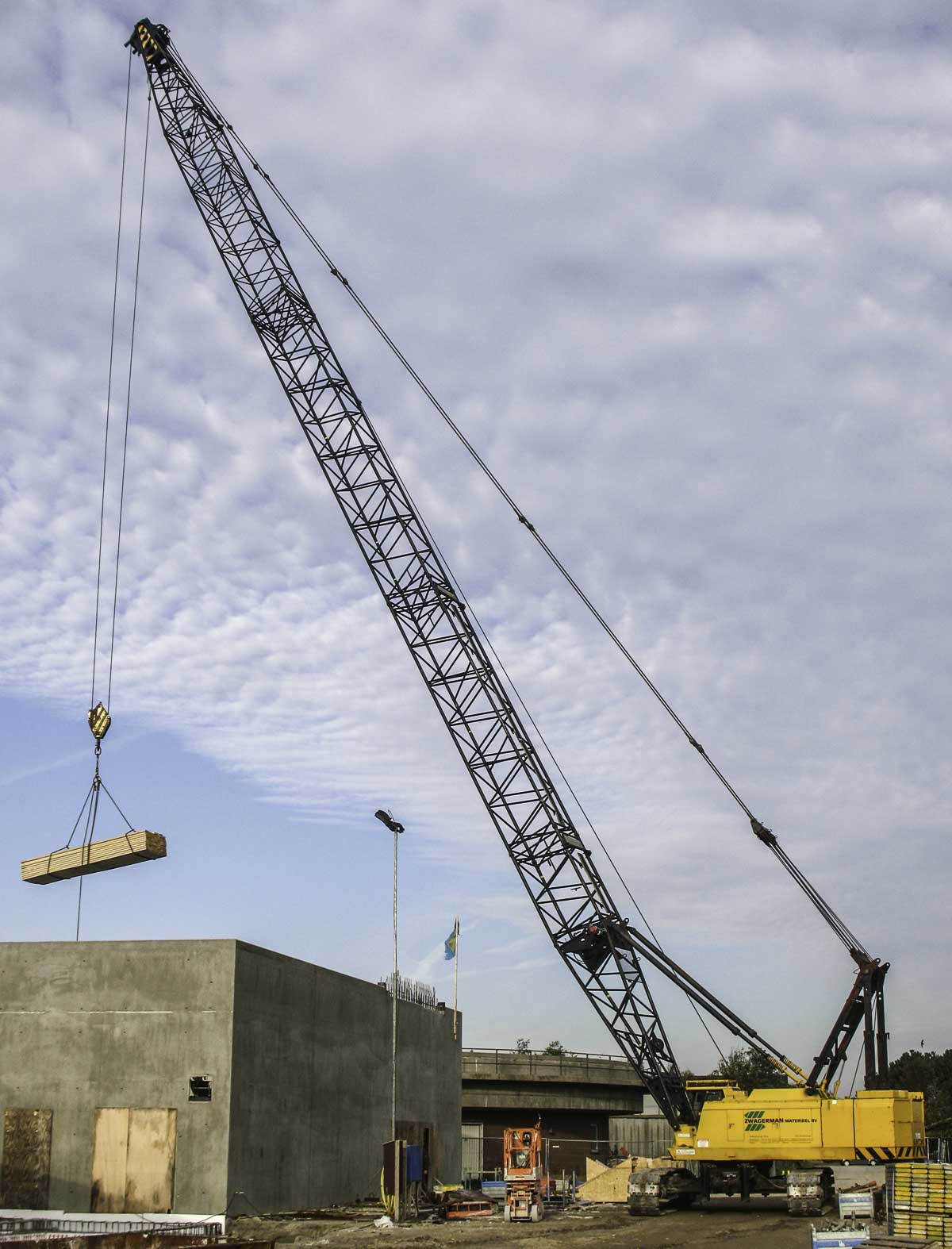

Here was the crane fitted with a 42.7 meter long main boom, in this configuration is the crane able to hoist maximum 21.2 tonnes on a 10 meter radius or 2.8 tonnes to a 38 meter radius. A very sharp crane of Zwagerman VMT!
