Sumitomo SC 1500 - Tat Hong

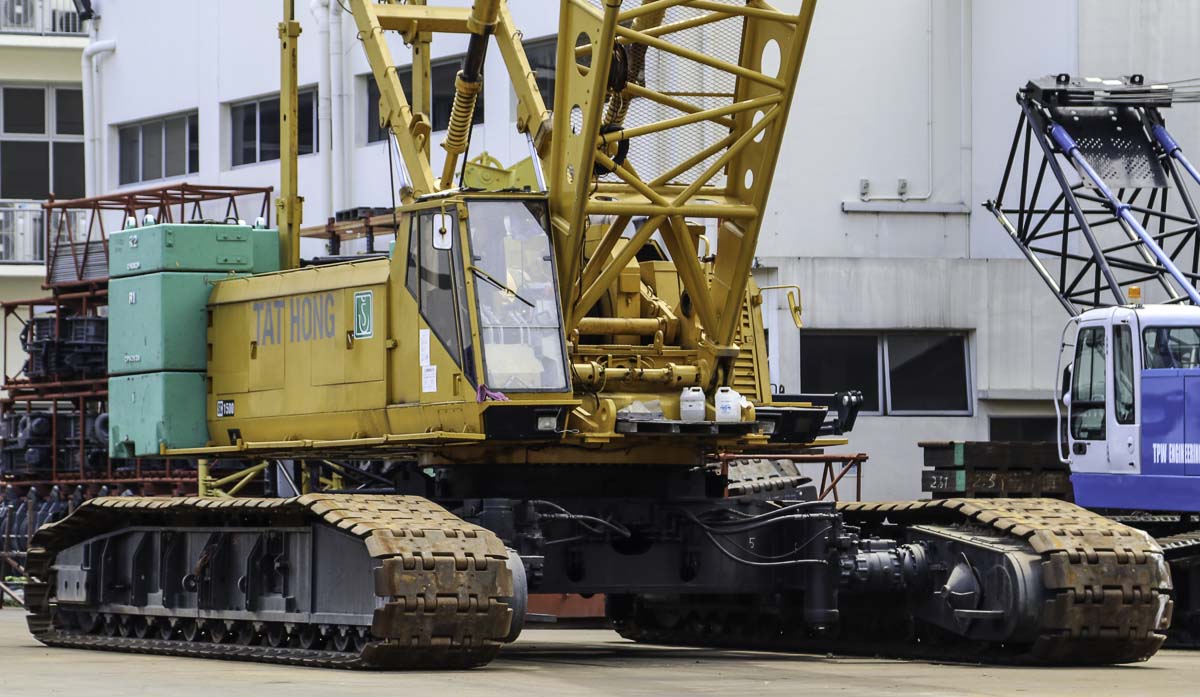

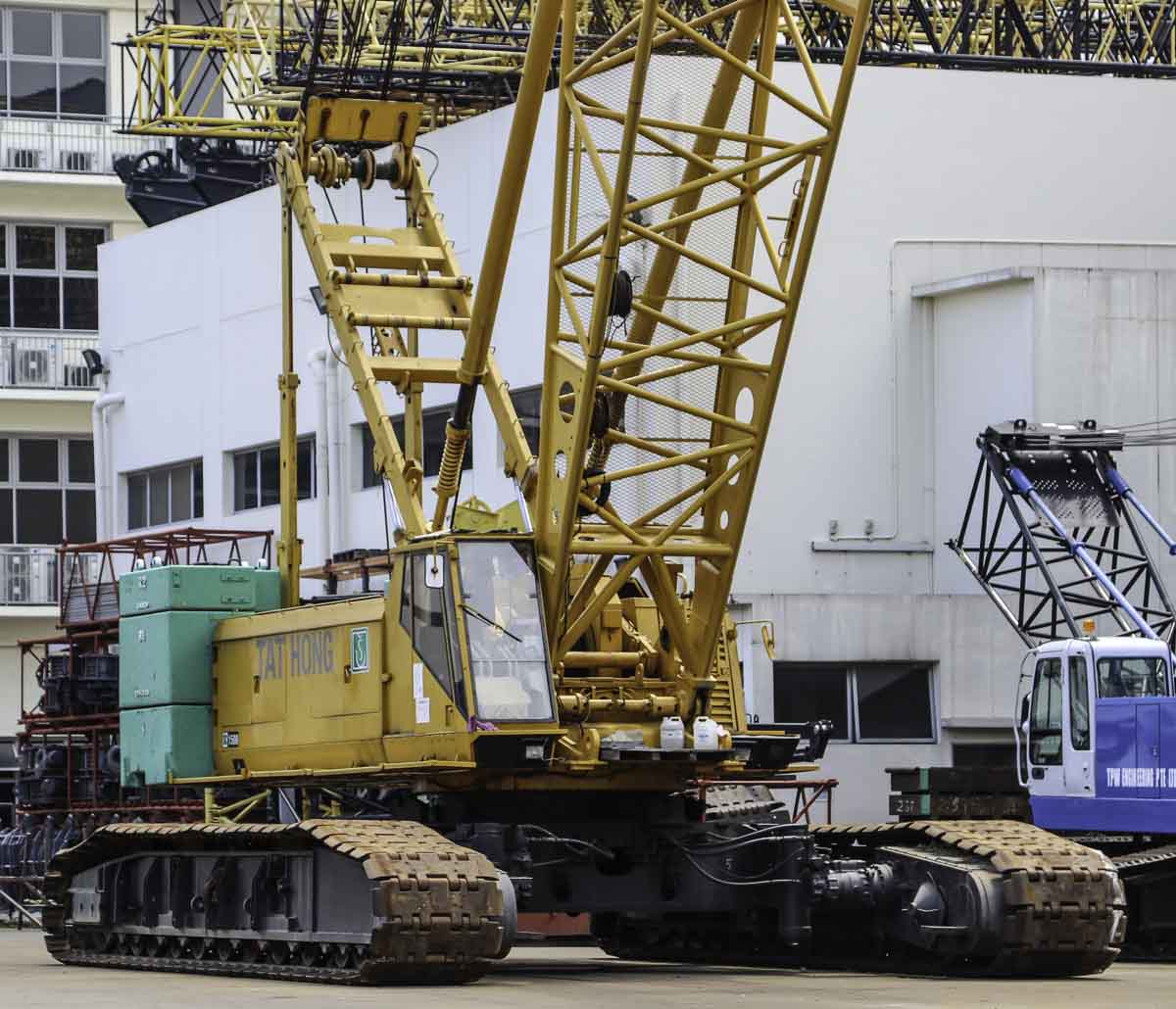

This sharp Sumitomo SC 1500 is used by Tat Hong as a yard crane on one of their yards in Singapore (SG). It is a 150-tonne crawler crane.
The crane is powered by a Mitsubishi 6D22-T, an 11.1-liter 6-cylinder diesel engine with a power of 186 kW (250 hp).

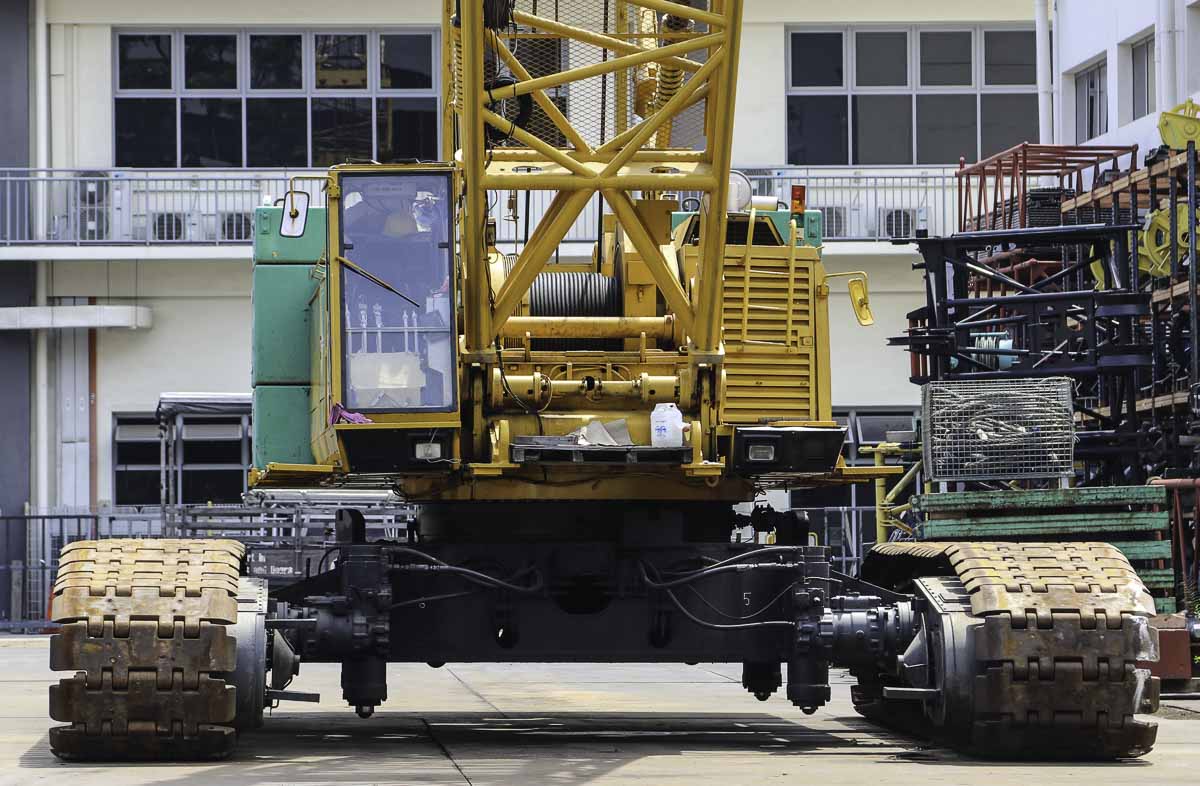

The undercarriage is 8.97 meters long and 6.74 meters wide. With the hydraulic jacks attached to the undercarriage is it possible to support the crane when the tracks are (for the transport over the road) removed.

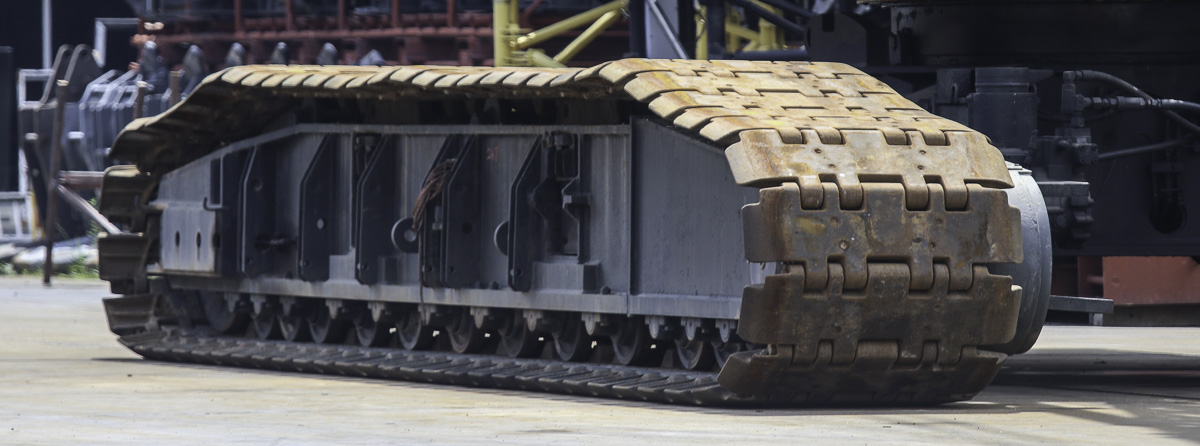

A single track is 8.97 meters long, 1.12 meters wide and 1.32 meters tall.

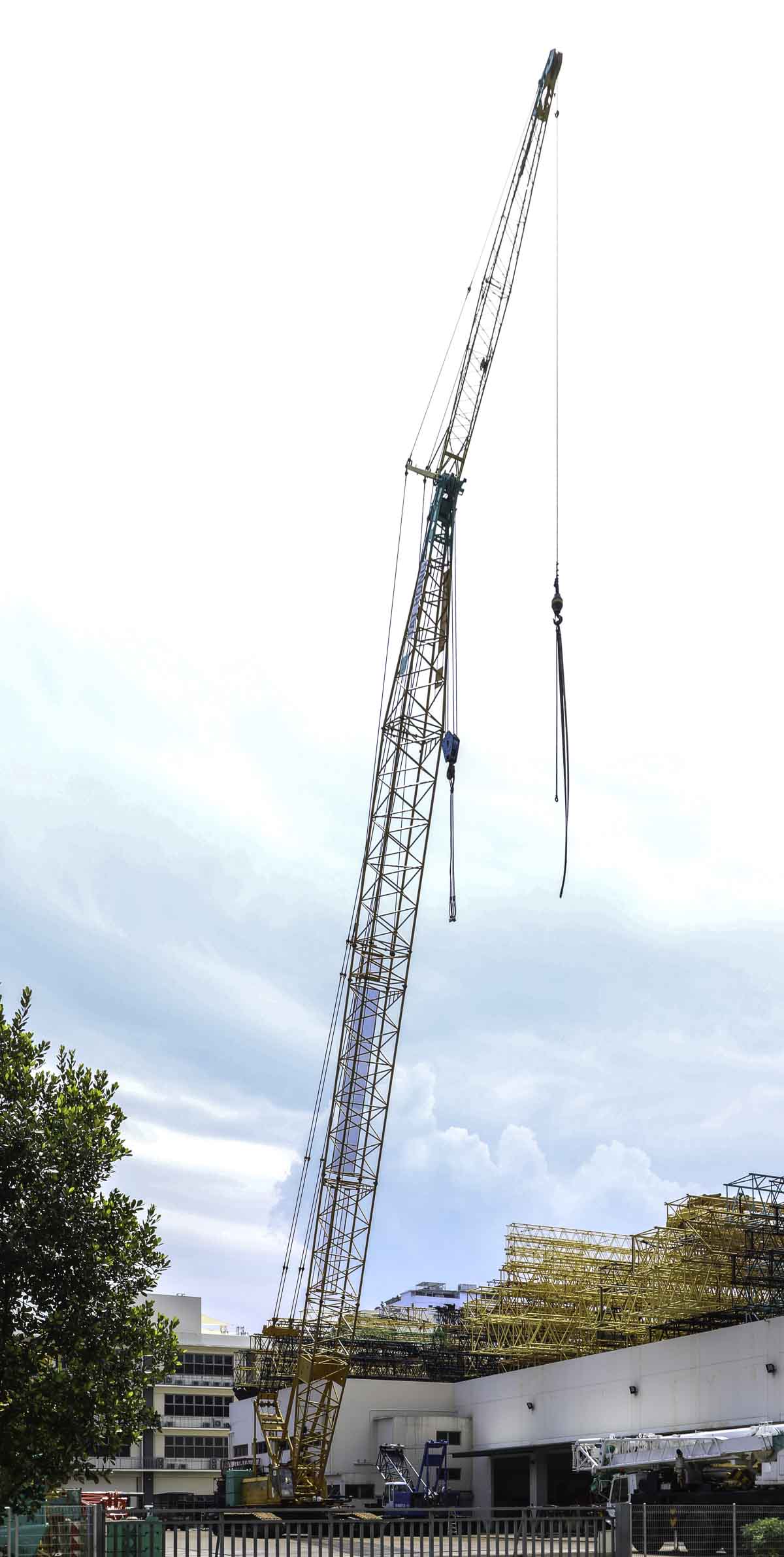

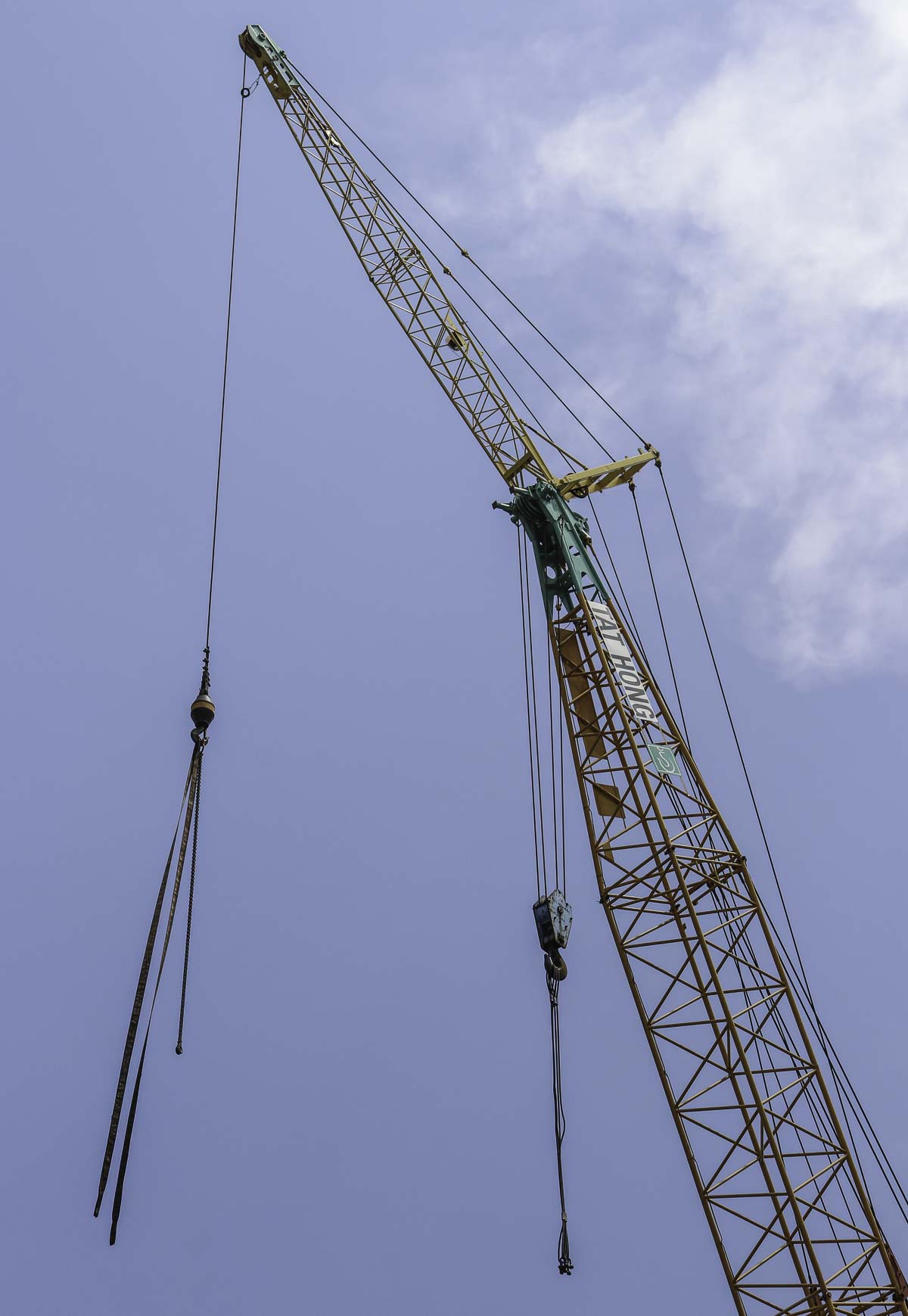

Here is the crane fitted with a 42.65 meter long main boom and 12.2 meter long fixed jib. In this configuration is the crane able to hoist maximum 64 tonnes to a 9 meter radius or 11.2 tonnes to a 38 meter radius. The main boom has a maximum length of 82.3 meters.
Over the jib is the crane able to hoist a maximum of 13.5 tonnes.
