Sumitomo LS-568HD - Sin Leng

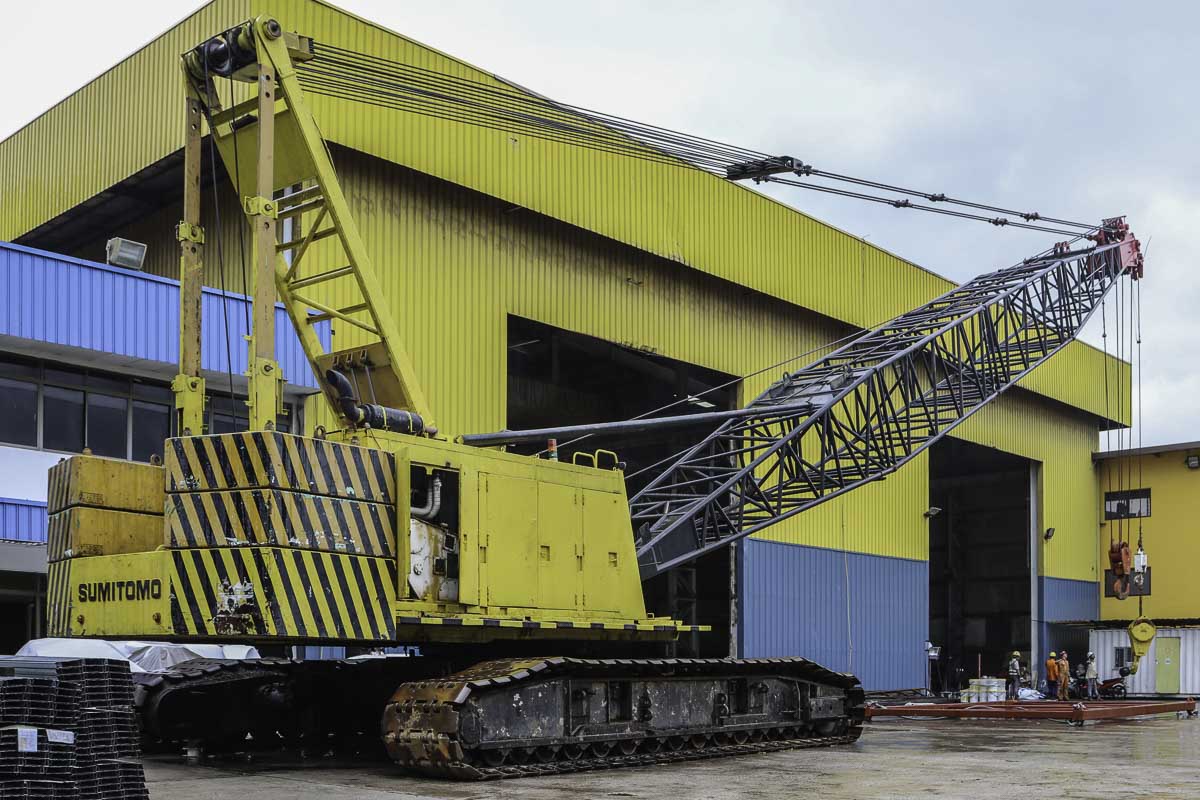

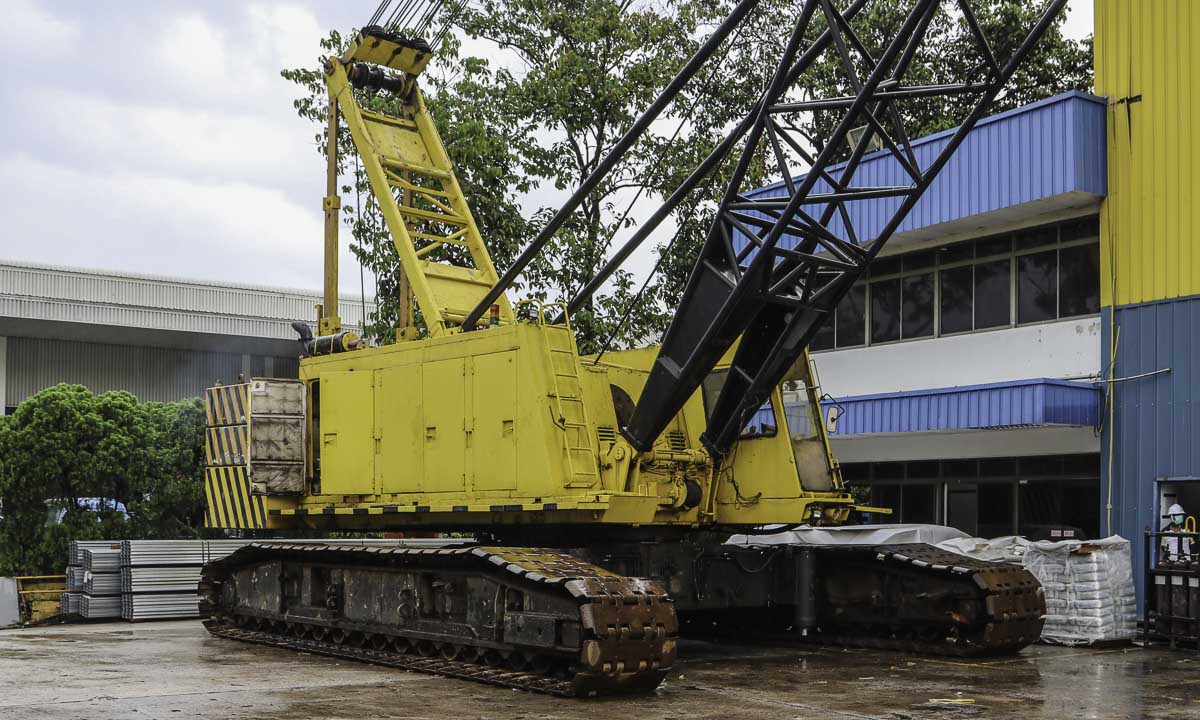

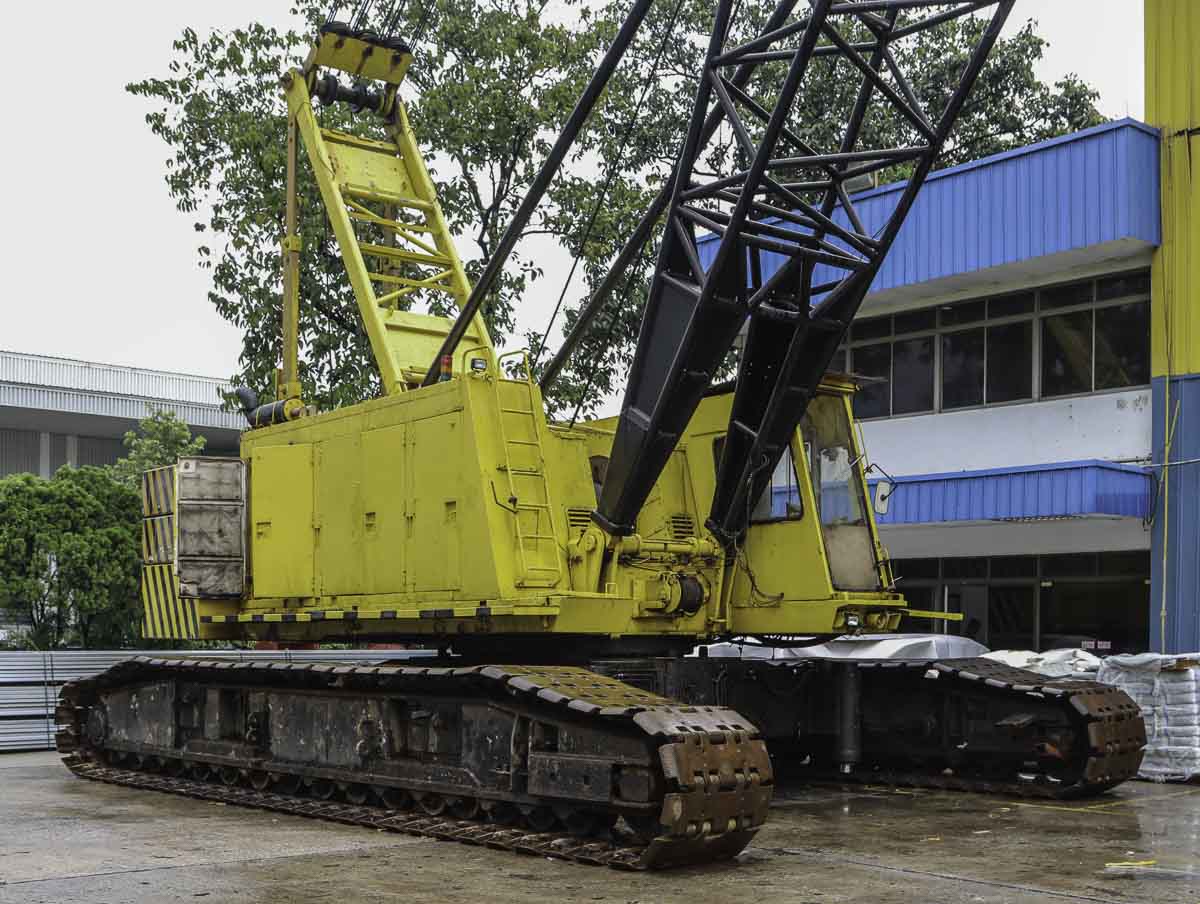

This sharp Sumitomo LS-568HD belongs to Sin Leng from Singapore (SG), it is a 150-tonne crawler crane.

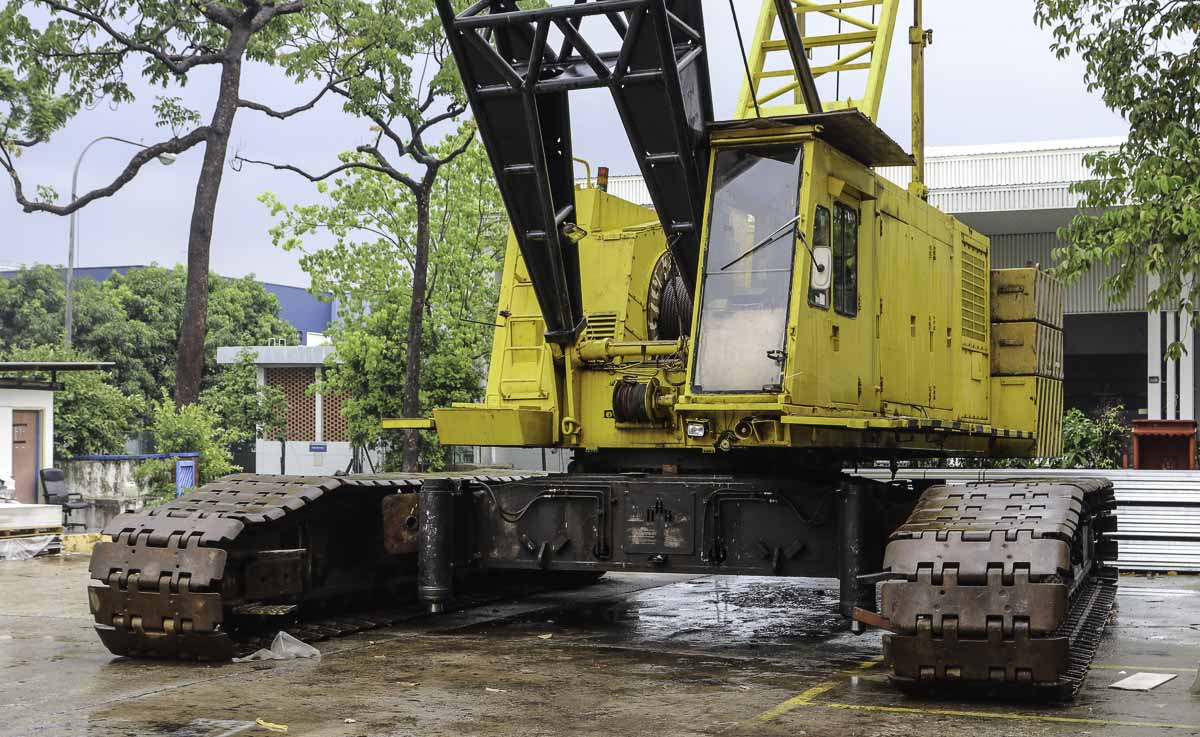

The undercarriage of the crane is 8.99 meters long and 6.73 meters wide.
The crane is powered by a Mitsubishi 8DC9-T, an 8-cylinder diesel engine with a power of 264.9 kW (360 hp).

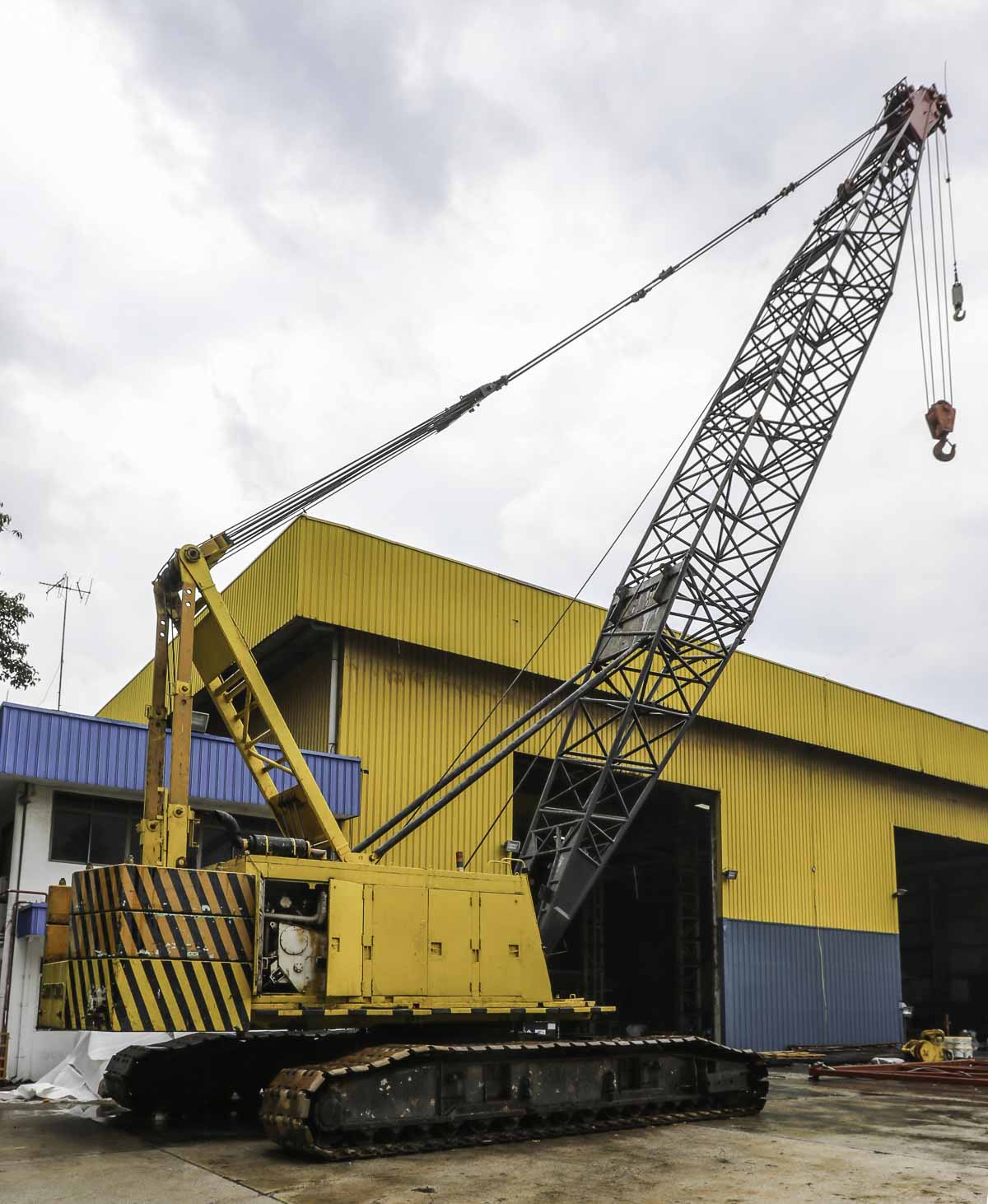

The crane was fitted here with a 30.48 meter long main boom, in this configuration is the crane able to lift a maximum of 91 tonnes on an 8 meter radius or 17.9 tonnes to a 28 meter radius.

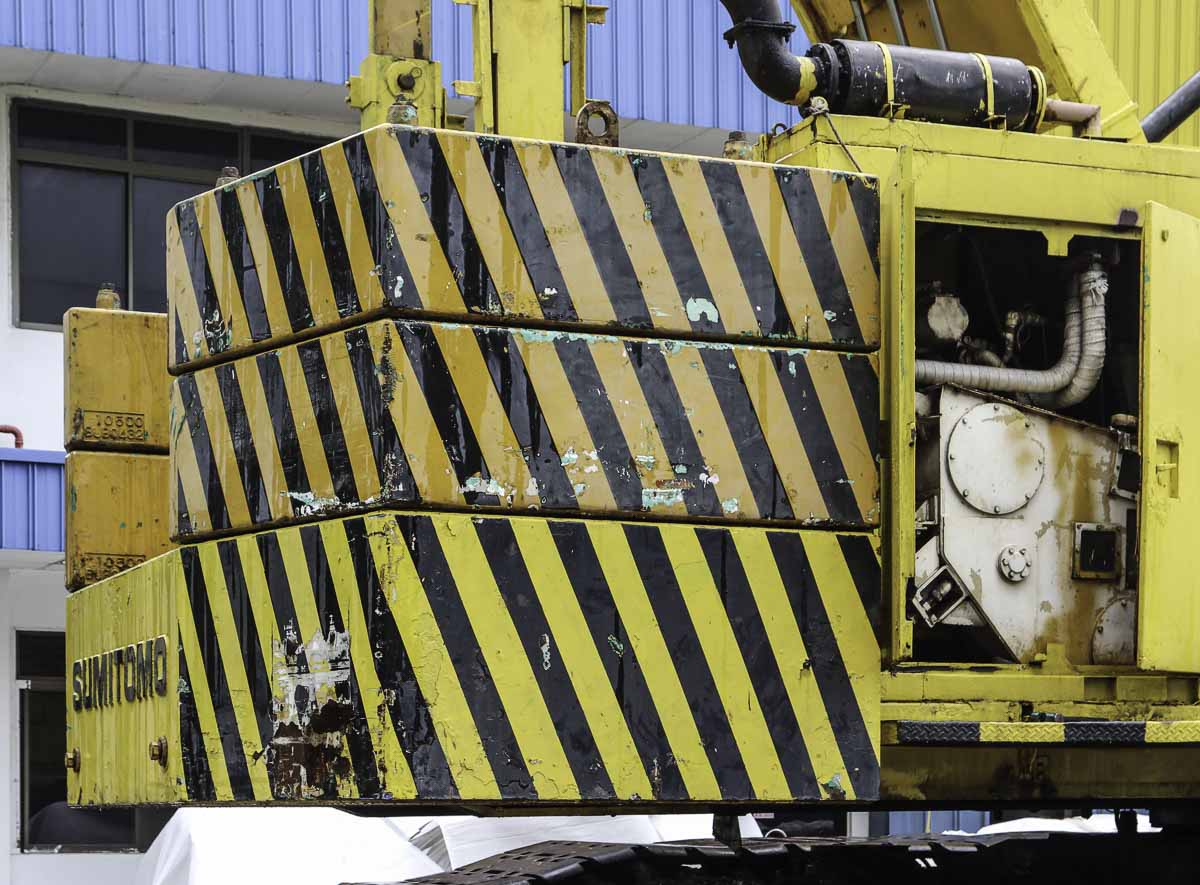

The five-part counterweight has a 6 meter tailswing.

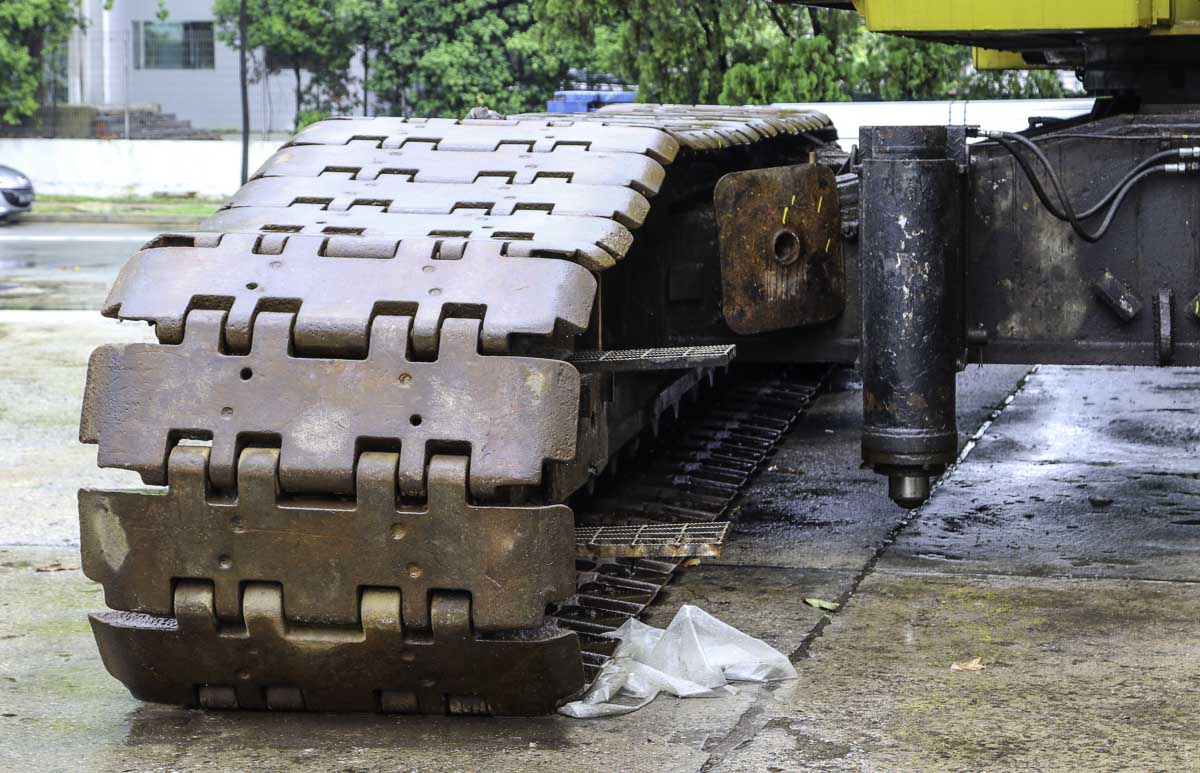

A track is 8.99 meters long, 1.118 meters wide and 1.33 meters tall. For the transport over the road are the tracks separated from the body.

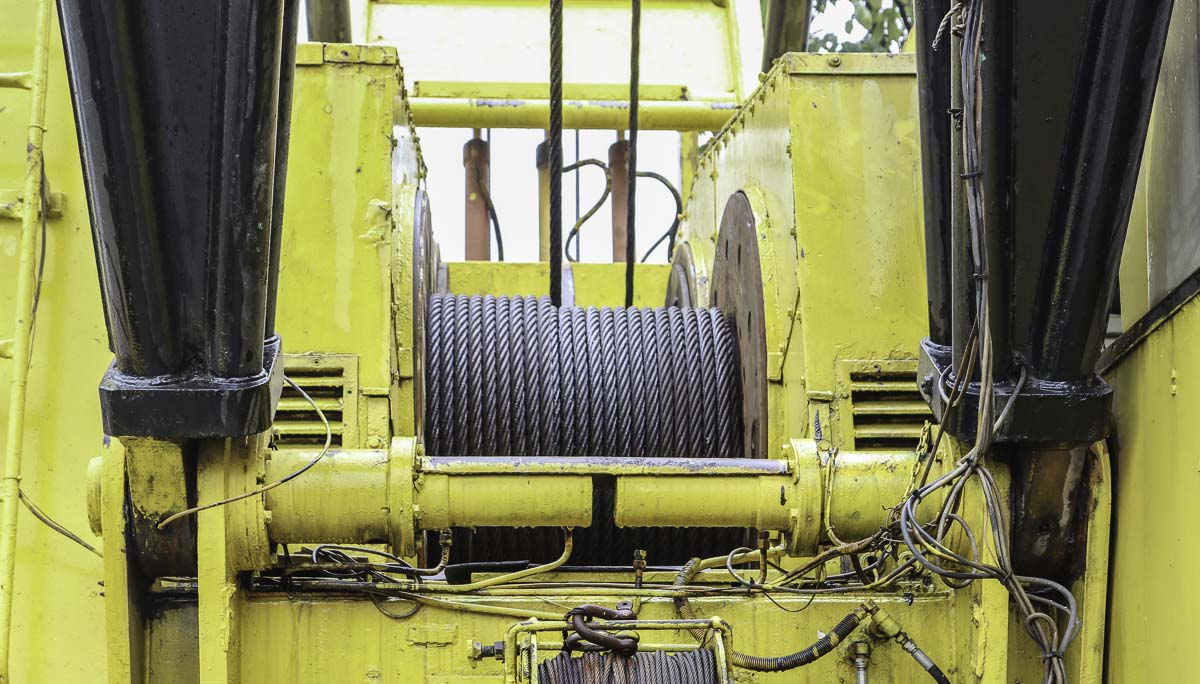

The crane is fitted with two 15-tonne hoist winches.

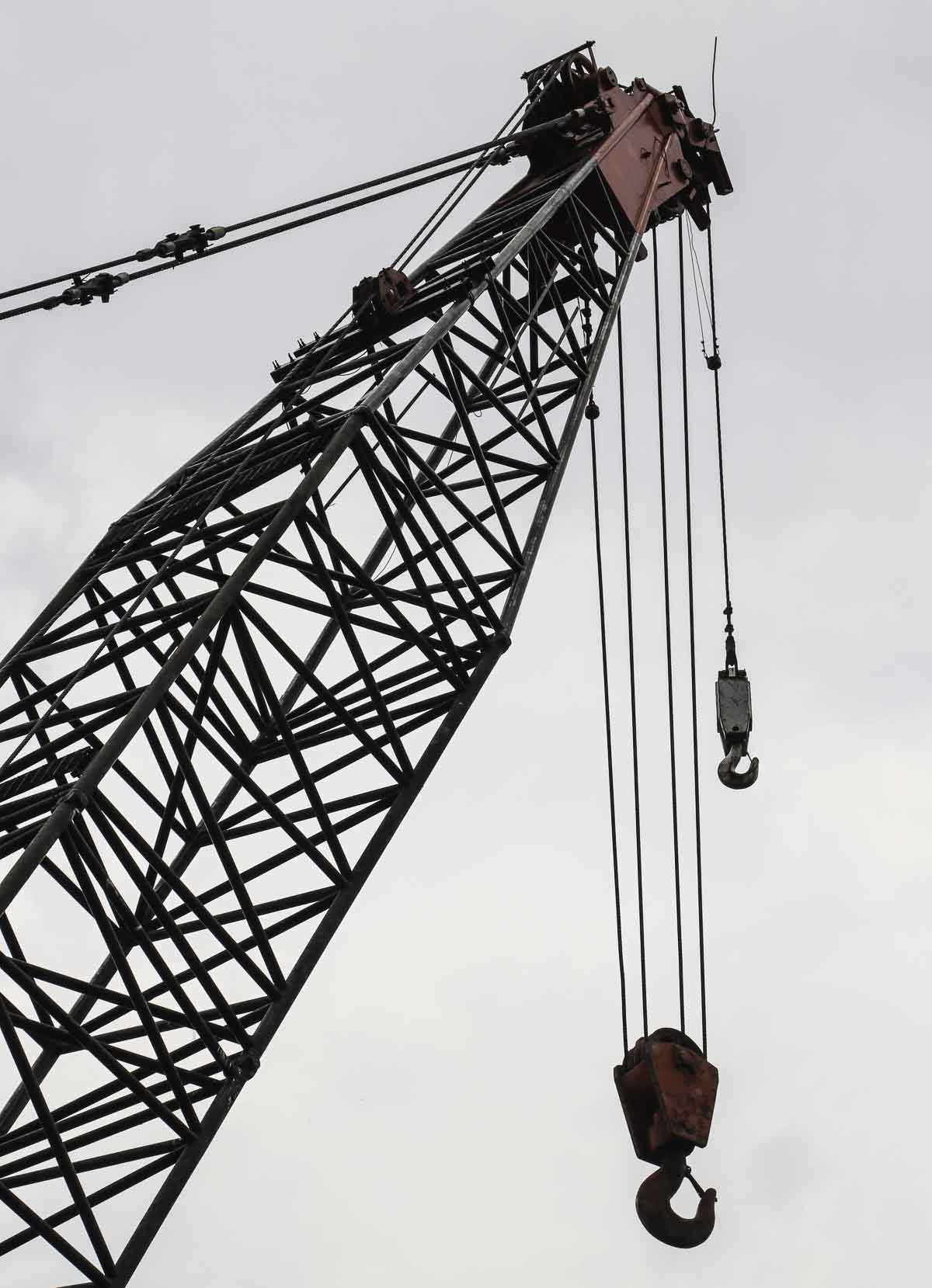

The main boom has a 18.29 meter base length and can be extended to a maximum length of 82.3 meters.
A sharp and tough crane of Sin Leng! The crane would here be used on a small yard to load heavy precast modules.
