Sumitomo SC 650-3 - Foundation Alliance

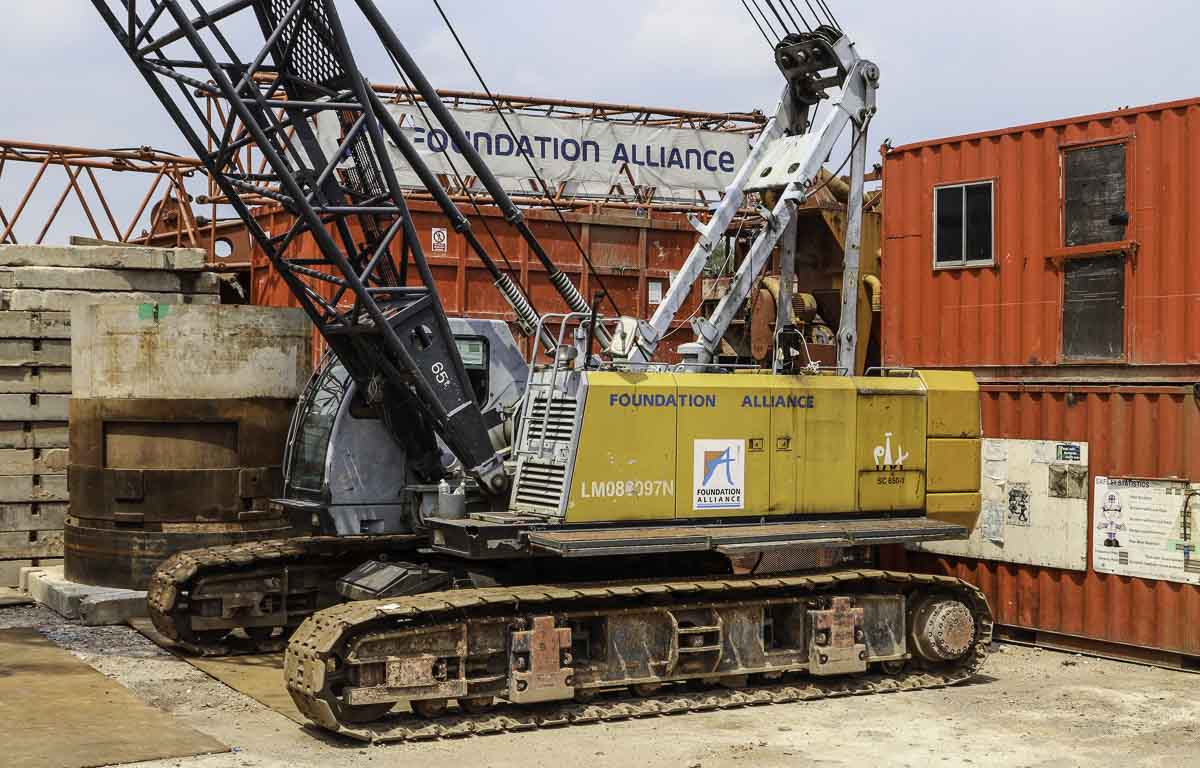

This Sumitomo SC 650-3 of Foundation Alliance from Singapore (SG) stood parked on their yard. It is a 65-tonne crawler crane that is powered by a HINO H07CT diesel engine with a power of 132 kW (180 hp).

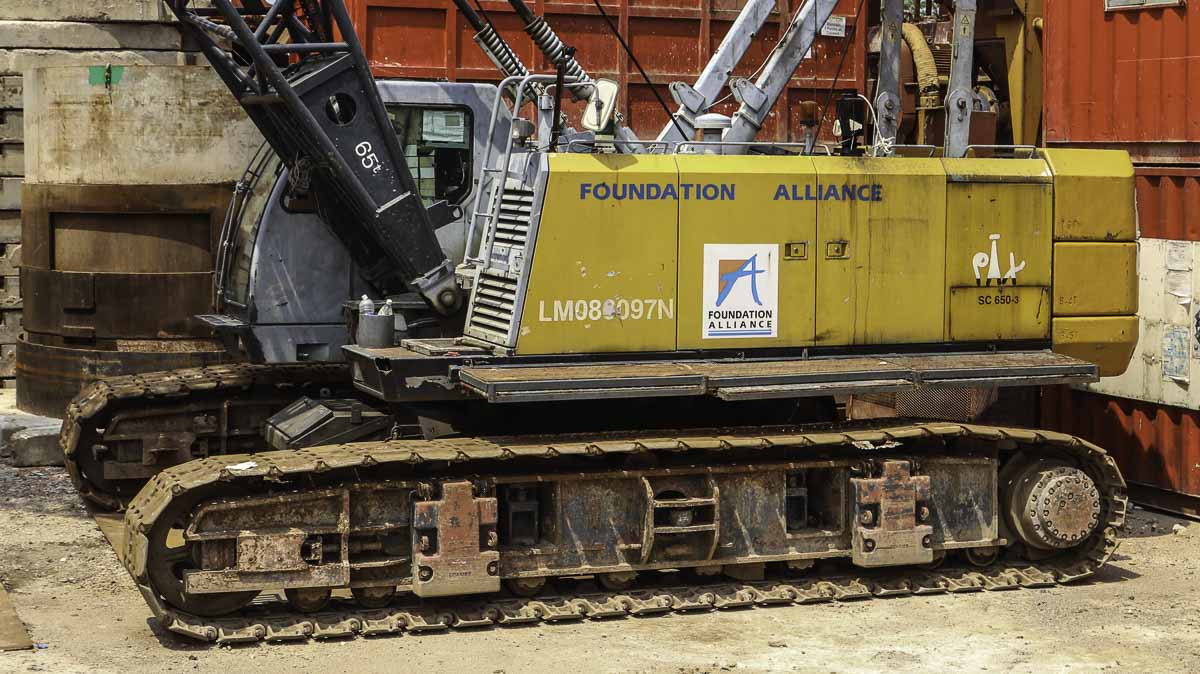

The undercarriage is 6.1 meters long and 4.84 meters wide. For the transport over the road is the width to be reduced to 3.2 meters. The tracks are each 0.8 meters wide.

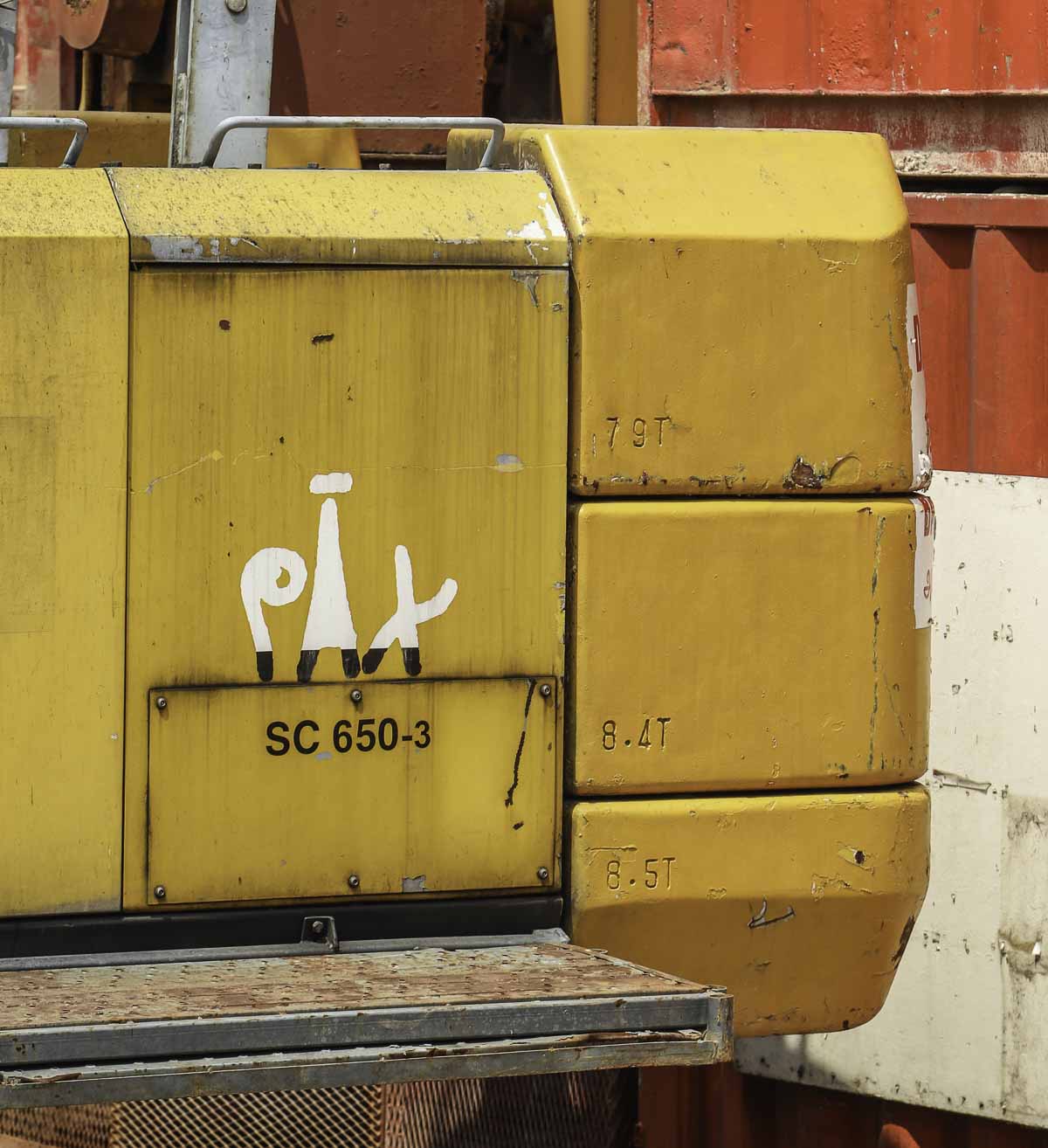

Attached to the superstructure is in total 24.8 tonnes of counterweight mounted, the counterweight exists out of three parts with a mass of 8.5, 8.4 and 7.9 tonnes. The counterweight has a tailswing of 3.85 meter tailswing.

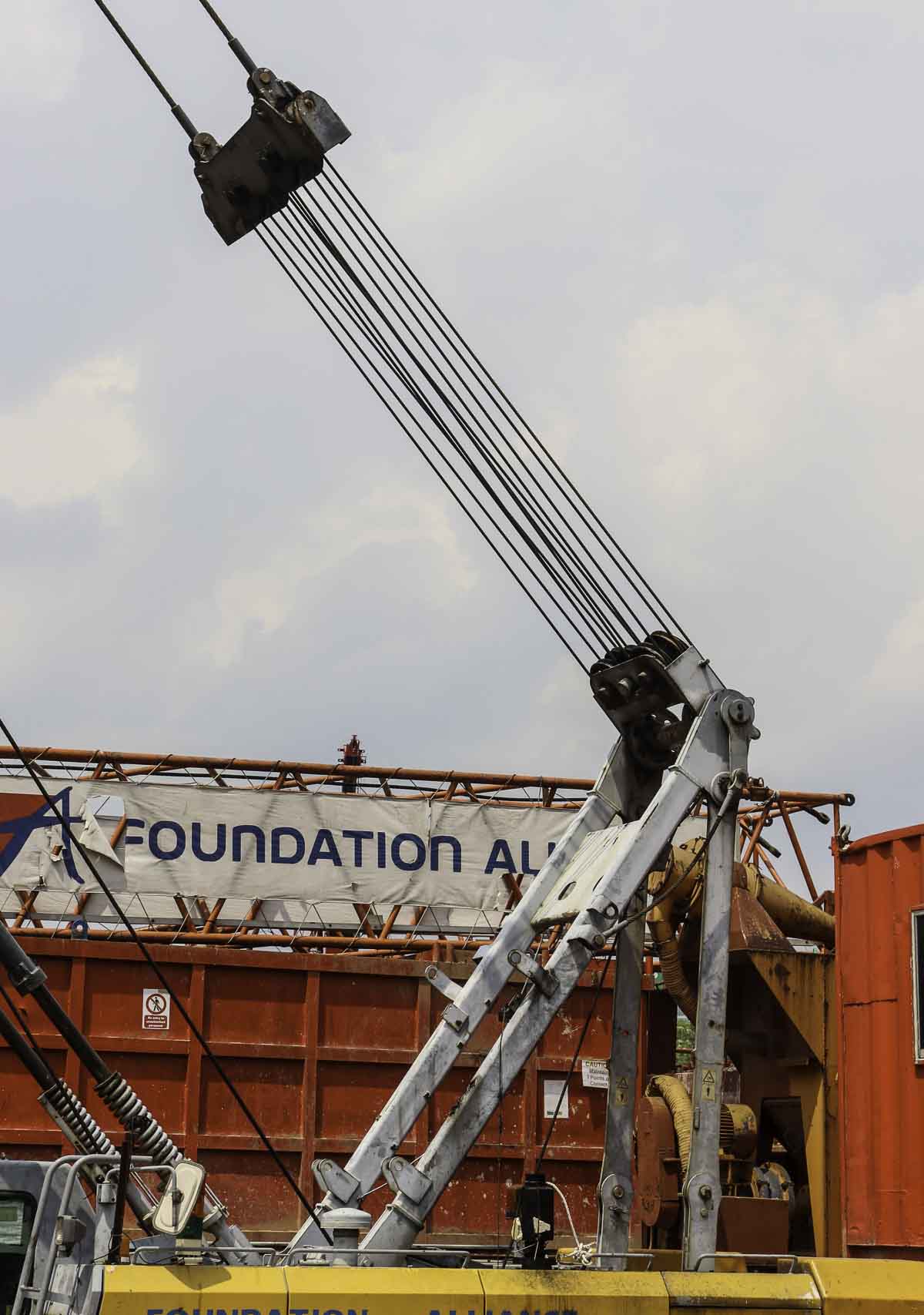

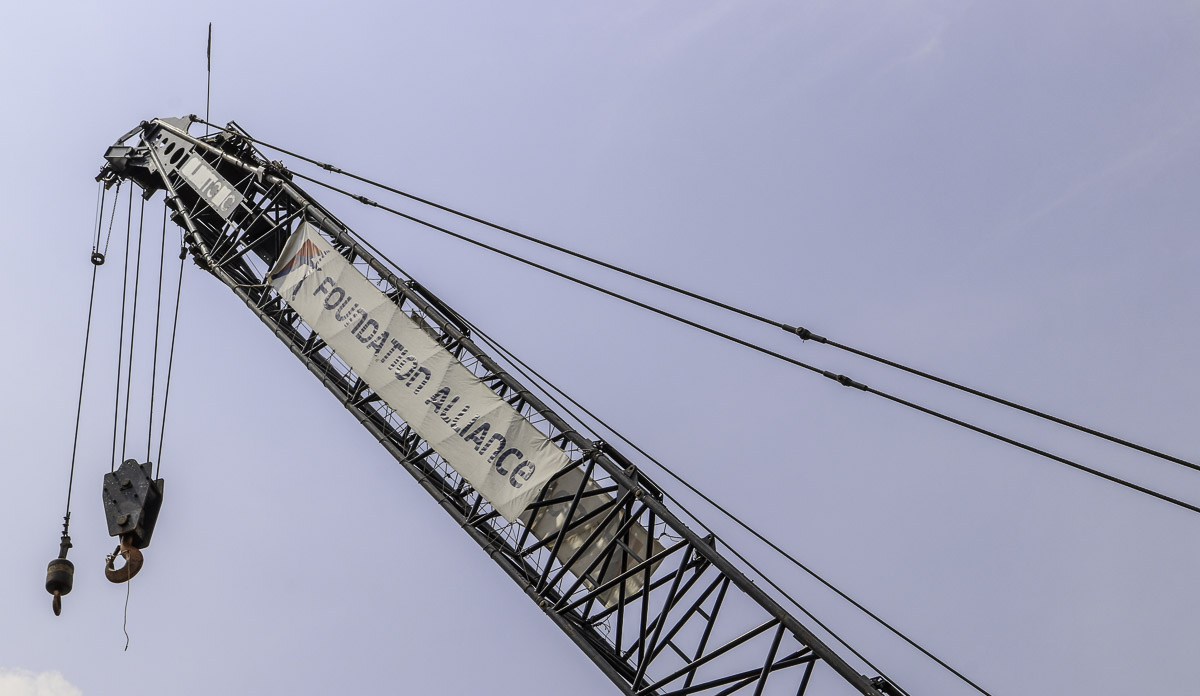

The main boom has a 9.8 meter base length and can be extended to a maximum length of 55.5 meters. The crane is fitted with two 6.5-tonne hoist winches.

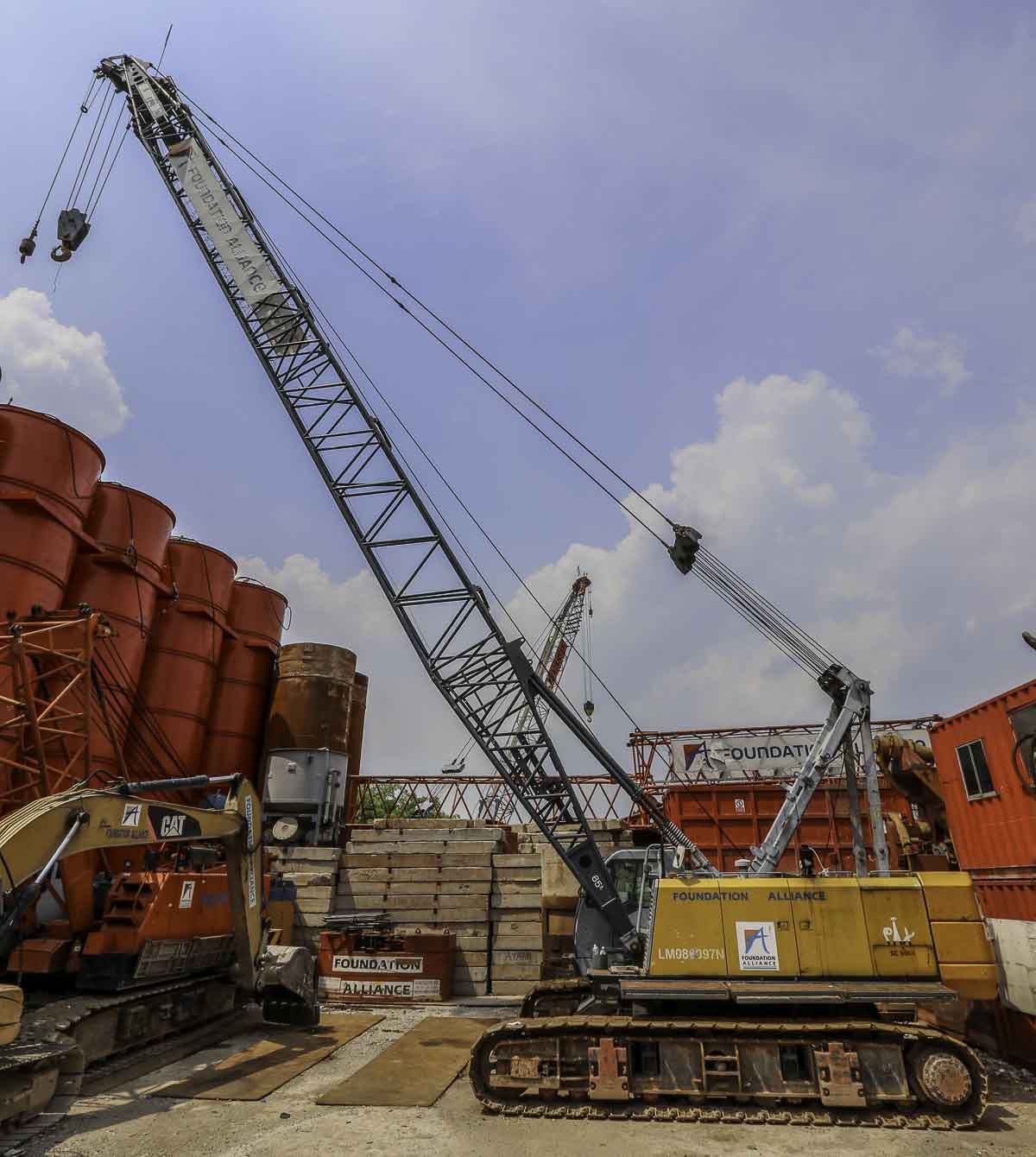

Here stood the crane fitted with a 28.1 meter long main boom. In this configuration is the crane able to hoist maximum 38 tonnes to a 6.3 meter radius or 5.5 tonnes to a 25.5 meter radius.
