Sennebogen 2200 - Eng Lee

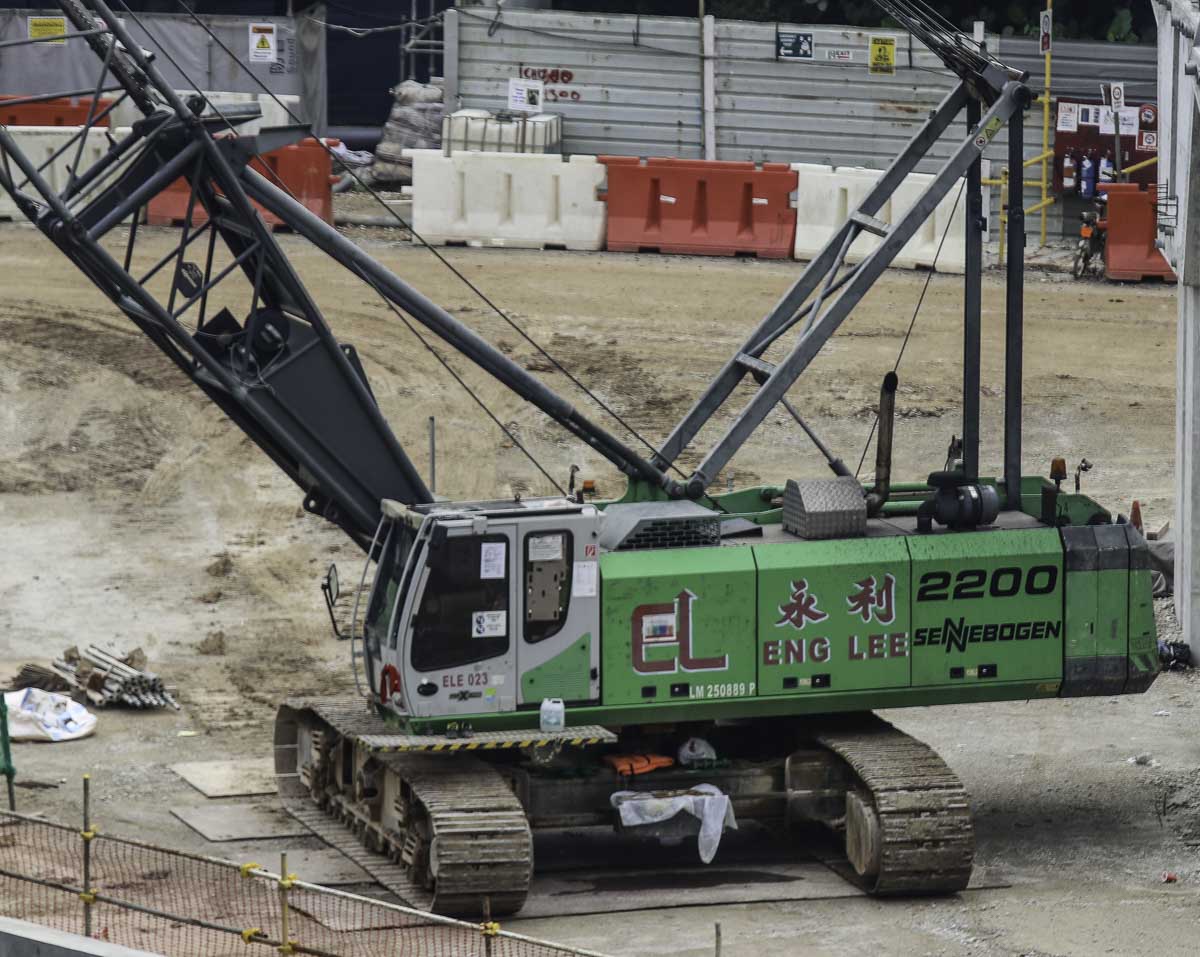

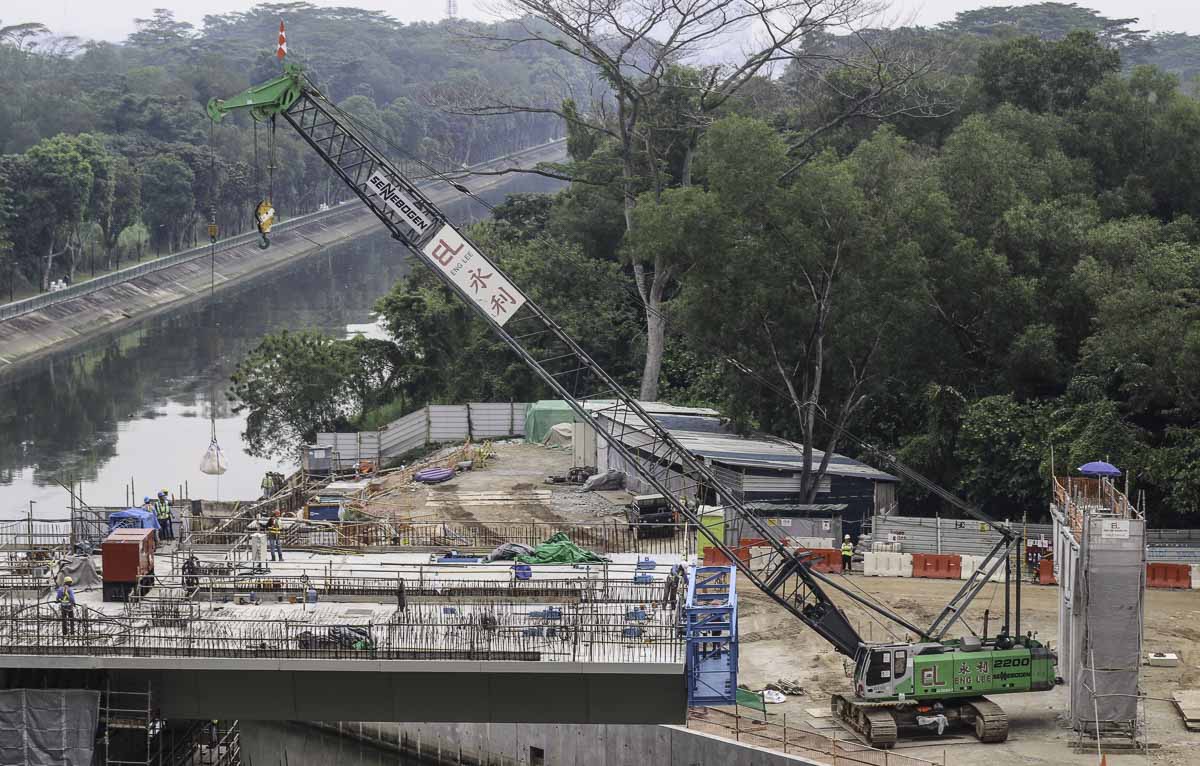

This sharp Sennebogen 2200 belongs to Eng Lee, a construction company from Singapore (SG). The crane was used by the construction of two bridges in Singapore, it is an 80-tonne crawler crane. On the same construction site was also the Kobelco SL6000 of Bok Seng deployed.

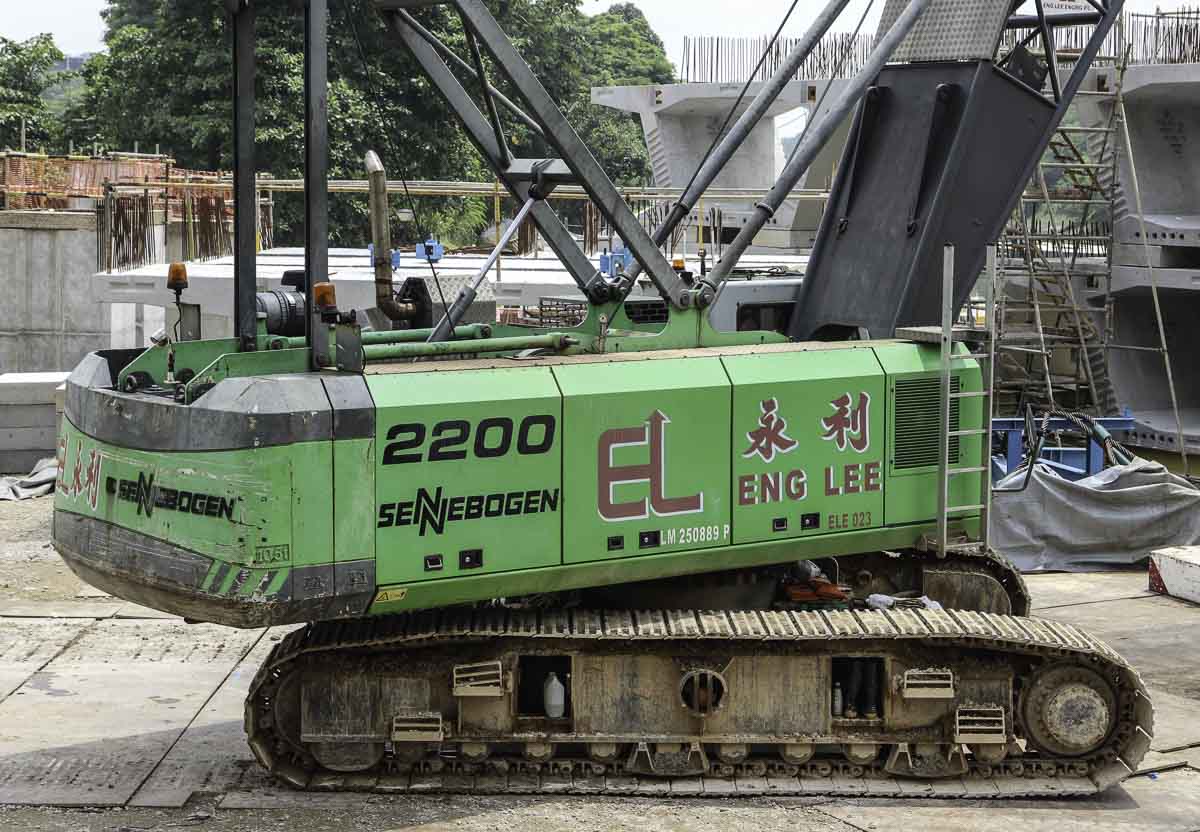

The undercarriage of the crane is 6 meters long and 4.8 meters wide. For the transport over the road is the width to be reduced to 3.5 meters. There is no central counterweight attached to the undercarriage.
The crane is powered by a CAT C7, a 6-cylinder diesel engine with a power of 186 kW (253 hp). The diesel engine powers multiple hydraulic pumps.
The crane is fitted with two 8.5-tonne hoist winches.

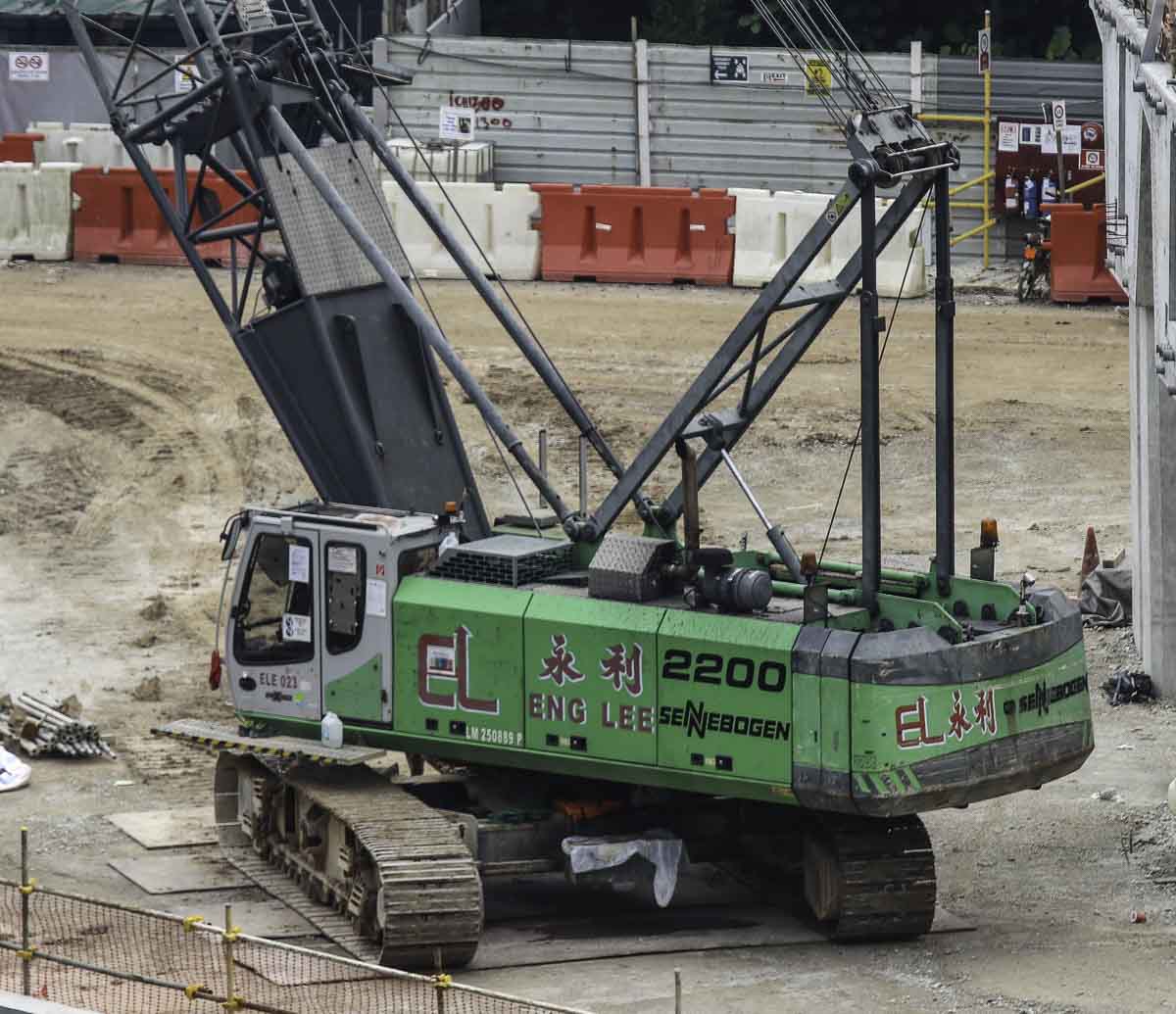

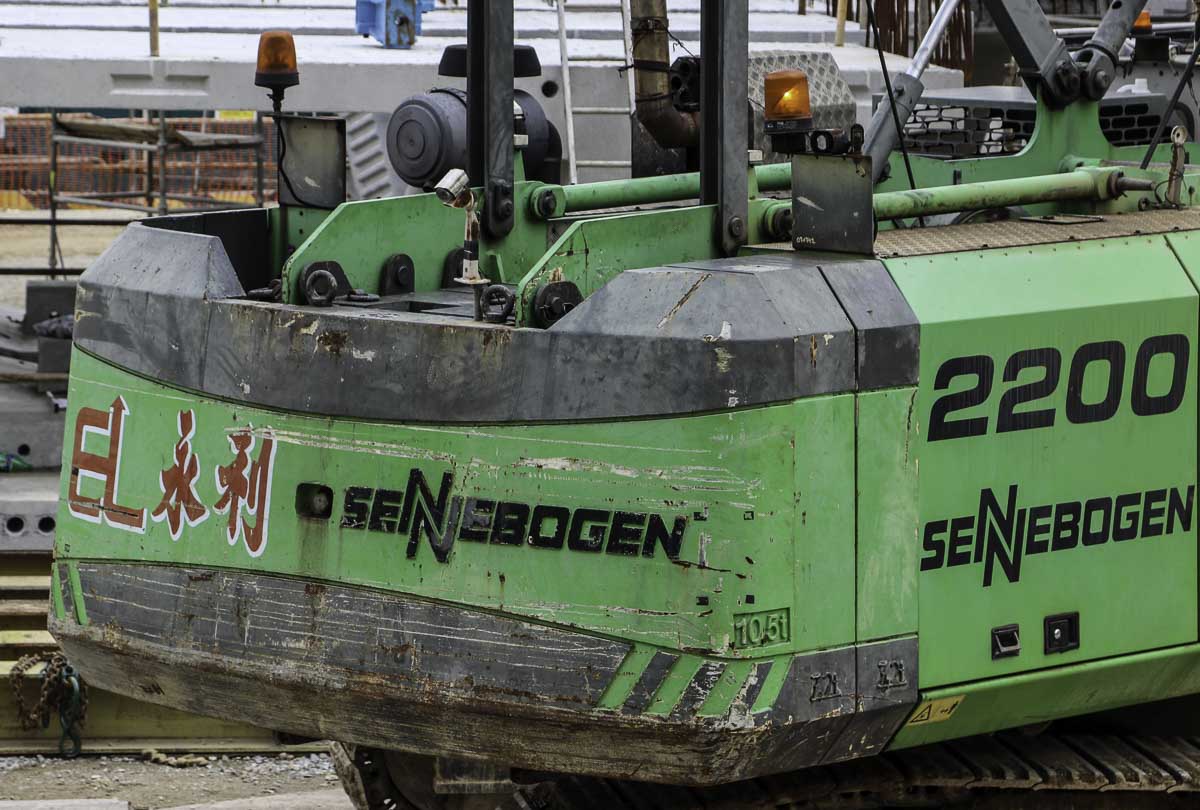

Attahched to the superstructure is a 3-part counterweight with a total mass of 25 tonnes. The counterweight has a 4.7 meter tailswing.

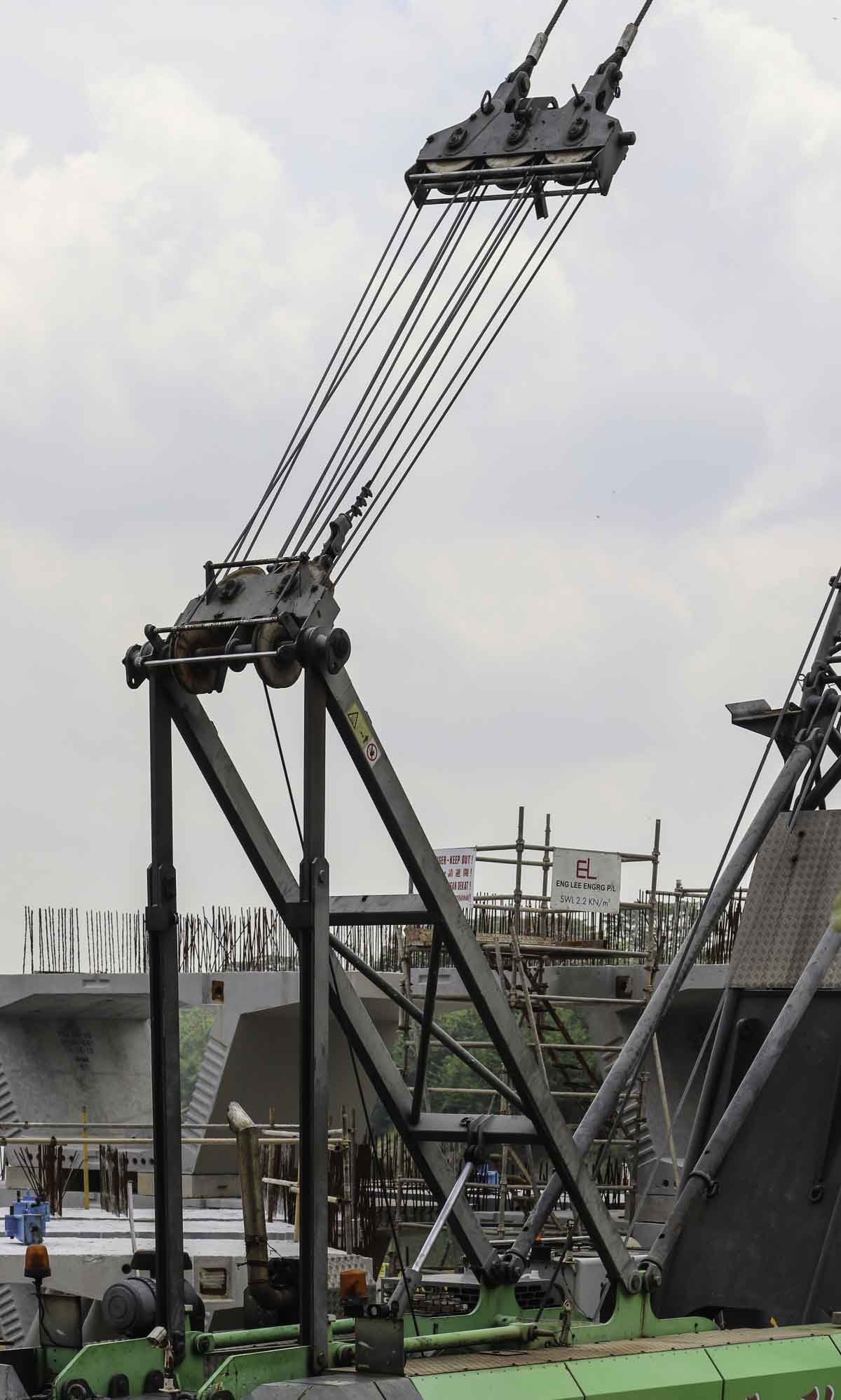

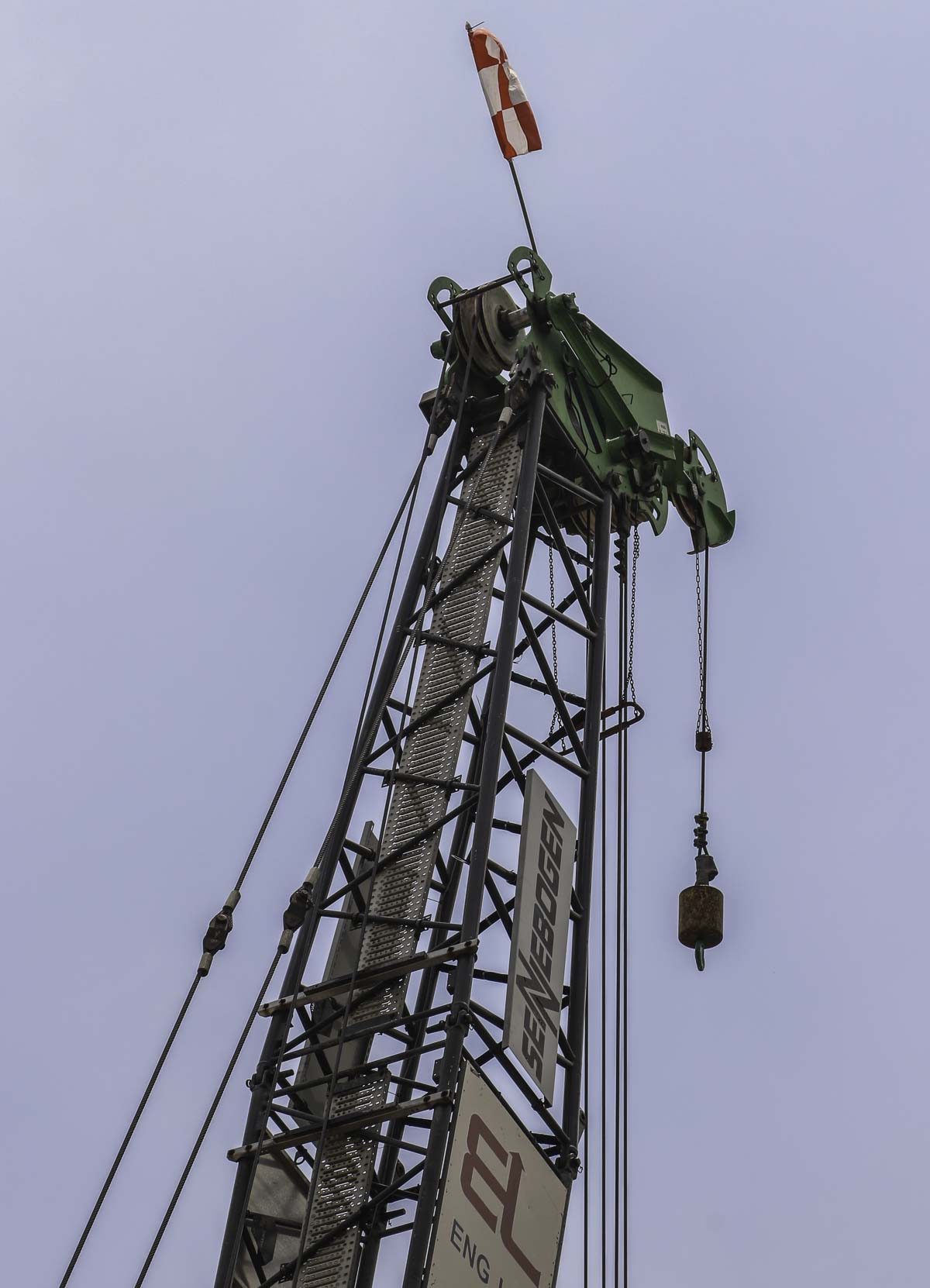

The main boom has a 12.1 meter base length and a maximum length of 59.7 meters. Attached to the main boom head is the auxilliary jib, so that the crane can work with both hoist winches.

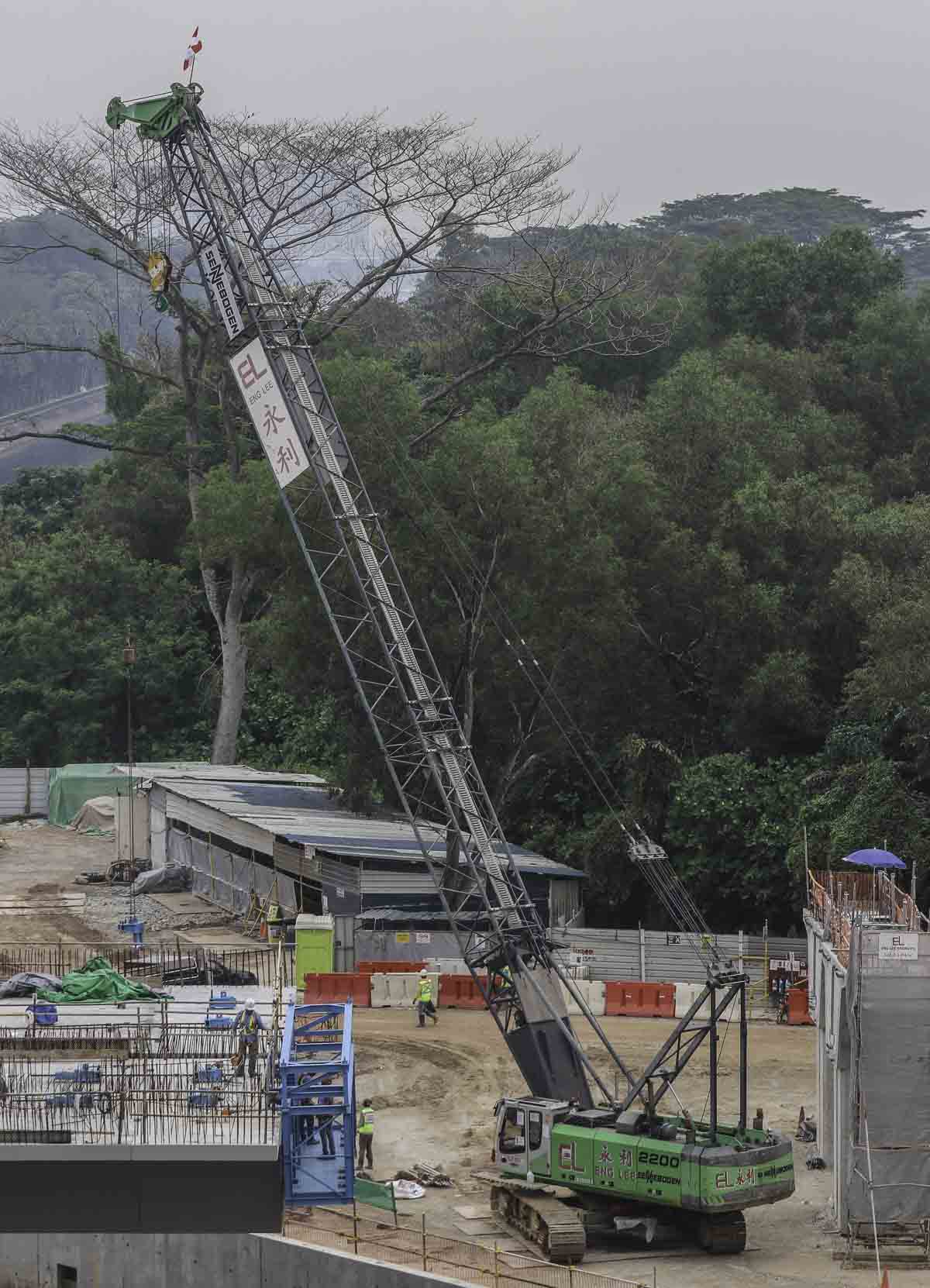

Here was the crane fitted with a 28.9 meter long main boom. In this configuration is the crane able to hoist maximum 34 tonnes at 7 meter radius or 5.8 tonnes to a 26 meter radius. A sharp crane of Eng Lee!
