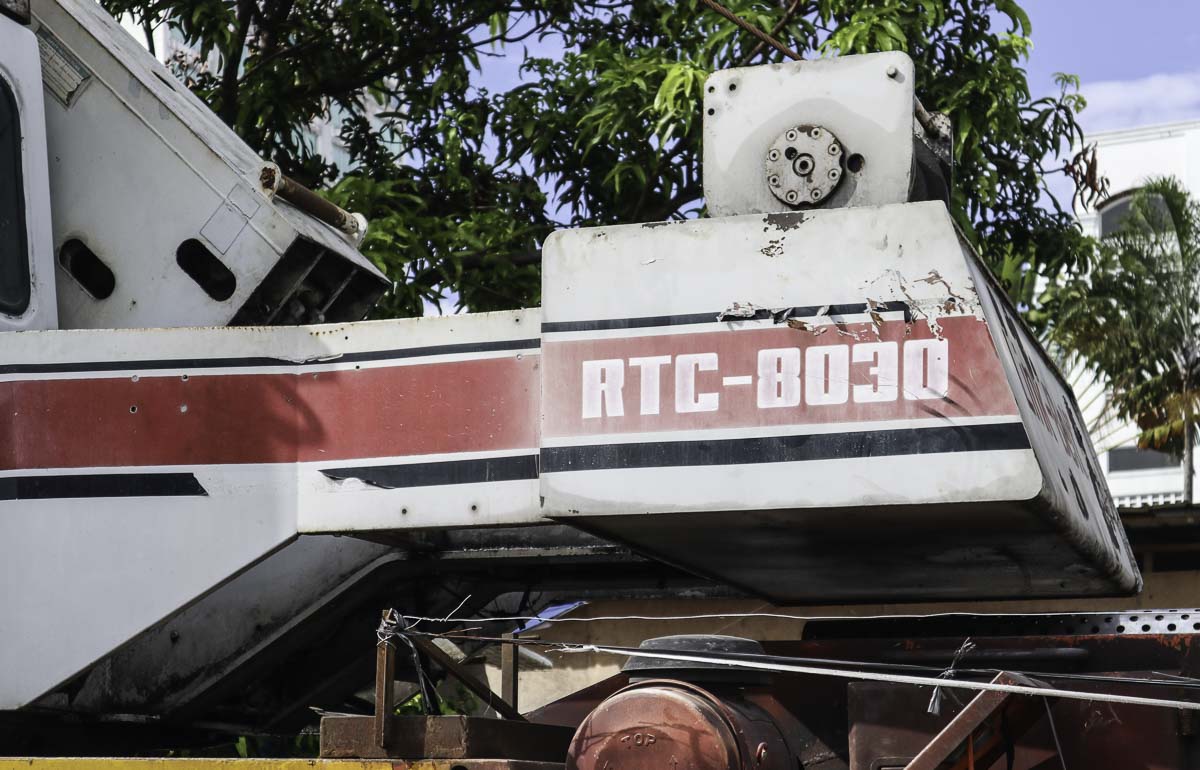

Link-Belt RTC-8030

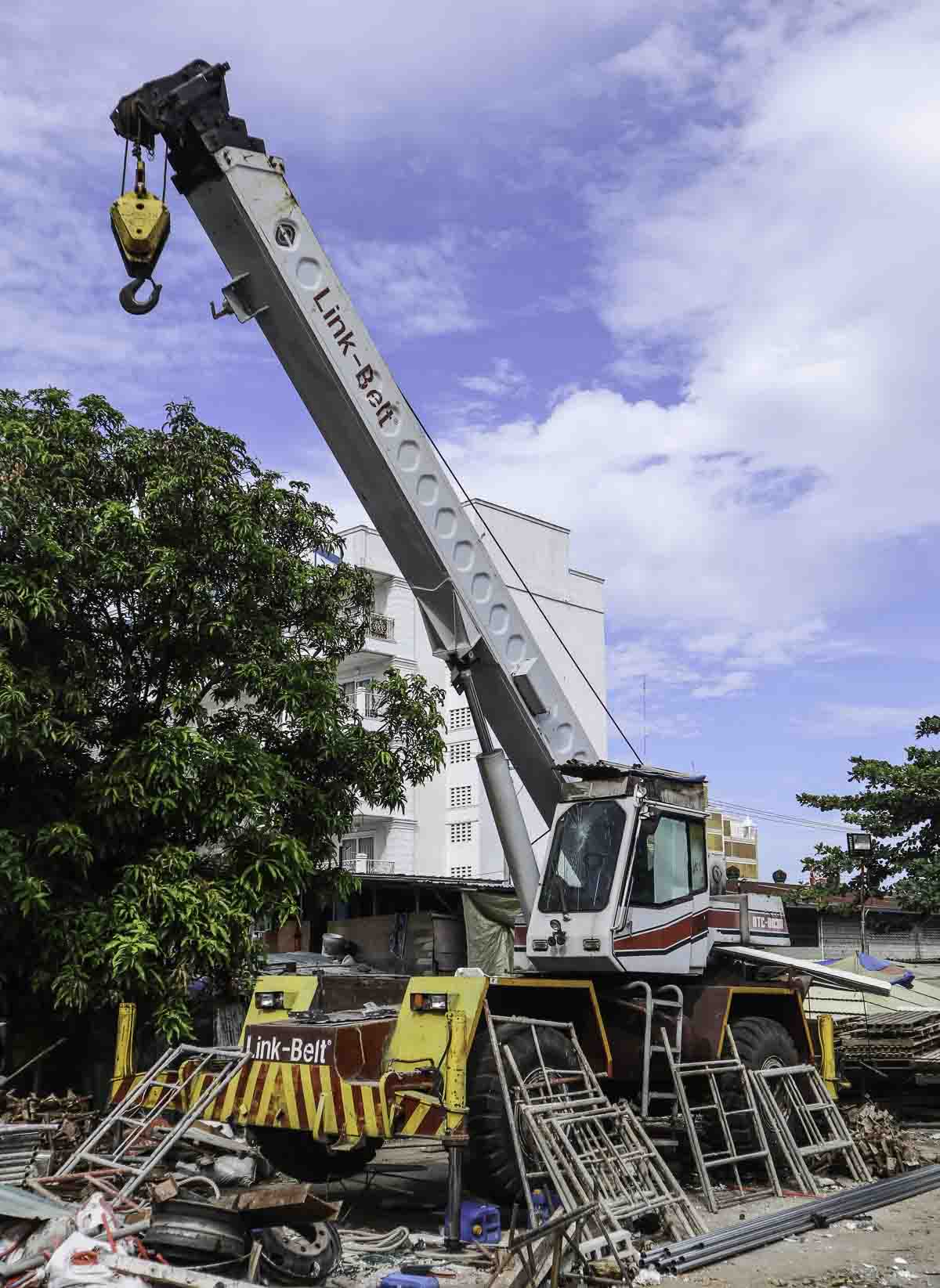

This Link-Belt RTC-8030 stood parked on a small storage yard in Angeles (PH). It is a 30 US-tons (27.23 tonnes) crane, mounted on a 2-axle carrier.
The crane is powered by a Cummins 6BT 5.9, a 5.9-liter 6-cylinder diesel engine with a power of 113 kW (152 hp).

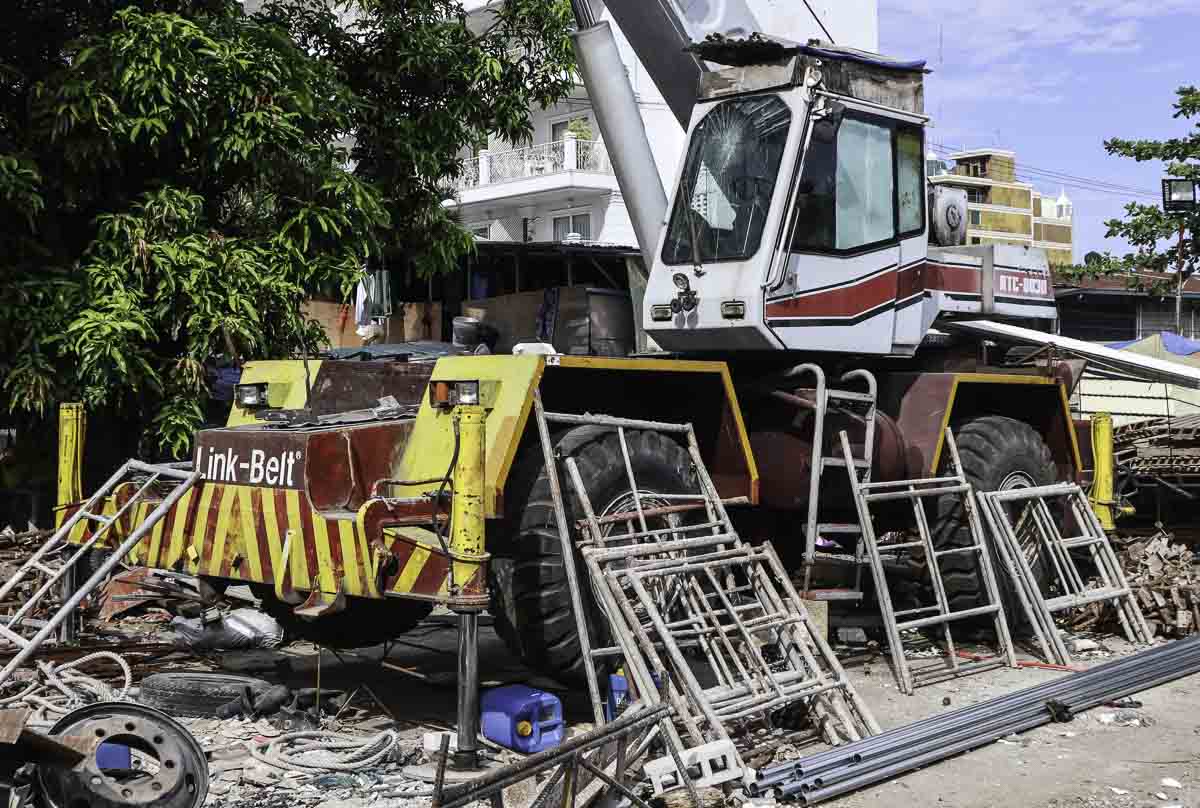

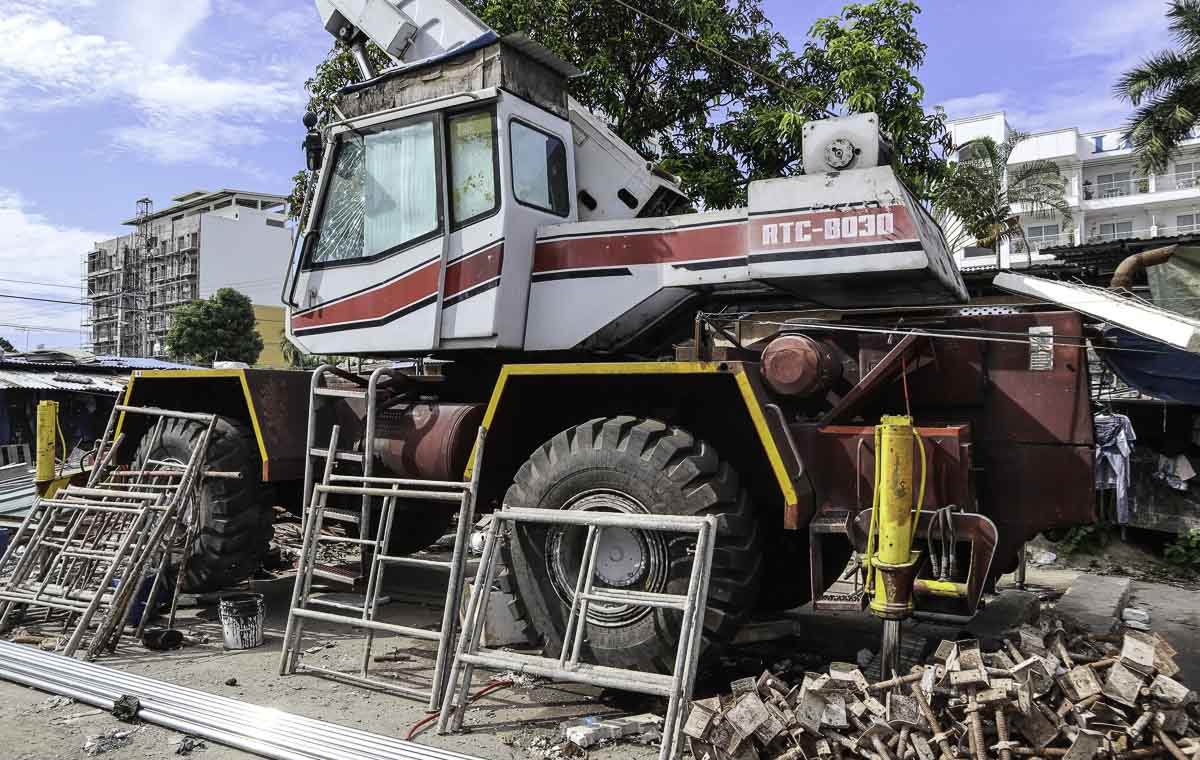

The undercarriage is 7.89 meters long and 3.09 meters wide. The crane has a total mass of approx. 23.6 tonnes.

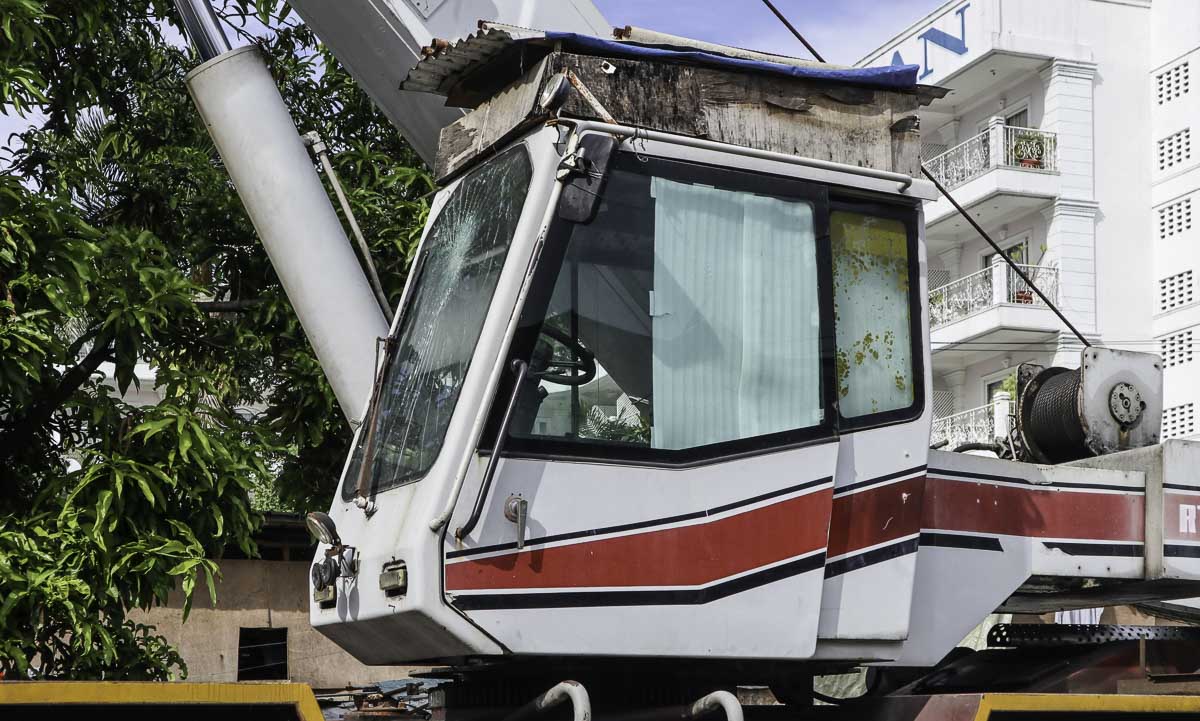

Attached to the superstructure is a counterweight with a 3.29 tonne mass, the tailswing is 3.2 meters. On top of the counterweight is the 3.2-tonne hoist winch mounted.
The 4-part main boom has an 8.76 meter base length and extends three times to a maximum length of 21.41 meters. Optionally, a 7.62 - 13.11 meter long bi-fold swingaway jib can be mounted to the main boom. The jib is mountable in an angle of 0, 15 or 30 degrees towards the main boom.

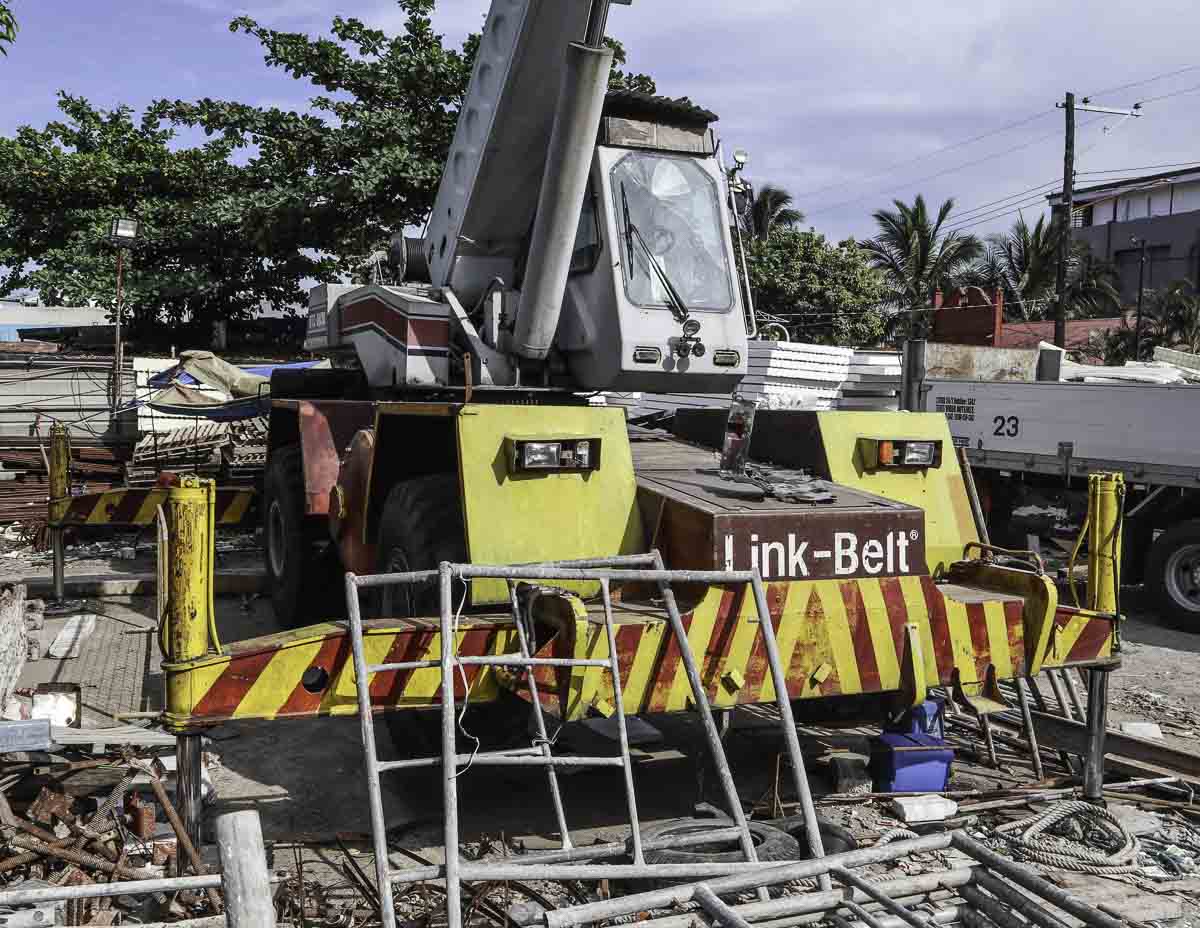

The outrigger base measures 6.78 x 6.65 meters, or half 6.78 x 4.32 meters.
An interesting crane!
