Liebherr LTM 1250-5.1 - Wiesbauer

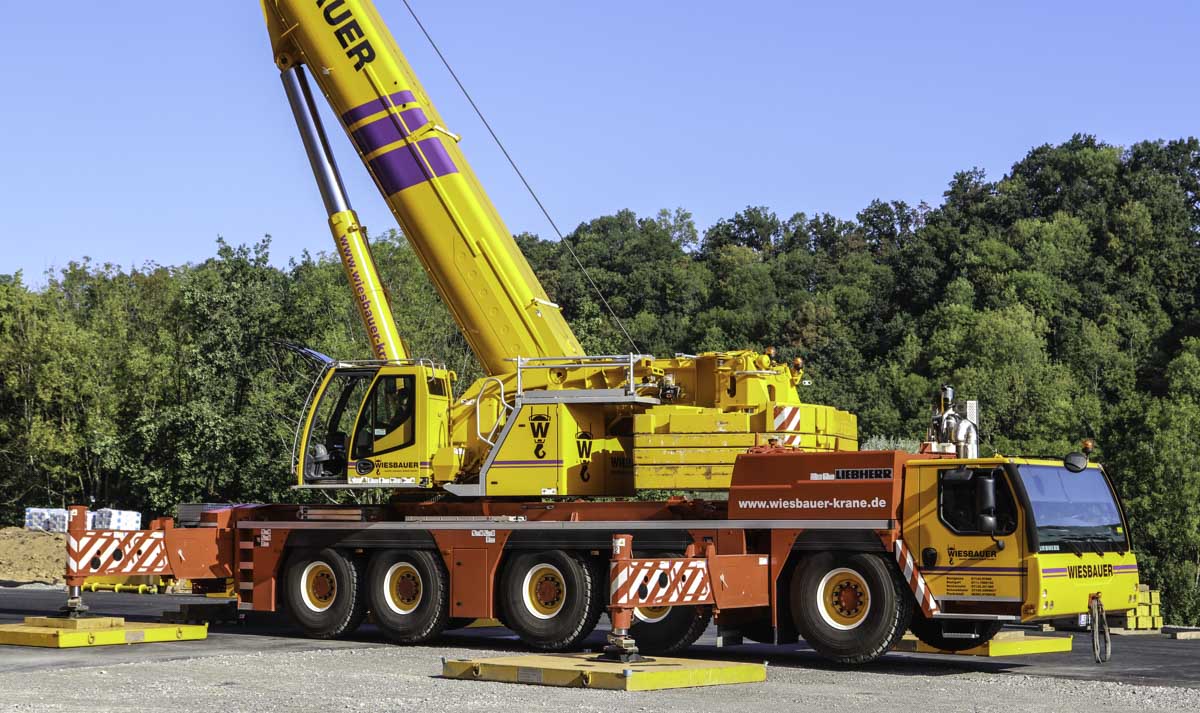

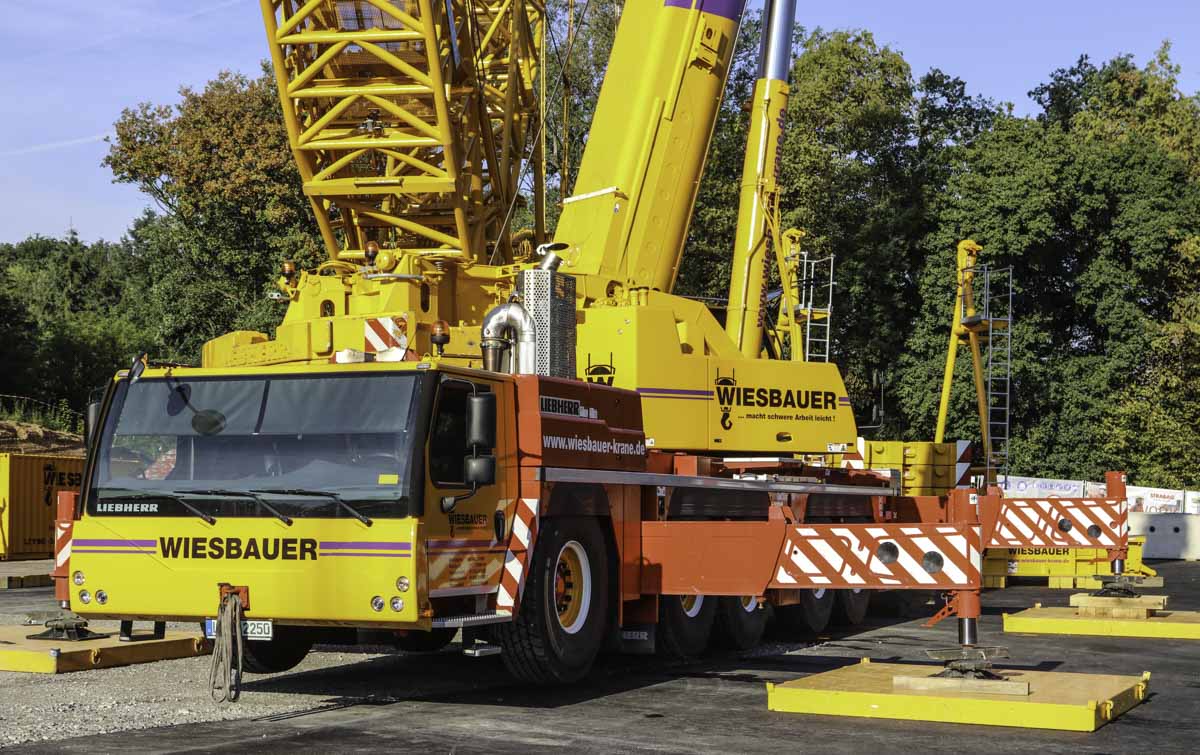

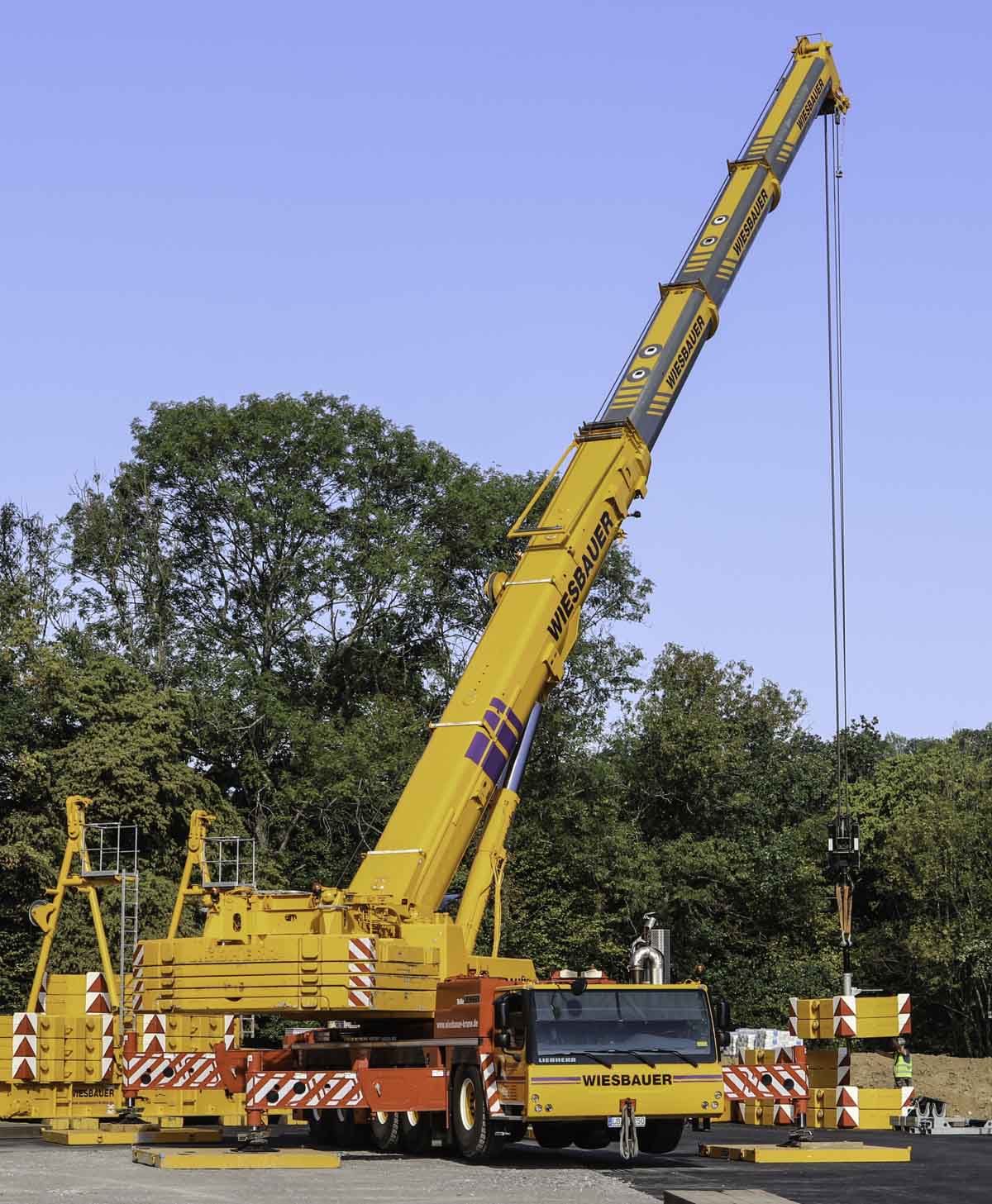

This sharp Liebherr LTM 1250-5.1 of Wiesbauer from Bietigheim (DE) was used as assist crane with the Liebherr LR 11000. It is a 250-tonne crane with year of manufacture 2017.

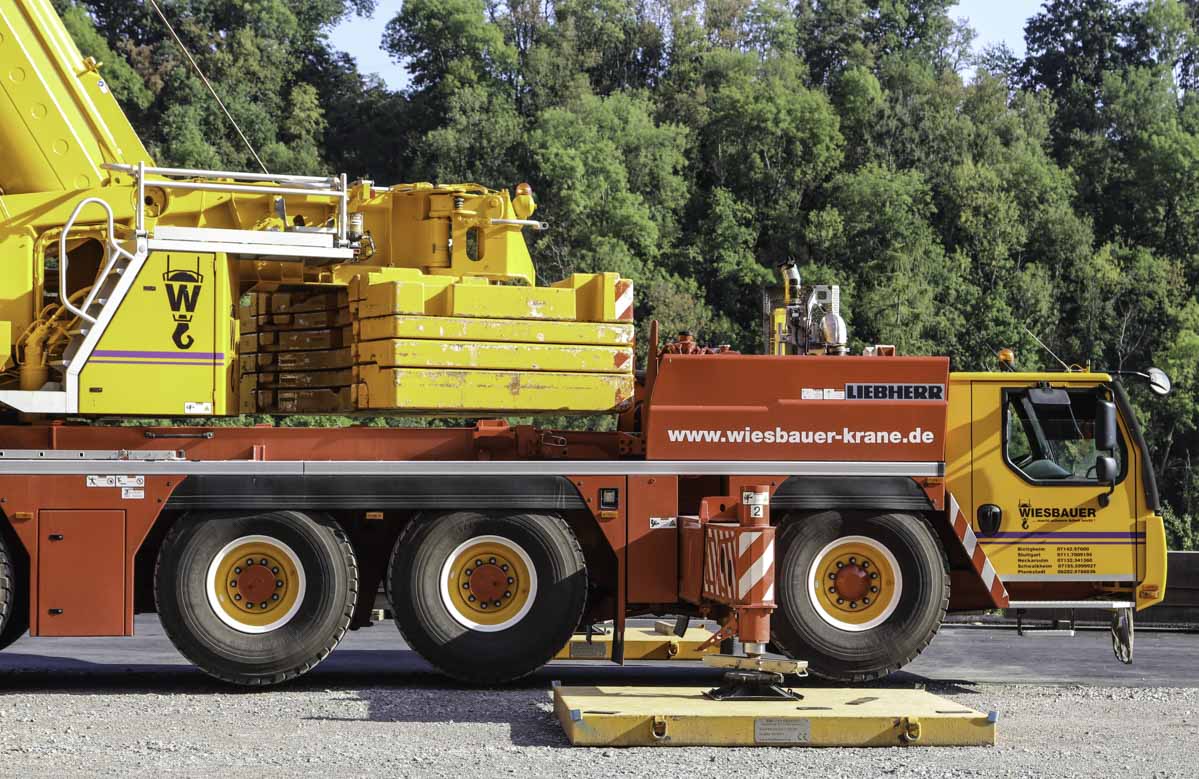

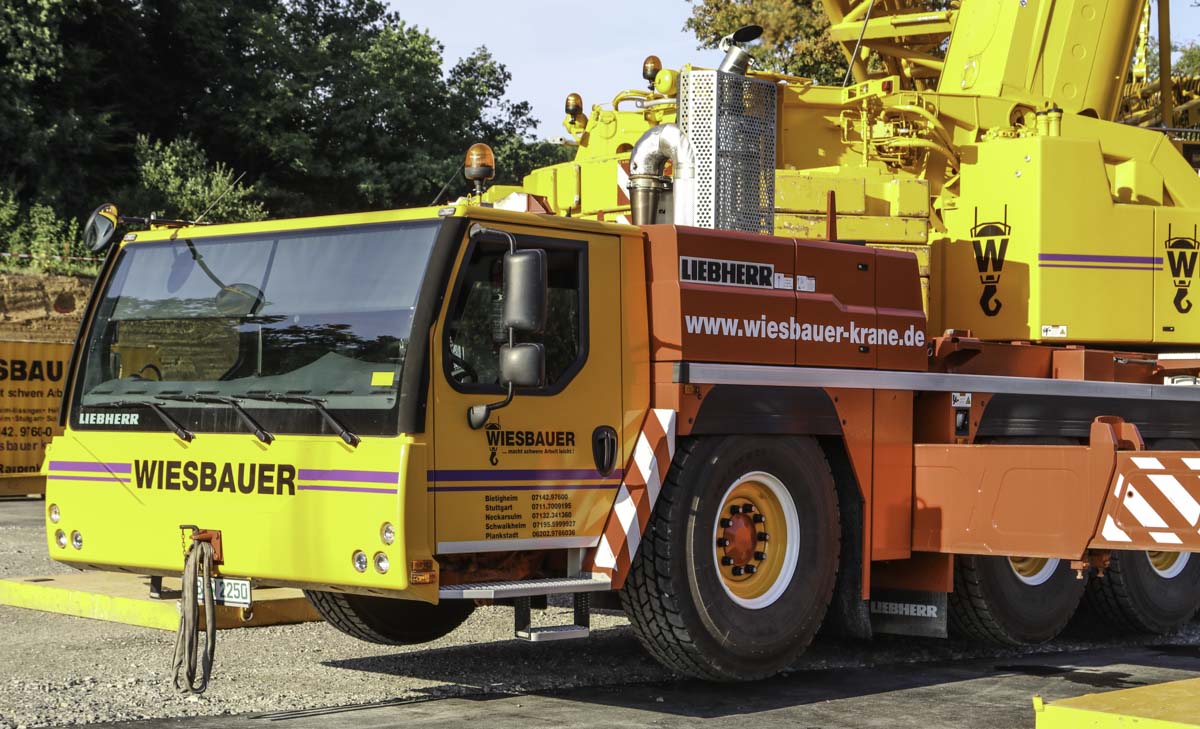

The 5-axle undercarriage is powered by a Liebherr 6-cylinder diesel engine with a power of 400 kW (544 hp). This crane has the optional 10x8x10-drive line, where the axles 2 to 5 are driven and all axles are steerable. During crane operation is the superstructure powered by the engine in the undercarriage, a mechanical coupling is powering the hydraulic pumps.
In transit is the crane 15.96 meters long, 3 meters wide and 4 meters tall. The transport mass is approx. 60 tonnes.

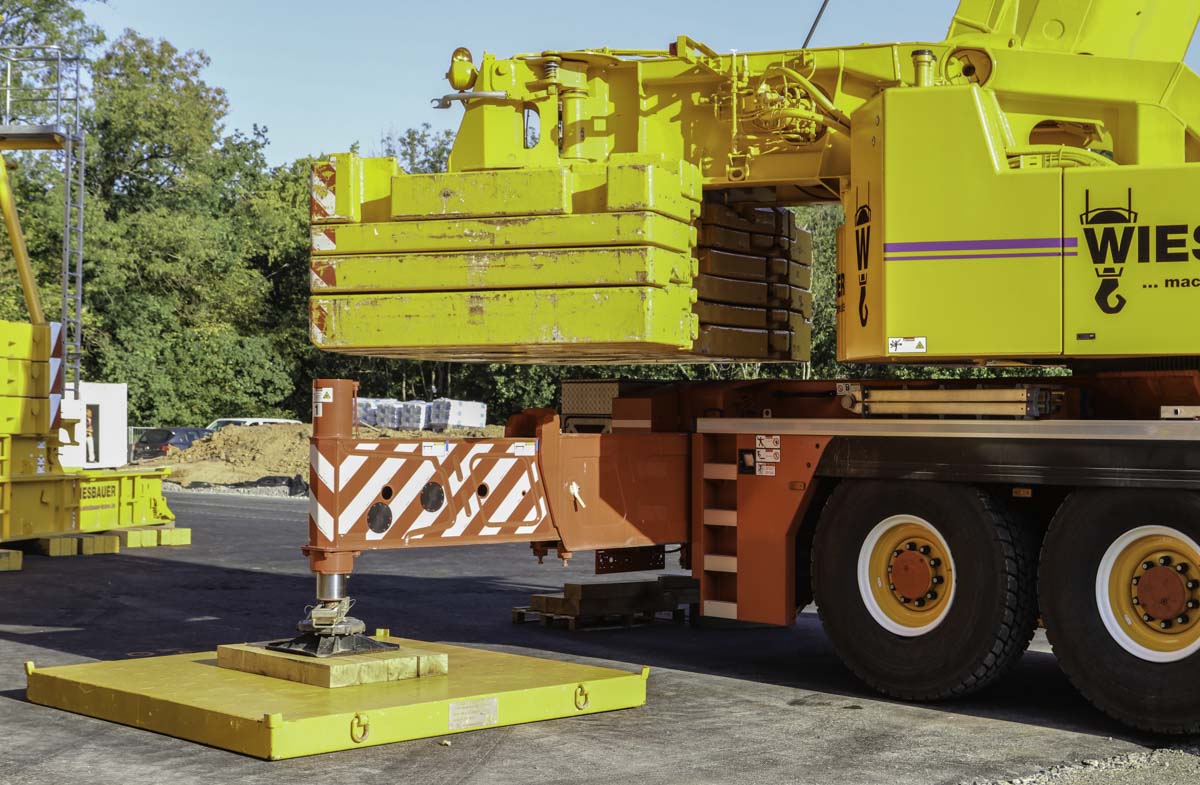

The outrigger base is 9.33 meters long and 8.3 meters wide, or half 9.33 x 5.5 meters. The outrigger pads are transported by truck.

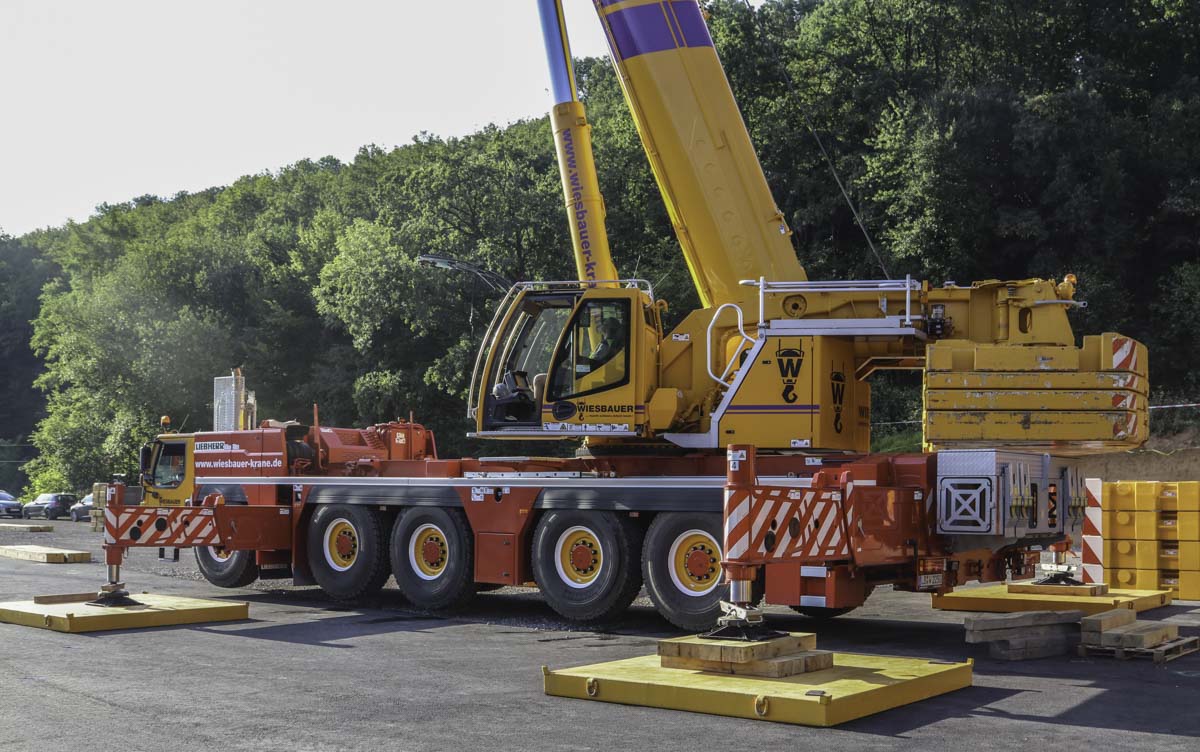

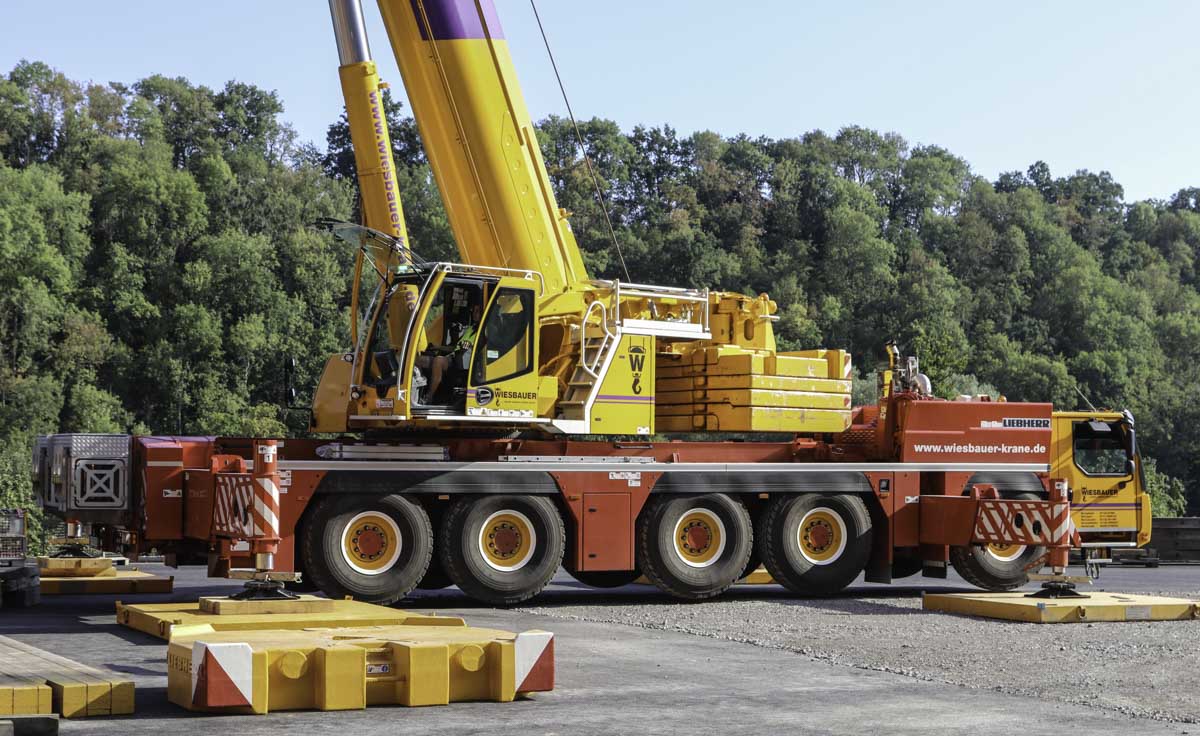

Here was the crane fitted with 58 tonnes of counterweight, that can be extended to maximum 88 tonnes. The counterweight tailswing is to be selected at 4.78 or 5.58 meters by positioning the consoles for- or backwards. The position of the counterweight can only be selected during the erection of the crane and can't be changed during crane operation.
The crane's main boom has a 13.1 meter base length and extends five times to a maximum length of 60 meters.

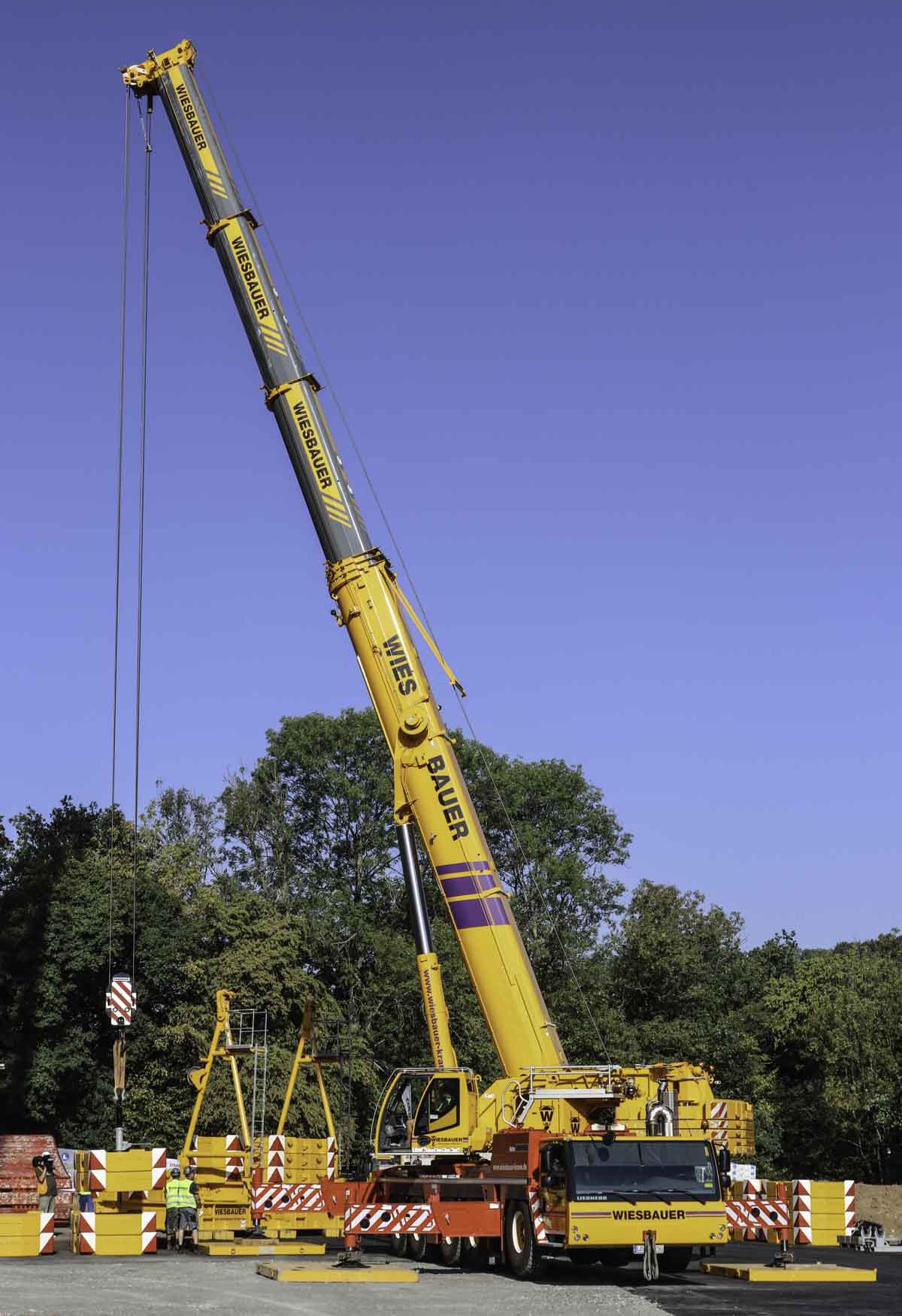

The crane bas busy here to prepare the superlift counterweight for the large crawler crane.
A very sharp crane in the Wiesbauer colours!
