Liebherr LTM 1040/1 - Rieger & Moser

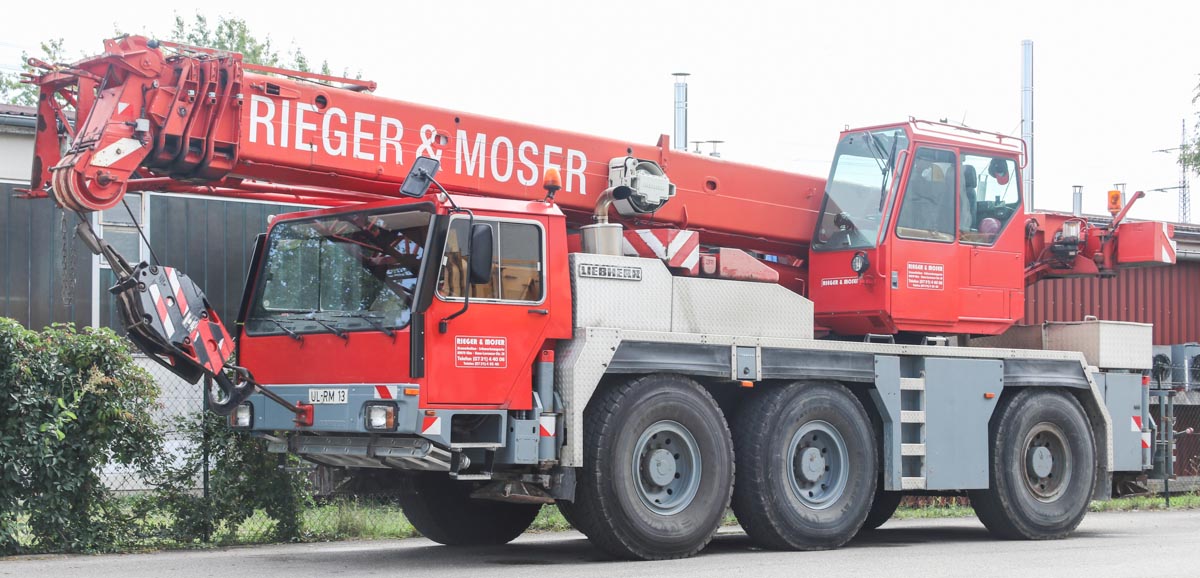

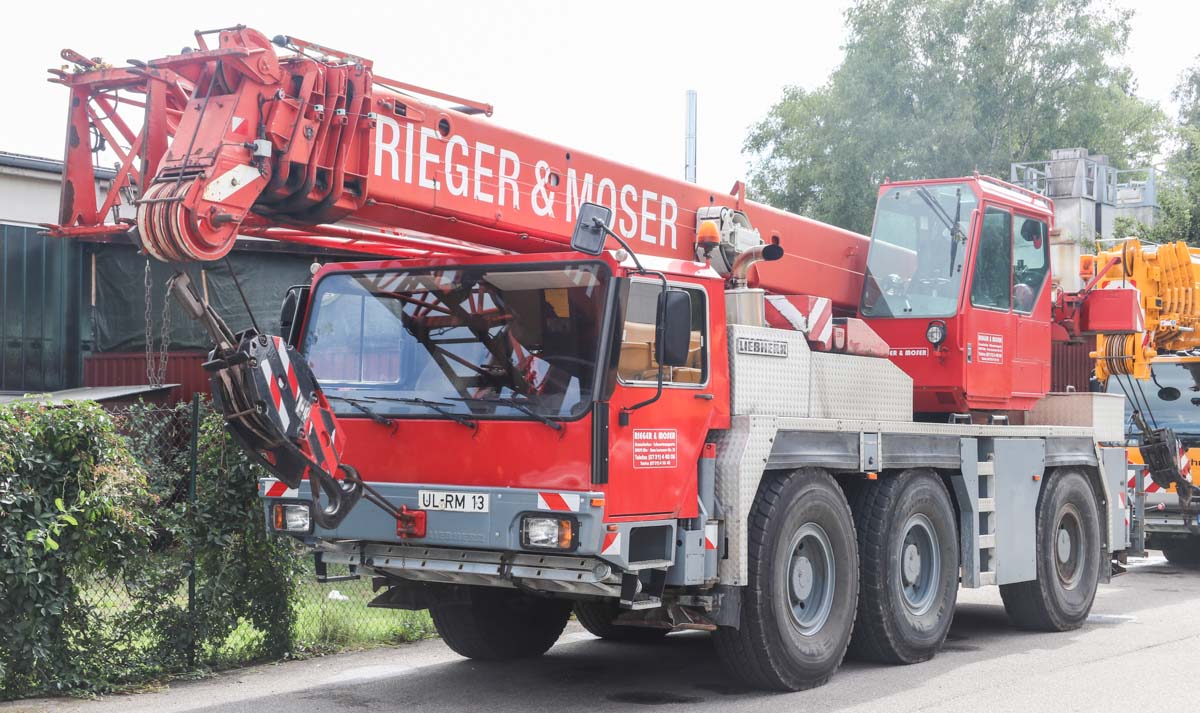

Rieger & Moser from Ulm (DE) is operating this sharp Liebherr LTM 1040/1, a 40-tonne crane on a 3-axle crane carrier.

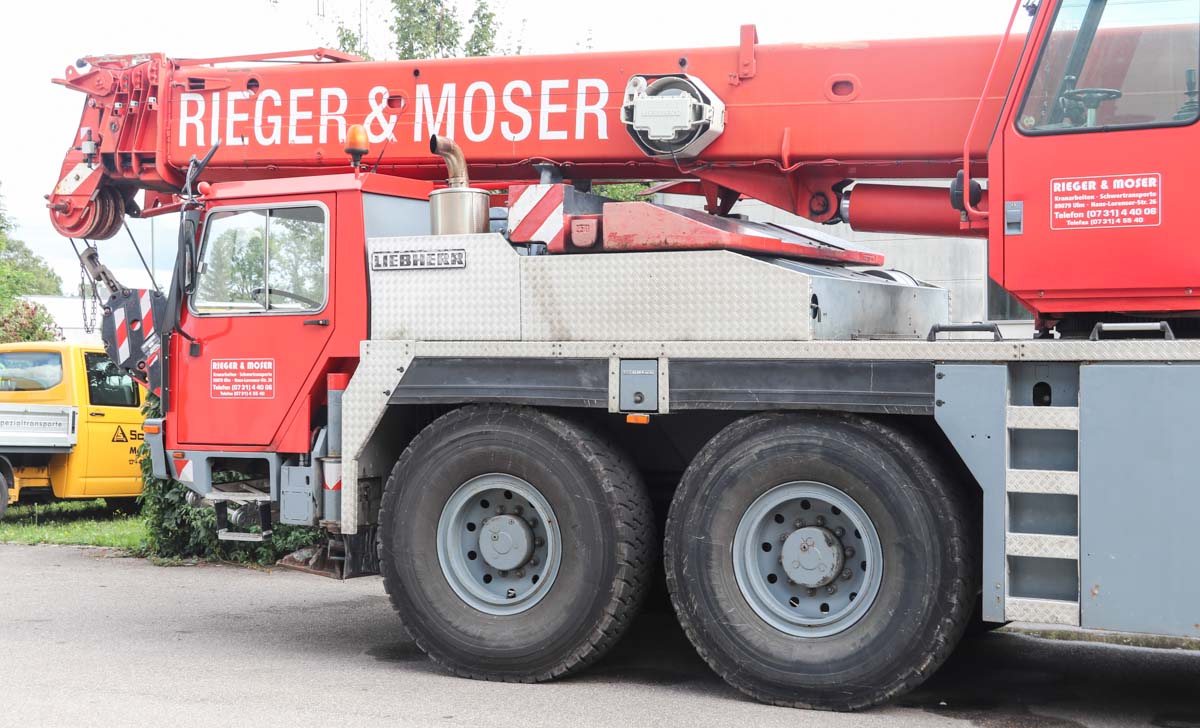

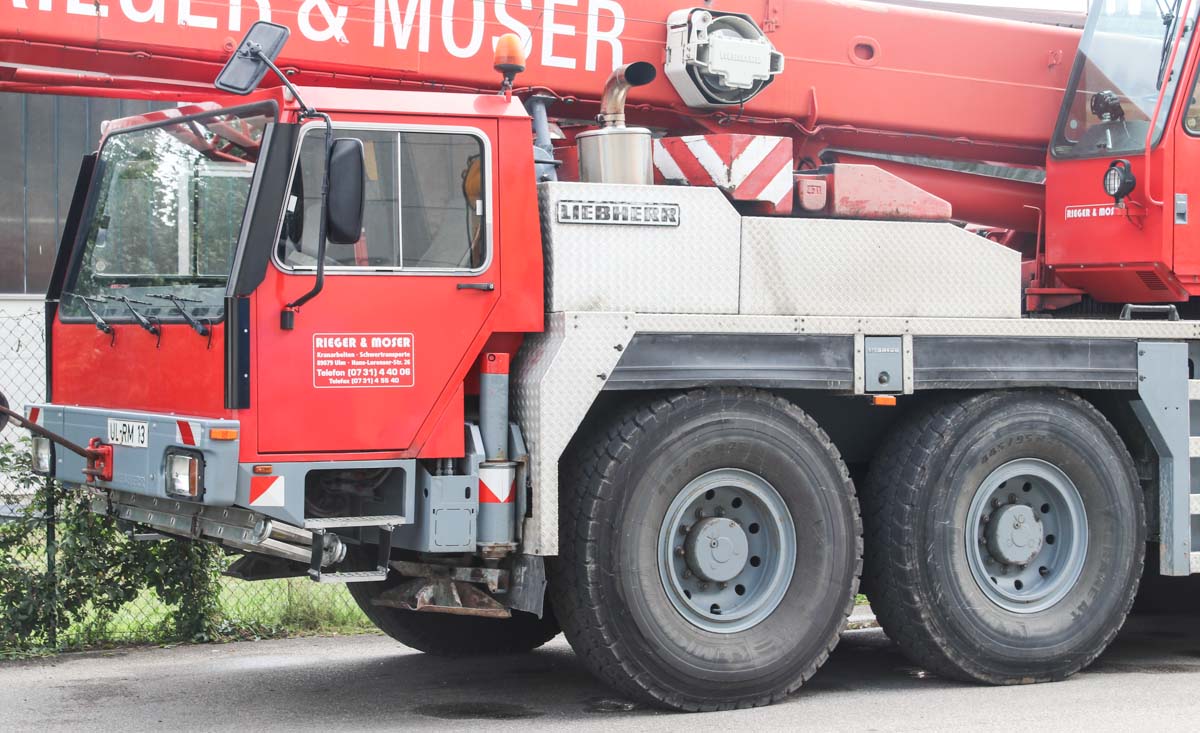

The undercarriage is powered by a Liebherr D 926 TI-E, a 6-cylinder diesel engine with a power of 230 kW (312 hp). This crane has the optional 6x6-drive line, where all axles are powered and steerable. Also the wide 2-person cabin on the undercarriage was optional, usually these cranes were fitted with a single cabin.
The outrigger base of the crane measures 7.14 x 6.3 meters, or half 7.14 x 4.32 meters. During the transport over the road is 4.7 tonnes of counterweight stored on the undercarriage.

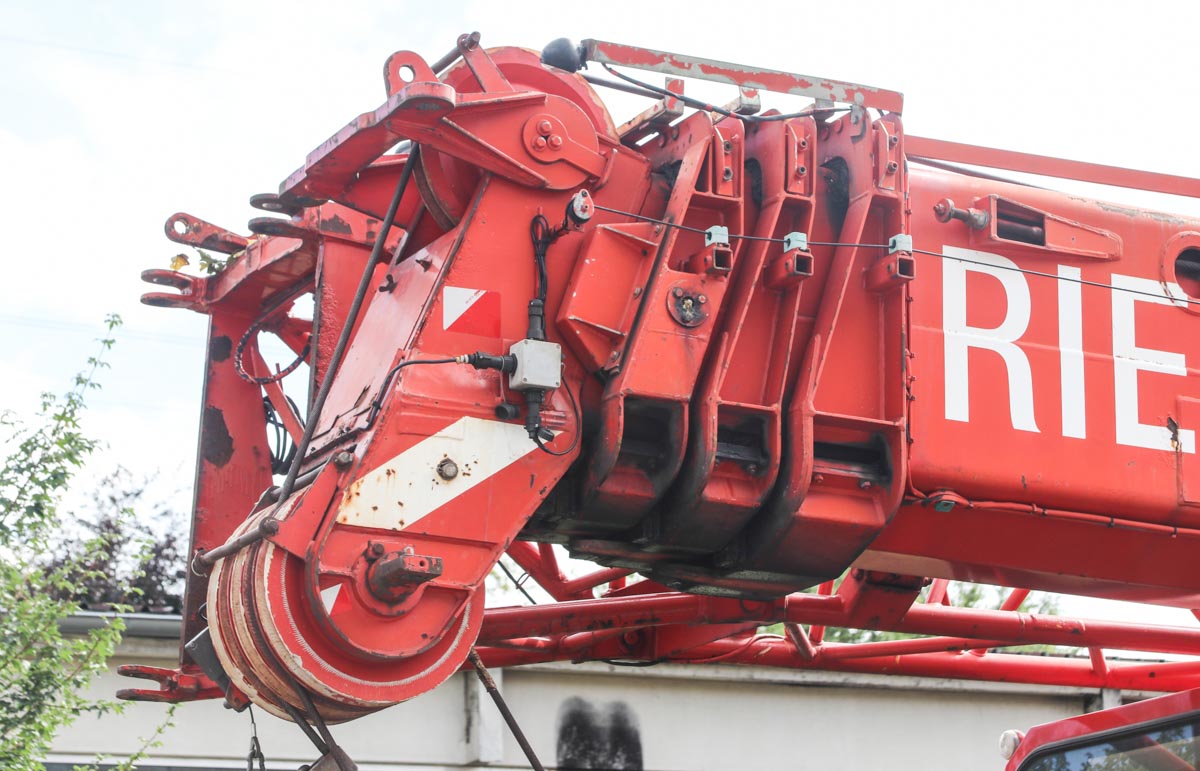

The 4-part main boom has a 9.5 meter base length and extends three times to a full length of 30 meters. A maximum 14.5 meter folding jib is under 0, 15 or 30 degrees mountable.

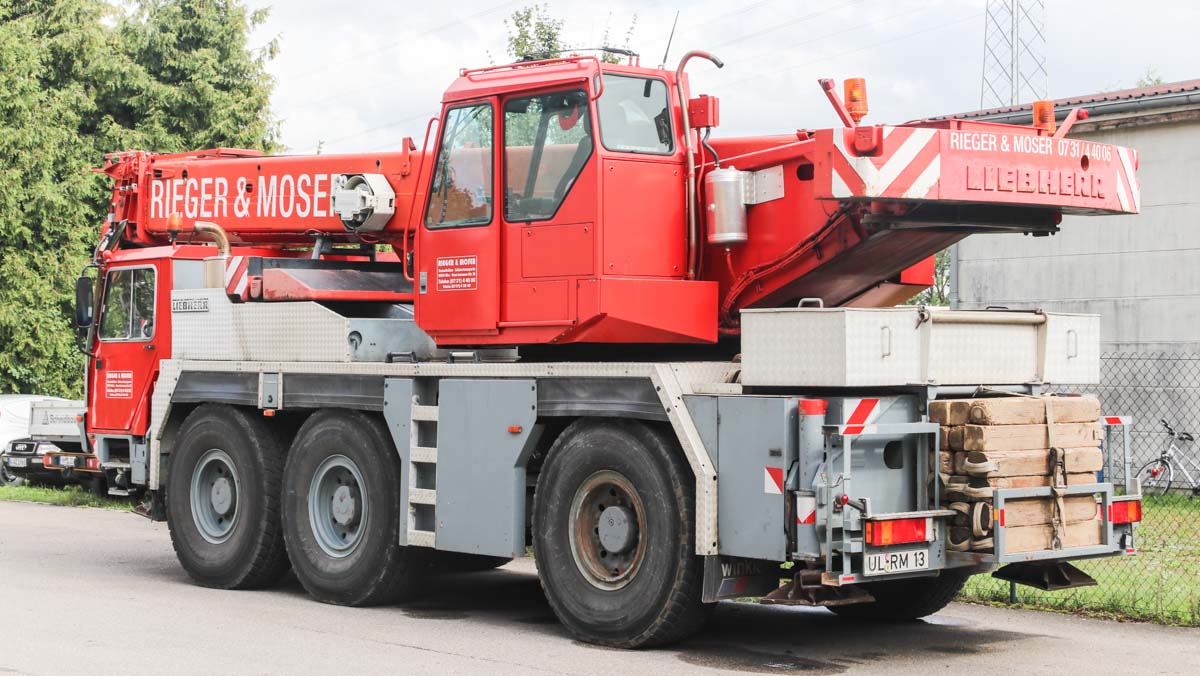

Packed is the crane 10.97 meters long, 2.5 meters wide and 3.62 meter hich. The transport mass is around 36 tonnes including 7.5 tonnes of counterweight and the folding jib. At the rear of the crane is a large box for lifting gear mounted.
The full counterweight weights 7.5 tonnes and has a 3.425 meter tailswing.
A sharp crane by Rieger & Moser, that is operating cranes up to 350 tonnes.
