Liebherr HS 895 HD - Neptune Marine
This Liebherr HS 895 HD of Neptune Marine from Hardinxveld-Giessendam (NL) stood at Maasvlakte (NL). It is a 200 tonne heavy duty crane with year of manufacture 2007.

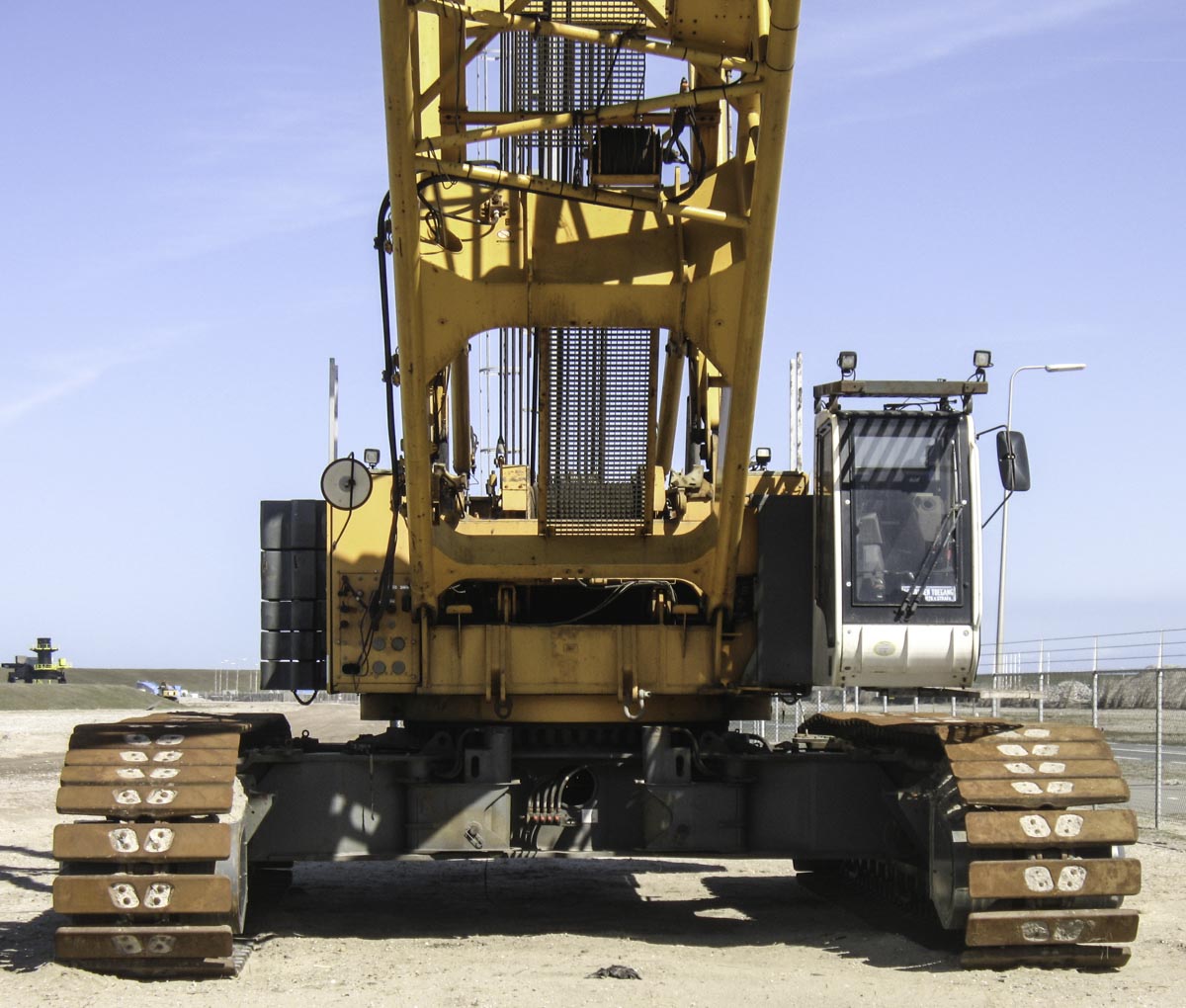

The undercarriage is 9.36 meters long and 6.8 meters wide. Between the tracks is it possible to install in total 27 tonnes of central counterweight, but with a use as heavy duty cycle crawler crane isn't the central counterweight needed.

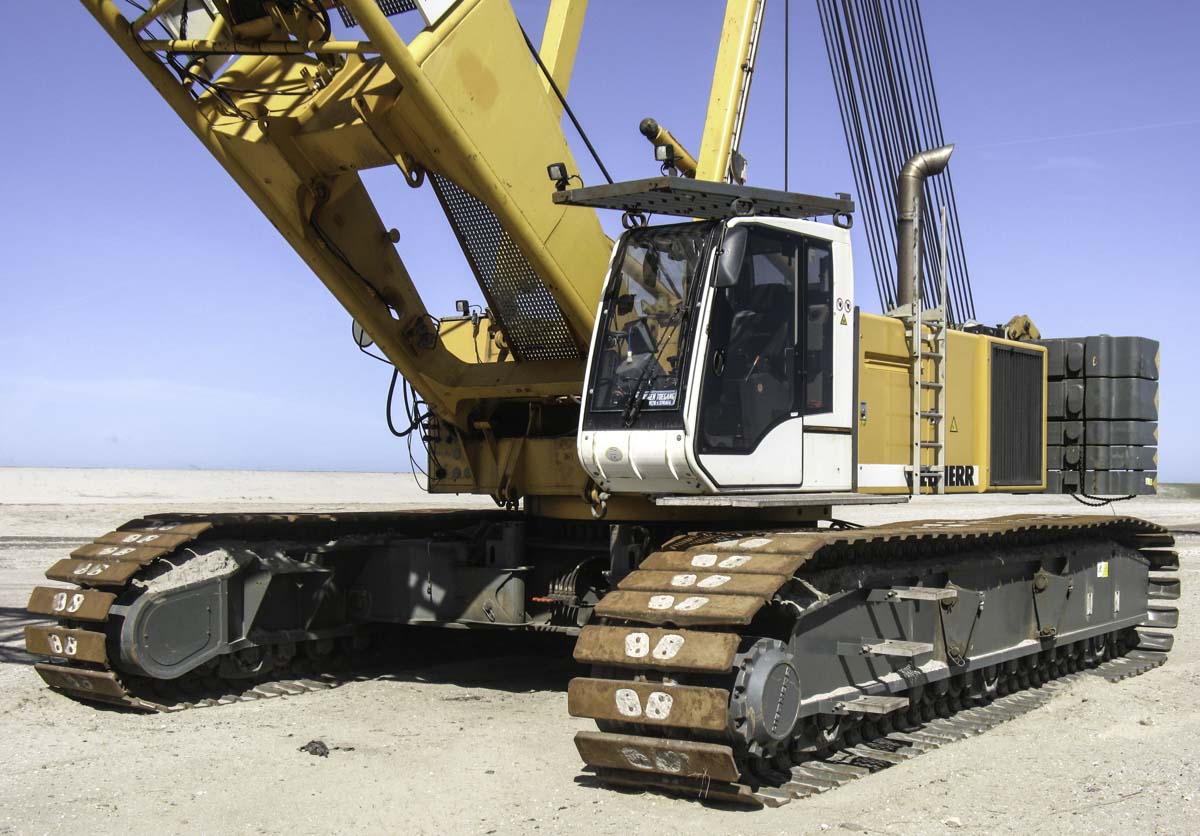

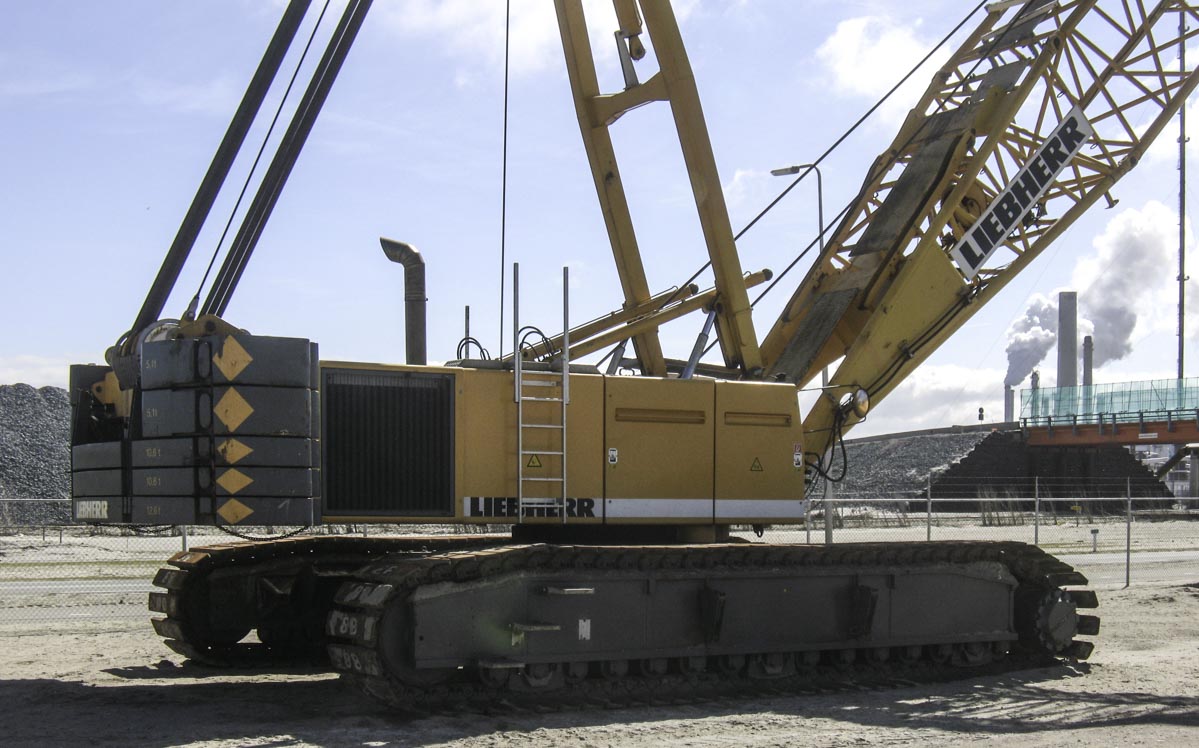

The crane is powered by a MAN D2842 LE, a 12-cylinder diesel engine with a power of 670 kW (912 hp).

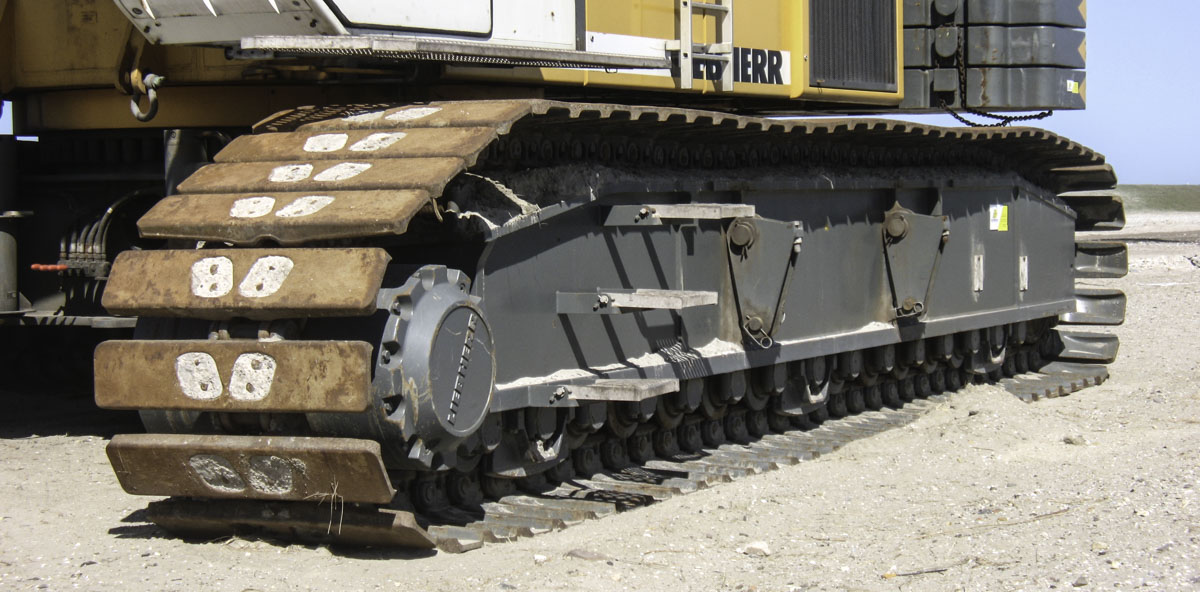

A single track is 9.36 meters long, 1.1 meters wide and 1.61 meters tall. The mass each is 25.51 tonnes.

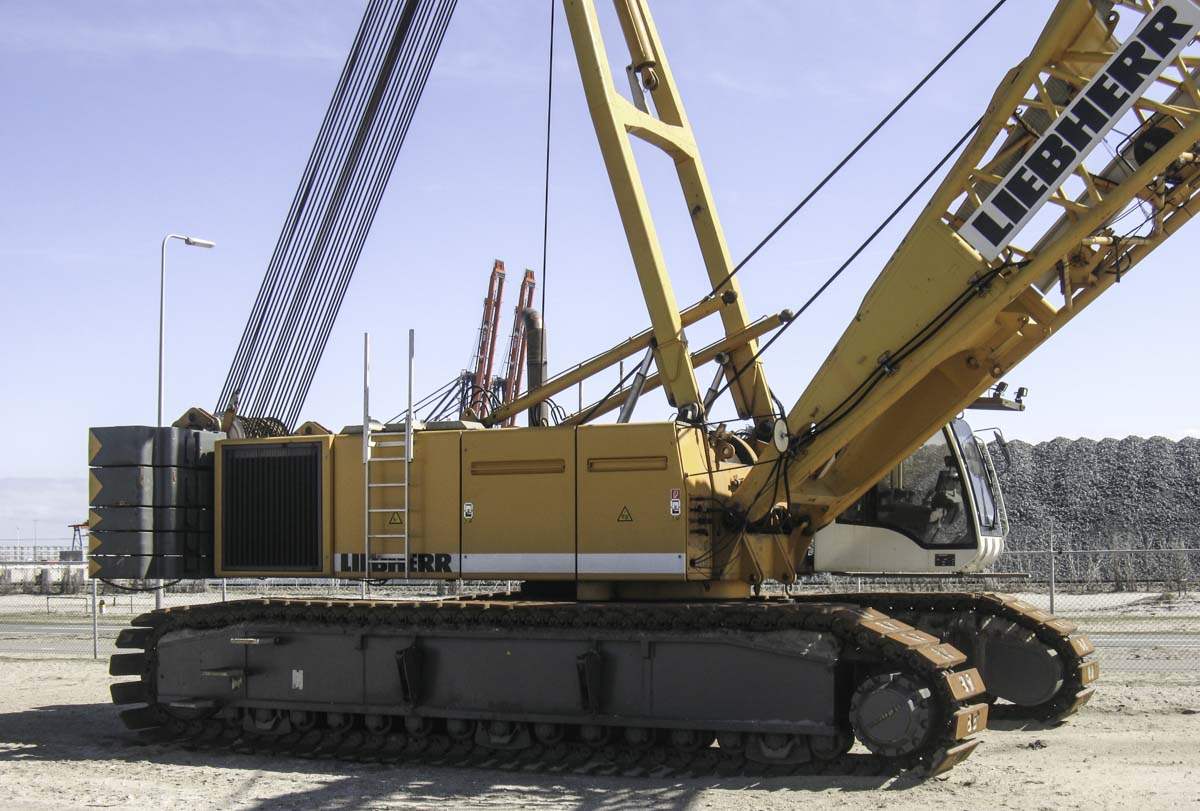

In the background is standing the Liebherr LR 1300 of Neptune Marine that would replace this crane at the job.

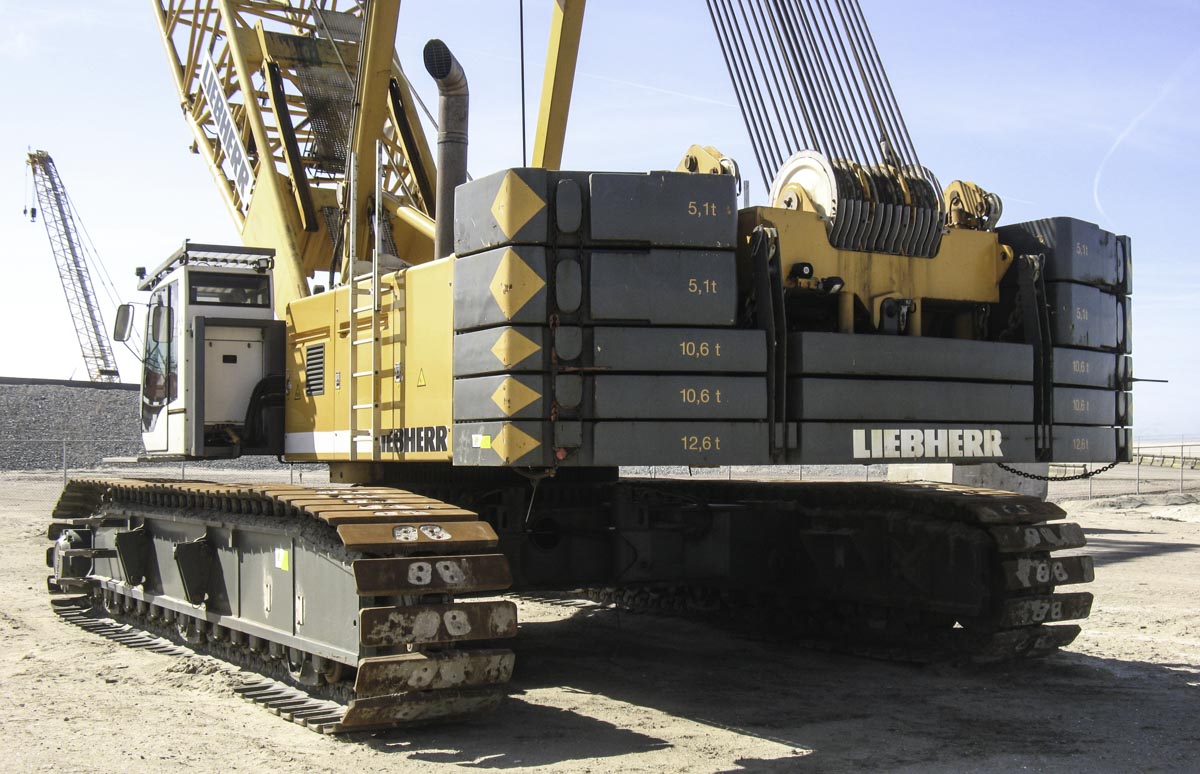

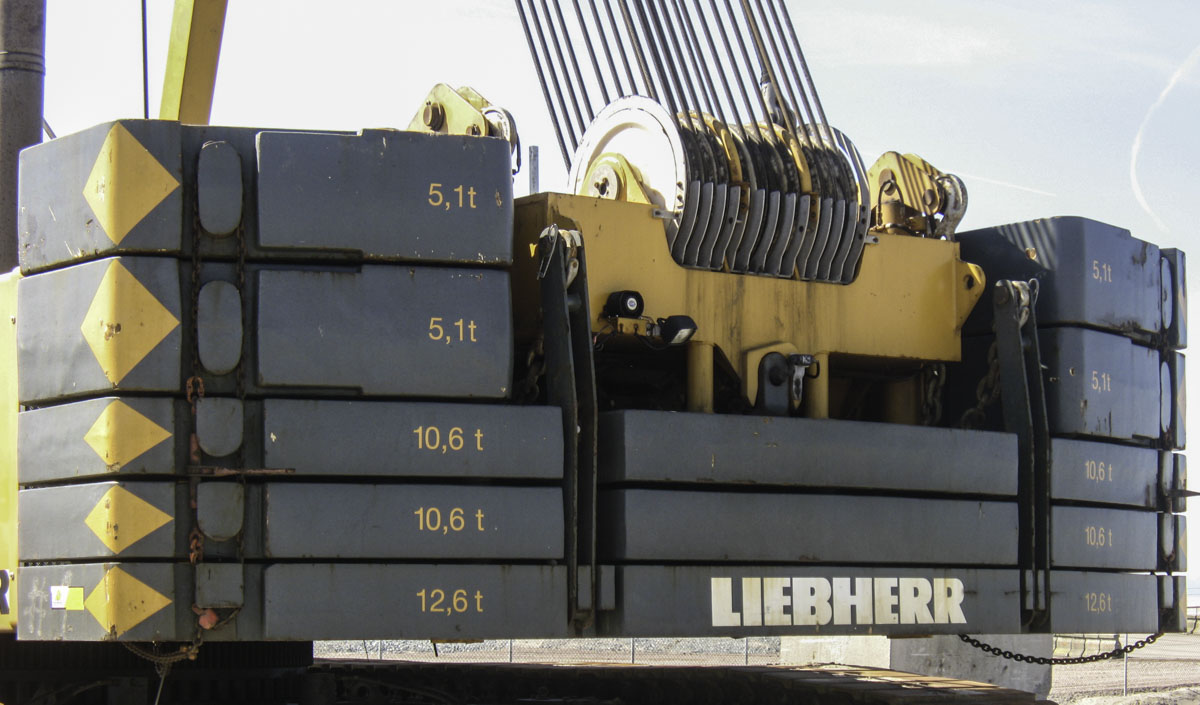

The crane is fitted with 66.8 tonnes of counterweight, the counterweight has a 6.36 meter tailswing.

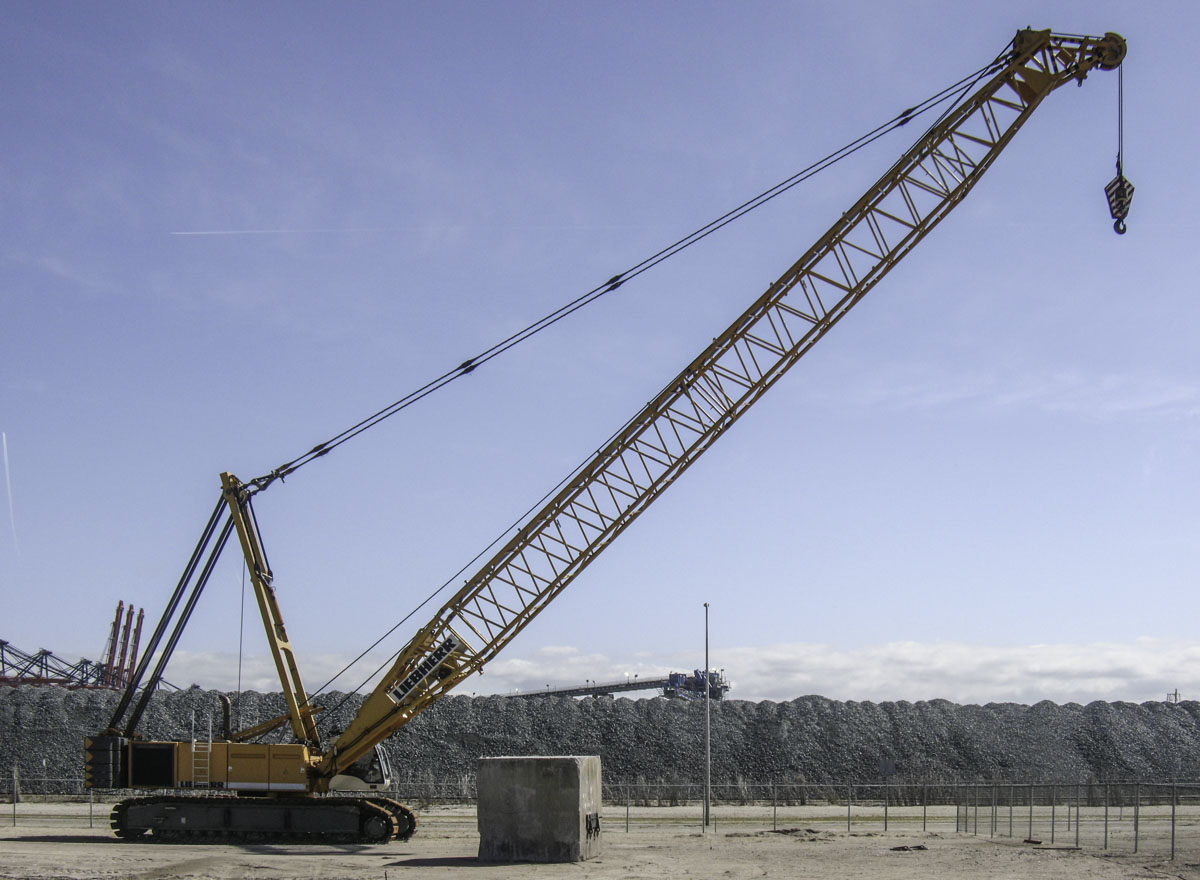

Here was the crane fitted with a 37.4 meter long main boom. The maximum boom length is 84.2 meters, to erect these long main booms is additional counterweight on the crane required.
