Krupp 25 GMT-AT - Implenia

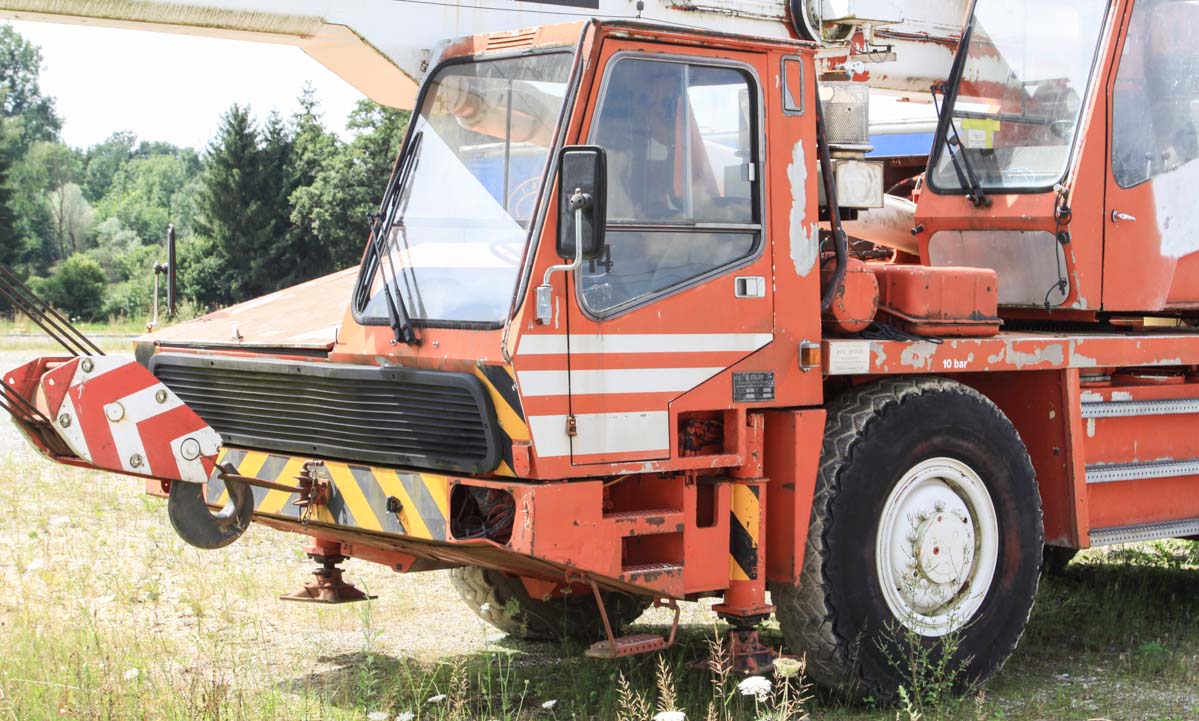

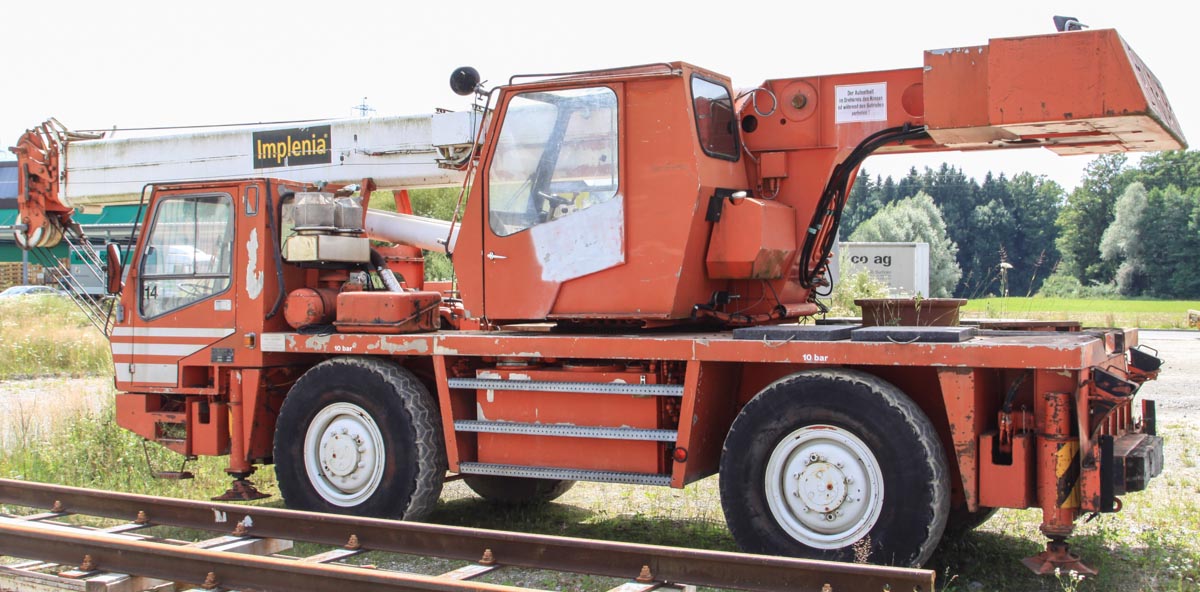

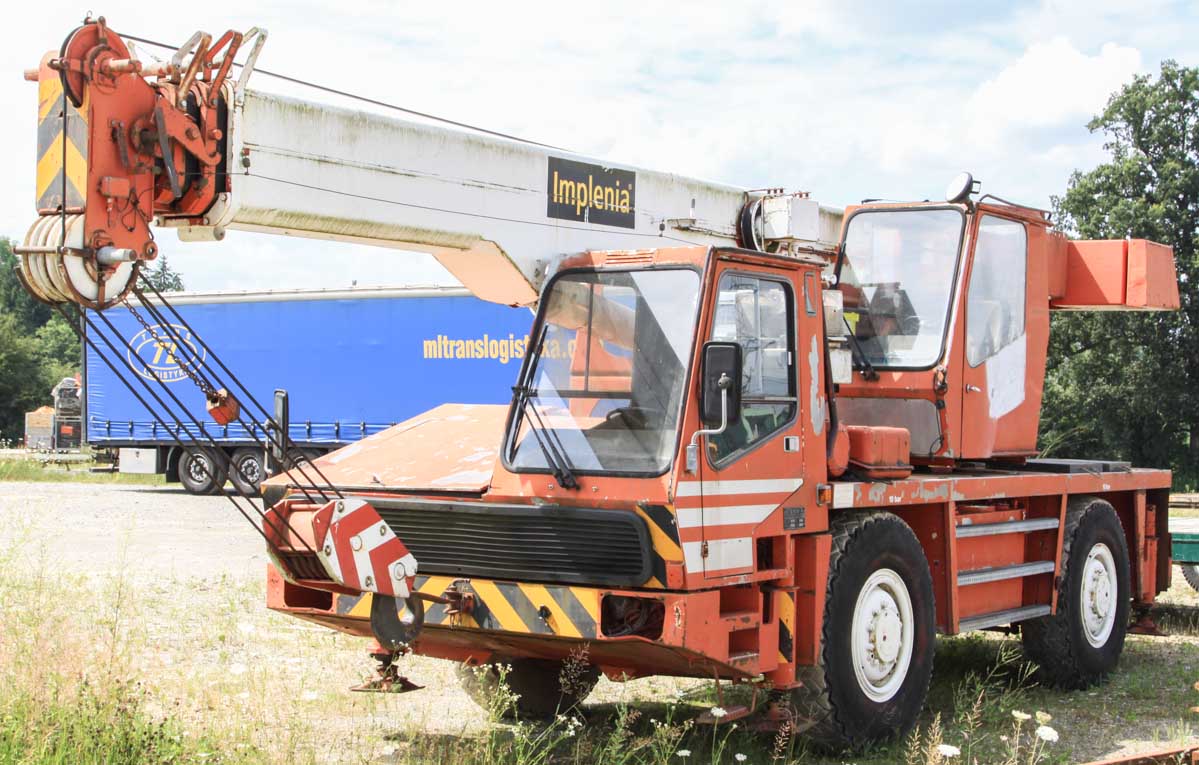

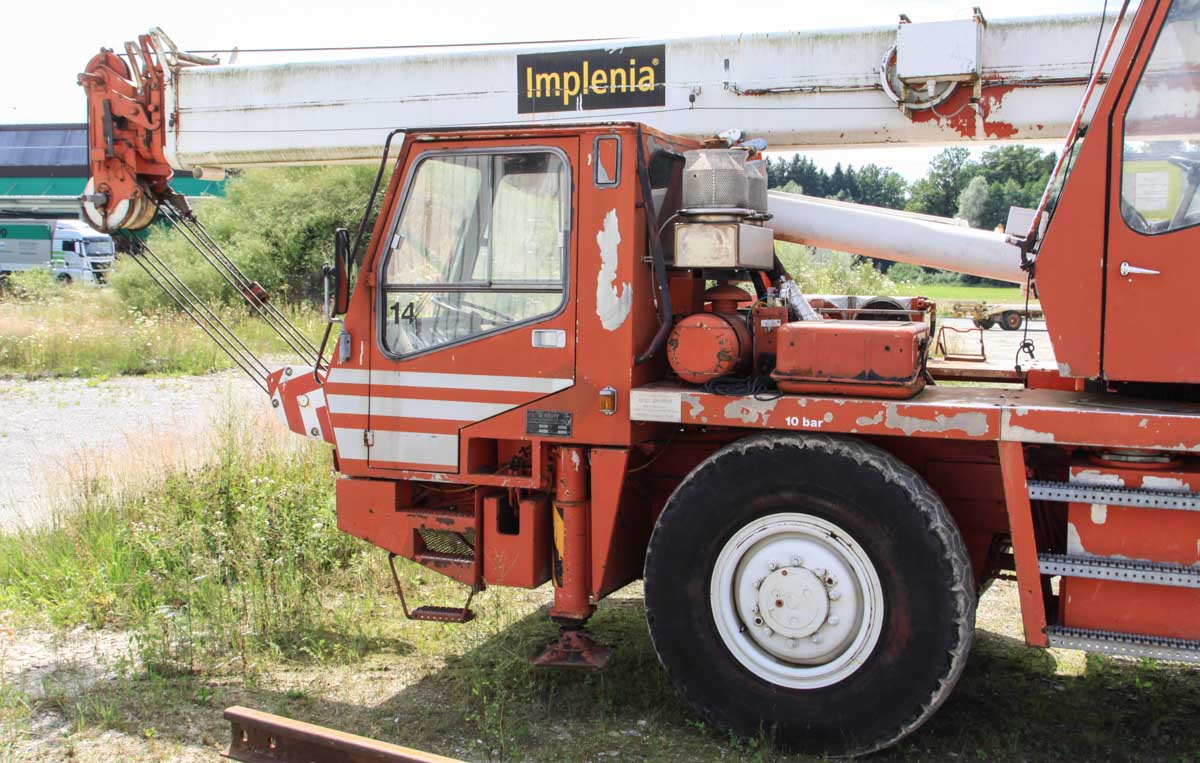

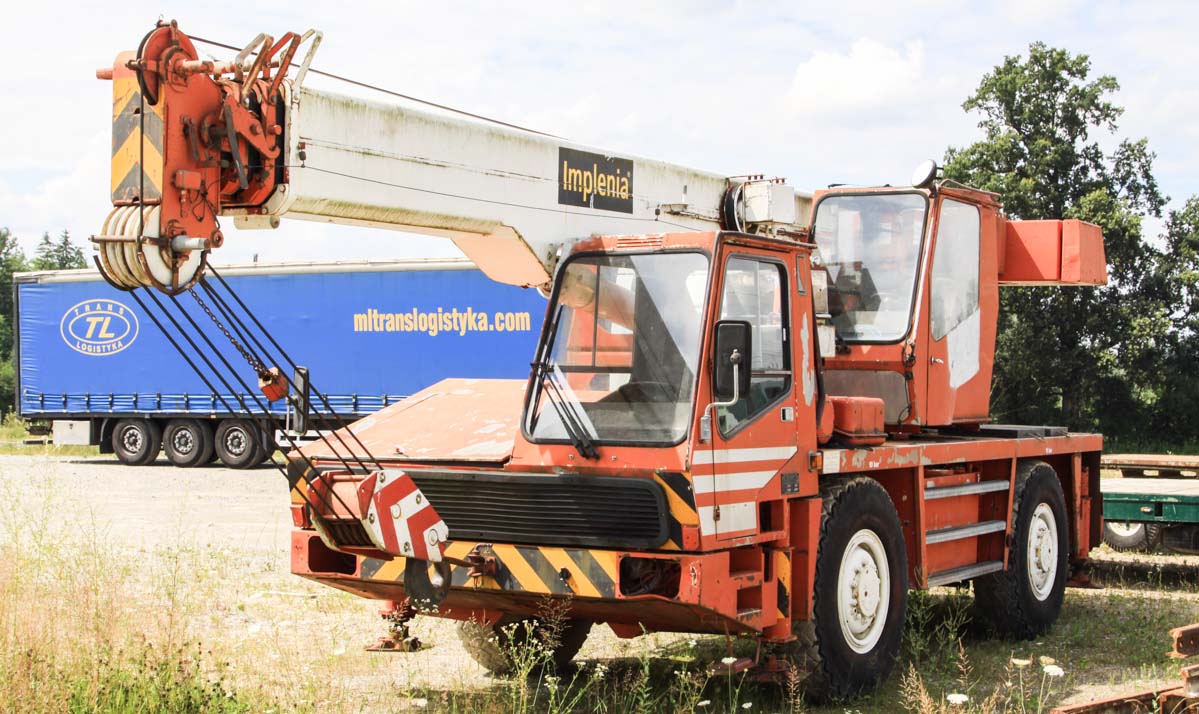

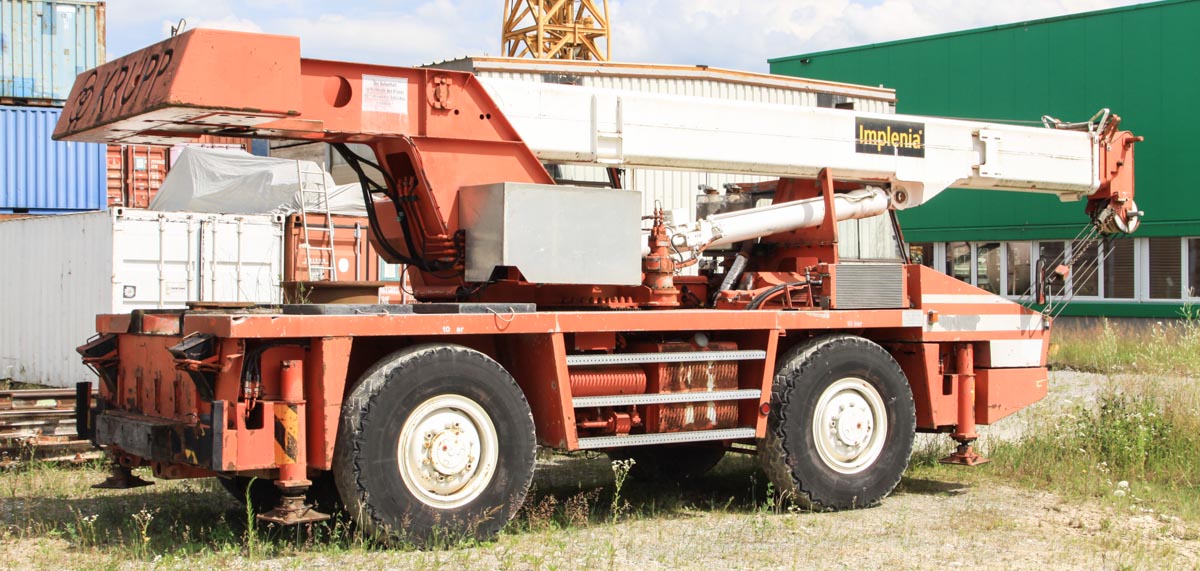

This Krupp 25 GMT-AT of Implenia stood on Implenia's depot in Buchrain (CH) parked. It is a 25-tonne crane with year of manufacture 1986.

The crane is powered by a Deutz BF 6 L 913 C, a 192 hp strong diesel engine. Both axles are driven and steerable.

The outrigger base measures 5.7 x 5.5 meters.

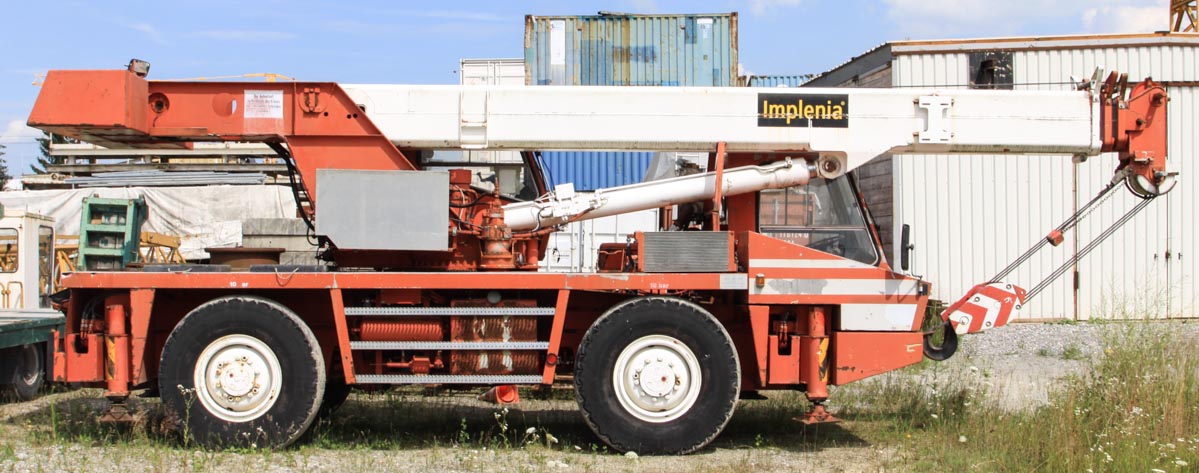

Packed is this crane 9.82 meters long, 2.49 meters wide and approx. 3.4 meters high. The mass of the crane is 22 tonnes.

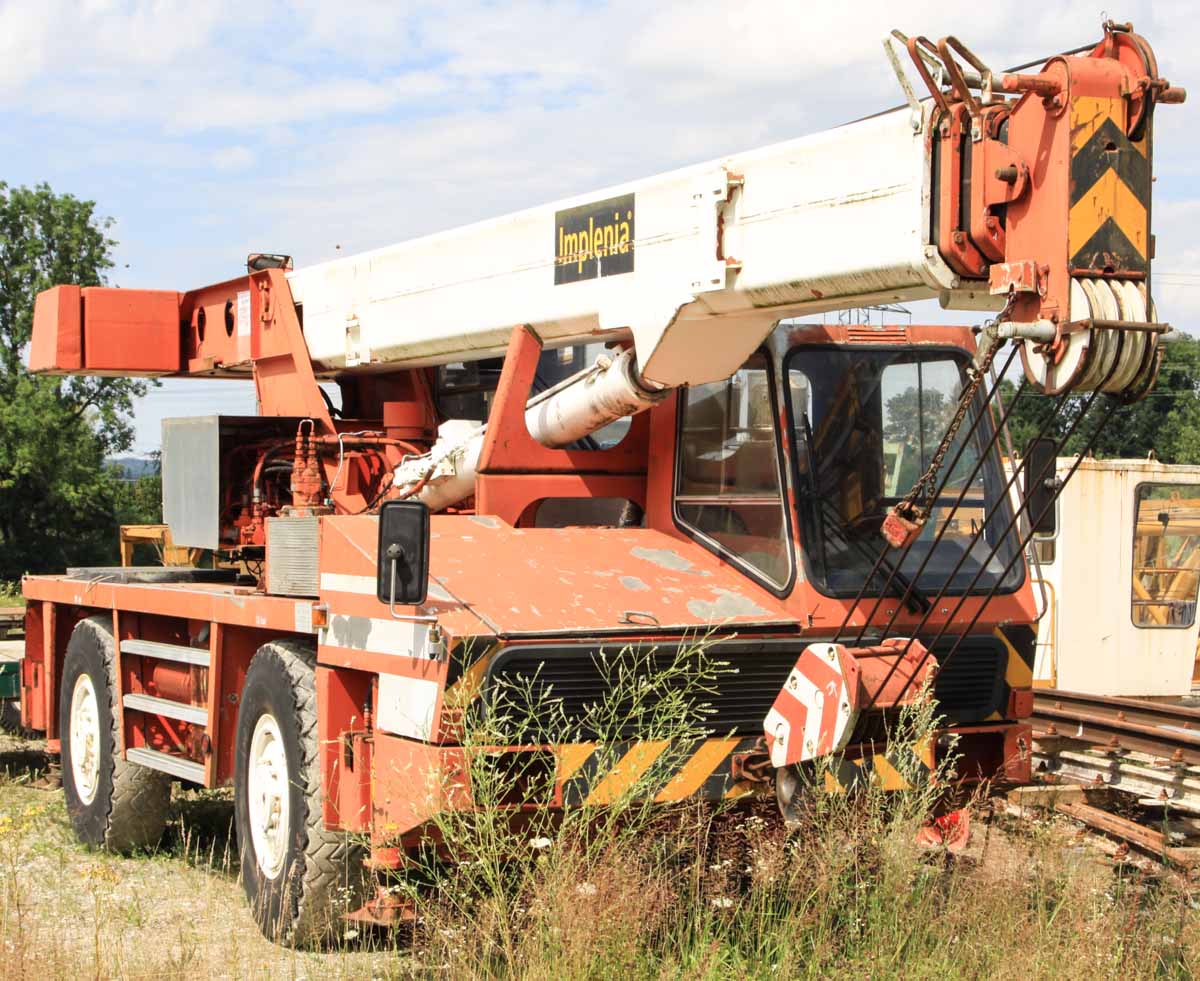

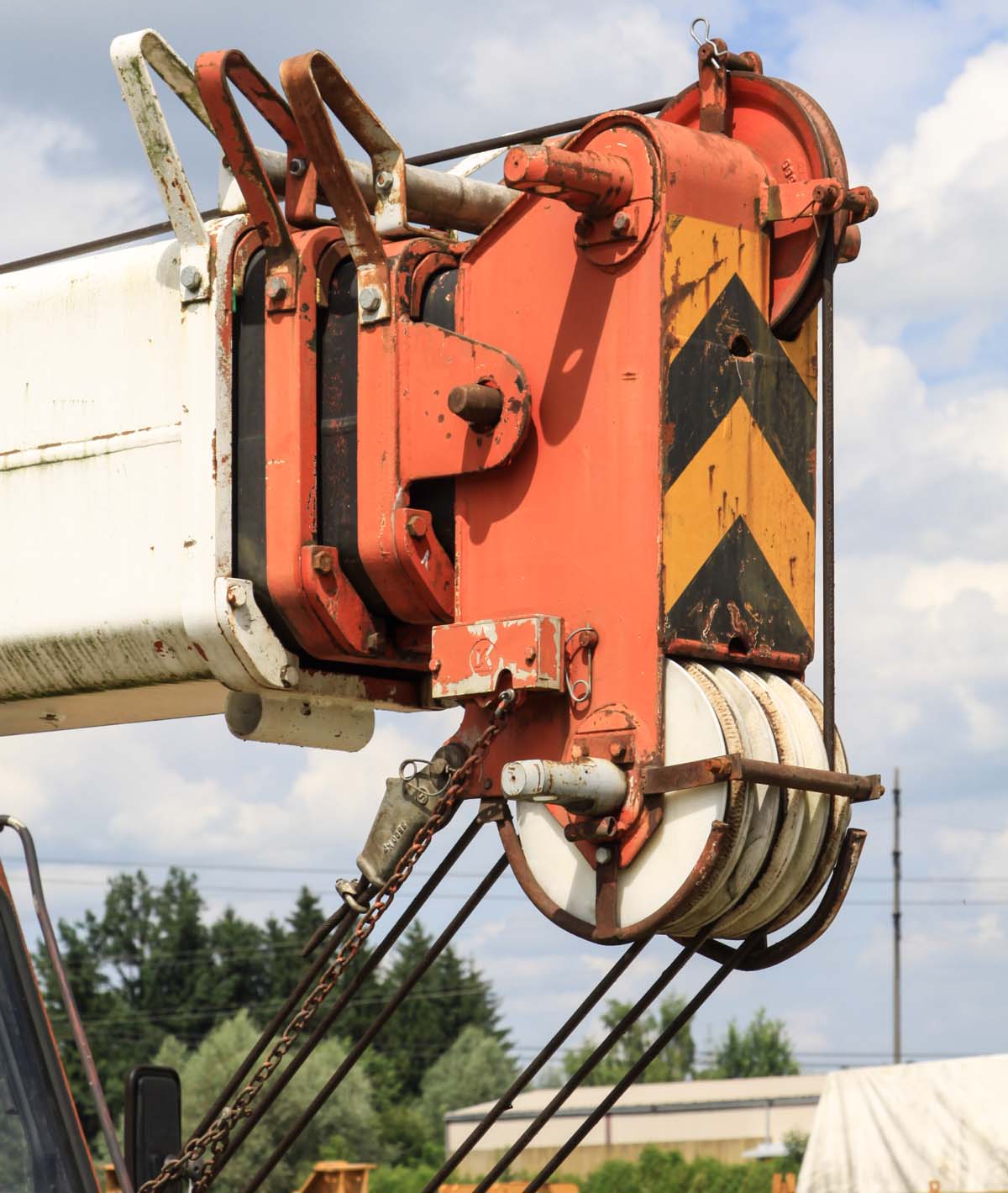

The main boom has a 7.4 meter base length and fully extended 23 meters long. Good visible it the mechanical connection between the last two sections. The folding jib is 8 or 13 meters long and under an anlge of 0, 15 or 30 degrees mountable.

The crane has a 2.9 tonne winch.

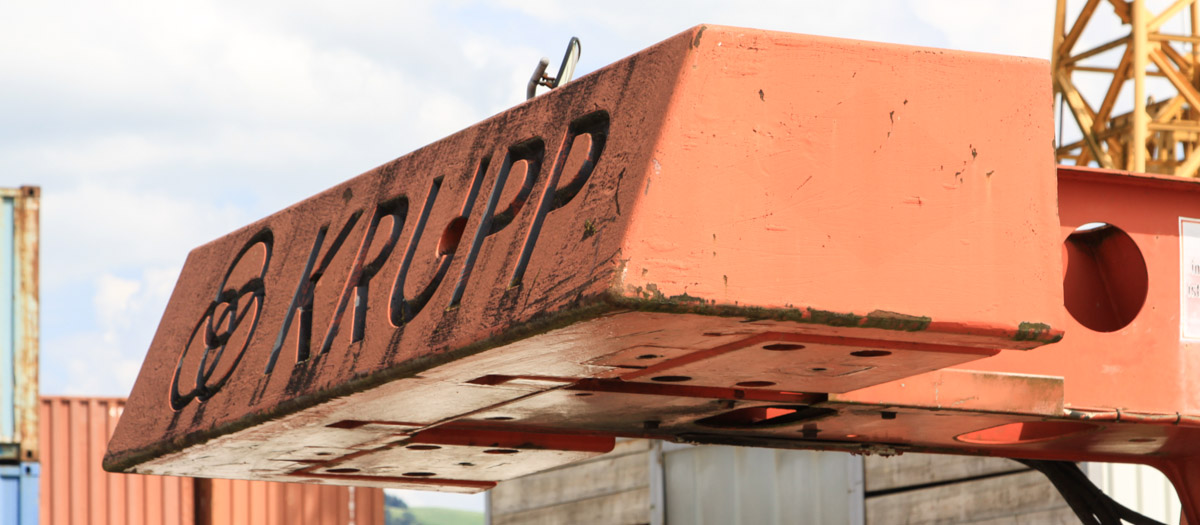

The counterweight weights 4.2 tonnes and has a 3.66 meter tailswing.

A sharp crane that is on the pictures already 30 years old and still in operation.
