Grove GMK5130 - Löwenthal

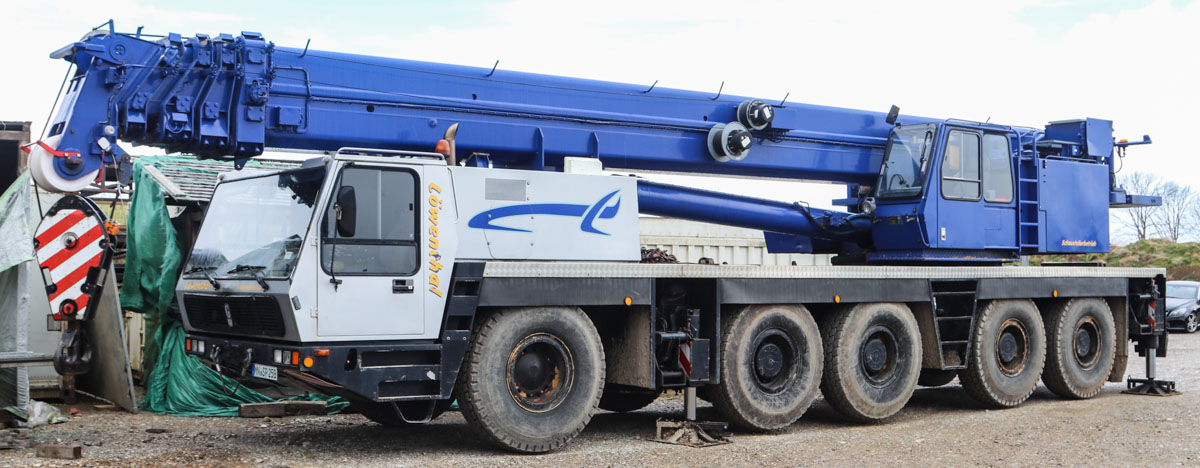

This Grove GMK5130 of Löwenthal is usually working in the Allgäu Skyline Park in Bad Wörishofen (DE) to assemble or dismantle theme park rides. It is a 130-tonne crane with year of manufacture 1999.

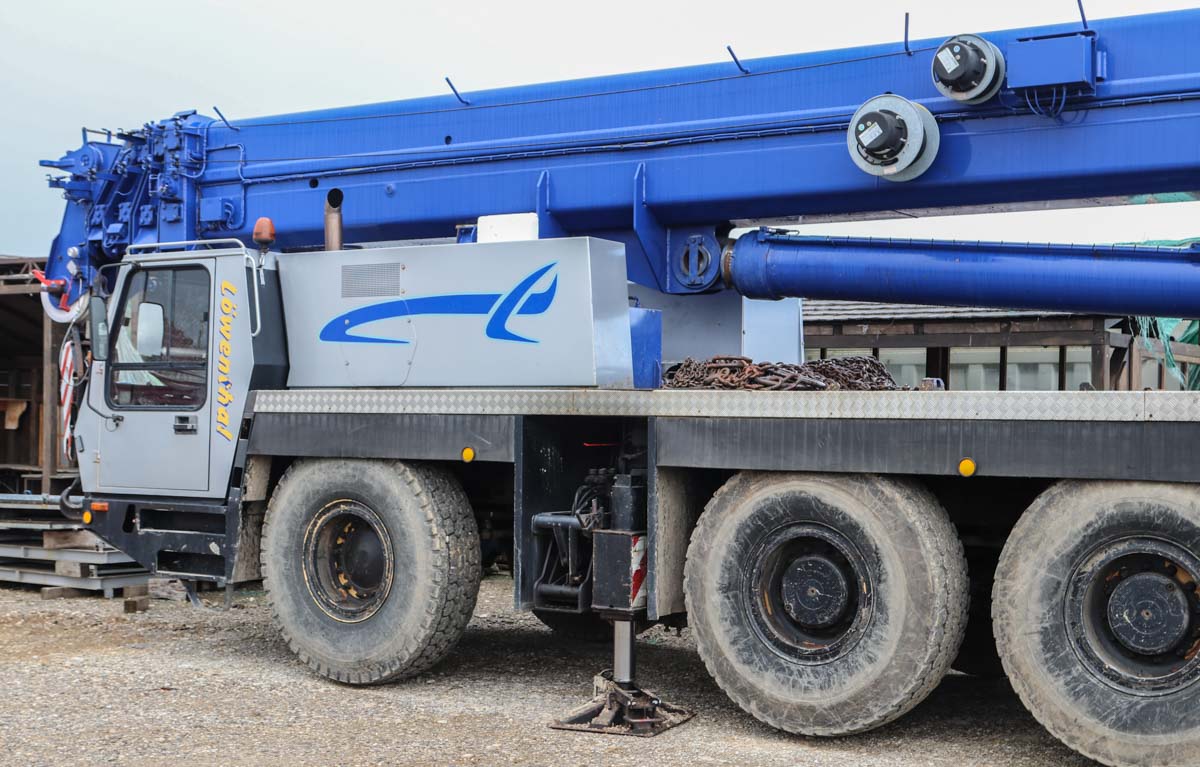

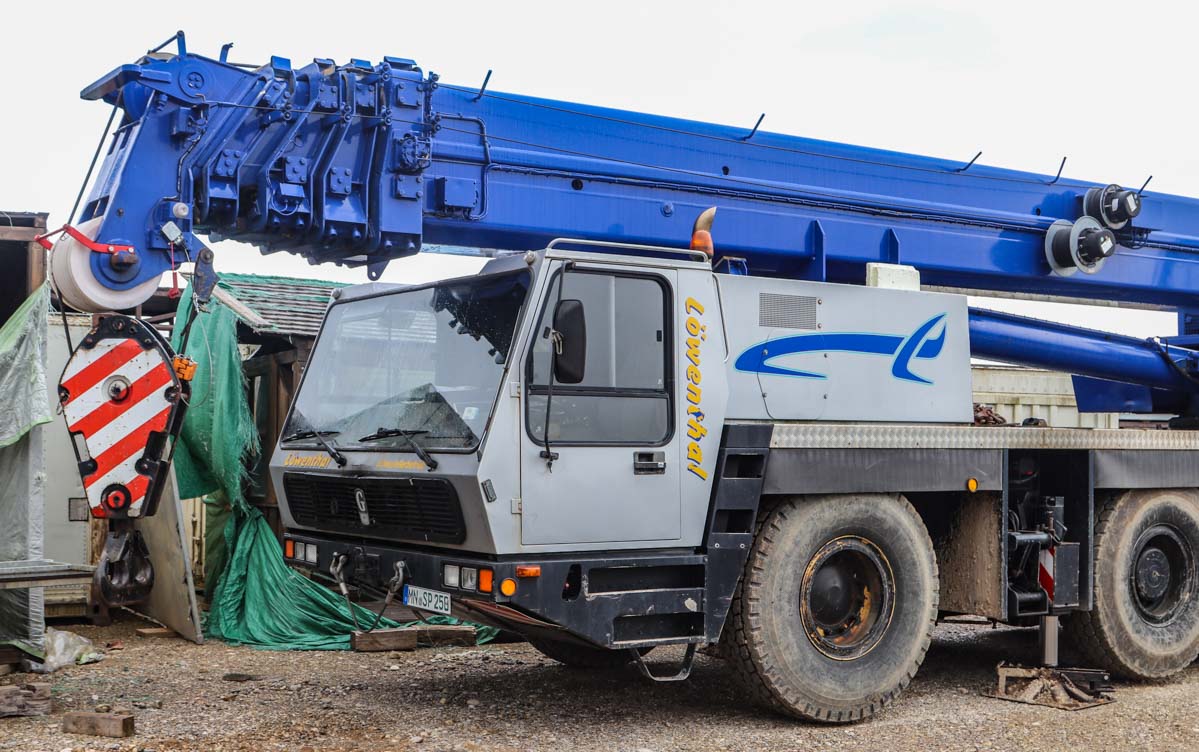

The 5-axle undercarriage is powered by a Mercedes-Benz OM 442 LA, an 8-cylinder watercooled diesel engine with a power of 370 kW (496 hp). This crane has the optional 10x8x10-drive line where the axles 2 to 5 are powered and all axles are steerable.

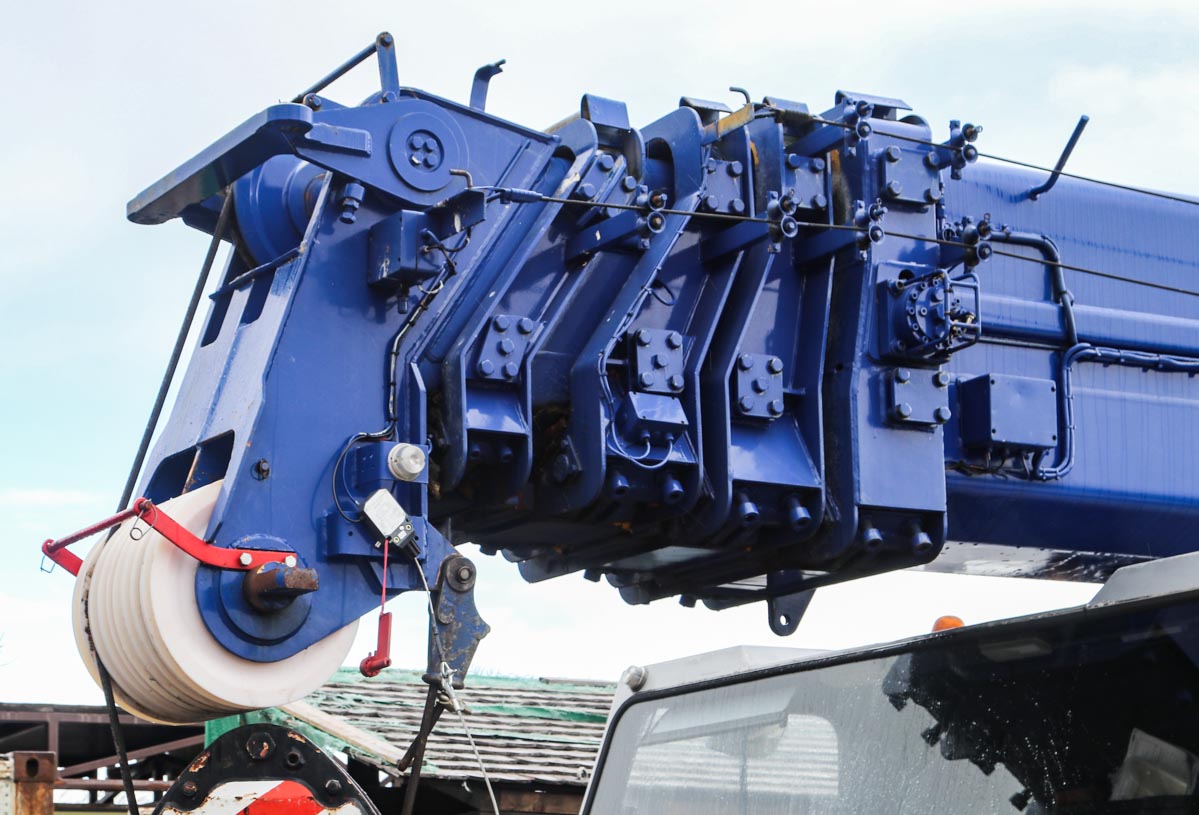

The 5-part main boom has a maximum length of 50.5 meters. Optionally is the 10/16 meter long bi-fold swingaway jib that is mountable under a 0, 16 or 30 degree angle.

The outrigger base measures 8.575 x 8.2 meters, or half 8.575 x 5.42 meters.

In transit is the crane 15.94 meters long, 3 meters wide and 3.755 meters tall. The transport mass is approx. 60 tonnes.

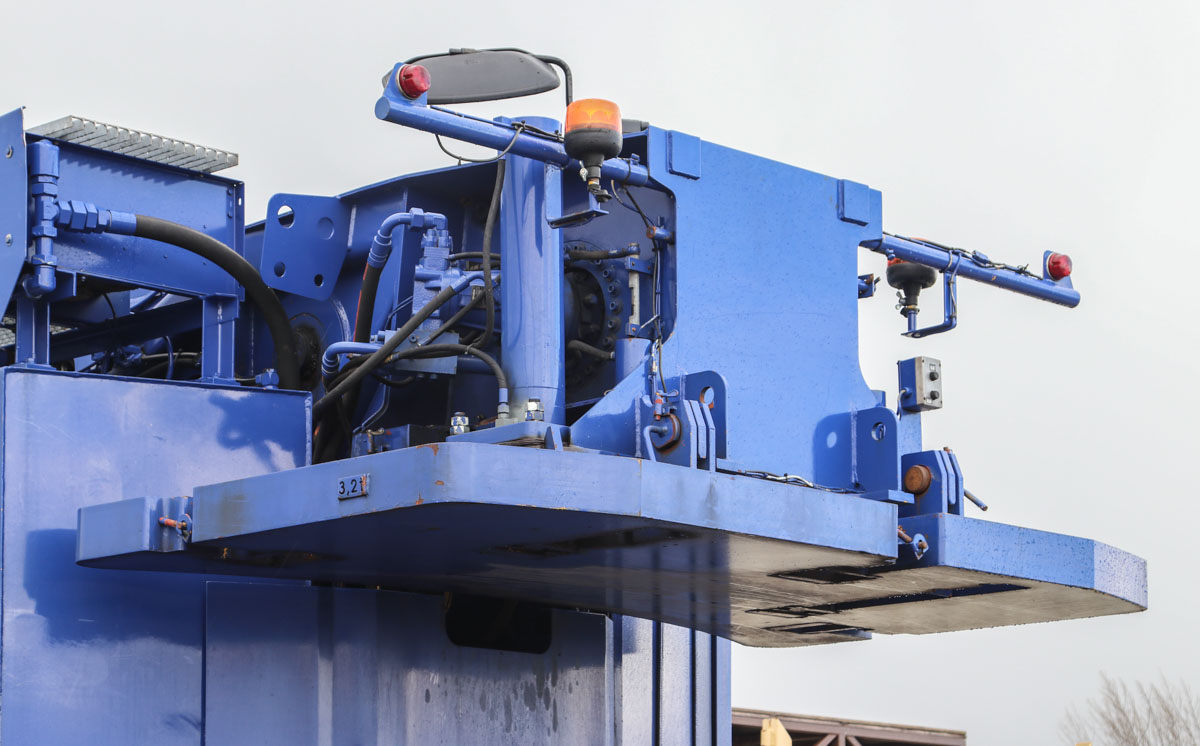

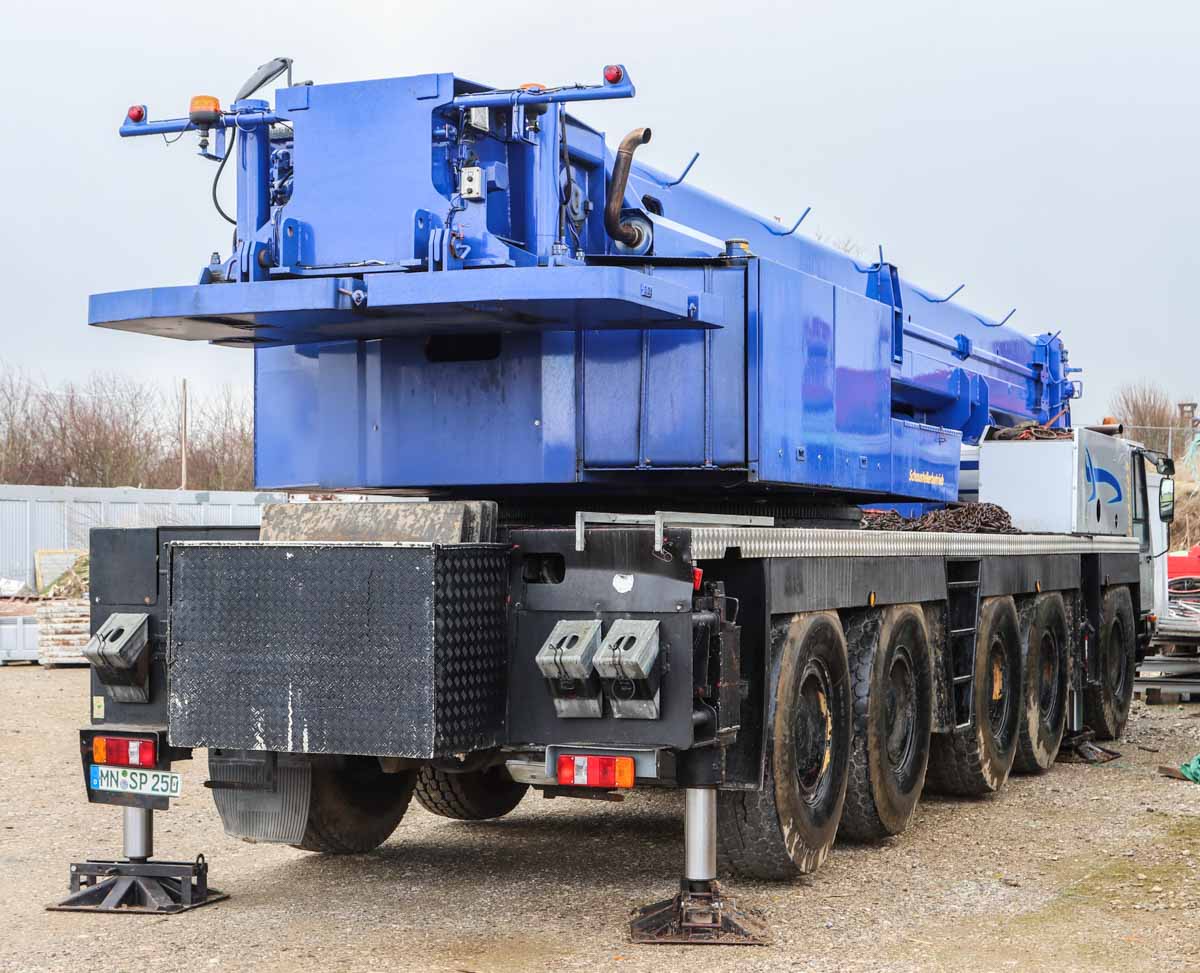

The maximum counterweight of the crane weights 27 tonnes and has a 4.255 meter tailswing. 3.2 tonnes of counterweight remains installed to the superstructure.

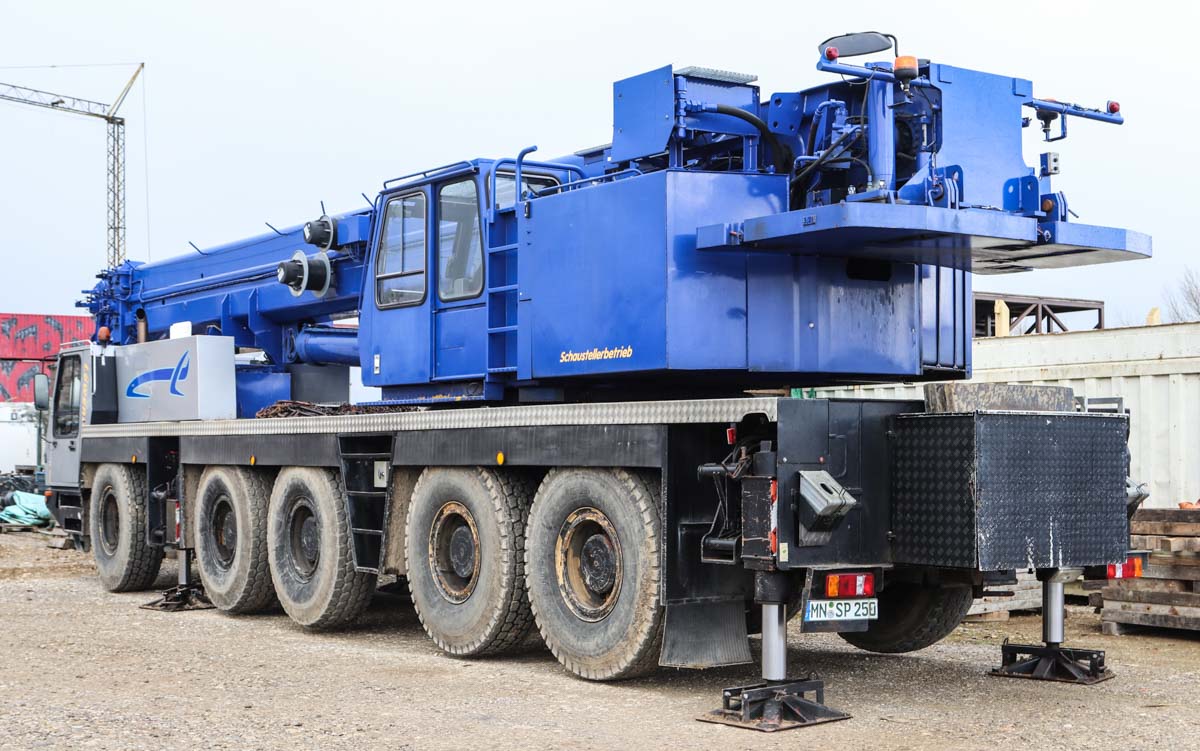

The superstructure is powered by a Mercedes-Benz OM 366 A, a 6-cylinder diesel engine with a power of 104 kW (140 hp). A sharp crane of Löwenthal!
