FAUN ATF 50G-3 - Klebl

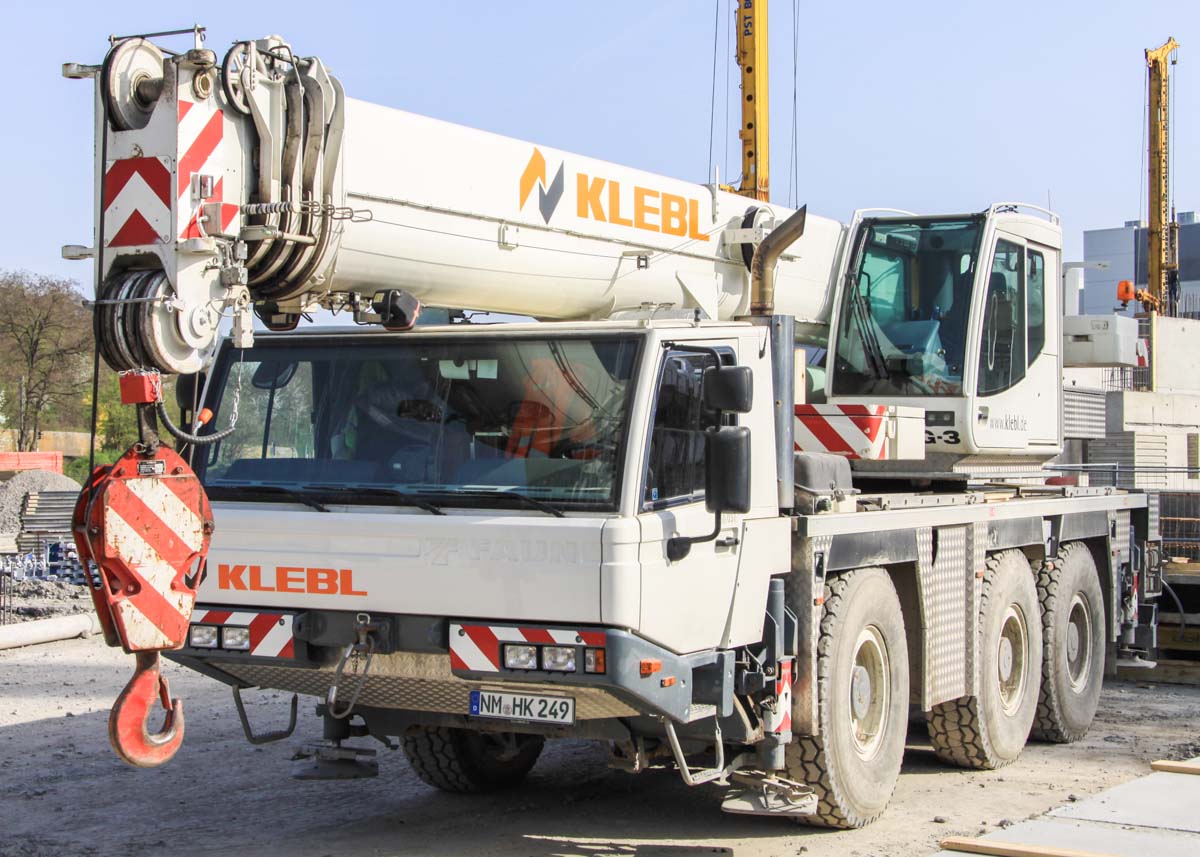

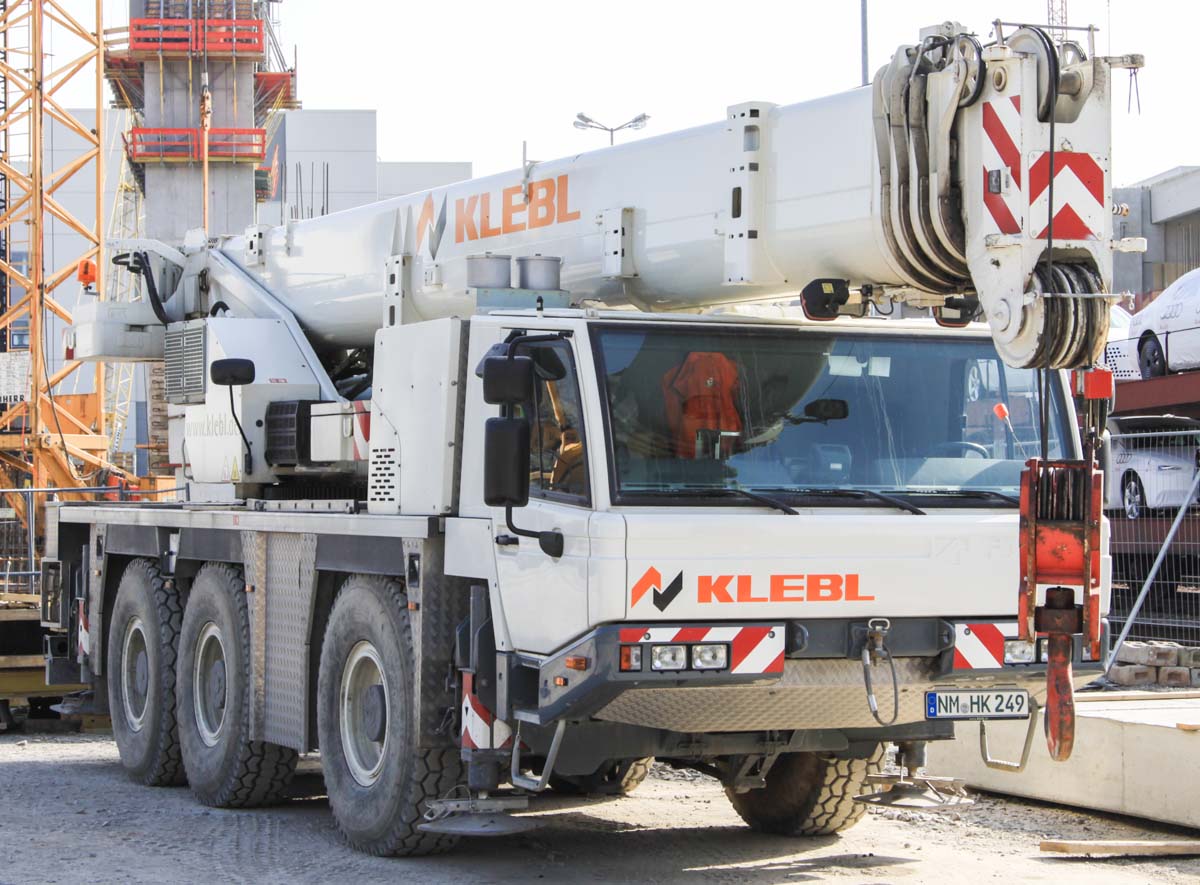

Construction company Klebl from Neumarkt (DE) is owning some cranes to mount their self fabricated precast concrete elements, like this FAUN ATF 50G-3. They are also owning a Liebherr LTM 1400-7.1.

Paked has this crane a length of 11.37 meters, a width of 2.55 meters and a height of 3.73 meters. His transport weight, with 7 tonnes of counterweight, is 36 tonnes.

The outrigger base is 7.2 x 6.3 meters, or half 7.2 x 4.3 meters.

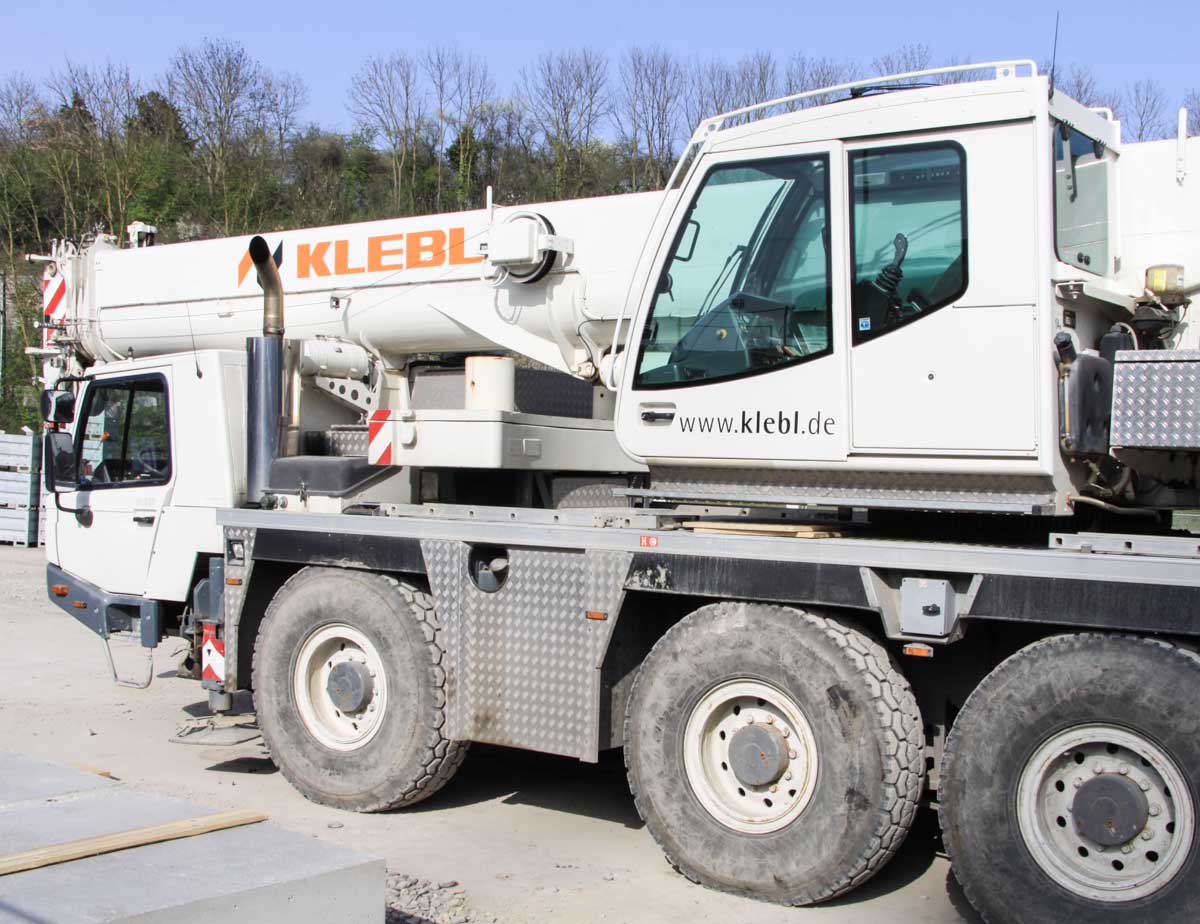

In the undercarriage is laying a Mercedes-Benz engine with 326 hp, via an automatic gearbox are all axles driven. All the axles are also steerable.

The main boom has a max. length of 40 meters and is extendable by a 9 or 16 meter folding jib.

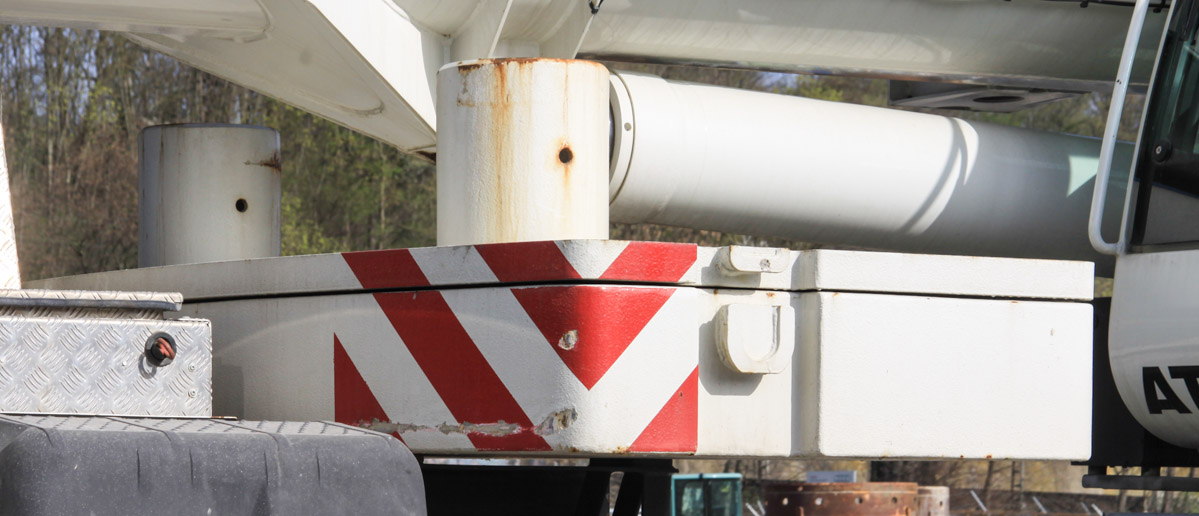

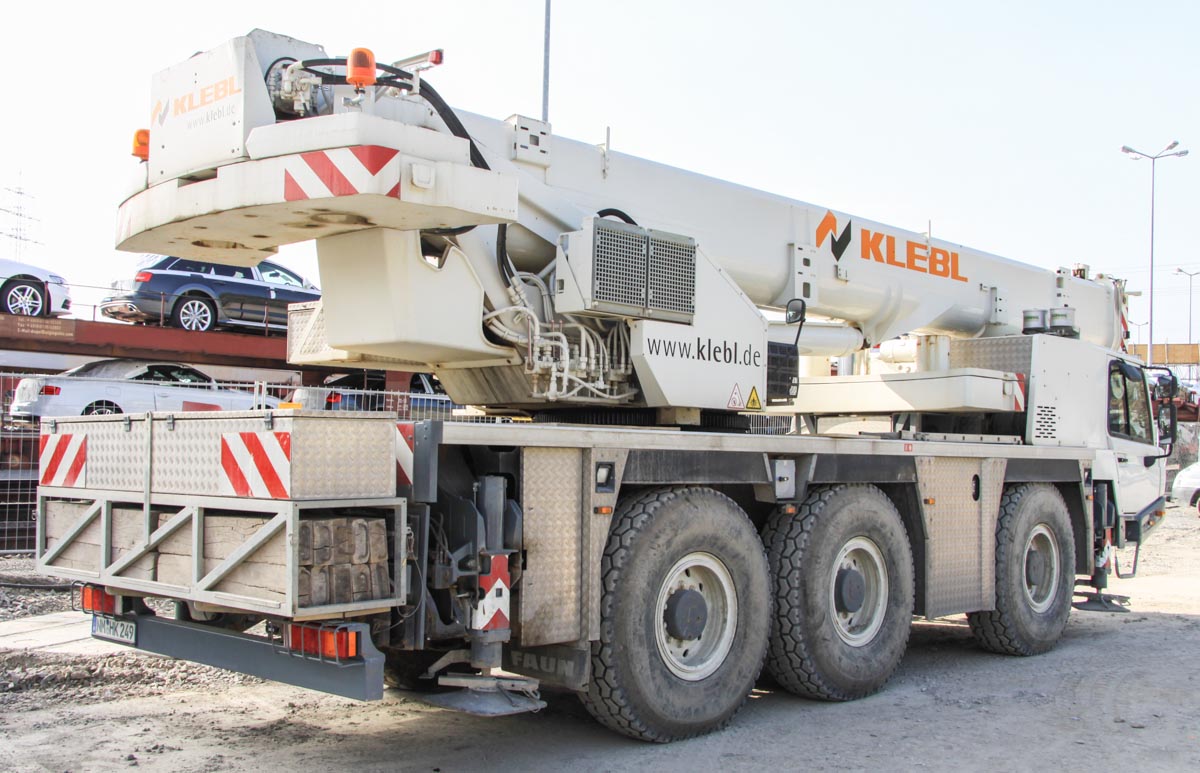

On the undercarriage is laying 3.1 tonnes of counterweight, on the upperstucture is 4.9 tonnes mounted. A 2 tonne plate is making the 10 tonne counterweight complete, bus is missing here.

A sharp crane.
