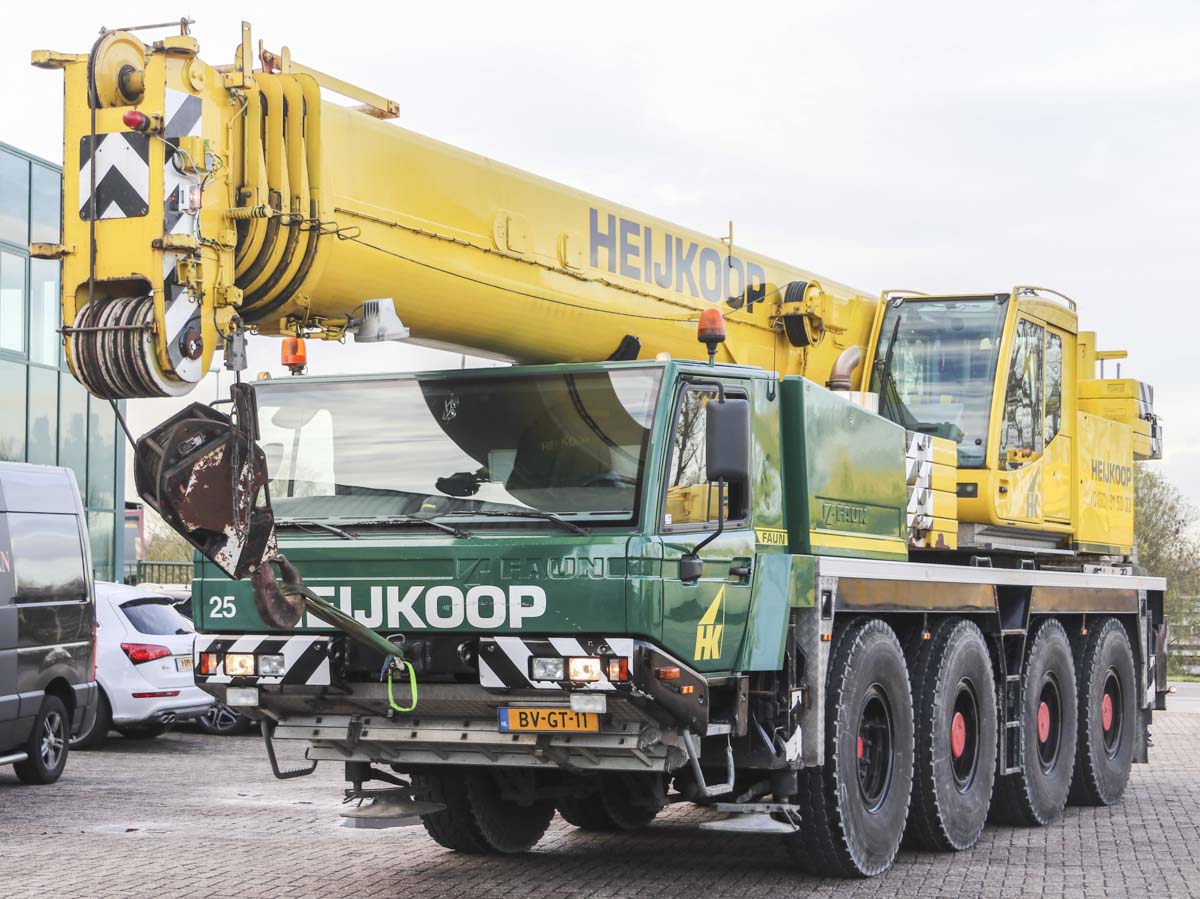

Heijkoop from Nieuwerkerk a/d IJssel (NL) is operating two FAUN ATF 65G-4 cranes where only one is painted in the own company colours. It is a 65-tonne crane that is installed on a 4-axle undercarriage. The crane's year of manufacture is 2006.

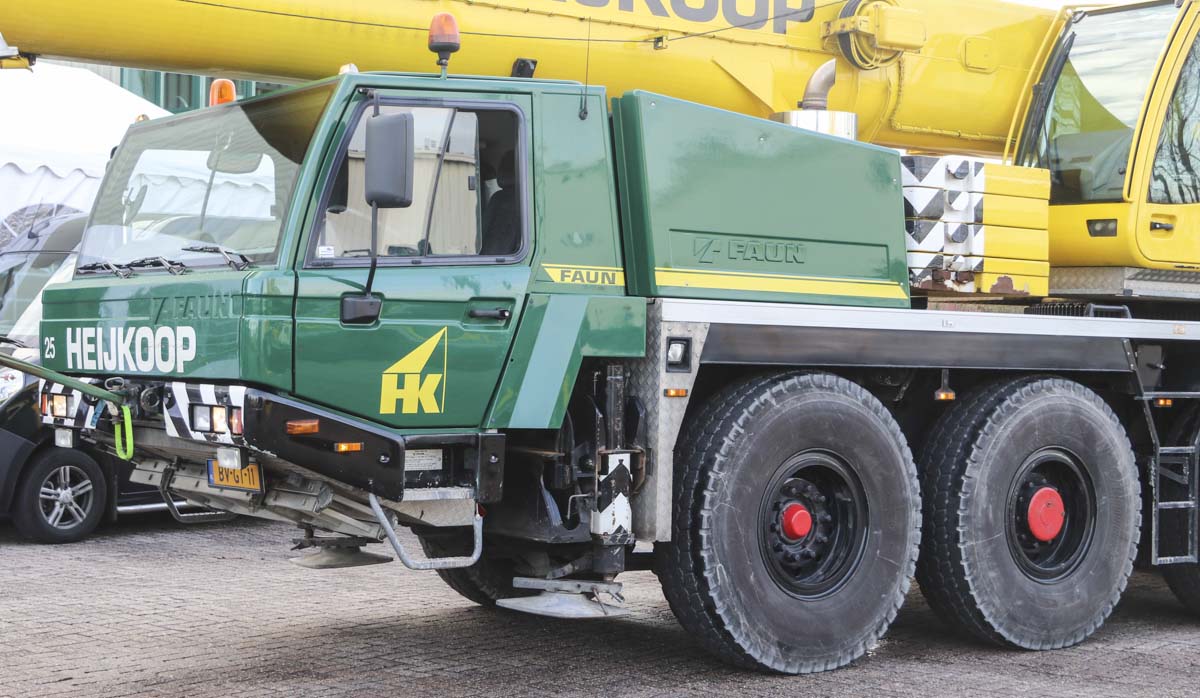

The undercarriage is powered by a Mercedes-Benz OM 501 LA, a 6-cylinder diesel engine with a power of 290 kW (394 hp). The crane has a 8x6x8-drive line, where the axles 2, 3 and 4 are driven and all axles are steerable.

The main boom hat an 11 meter base length and extends four times to a maximum length of 44 meters. Optionally is a 9 or 16 meter long bi-fold swingaway jib available that can be attached to the main boom head and is mountable under 0, 20 and 40 degrees. At Heijkoop is the folding jib not transported with the crane.

The outrigger base of the crane measures 7.8 x 6.4 meters, or half 7.8 x 4.4 meters.

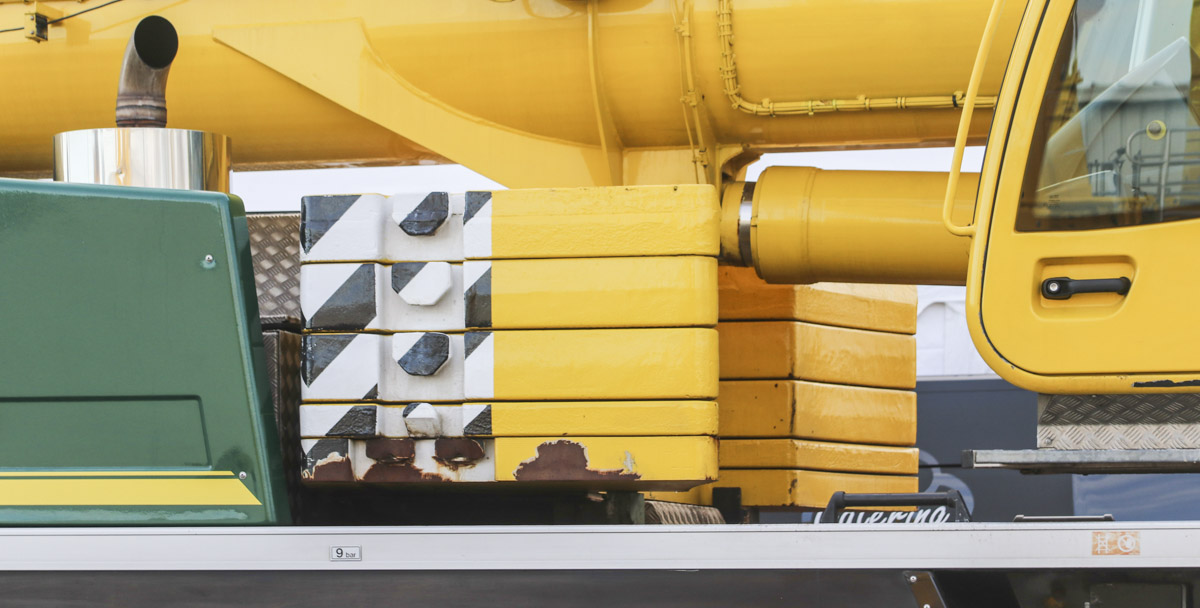

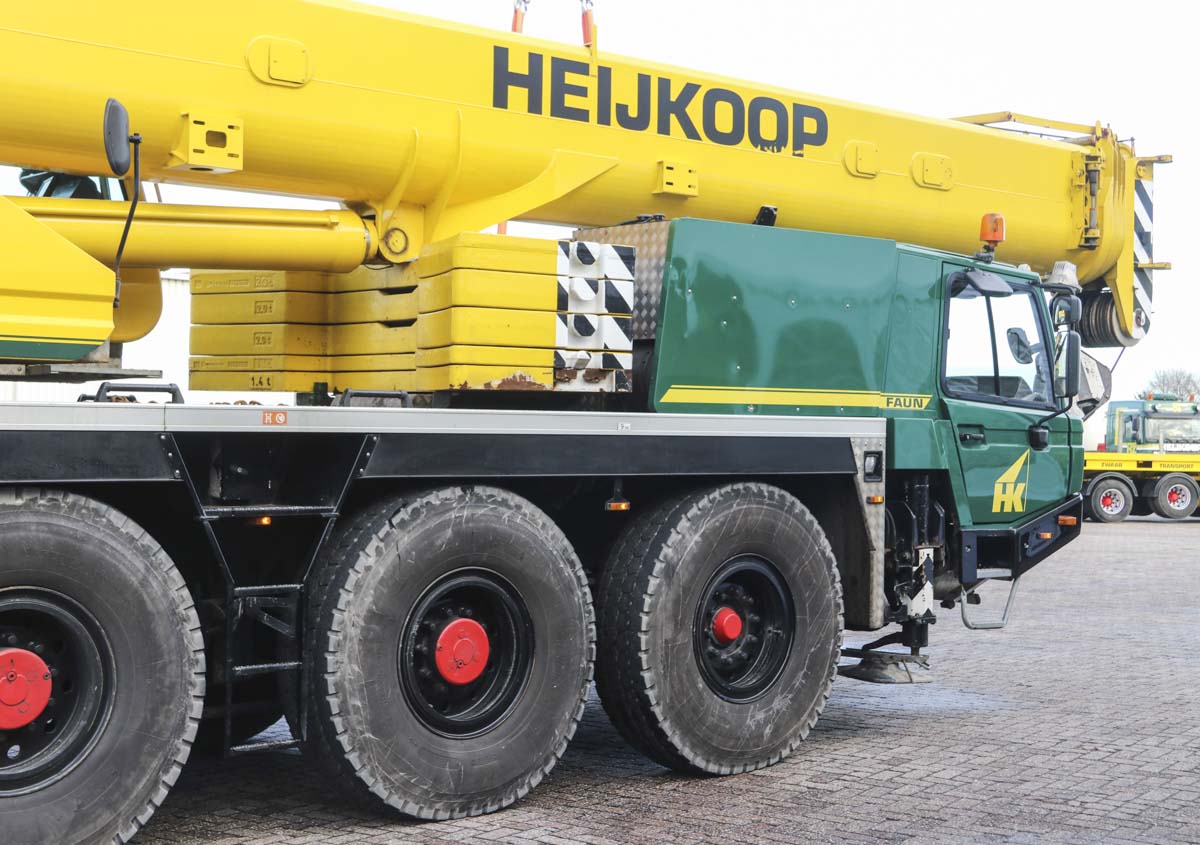

During the transport over the road are 8.5 tonnes of counterweight transported on the undercarriage, more is geometrically not possible.

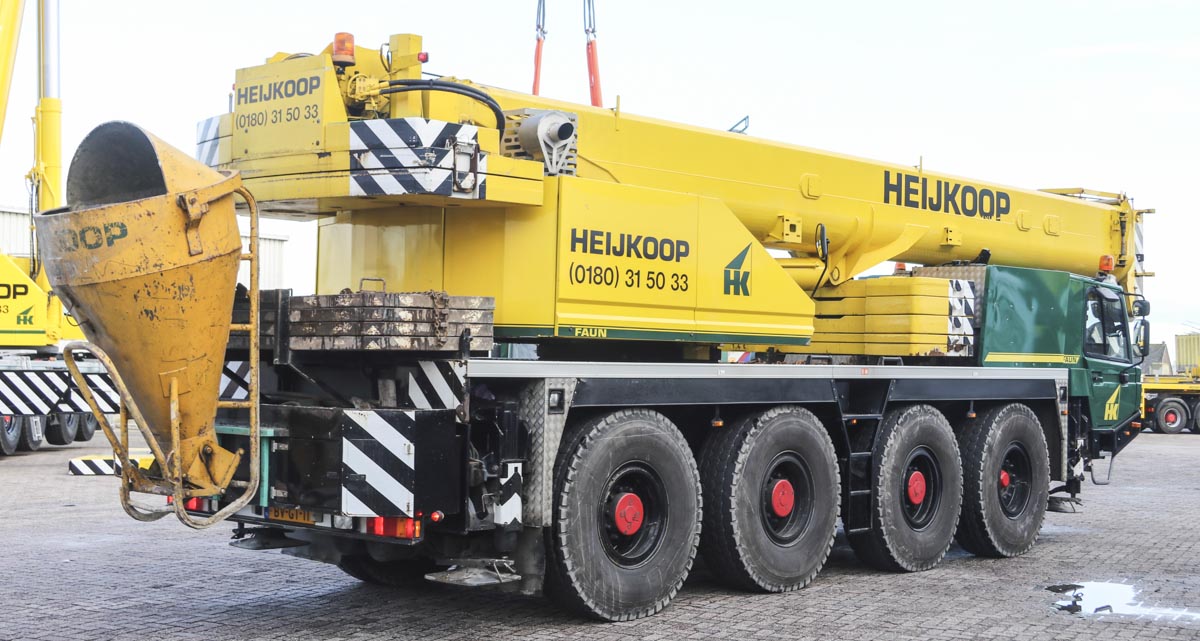

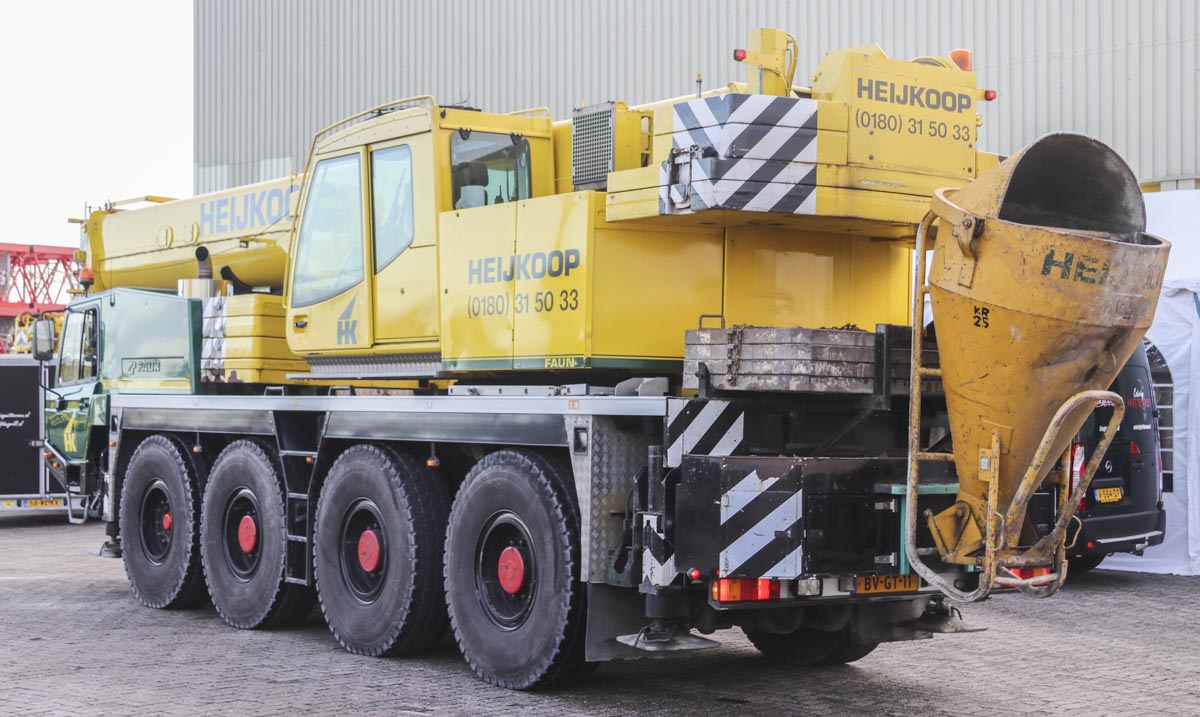

At the rear of the chassis are the four outrigger pads, a storage compartment and a concrete bucket transported.

Packed is the crane 12.4 meters long, 2.55 meters wide and 3.8 meters high. The transport is around 48 tonnes.

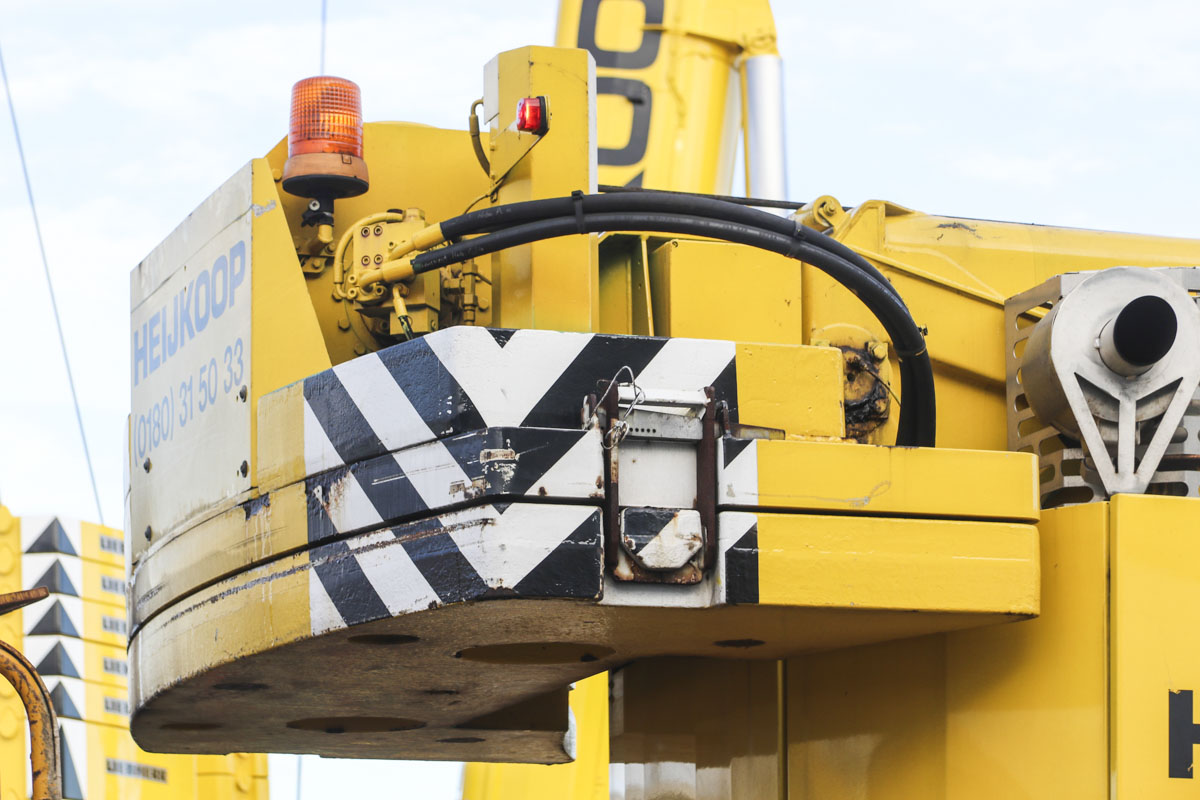

Attached to the super structure remains during transport over the road 6.5 tonnes of counterweight, the crane brings all (15 tonnes) counterweight with it. The counterweight has a 3.45 meter tailswing.

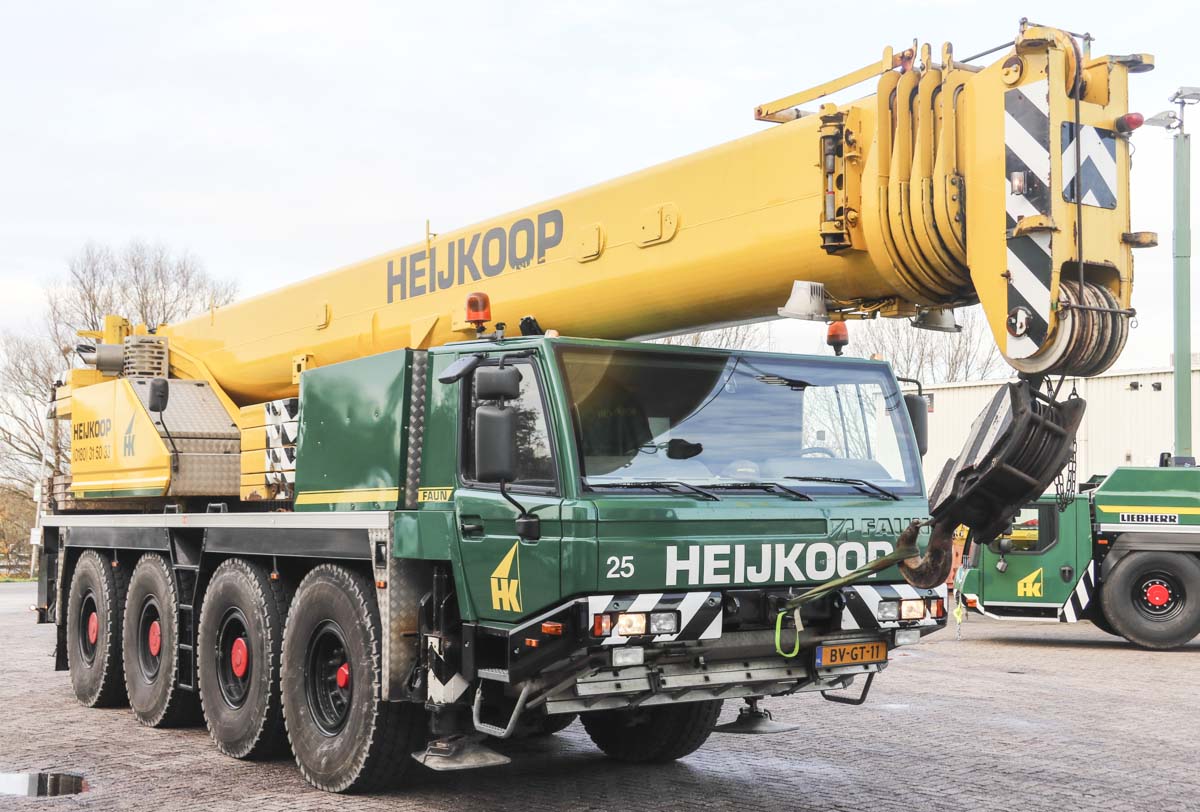

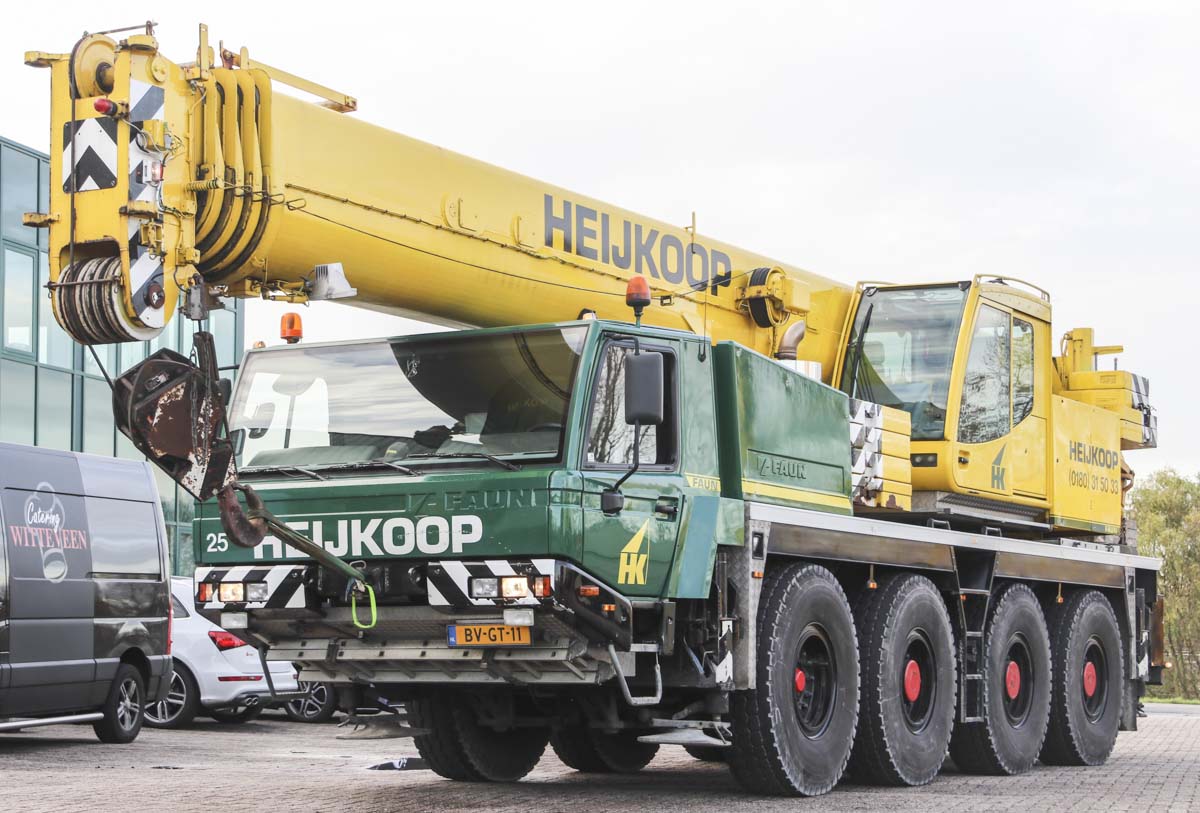

A sharp crane in the colours of Heijkoop!

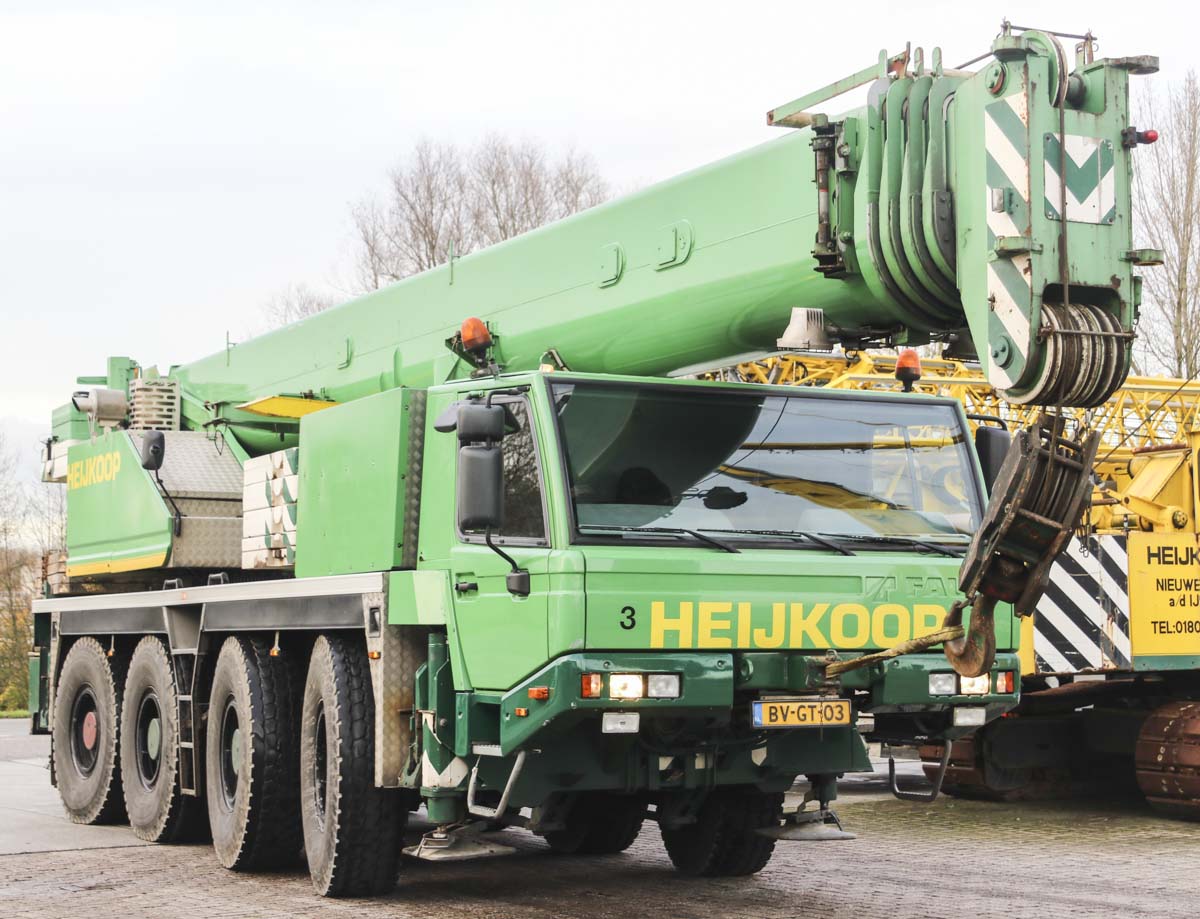

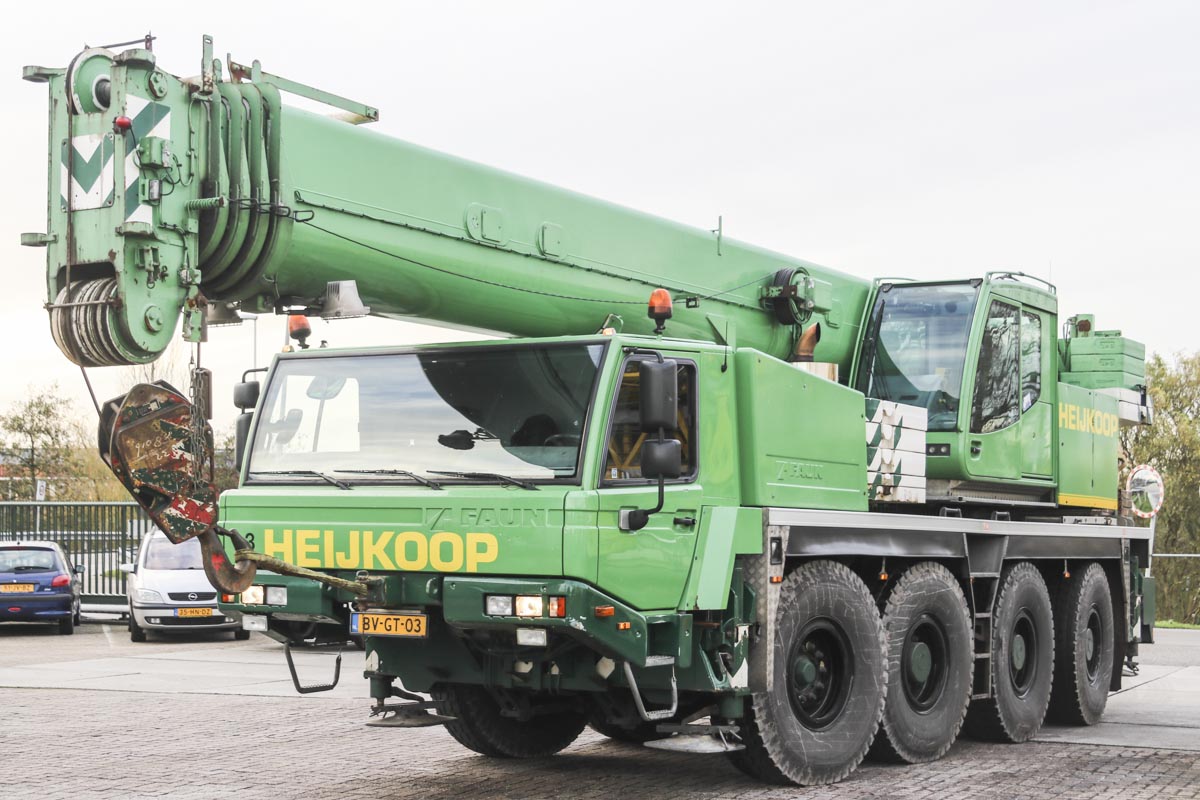

The second ATF 65G-4 of Heijkoop has also the year of manufacture 2006. This crane is still in the colours of the previous owner, James Jack from England.

This crane is execly in the same configration as the other crane.
