FAUN ATF 60-4 - Dravits

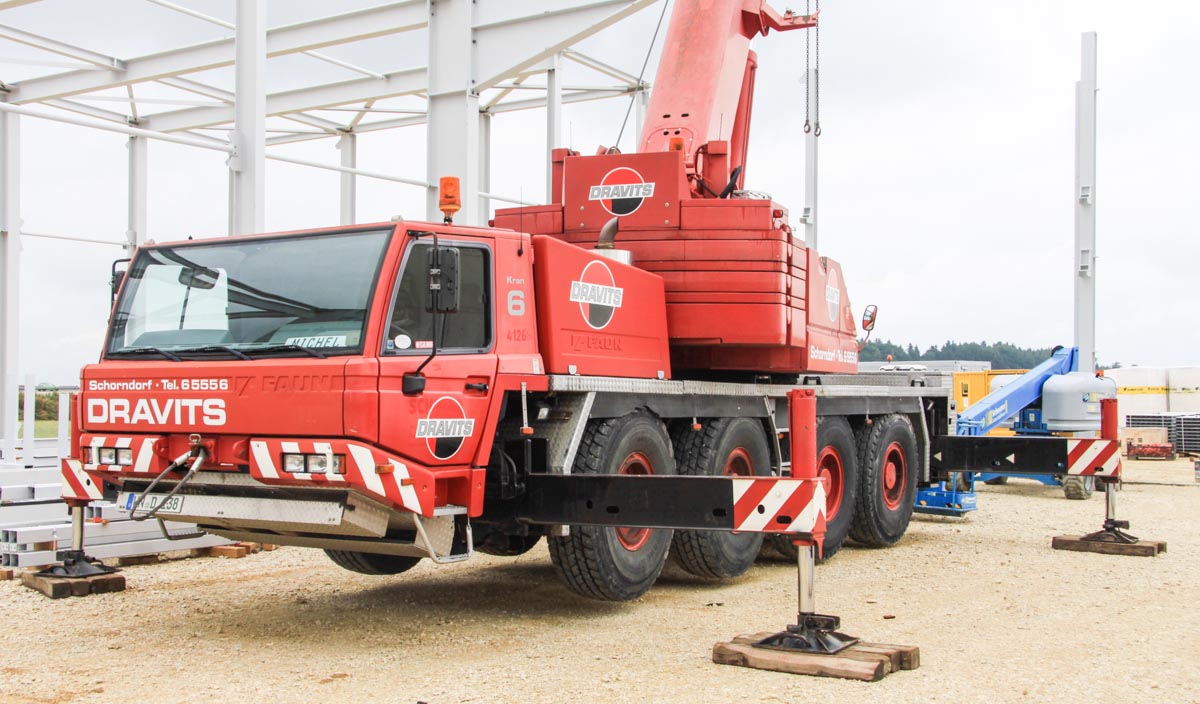

Autokrane Dravits from Schorndorf (DE) is operating this FAUN ATF 60-4, it is a used crane from Scholpp. The crane was used here to erect a large steel construction.

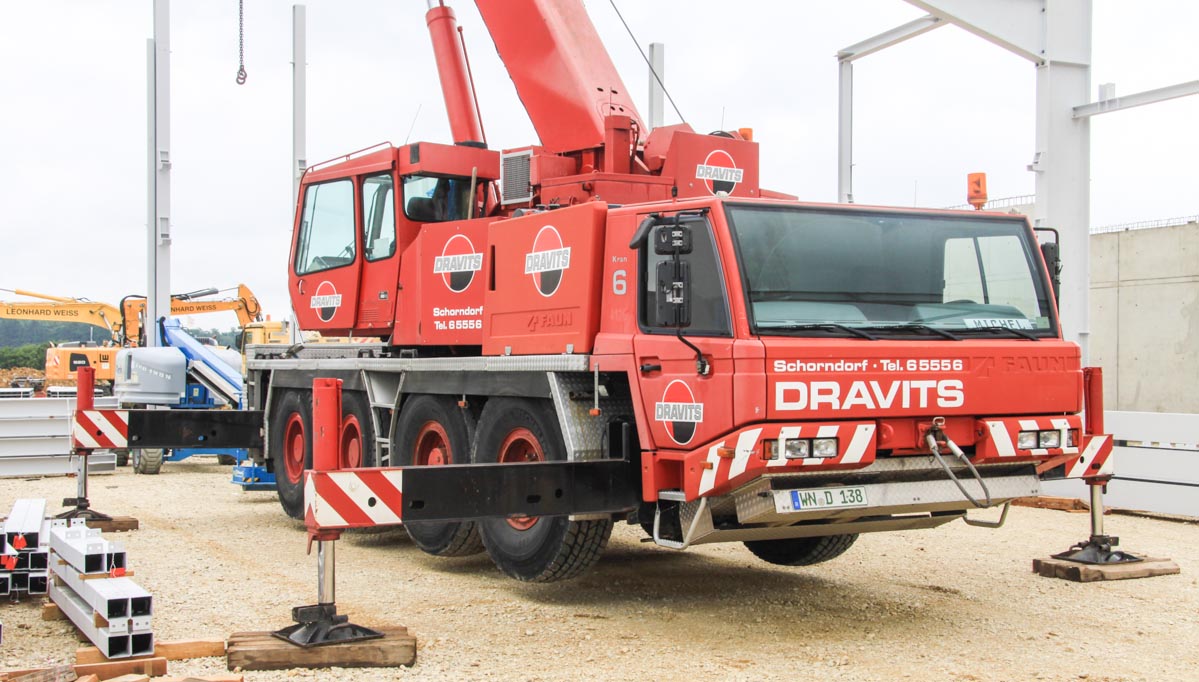

It is a 60-tonne crane on a 4-axle undercarriage. The crane's year of manufacture is 2002.

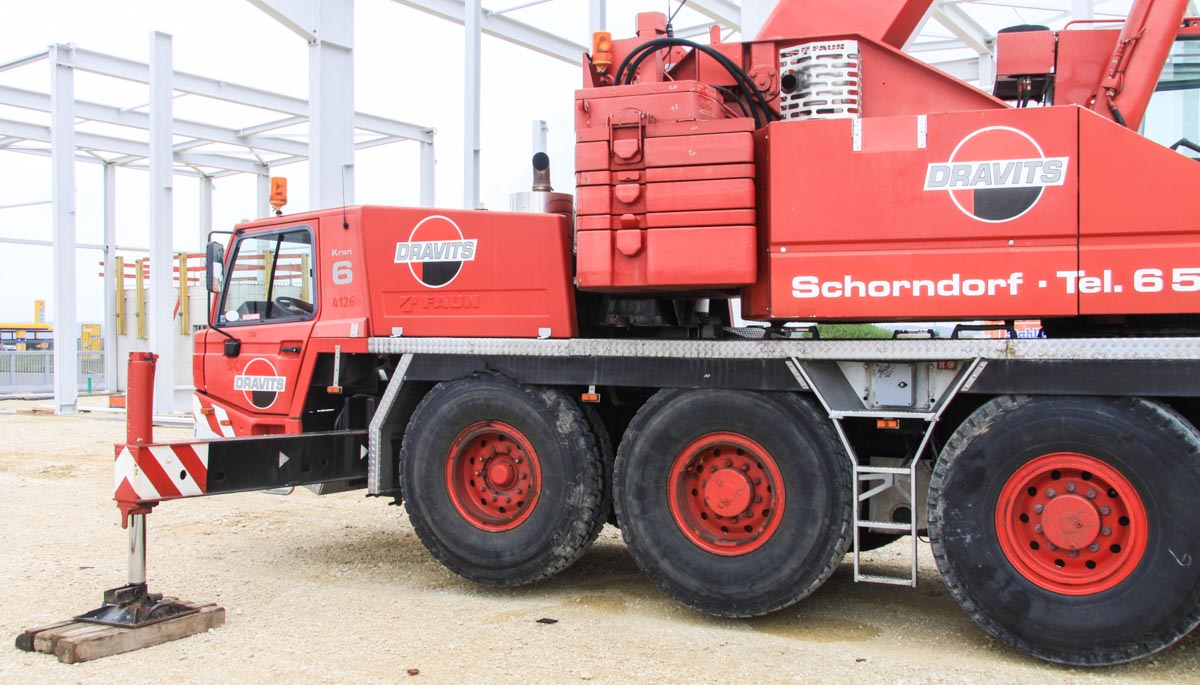

The undercarriage is powered by a Mercedes-Benz OM 501 LA, a 6-cylinder diesel engine with a power of 260 kW (354 hp). This crane has the optional 8x6-drive line, where the second axle is also powered. The maximum driving speed that can be achieved is 80 km/h. All axles are steerable.

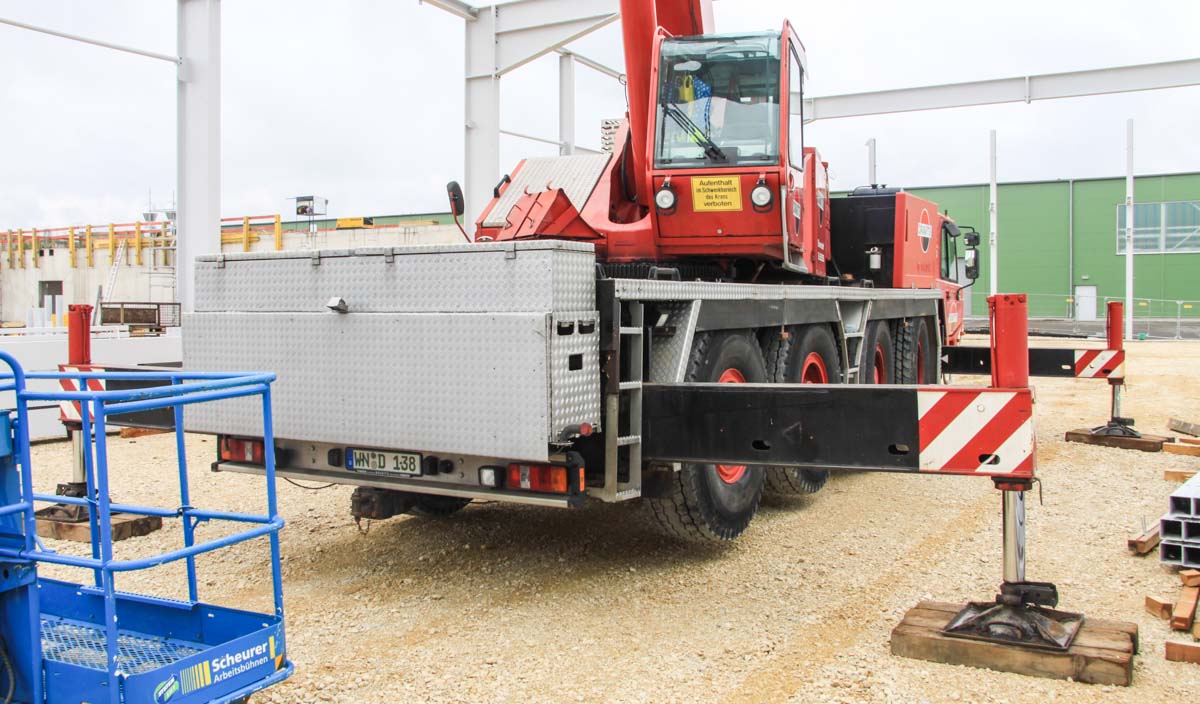

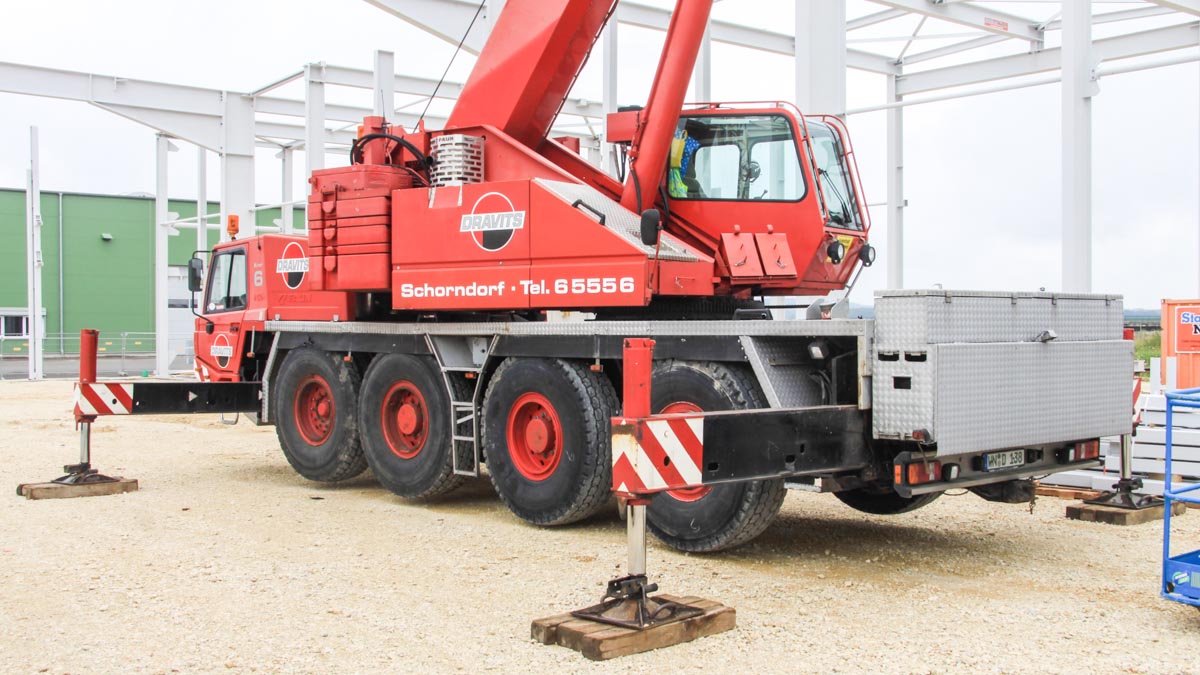

At the rear of the crane is a box for spreader woods mounted. The full counterweight weights 13.2 tonnes and has a 3.45 meter tailswing.

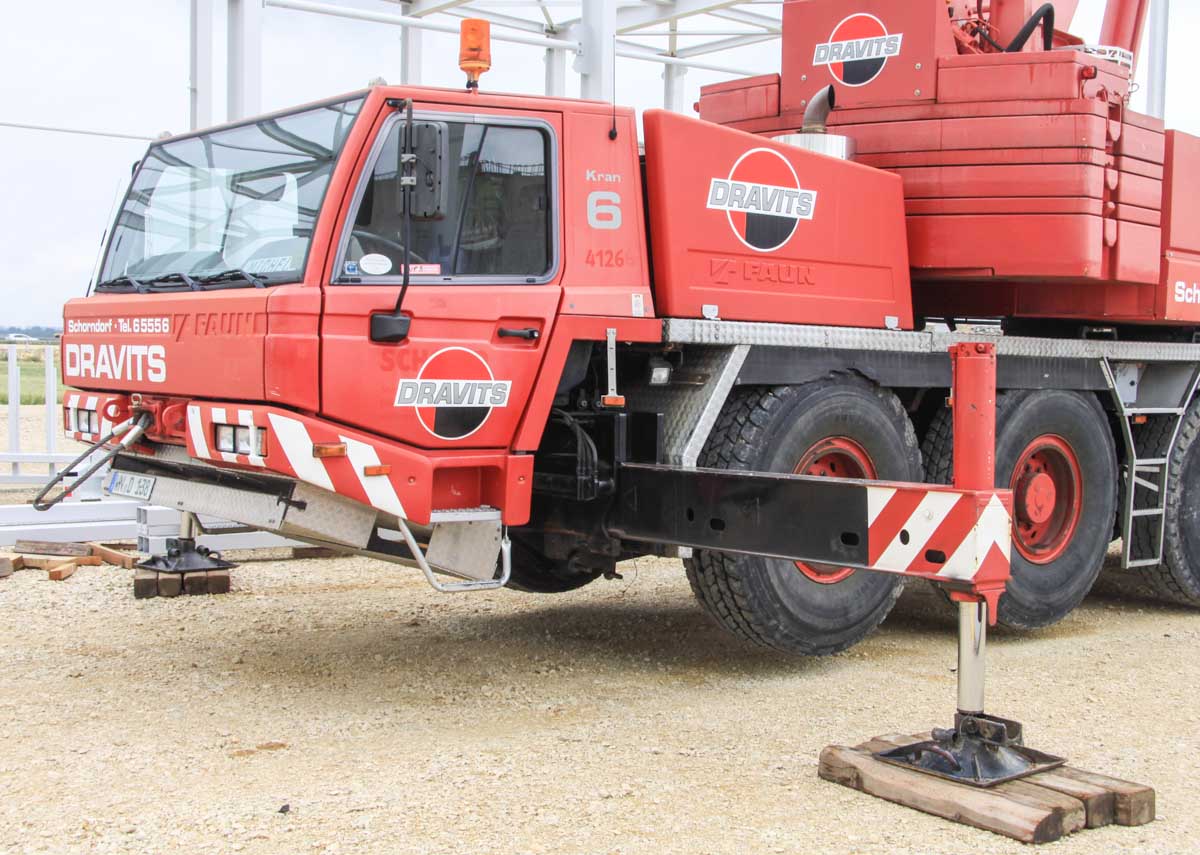

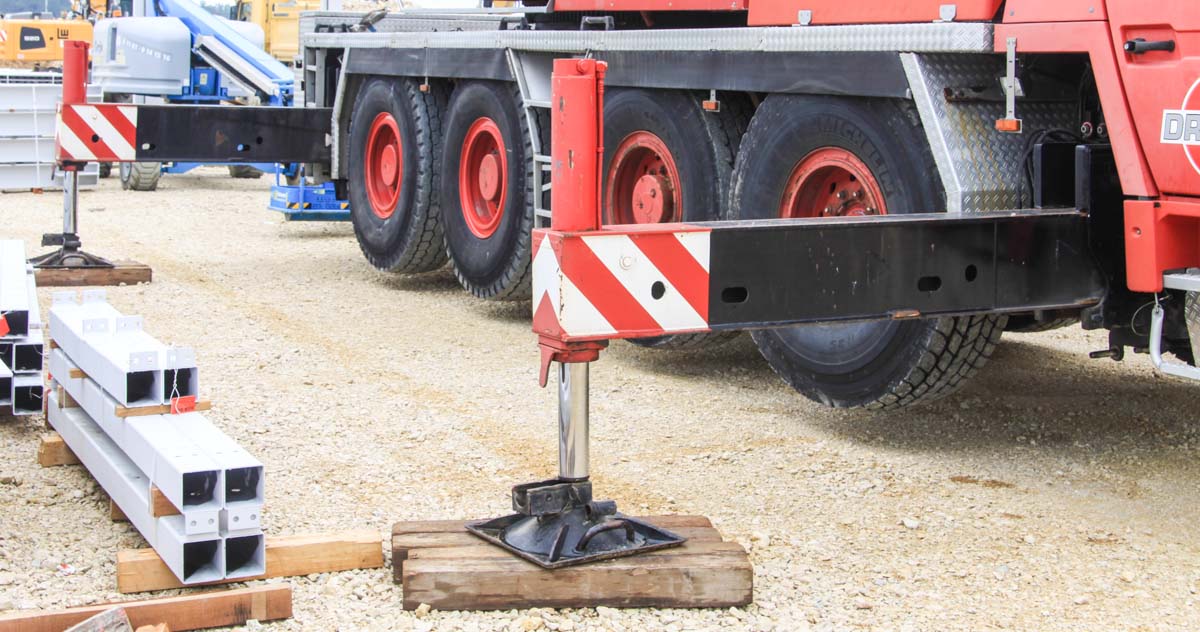

The outrigger base measures 7.8 x 6.27 meters, or half 7.8 x 4.64 meters.

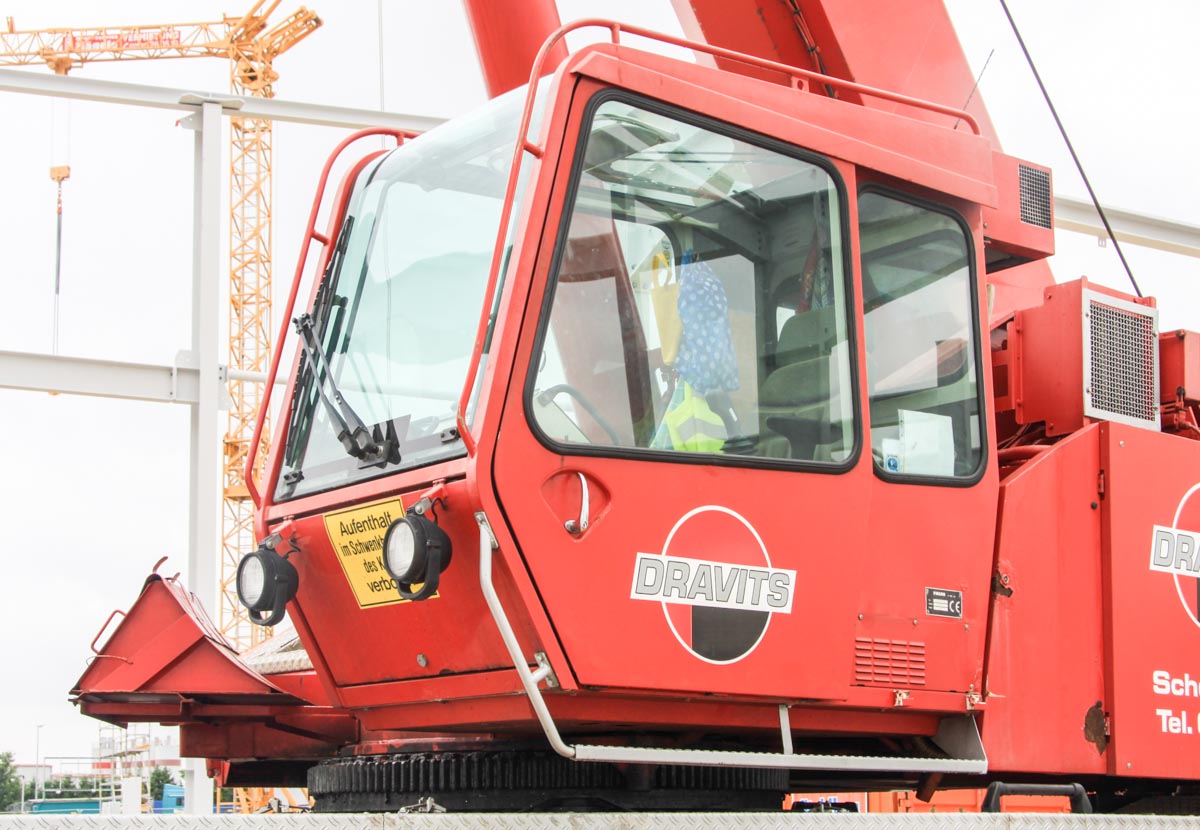

The super structure is powered by a Mercedes-Benz OM 904 LA, a 4-cylinder diesel engine with a power of 90 kW (122 hp). The engine powers two hydraulic pumps to operate the crane functions.

The main boom has a 10.4 meter base length and extends four times to a total length of 40.2 meters.
