Volvo FH 500 - Rensink

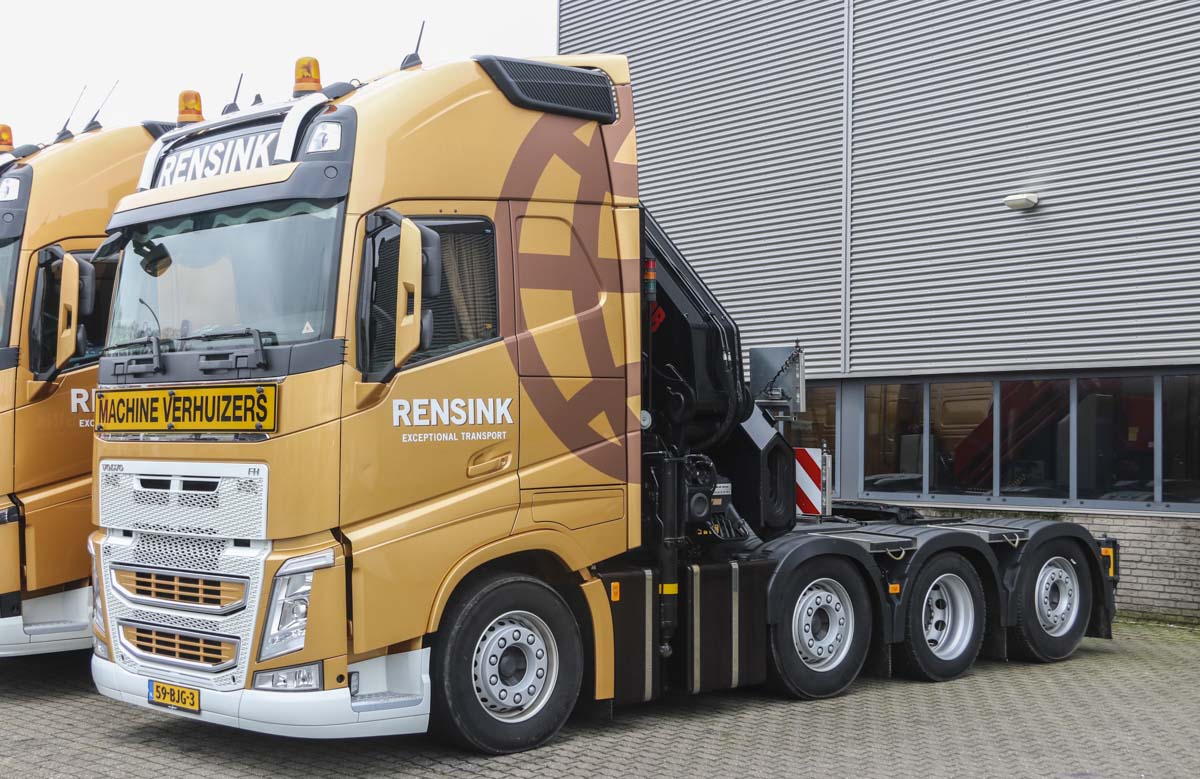

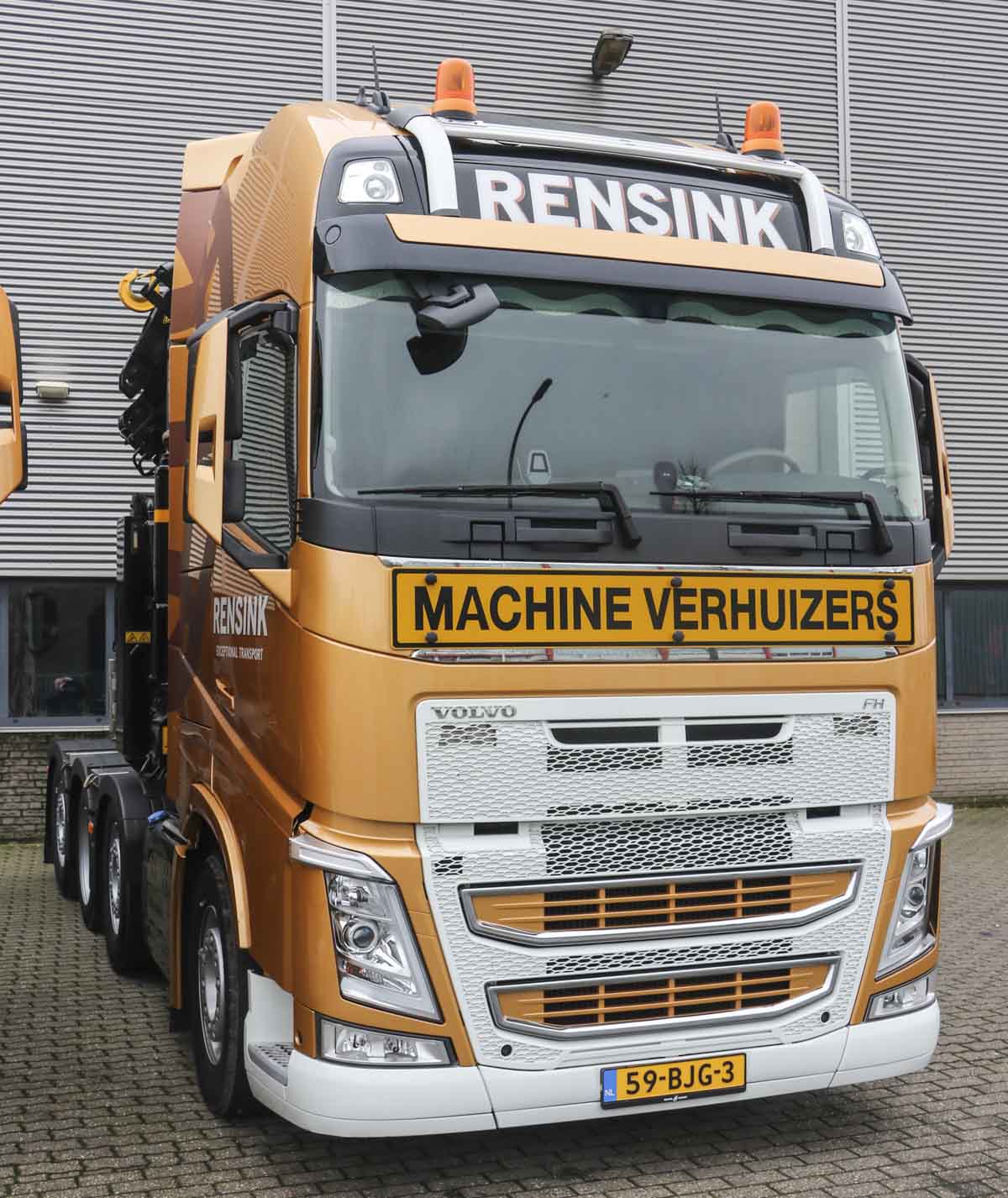

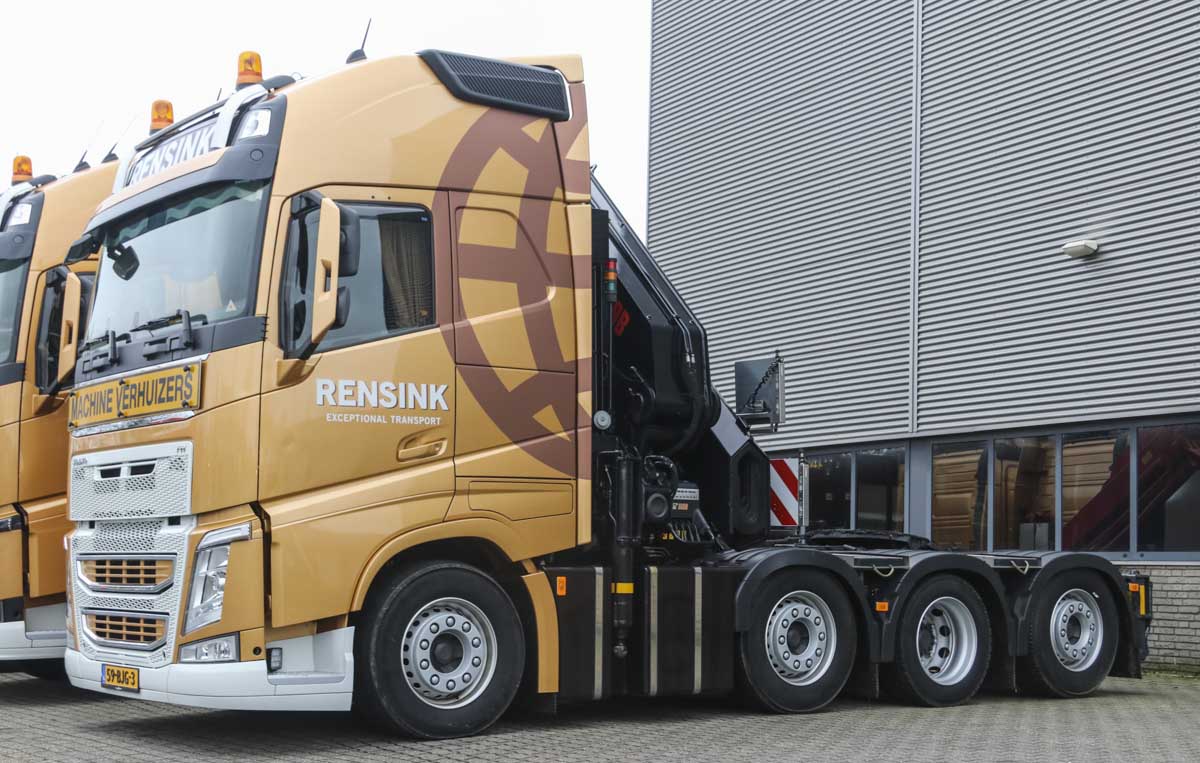

This sharp Volvo FH 500 of Rensink from Almelo (NL) stood during the Christmas holidays parked in front of their yard. The truck's year of manufacturer is 2017.

It is a truck with 8x2-drive line that is powered by a Volvo D13C, a 12.6-liter diesel engine with a power of 375 kW (500 hp). Only the third axle is powered. Behind the first axle is the diesel tank installed, interesting is the space made in the tank to fit the outrigger of the lorry crane.

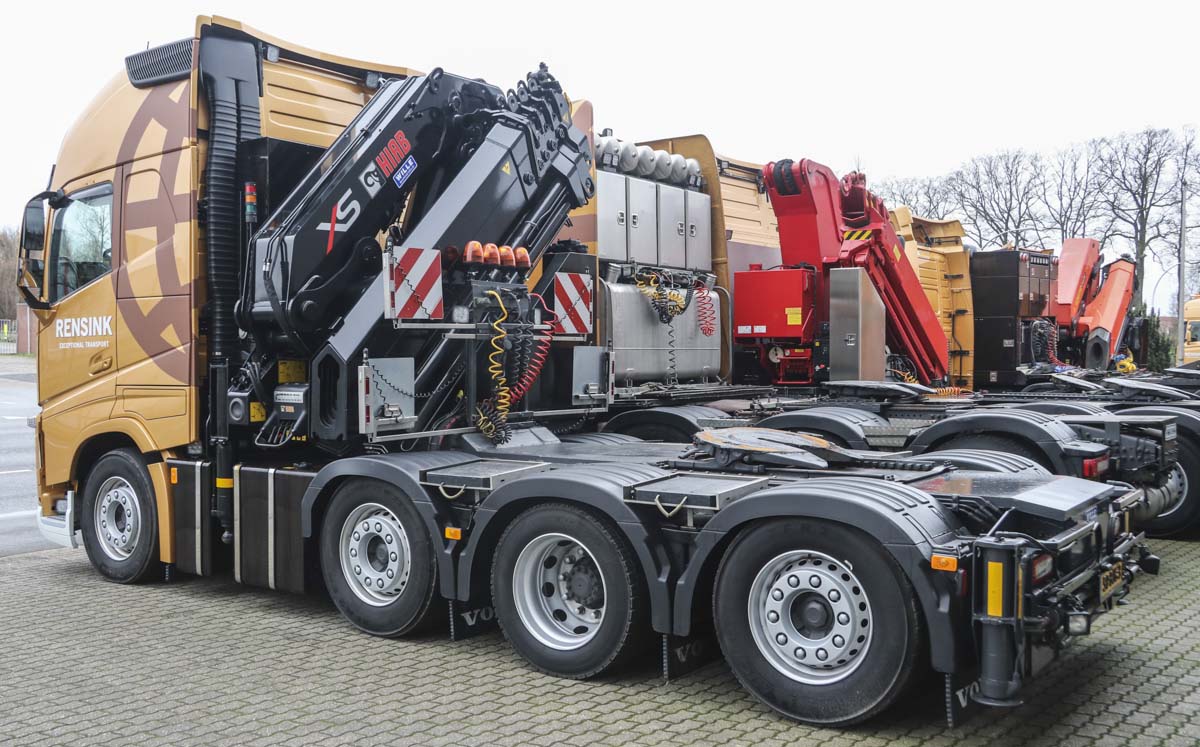

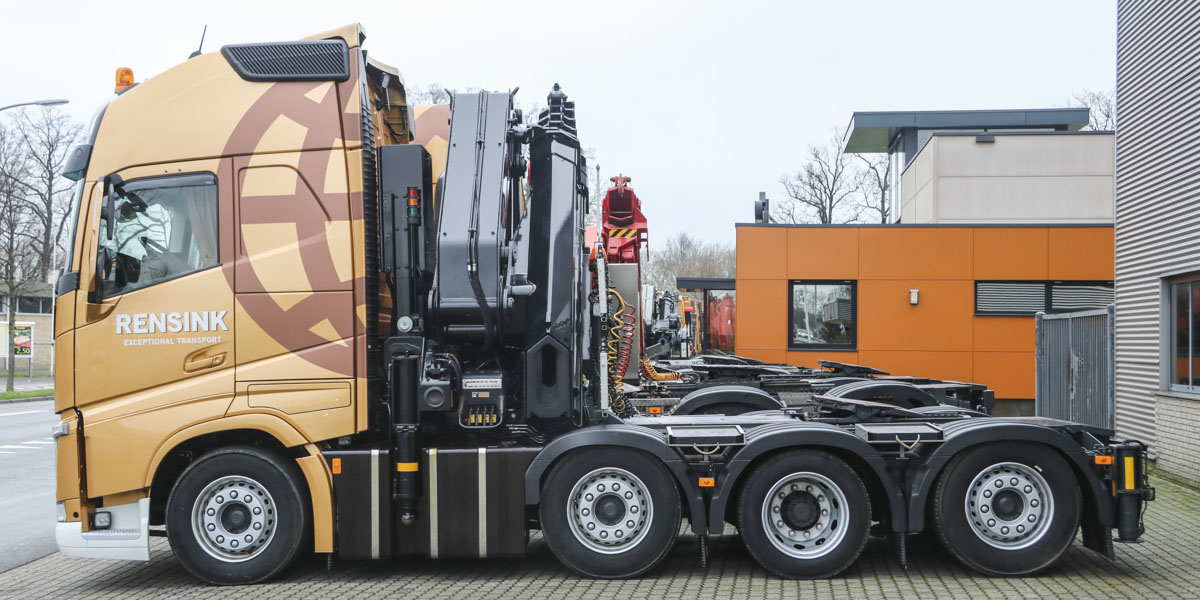

Behind the cabin is a Hiab XS 600EP-5 lorry crane installed, the lorry crane has a maximum lifting capacity of 15.9 tonnes on a 3.2 meter radius or 3.3 tonnes to a 14.7 meter radius.

For stability are in total four outriggers installed on the chassis. Two directly next to the crane with a maximum breadth of 9 meters and two at the rear of the chassis. Between the last three axles are storage compartments made for the outrigger pads. This truck has a mass of approx. 21 tonnes.

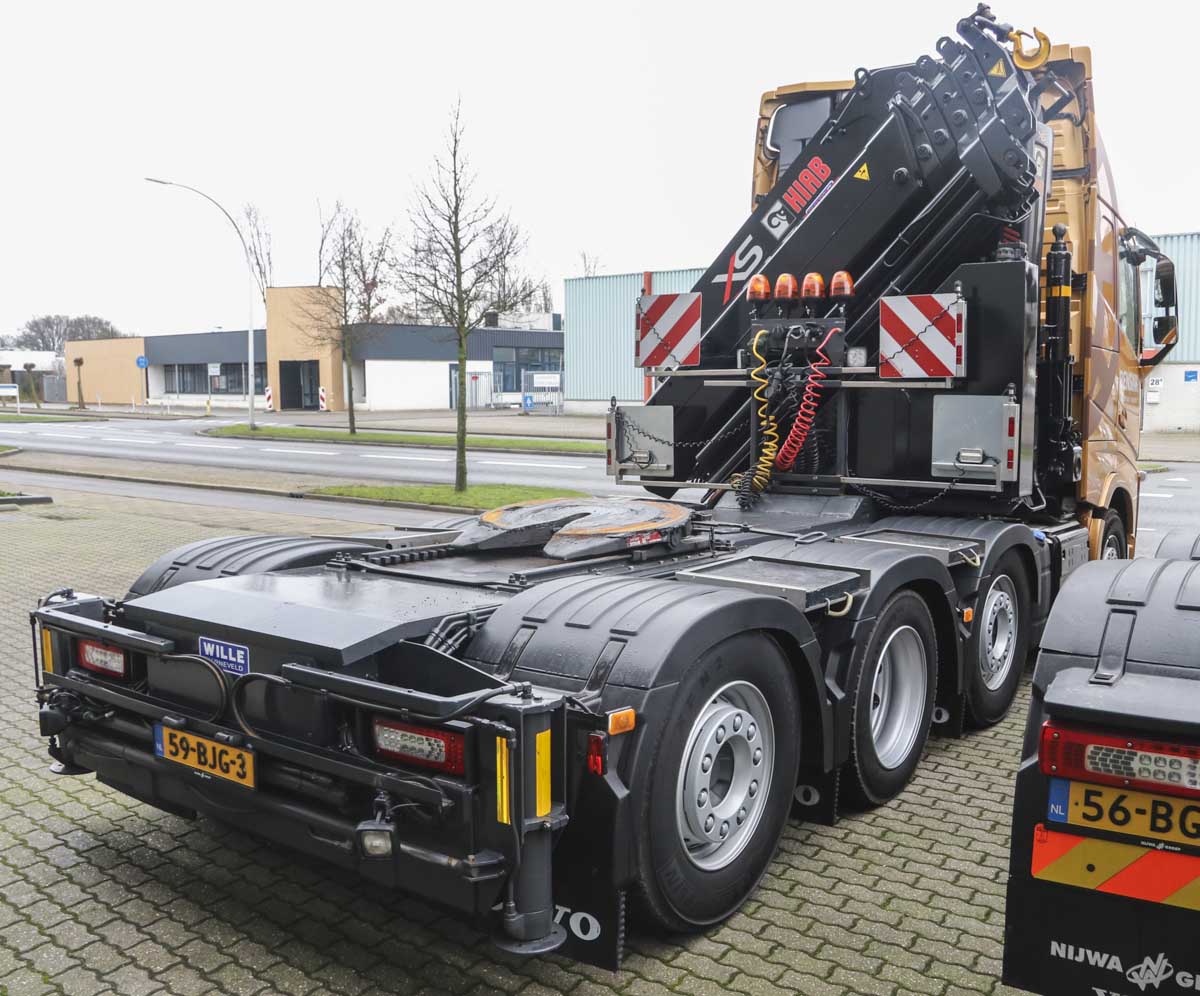

On this side are behind the last axle the Euro 6 muffler and the AdBlue tank installed.

A very sharp truck by Rensink!
