Scania P 440 - Woon Fong

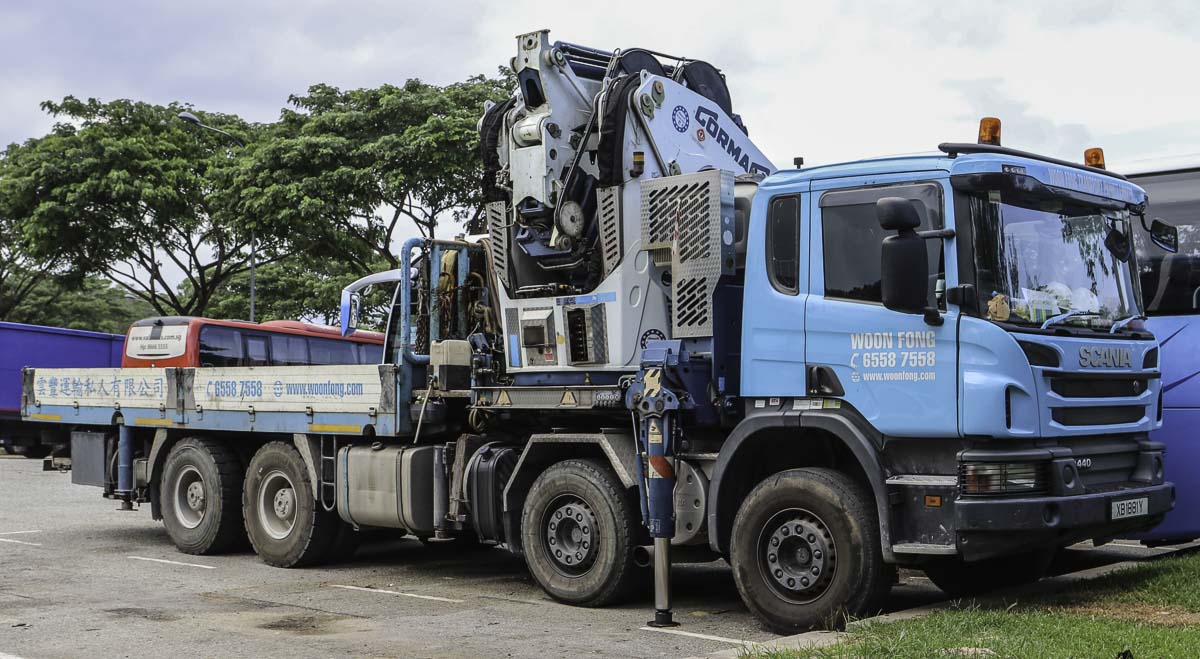

This sharp Scania P 440 belongs to Woon Fong from Singapore (SG). It is a 4-axle truck fitted with a heavy lorry crane that stood parked on a large parking during the weekend.

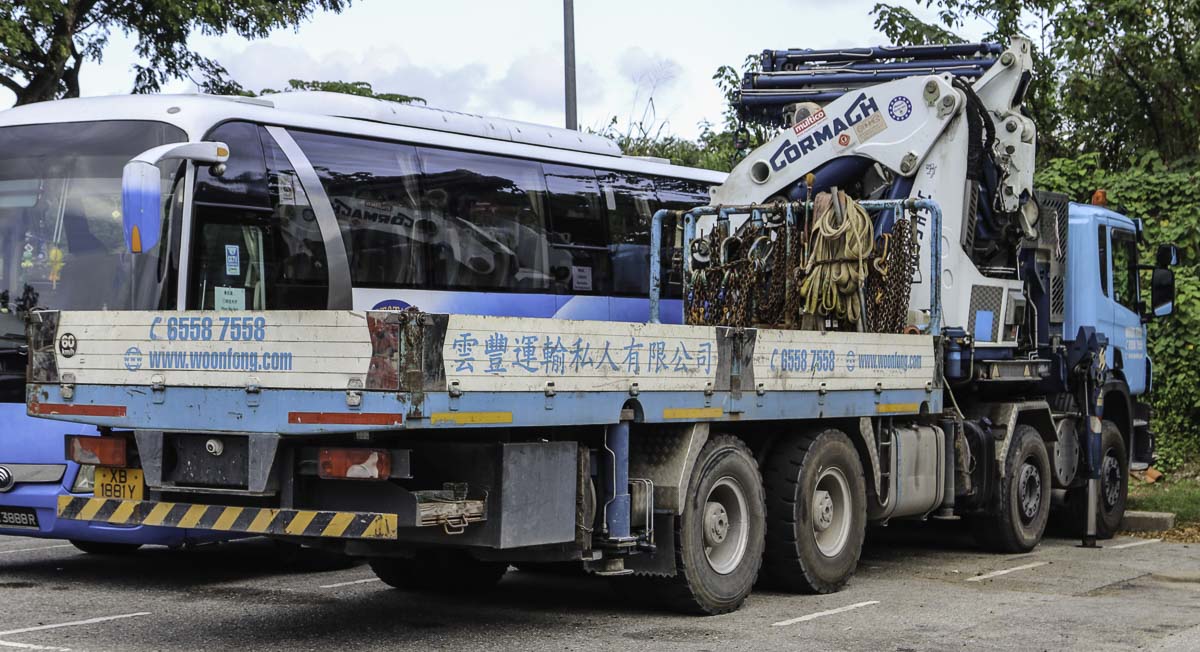

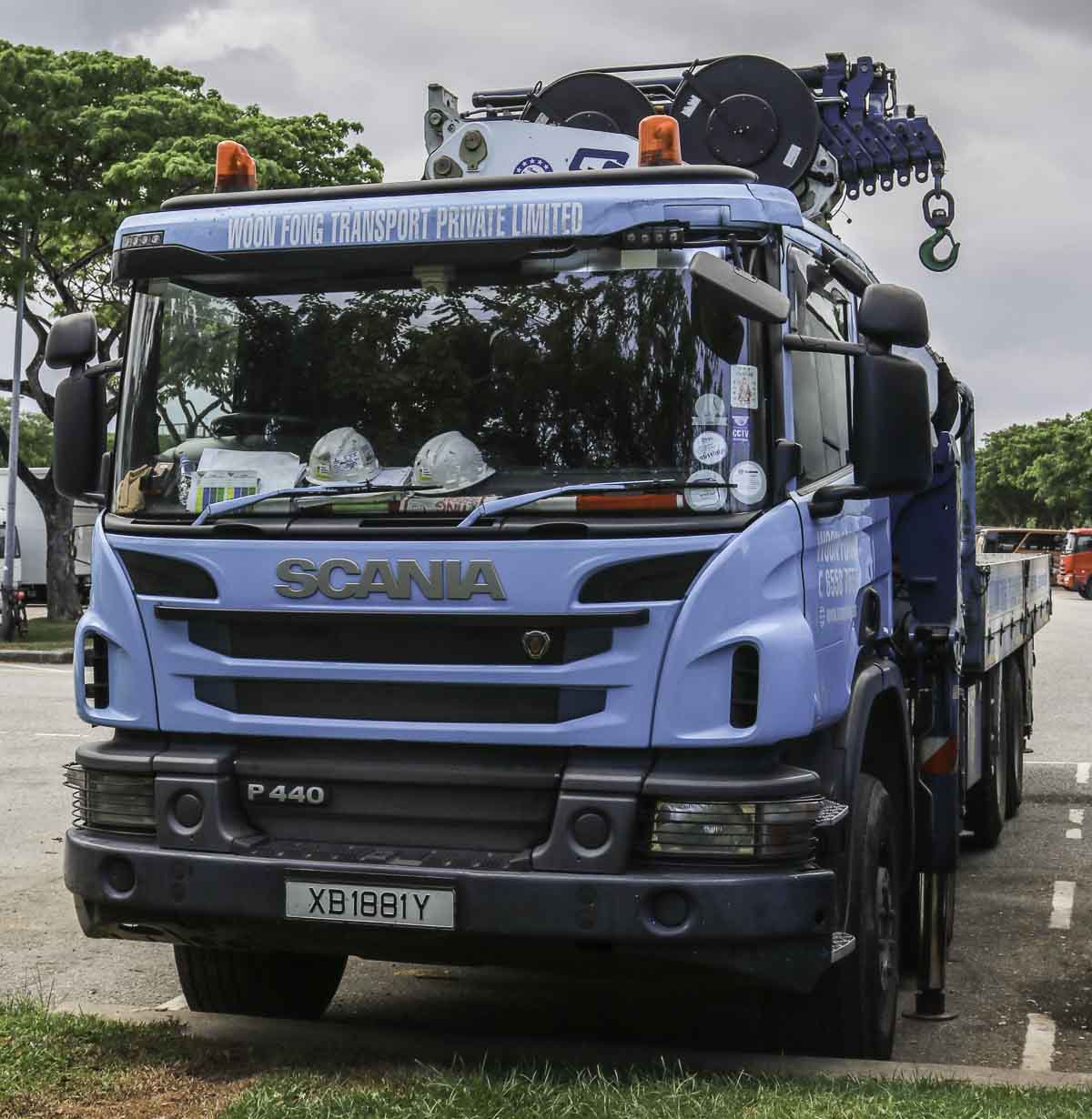

The truck with 8x4-drive line is powered by a Scania DC13, a 12.7-liter 6-cylinder diesel engine with a power of 324 kW (440 hp). The two rear axles are powered, both front axles are steerable.

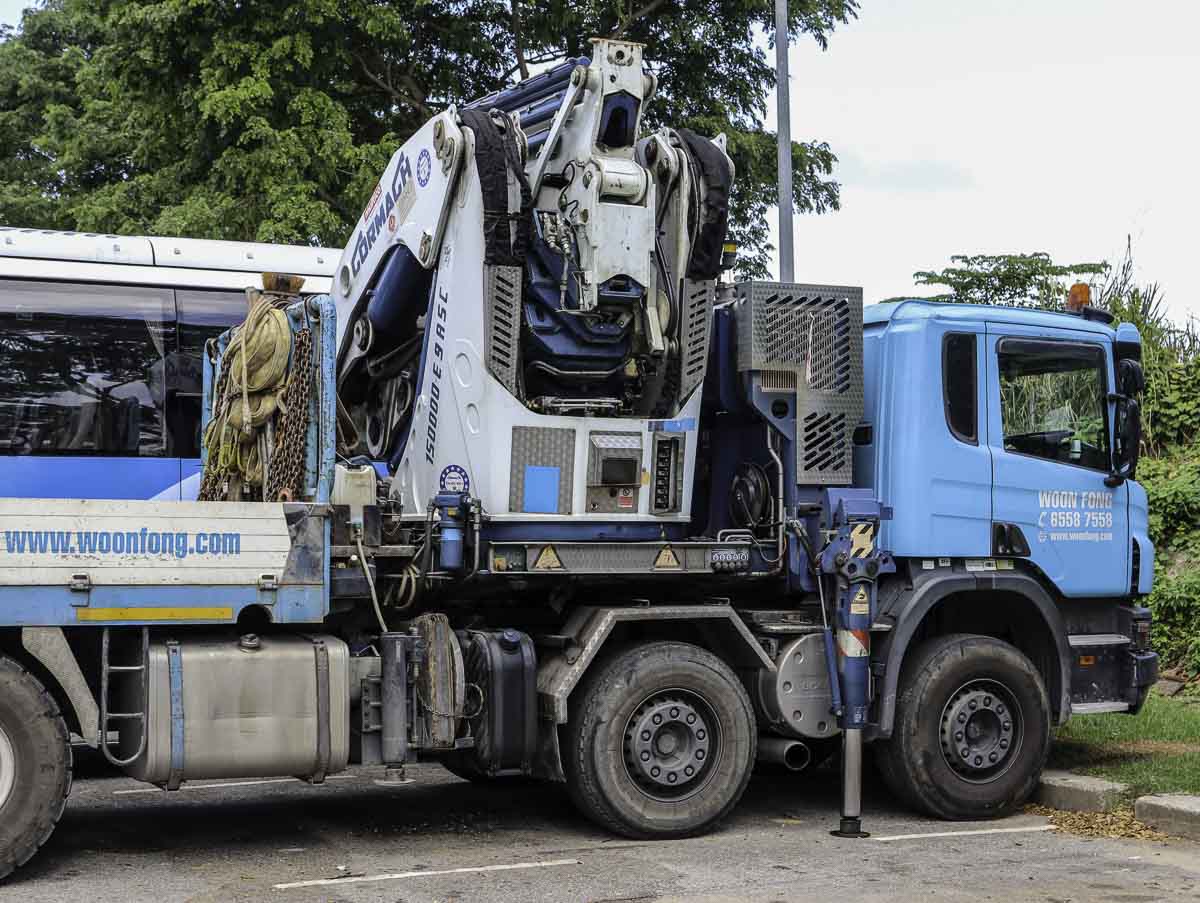

Behind the first axle is the muffler mounted, behind the second axle are the AdBlue tank, one outrigger and the diesel tank mounted.

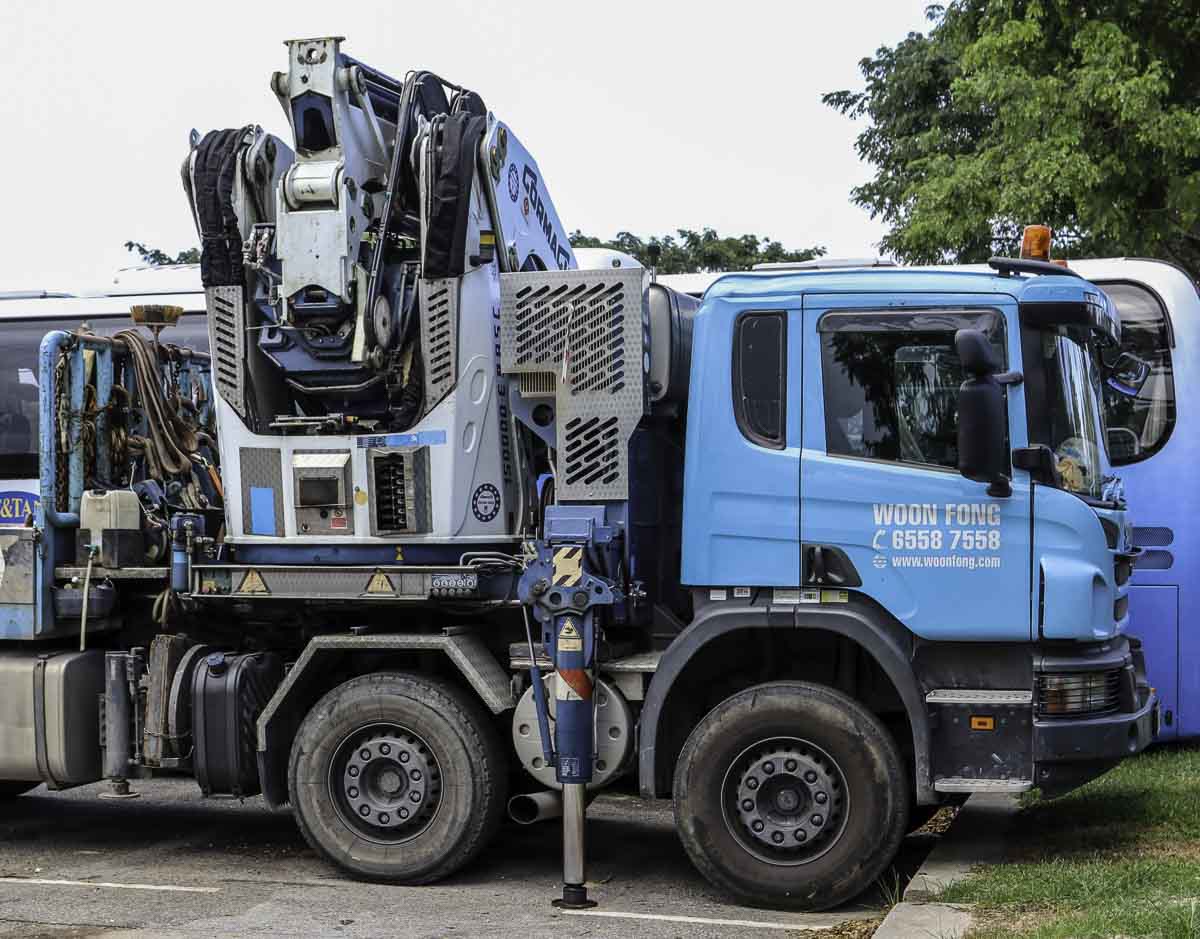

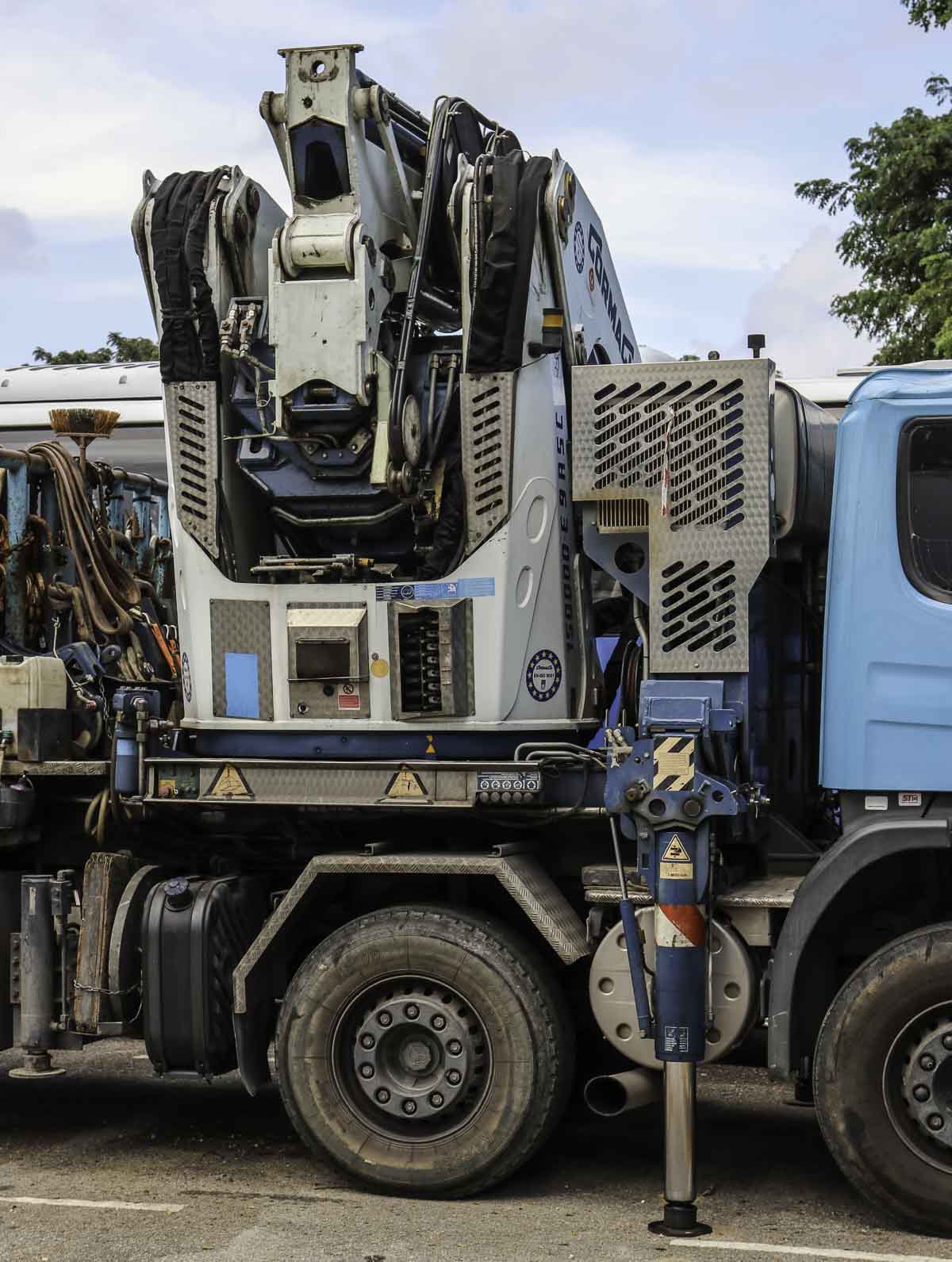

Behind the cabin is the large Cormach 150000 E9 lorry crane mounted. It is a 143.5 mt lorry crane with a reach of 19 meters. The maximum load of 27.16 tonnes can be lifted up to a 4.13 meter radius, at a radius of 19 meters is the crane able to lift 4.78 tonnes.

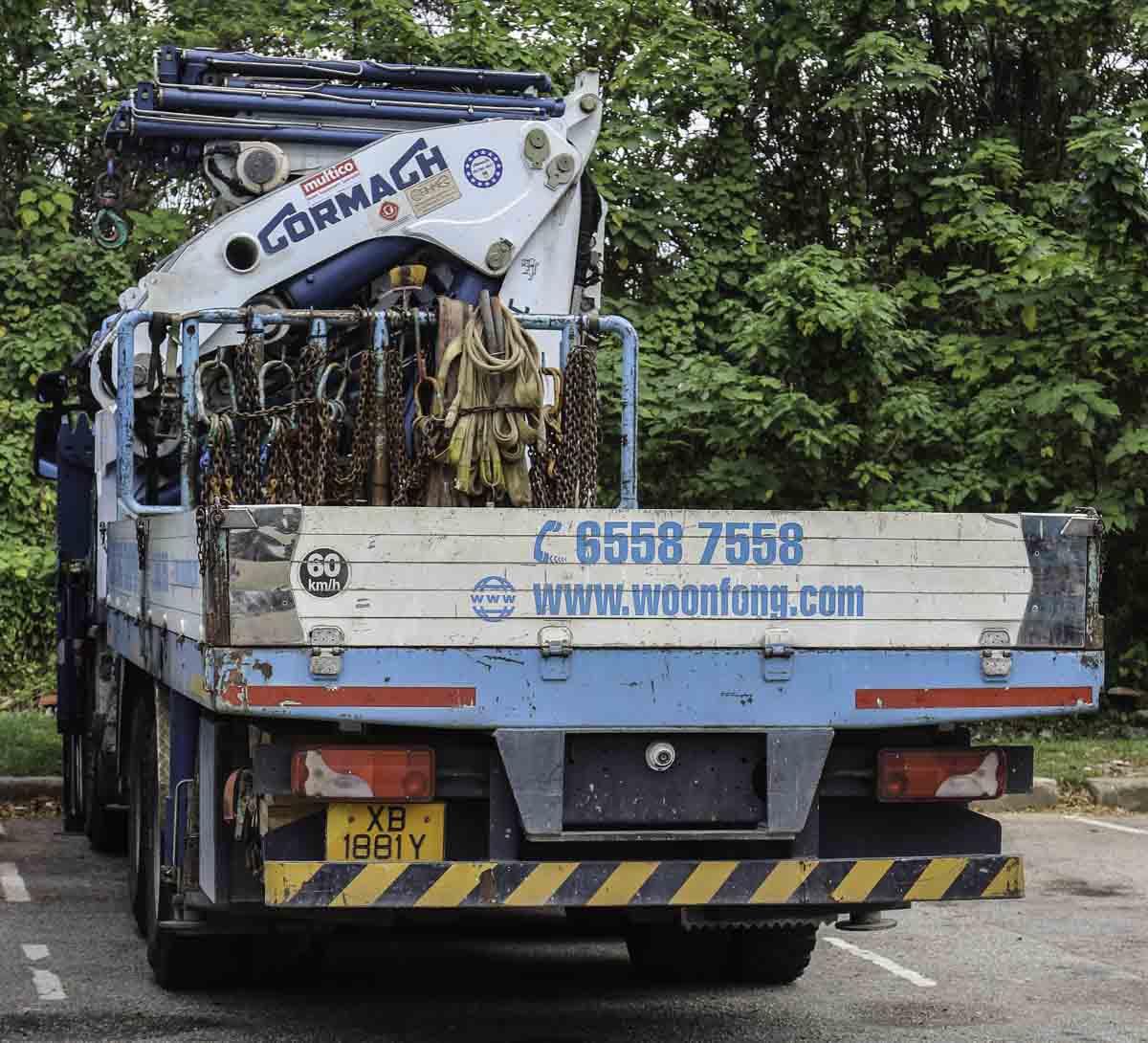

The outriggers next to the crane extend up to a width of 10.1 meters. At the rear of the chassis are another set of outriggers mounted.
Attached to the crane is the F206 jib, the jib enlarges the reach to maximum 31 meters, there the crane is still able to lift 1.26 tonnes.
A very sharp vehicle of Woon Fong!
