Mercedes-Benz Actros 4165 - Kahl Schwerlast

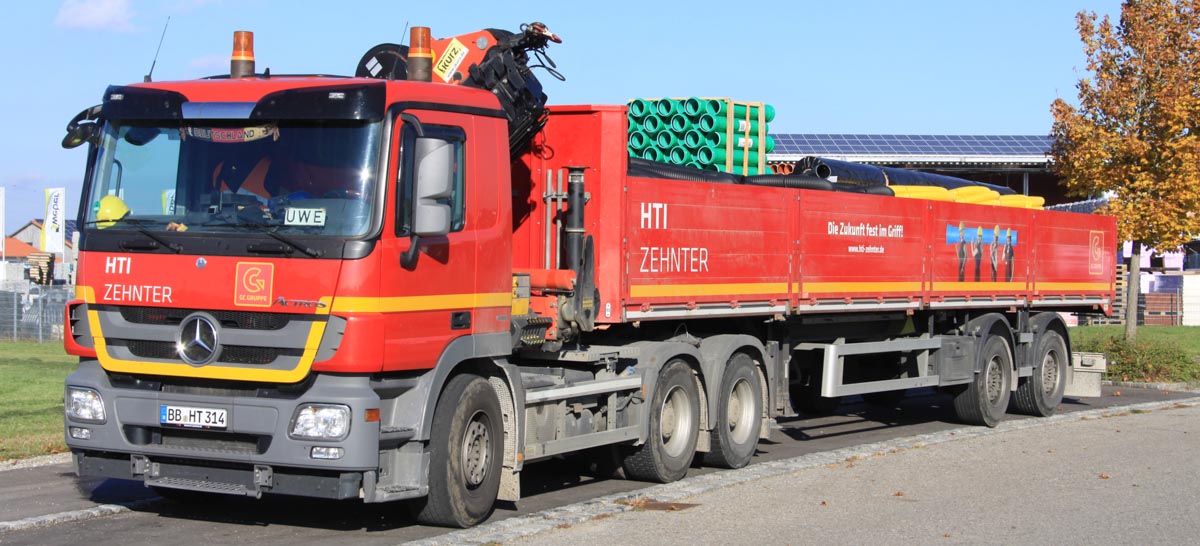

This sharp Mercedes-Benz Actros 2644 of HTI Zehner from Herrenberg-Gültstein (DE) is mainly used to transport construction material.
The combination exists out of a Mercedes-Benz Actros 2644 with 6x4-drive line and a 2-axle trailer. The truck is powered by a Mercedes-Benz OM 501 LA, a 11.9 liter 6-cylinder diesel engine that powers here 435 hp.

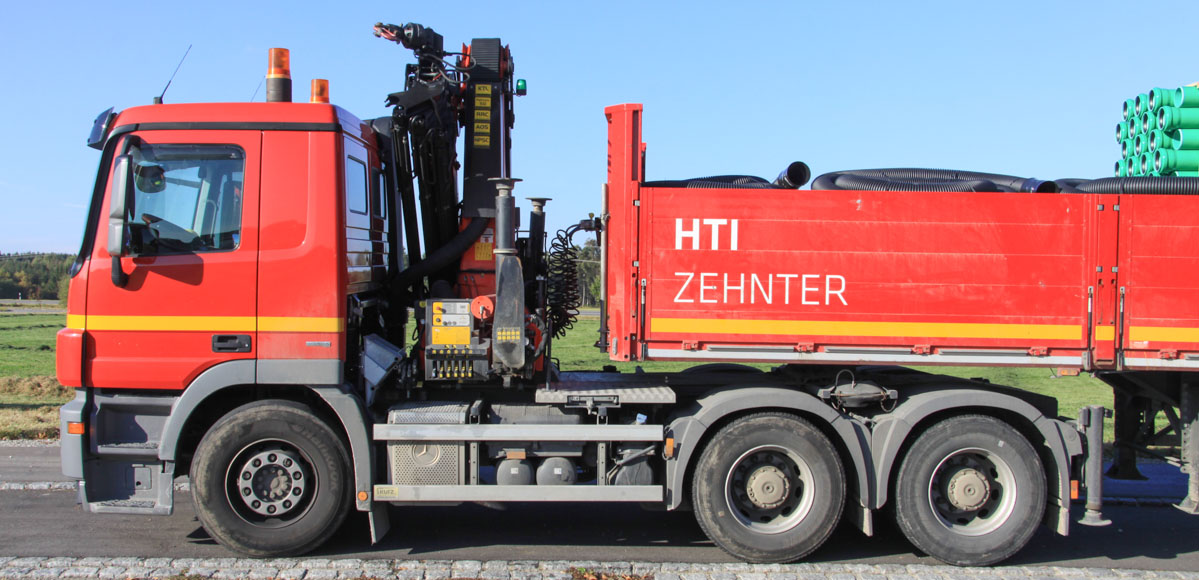

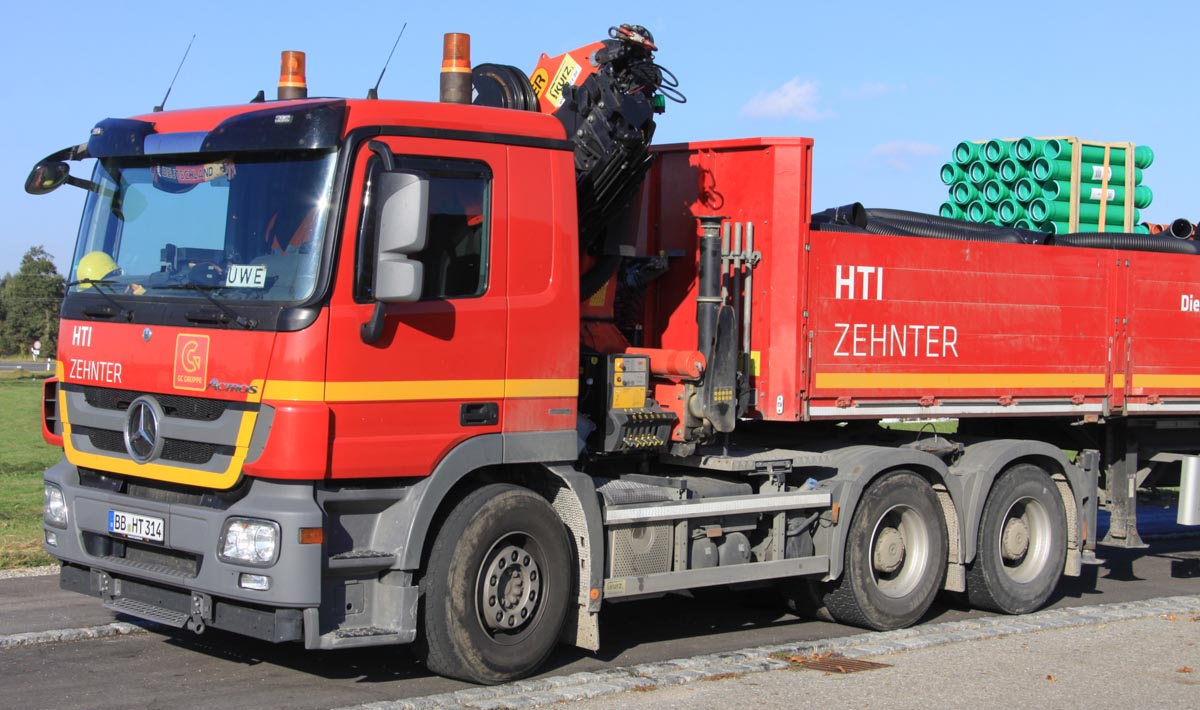

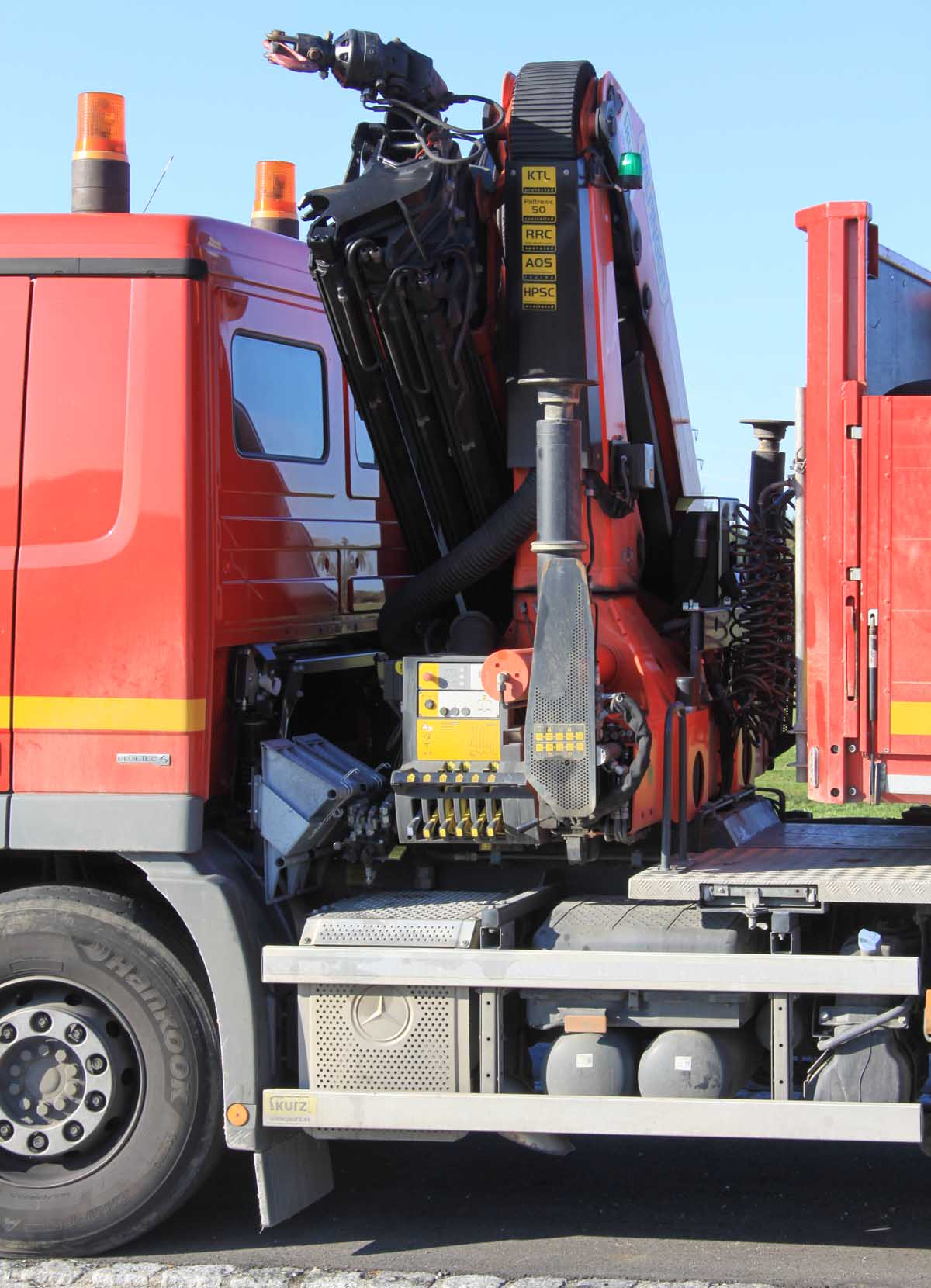

Behind the front axle are the muffler, battery, compressed-air tanks and the AdBlue tank installed. The lorry crane is a Palfinger PK 26002-EH D with four outriggers. Two directly next to the crane and two of the rear of the chassis. The outrigger pads are storred between the rear axles during transport over the road.
The lorry crane has with fully extended outriggers a maximum capacity of 5.2 tonnes at 4 meters and lifts at 14 meters still 1,300 kg.

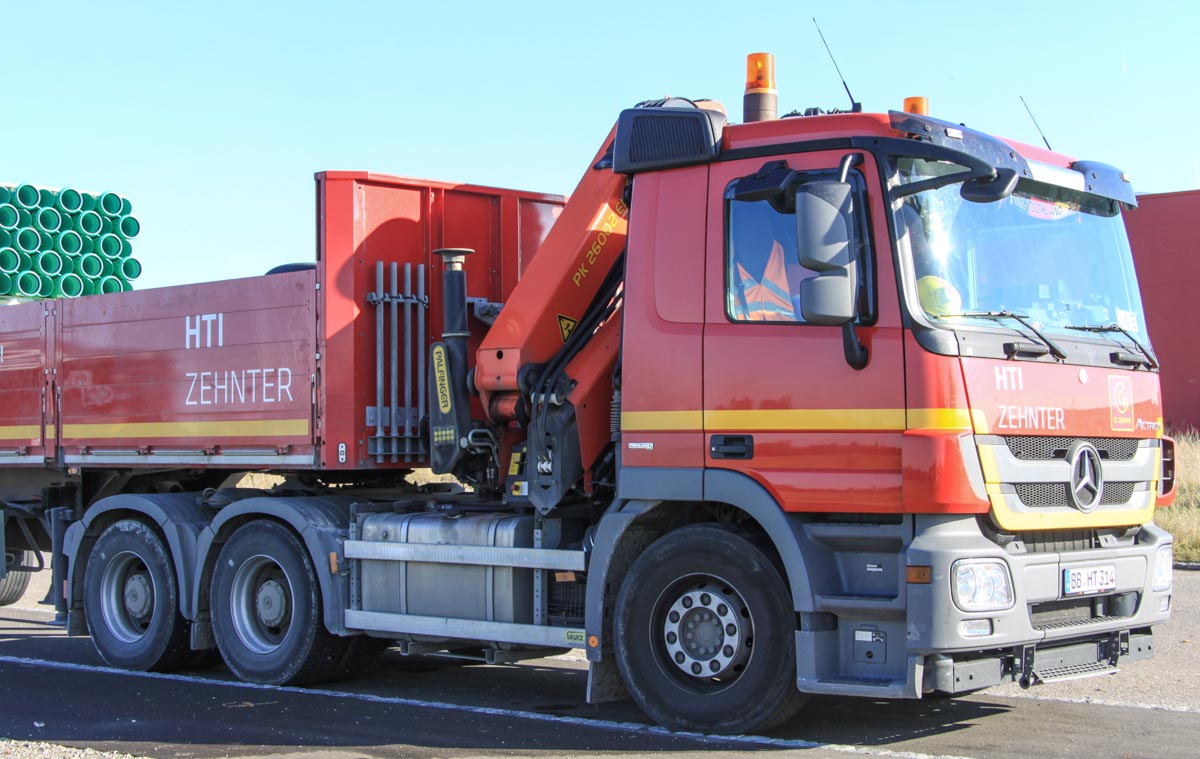

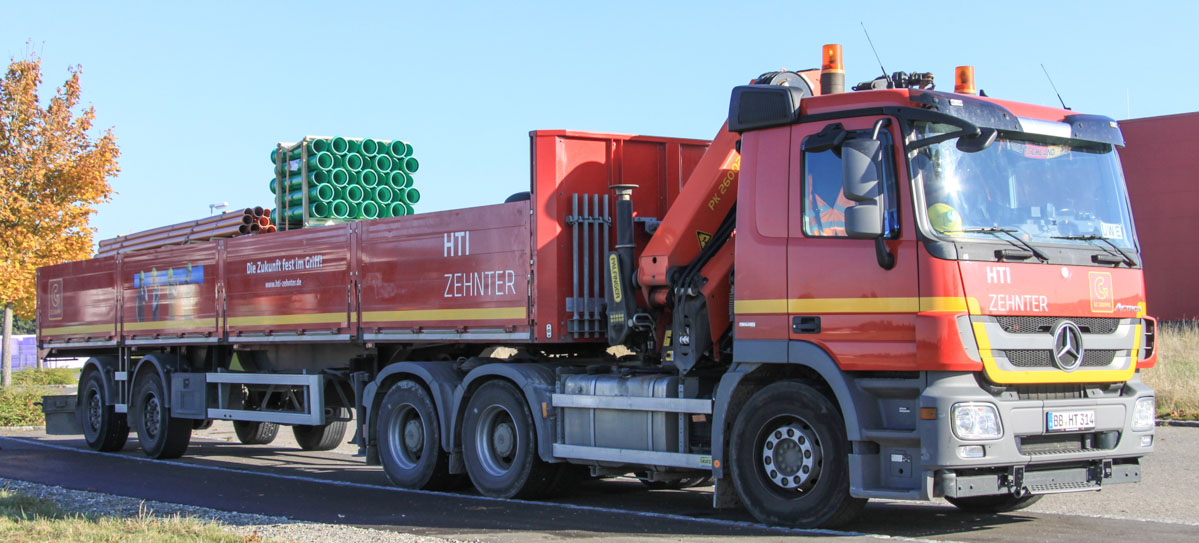

On this side are behind the front axle the air filter and the diesel tank installed.

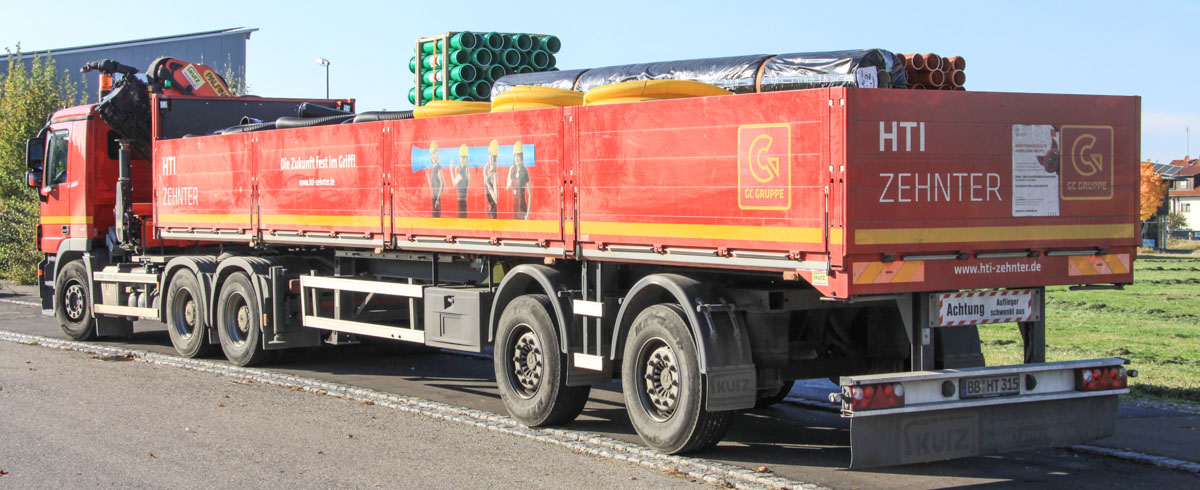

Attached is a 2-axle trailer for the transport of construction materials.
