MAN TGA 41.430 - Fanger

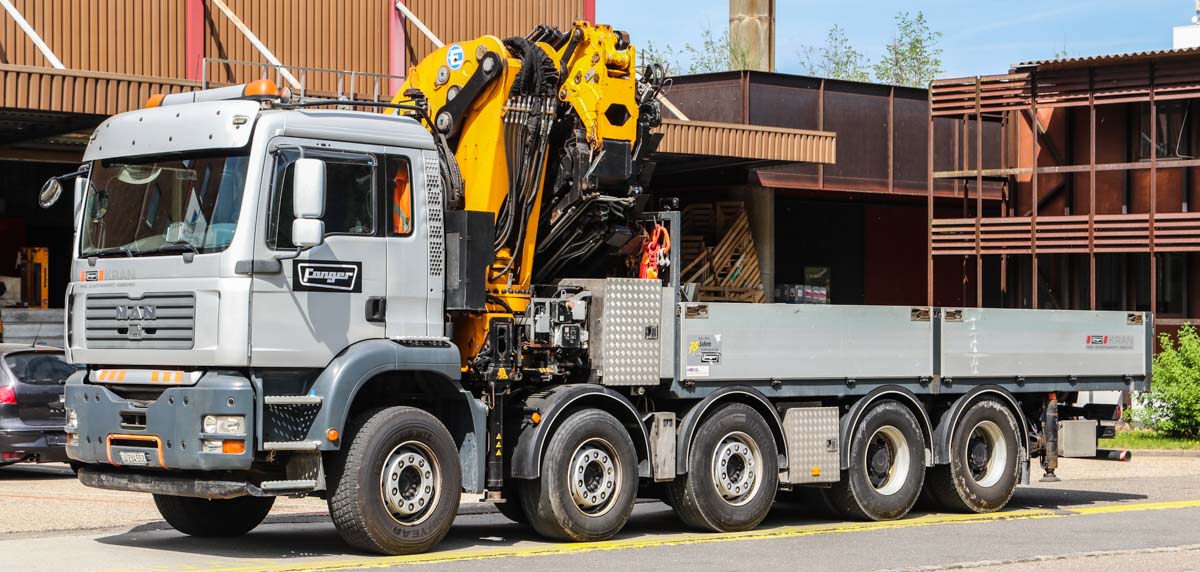

Fanger from Sachseln (CH) was using this MAN TGA 41.430 as a 5-axle truck. The truck's year of manufactur is 2005 and is currently not in use anymore with Fanger.

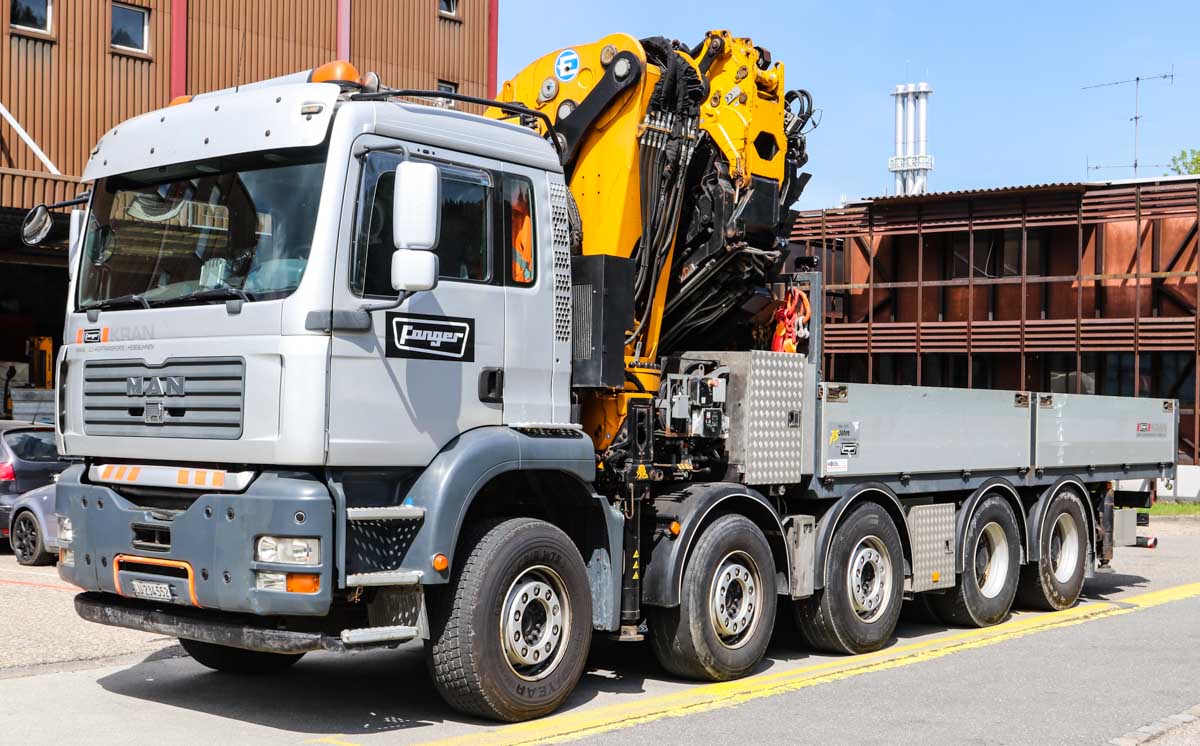

The truck is powered by a MAN D2066, a 6-cylinder 10.5-liter diesel engine with a power of 316 kW (430 hp). The truck has a 10x4-drive line where only the last two axles are driven. The first three axles are steerable.

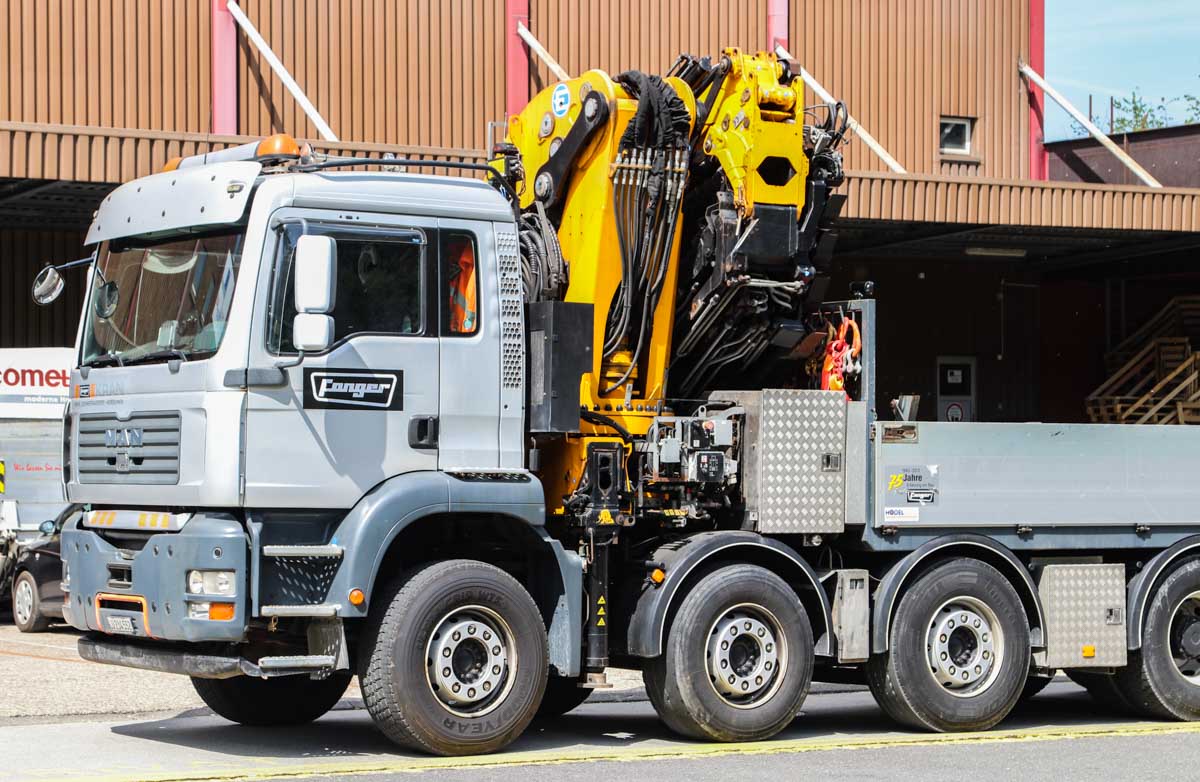

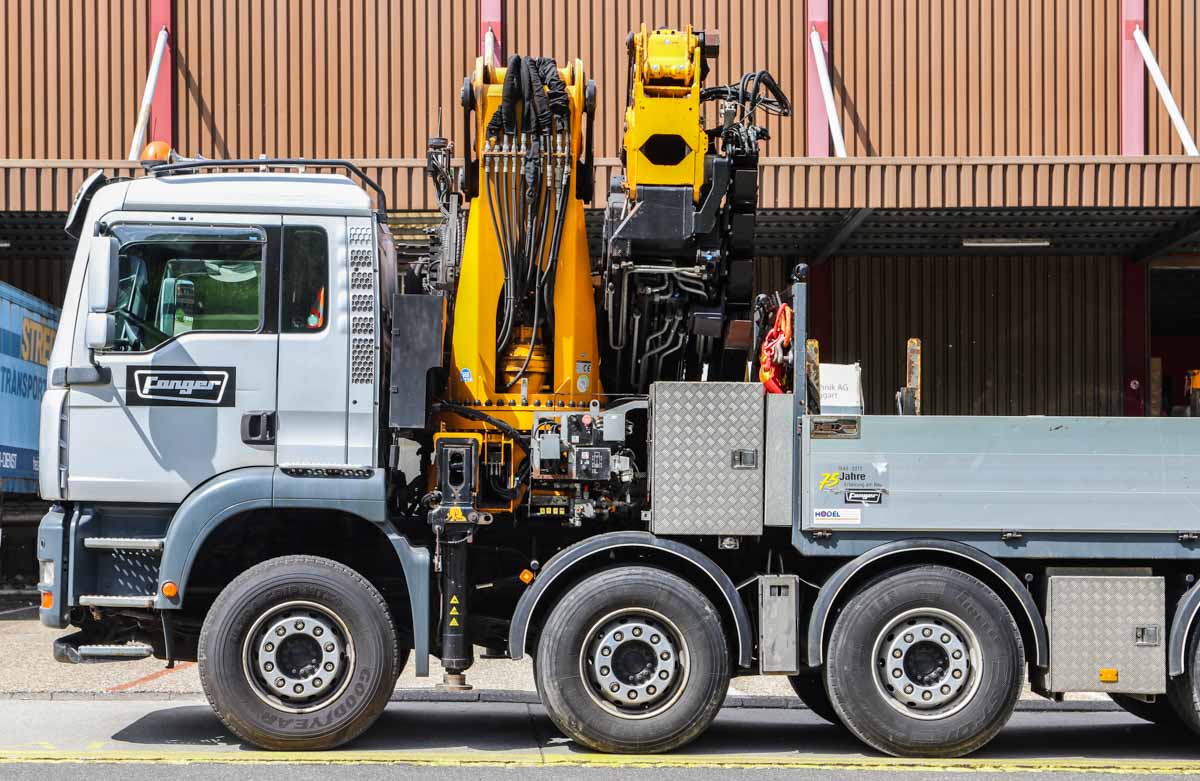

Behind the cabin is an Effer 850/8S lorry crane installed. The lorry crane can lift maximum 24.9 tonnes on a 2.5 meter radius or 2.67 tonnes on a 20.68 meter radius. Optionally is a jib to be installed on the Effer, to extend the reach to a 34.18 meter where the crane can lift 635 kg.

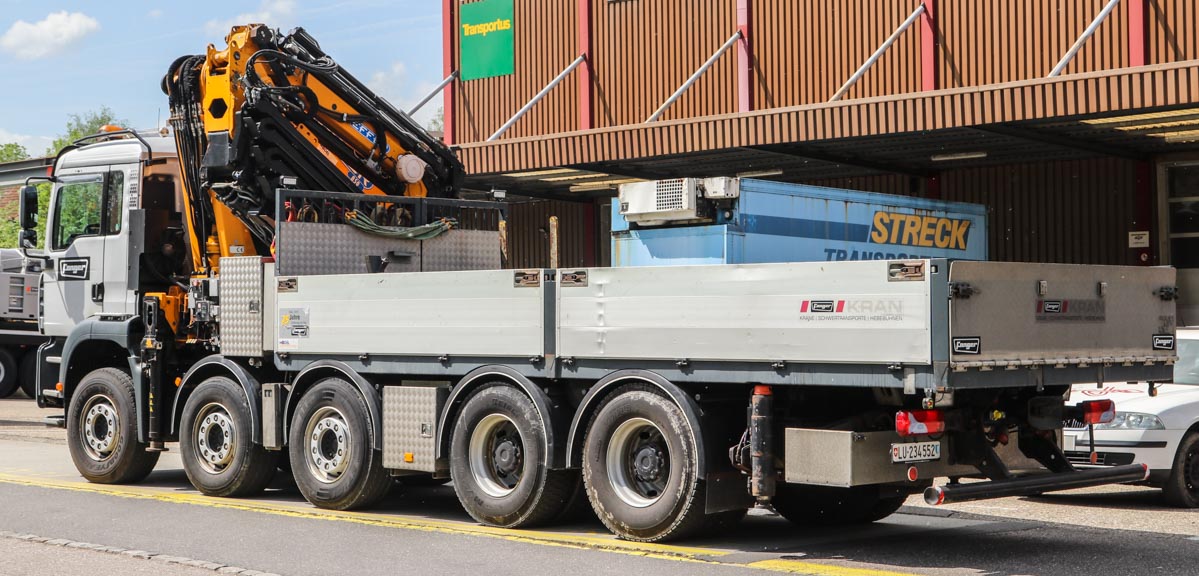

Next to the crane and at the rear of the chassis are the outriggers for the crane installed. The outriggers next to the crane have a maximum width of 8.7 meters. Between the axles are multiple storage compartments made.

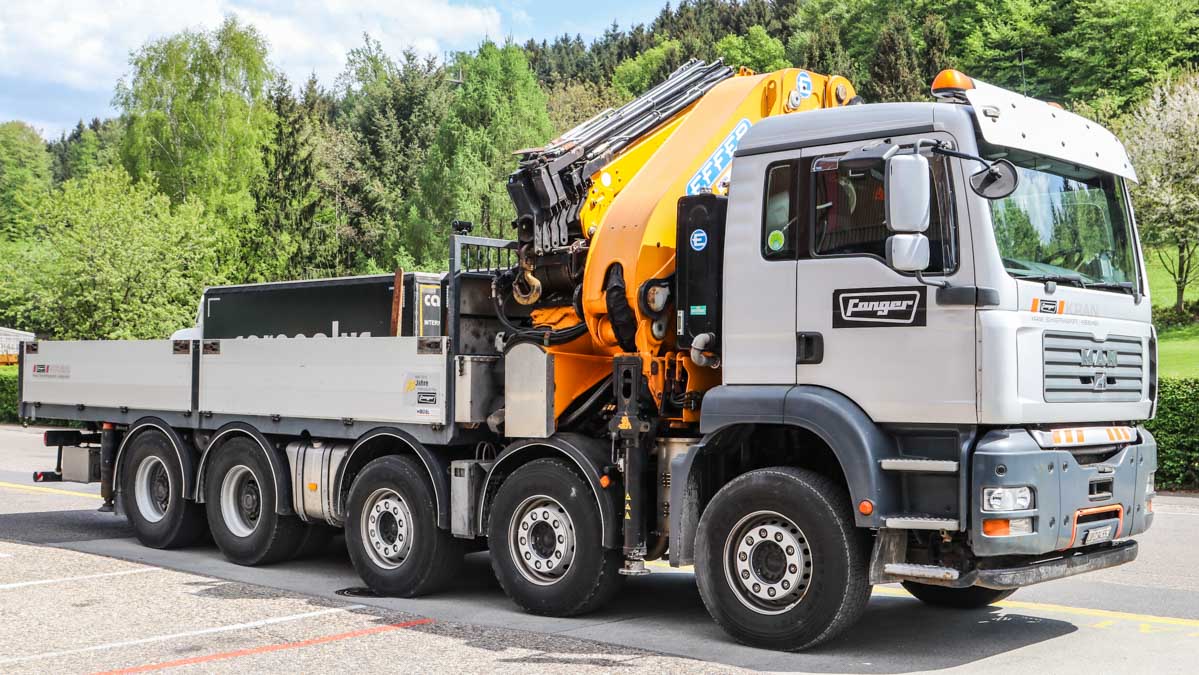

On this side is a small diesel tank installed between the third and fourth axle. The truck has a maximum total weight of 44 tonnes where the truck itself weights already 25.7 tonnes.
This truck was also on the move with a 2-axle trailer. In the meantime is the truck replaced by a new 4-axle MAN truck with Palfinger lorry crane.
