MAN TGA 26.480 - BKL

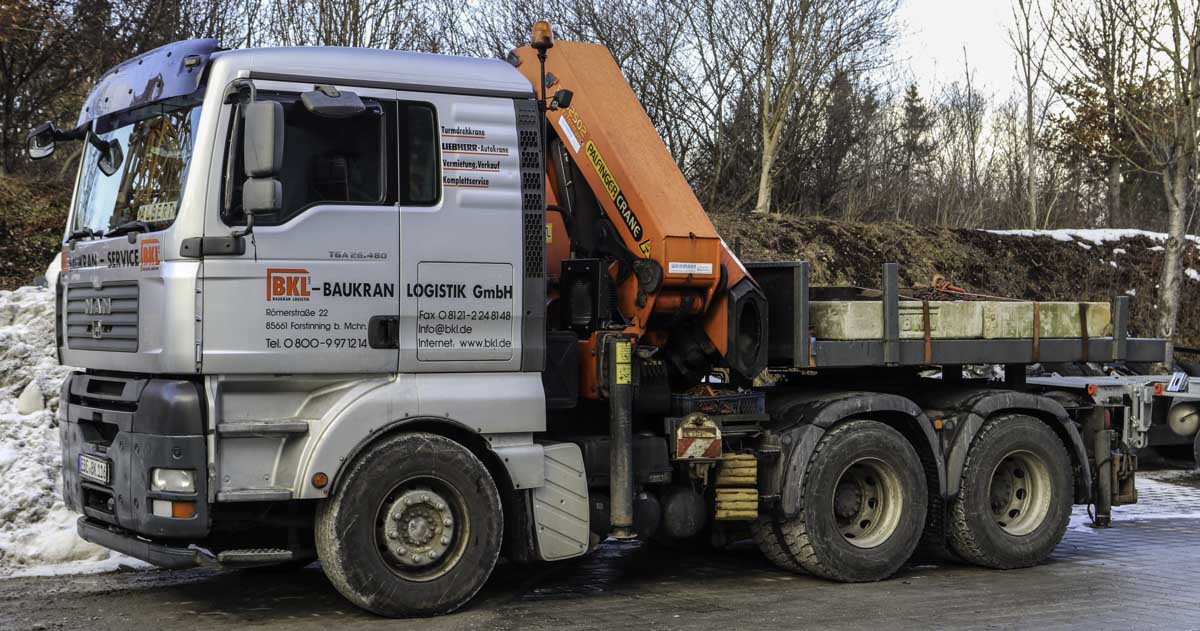

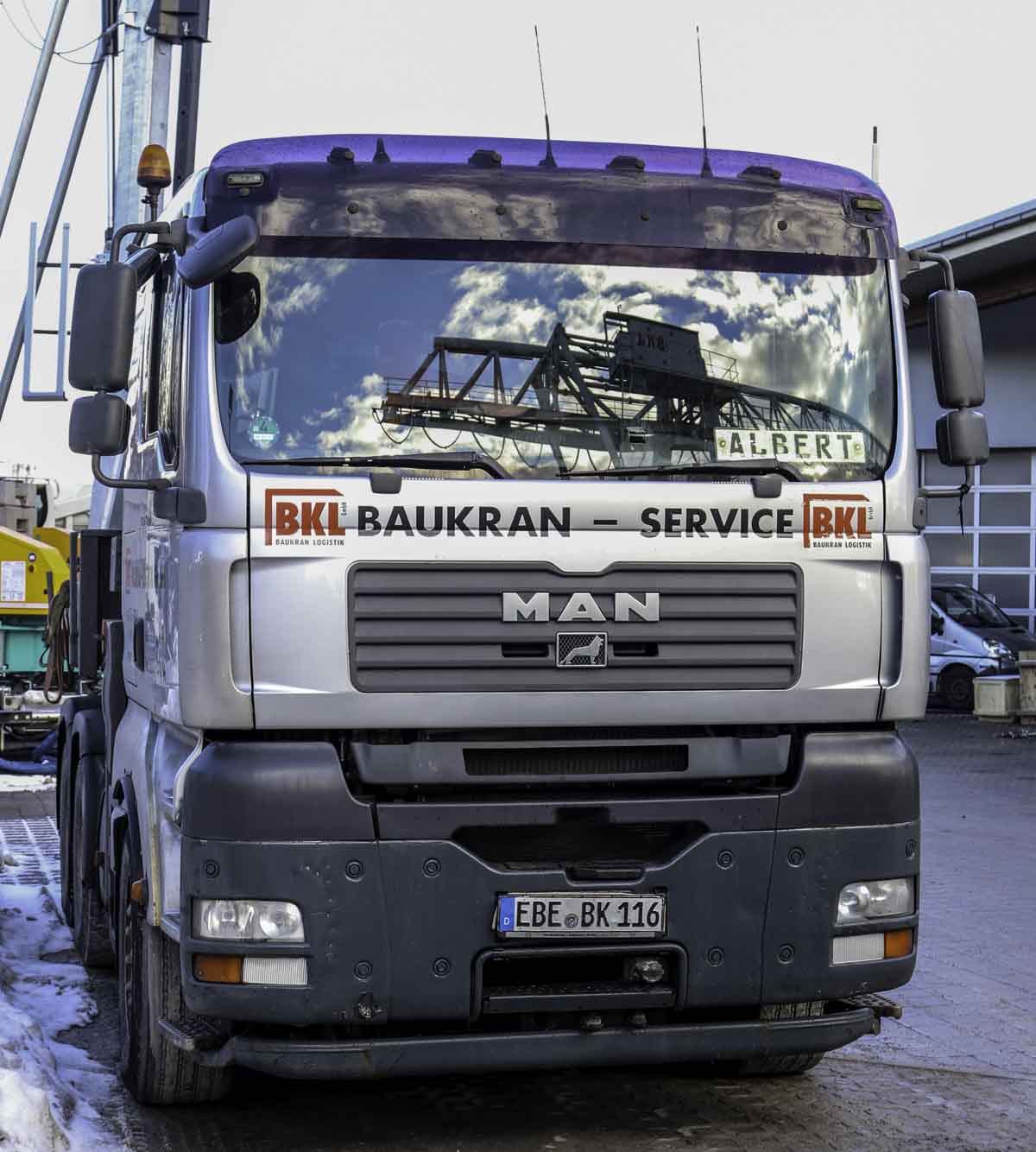

This sharp MAN TGA 26.480 of BKL from Forstinning (DE) is used for the transport and erection (dismantling) of fast-erecting tower cranes. The truck's year of manufacture is 2007.
The truck is powered by a MAN D28, a 12.1-liter 6-cylinder diesel engine with a power of 358 kW (480 hp). This truck has a 6x4-drive line with both rear axles powered.

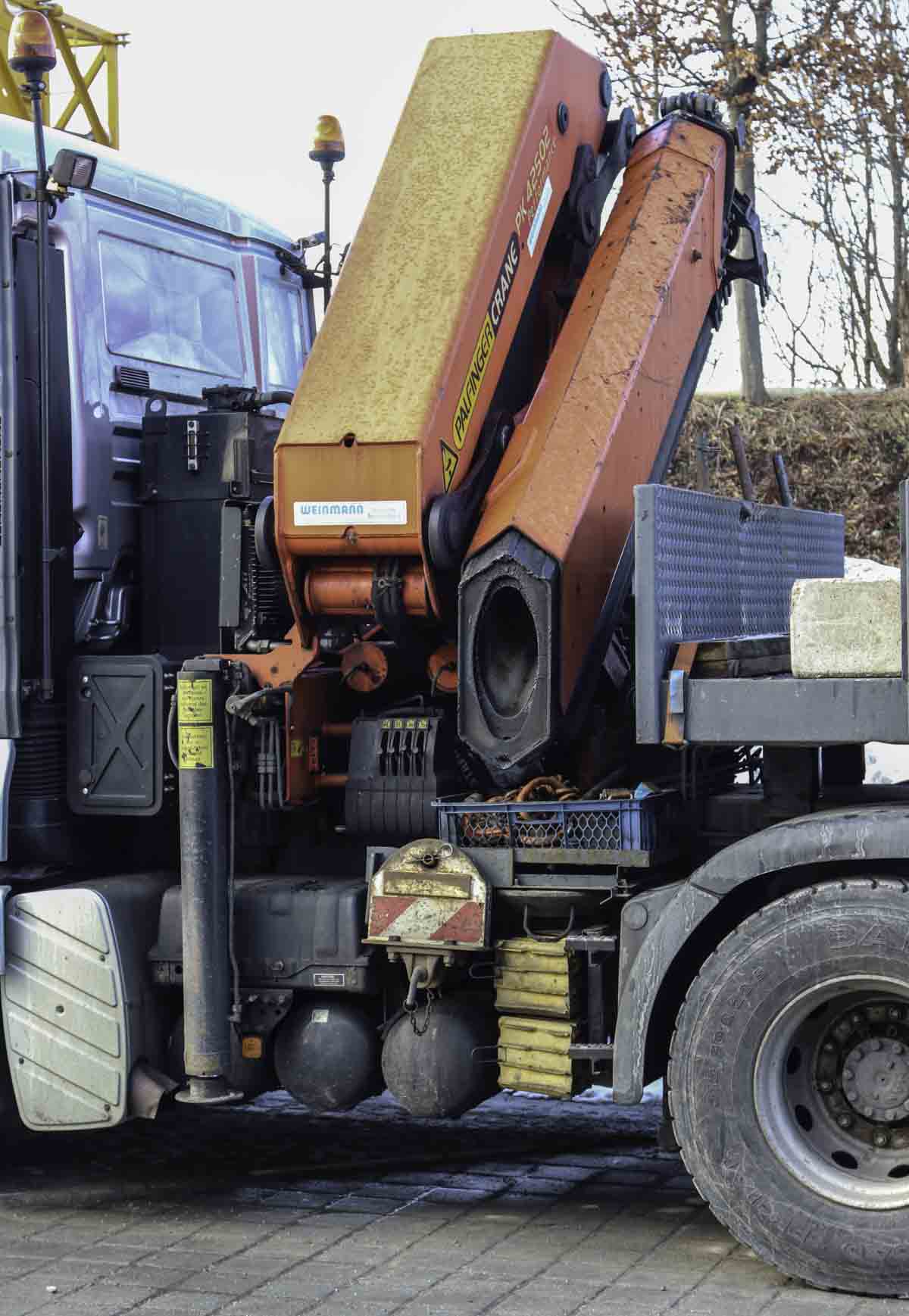

Behind the front axle are the muffler, battery and compressed-air tanks installed. Behind the cabin is a Palfinger PK42502 lorry crane with a maximum lifting capacity of 13.82 tonnes mounted. At maximum reach of 12.1 meters is the crane still able to hoist 3.14 tonnes.

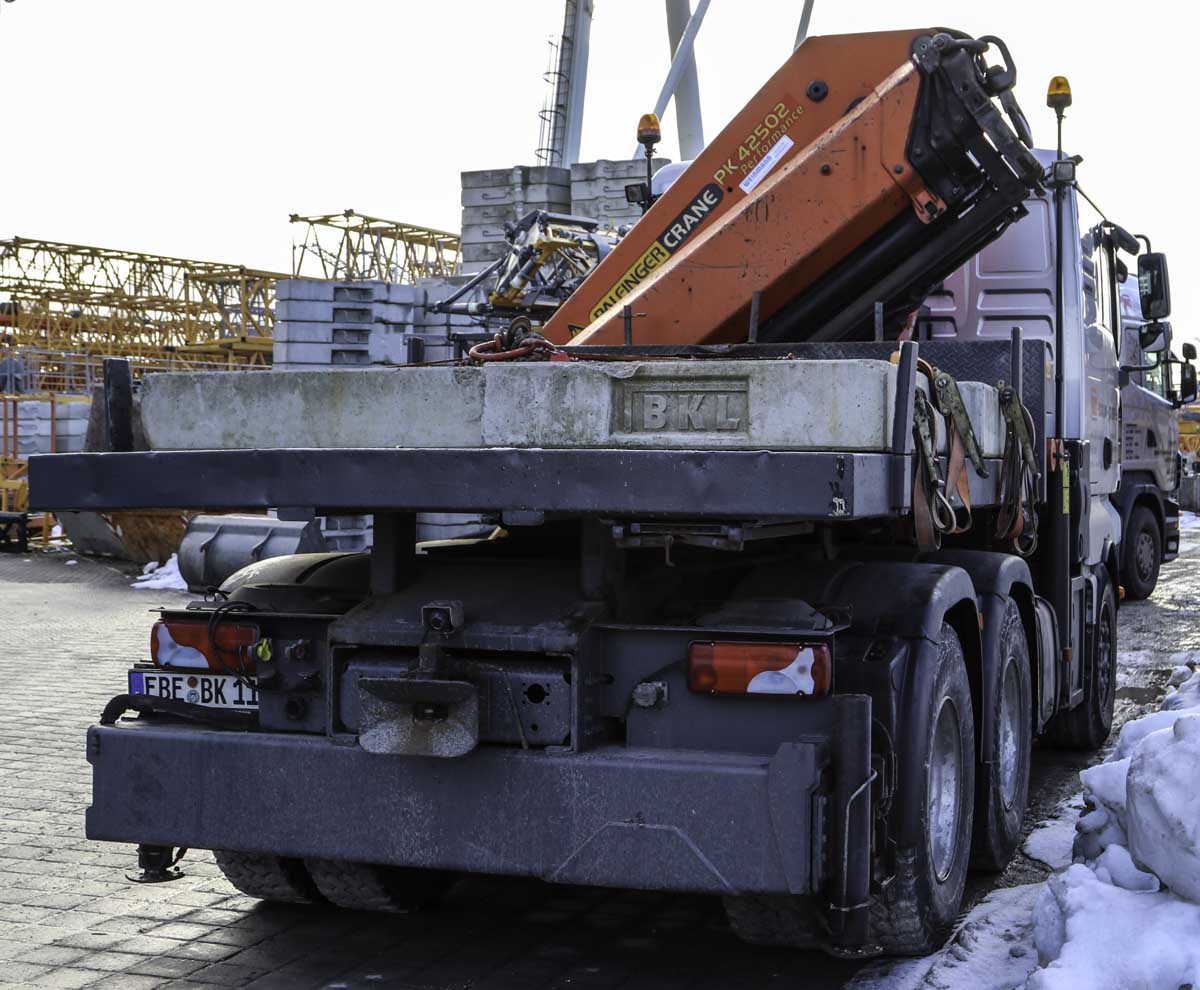

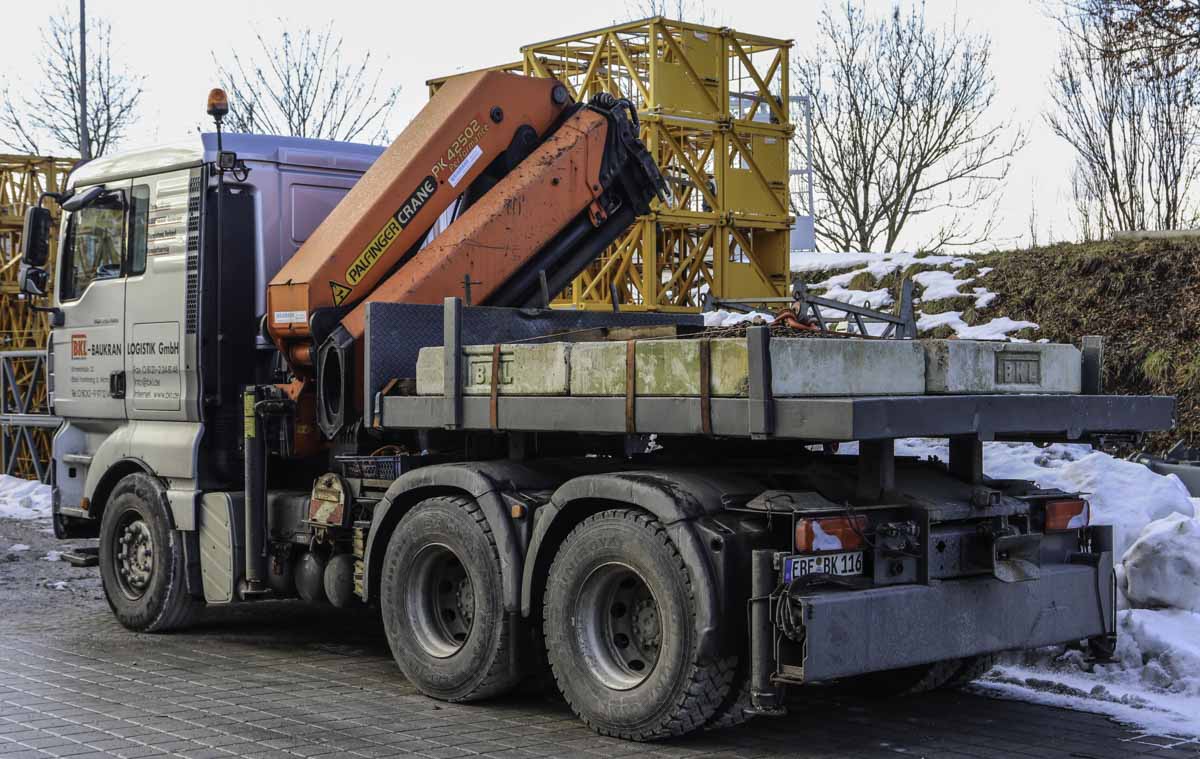

On the frame are concrete slabs loaded which are used as outrigger pads for the tower cranes. The frame can be removed also to attach trailers to the fifth-wheel also.

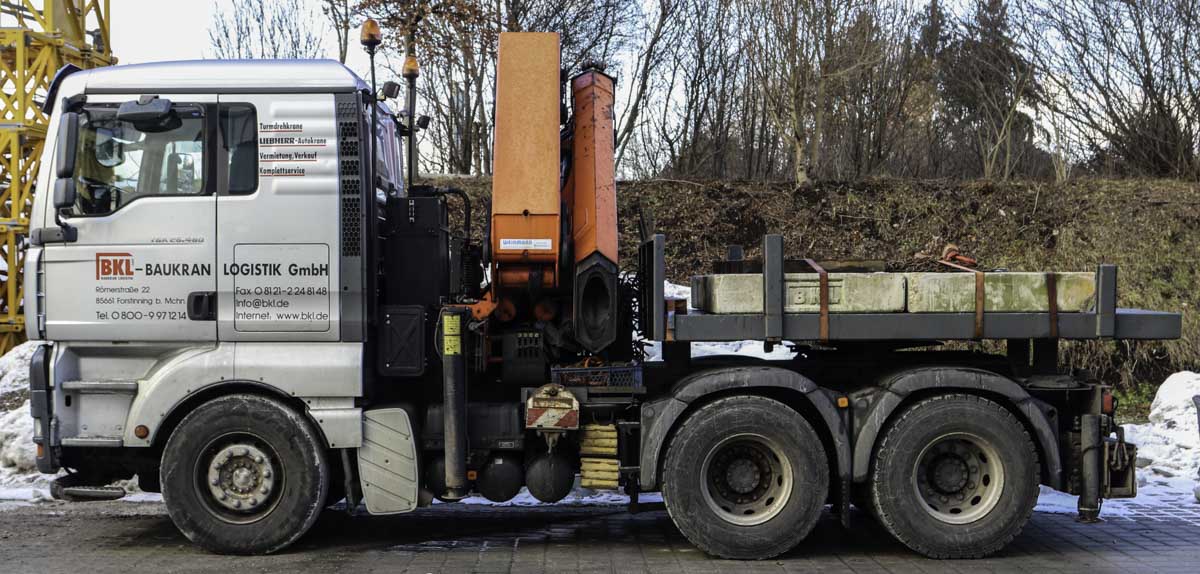

On this side is the dieseltank mounted behind the front axle. A sharp vehicle of BKL!
