Junttan PM 20L
Schilder

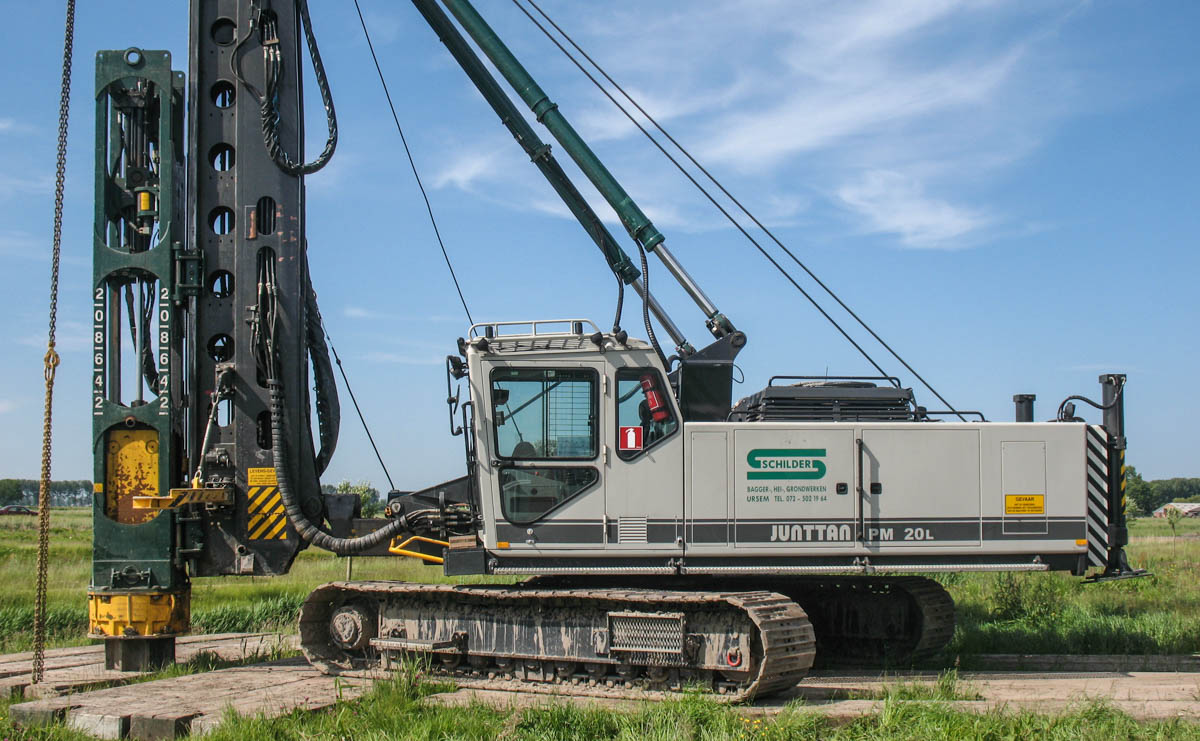

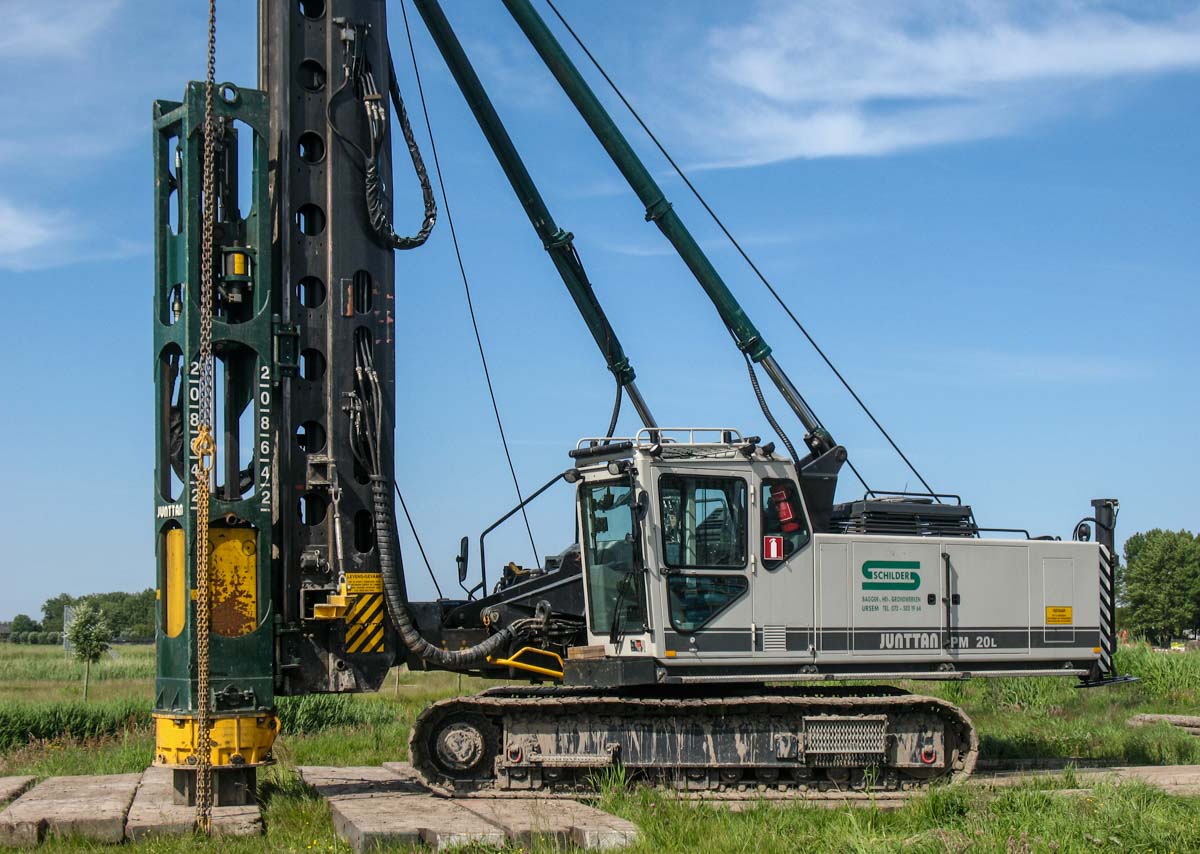

This fine Junttan PM 20L previously belonged to Schilder from Ursem (NL). Nowadays, this machine is in use with Heicombinatie SPS from Grootschermer (NL). The year of manufacture of the piling rig is 2008.

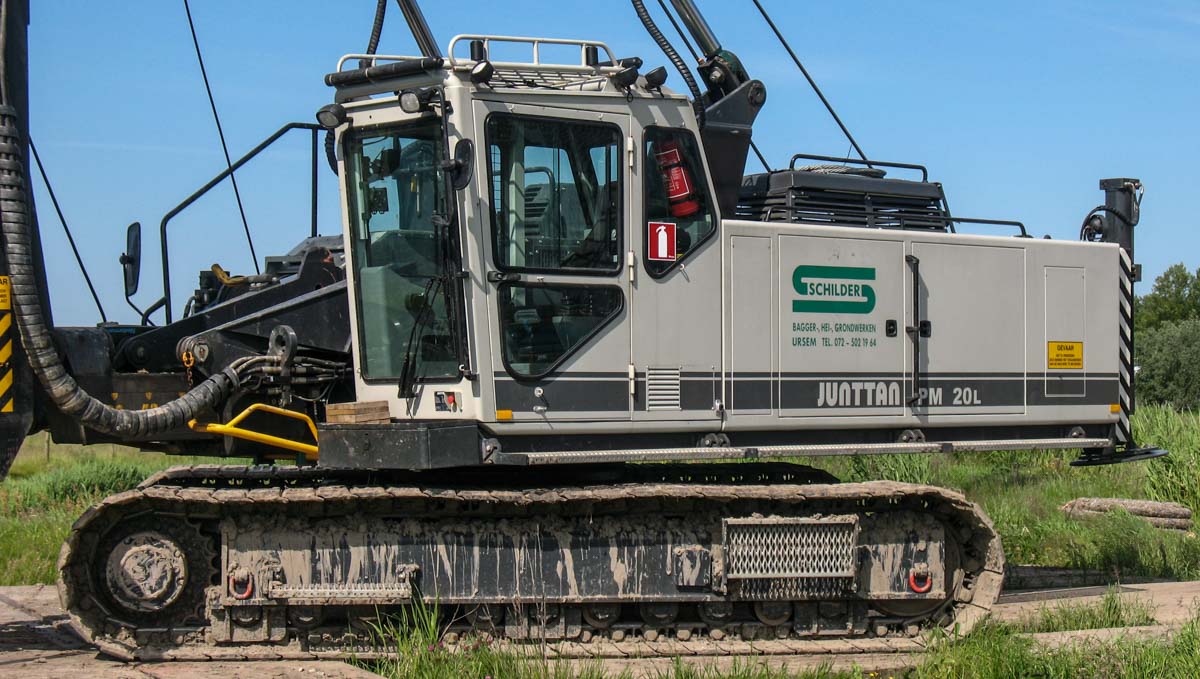

The undercarriage is 4.7 meters long and 4.6 meters wide. For road transport, the width can be reduced to 3.1 meters.
The foundation machine is powered by a Cummins QSB6.7, a 6-cylinder diesel engine with an output of 179 kW (240 hp).
The sliding table is adjustable by 1.5 meters.

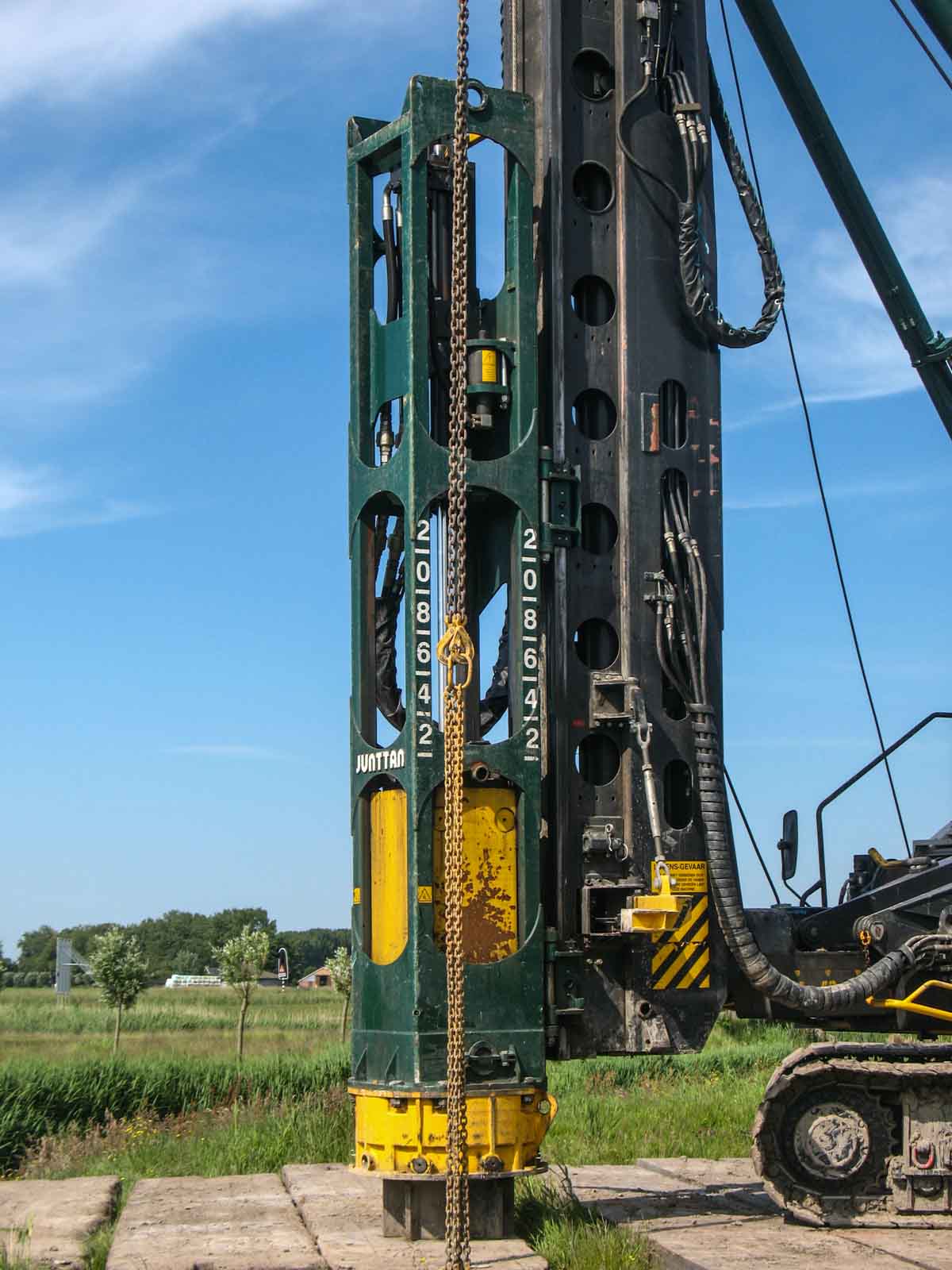

A Junttan HHK 4AL hydraulic piling hammer is suspended in the leader. The hammer has a total weight of 7.4 tonnes.
The machine is equipped with 10-tonne and 8-tonne hoist winches. The counterweight weighs 7.7 tonnes and is extendable by 1.5 meters. The maximum slewing radius of the counterweight is 5.78 meters.

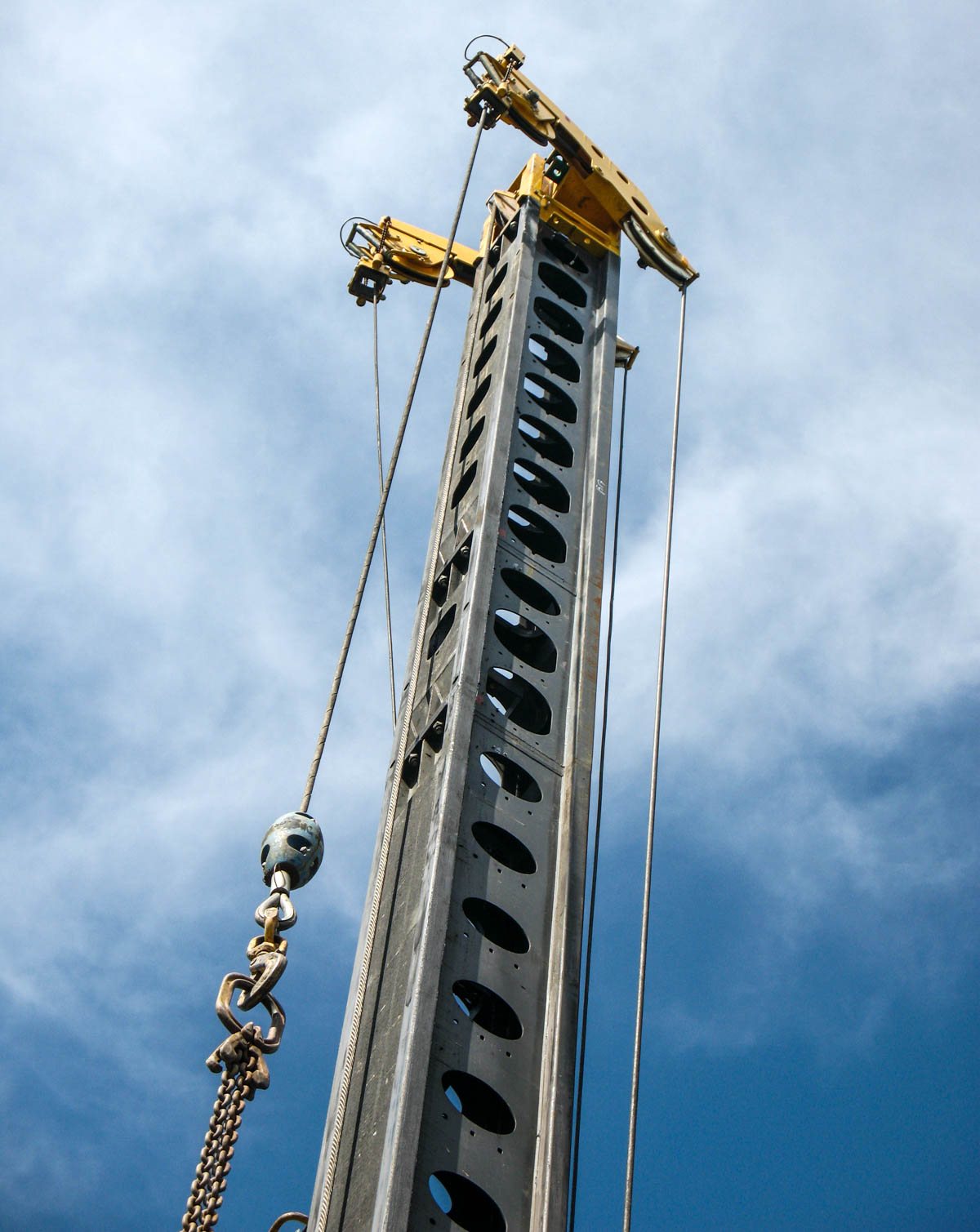

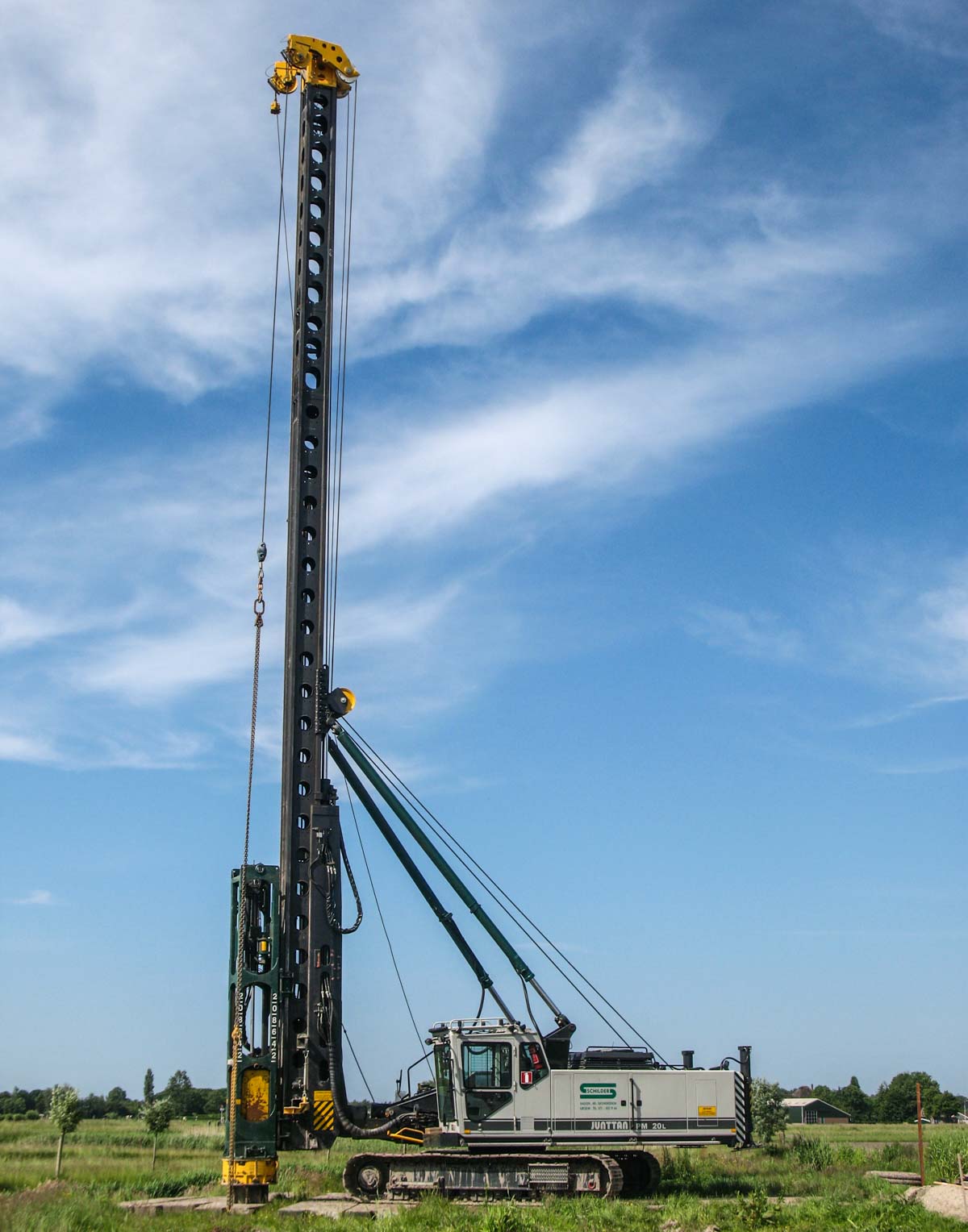

The leader has a maximum length of 25.27 meters. This rig can be used for driving piles with a maximum length of 20 meters.
This rig has an operating weight of approximately 55 tonnes. A fine piling rig from Schilder!
