XCMG QY25K-5 - GTH

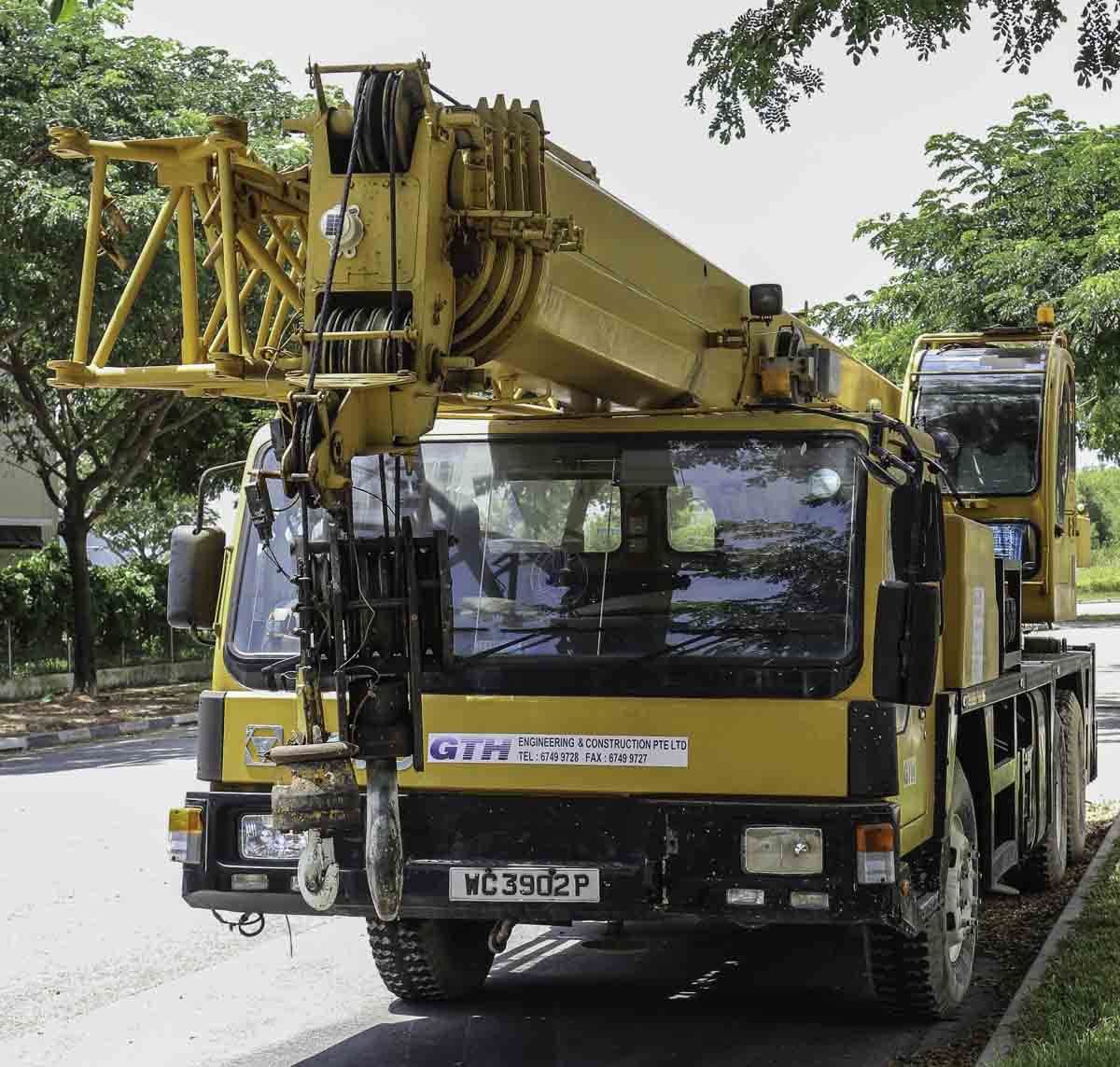

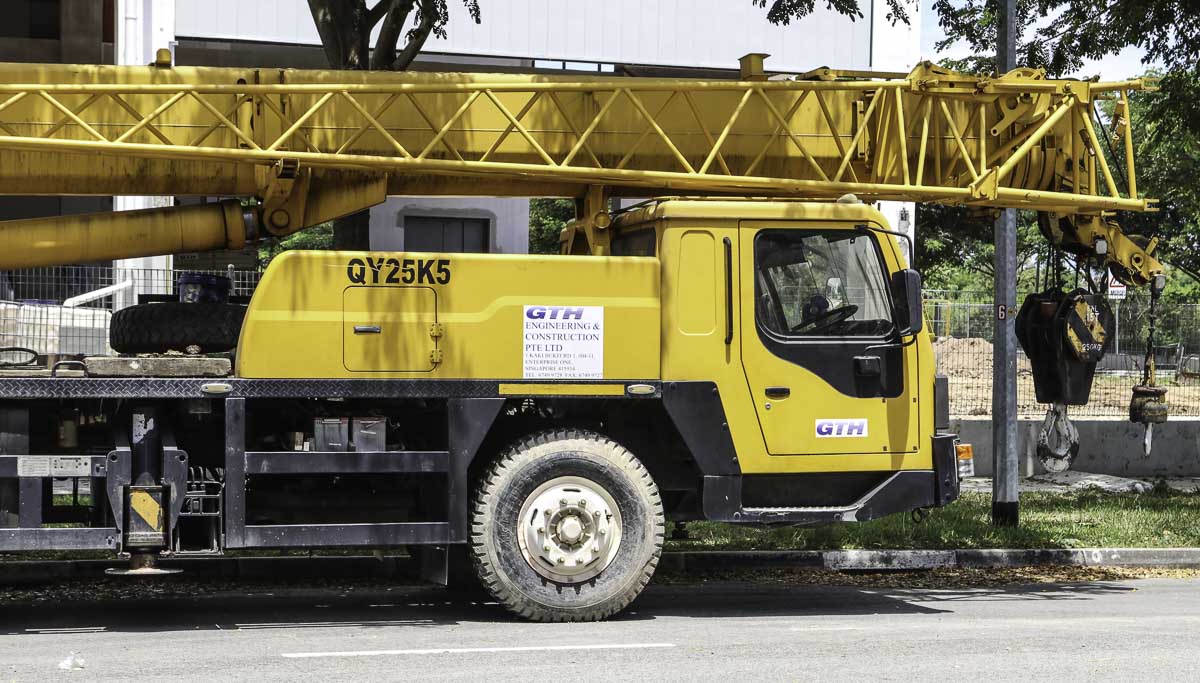

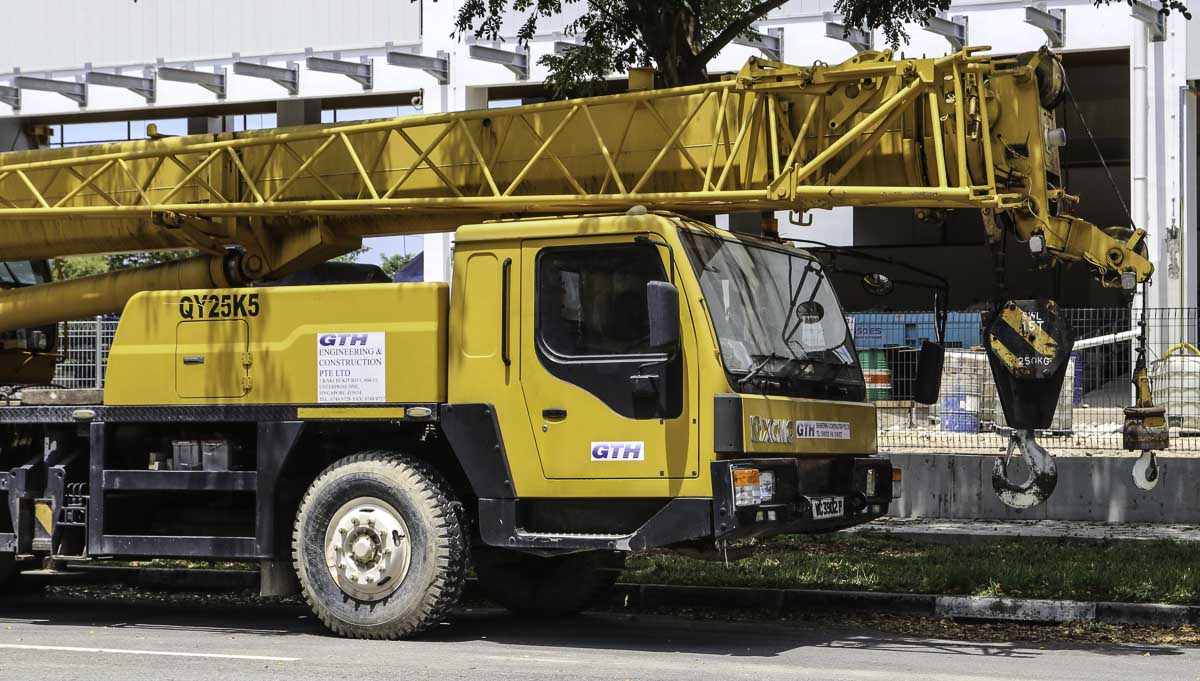

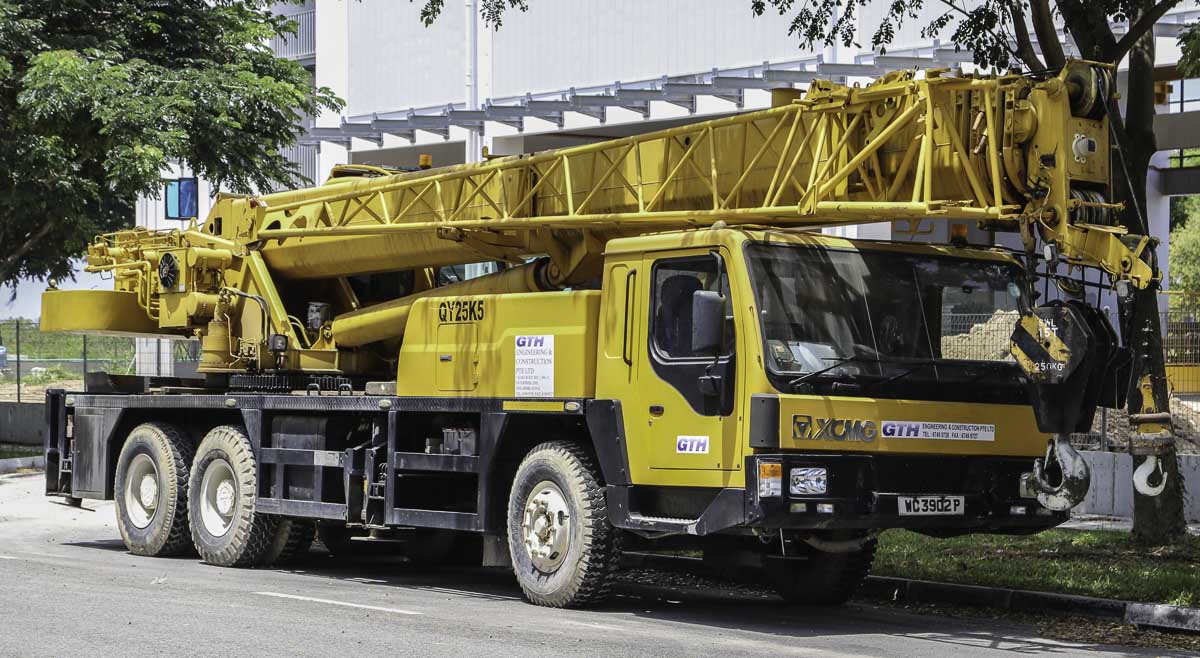

This XCMG QY25K-5 belongs to GTH from Singapore (SG) and stood parked along the road during a weekend. It is a 25-tonne truck crane. GTH is a construction company.

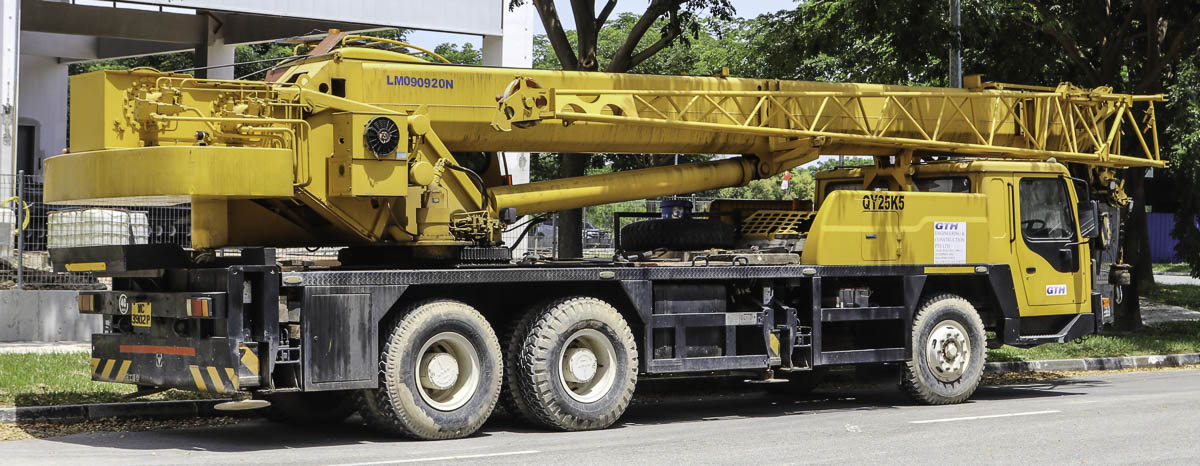

The 3-axle carrier is powered by a 6-cylinder Cummins engine. The carrier has a 6x4-drive line, where both rear axles are powered and the front axle is steerable.
The ourigger base measures 6 x 4.8 meters.
In transit is the crane 12 meters long, 2.5 meters wide and 3.38 meters tall. The total mass of the crane is approx. 31 tonnes.

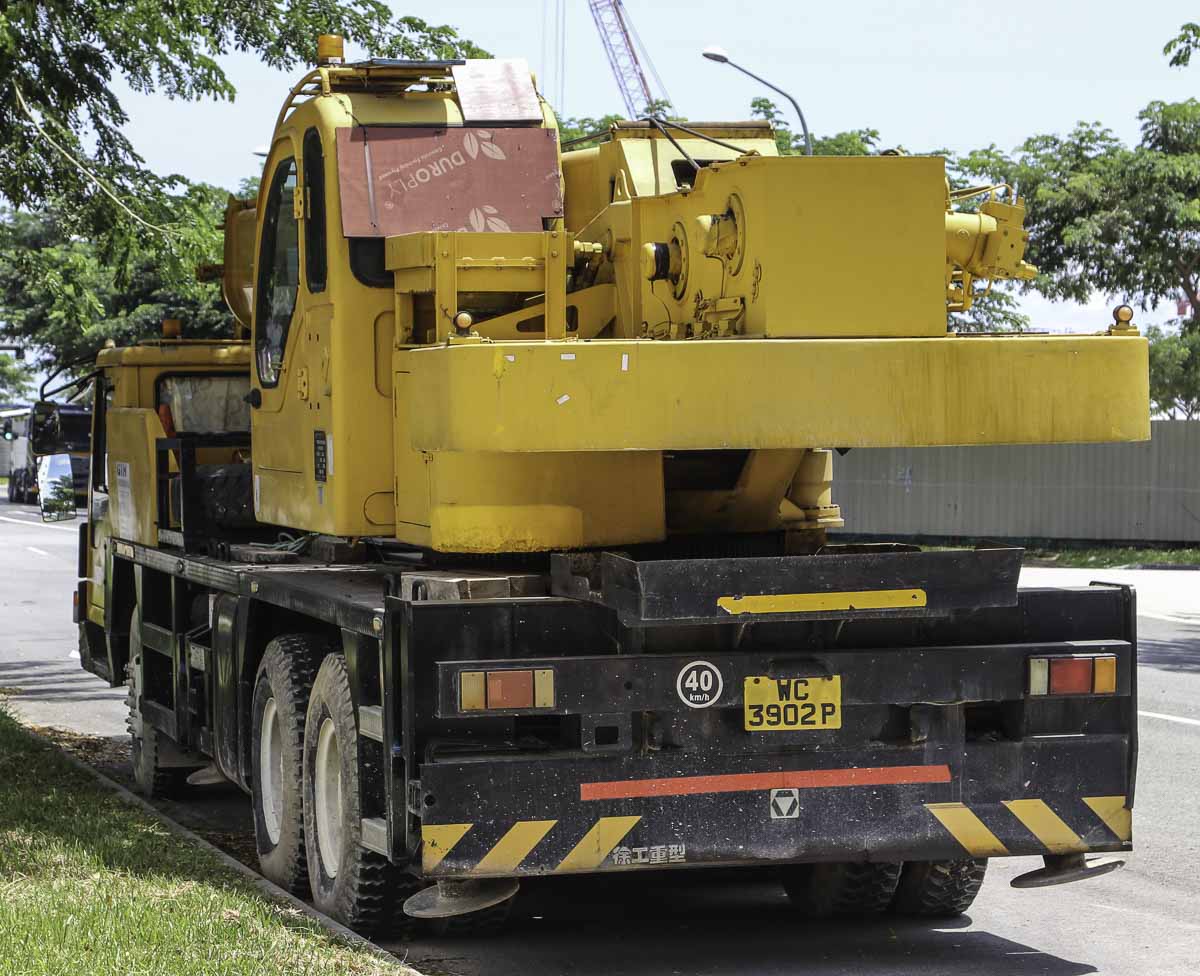

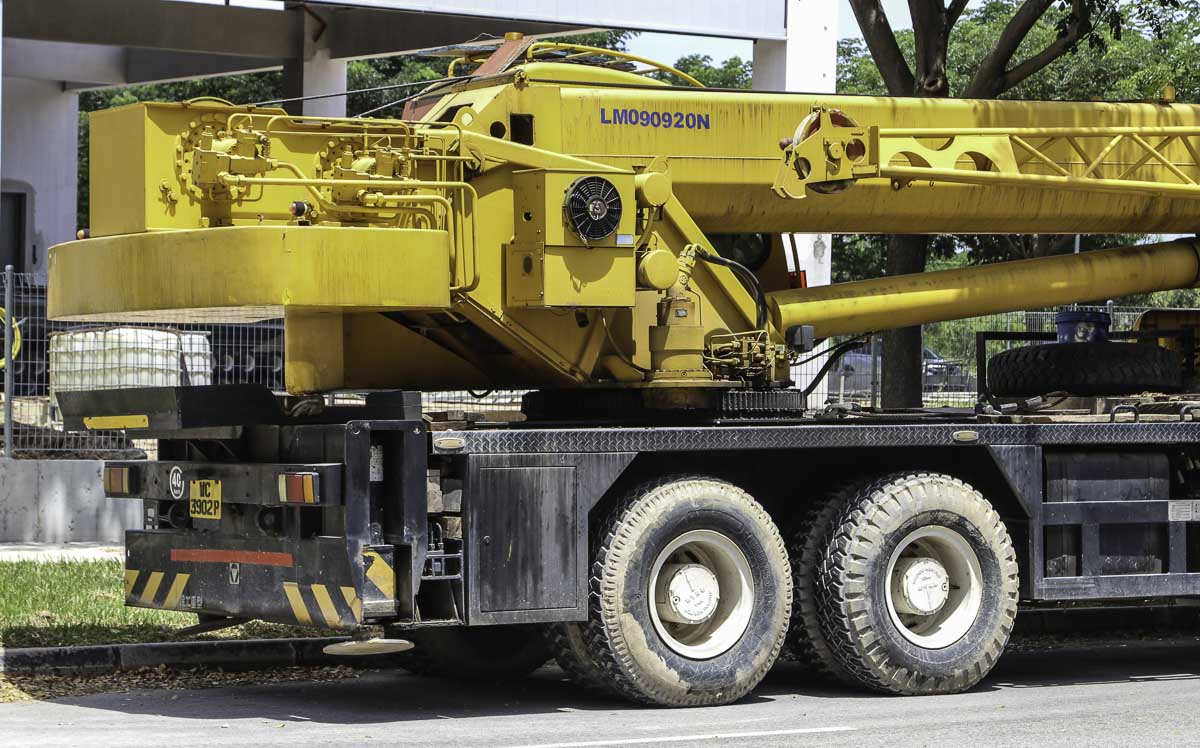

The counterweight is fixed to the superstructure. The crane is fitted with two hoist winches.
The five-part main boom has a 10.1 meter base length and extends four times to a maximum length of 38.5 meters. The main boom can be extended by an 8.3 meter long jib, the jib can be mounted to the main boom in a 0, 15 or 30 degree angle.
An interesting crane of GTH!
