Tadano ATF 100G-4 - Wundel

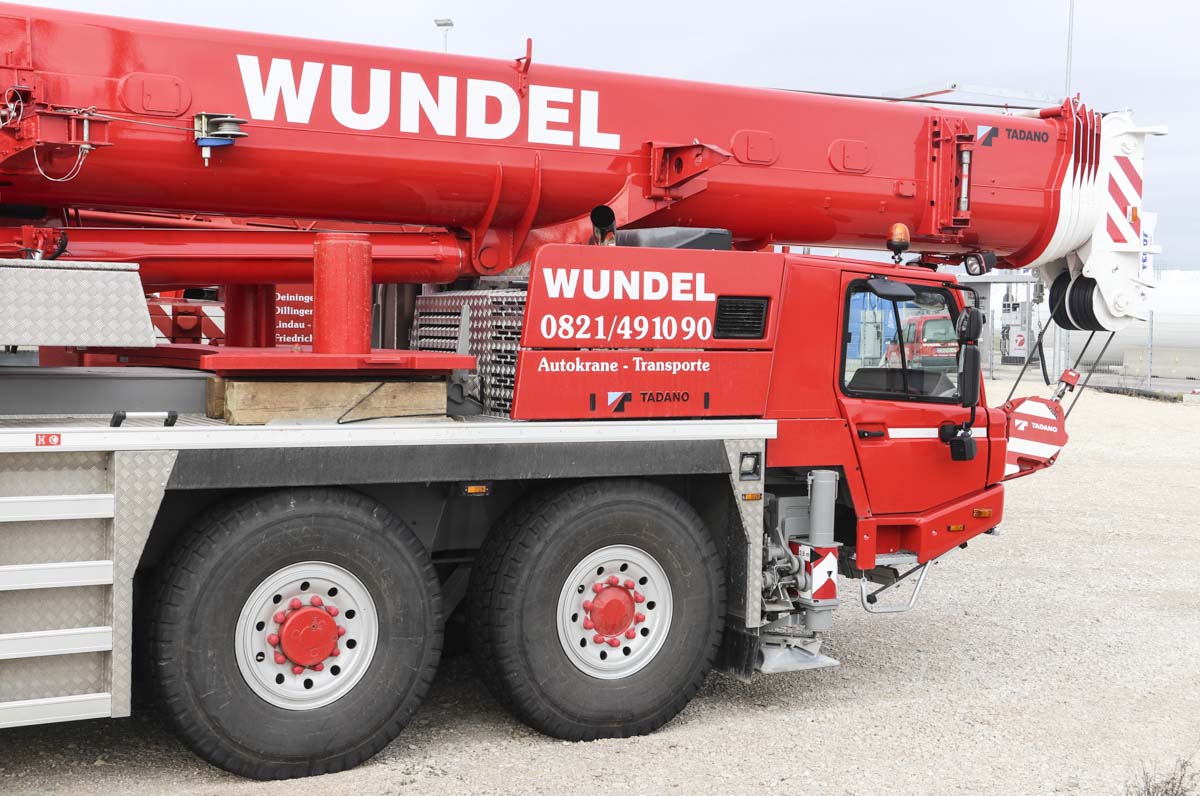

This sharp Tadano ATF 100G-4 of Wundel stood parked on their yard in Donauwörth (DE). It is a 100-tonne crane that can lift its maximum load on a 2.3 meter radius.

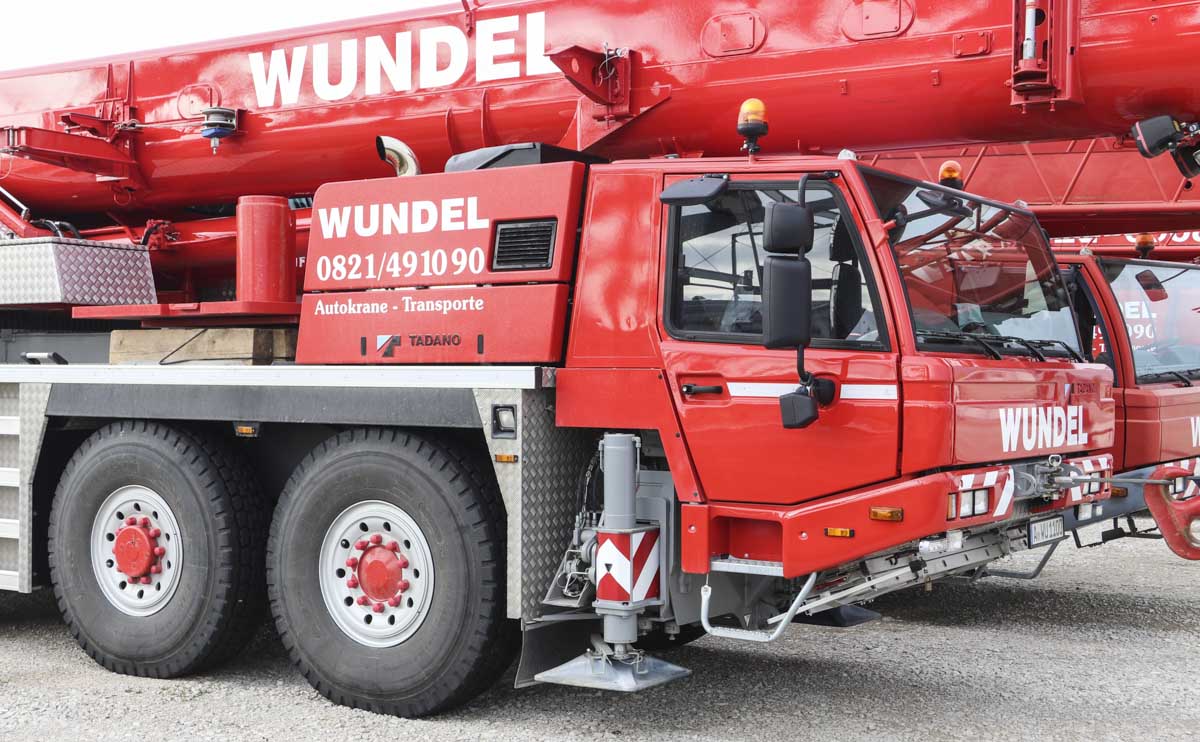

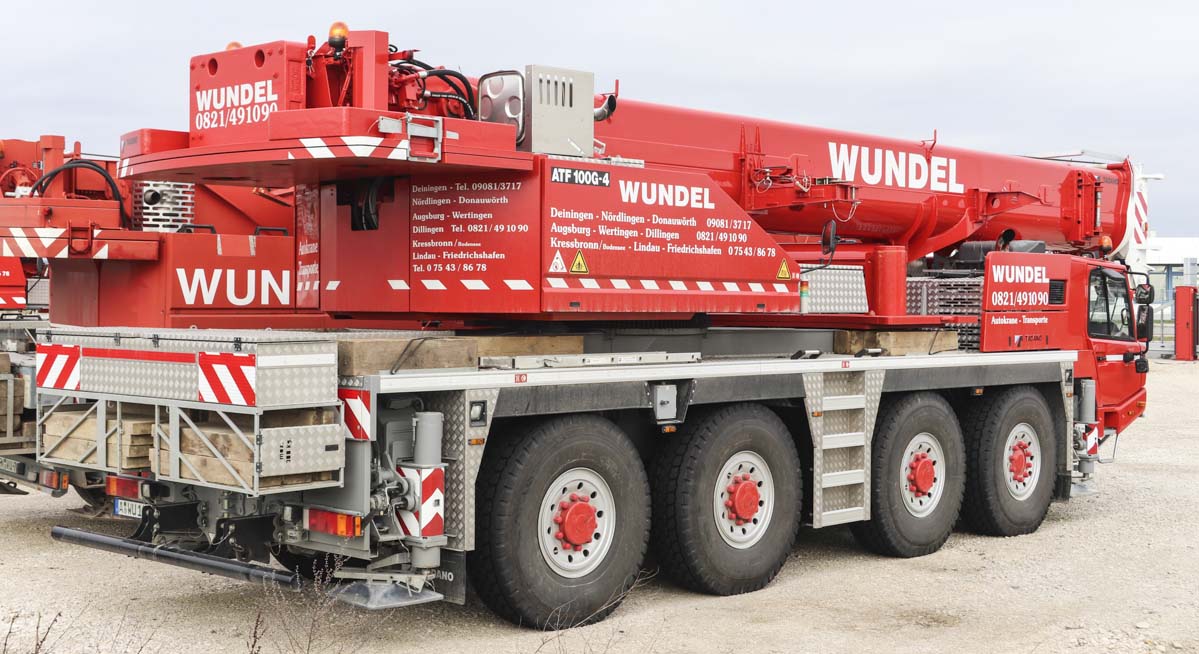

The undercarriage is powered by a Mercedes-Benz OM 470 LA, a 6-cylinder diesel engine with a power of 320 kW (435 hp). The crane has a 8x6x8-drive line, where the last three axles are driven and all axles are steerable.

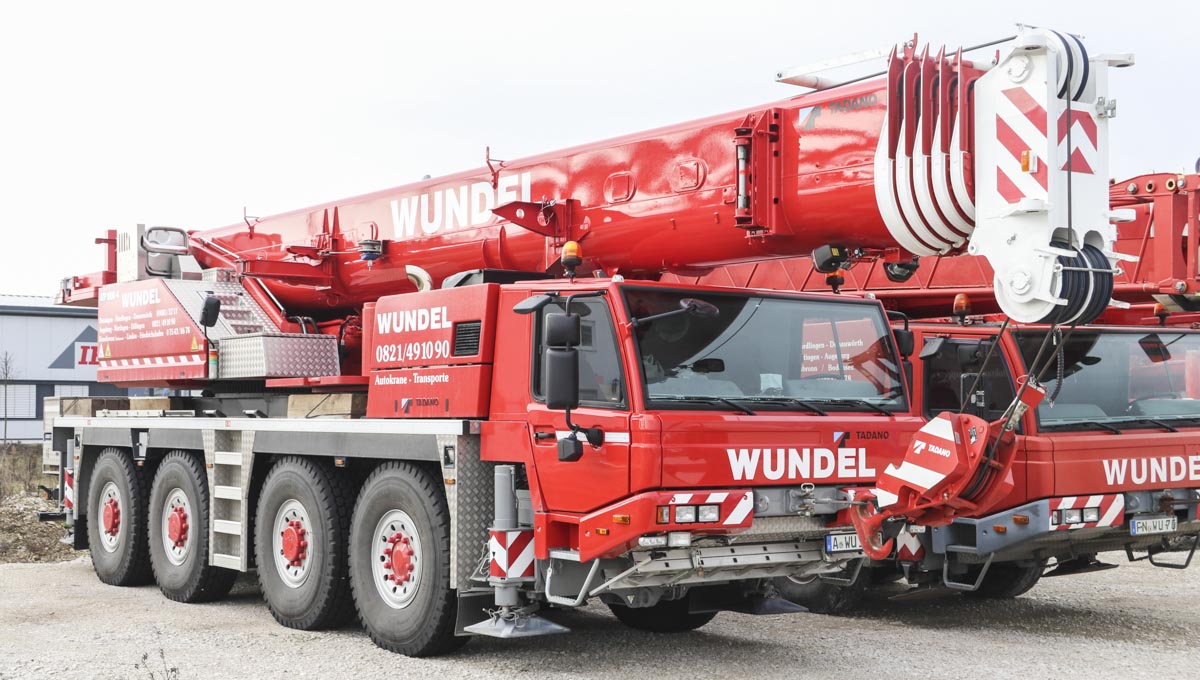

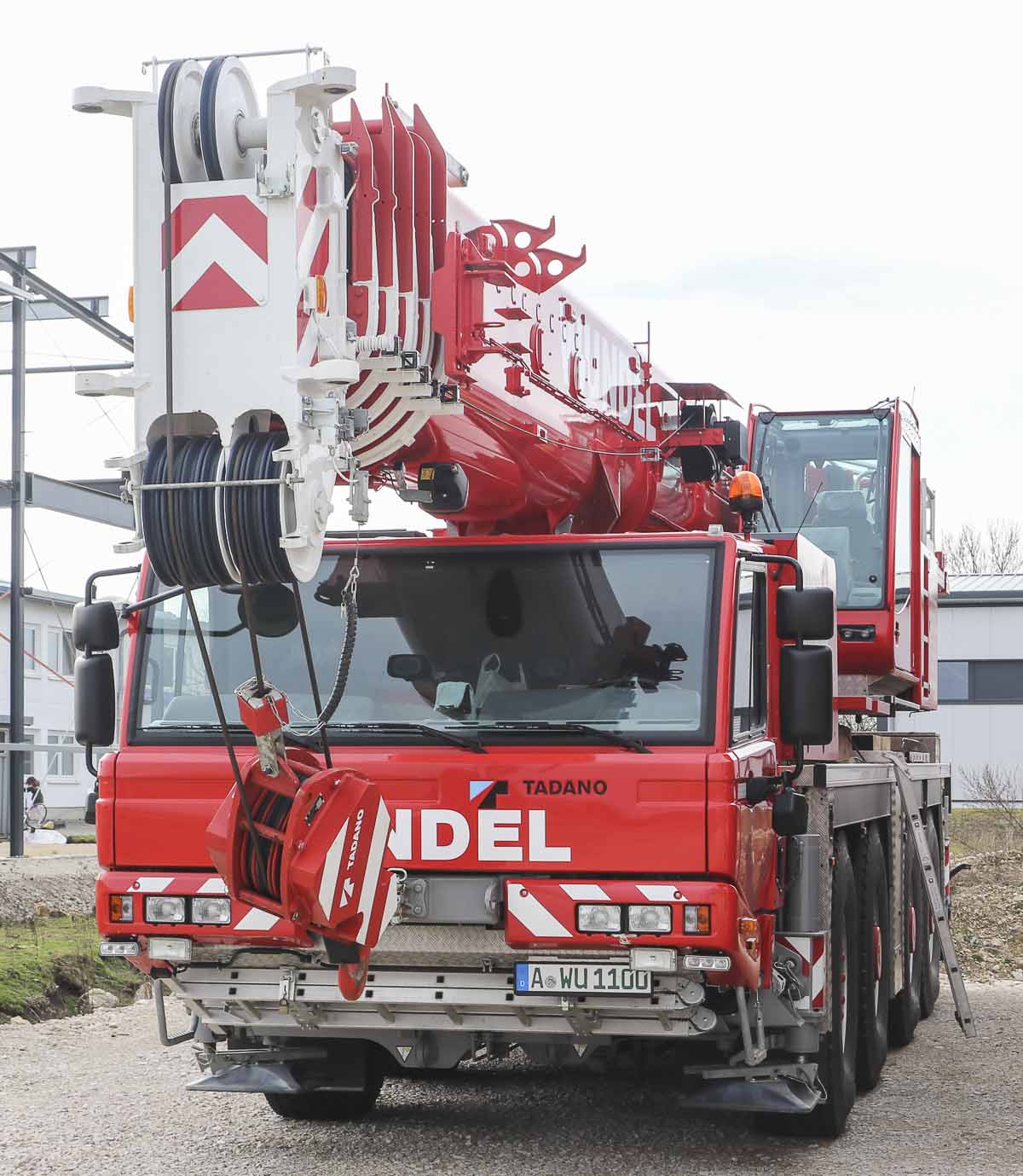

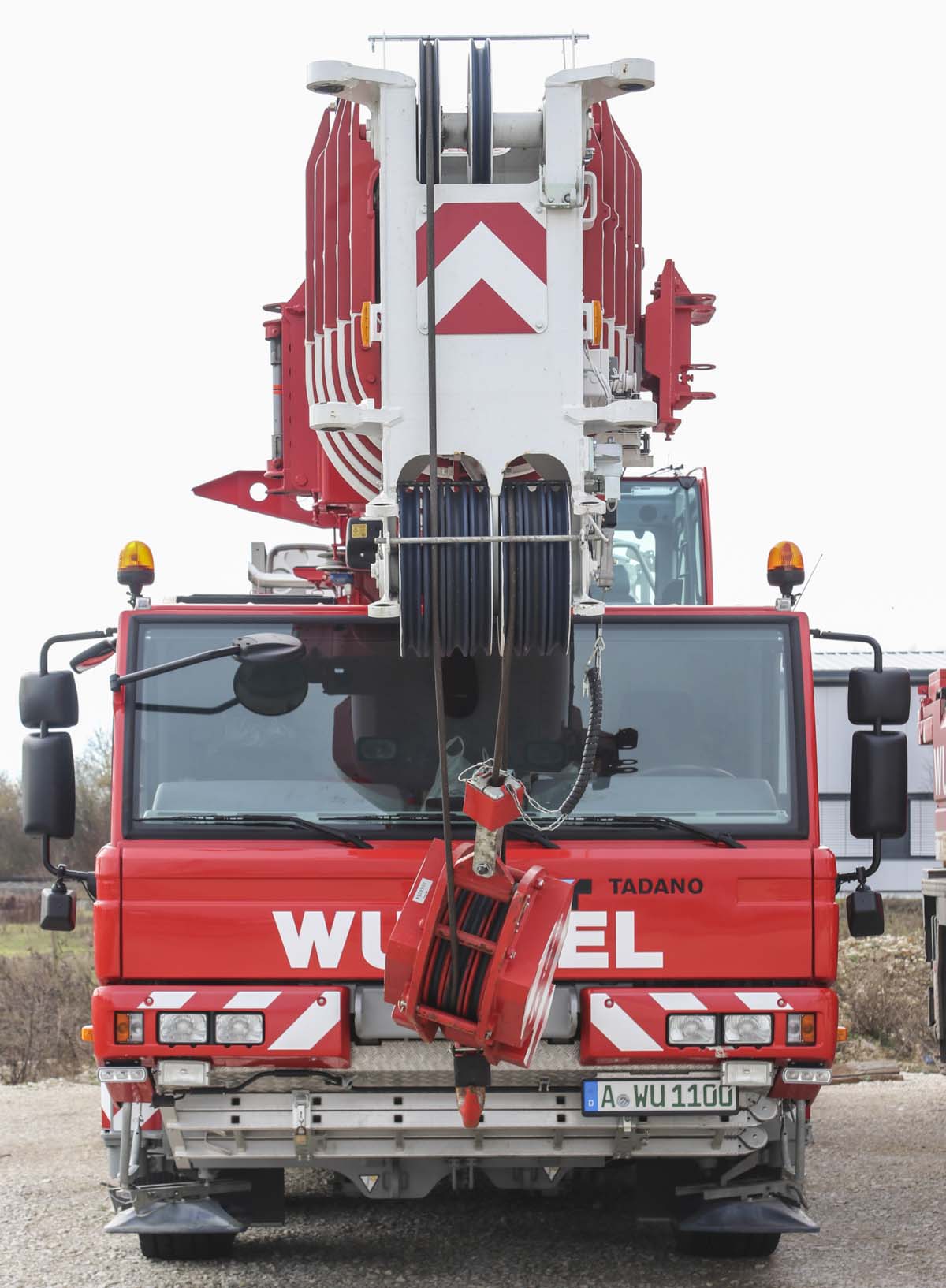

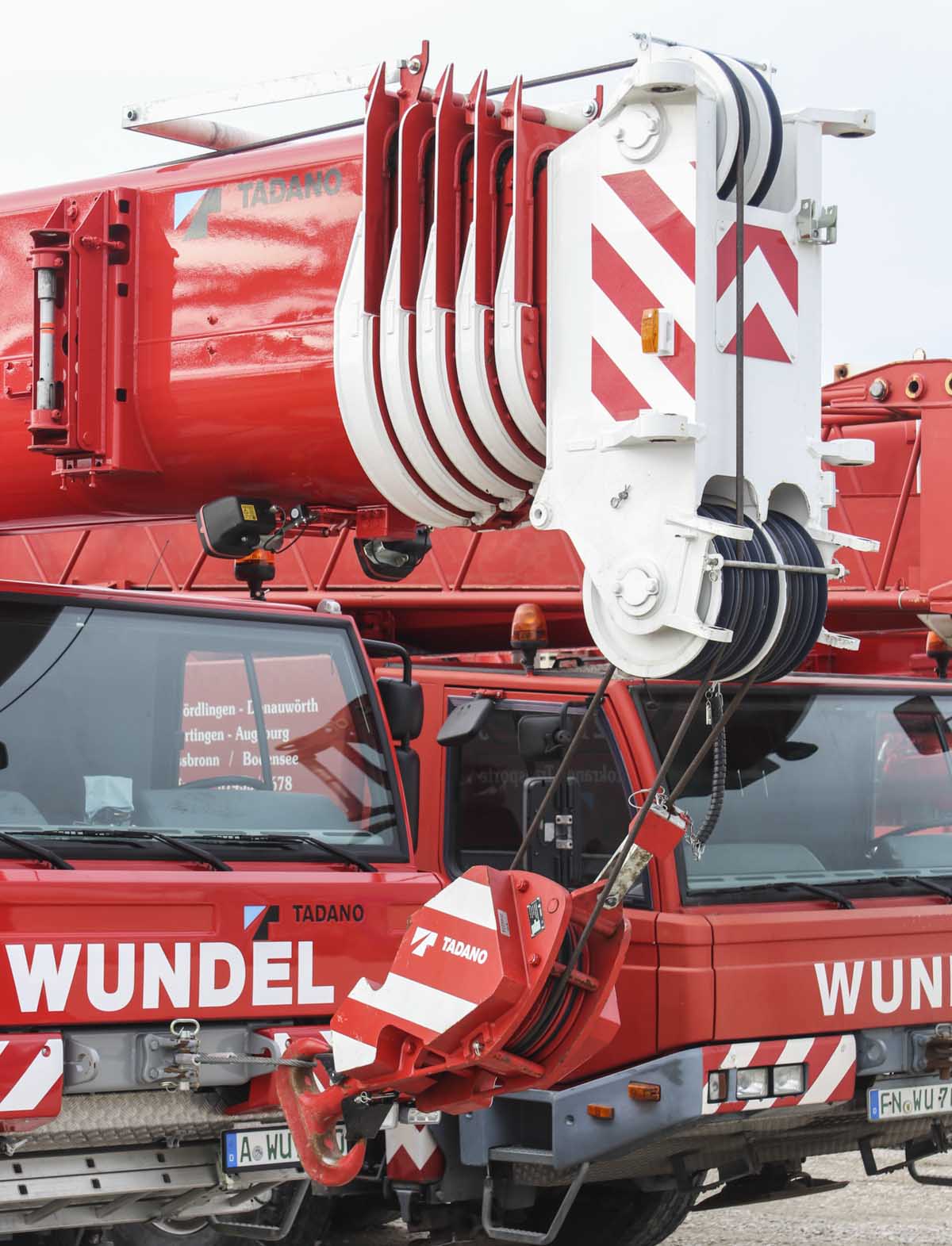

The main boom has a 11.1 meter base length and extends five times to a maximum length of 51.2 meters. The main boom can be extended by a 10 / 18 meter long bi-fold swingaway jib and is mountable under 0, 20 or 40 degrees.

The outrigger base measures 8.54 x 7.2 meters, or half 8.54 x 5 meters. On the undercarriage is during transport over the road 2.5 tonnes of counterweight stored.

The crane is 12.85 meters long, 2.75 meters wide and 3.93 meters tall. The transport mass is approx. 48 tonnes.

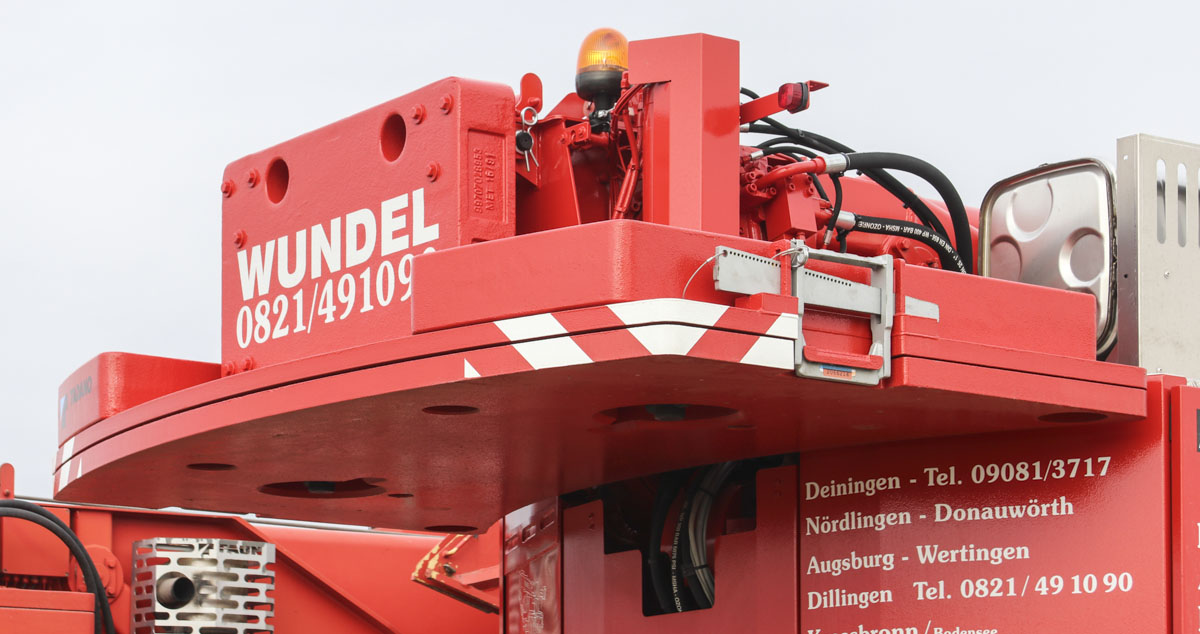

Attached to the superstructure remains 5.1 tonnes of counterweight. The counterweight has a 3.7 meter tailswing. The full counterweight weights 22.5 tonnes.

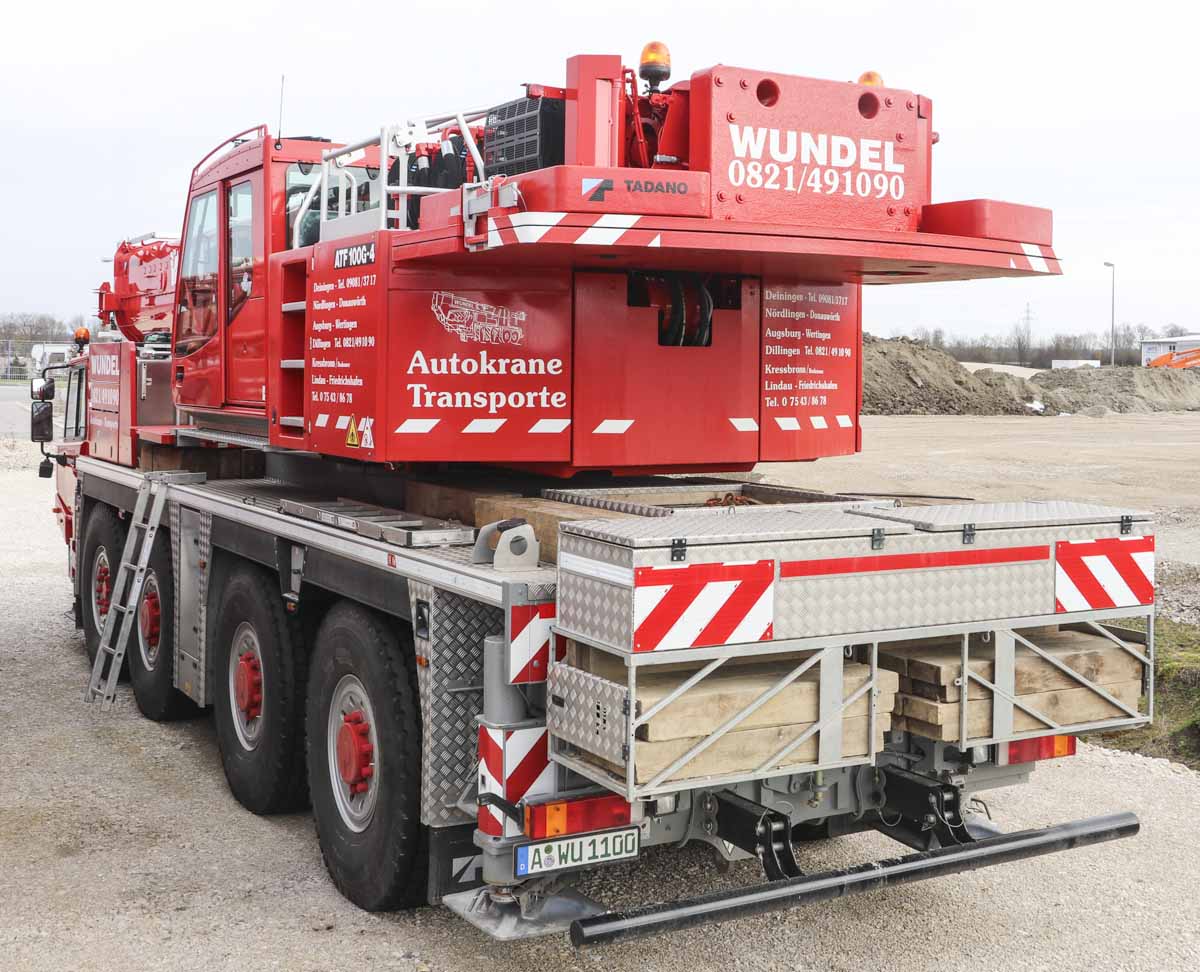

Behind the chassis is a large box mounted for the wooden beams for below the outriggers and two boxes for some lifting gear.

A very sharp crane of Wundel!
