Tadano TL-250E

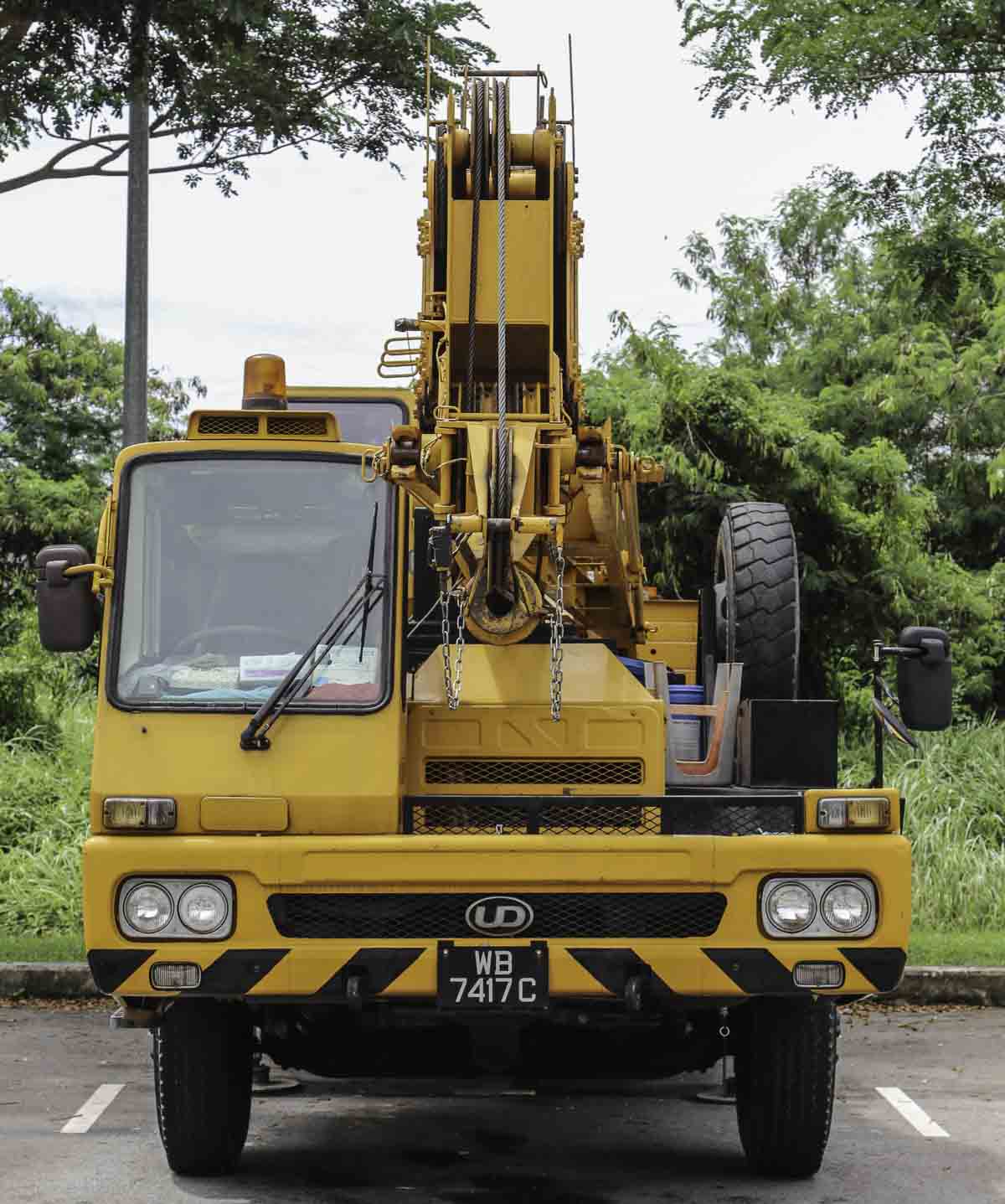

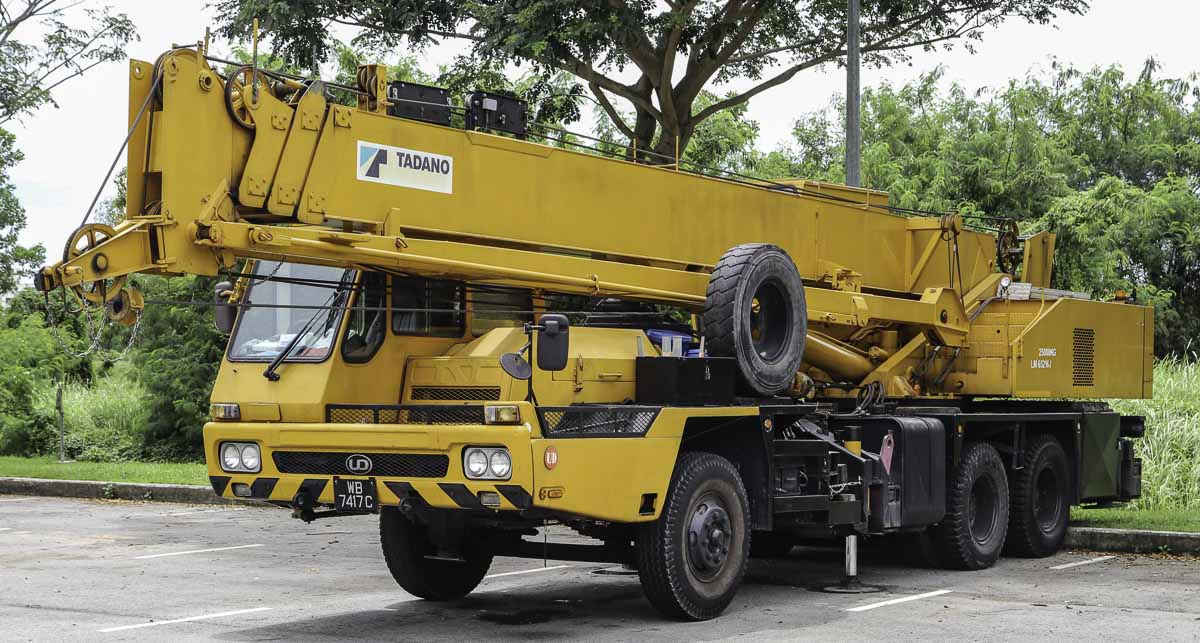

This Tadano TL-250E belongs to an unknown owner from Singapore (SG) and stood parked on a parking there. It is a 25-tonne crane mounted on a 3-axle carrier with year of manufacture 2000.

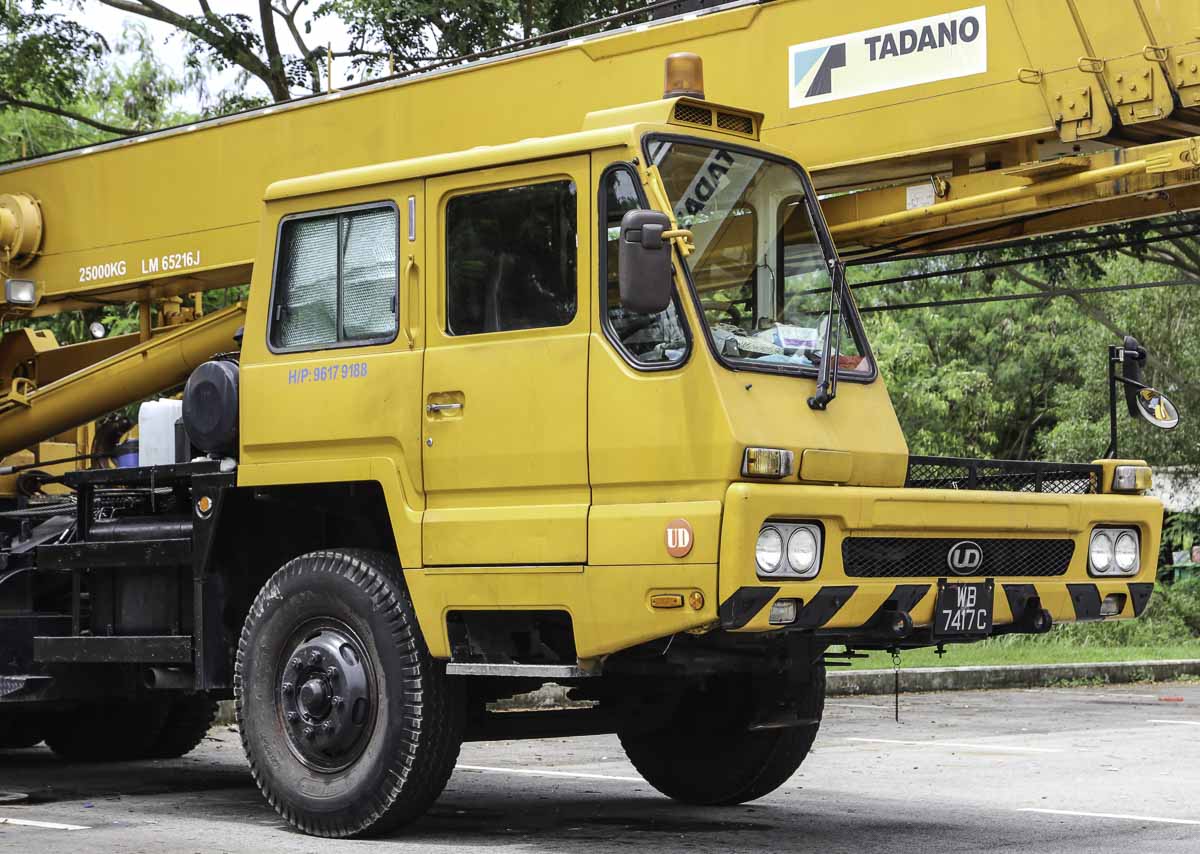

The undercarriage is a Nissan KW32MXL. The 3-axle undercarriage with 6x4-drive line is powered by a Nissan PE6, an 11.7-liter 6-cylinder diesel engine with a power of 169 kW (230 hp). The cab offers space for two people.
In transit is the crane 11.88 meters long, 2.49 meters wide and 3.42 meters tall. The total mass of the crane is 24.7 tonnes.

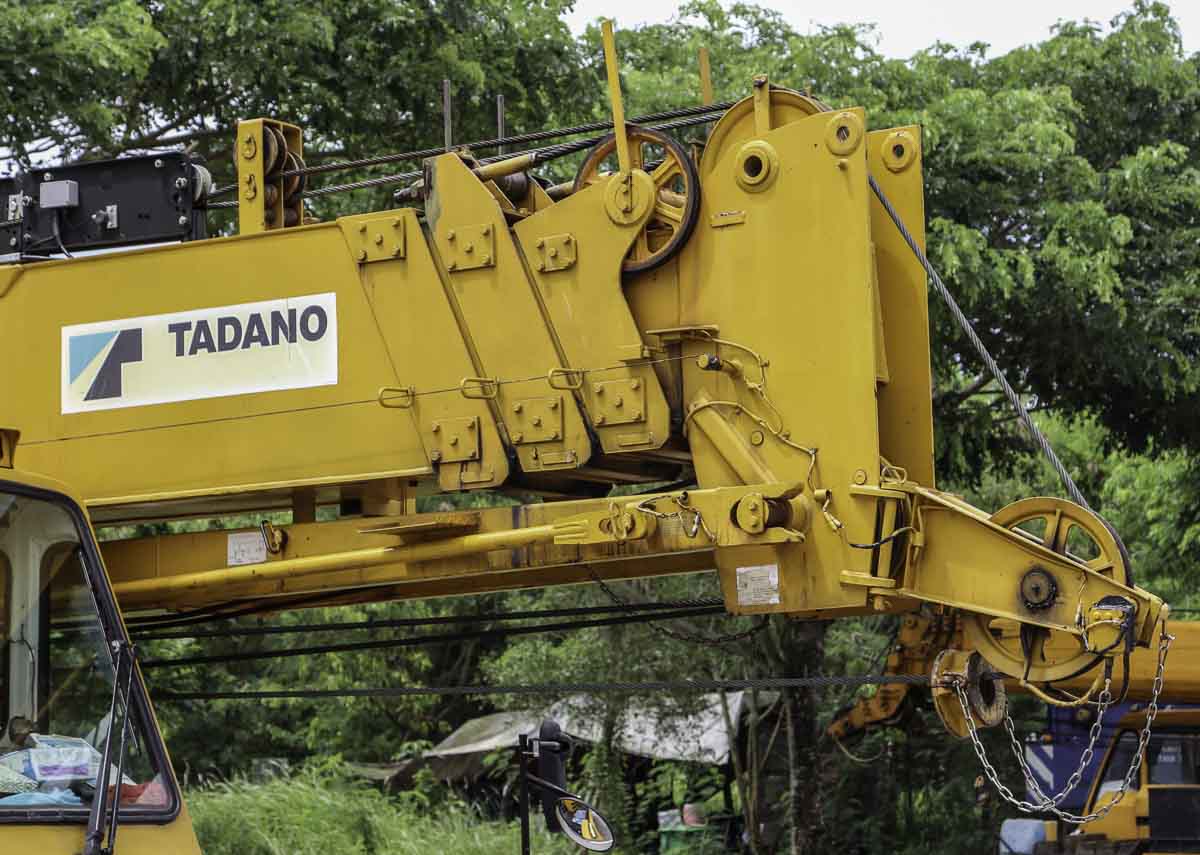

The 4-part main boom has a 9.8 meter base length and extends three times to a maximum length of 31 meters. Below the main boom is an 8 meter long jib stored which is mountable under a 5 or 30 degree angle to the main boom.

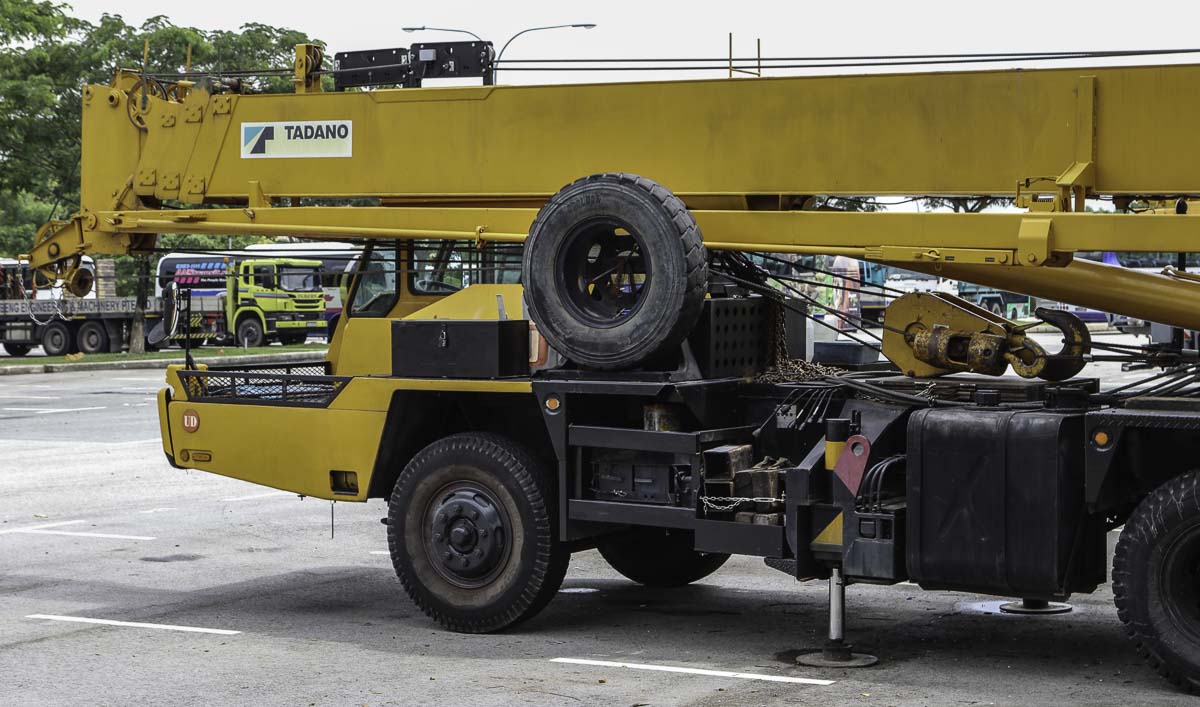

The outrigger base measures 4.9 x 6.1 meters. For a 360-degree load chart is a fifth jack on the front side of the undercarriage required.

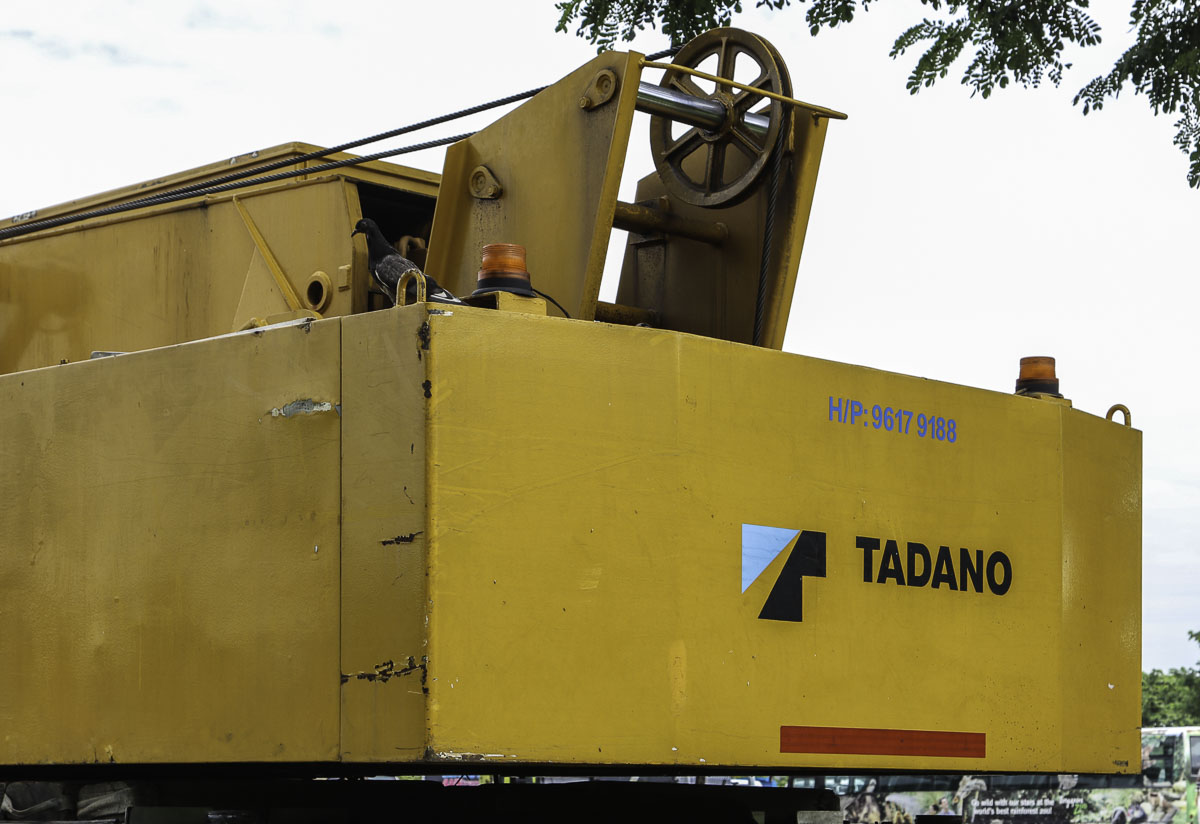

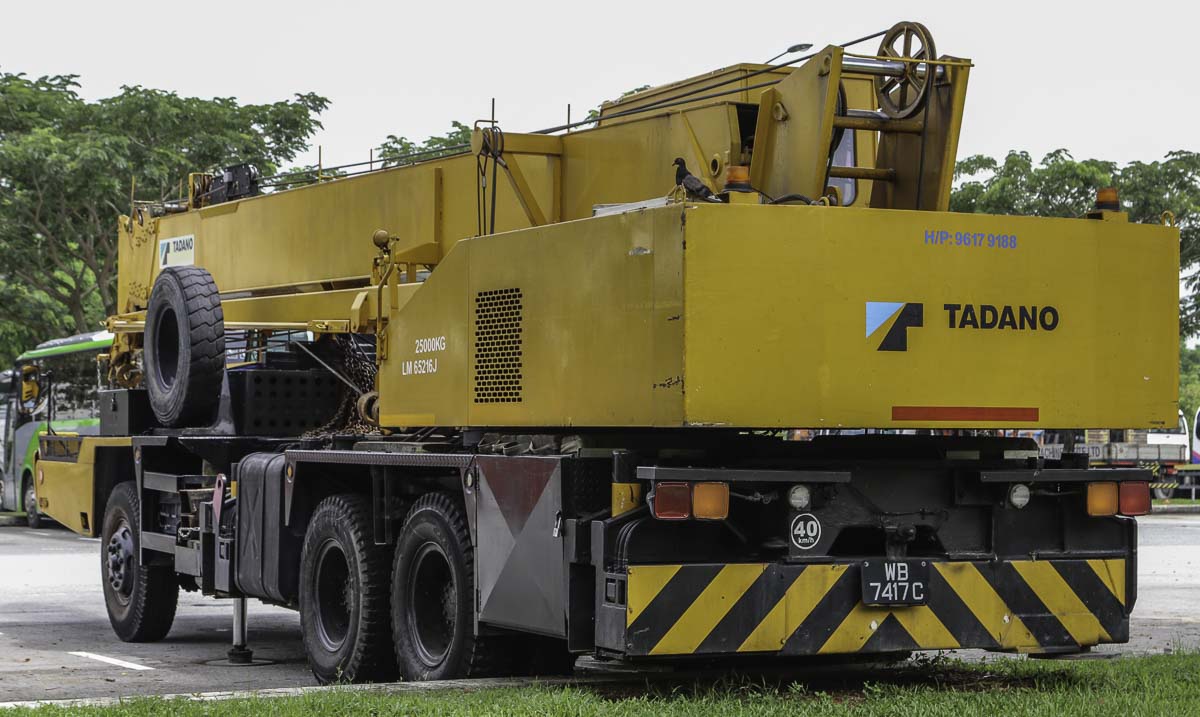

Attached to the superstructure is a 2.6 tonne counterweight.
