Tadano ATF 130G-5 - Mayer

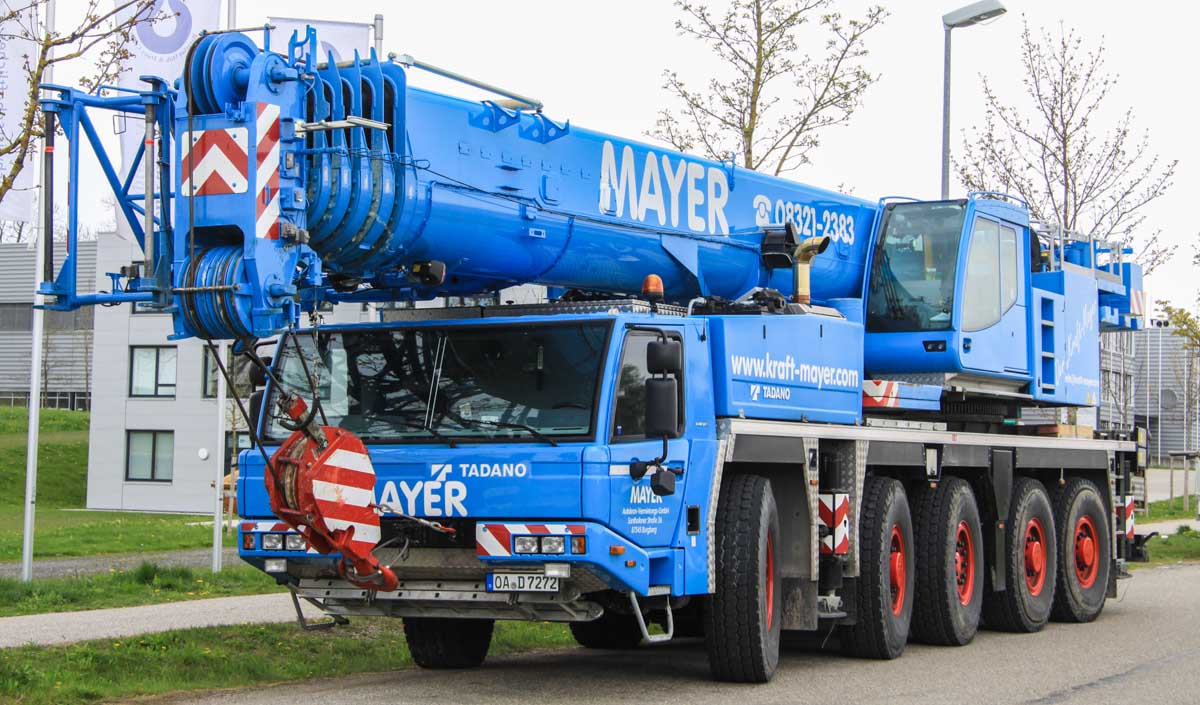

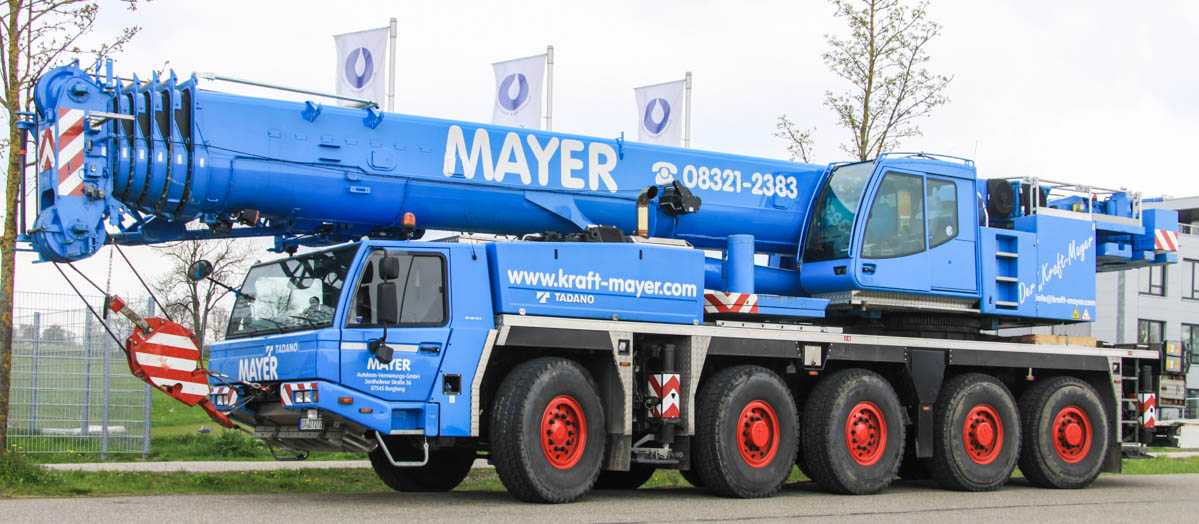

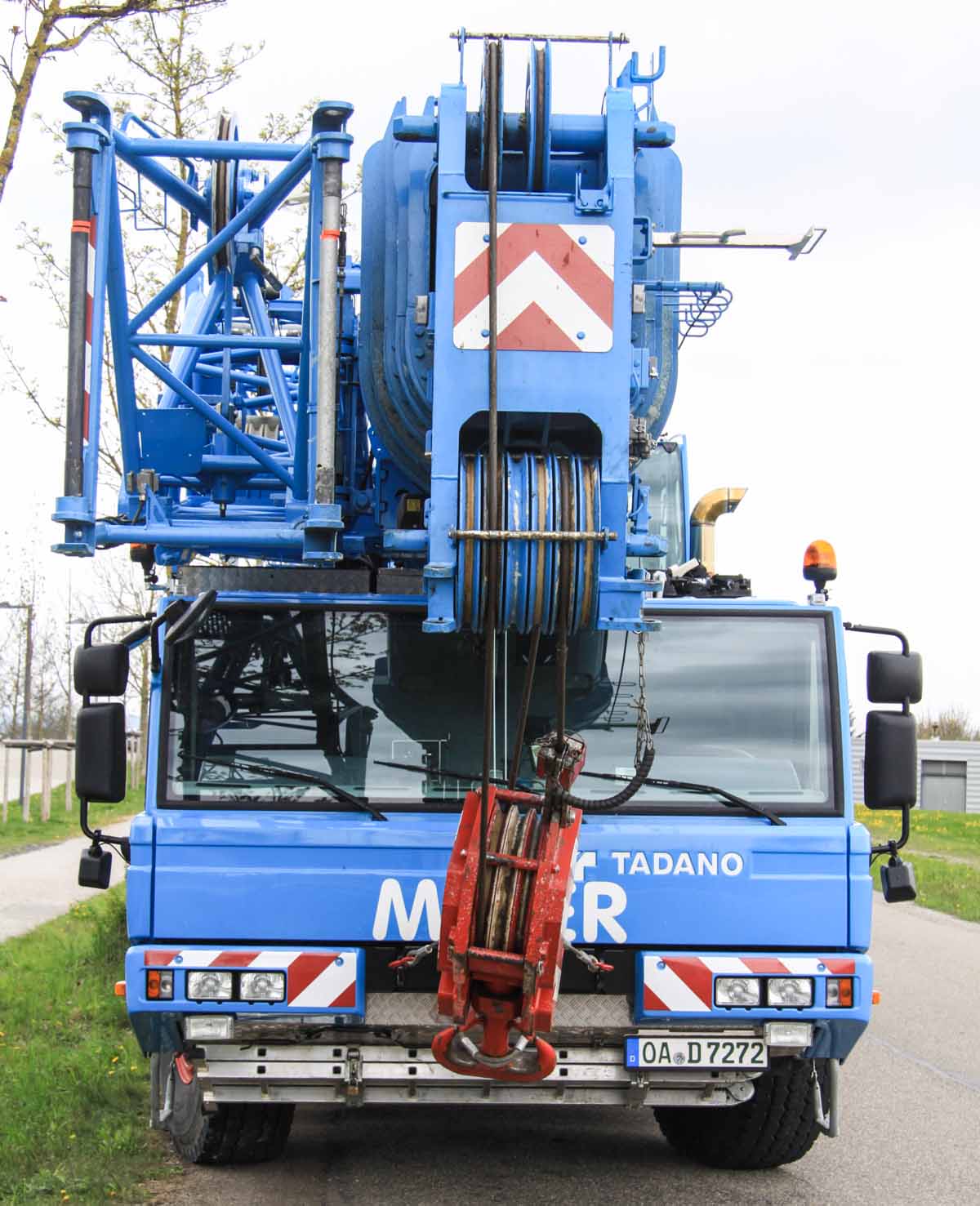

Mayer from Burgberg (DE) is owning this sharp Tadano ATF 130G-5, a 130-tonne mobile crane on a 5-axle crane carrier.

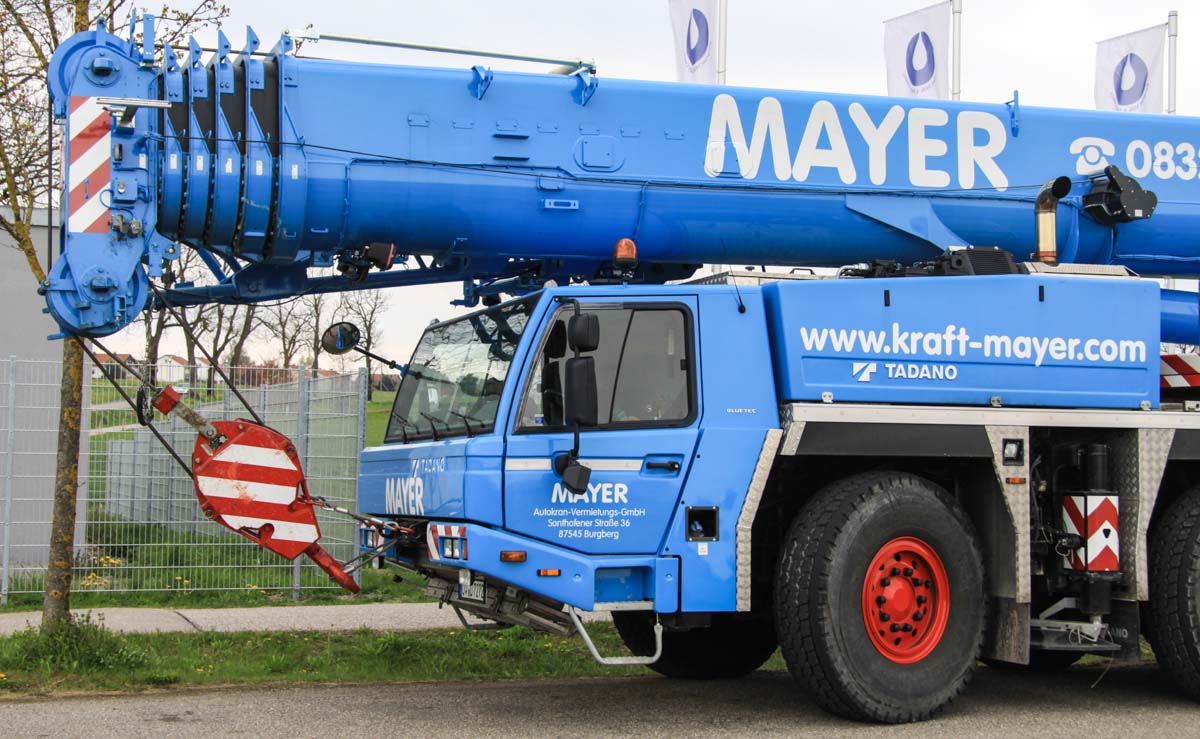

The 6-part main boom has a 12.8 meter base length and extends five times up to a total length of 60 meters.

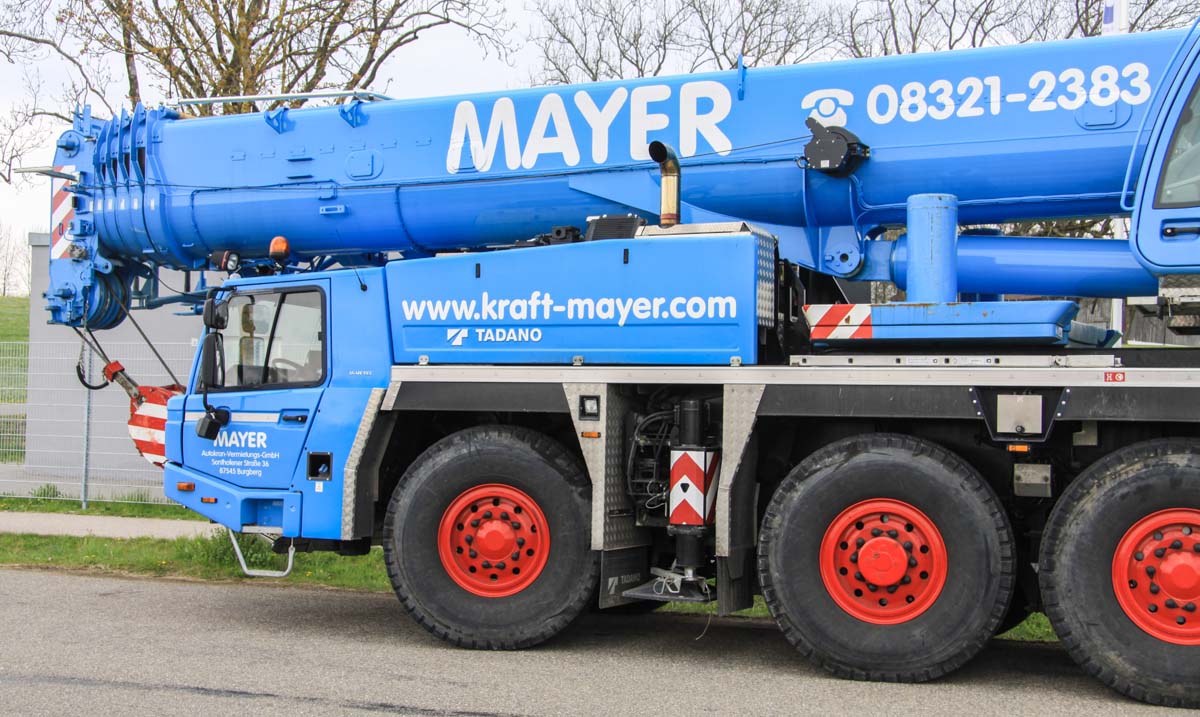

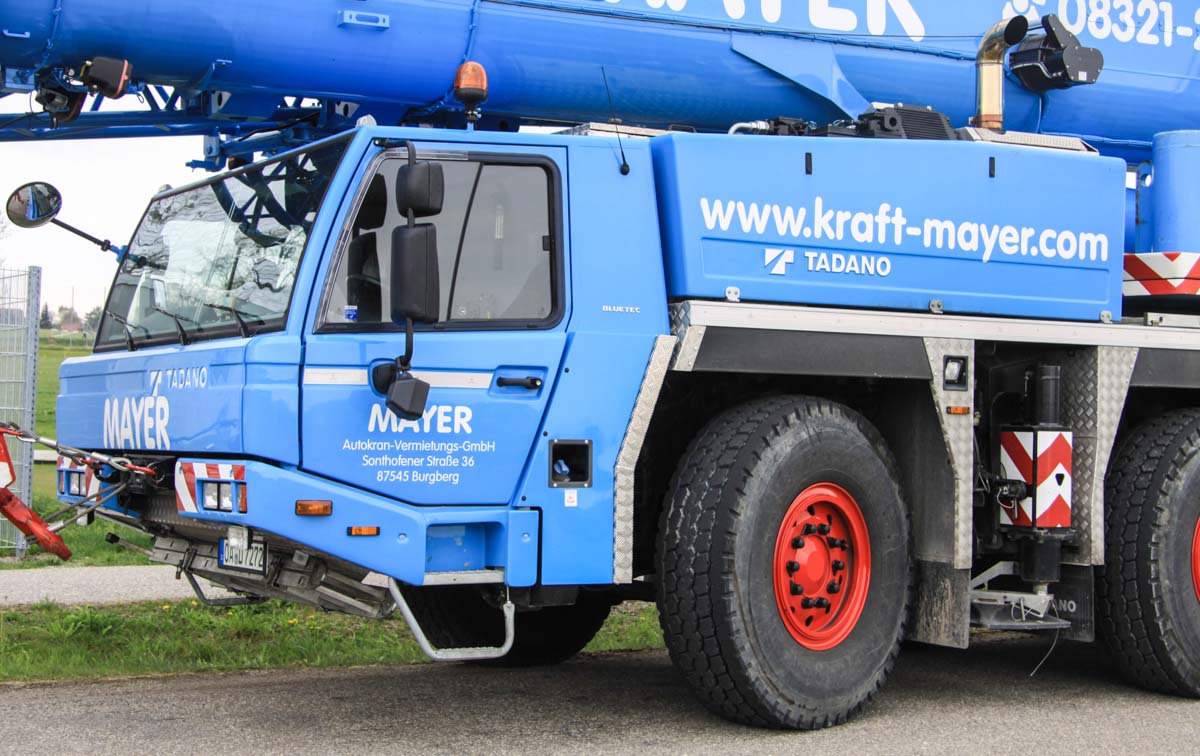

The undercarriage is powered by a Mercedes-Benz OM 502 LA, a 405 kW (551 hp) strong V8-diesel engine. This crane has a standard 10x6-drive line, with the axles 2, 4 and 5 driven. All axles are steerable.

The outrigger base measures 8.03 x 7.5 meters, or half 8.03 x 5 meters. During the transport over the road remains 5.8 tonnes of counterweight on the lower deck.

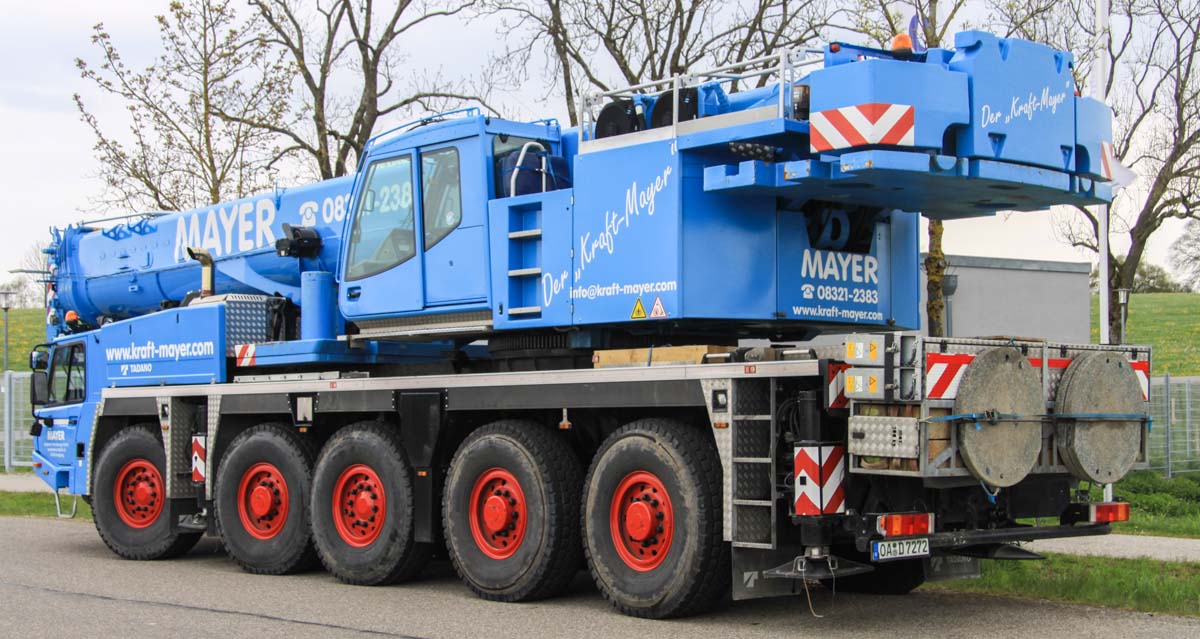

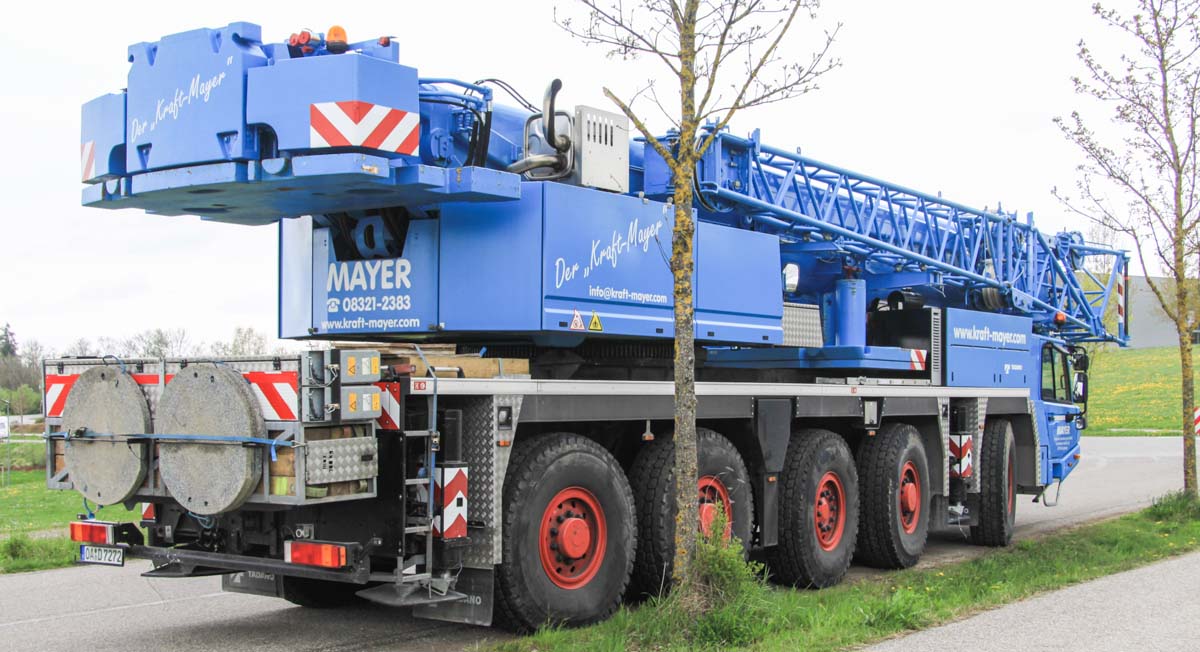

At the rear of the crane is a large box with wooden sleepers and lifting gear attached.

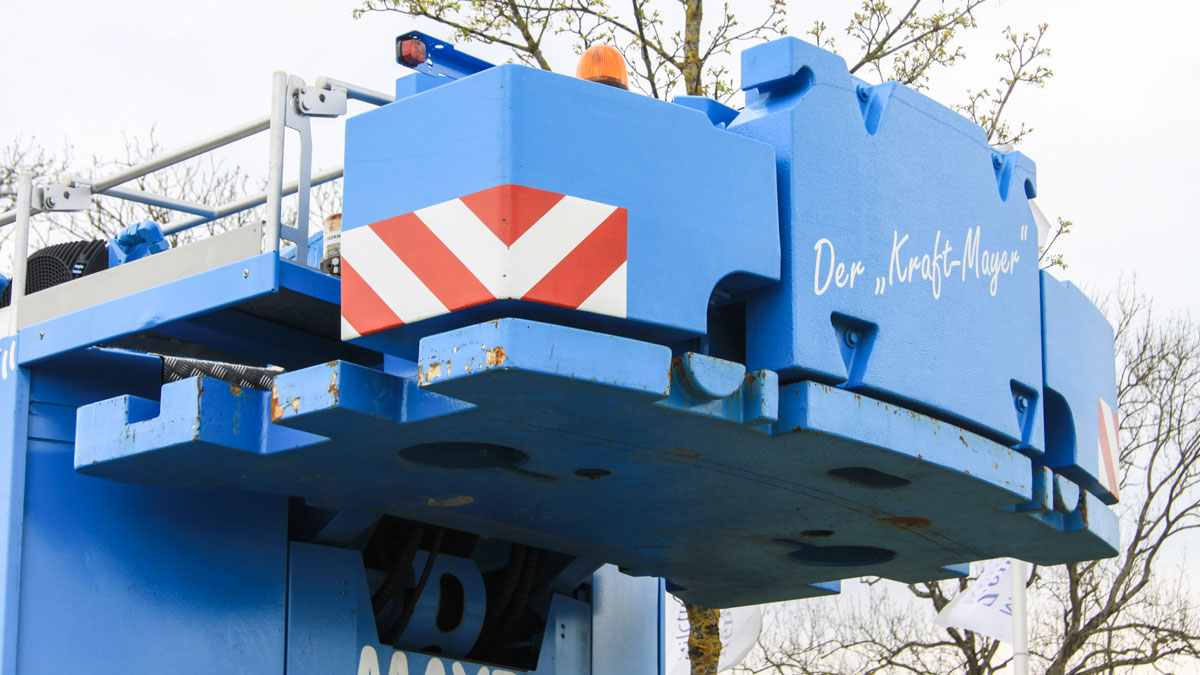

There is still 7 tonnes of counterweight attached to the superstructure. The full counterweight weights 42.3 tonnes and has a 4.8 meter tailswing.

Packed has the crane a 14.85 meter length, a 2.75 meter breadth and a 3.99 meter height. The transport mass is around 60 tonnes.

The bi-fold swingaway jib has a 18 meter length and is under 0, 20 and 40 degrees mountable. Two 7-meter lattice extensions take care for a maximum hook height is 92 meters.

A sharp crane in the colours of Mayer!
