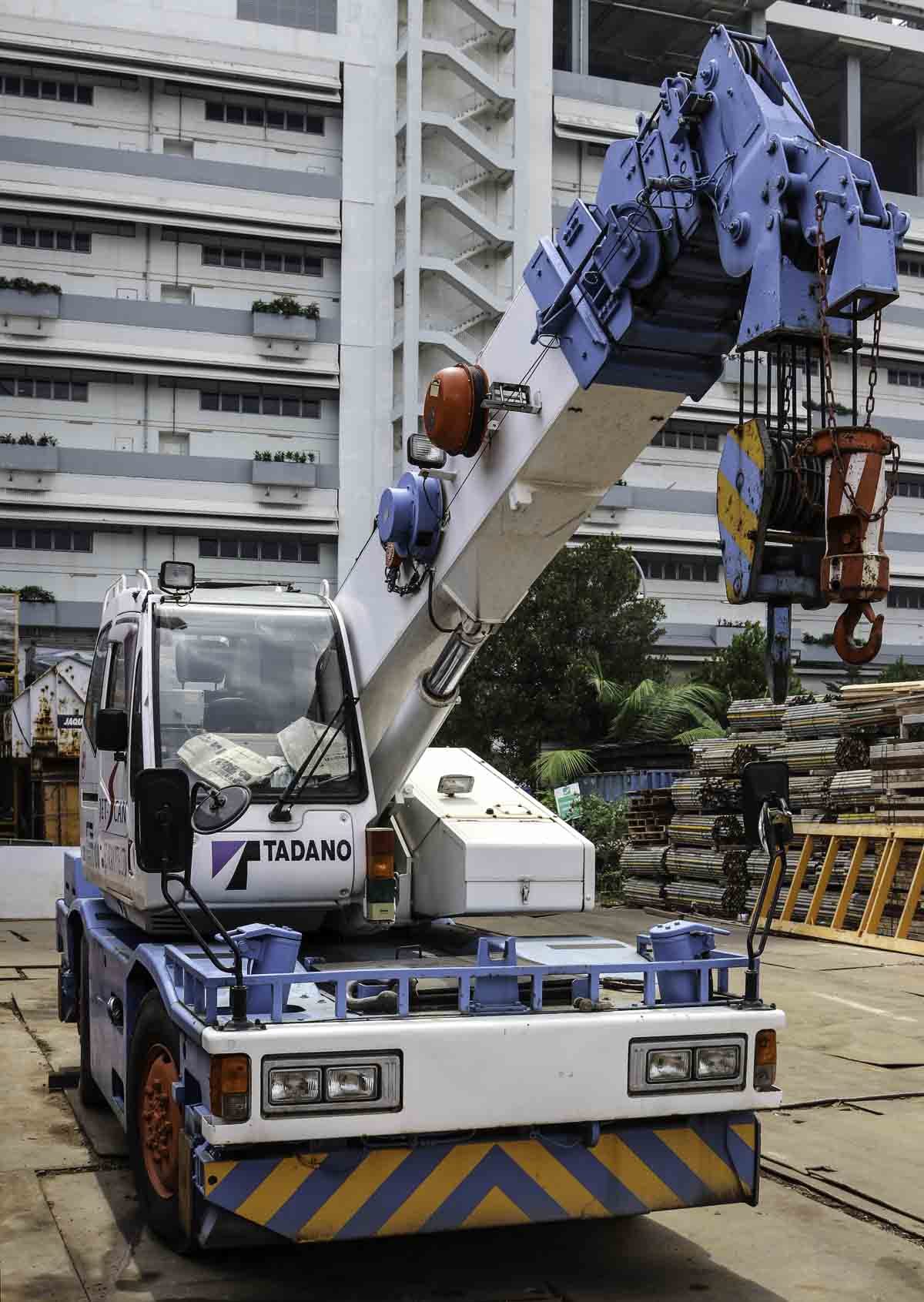

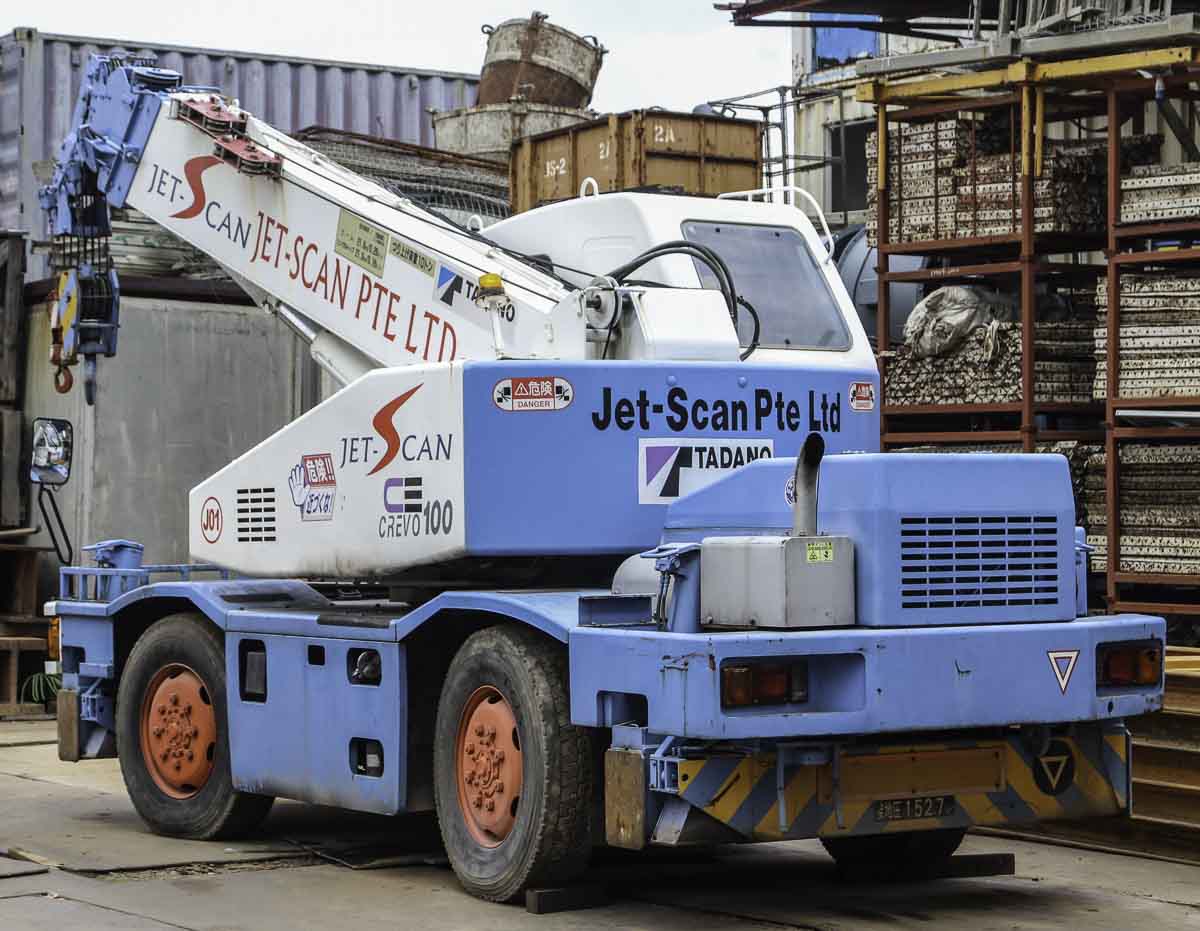

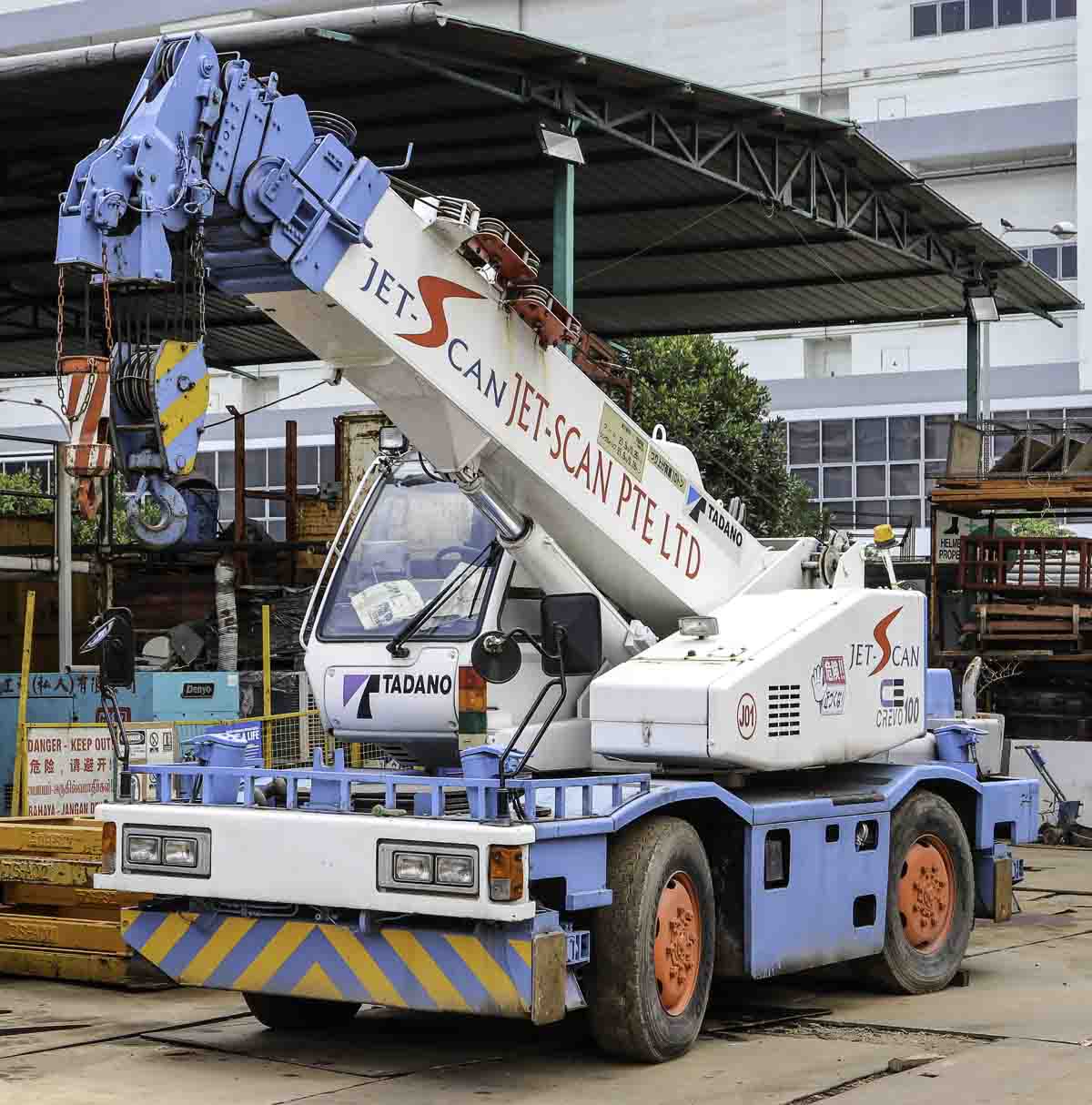

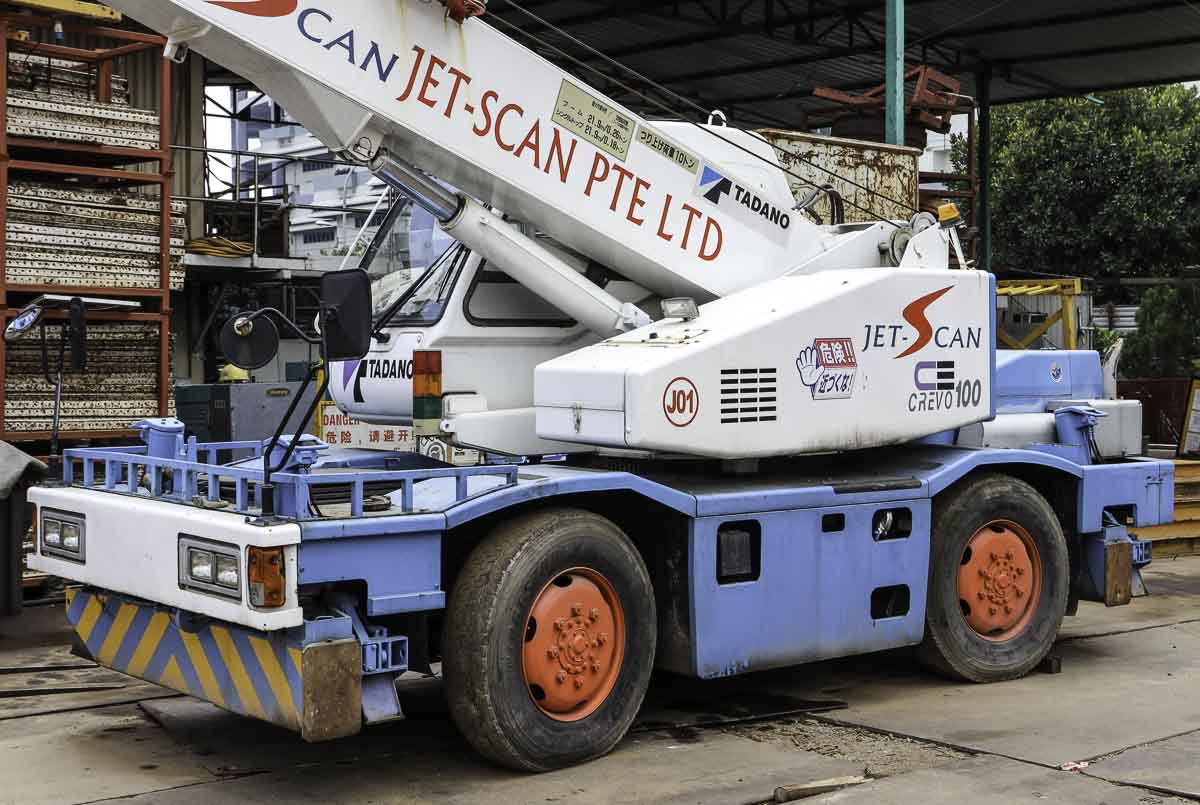

Tadano TR-100ML - Jet-Scan
This compact Tadano TR-100ML belongs to Jet-Scan from Singapore (SG), it is a 10-Tonne RT-crane. In transit is the crane 7.29 meters long, 2 meters wide and 2.8 meters tall. The mass of the crane is approx. 12.2 tonnes.
The outrigger width is maximum 4.5 meters.

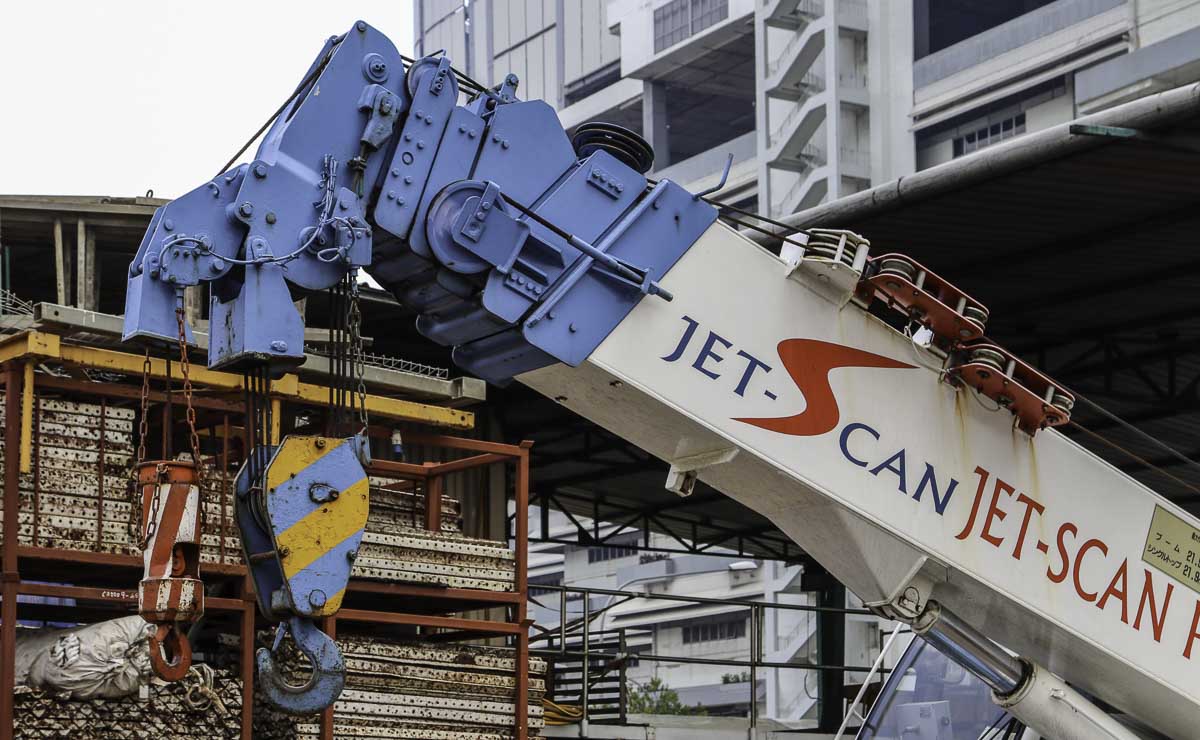

The main boom has a 5.2 meter base length and extends five times to a maximum length of 23.2 meters.
The tailswing of the counterweight is 1.6 meters.
The crane is powered by a HINO W04D-T diesel engine with a power of 110 kW (150 hp). On the road is the crane able to reach a travel speed of 49 km/h.
