Tadano ATF 110G-5 - Bok Yong

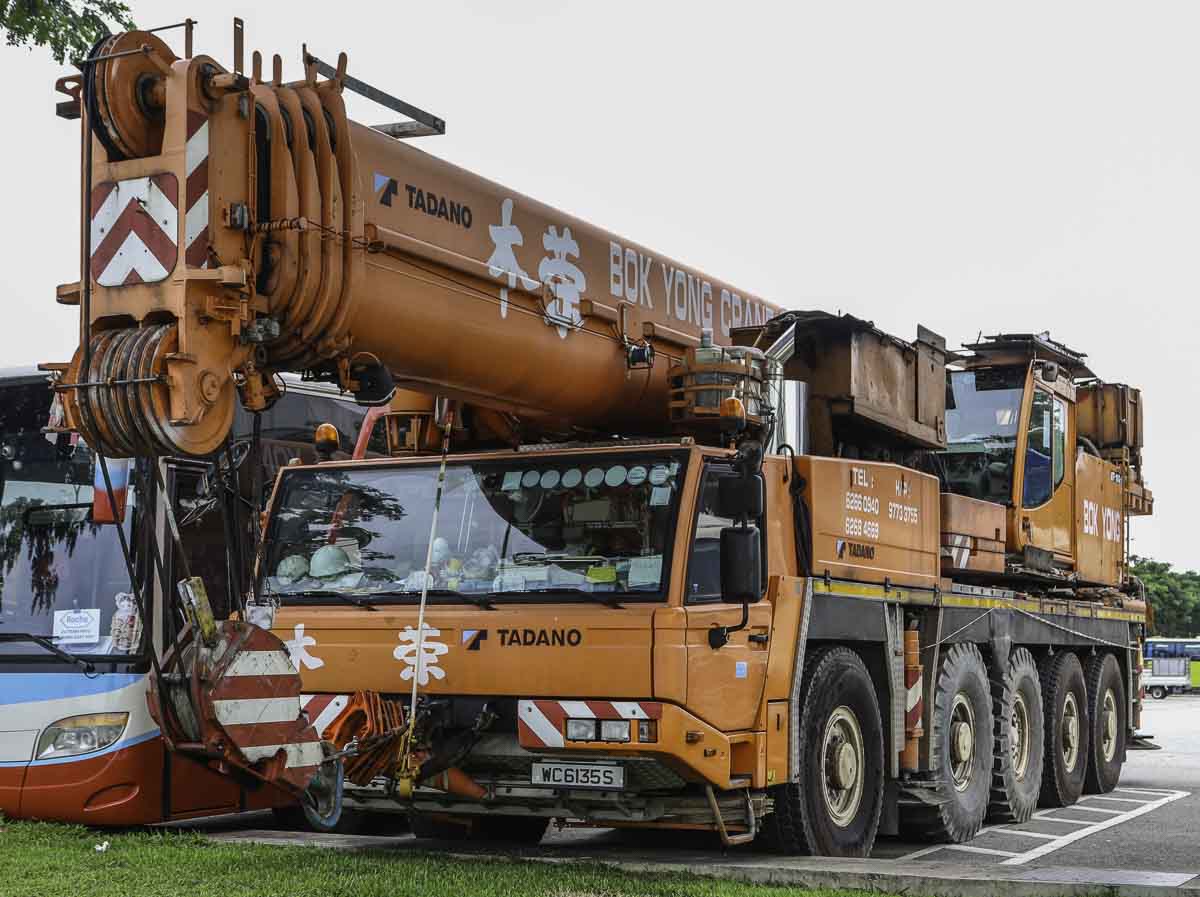

This impressive Tadano ATF 110G-5 belongs to Bok Yong from Singapore (SG). It is a 110-tonne crane mounted on a 5-axle carrier that was parked on a public carpark for large vehicles.

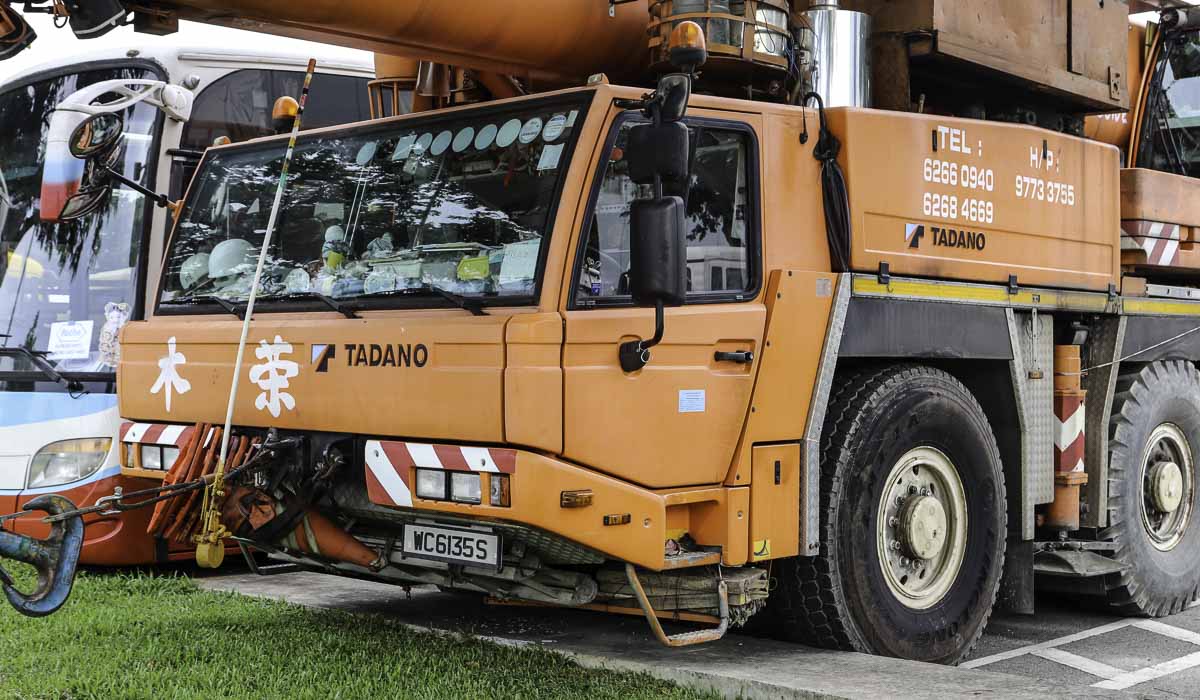

The 5-axle undercarriage is powered by a Mercedes-Benz OM 502 LA, an 8-cylinder diesel engine with a power of 390 kW (530 hp). This crane is fitted with the optional 10x8x8-drive line, where the axles 1, 2, 4 and 5 are powered and steerable. The third axle is liftable.
The outrigger base measures 7.75 x 7.5 meters, or half 7.75 x 5.02 meters.

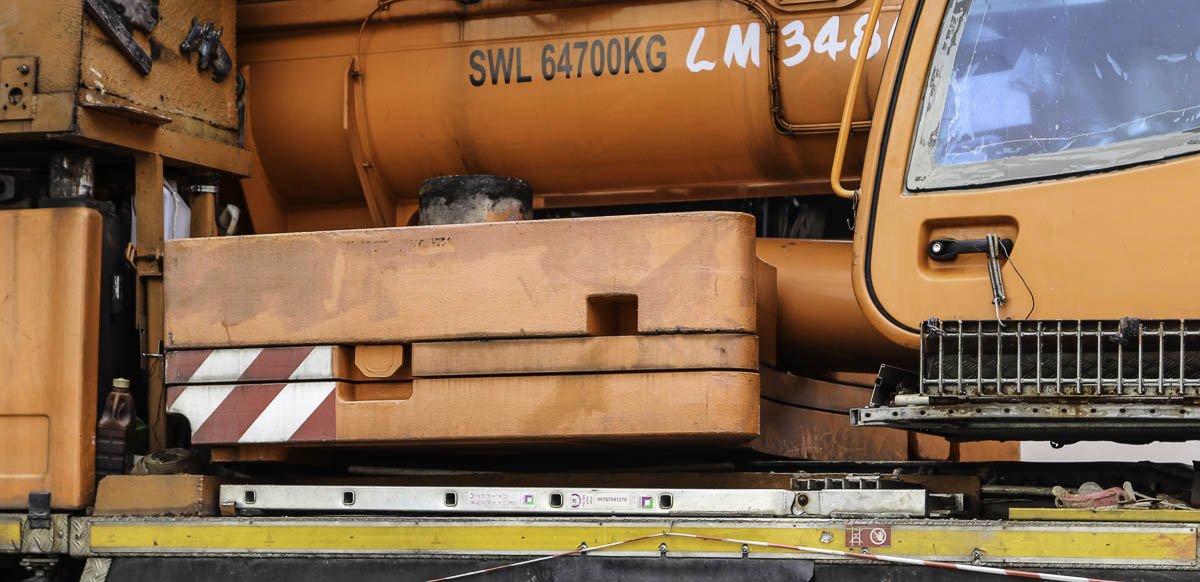

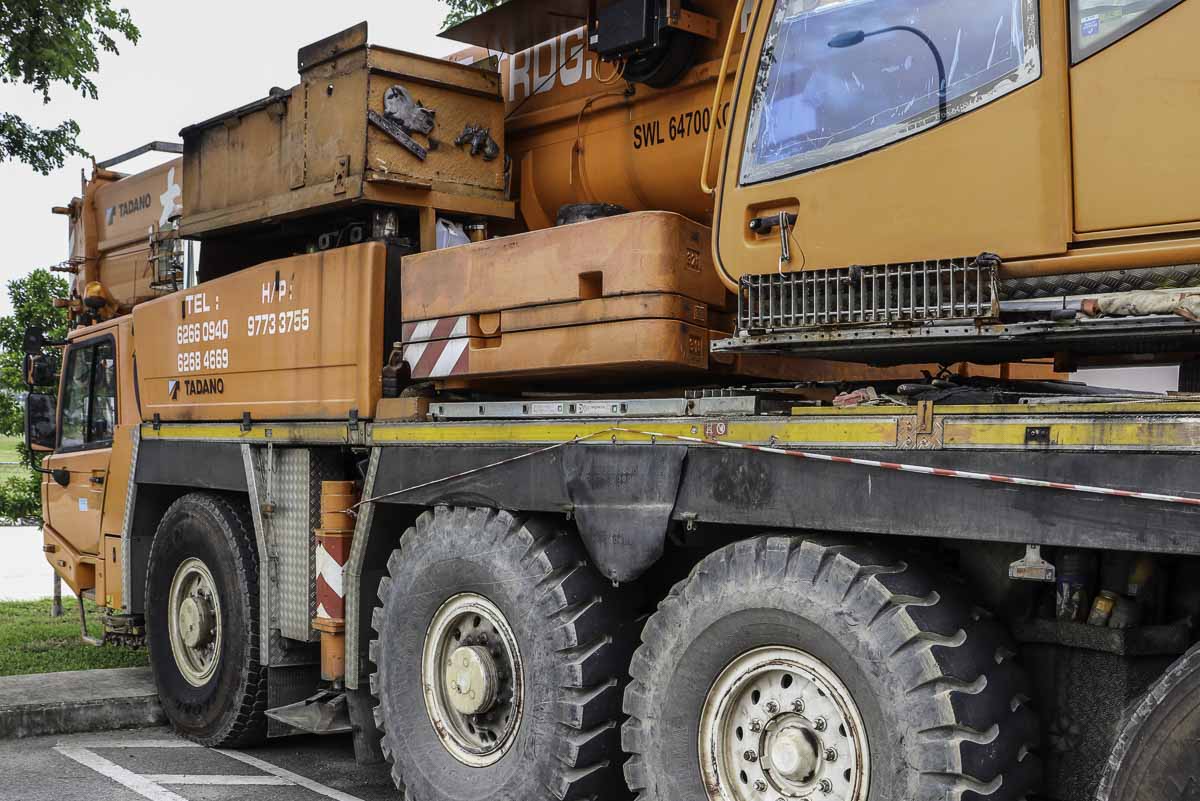

On the undercarriage is a total of 12.9 tonnes of counterweight taken, that is the maximum that geometrically fits on the undercarriage.
In transit is the crane 14.9 meters long, 2.75 meters wide and 4 meters tall.

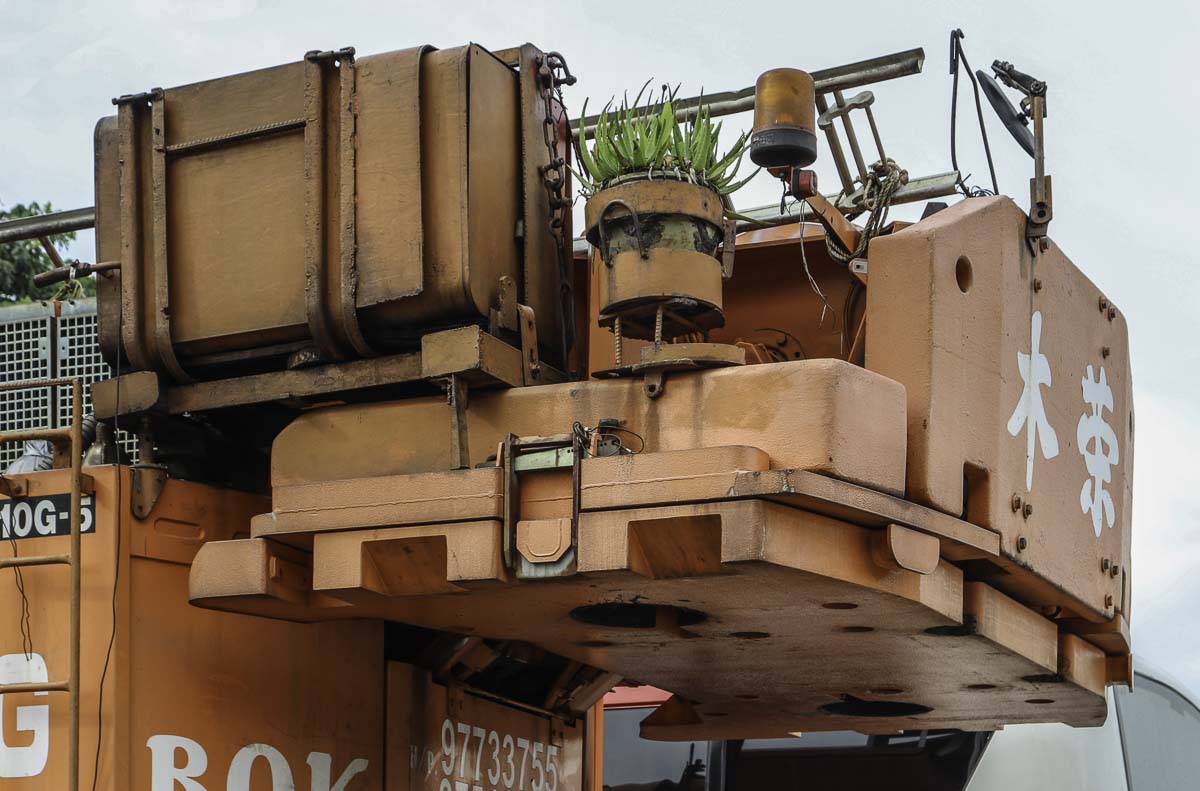

Attached to the superstructure remains 7.9 tonnes of counterweight during the transport over the road. The crane brings in total 20.8 tonnes of counterweight with it. The full counterweight is 35 tonnes and has a 4.1 meter tailswing.

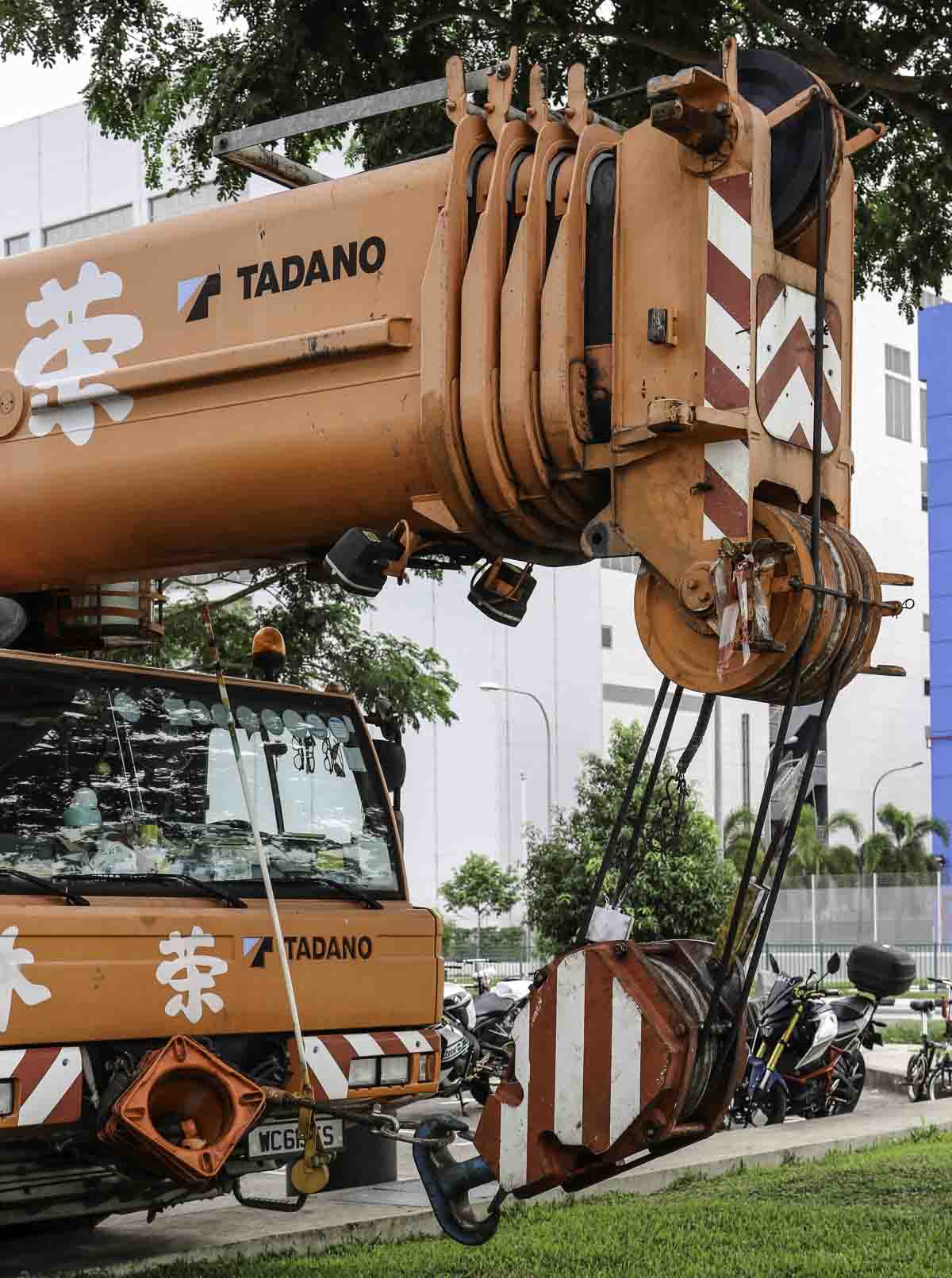

The 5-part main boom of the crane has a 13 meter base length and extends four times to a maximum length of 52 meters. The crane doesn't bring a jib with it.

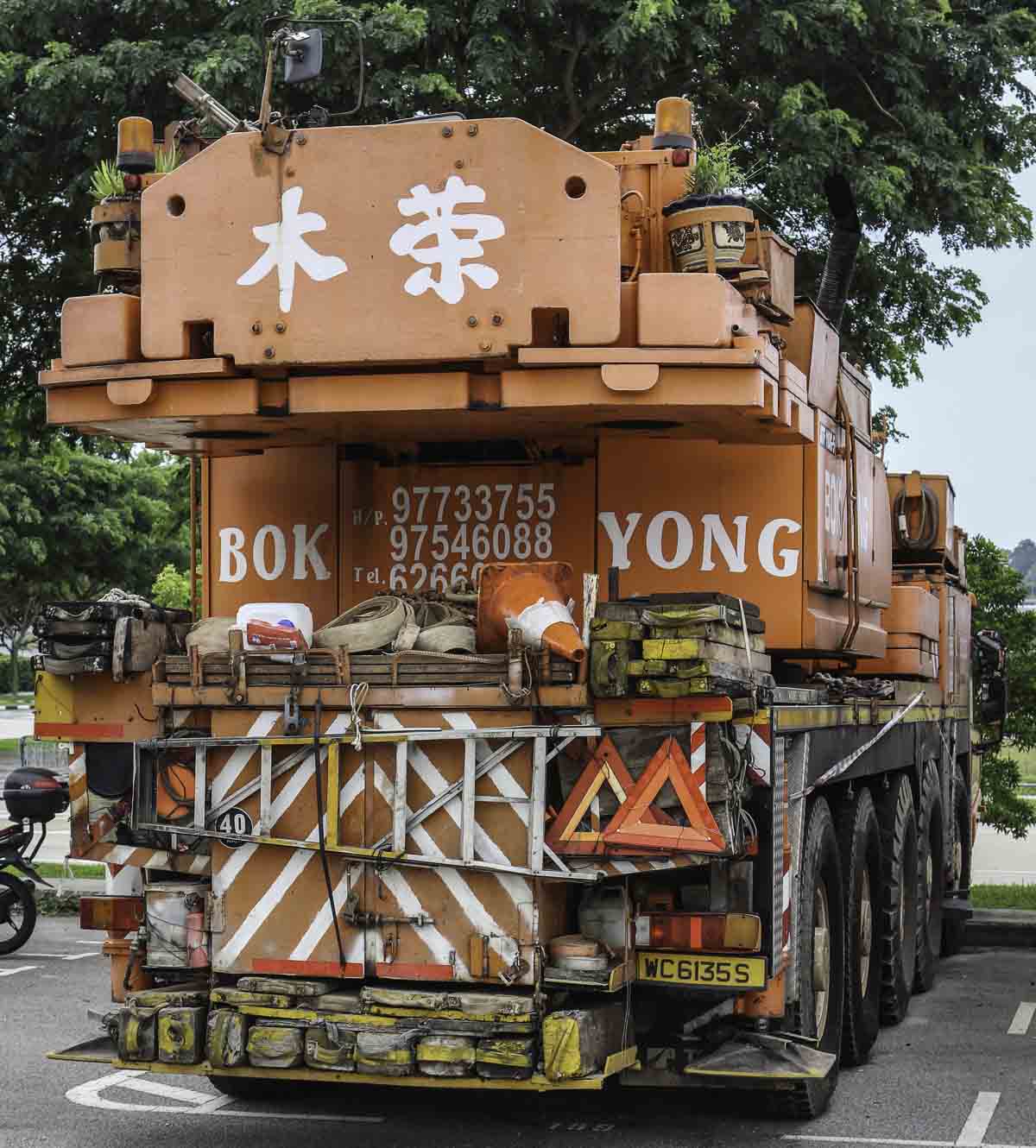

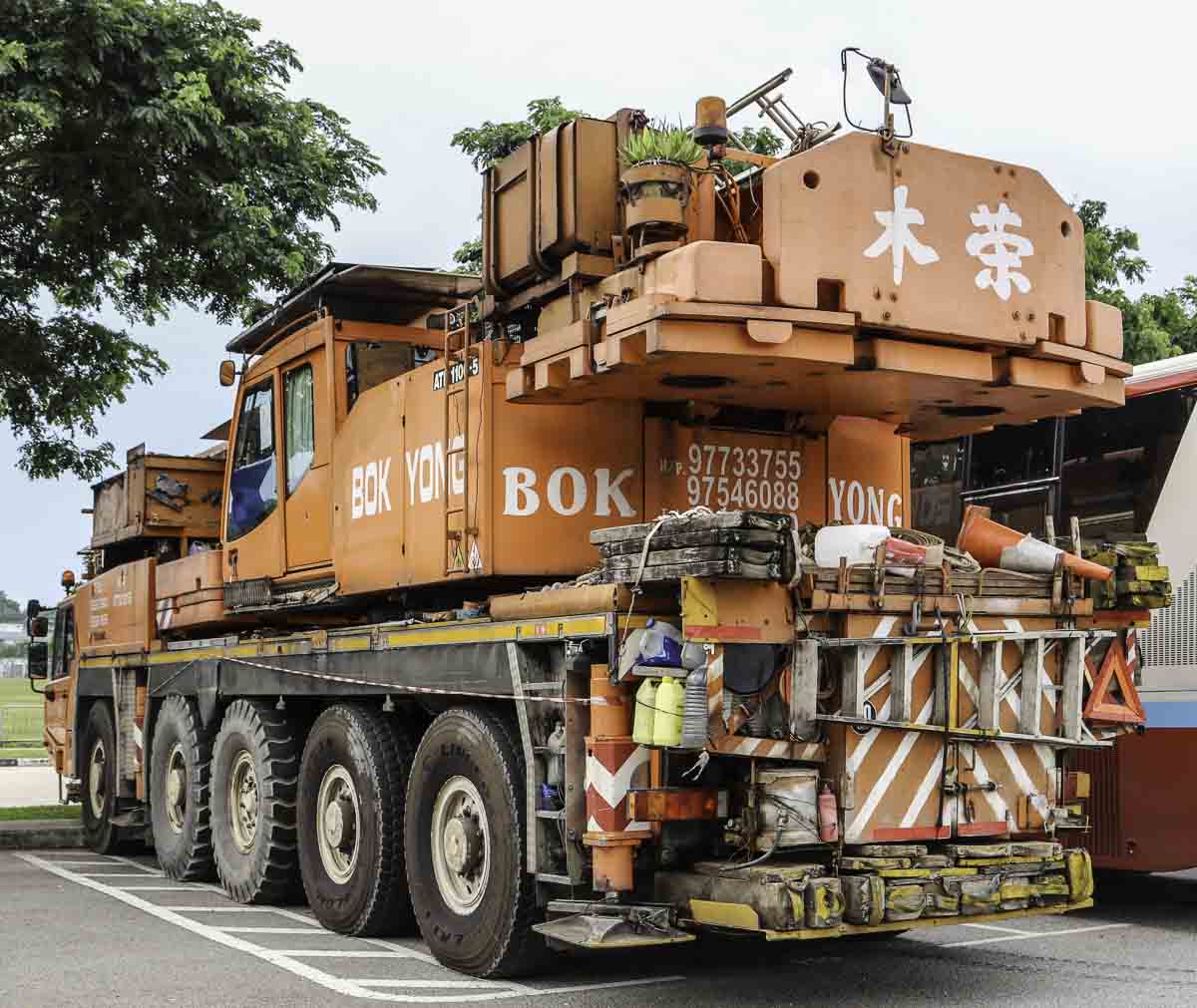

The crane is richly equipped with gear so that the owner is always fully equipped on the road.
