Tadano ATF 70G-4 - Beng Huat

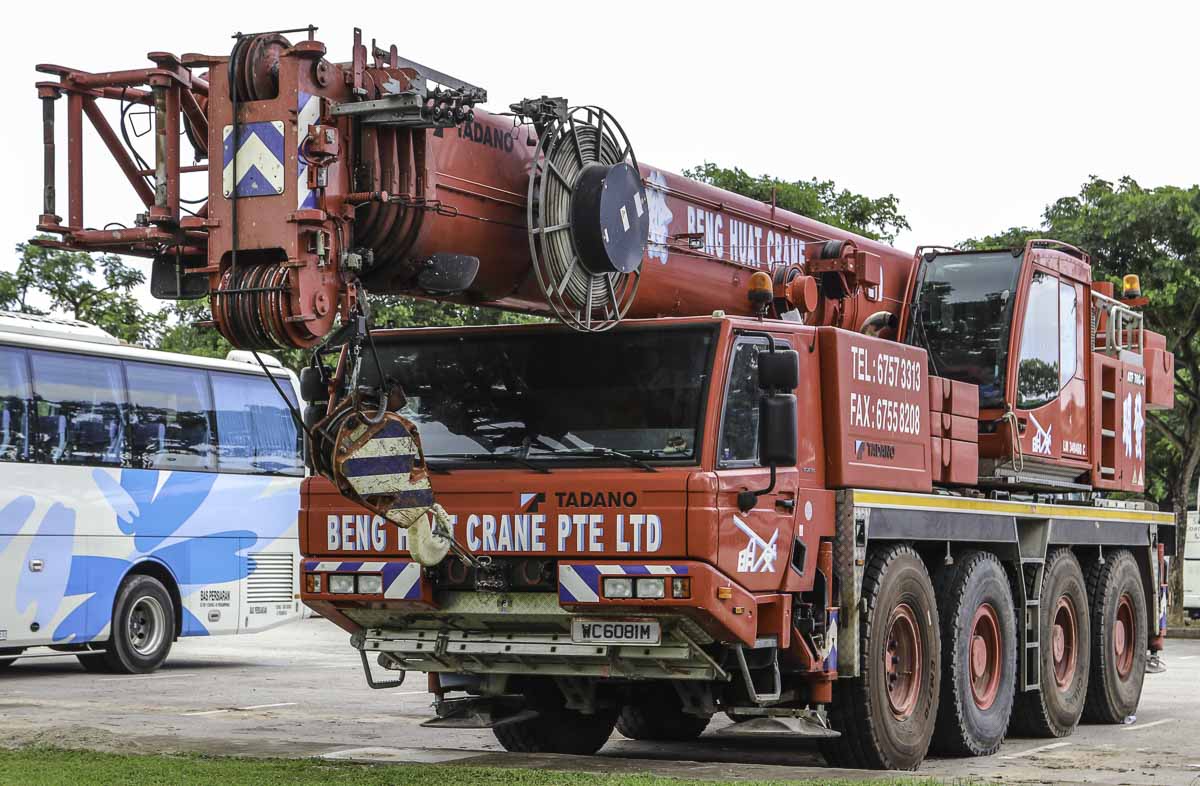

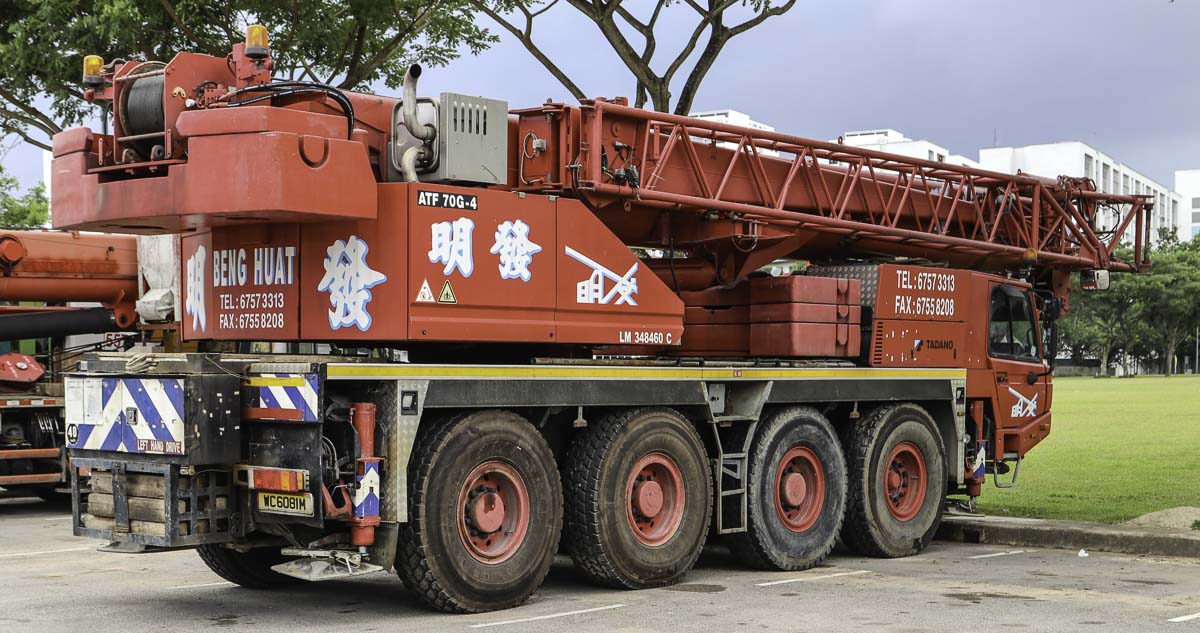

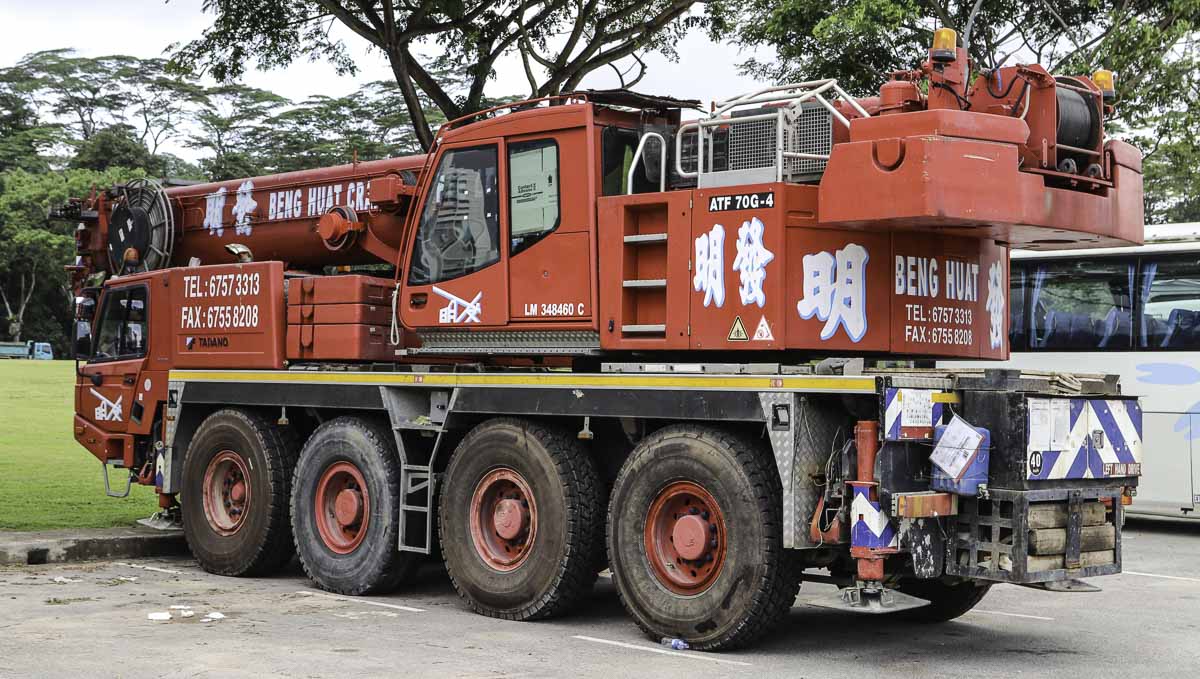

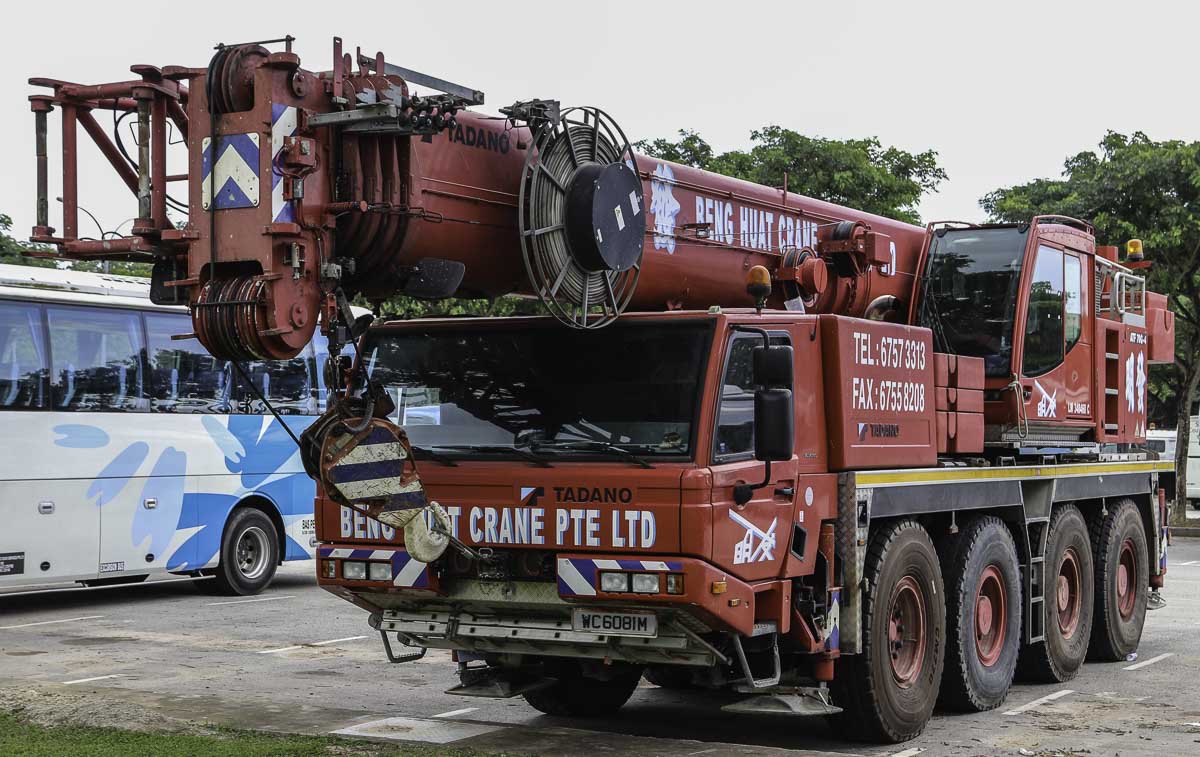

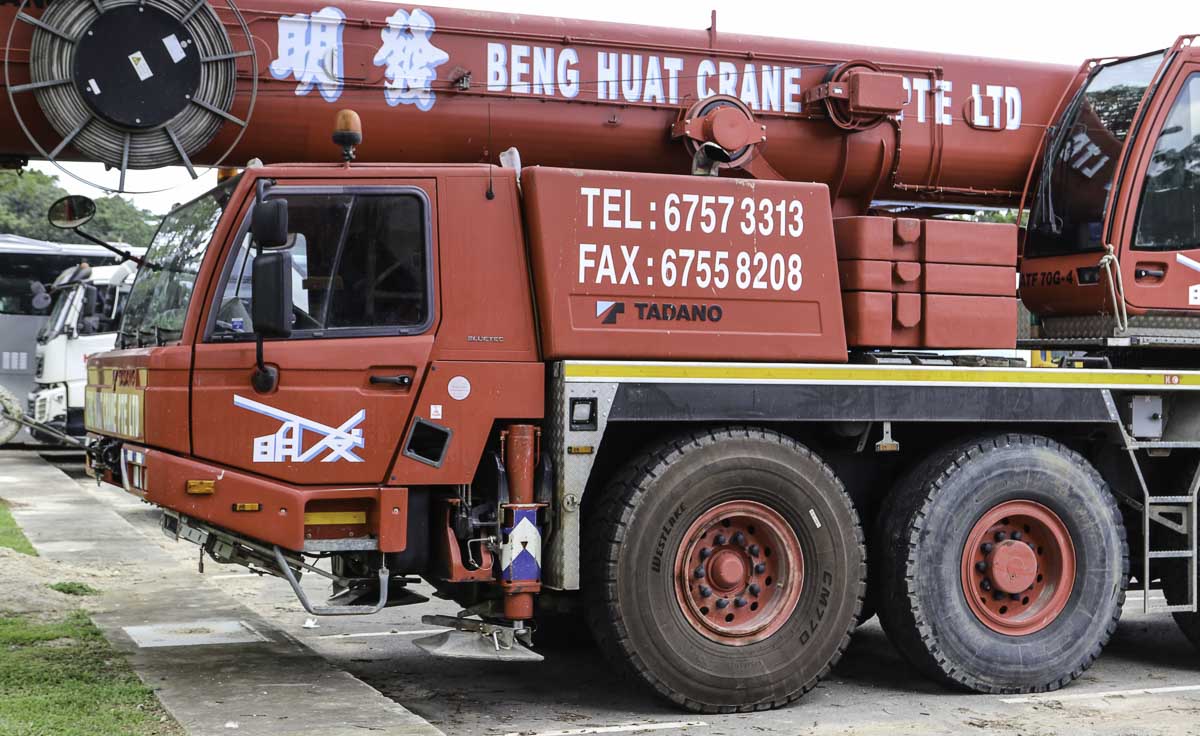

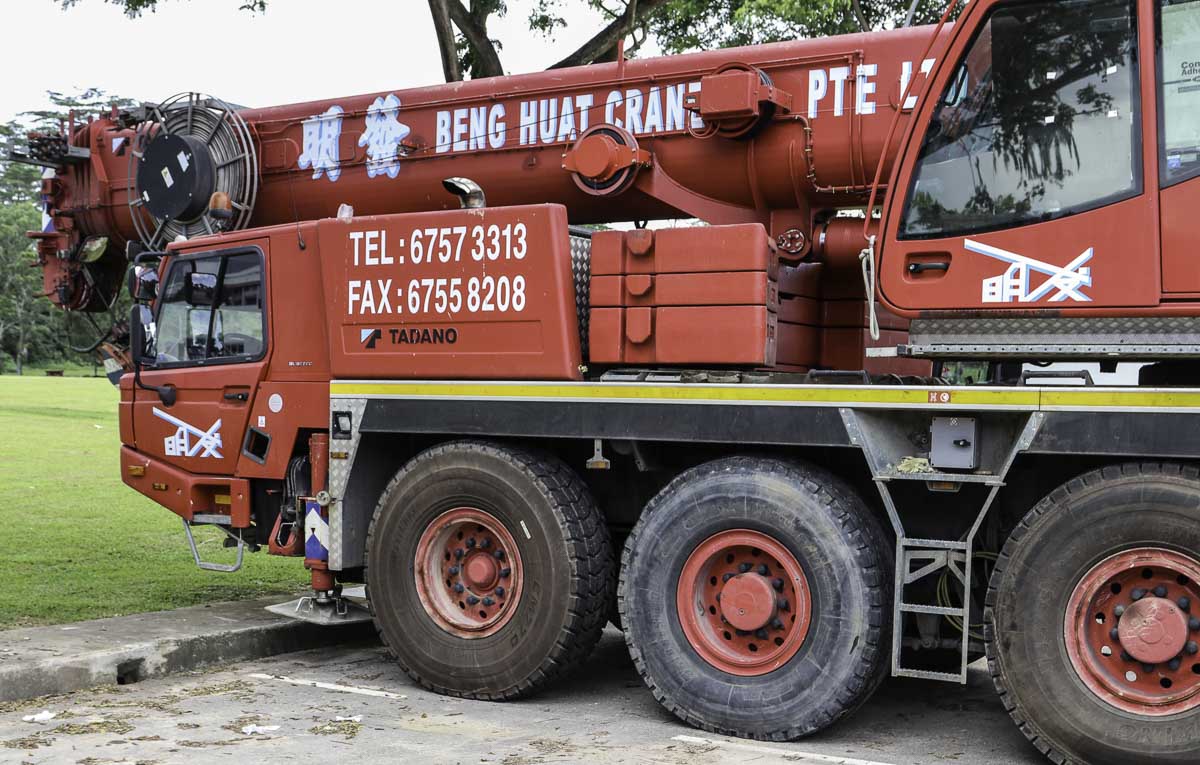

This sharp Tadano ATF 70G-4 belongs to Beng Huat from Singapore (SG) and stood during a weekend parked on a large vehicle parking. It is a 70-tonne crane mounted on a 4-axle carrier.

The undercarriage is powered by a Mercedes-Benz OM 501 LA, a 6-cylinder diesel engine with a power of 320 kW (435 hp). This crane has the standard 8x6x8-drive line, where the axles 2 to 4 are powered and all axles are steerable.

The outrigger base measures 7.8 x 6.4 meters, or half 7.8 x 4.4 meters.

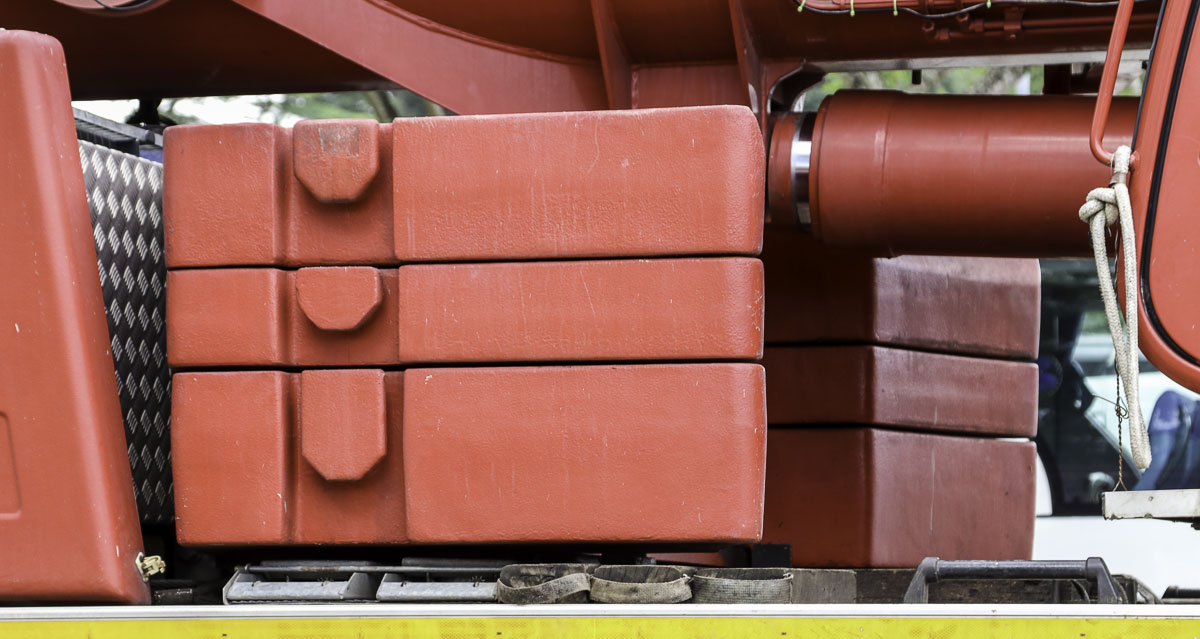

On the undercarriage is during the transport over the road 9 tonnes of counterweight stored.

Packed is the crane 13.17 meters long, 2.66 meters wide and 3.78 meters tall. The transport mass of the crane is approx. 52 tonnes.

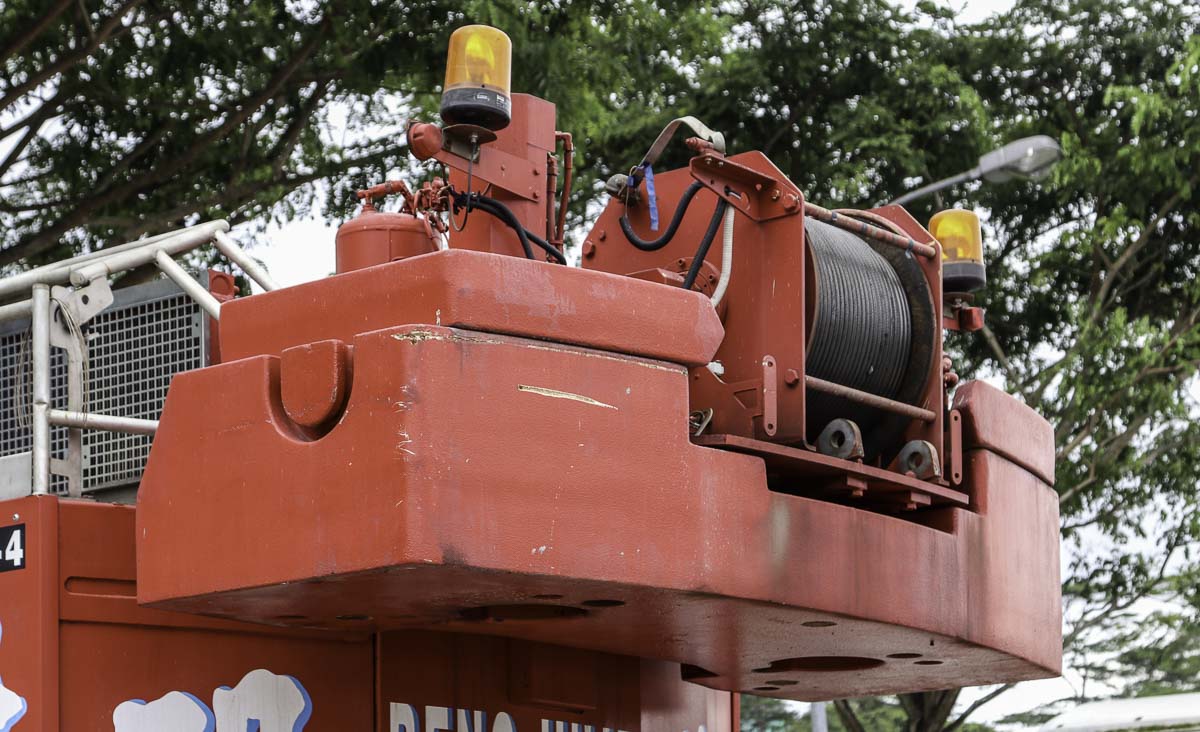

Attached to the superstructure are 6 tonnes of counterweight. The crane brings the full counterweight of 15 tonnes with it. The counterweight has a 3.45 meter tailswing.

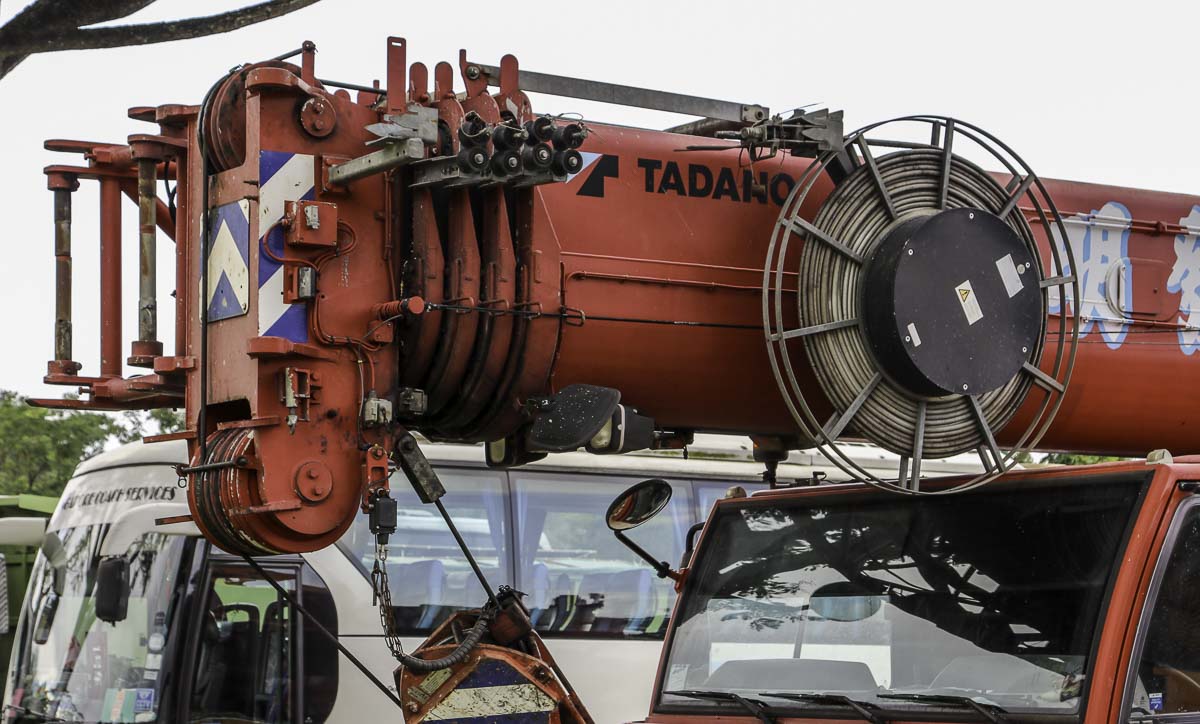

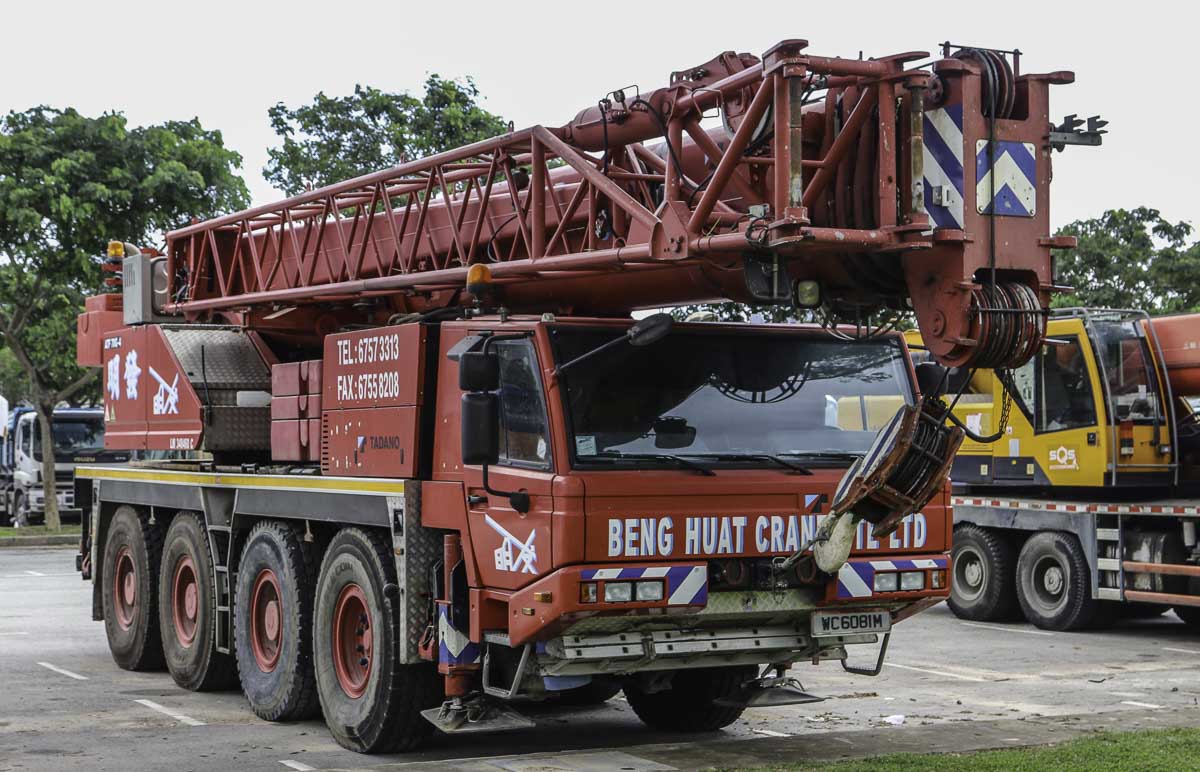

The 5-part main boom has an 11 meter base length and extends four times to maximum length of 44 meters. Optionally is the main boom to be extended by a 9 / 16 meter long bi-fold swingaway jib. The jib is hydraulic in an angle between 0 and 40 degrees adjustable.

A sharp crane of Beng Huat!
