Sennebogen 2200 - ZAP Piling

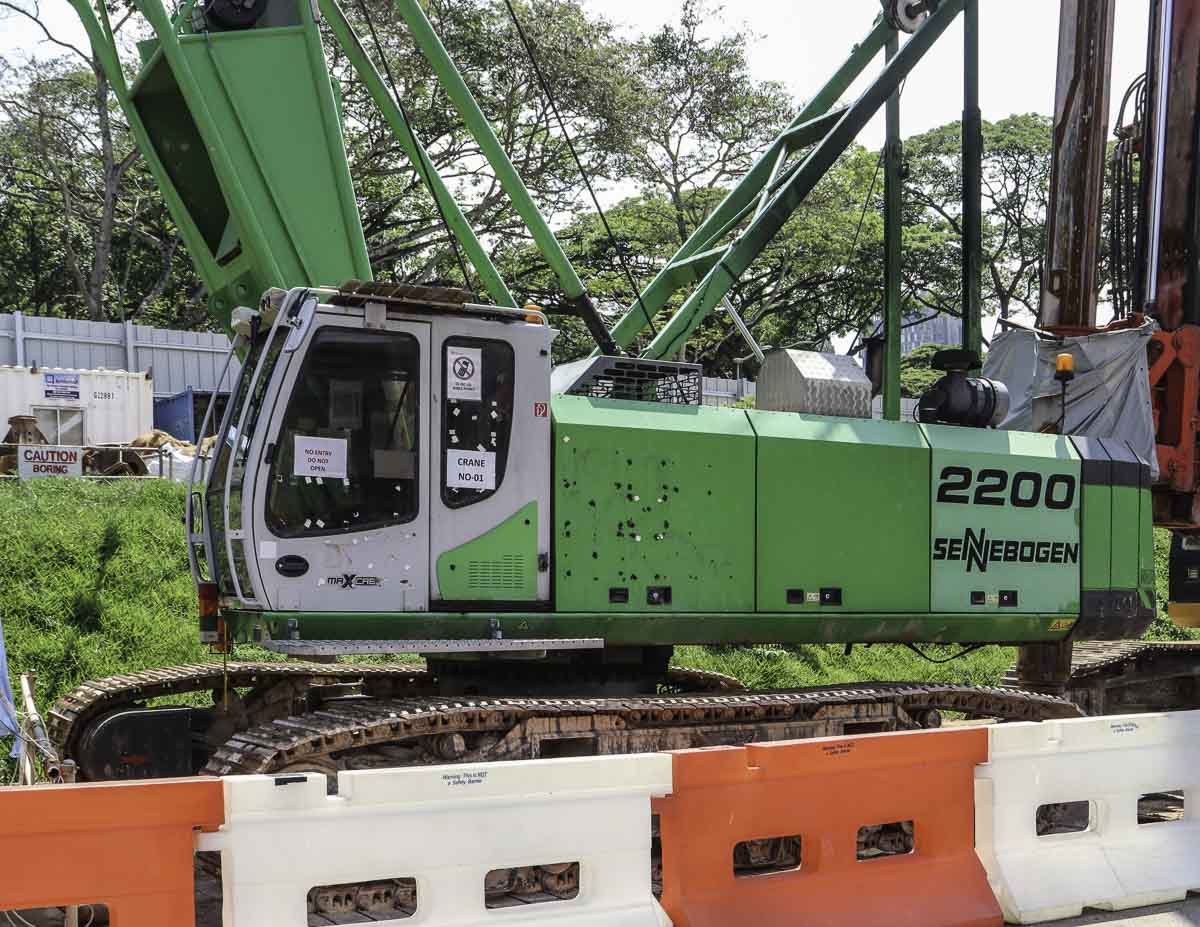

This Sennebogen 2200 belongs to ZAP Piling from Singapore (SG). It is an 80-tonne crawler crane.

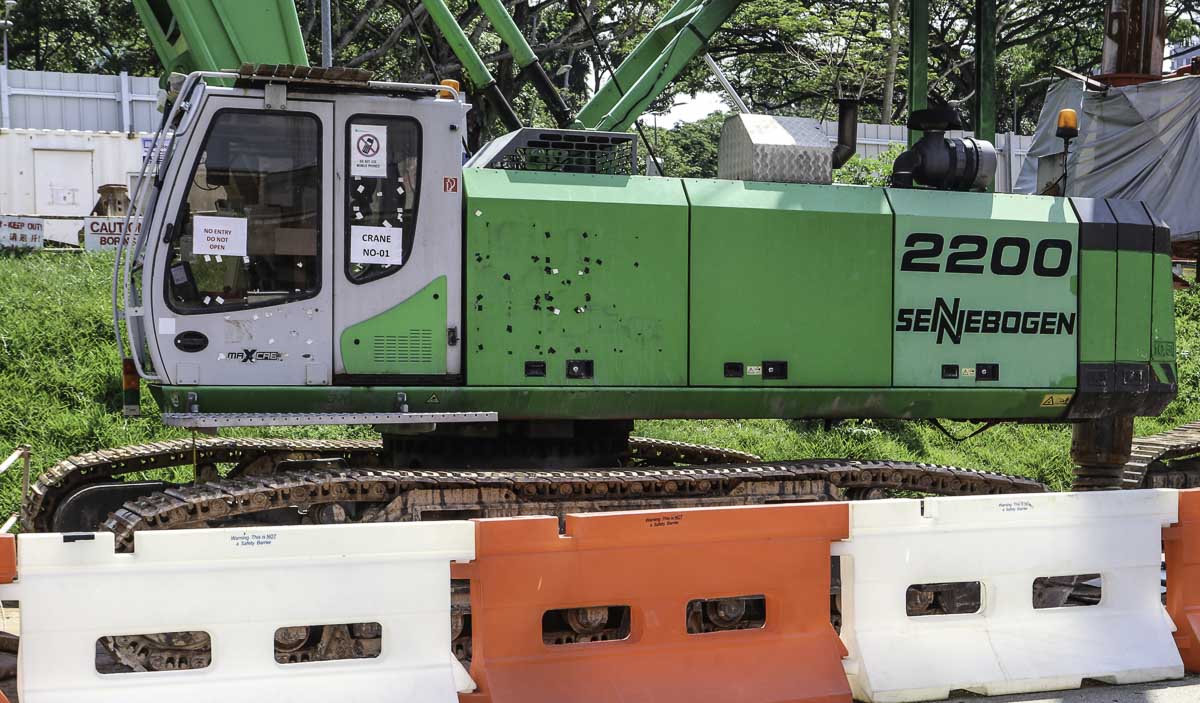

The crane is powered by a CAT C7, a 6-cylinder diesel engine with a power of 186 kW (253 hp). The diesel engine powers in total four hydraulic pumps.

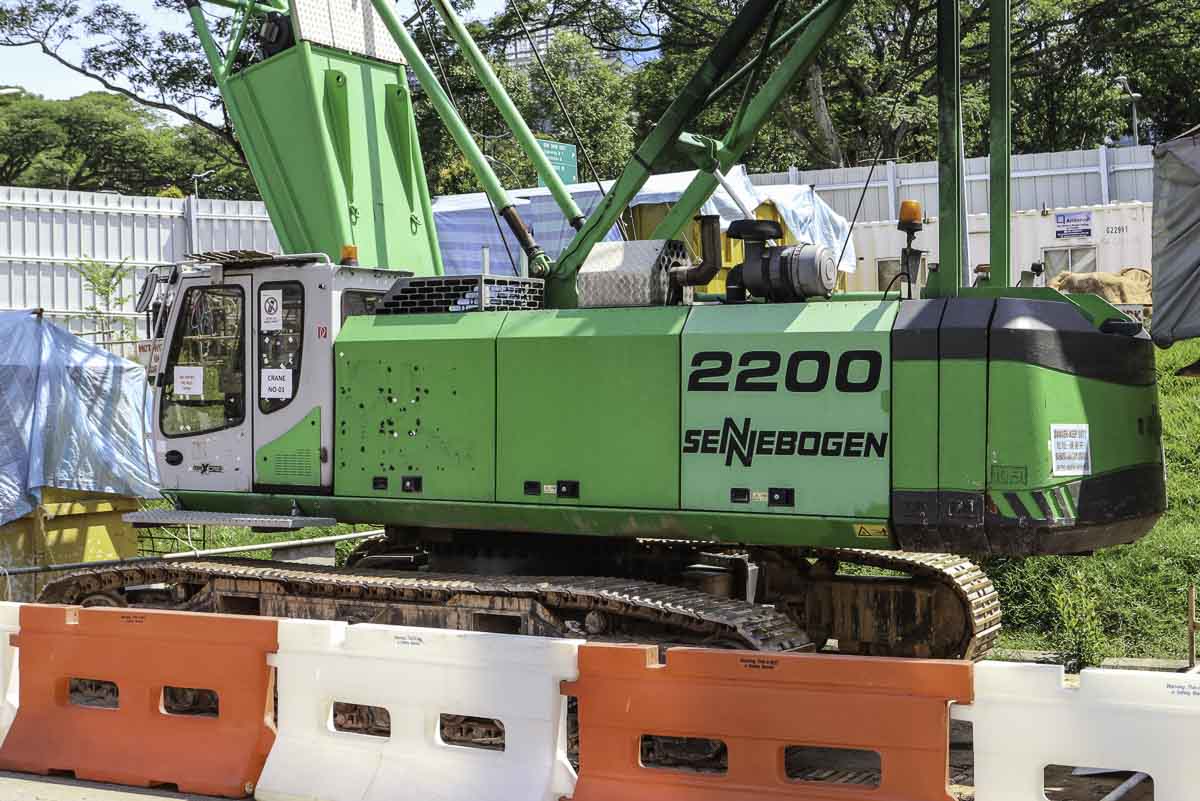

The undercarriage is 6 meters long and 4.6 meters wide. For the transport over the road is the width to be reduced to 3.3 meters.

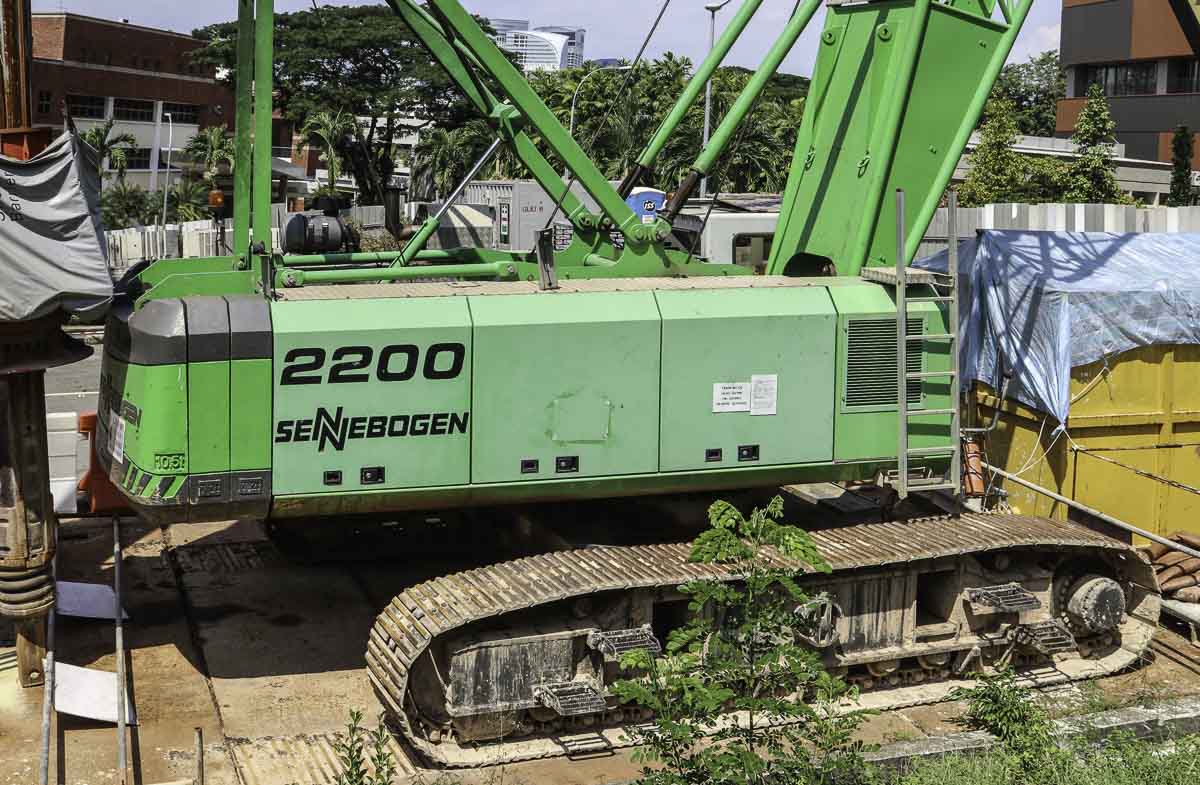

The A-frame can be folded down for the transport.

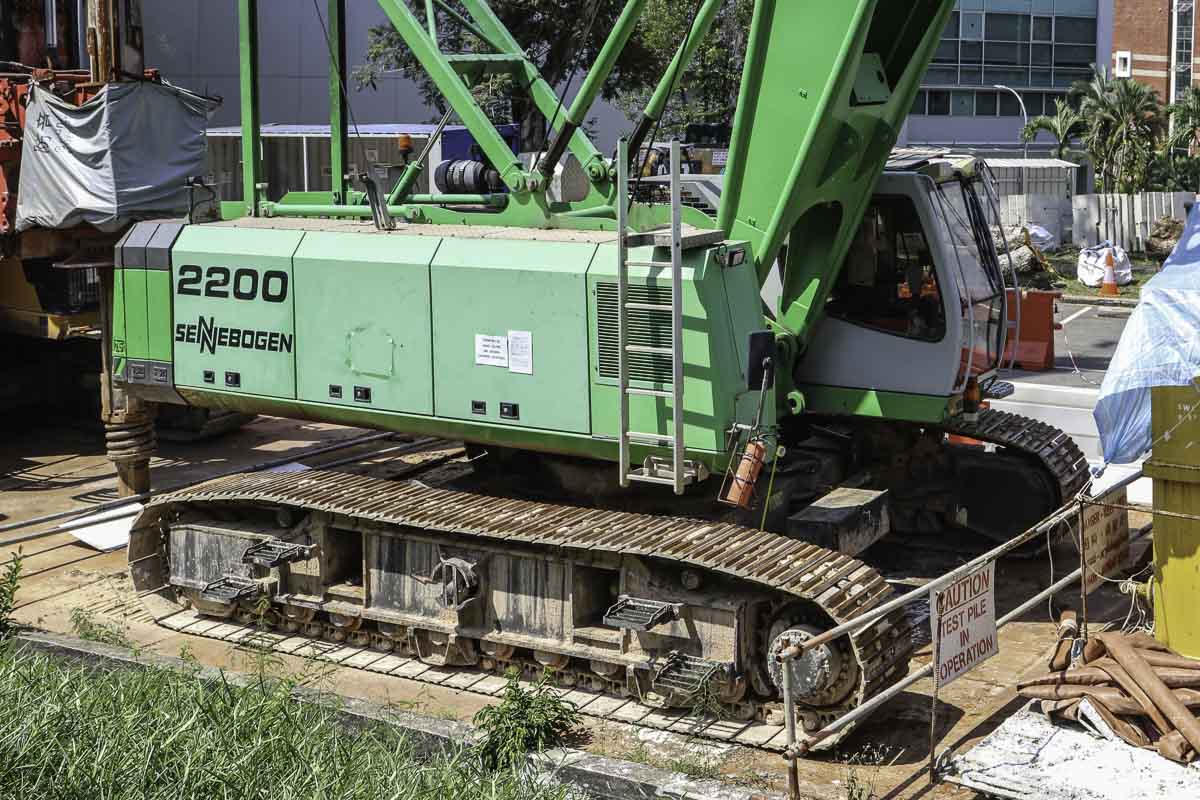

The crane is fitted with two 8.5-tonne hoist winches with 22 mm hoist wire rope.

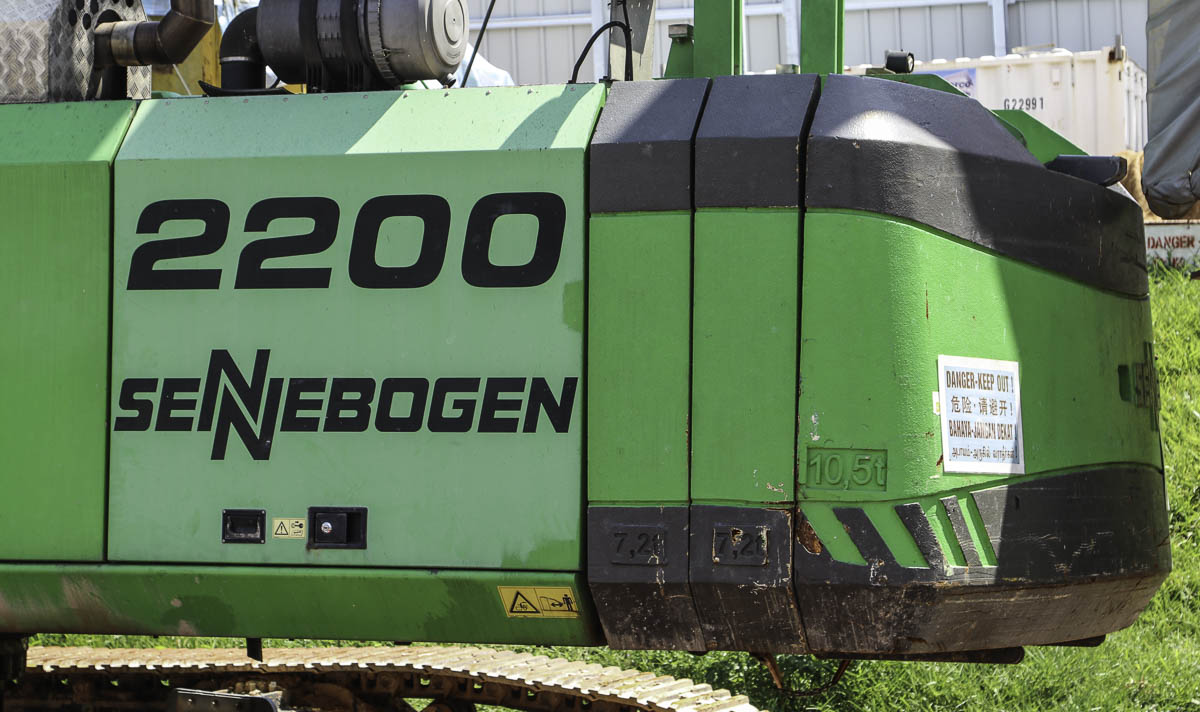

Attached to the superstructure is a three-part counterweight with a total mass of 24.9 tonnes. The counterweight has a 4.7 meter tailswing.

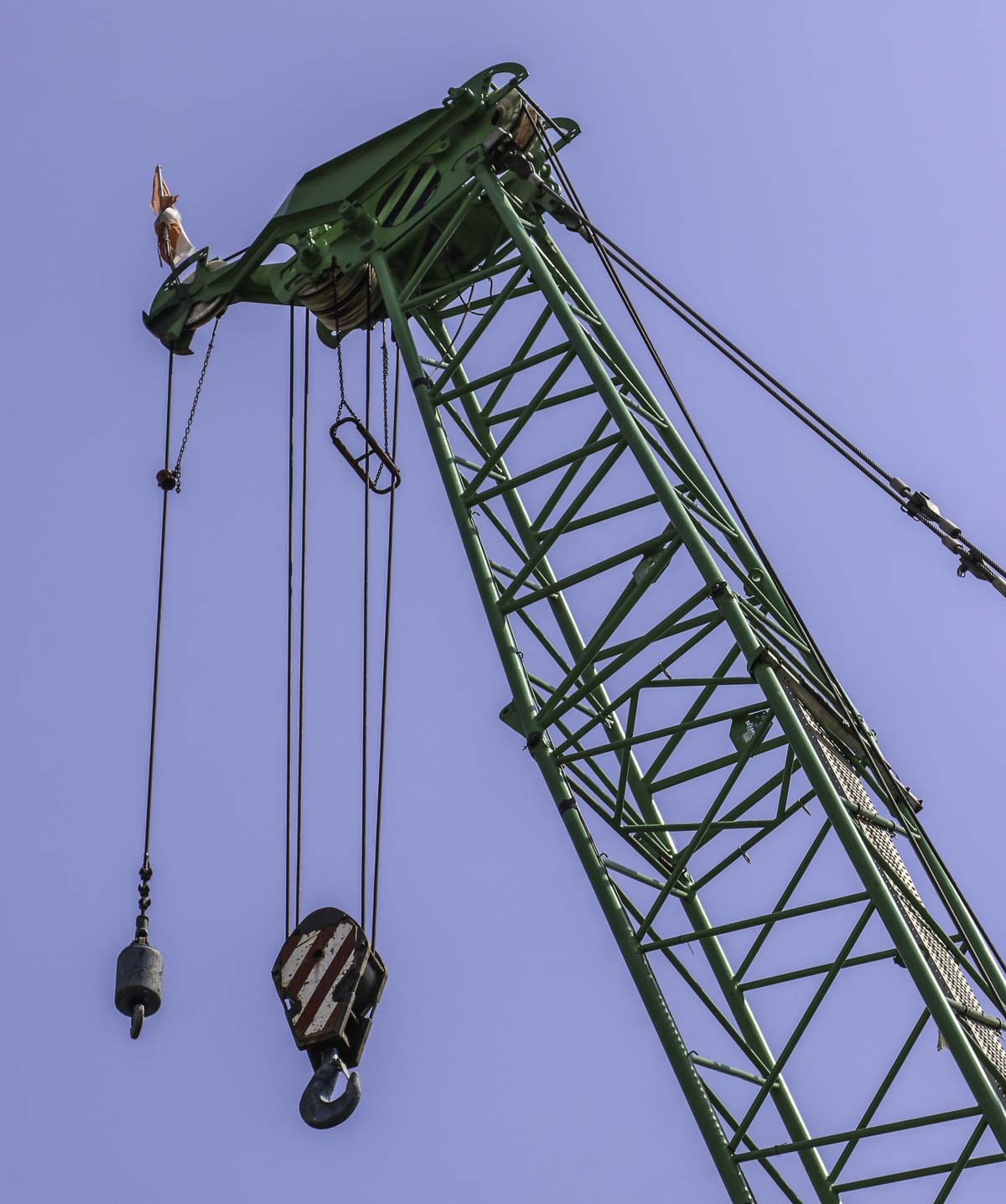

The main boom has a 12.1 meter base length and a maximum length of 59,7 meters. Here are both hoist winches in operation.

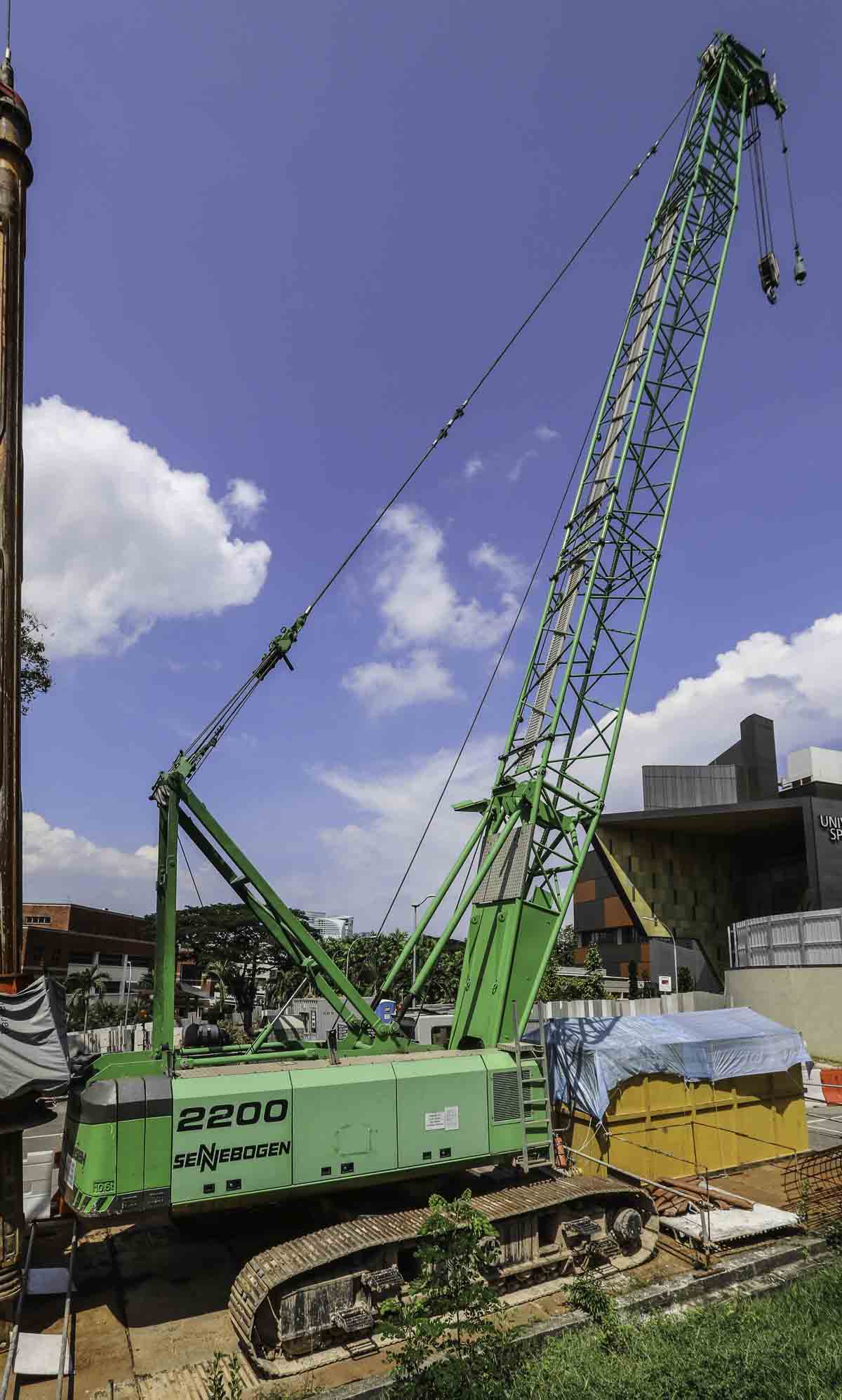

Here was the crane fitted with a 28.9 meter main boom. In this configuration is the crane able to hoist maximum 34 tonnes on a 7 meter radius or 5.8 tonnes to a 26 meter radius. A very shap crane of ZAP Piling!
