Sennebogen 3300

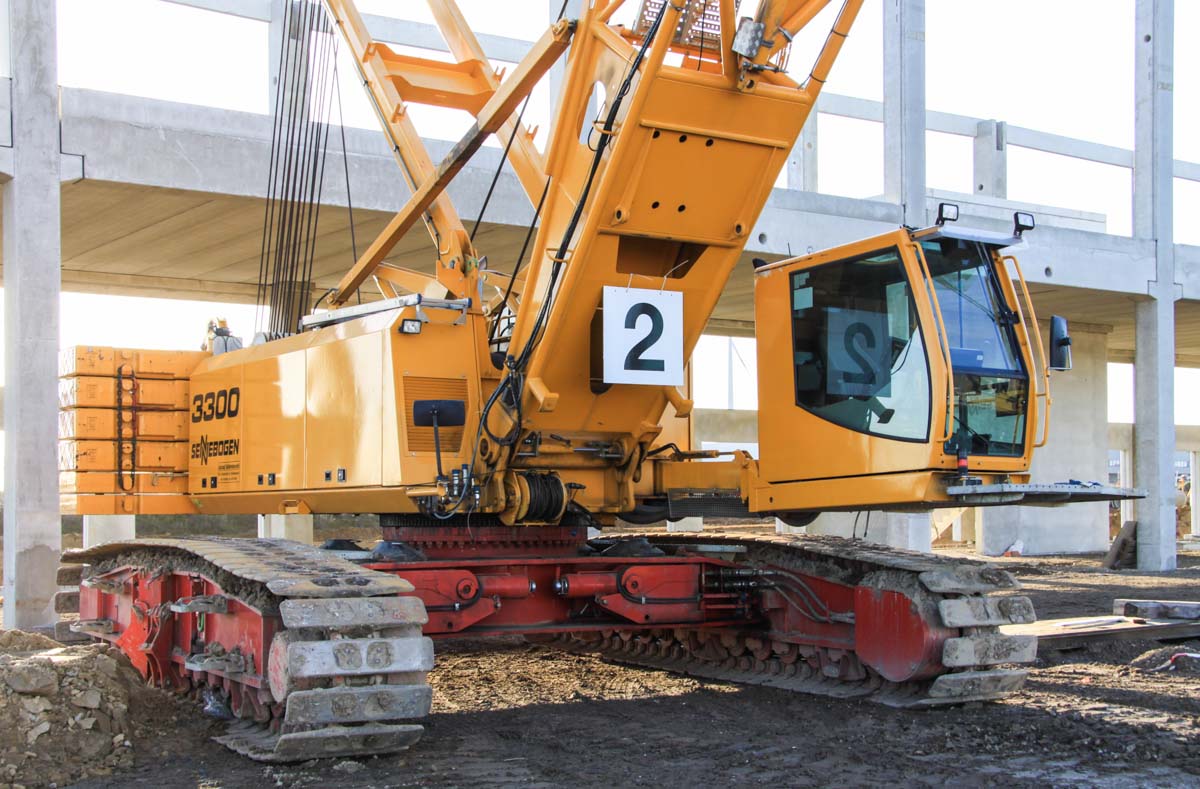

A Sennebogen 3300 of an unknown company on a big construction site near Mönchengladbach (DE) where a new storage hall is build for a big online webshop.

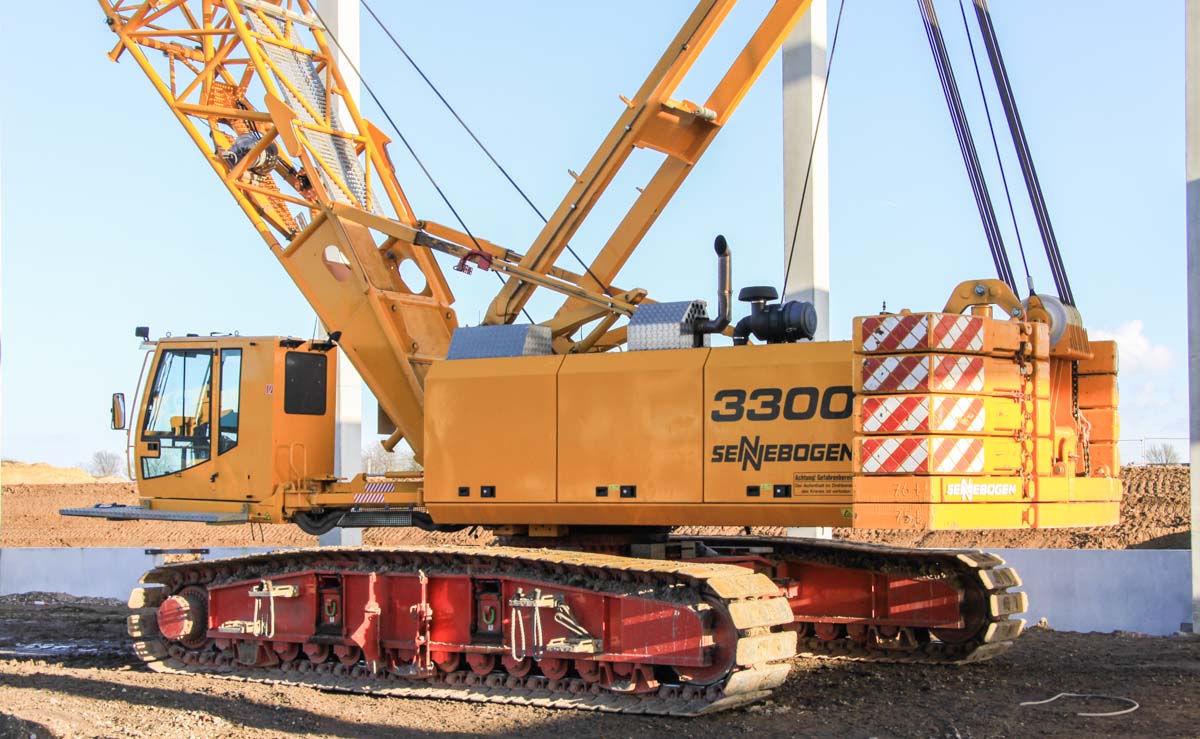

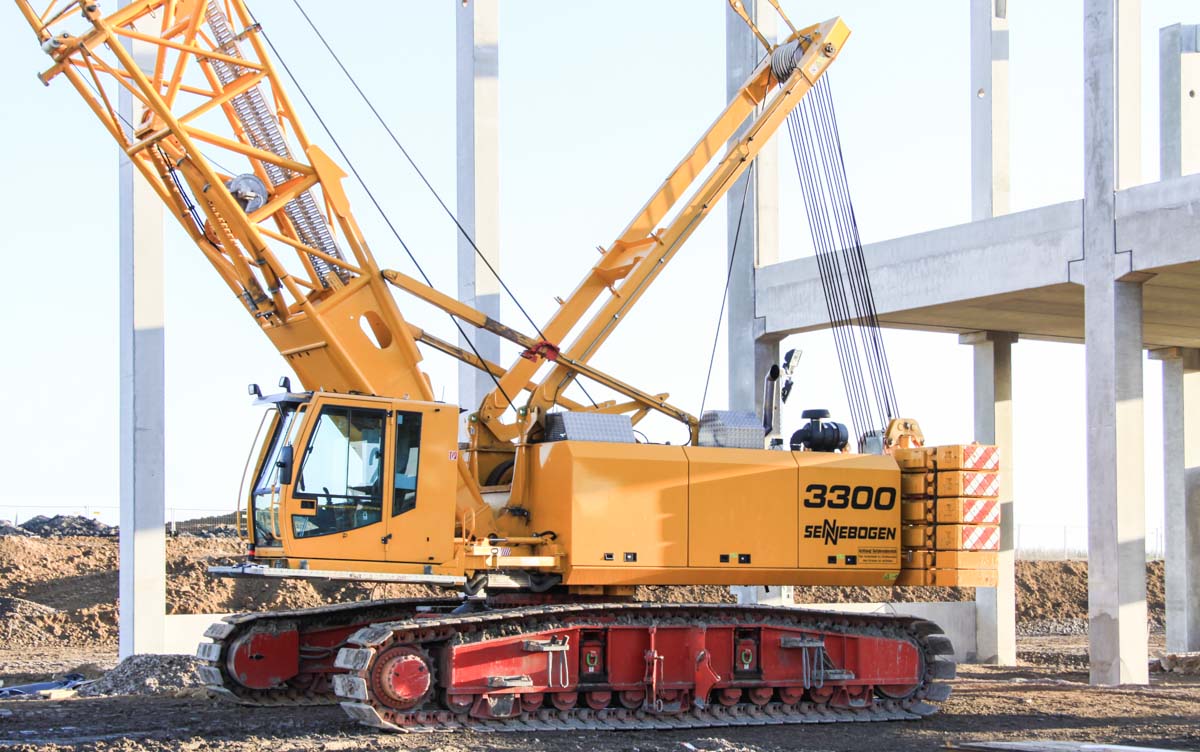

We can see on the colors that this is an old crane from the Wiesbauer company.

It is a 125 tonne crane with year of manufacture 2009.

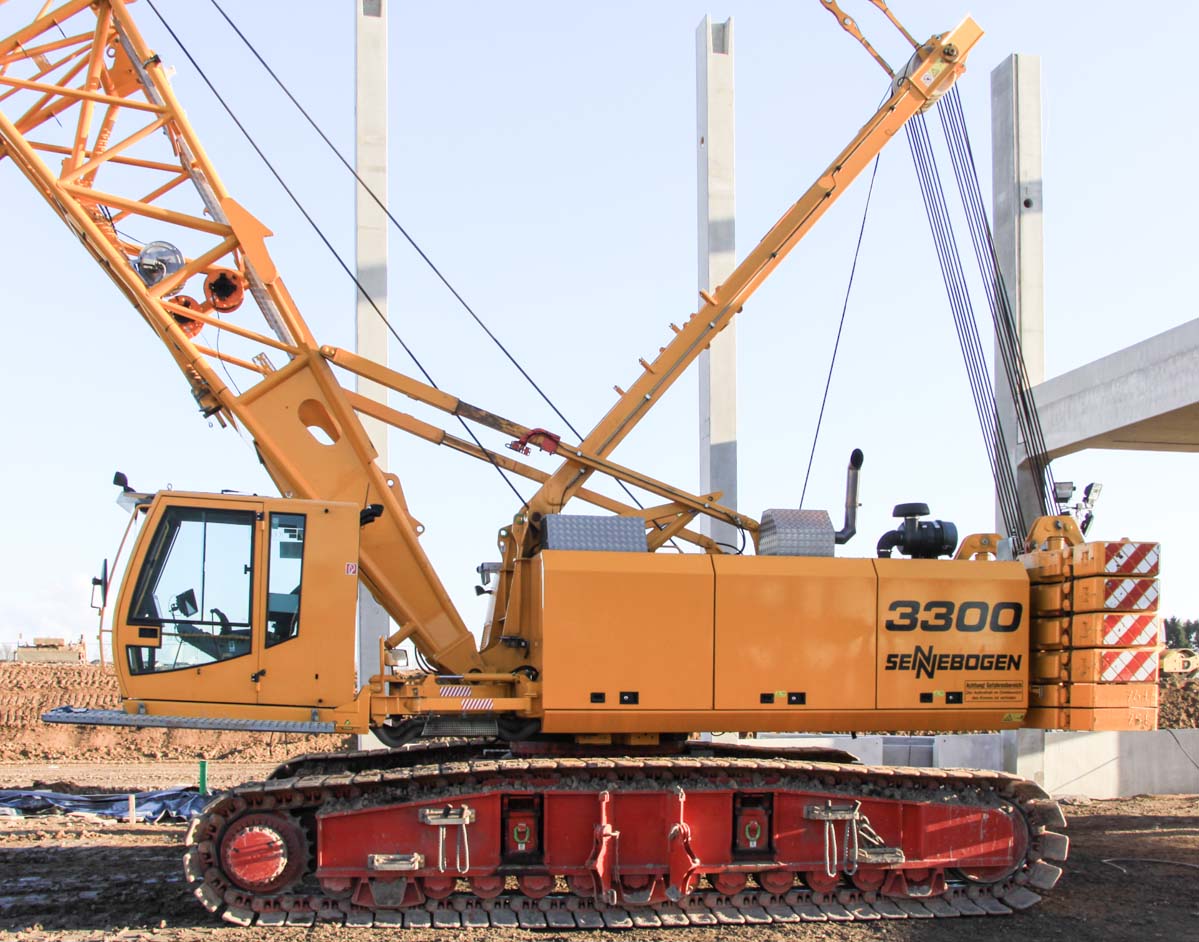

The crawler tracks are 7.15 meters long, 0.9 meters wide and 1.29 meters height. The mass each is 13 tonnes.

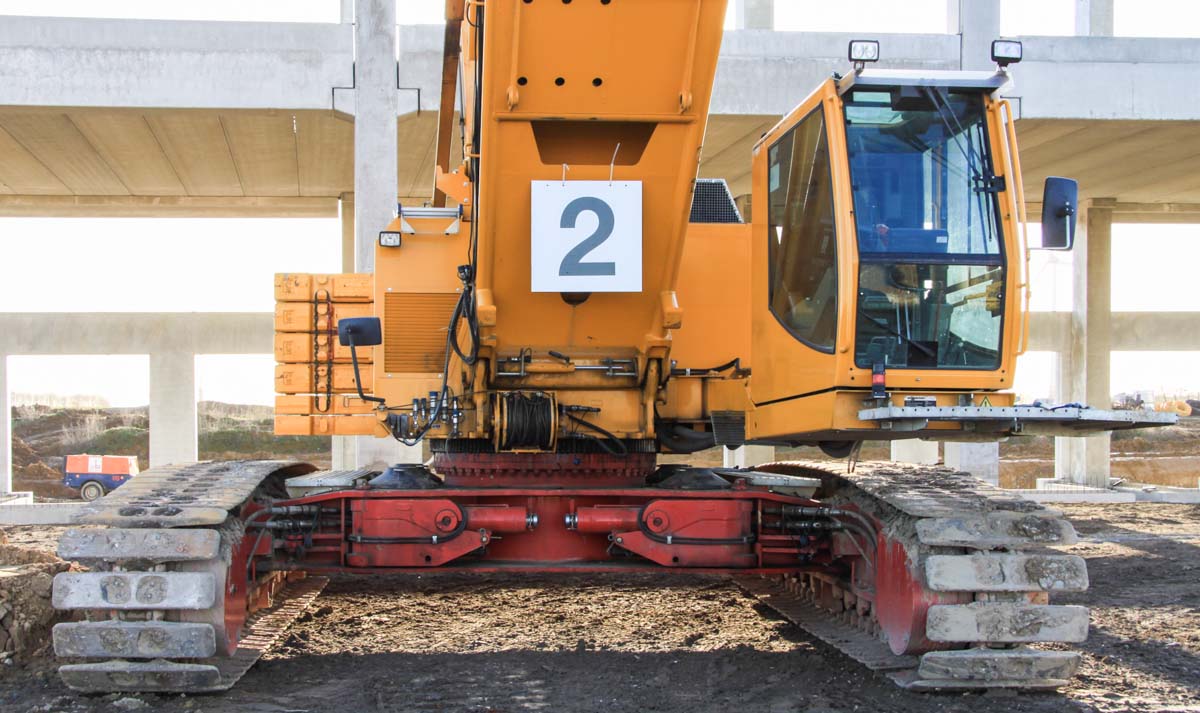

The undercarriage is 5.8 meters wide. For the transport over the road is it required to dismantle the tracks.

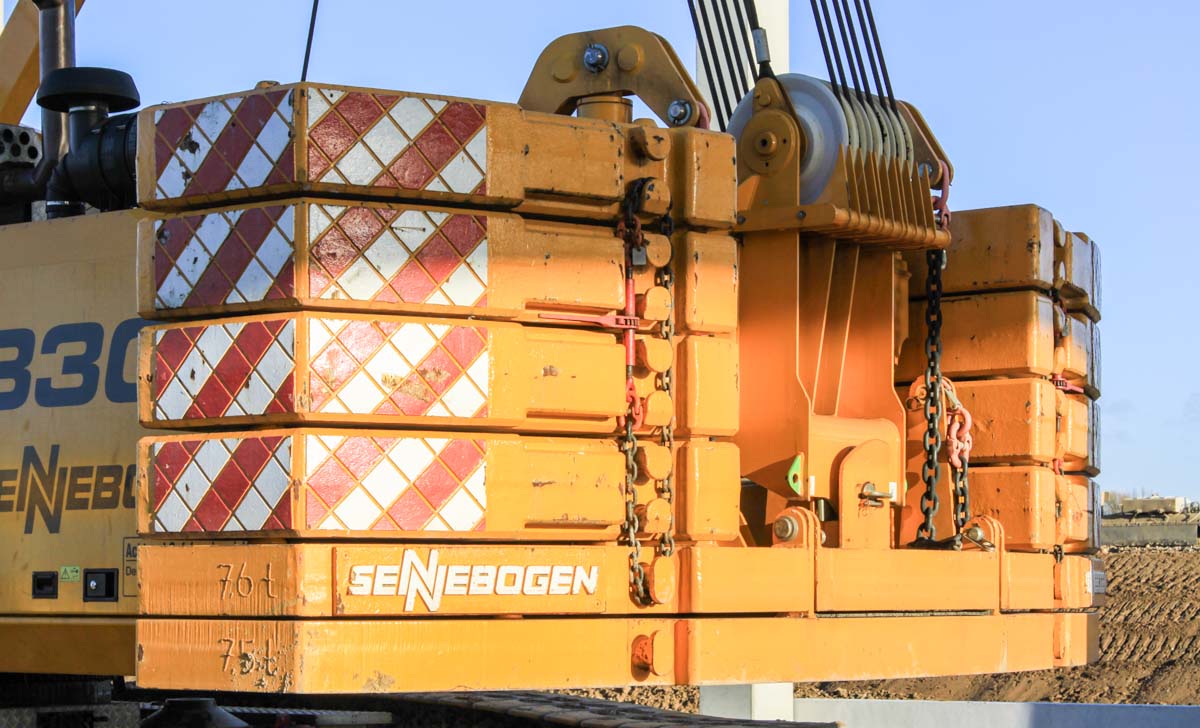

The counterweight weights 37.6 tonnes and exists out of two 7.6 tonne base plates and eight 2.8 tonne slabs.

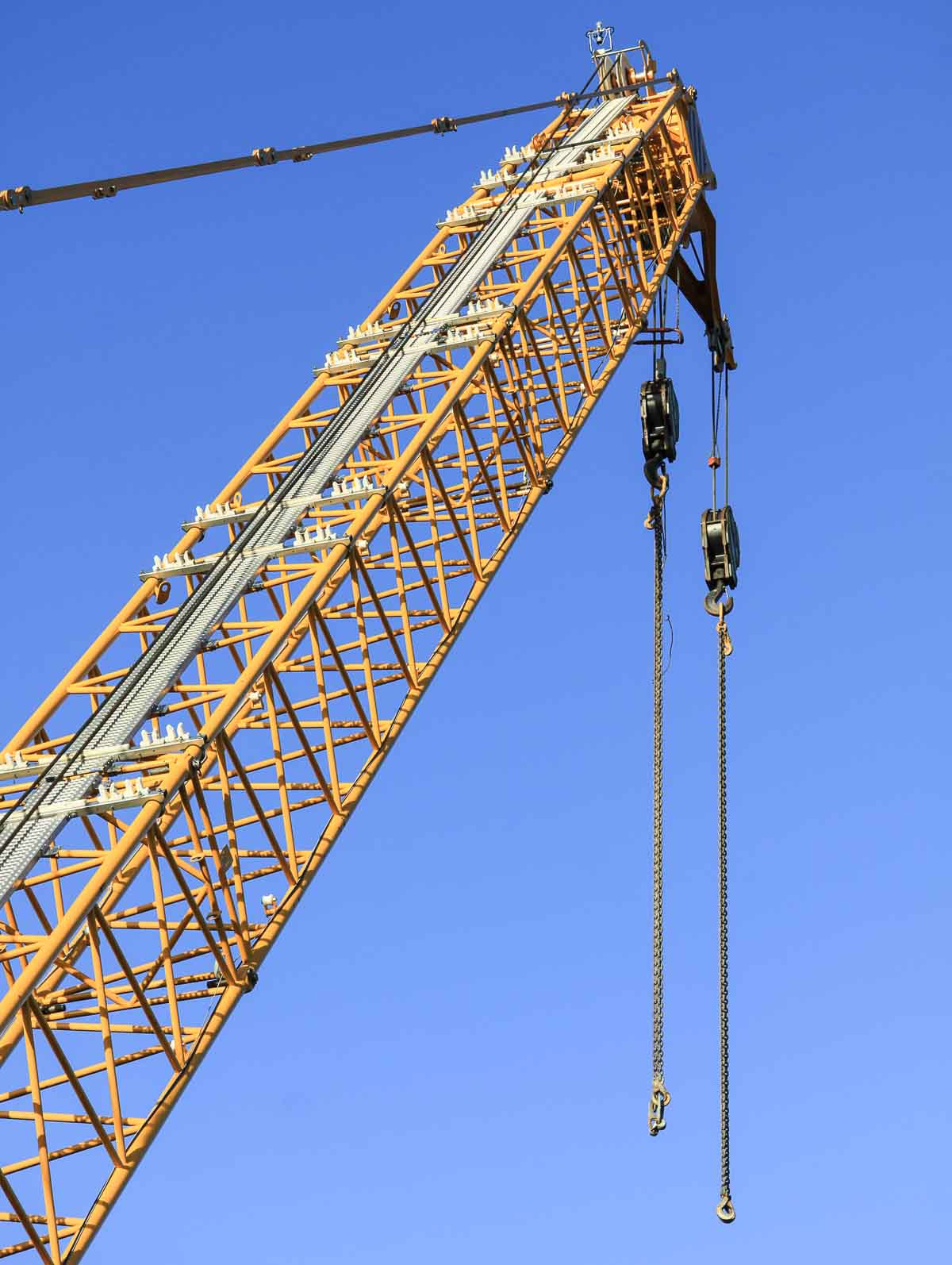

Here is the crane fitted with a 41.1 meter main boom, attached to the boom head is a 24 tonne fixed jib. With them is the crane able to tilt loads by itself.

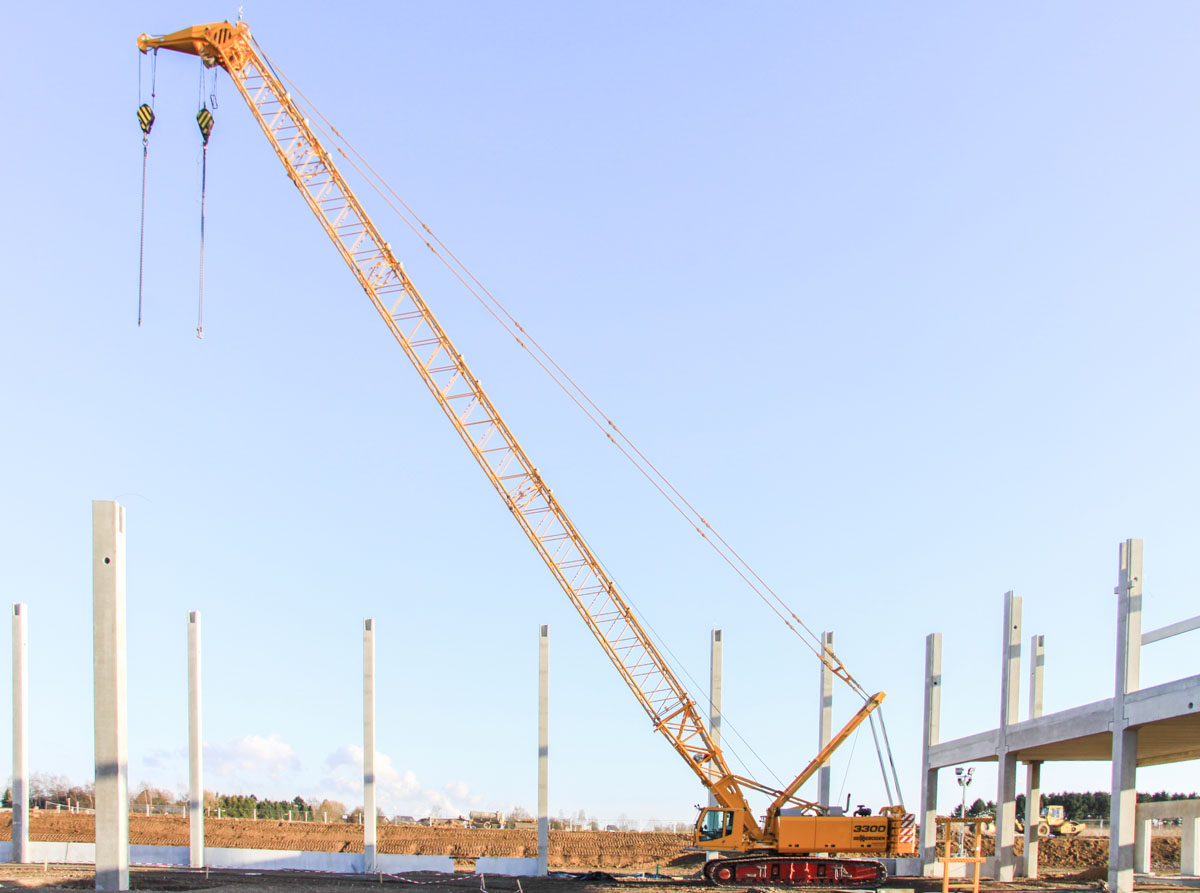

An overview of the nice crane.
