Sennebogen S 1020 M - Aumann

A Sennebogen S 1020 M mobile crane with lattice boom of construction company Aumann from Dettingen (DE).

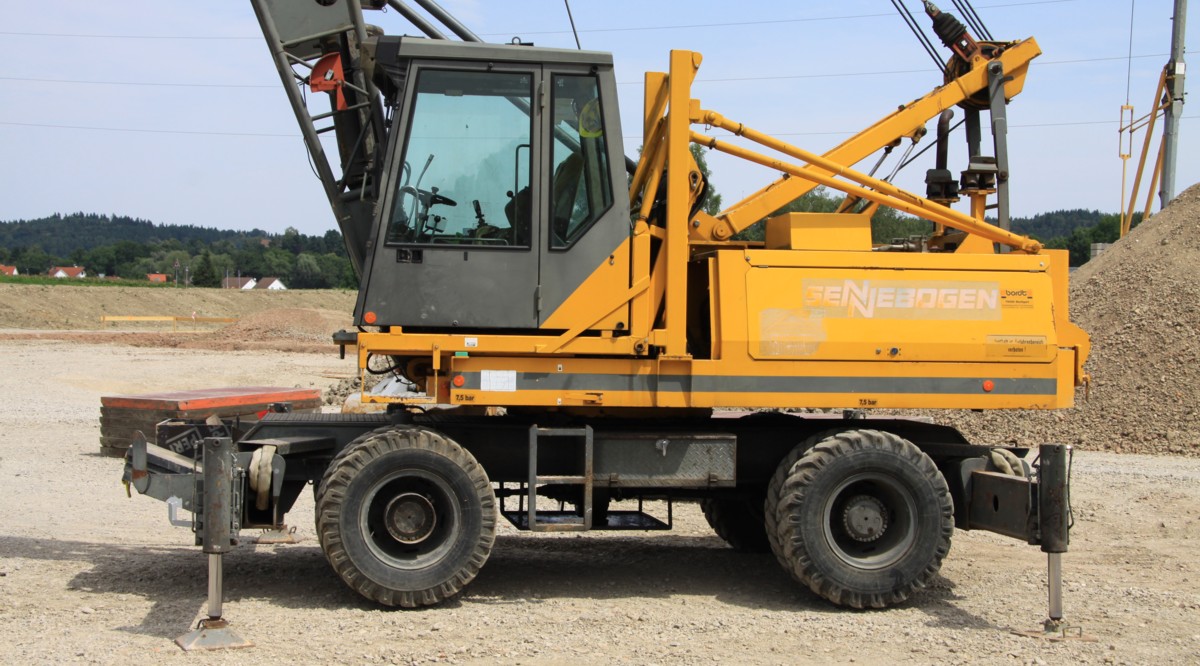

It is a 20 tonne crane on a wheeled carrier, the crane was also available on crawler carrier and was mentioned as S 1020 R. The crane's year of manufacture is 1994.

The crane is powered by a Deutz F6L 912 diesel engine with 106 hp.

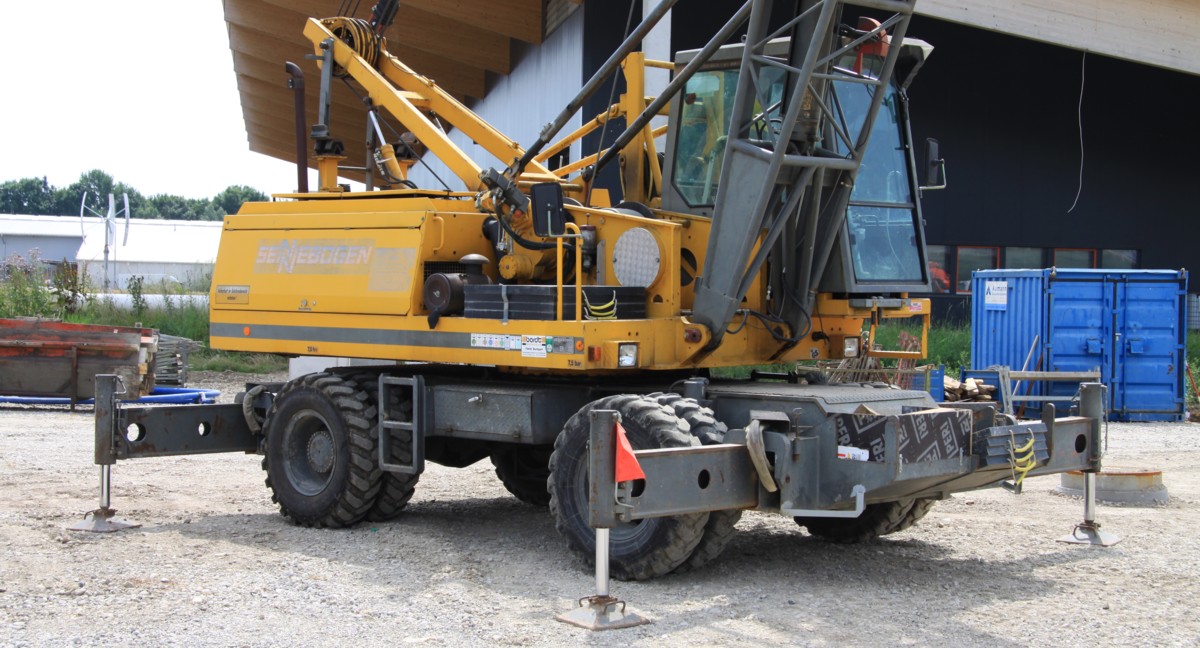

The crane has an operational weight of about 22 tonnes. The crawler crane weights with 26 tonnes 4 tonnes more. The crane's outrigger dimensions are 5 x 5 meter.

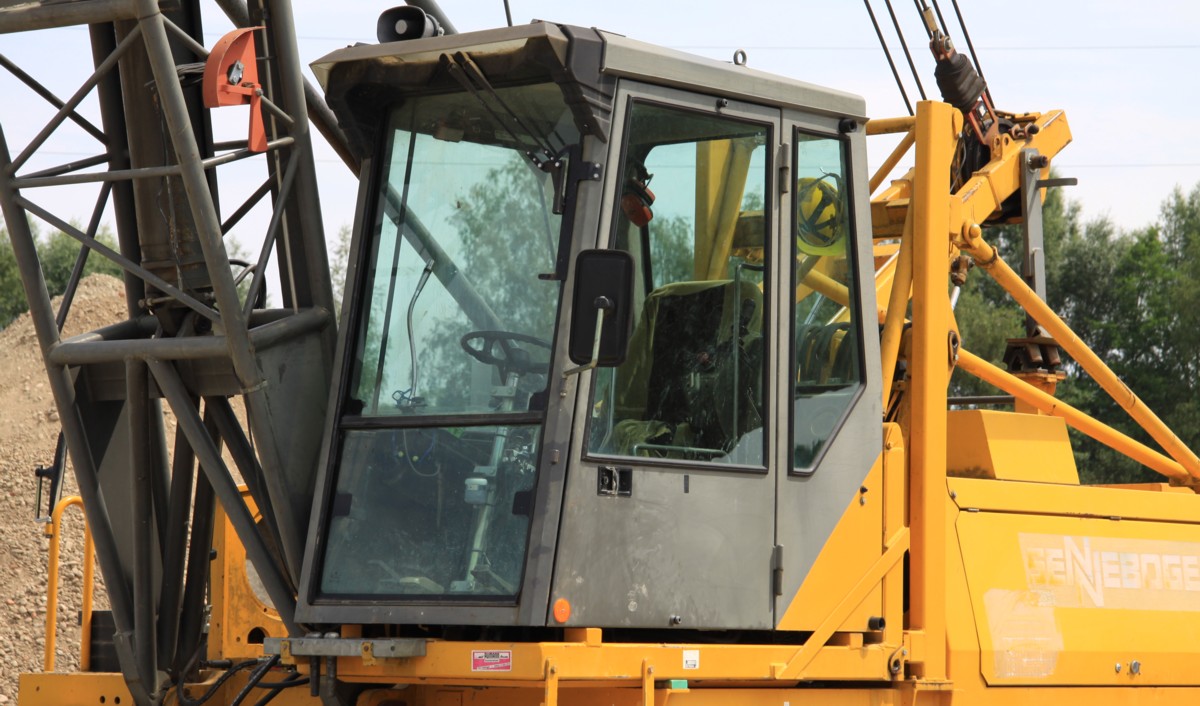

A detail of the elevated cab.

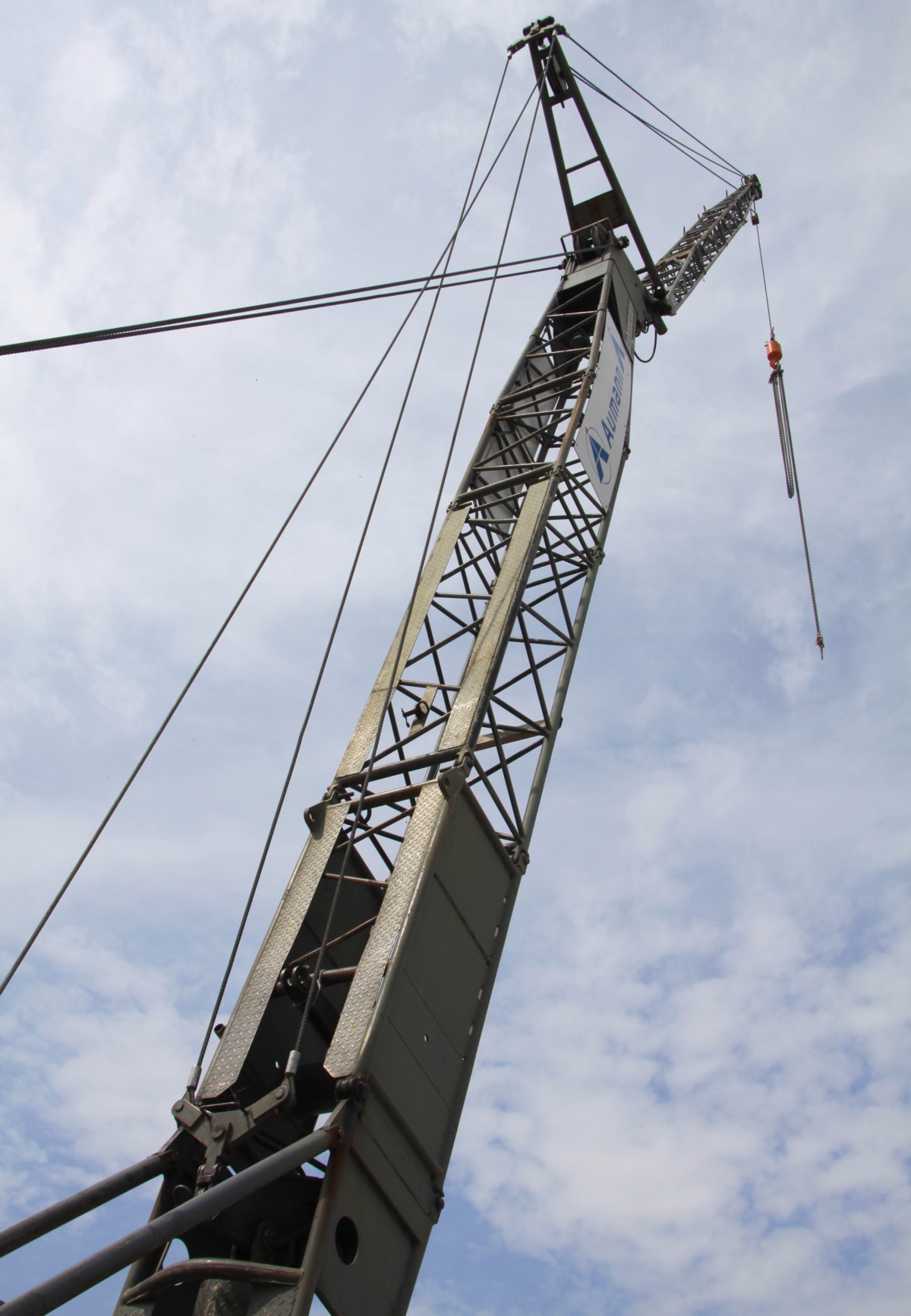

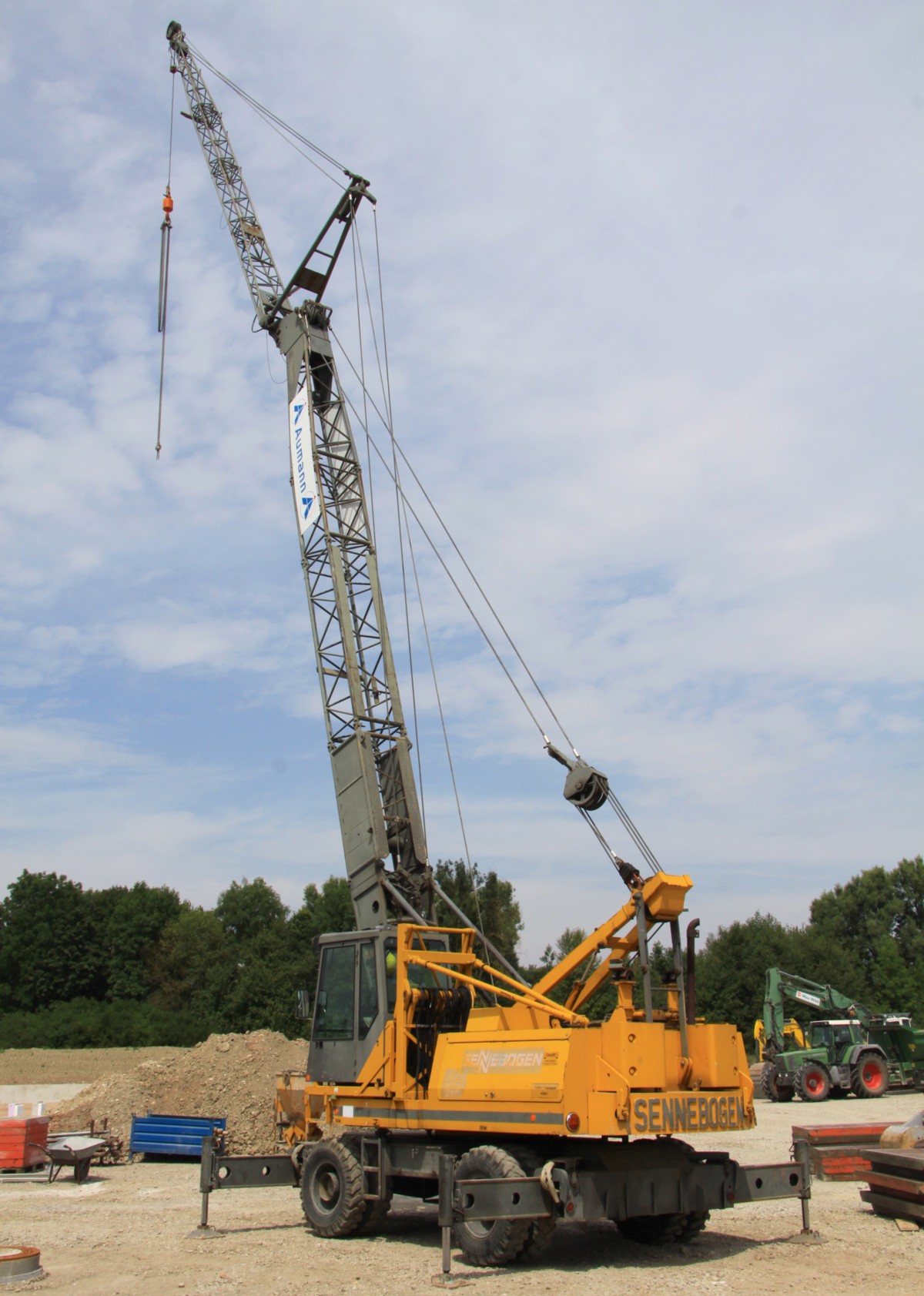

The crane was here put up with 11.5 meters of main boom and a 10 meter jib. The boom can folt it's boom double for the transport over the road.

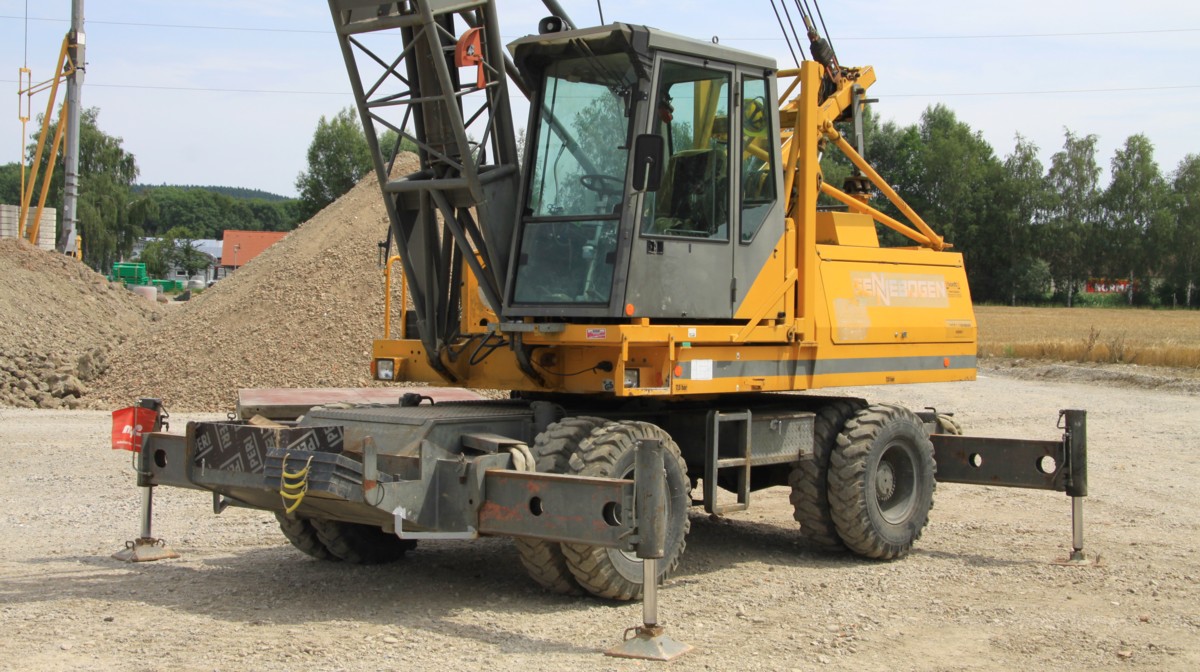

At the rear is hanging 1.6 tonnes of counterweight with a 3 meter tailswing.

This crane is mainly used by the assembly of precast elements.
