Sany SRC900C - Hiap Tong

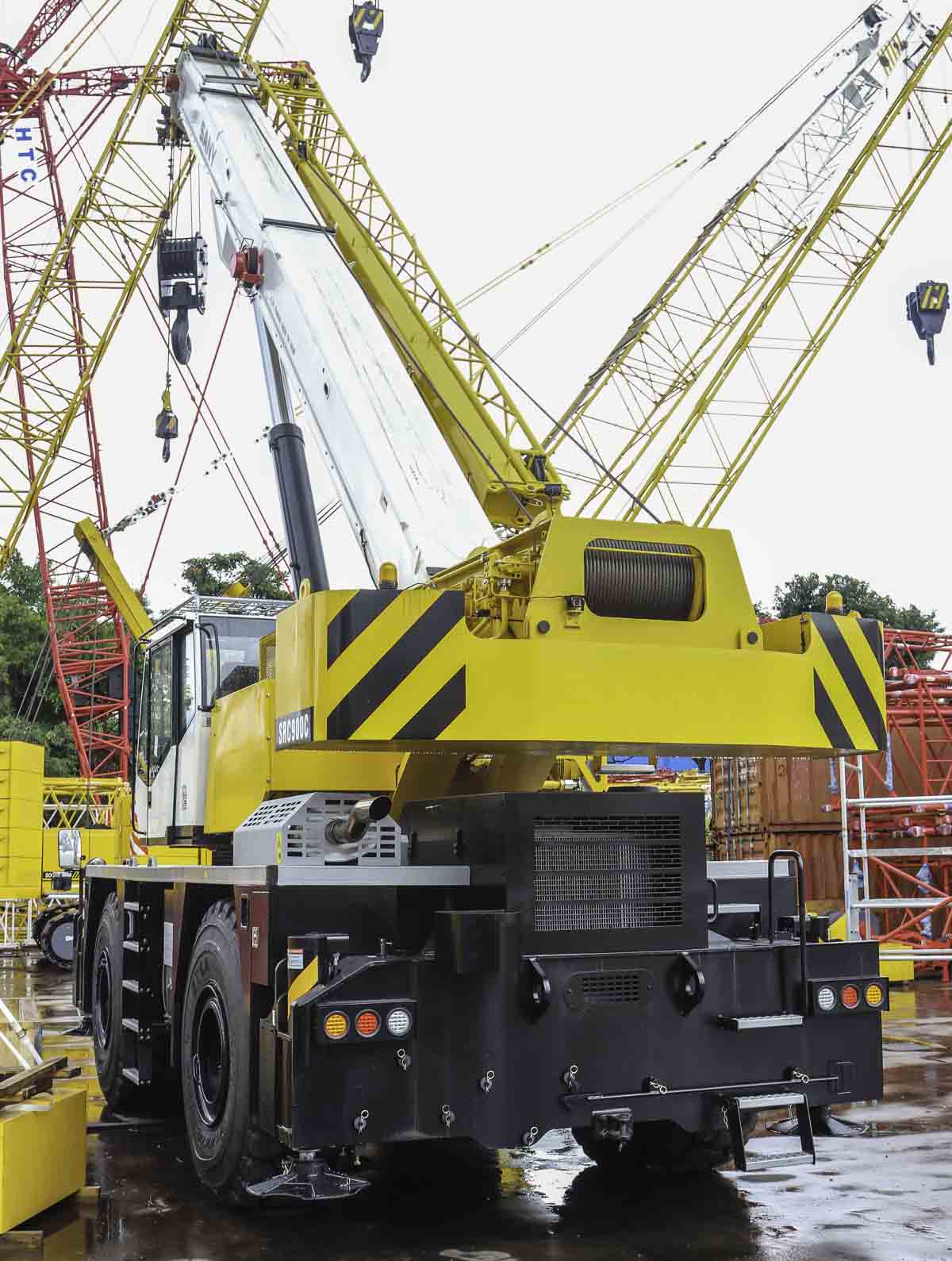

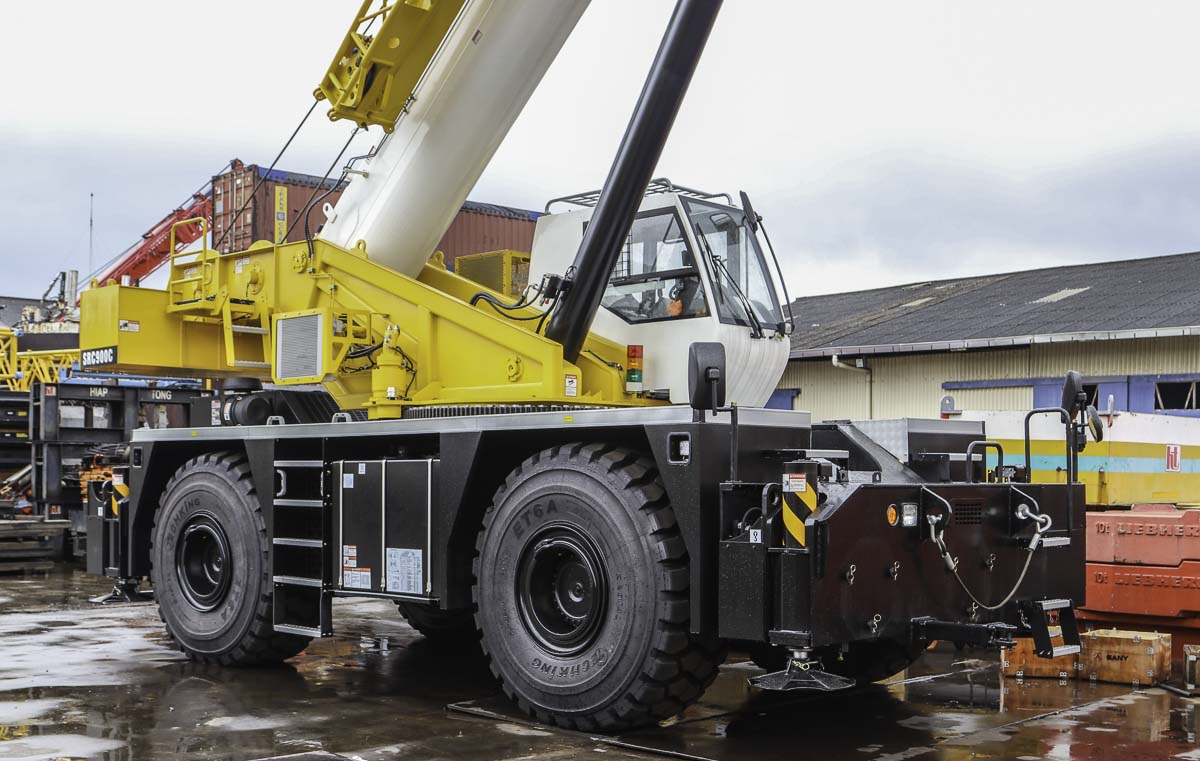

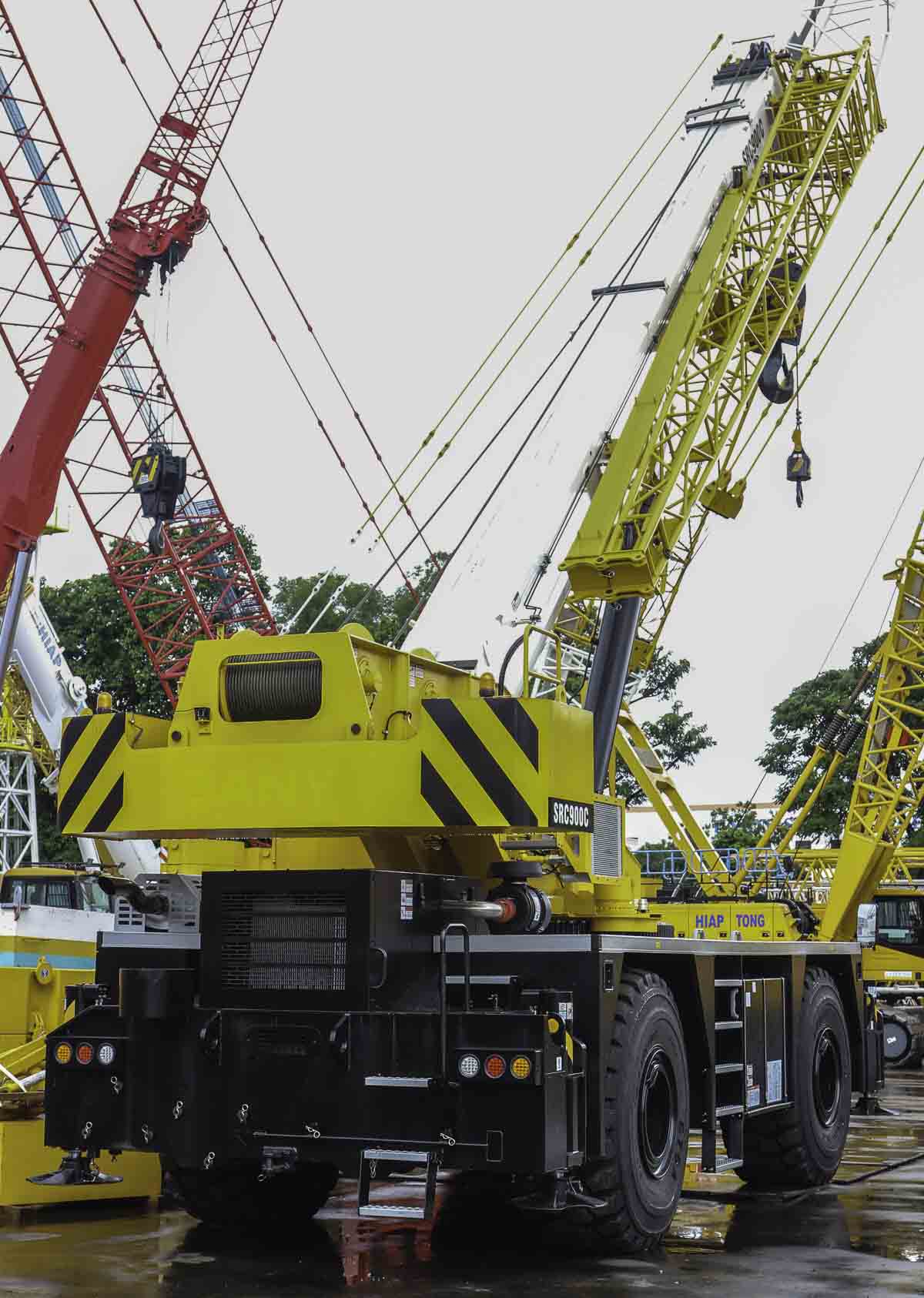

This interesting Sany SRC900C belongs to Hiap Tong from Singapore (SG) and stood parked on their yard. It is a 90-tonne rough terrain crane mounted on a 2-axle carrier with year of manufacture 2020.
The crane is powered by a Cummins ISDe285, a 6-cylinder diesel engine with a power of 210 kW (282 hp). Both axles are powered and steerable, a speed of maximum 35 km/h can be reached.

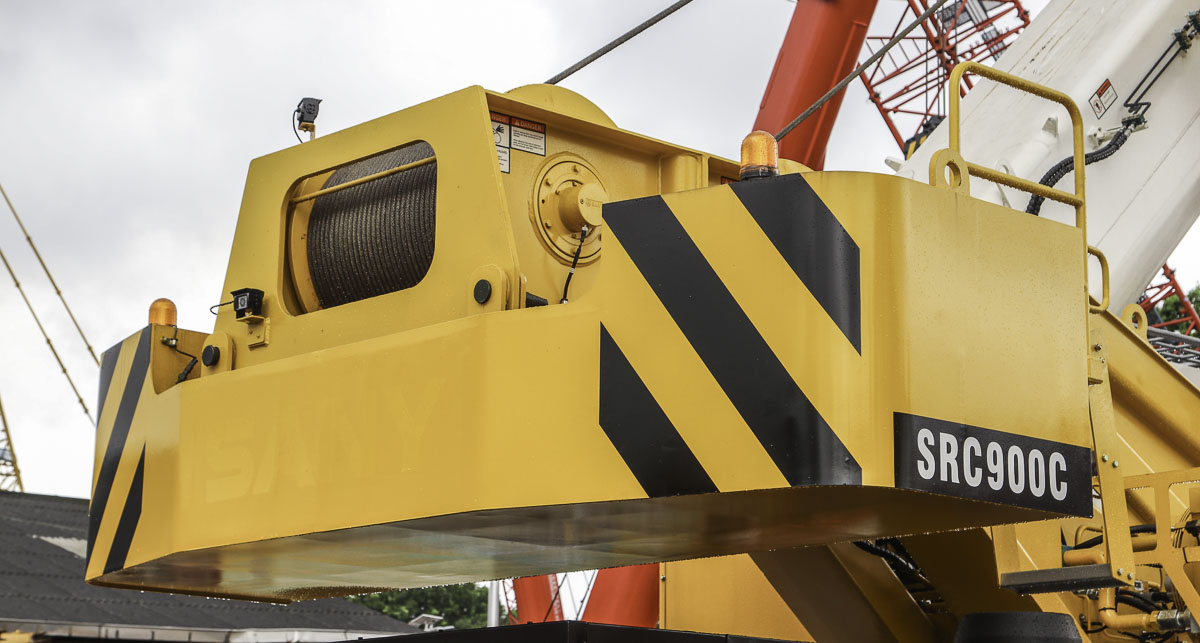

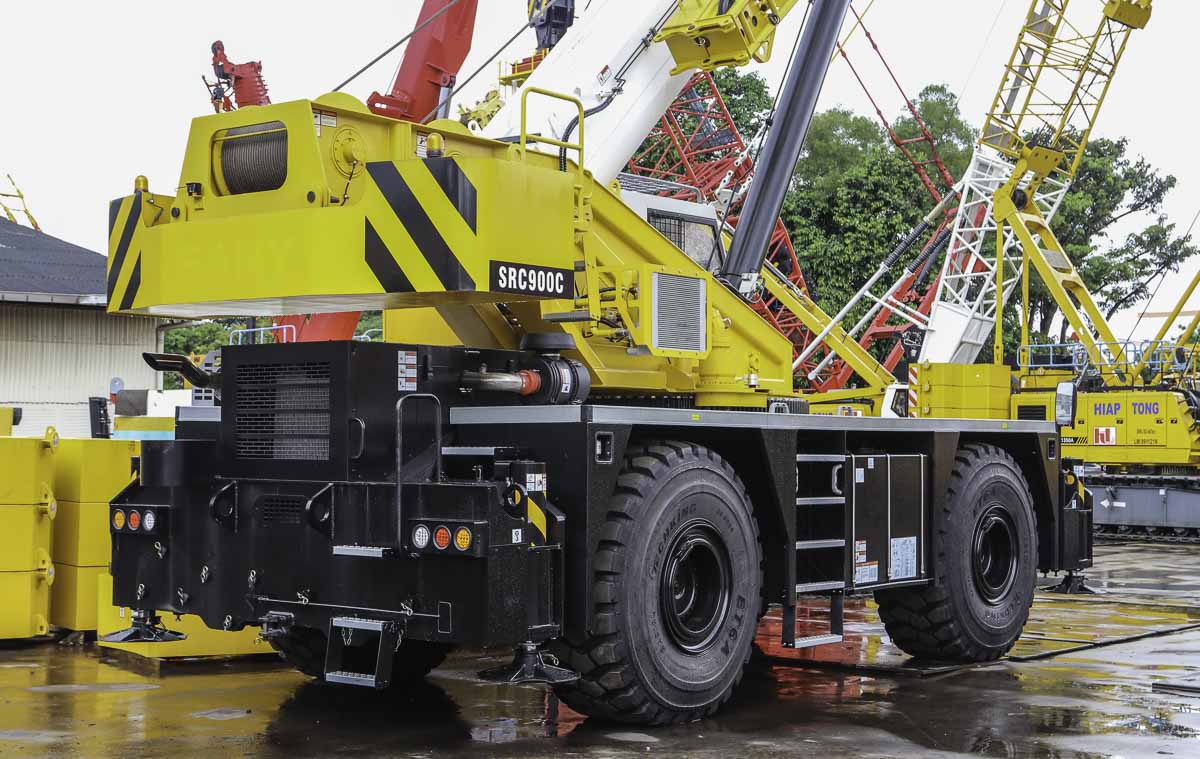

Attached to the superstructure is a counterweight of 9.5 tonnes, the counterweight has a 4.6 meter tailswing. The crane is fitted with two 8-tonne hoist winches with a 22 mm hoist wire rope.
The outrigger base measuers 7.52 x 7.4 meters, or half 7.52 x 5.25 meters. The carrier is 8.53 meters long and 3.34 meters wide.

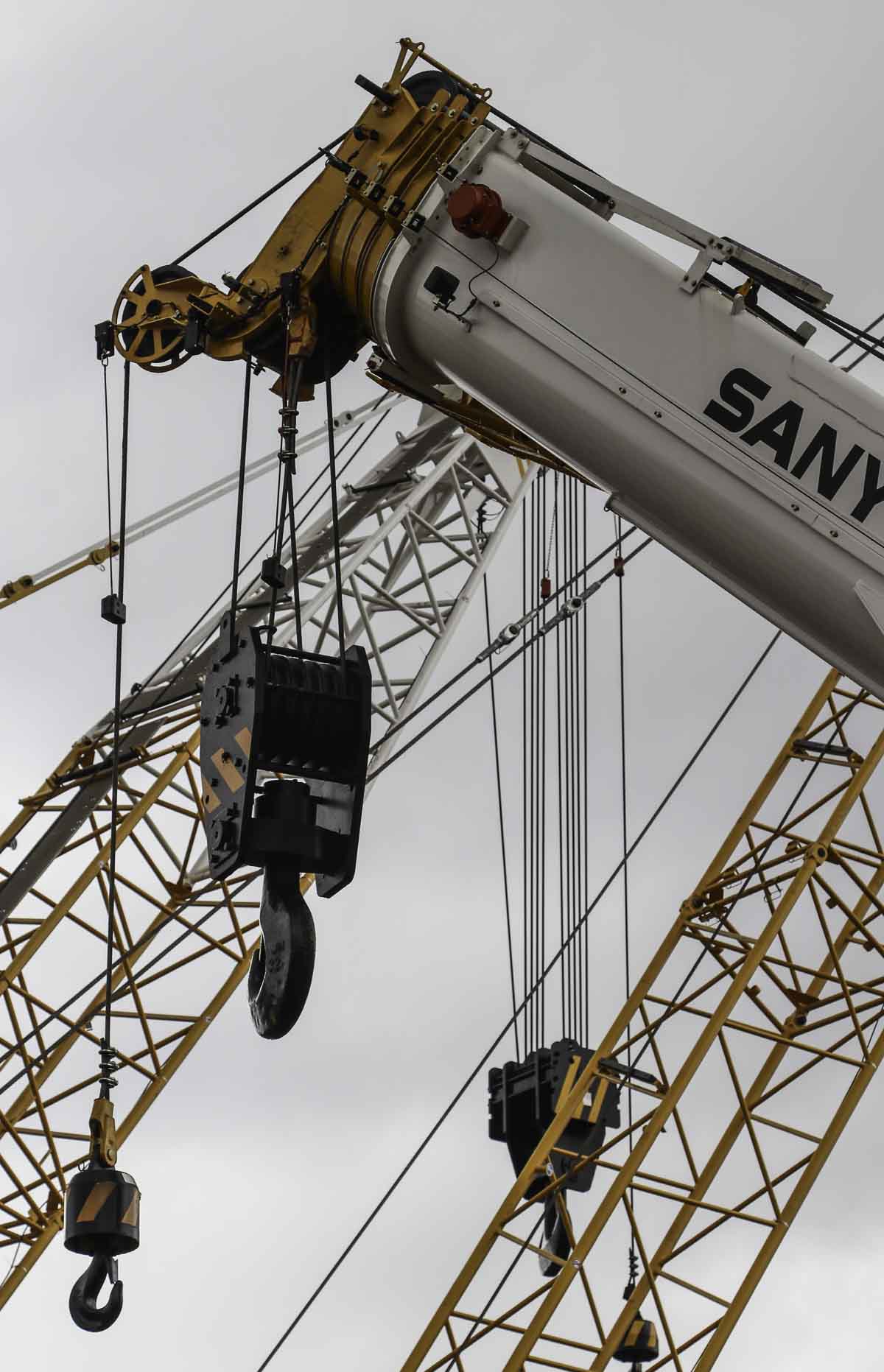

The five-part main boom has a 12.2 meter base length and extends four times to a maximum lenght of 47 meters. Optionally is the main boom extendable by a 10.2 - 17.5 meter long bi-fold swingaway jib. The jib can be mounted in an angle of 0, 15 or 30 degrees to the main boom.
A very sharp crane of Hiap Tong!
