Puyuan QY50H - Lee Hong

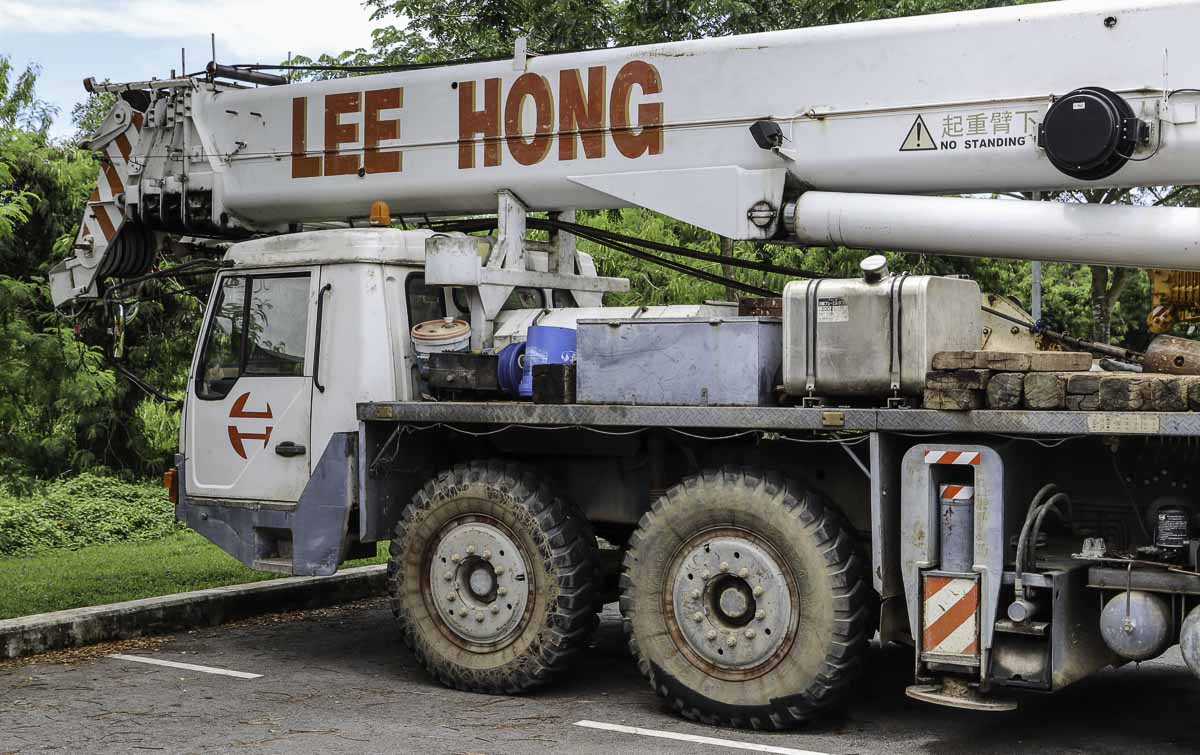

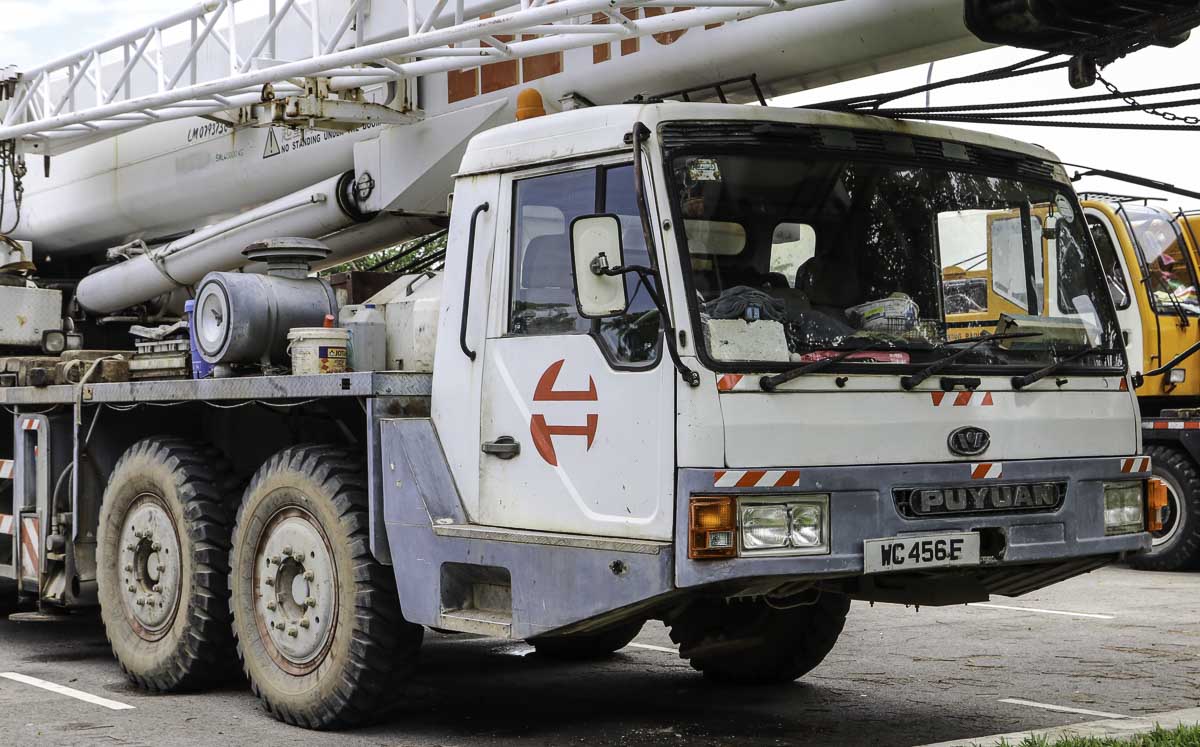

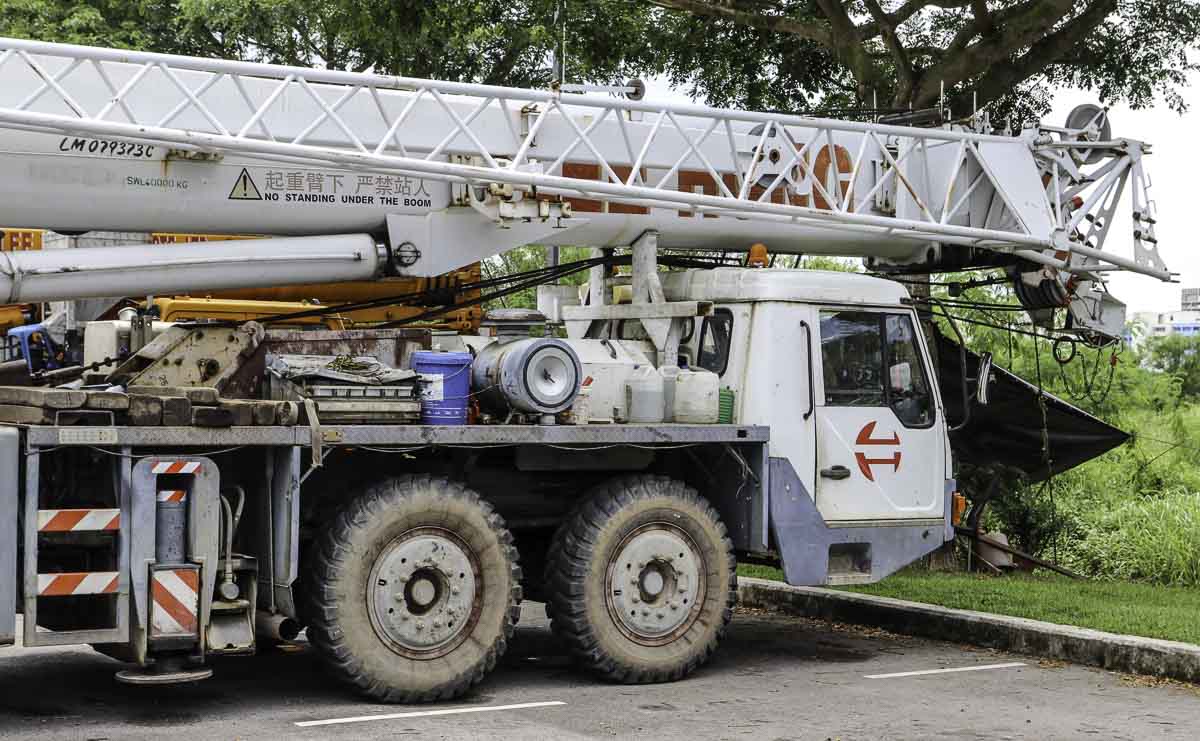

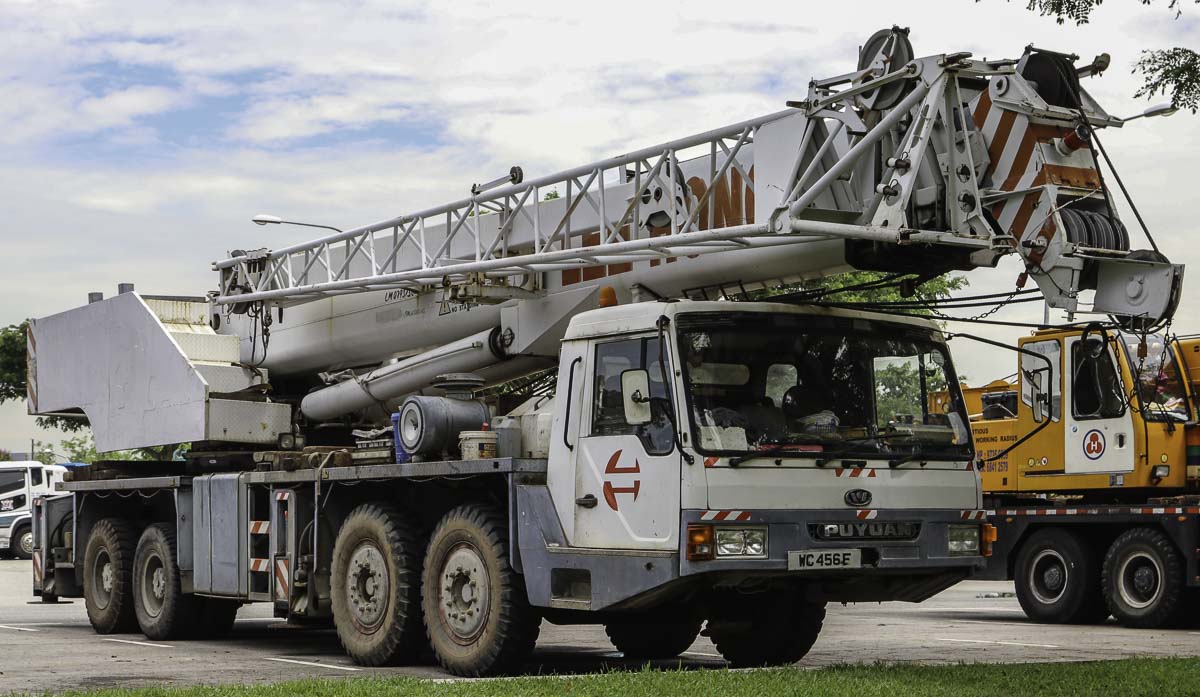

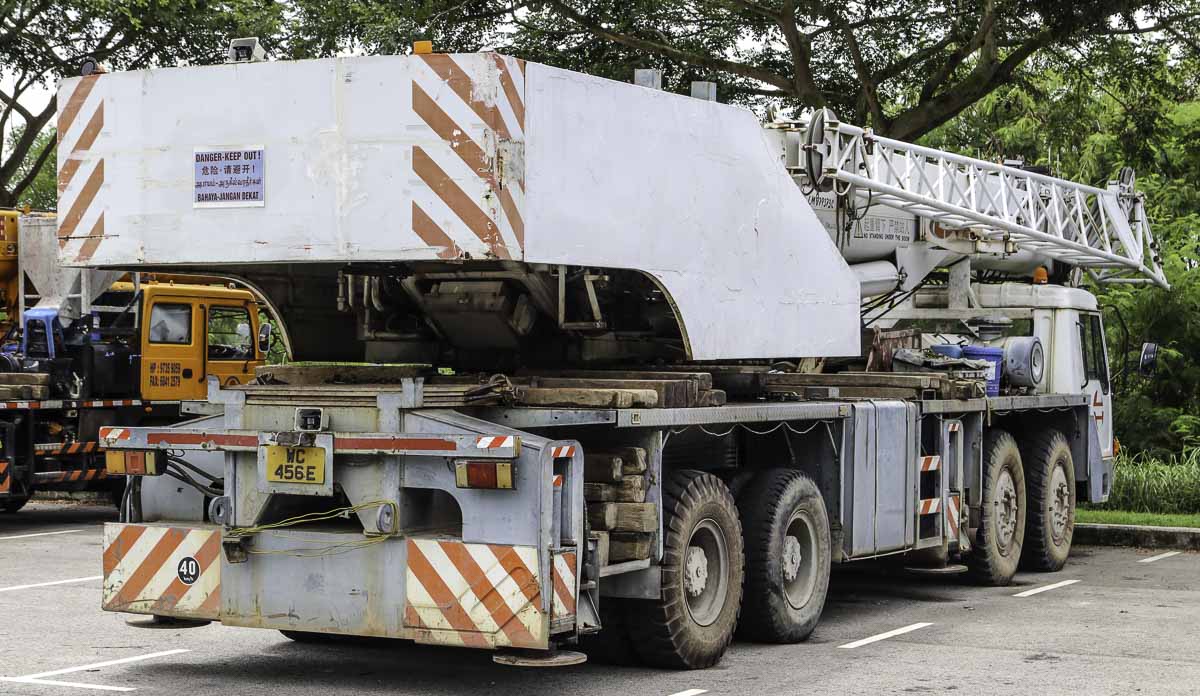

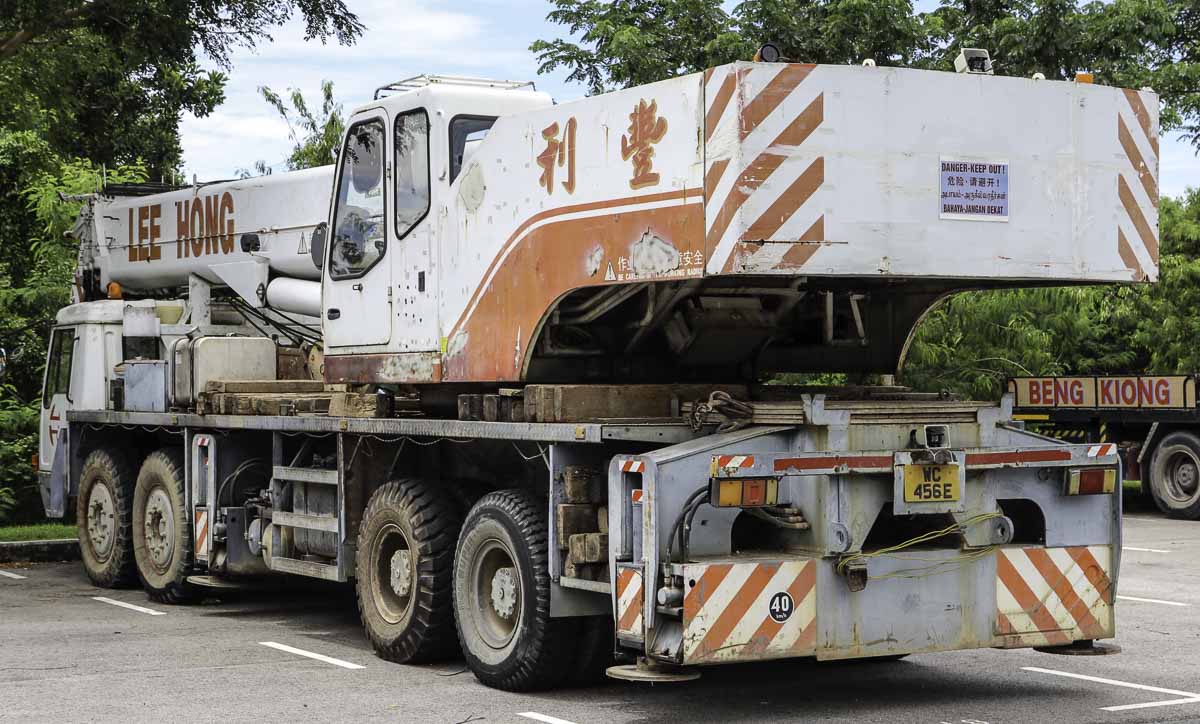

This impressive Puyuan QY50H of Lee Hong from Singapore (SG) stood parked on a large parking. It is a 50-tonne truck crane mounted on a 4-axle carrier.
The undercarriage is powered by a Wechai WP10.336, a 9.7-liter 6-cylinder diesel engine with a power of 247 kW (336 hp). Both rear axles are powered, both front axles are steerable.
The outrigger base measures 6.7 x 5.75 meters. During the transport over the road are both hooks stored on the deck of the undercarriage.
In transit is the crane 13.6 meters long, 2.75 meters wide and 3.55 meters tall. The total mass is approx. 41 tonnes.
During the transport over the road is the crane able to reach a driving speed of maxmium 66 km/h.

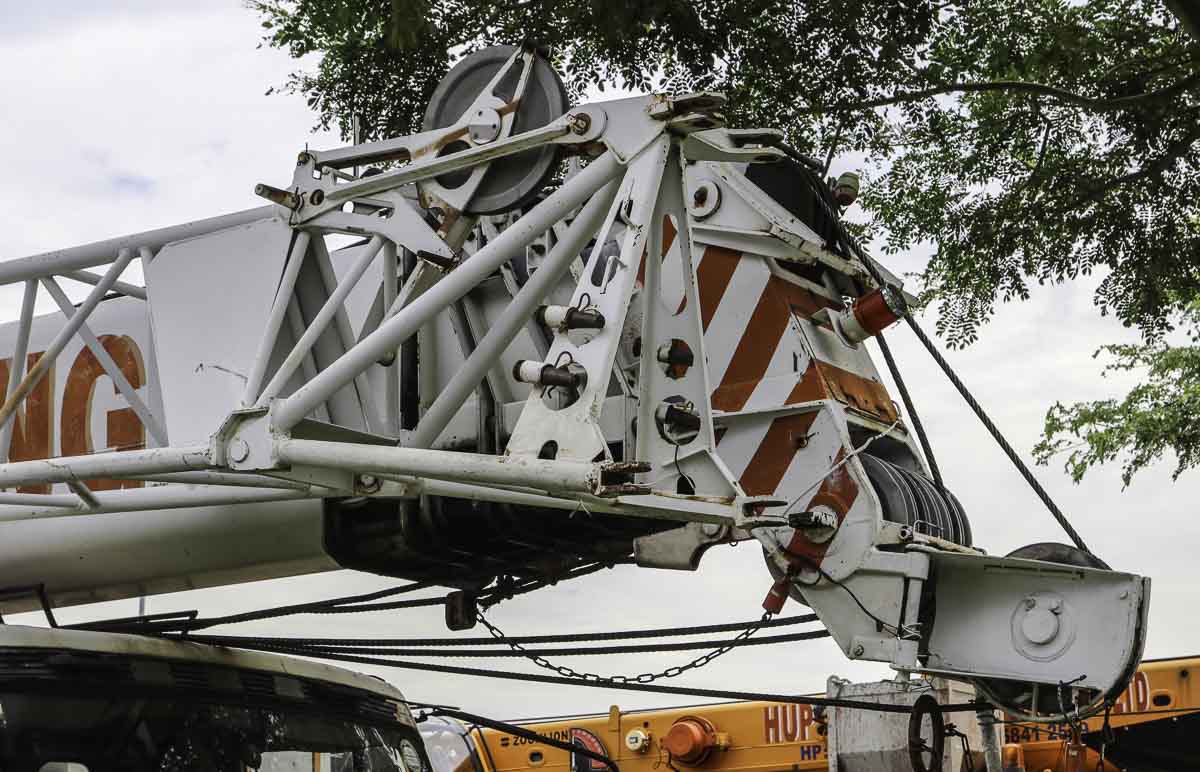

The 5-part main boom has a 10.8 meter base length and extends four times to a maximum length of 40.2 meters. The main boom can be extended by a 9 - 15 meter long bi-fold swingaway jib. The jib is mountable to the main boom under a 0 or 30 degree angle.
