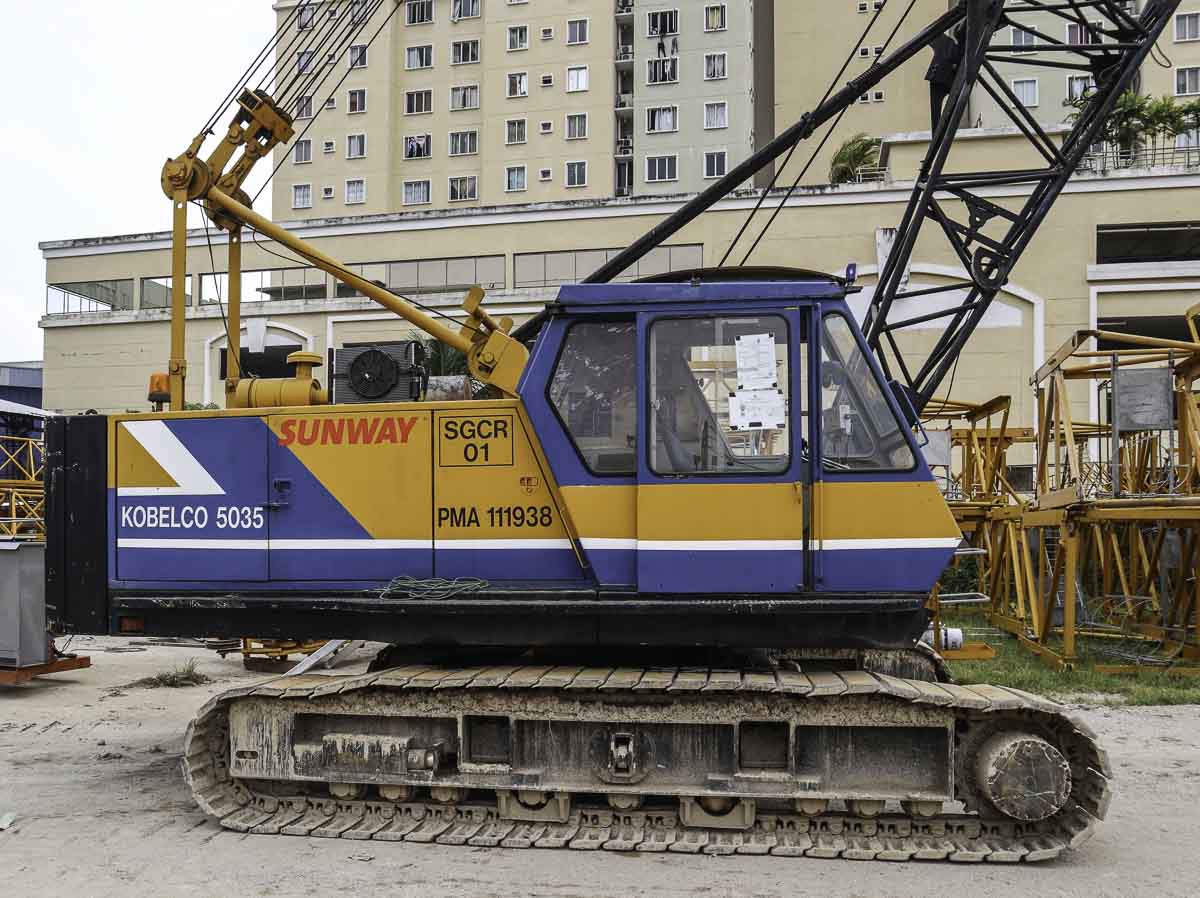

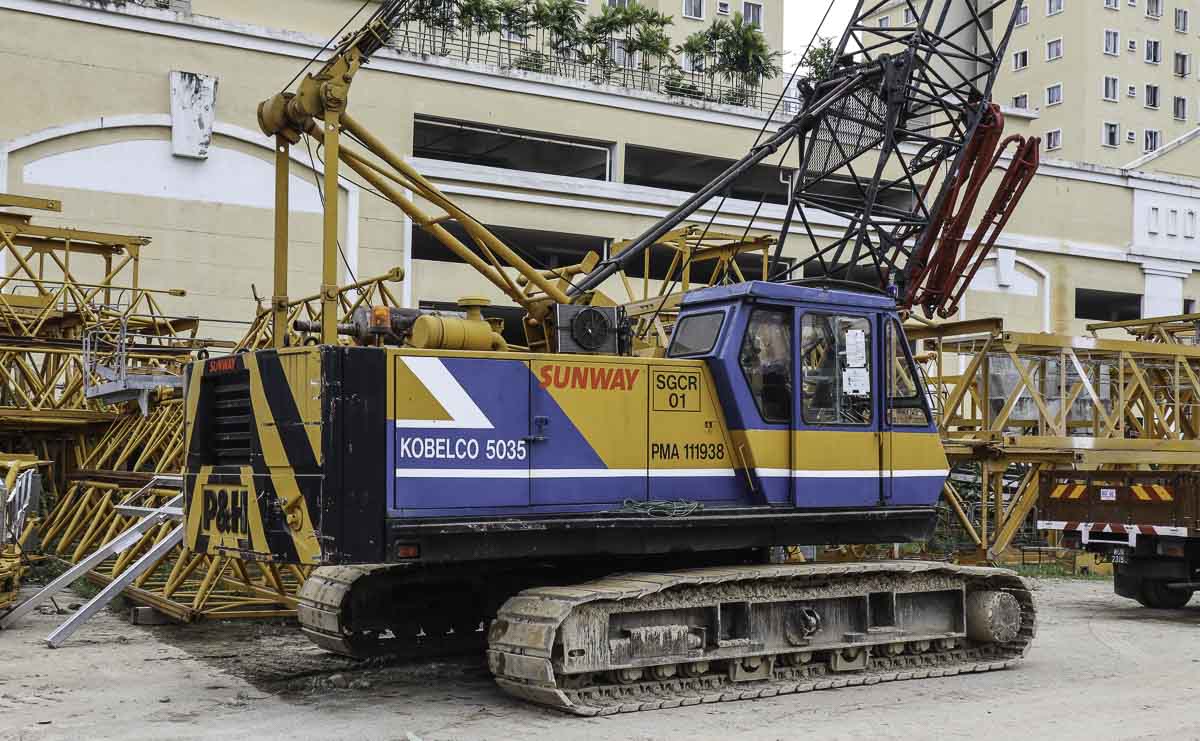

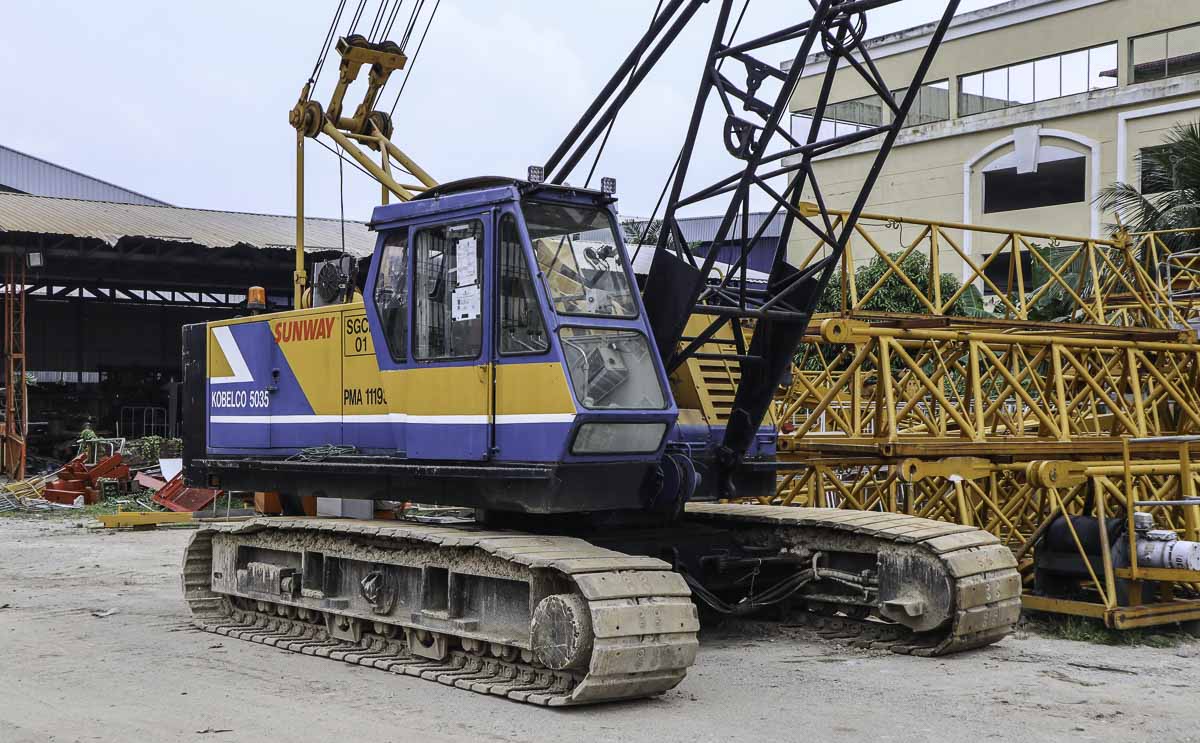

This interesting P&H Kobelco 5035 is used by Sunway on their storage yard in Kuala Lumpur (MY). It is a 35-tonne crawler crane.
The undercarriage measures 5.42 x 4.26 meters, for the transport over the road is the width hydraulically adjustable to a width of 3.3 meters.

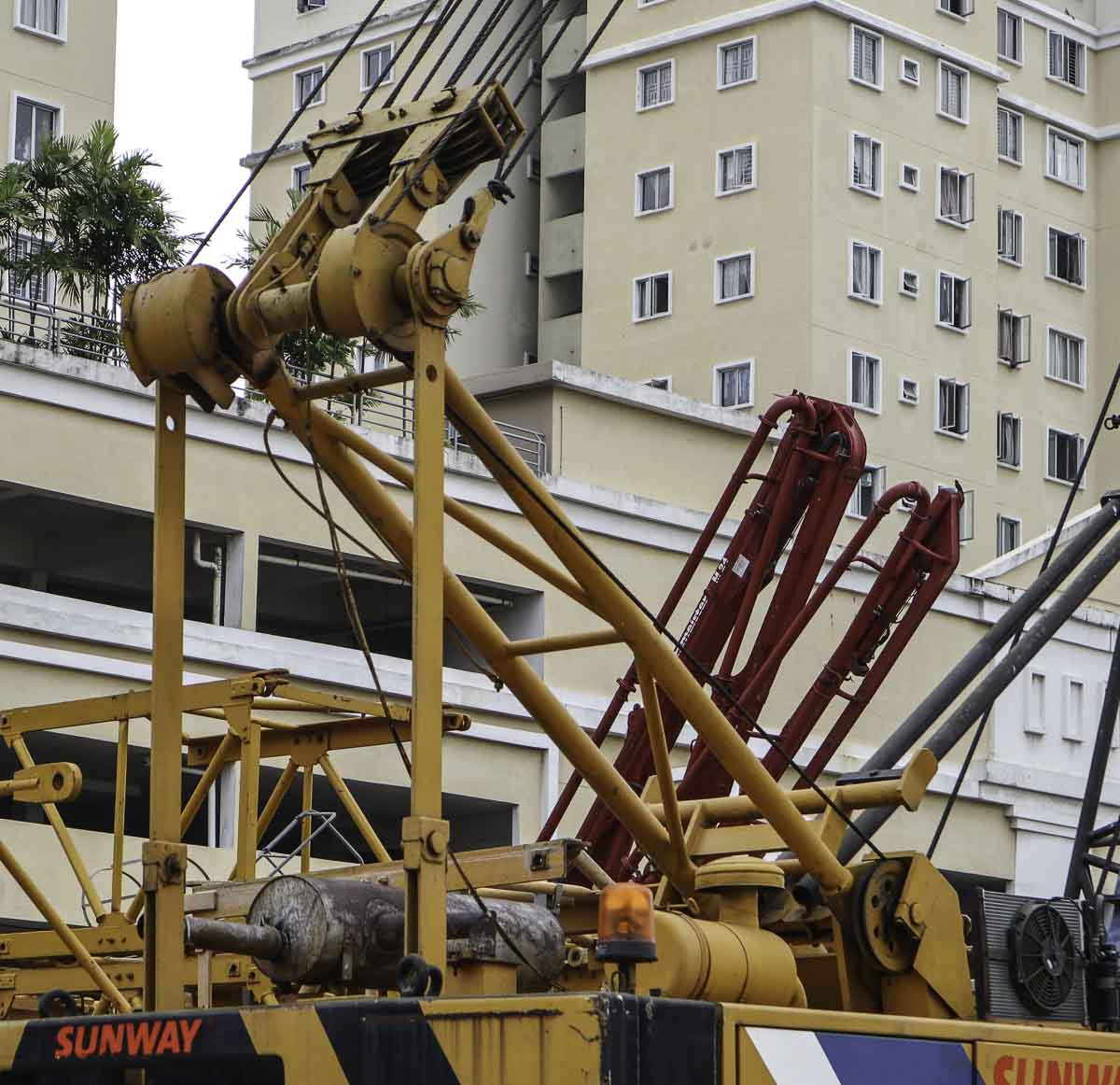

The crane is fitted with two 5-tonne hoist winches.

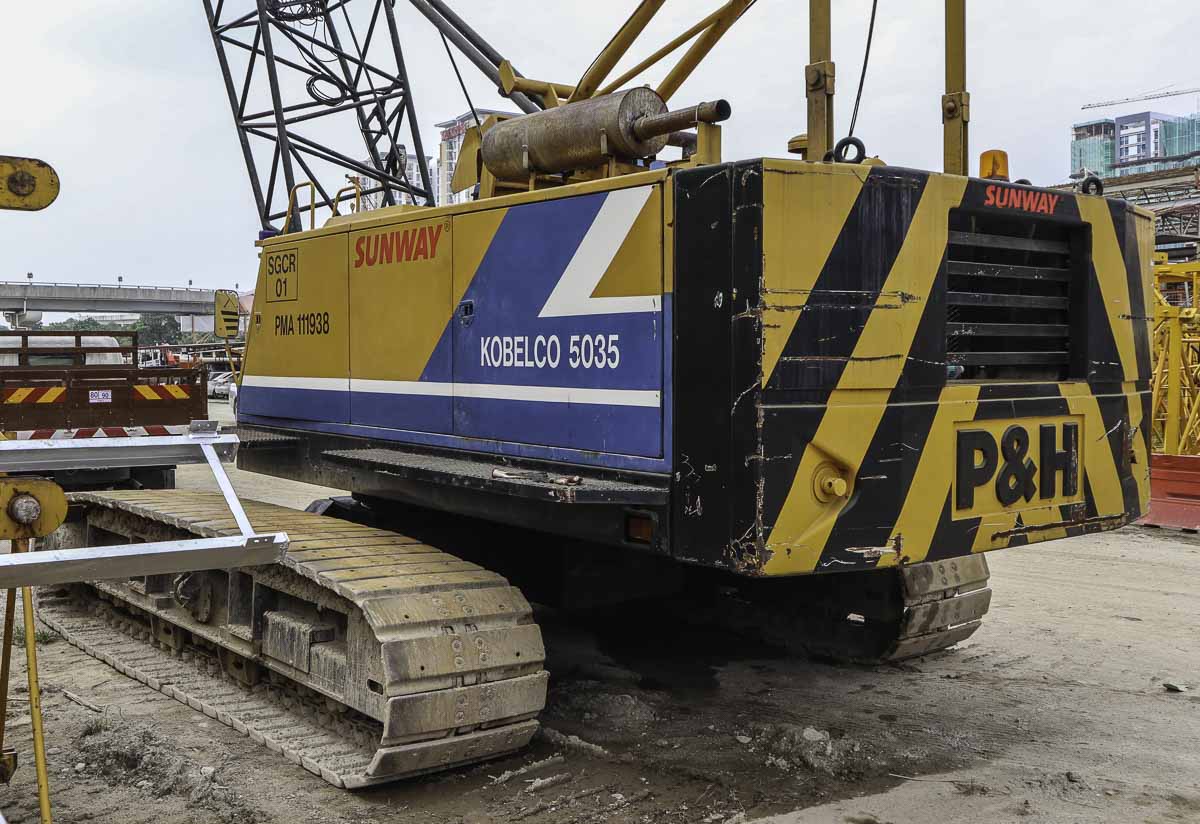

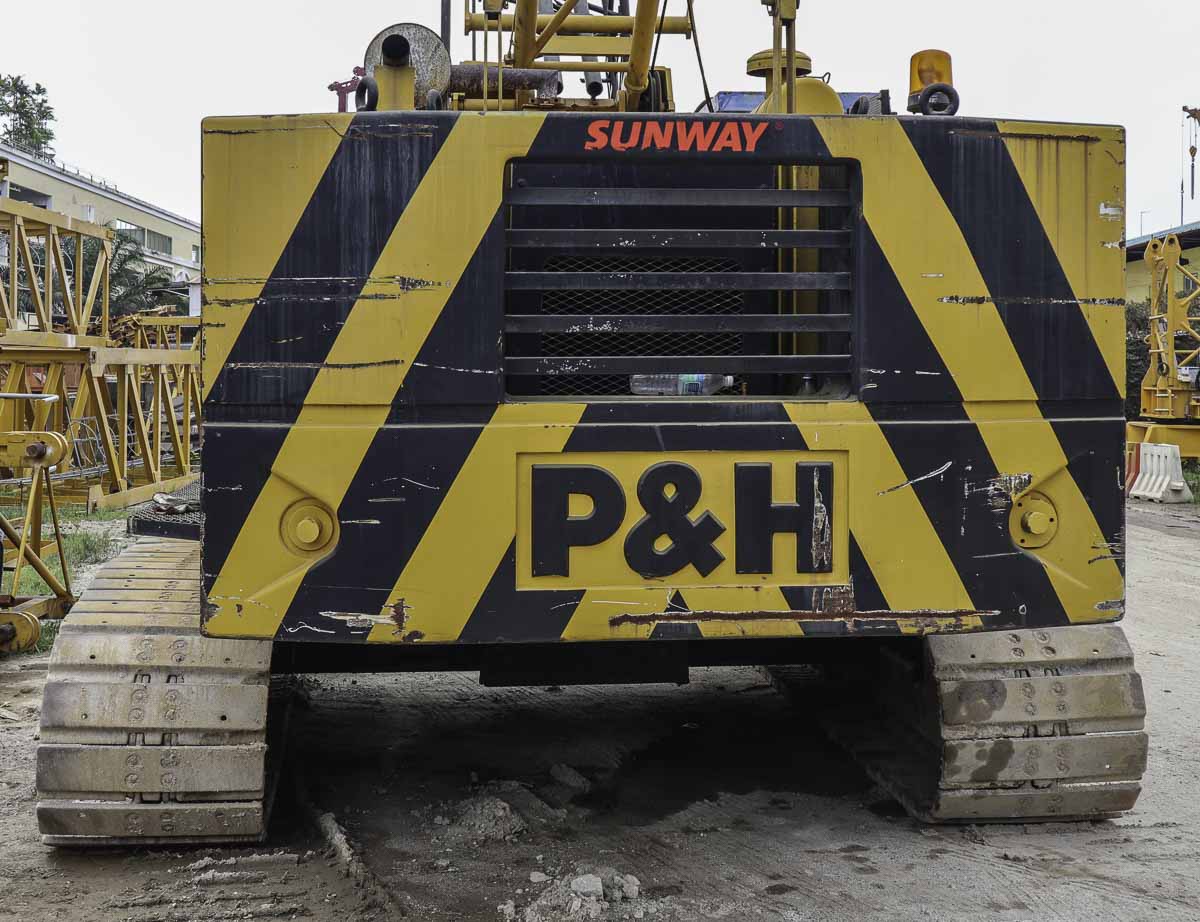

At the rear is a counterweight of 12.6 tonnes mounted. The counterweist has a 4.04 meter tailswing.

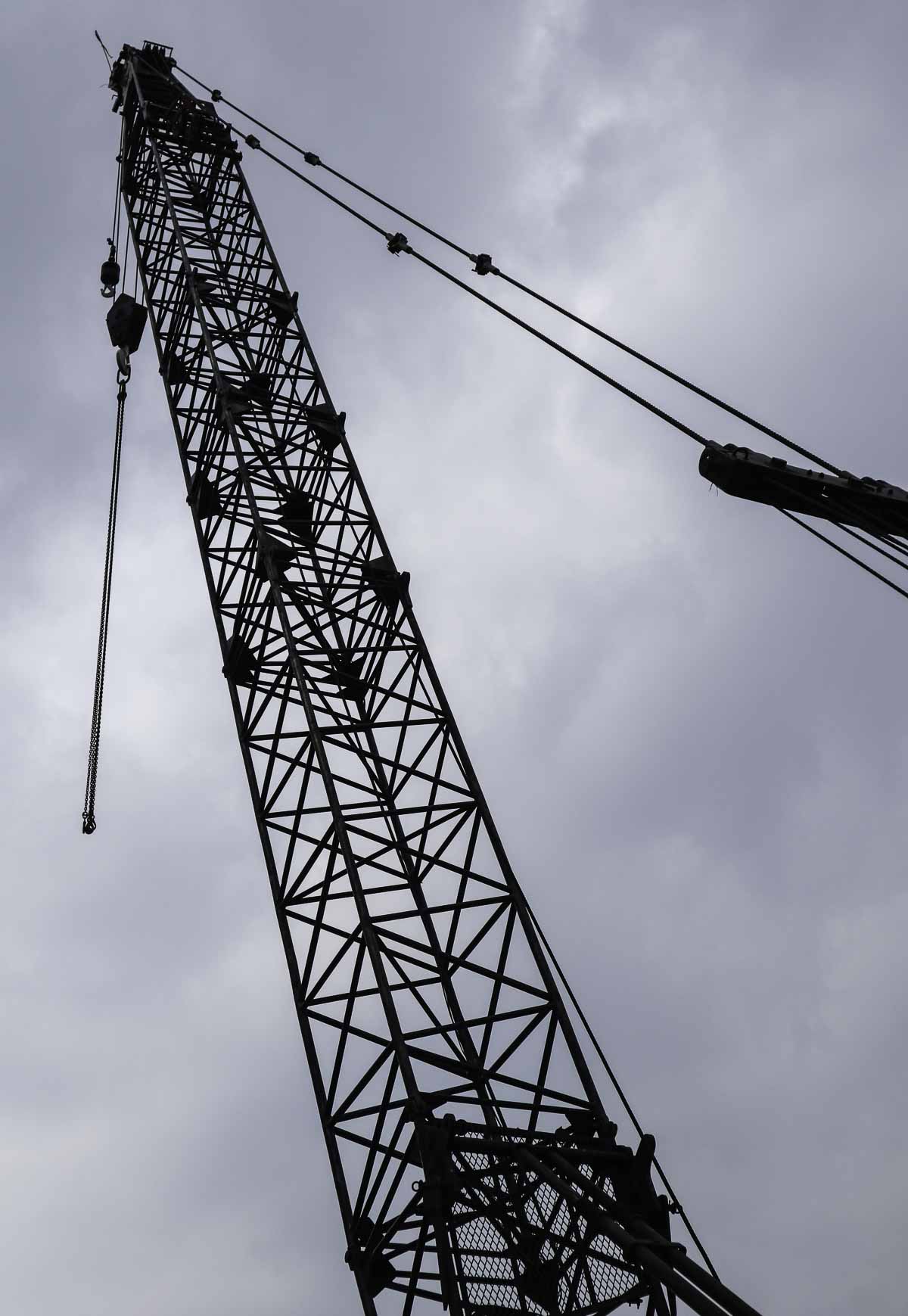

The main boom has a 9.14 meter base length and can be extended in 3.05 meter steps to a maximum length of 45.72 meters. The main boom can be extended by a 15.24 meter fixed jib.

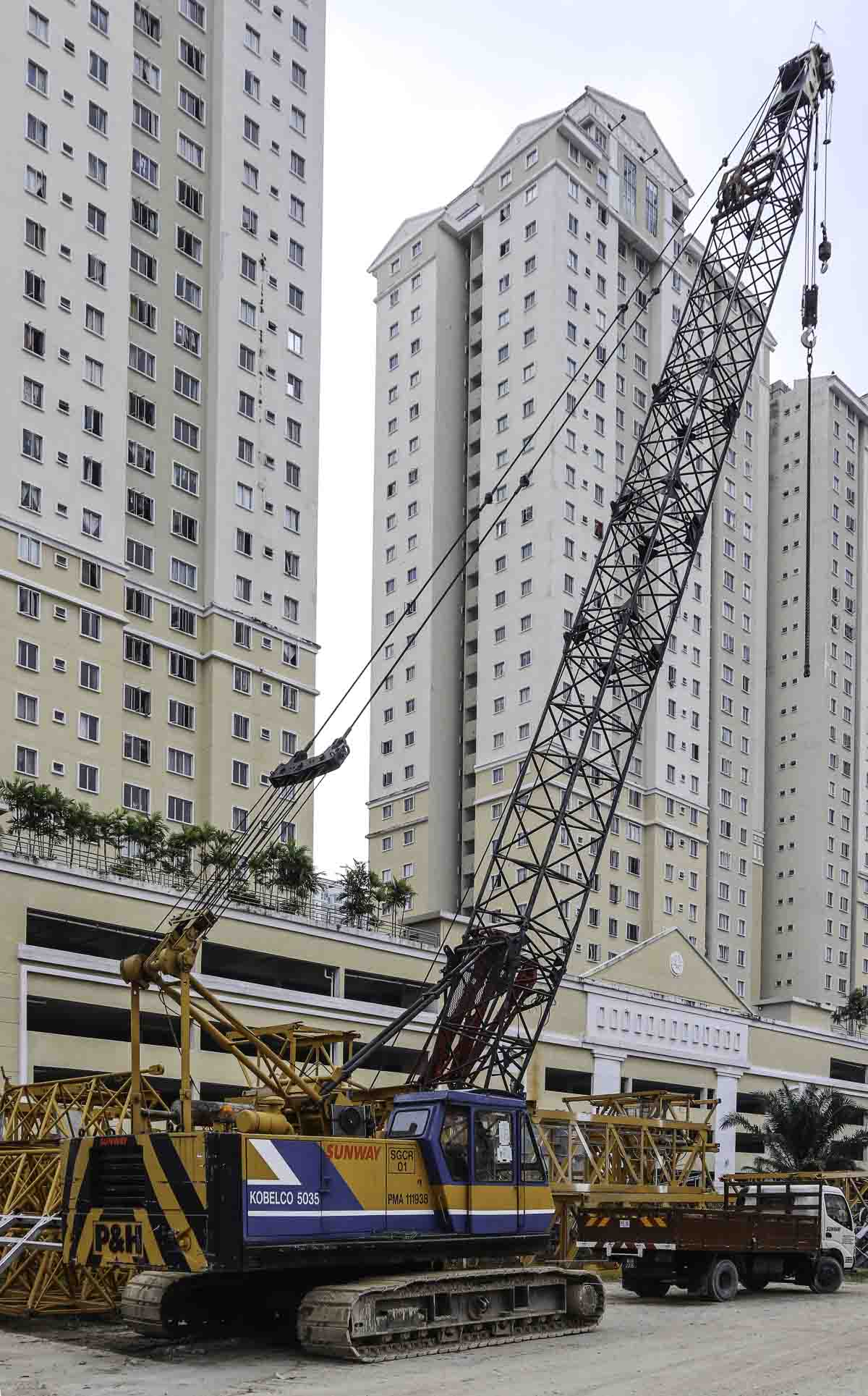

Here was the crane fitted with a 33.53 meter long main boom.
