Manitowoc 8500-1 - Fuchi

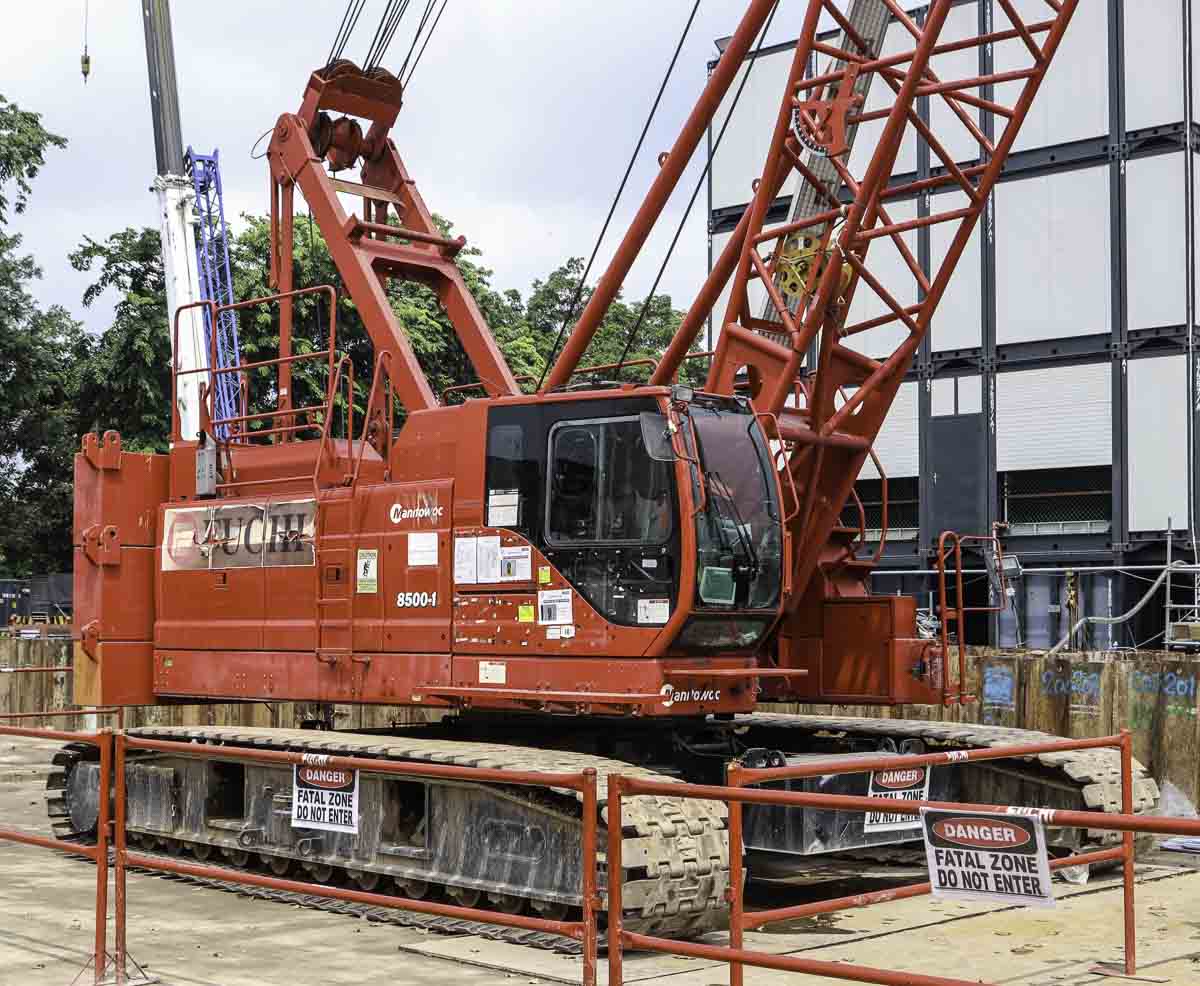

This Manitowoc 8500-1 belongs to Fuchi from Singapore (SG). It is an 80-tonne crawler crane that was produced by Kobelco, but sold as Manitowoc.
The crane is powered by a Hino J08E-UV, a 6-cylinder diesel engine with a power of 213 kW (285 hp).
The undercarriage of the crane is 6.28 meters long and 5.24 meters wide.

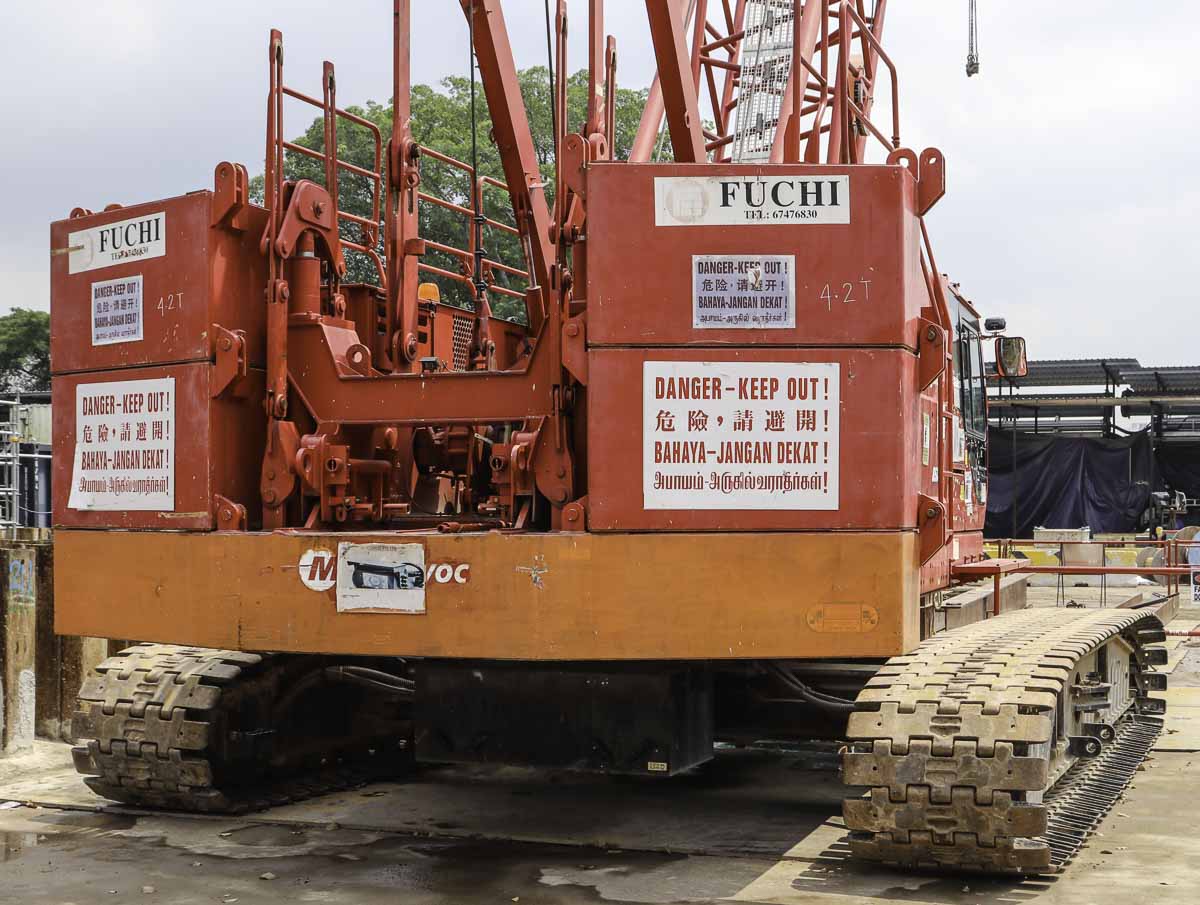

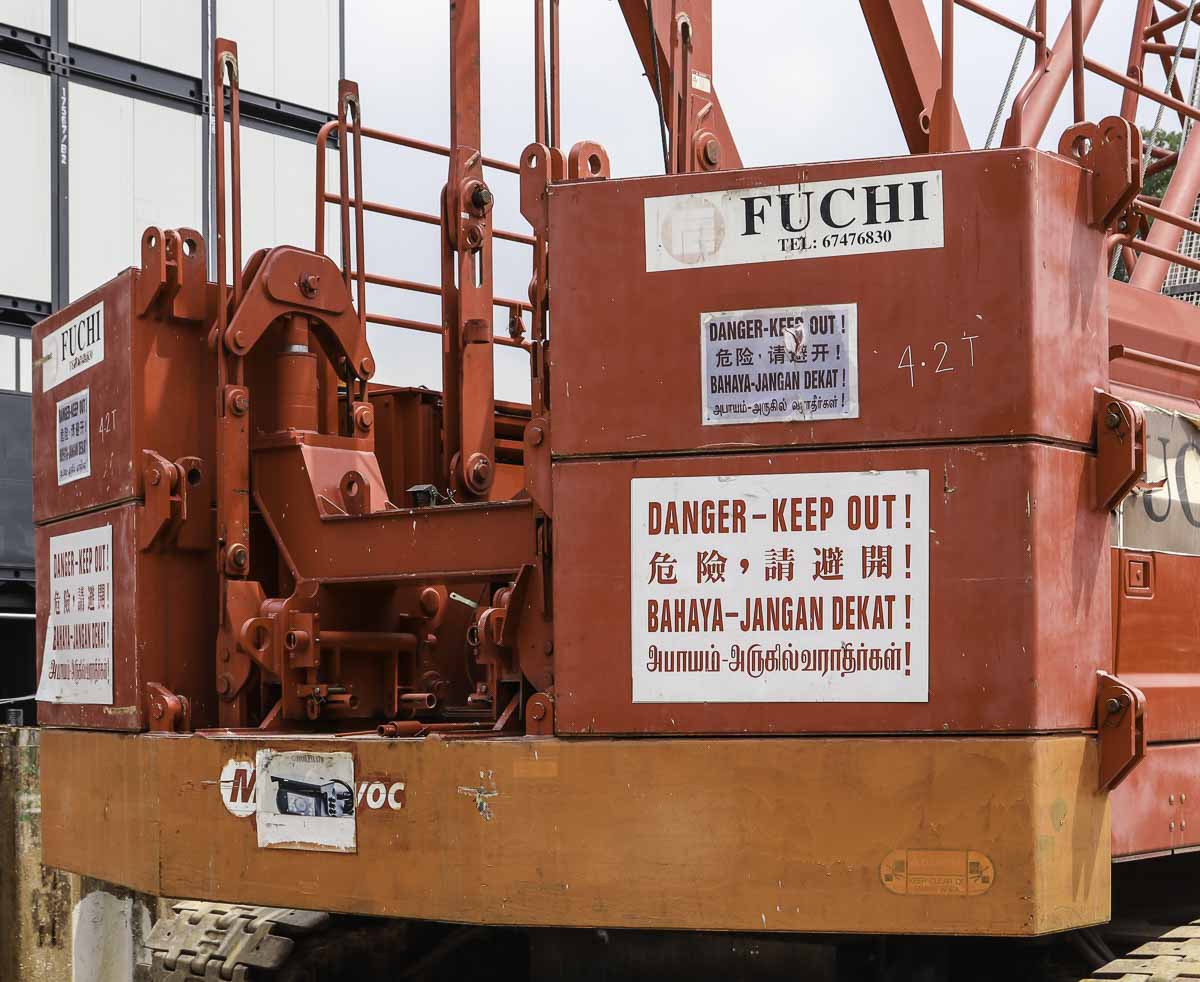

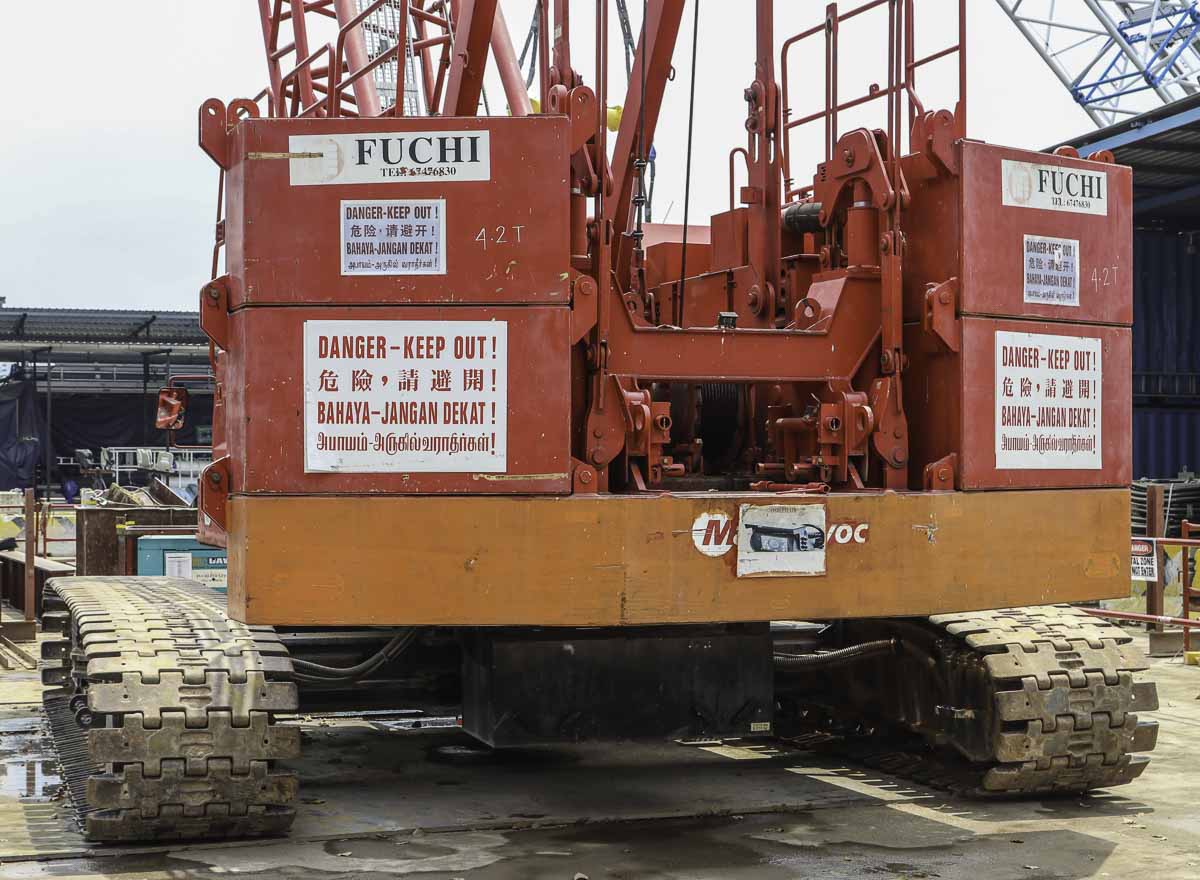

The 5-part counterweight has a total weight of 26.12 tonnes and has a 4.5 meter tailswing.

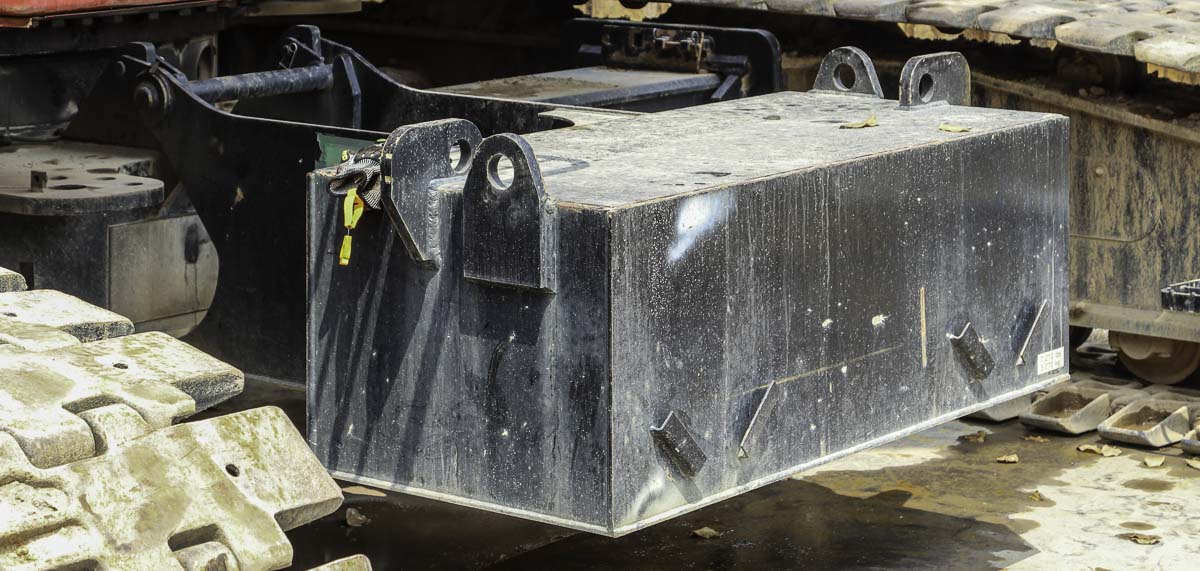

Attached to the undercarriage is in total 6.5 tonnes of central counterweight, per side 3.25 tonnes.

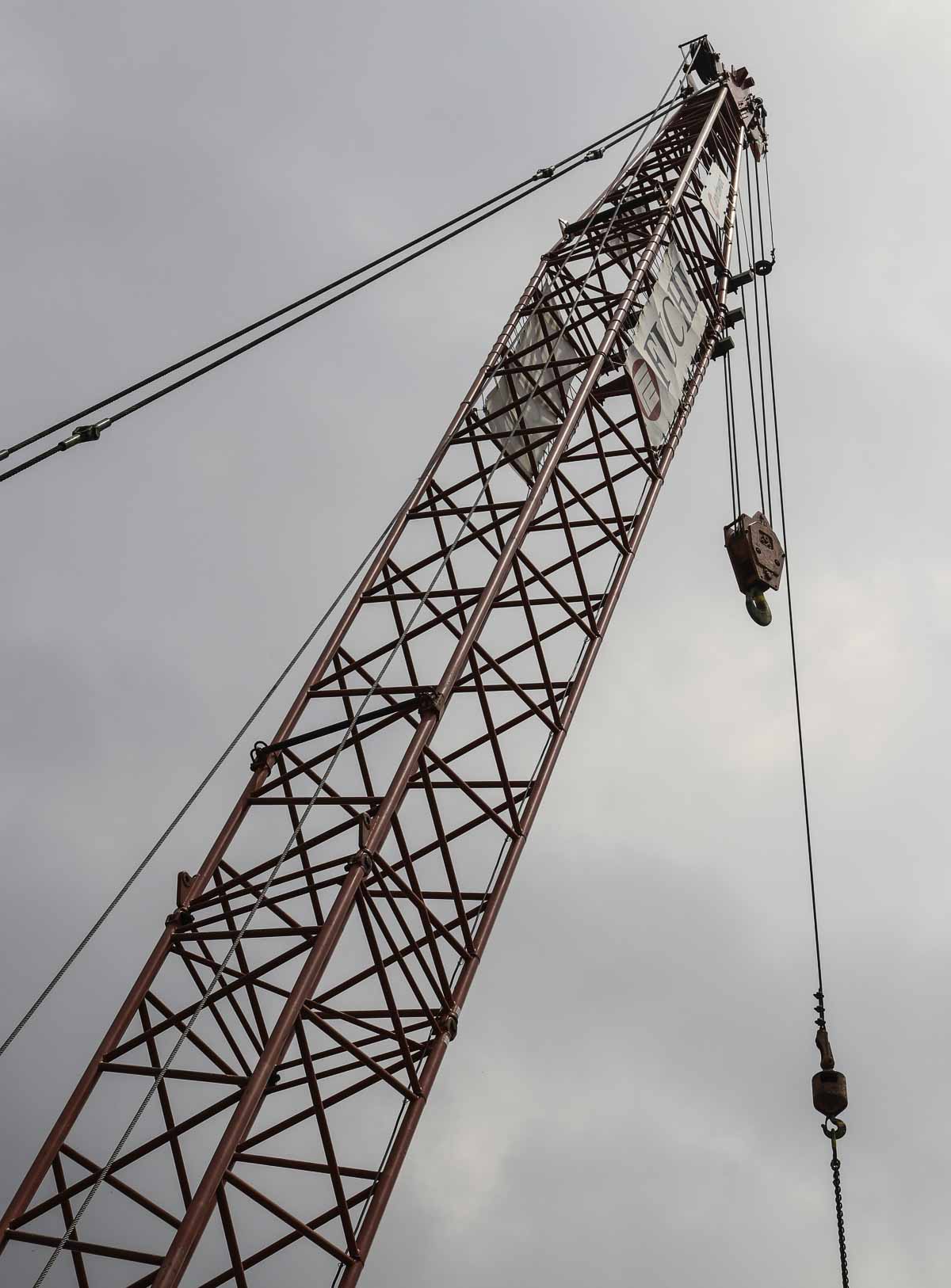

The maximum length of the main boom is 61 meters.
