Manitowoc 11000-1 - Fuchi

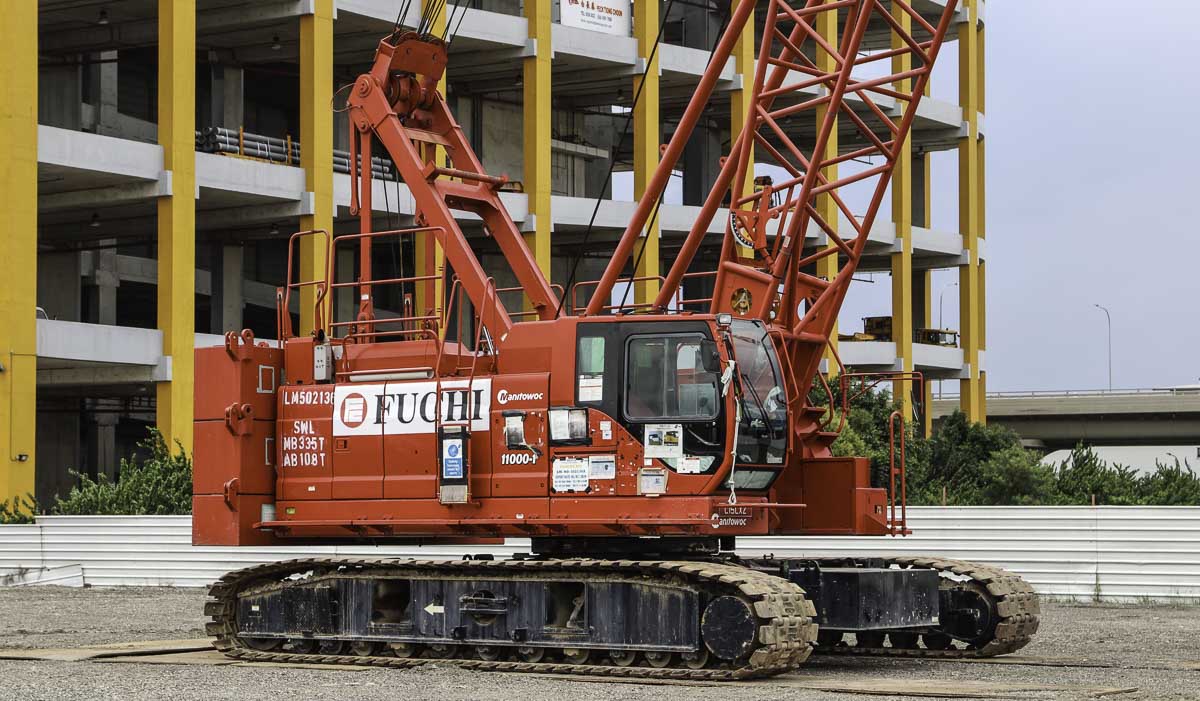

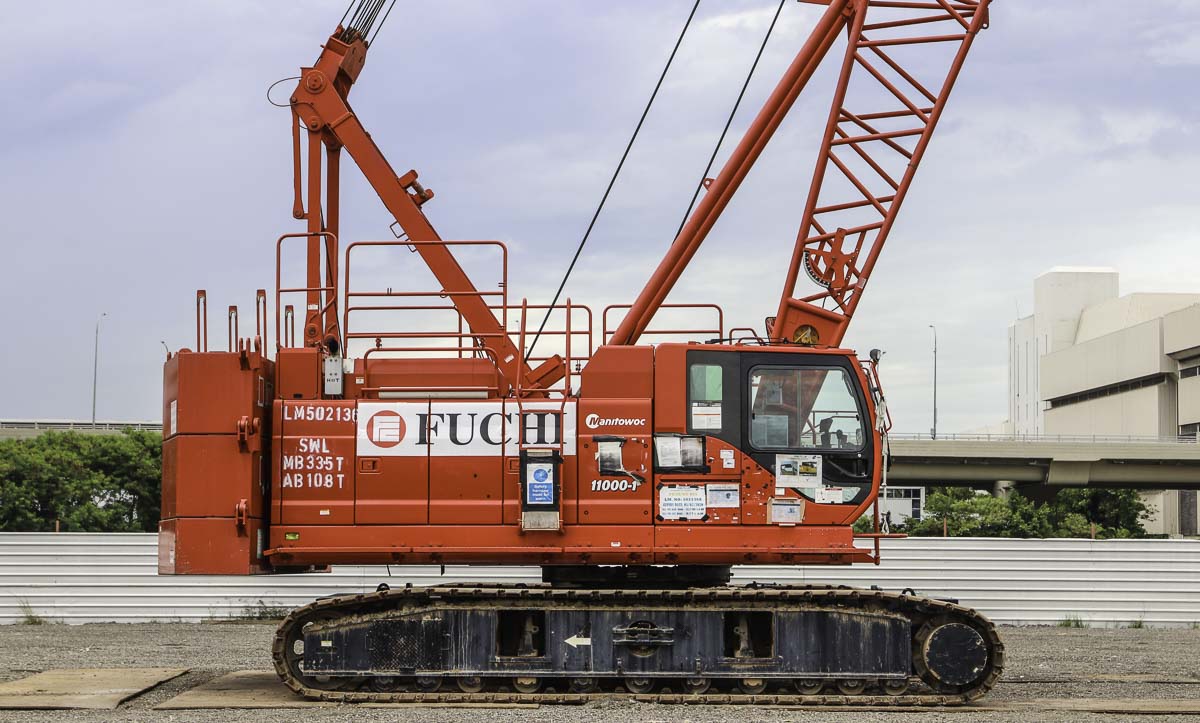

This sharp Manitowoc 11000-1 belongs to Fuchi from Singapore (SG) and was used on their temporary yard as assist crane. It is a 100-tonne crawler crane that was produced by Kobelco and sold as Manitowoc.

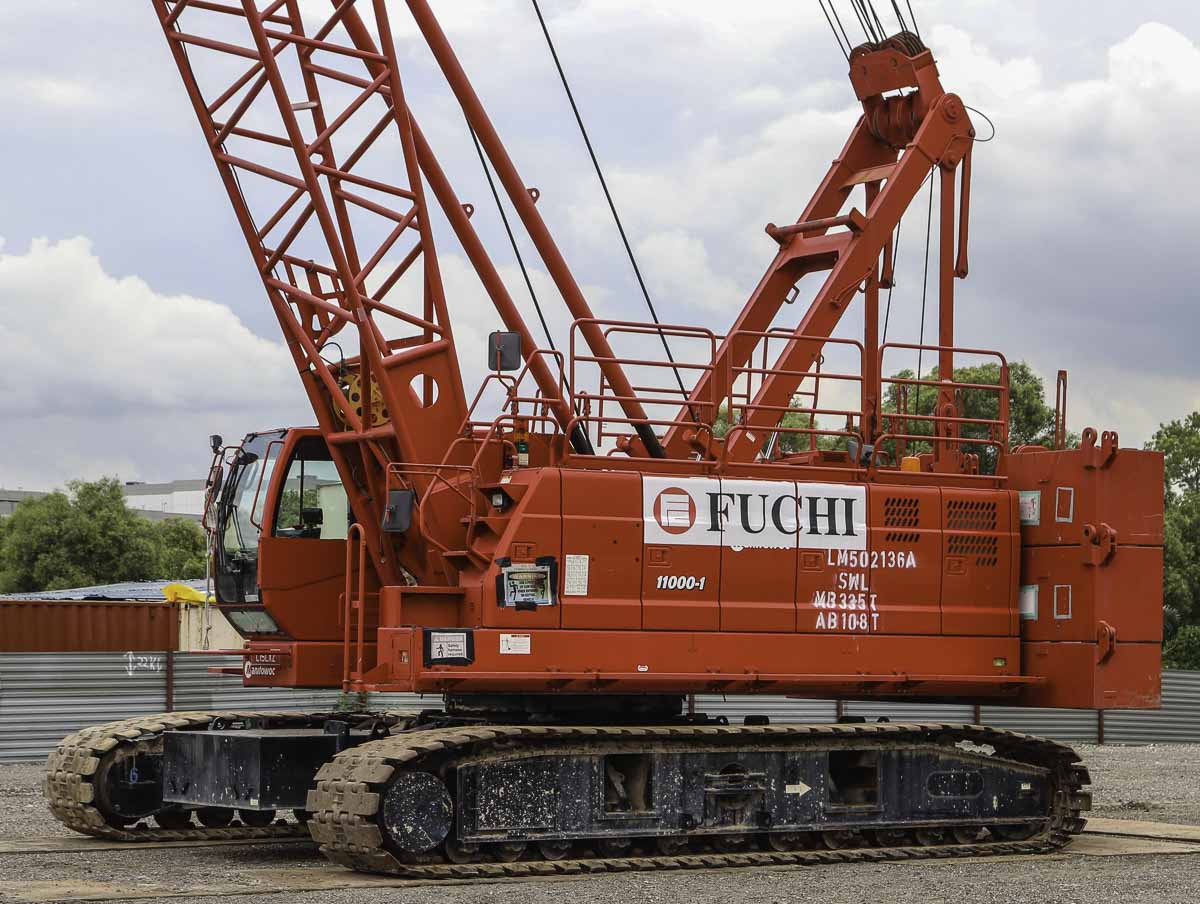

The undercarriage of the crane is 6.28 meters long and 5.244 meters wide. For the transport over the road is the width to be reduced to 3.614 meters.

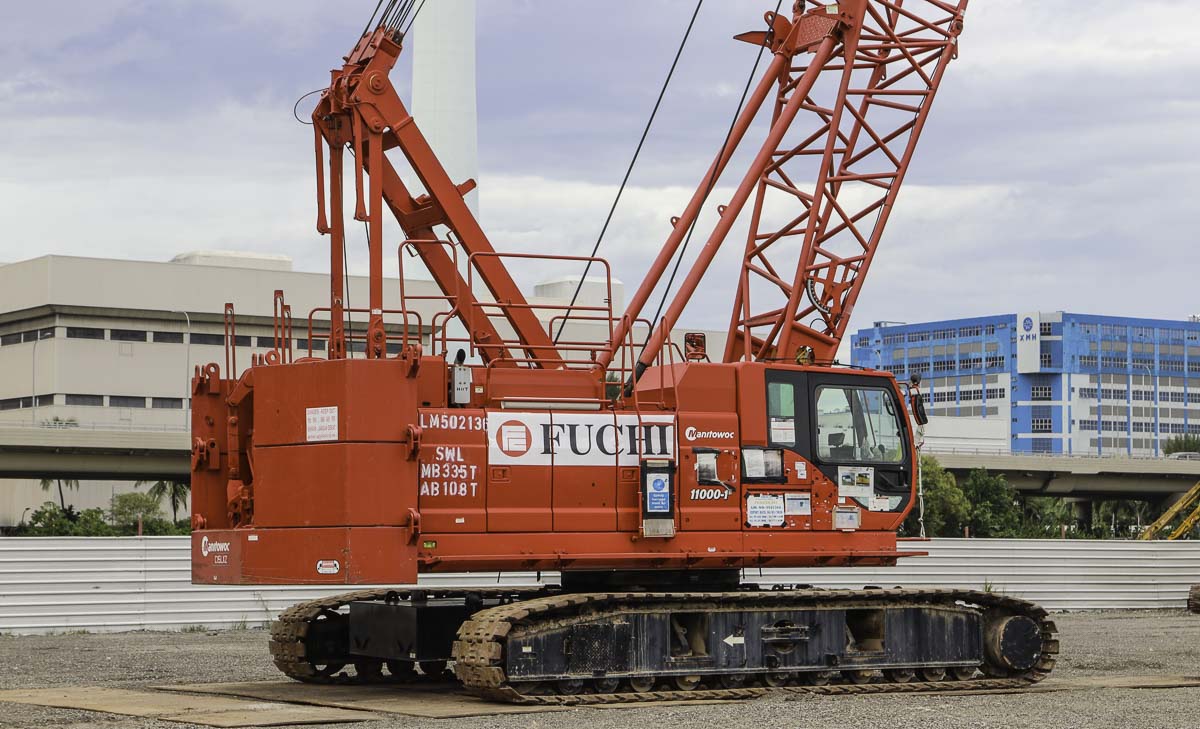

The crane is powered by a Hino J08E-V, a 6-cylinder diesel engine with a power of 213 kW (285 hp). The diesel engine powers three hydraulic pumps.

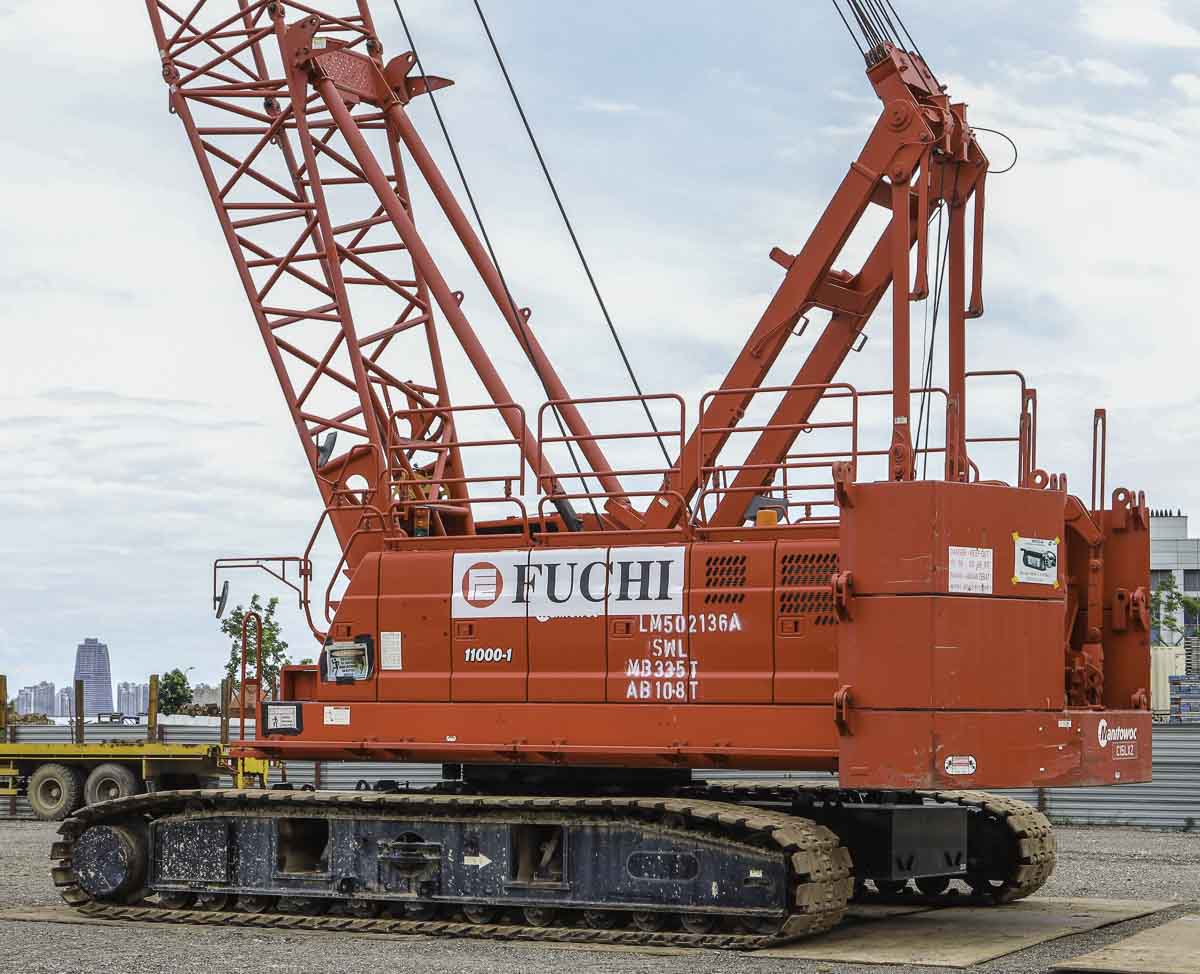

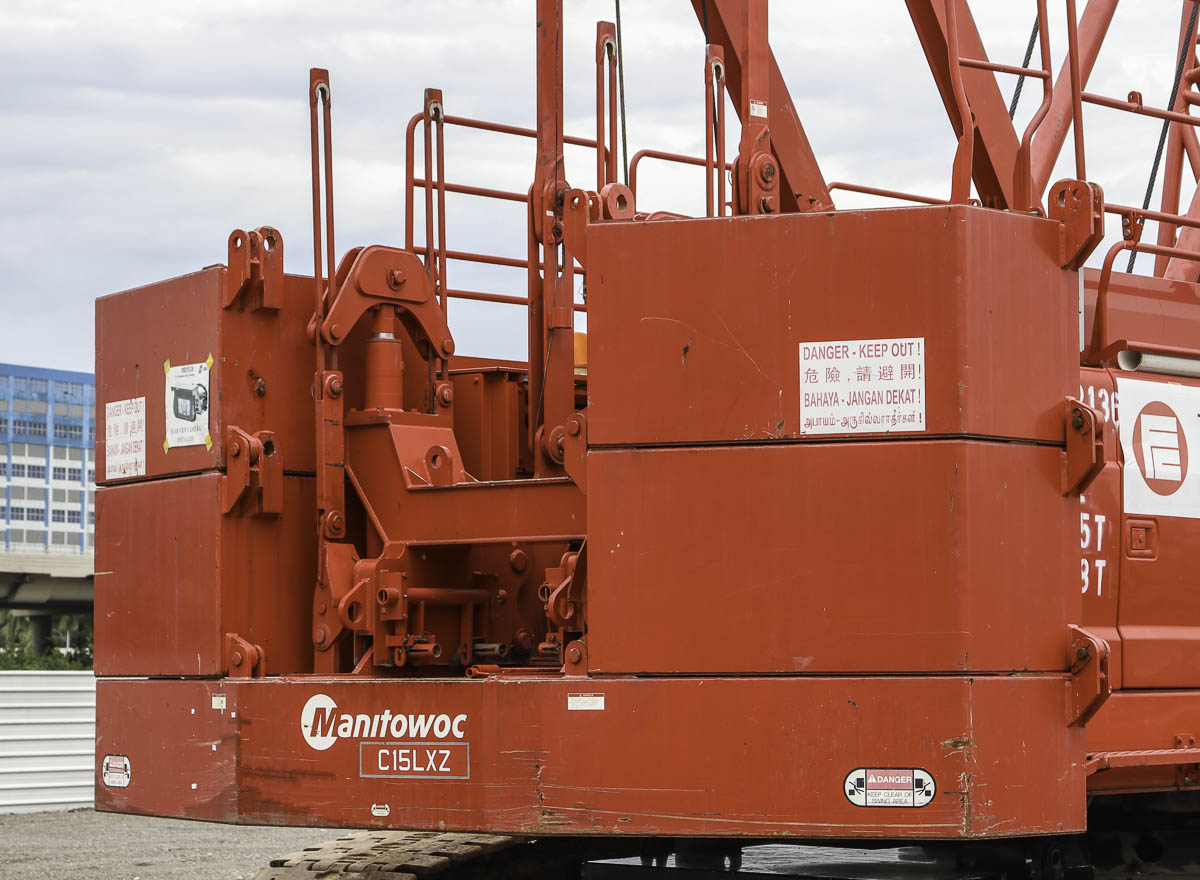

Attached to the superstructure is a total of 31.3 tonnes of counterweight. The counterweight exists out of a 8.31 tonne base plate with four 7.5-tonne slabs. The counterweight has a 4.7 meter tailswing.
The main boom has a 12.2 meter base length and can be extended to a maximum length of 61 meters. The boom can also be fitted with an 18.3 meter long fixed jib, the length of the main boom is then to be reduced to maximum 57.9 meters.

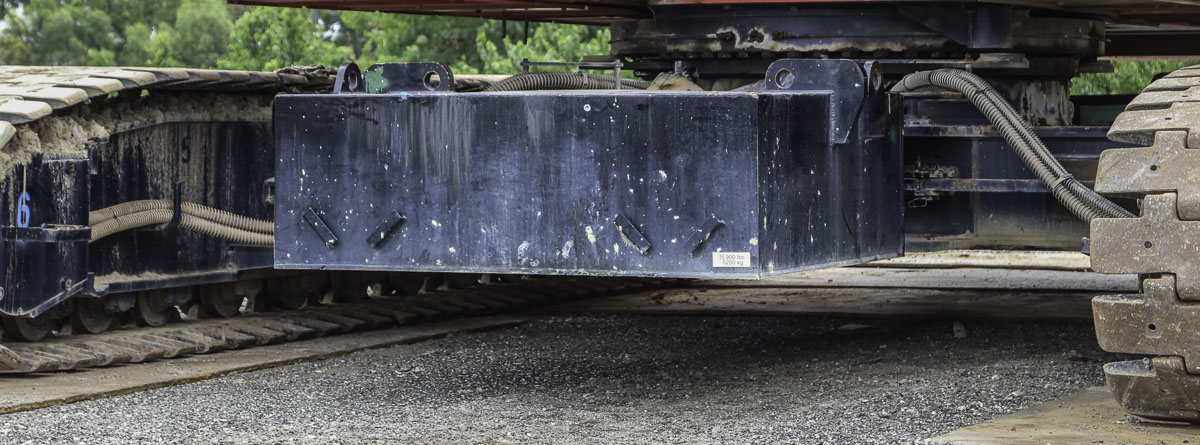

Attached to the undercarriage is a total of 14.4 tonnes of central counterweight, per side a 7.2 tonne block.

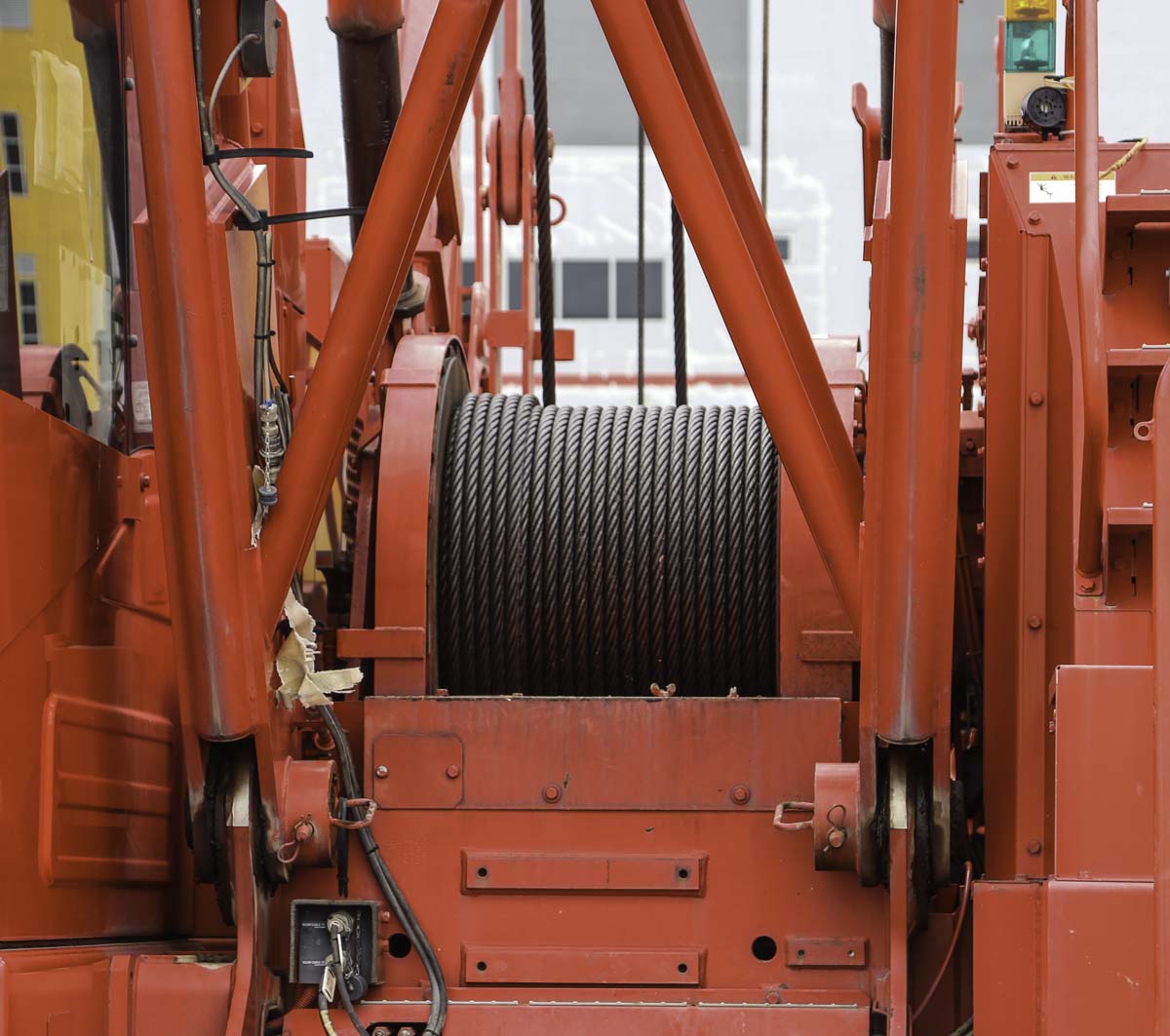

The crane is fitted with two 11.3-tonne hoist winches.

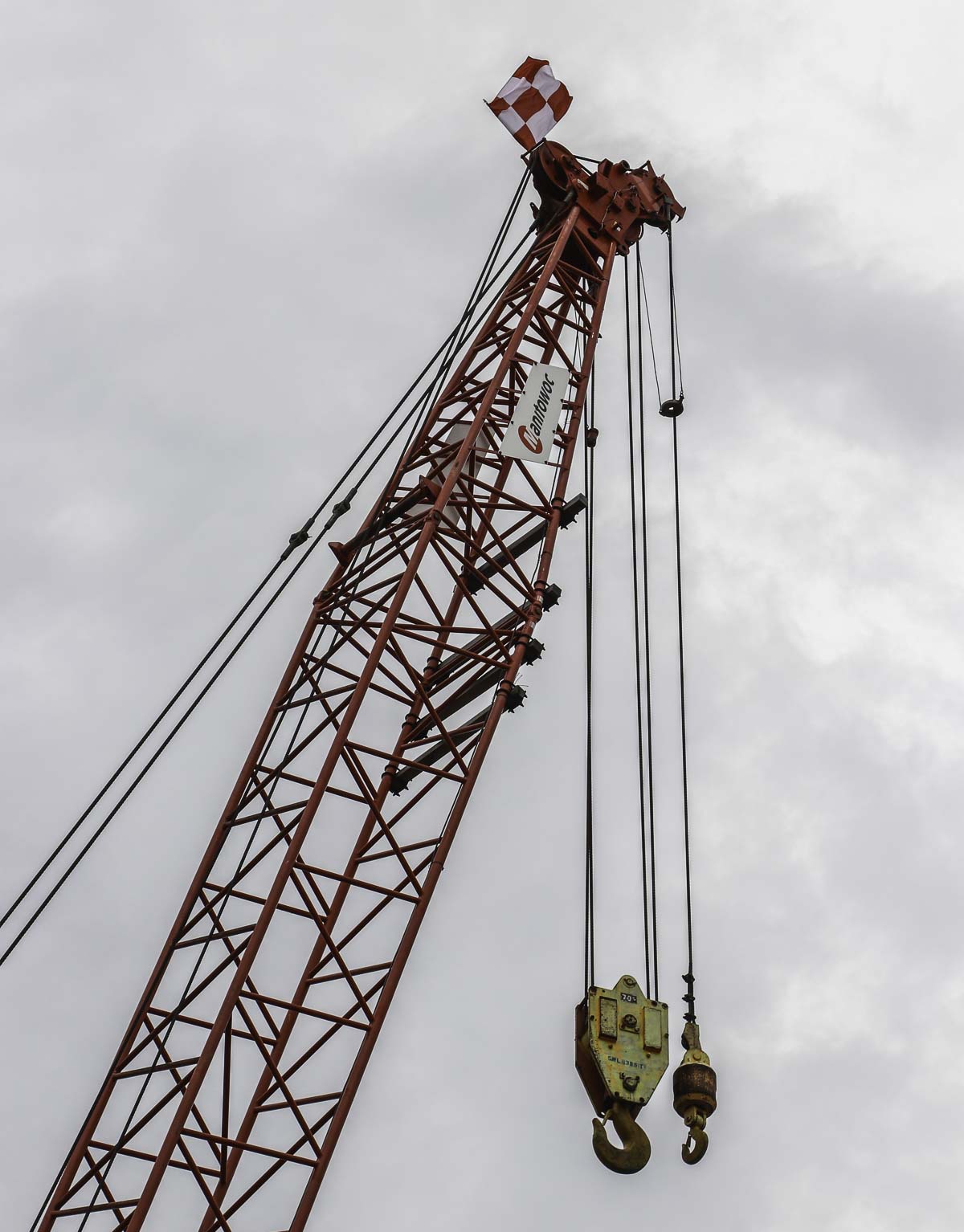

Both hoist winches are here in use.

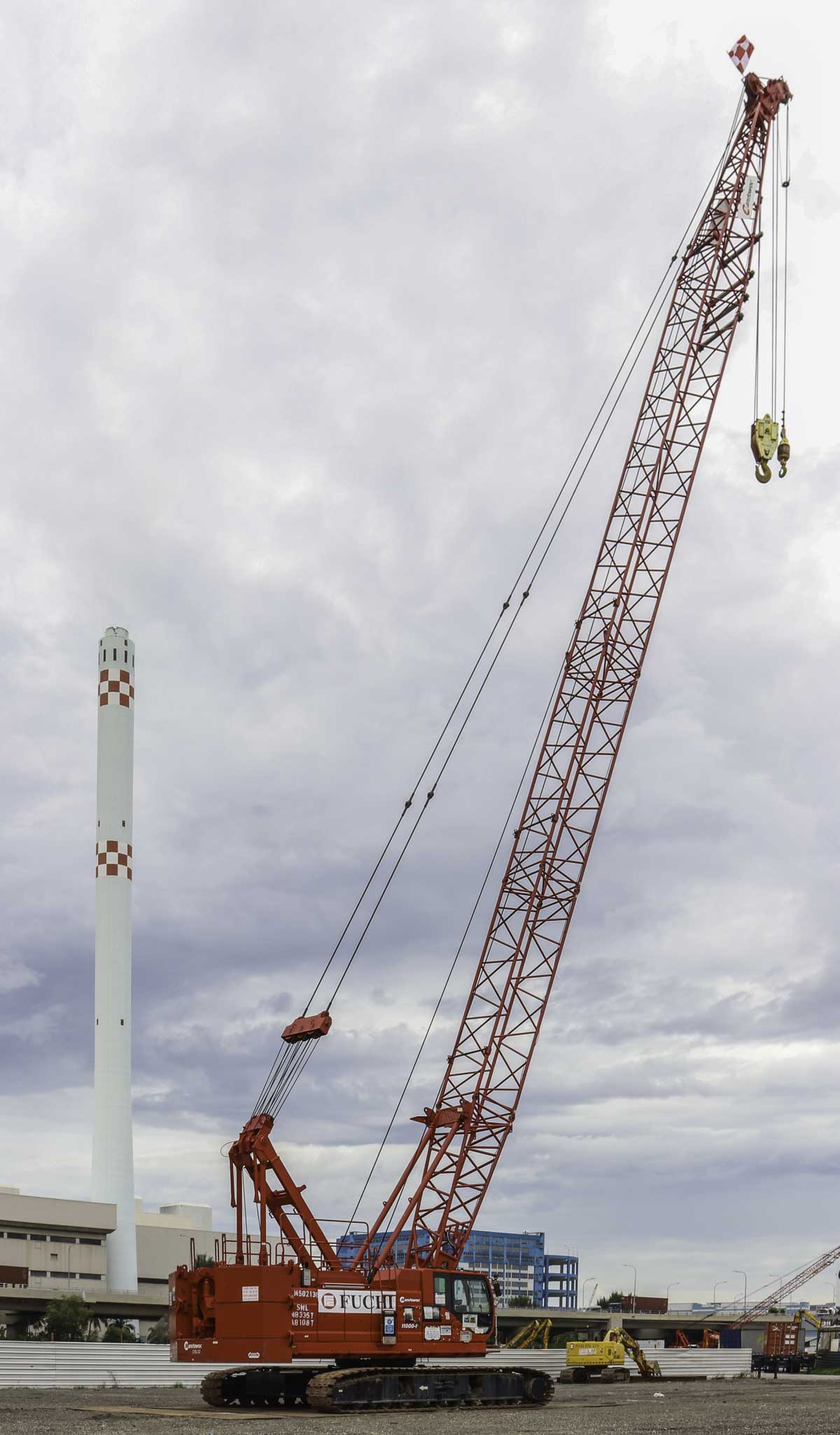

Here was the crane fitted with a 36.6 meter long main boom, in this configuration is the crane able to hoist maximum 43.7 tonnes on a 7 meter radius or 6 tonnes to a 32 meter radius. A very sharp crane of Fuchi!
