Manitowoc 12000 - Antar

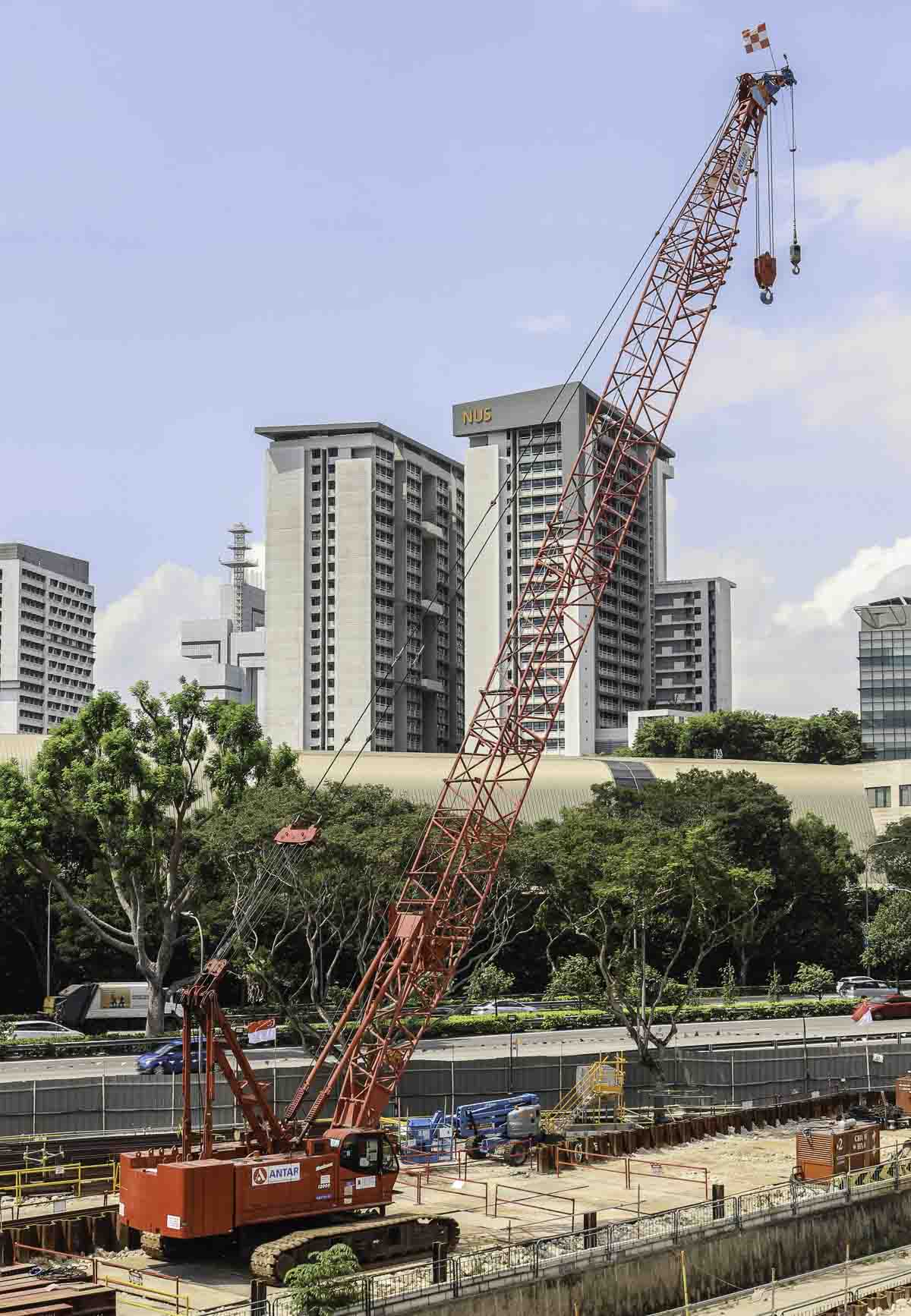

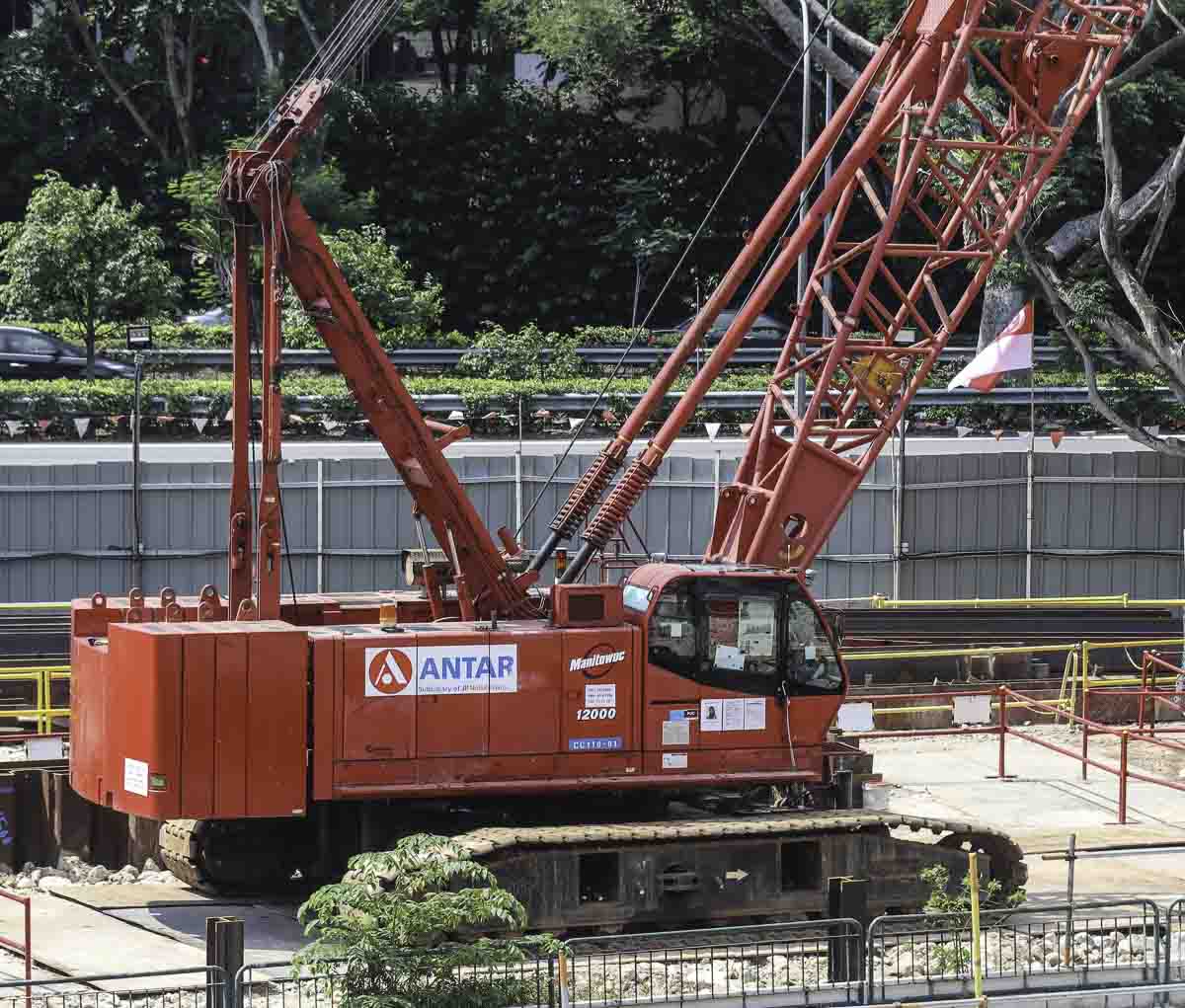

This Manitowoc 12000 of Antar from Singapore (SG) was used on a construction site there. It is a 110-tonne crawler crane.

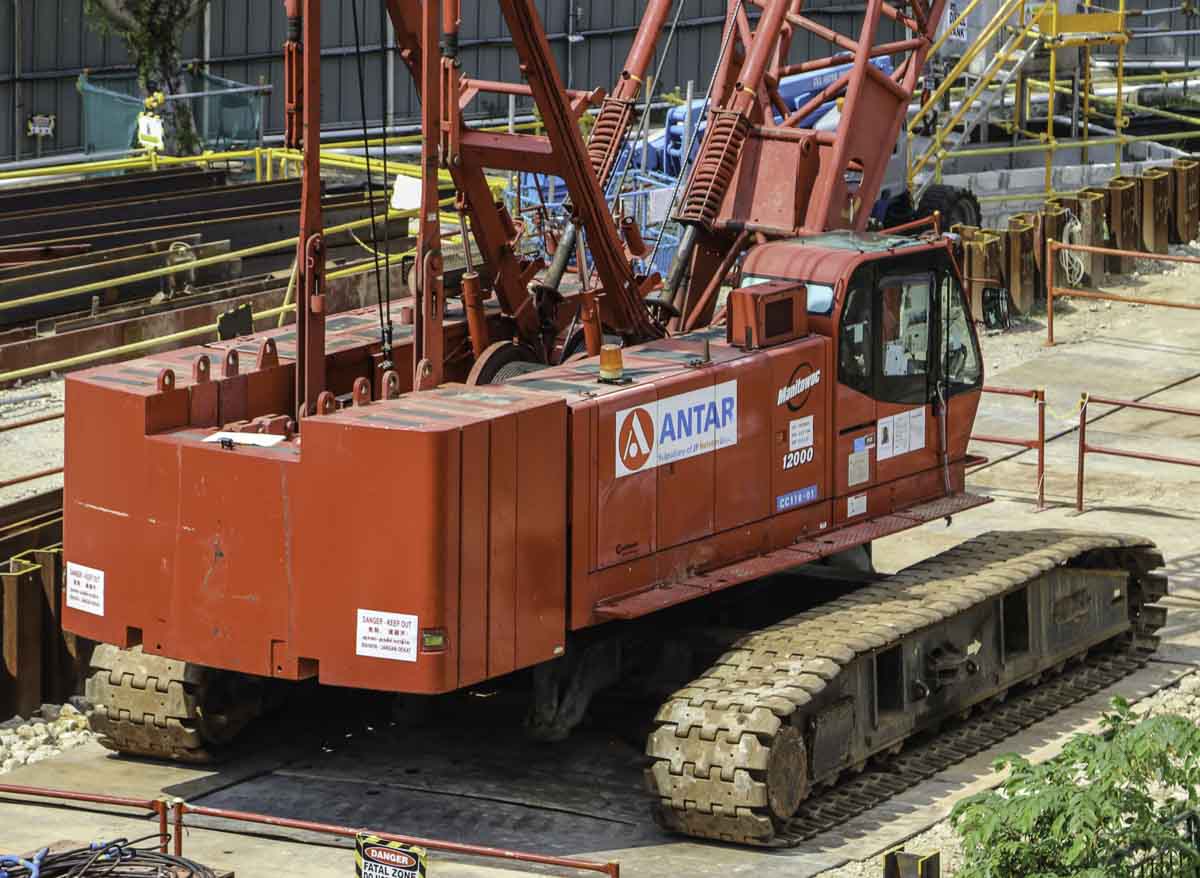

The undercarriage of the crane is 6.77 meters long and 5.3 meters wide. For the transport over the road is the width by hydraulics adjustable to a width of 4.21 meters.

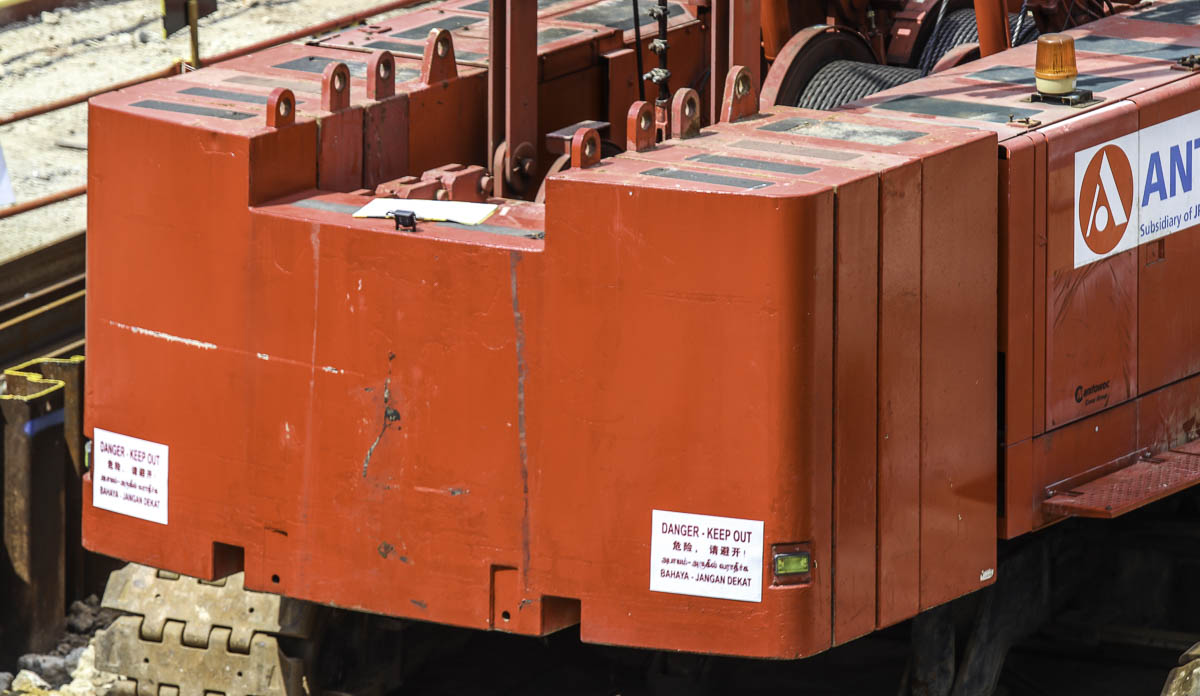

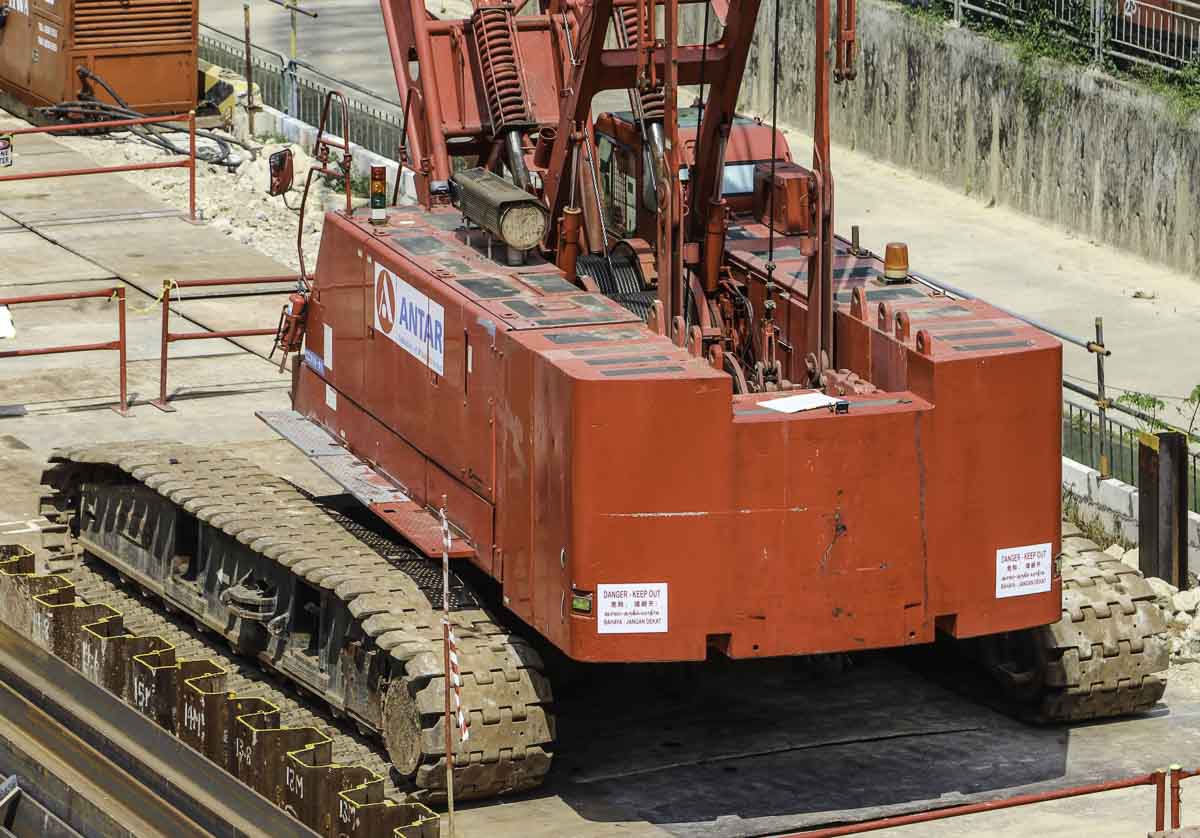

Attached to the superstructure is a 4-part counterweight with a total mass of 34 tonnes. The counterweight has a 5 meter tailswing.

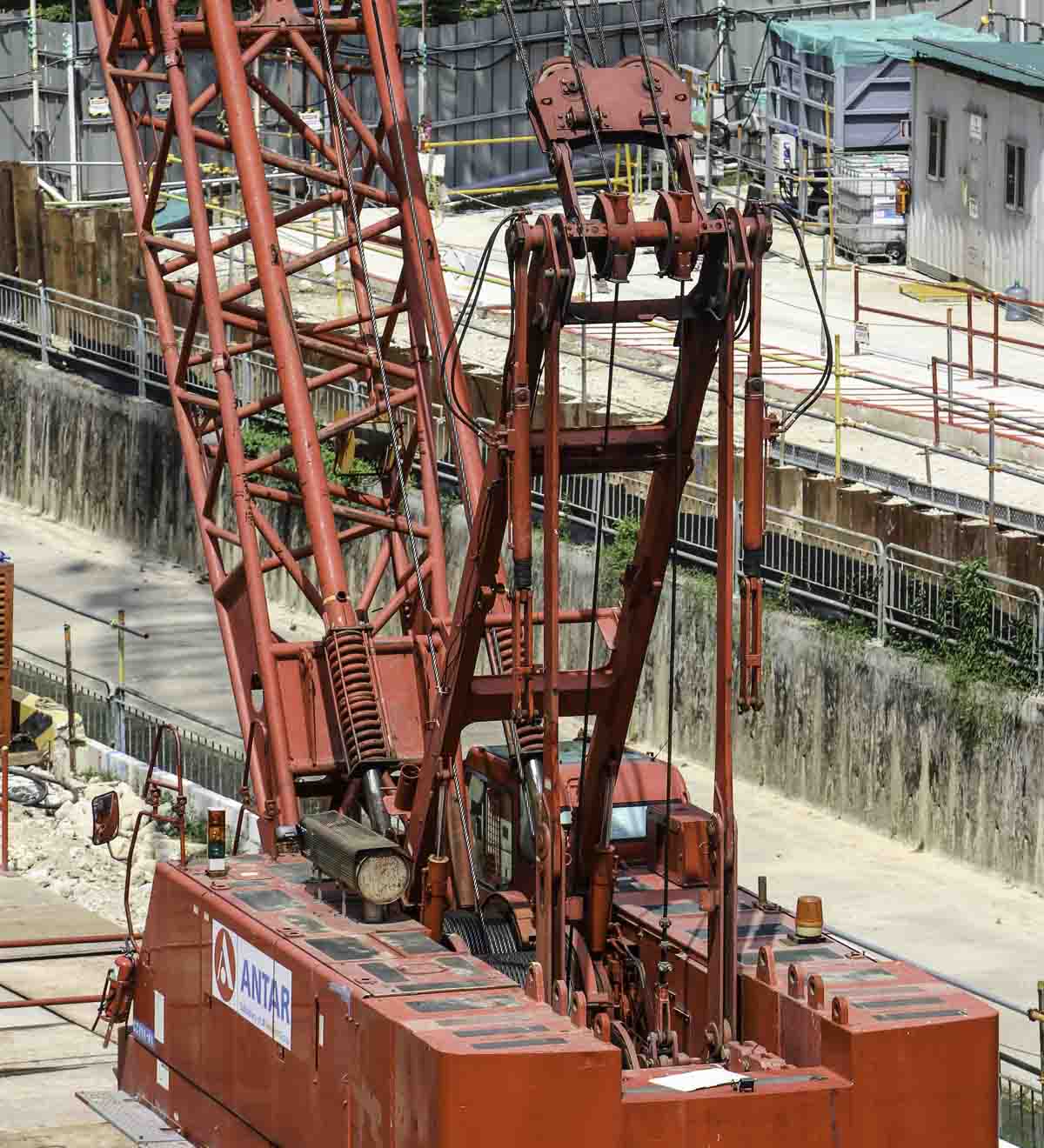

The A-frame has in working position a total heigth of 7.38 meters and can be folded down for the transport over the road. The crane is fitted with two 12-tonne hoist winches.
The crane is powered by a Hino P11C-VN, a 6-cylinder diesel engine with a power of 247 kW (332 hp). The diesel engine powers in total four hydraulic pumps.

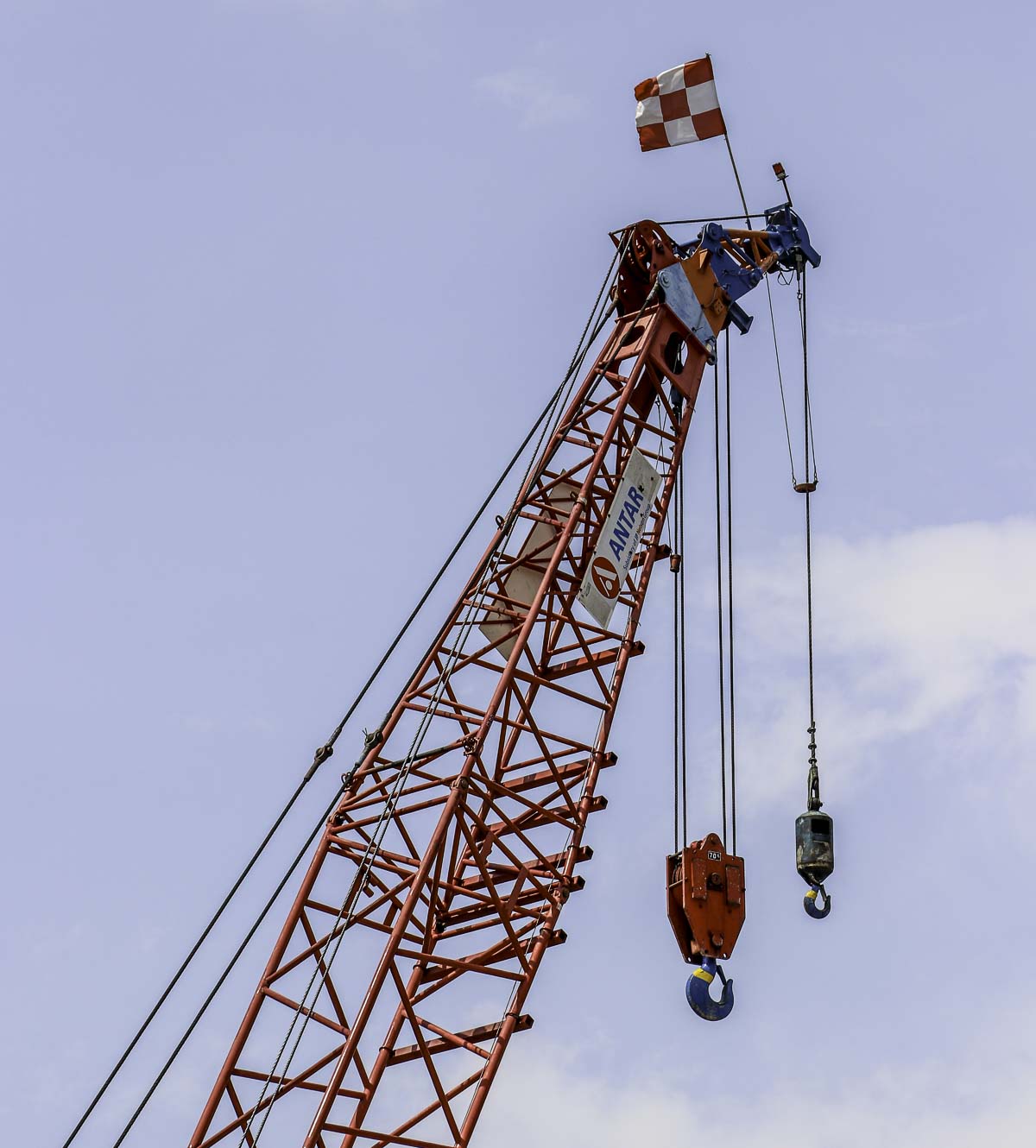

Here was the crane fitted with a 42.7 meter long main boom. In this configuration is the crane able to hoist maximum 43.9 tonnes on an 8 meter radius or 4.7 tonnes to a 38 meter radius.
The maximum length of the main boom is 70.1 meters.
