Locatelli GRIL 8500 T

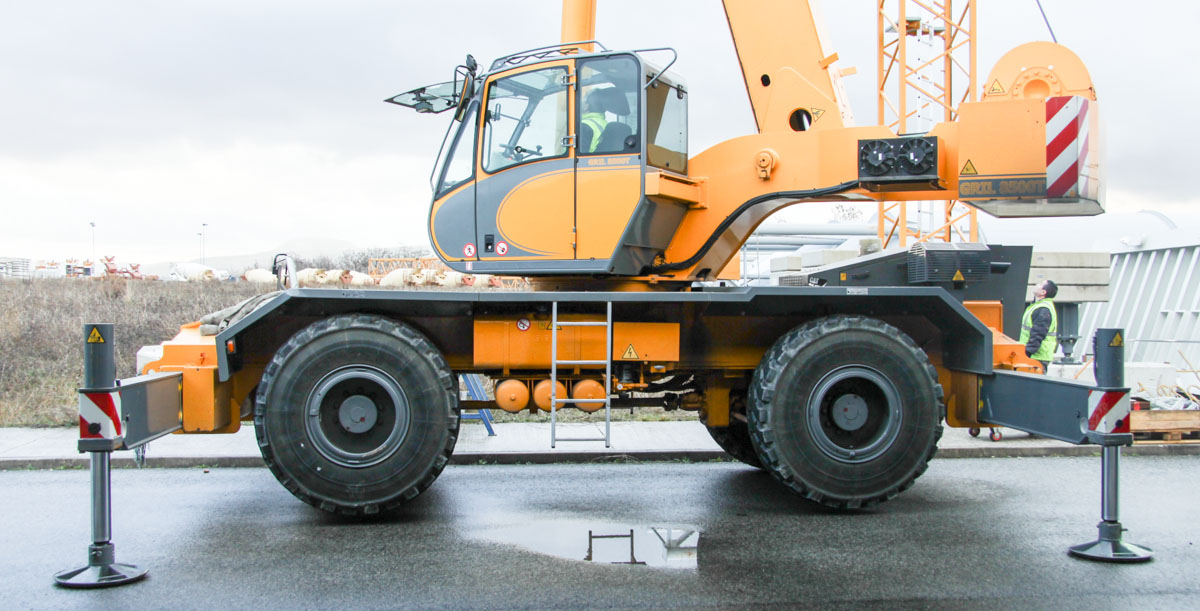

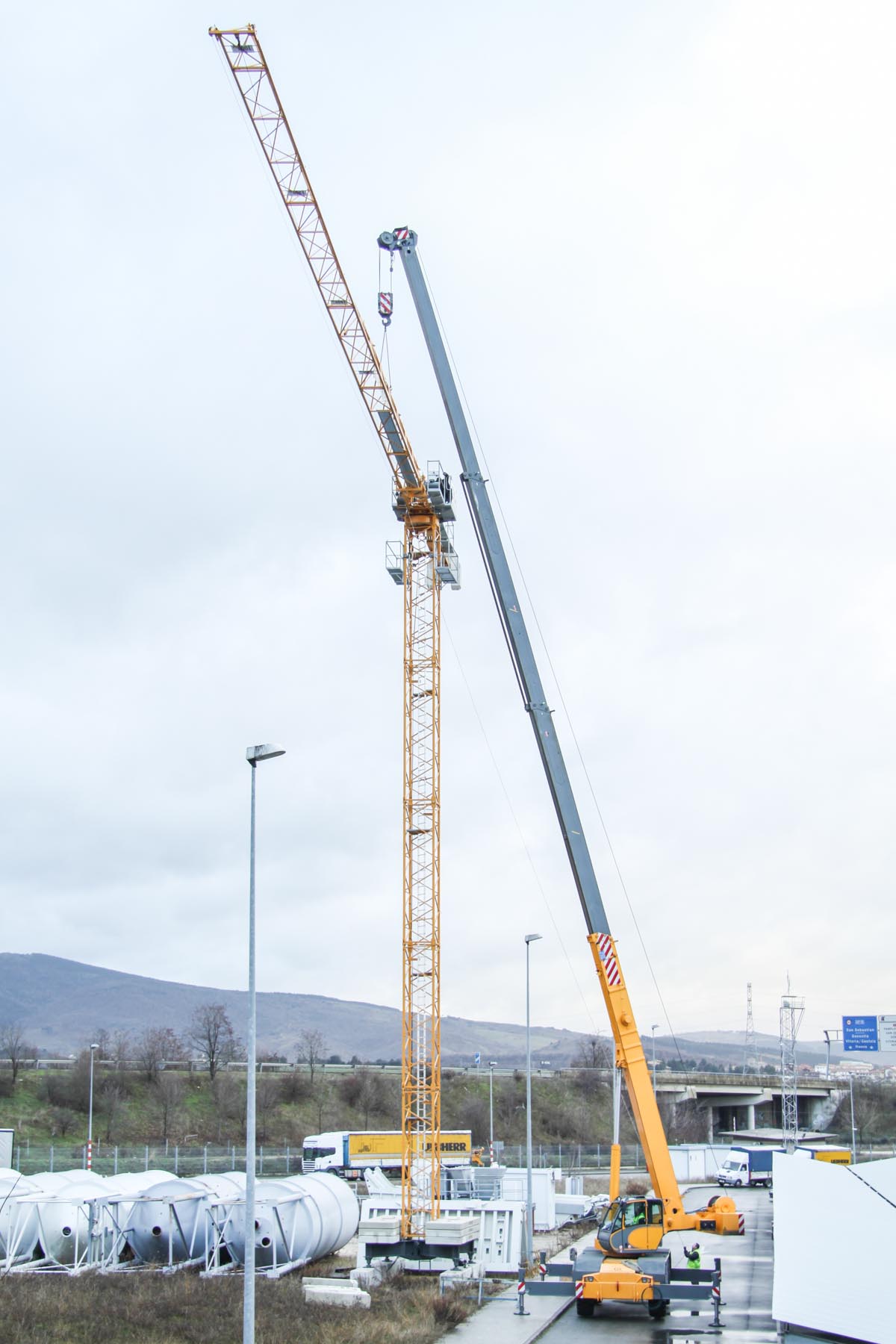

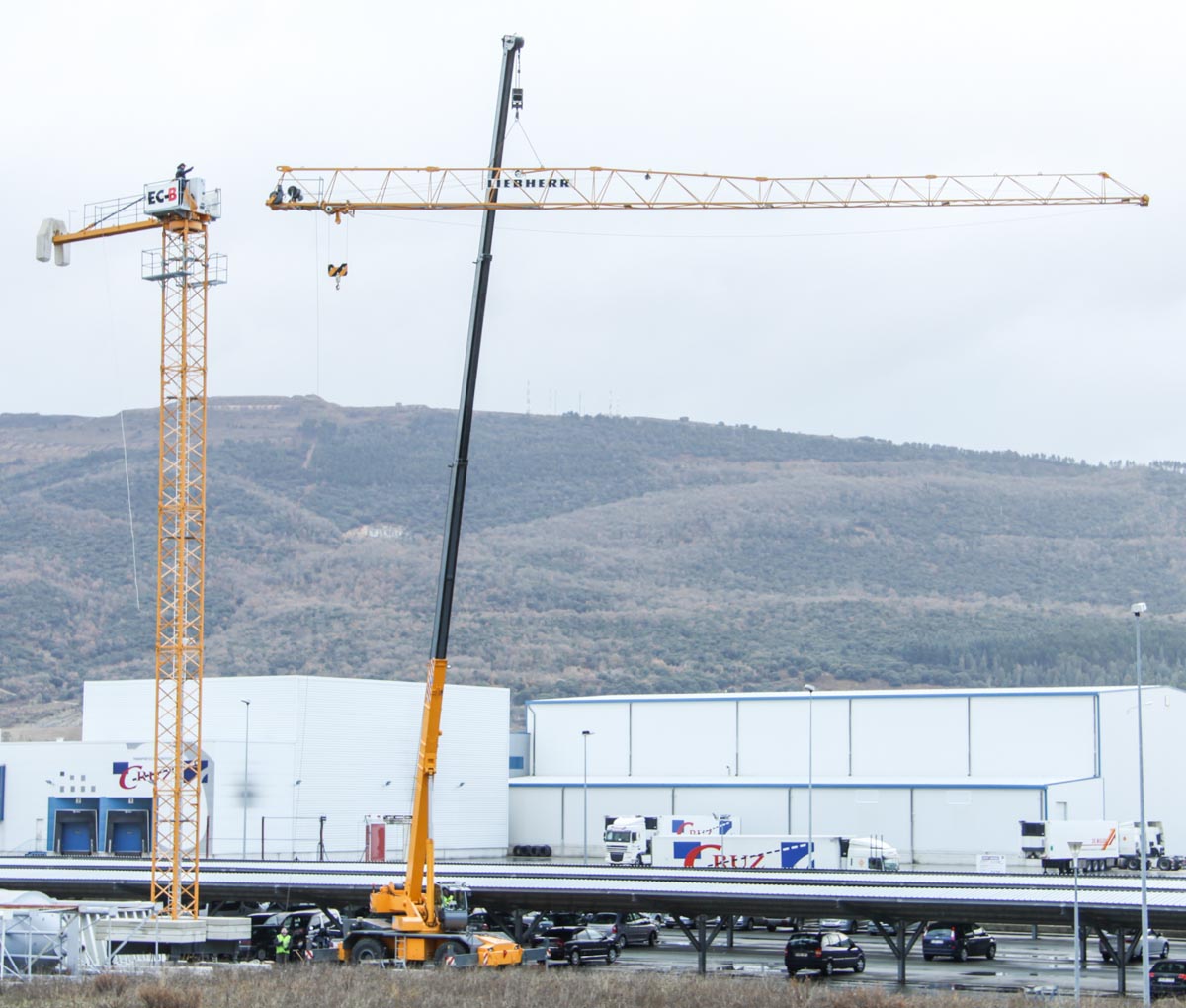

This Locatelli GRIL 8500 T was used as a assist crane by the assembly of a Liebherr 30 EC-B 2.5 by the manufacturer in Pamplona (ES). It is a 45-Tonne rough terrein crane on a 2-axle undercarriage.

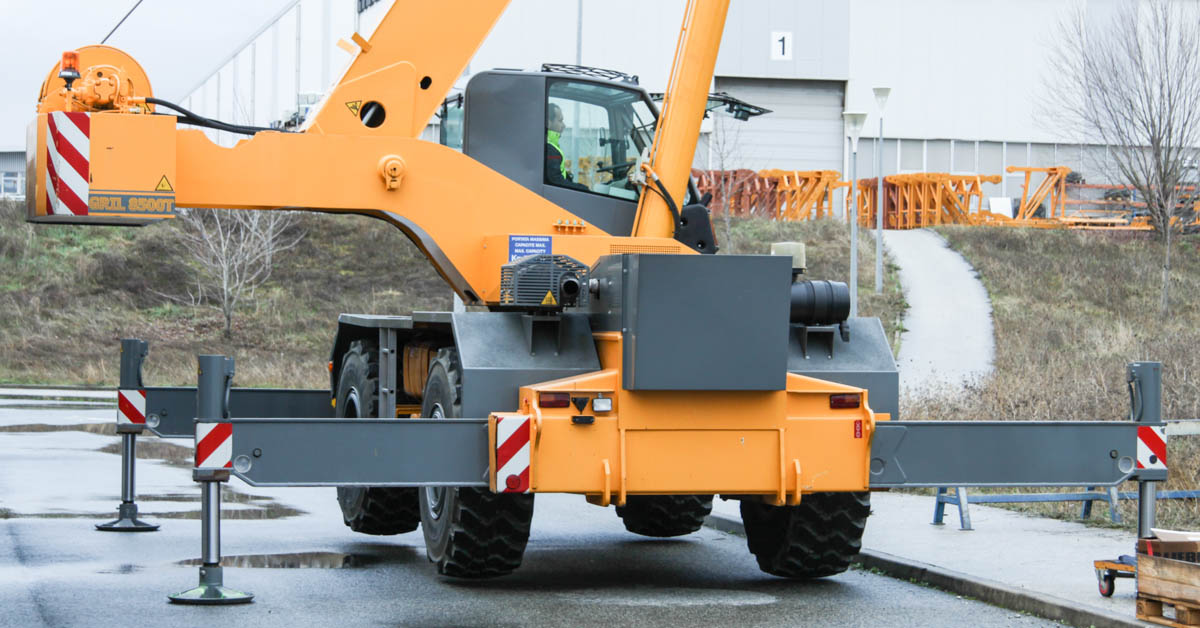

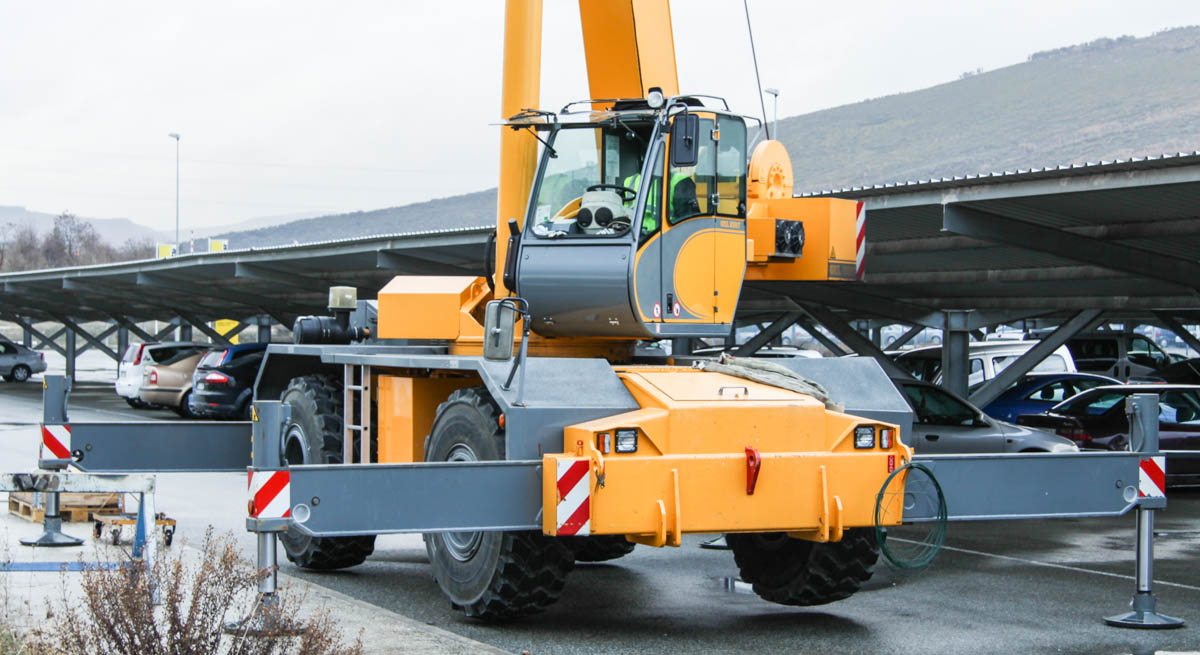

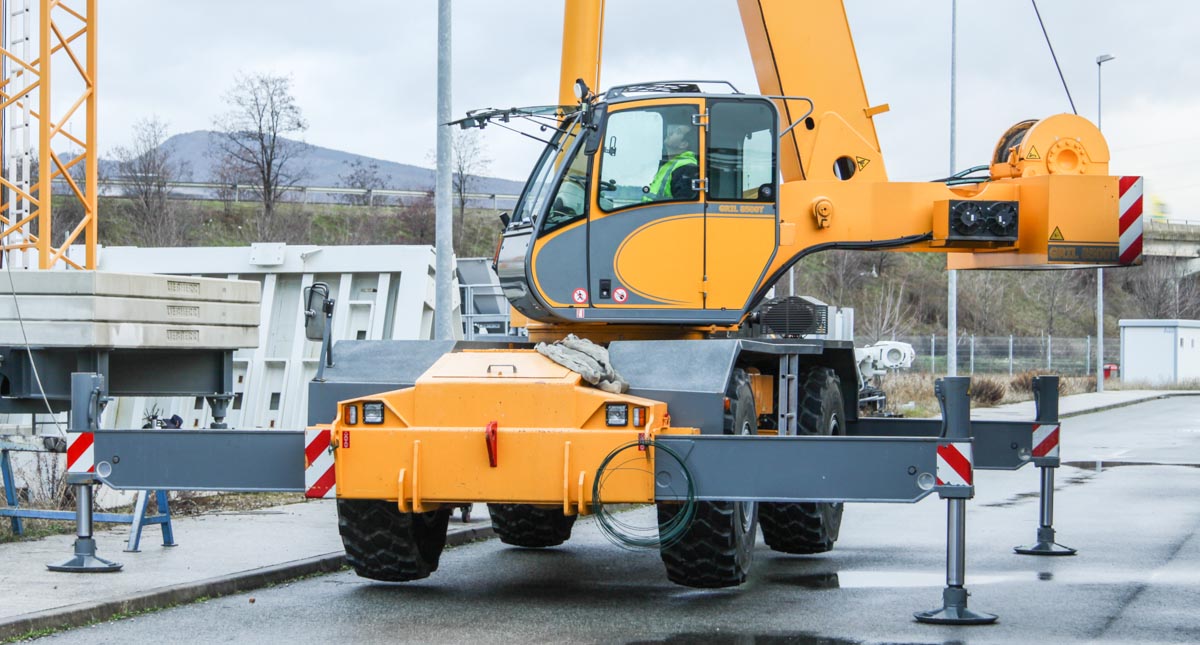

The outrigger base of the crane measures 6.174 x 5.8 meters. Packed is the crane 12.7 meters long, 2.52 meters wide and 3.43 meters high. The total mass is around 30 tonnes.

The superstructure has 4.4 tonnes of counterweight with a 3.885 meter tailswing.

The crane is powered by a Caterpillar Acert C6.6, a 6-cylinder diesel engine with 158 hp. A maximum travel speed of 37 km/h on the road can be accieved.

The boom has a 10.1 meter base length and a maximum length of 32 meters. The boom is extendable with a folding jib with a maximum length of 16.1 meters.
