Liebherr LTF 1045-4.1 - Wundel

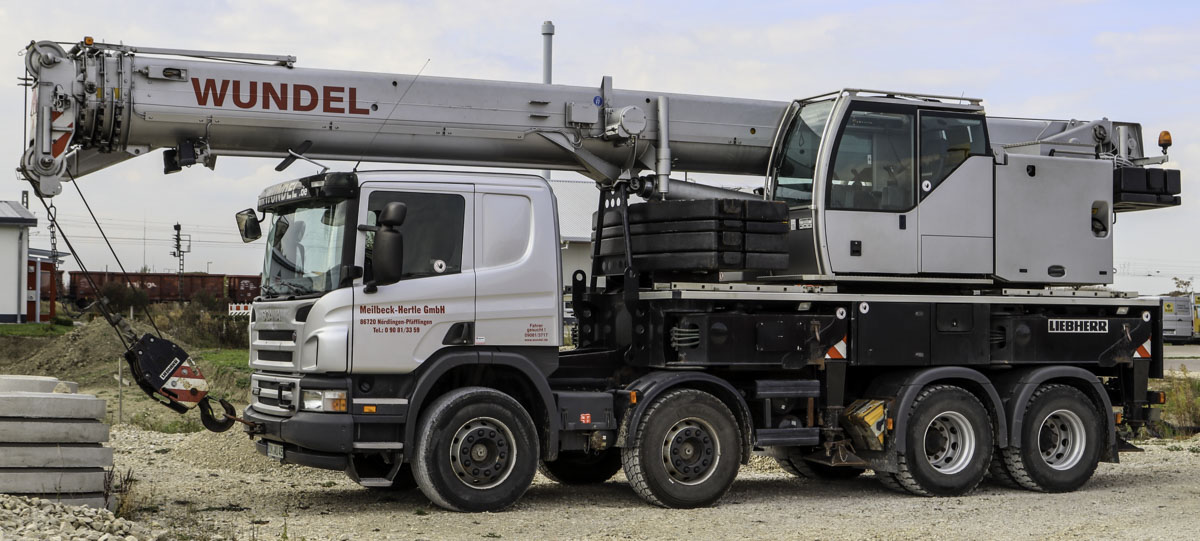

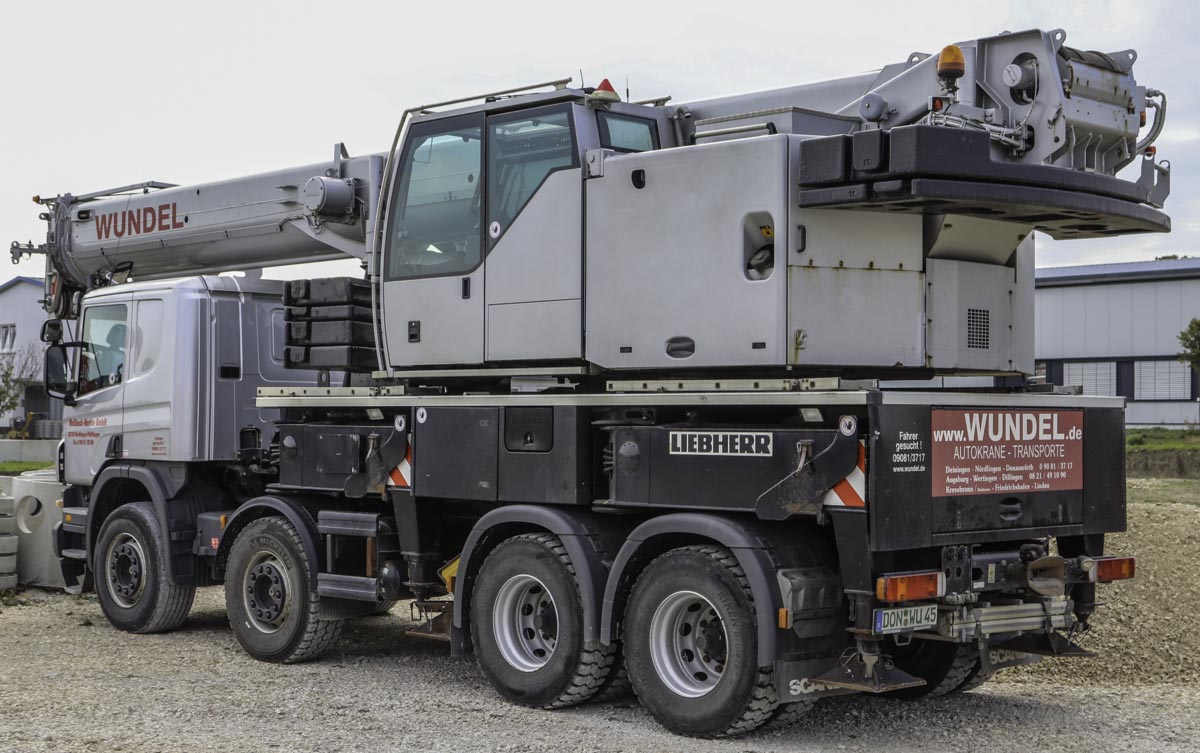

This is the second Liebherr LTF 1045-4.1 that is operated by Wundel. The crane stood parked on the branch in Mertingen (DE). The crane's year of manufacture is 2008, most probably it is a used crane from Kranlogistik.

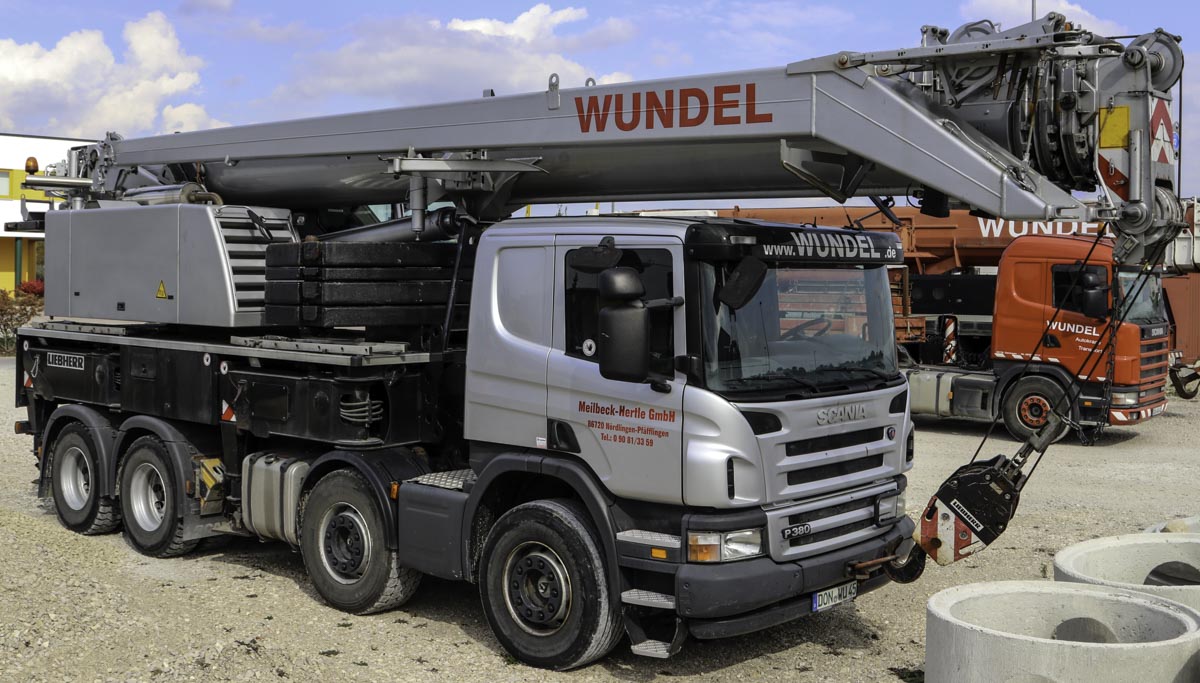

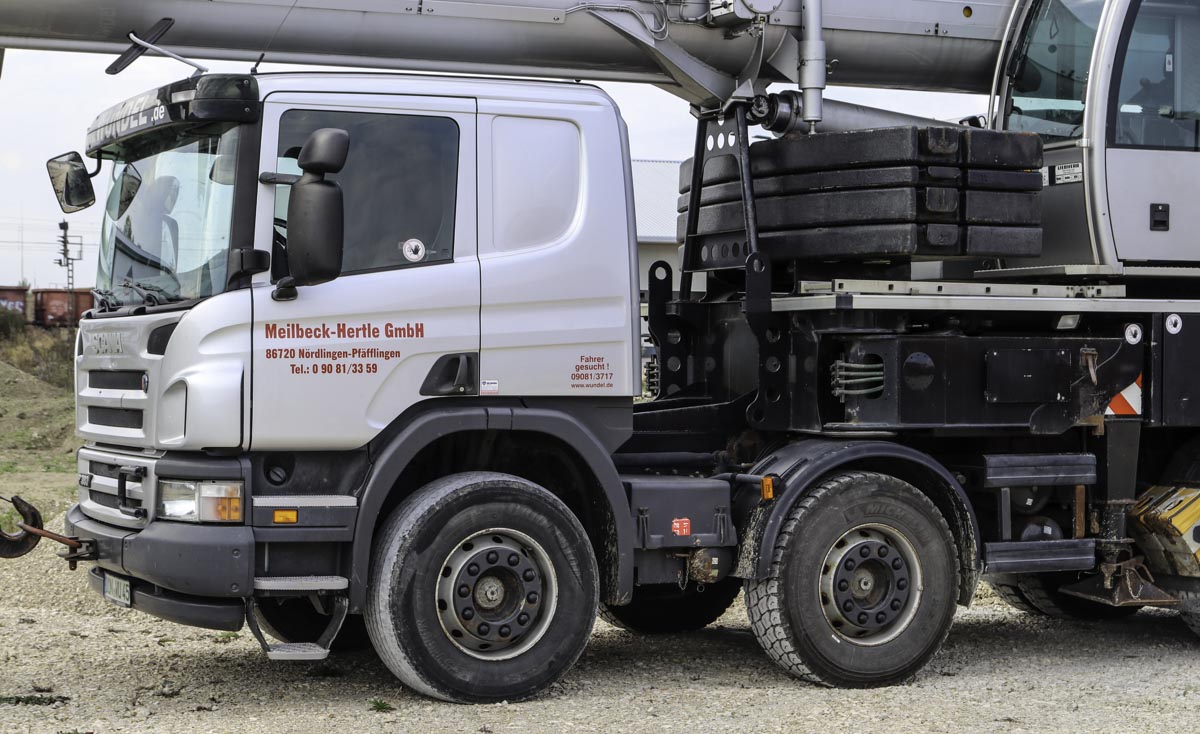

The crane is mounted onto a Scania P 380 chassis with 8x4-drive line. The truck is powered by a Scania DC12, an 11.7 liter 6-cylinder diesel engine with a power of 282 kW (380 hp). The X-shaped outrigger base measures 6.42 x 6.2 meters, or half 5.3 x 4.65 meters.
In transit is the crane 11.4 meters long, 2.55 meters wide and 3.85 meters tall. The vehicle has a total mass of 38 tonnes.

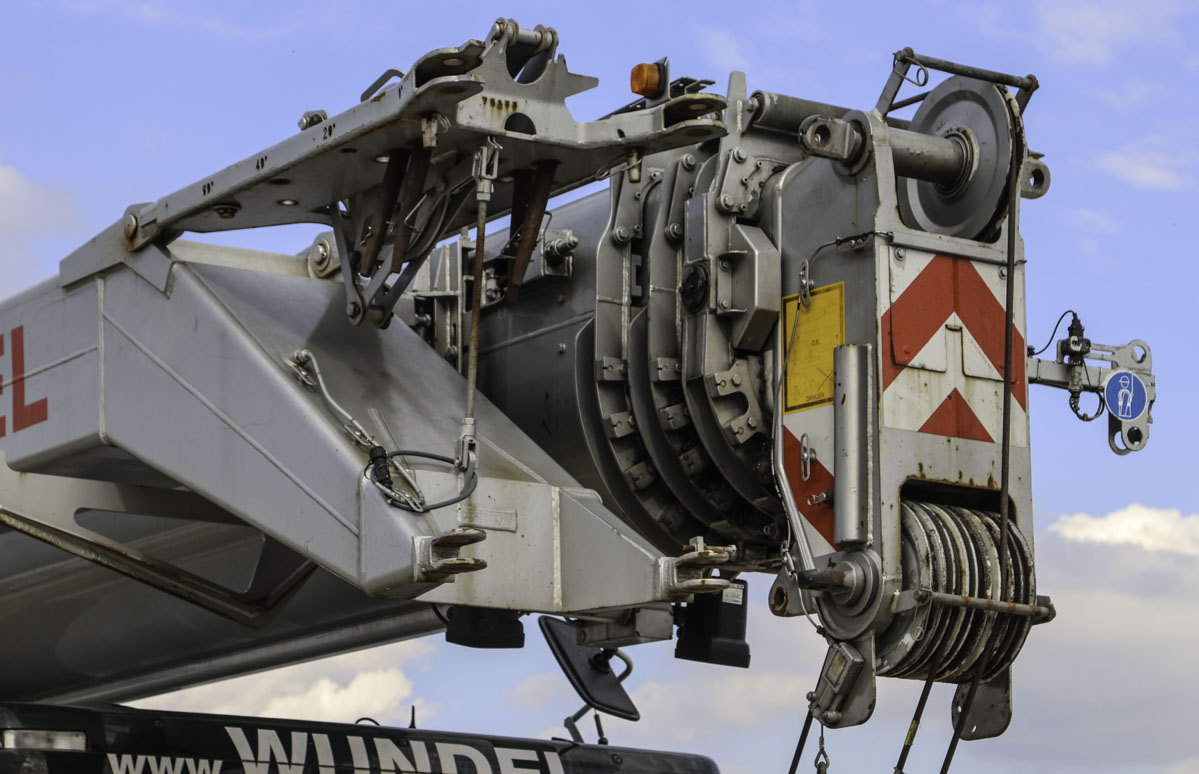

The 4-part main boom has a 10.5 meter base length and extends three times to a maximum length of 35 meters. The main boom can be extended by a 9.5 meter jib.

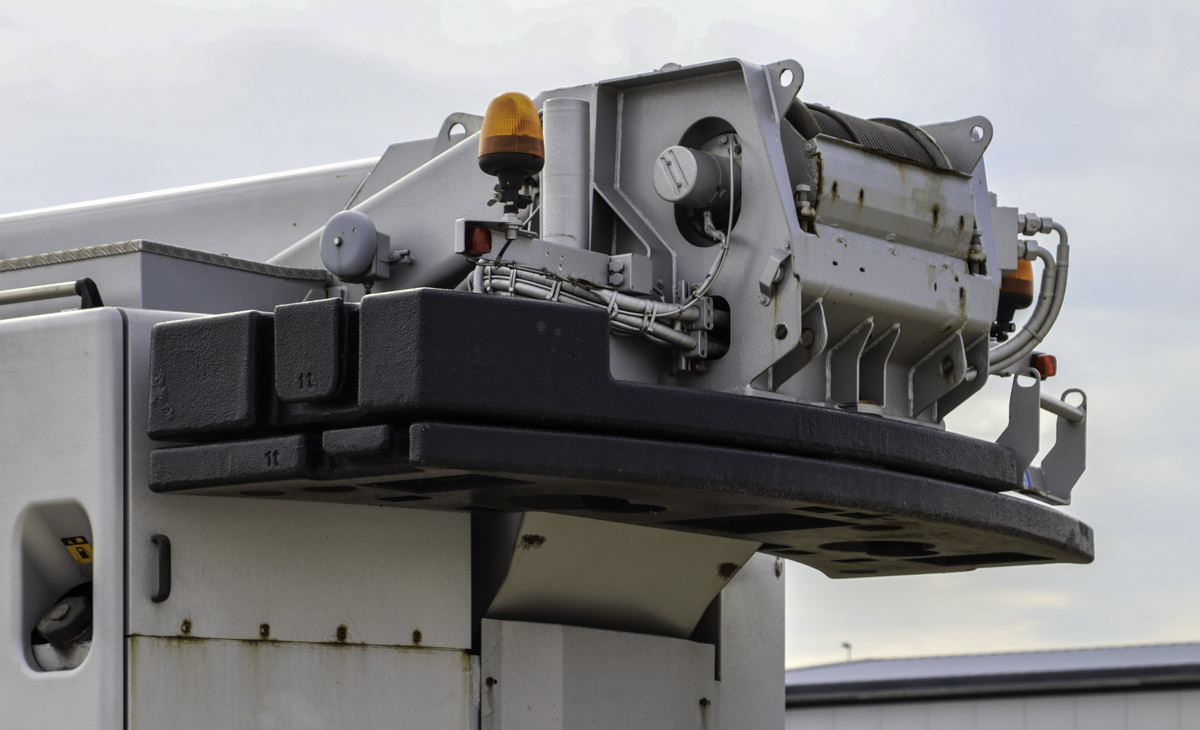

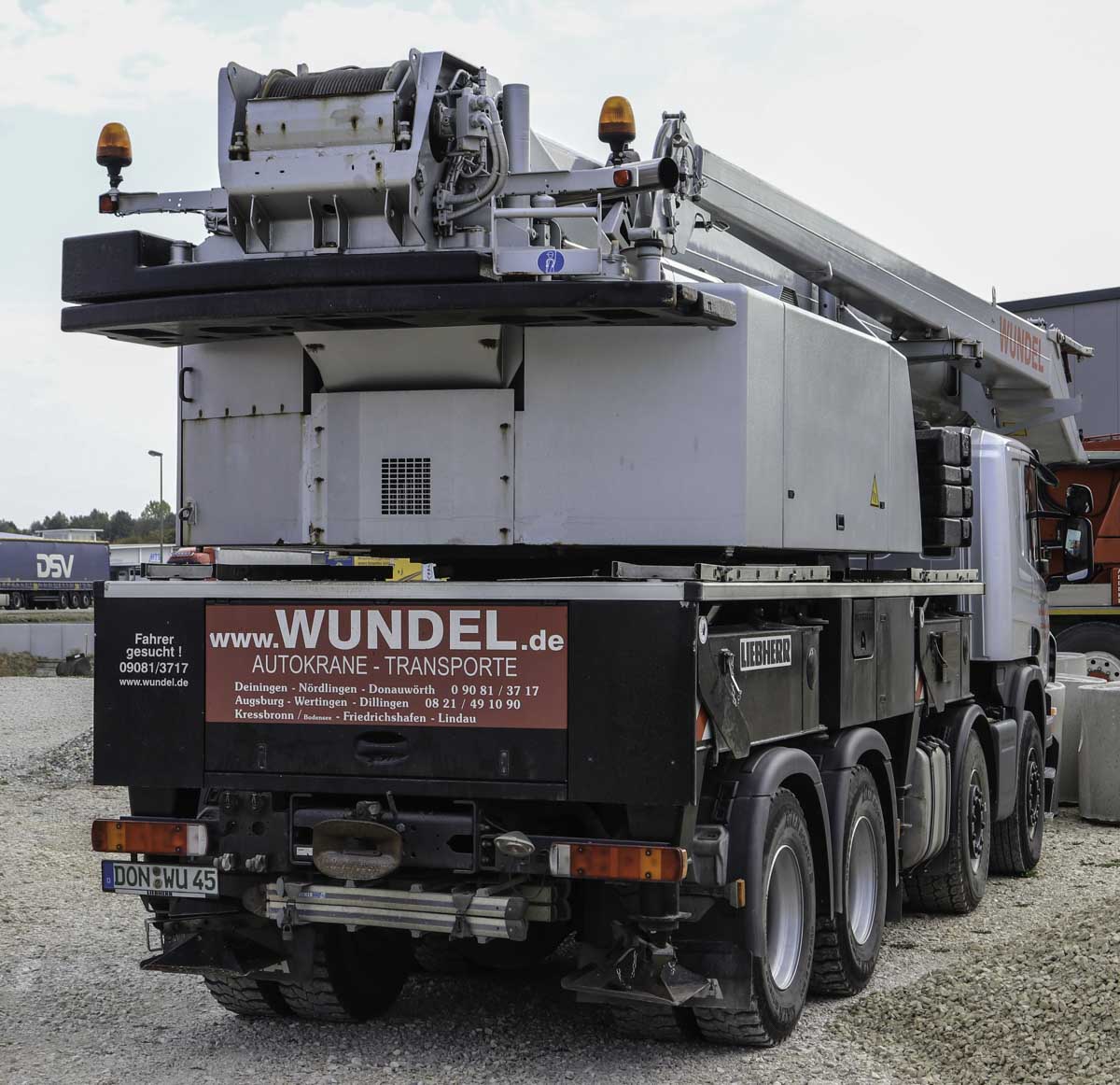

Attached to the superstructure remains 2 tonnes. During the transport over the road are 7 tonnes of counterweight stored on the undercarriage. In total has the crane 9 tonnes of counterweight, that has a 3 meter tailswing.
