Liebherr LTM 1200-5.1 - Wagenborg Nedlift

Liebherr LTM 1200-5.1 from Wagenborg Nedlift, establishment Voorschoten (NL) to lift a foundation for a sound barrier in Zoetermeer (NL).

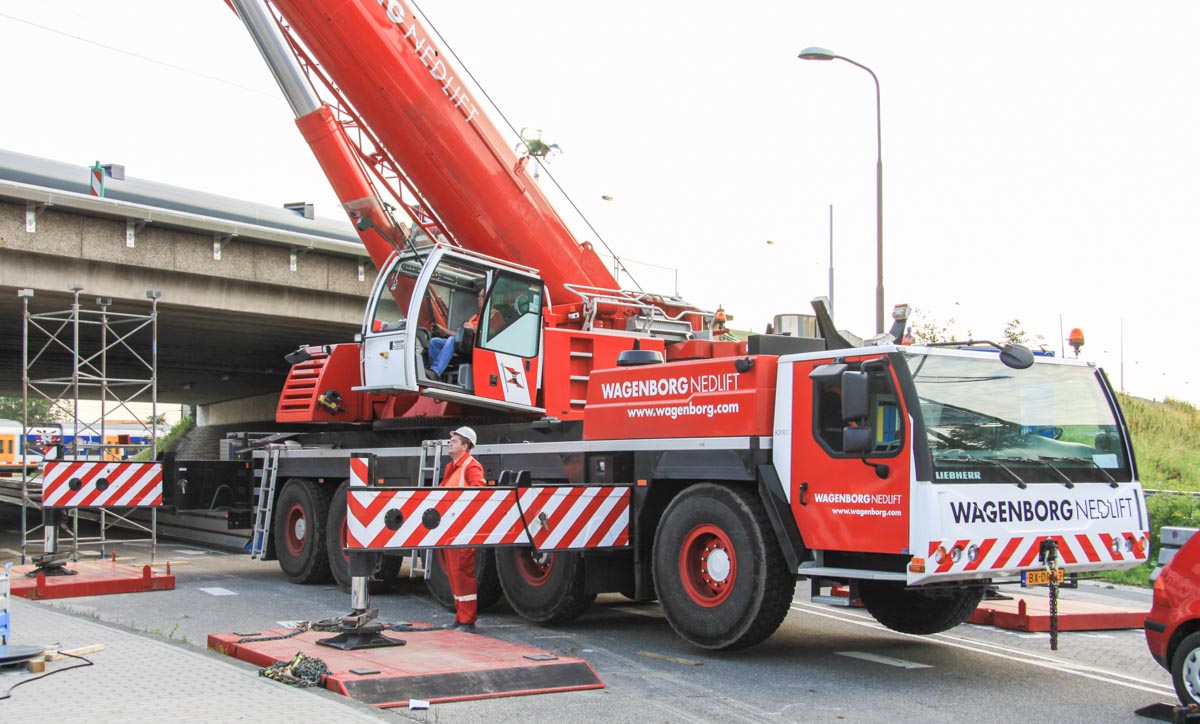

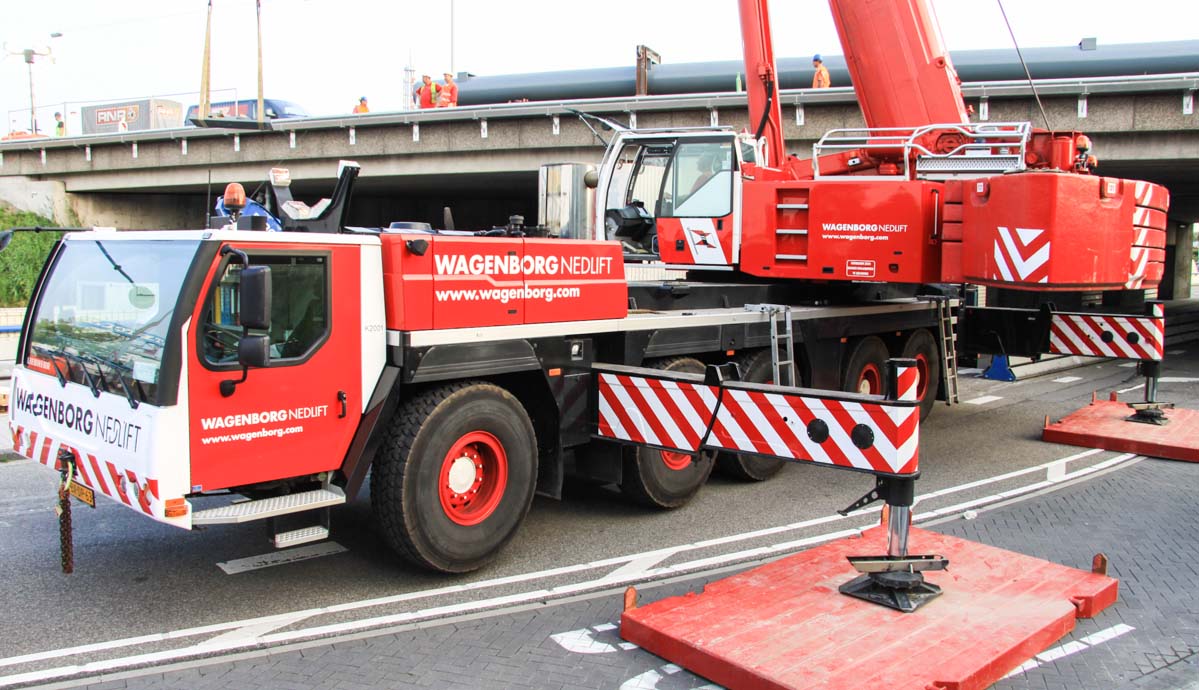

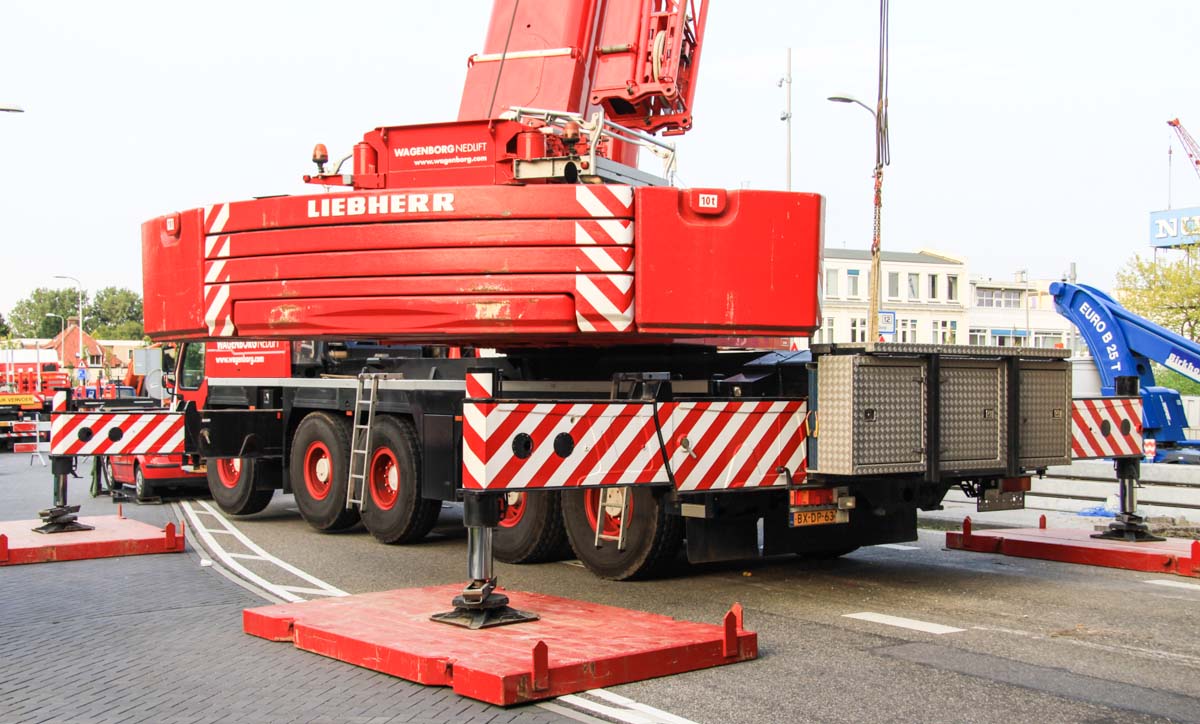

The outrigger base from this crane is 8.9 x 8.3 meters.

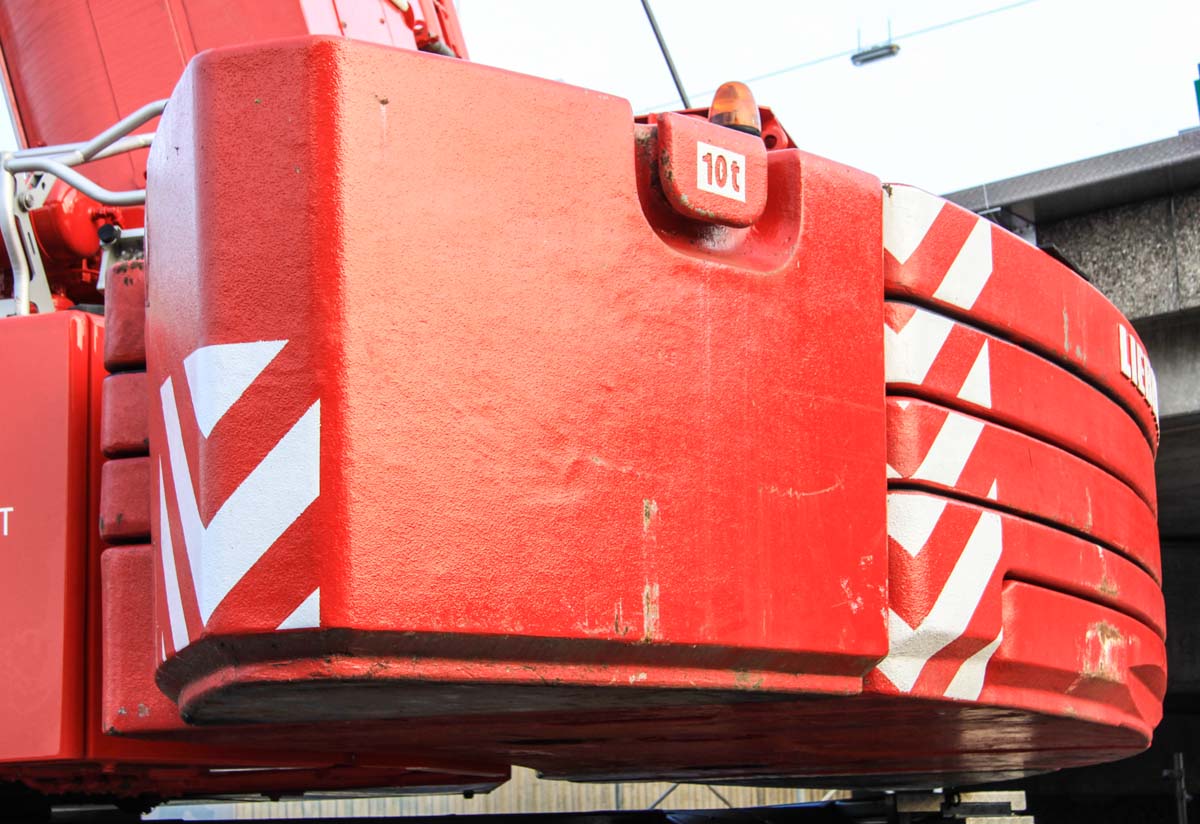

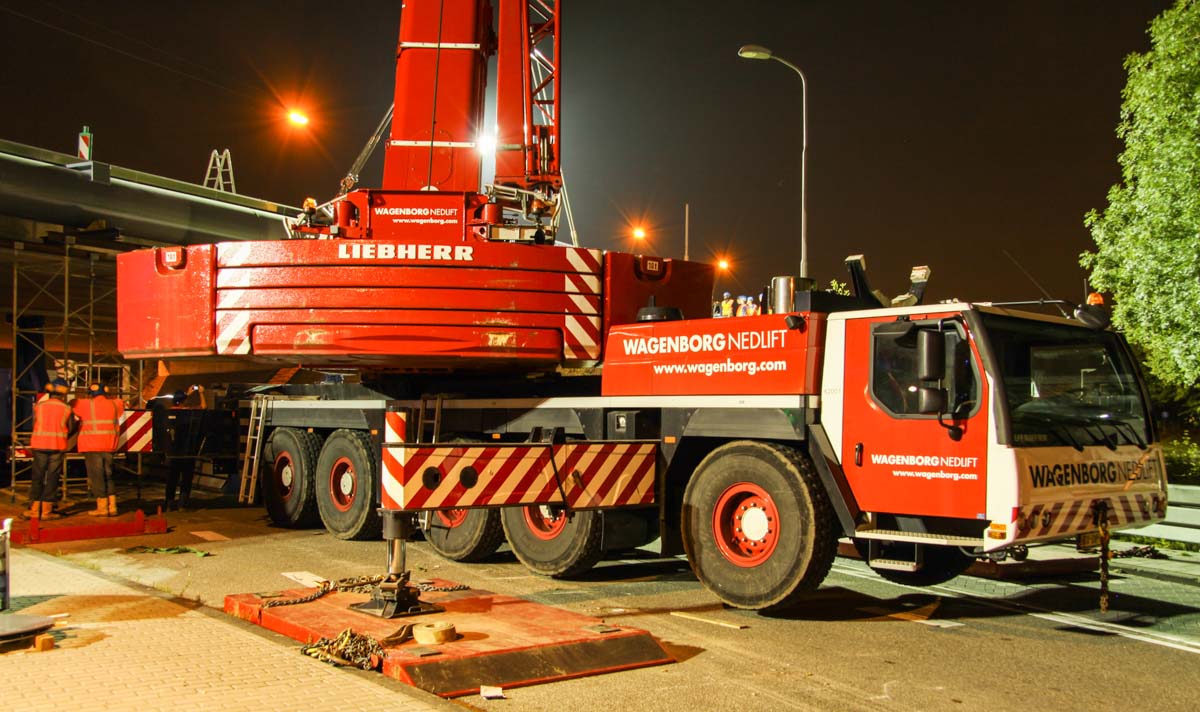

The crane was used with the complete counterweight of 72 tons.

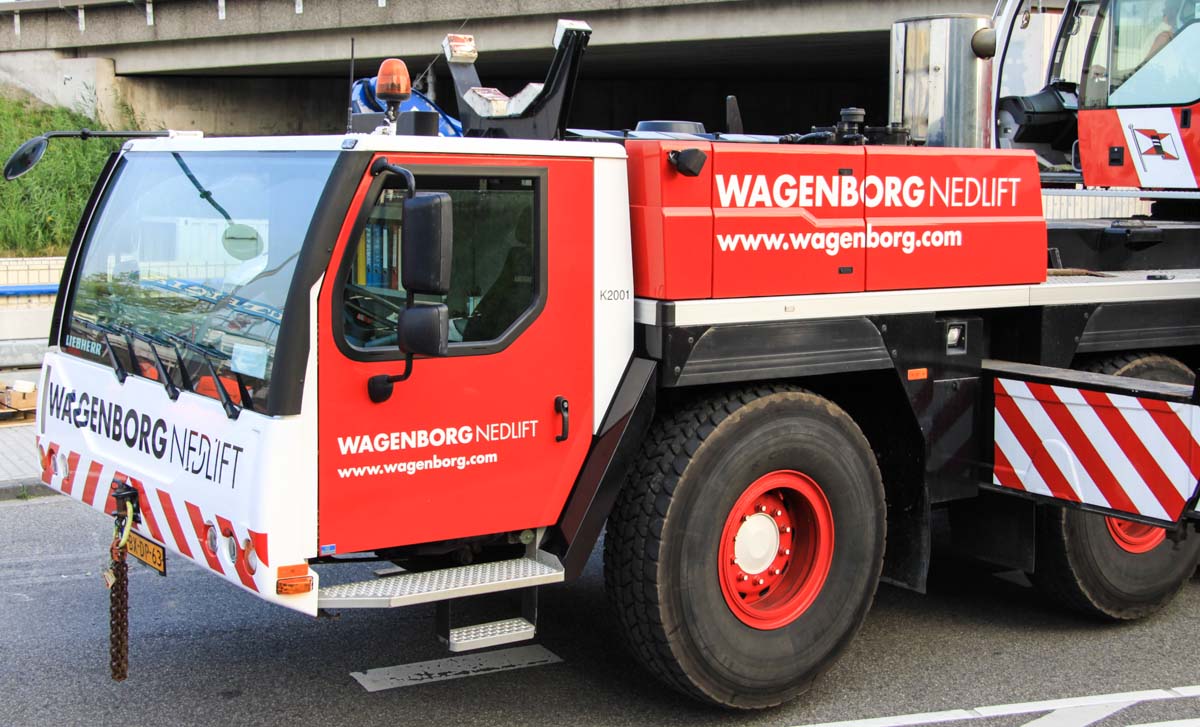

The crane carrier engine is a Liebherr D846 A7 and the super structure engine a Liebherr D934S A6, resp. a 6 and 4 cylinder engine.

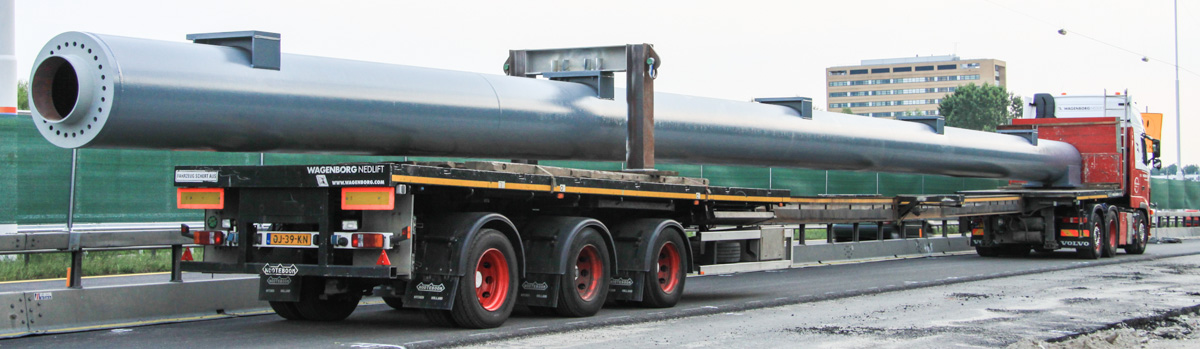

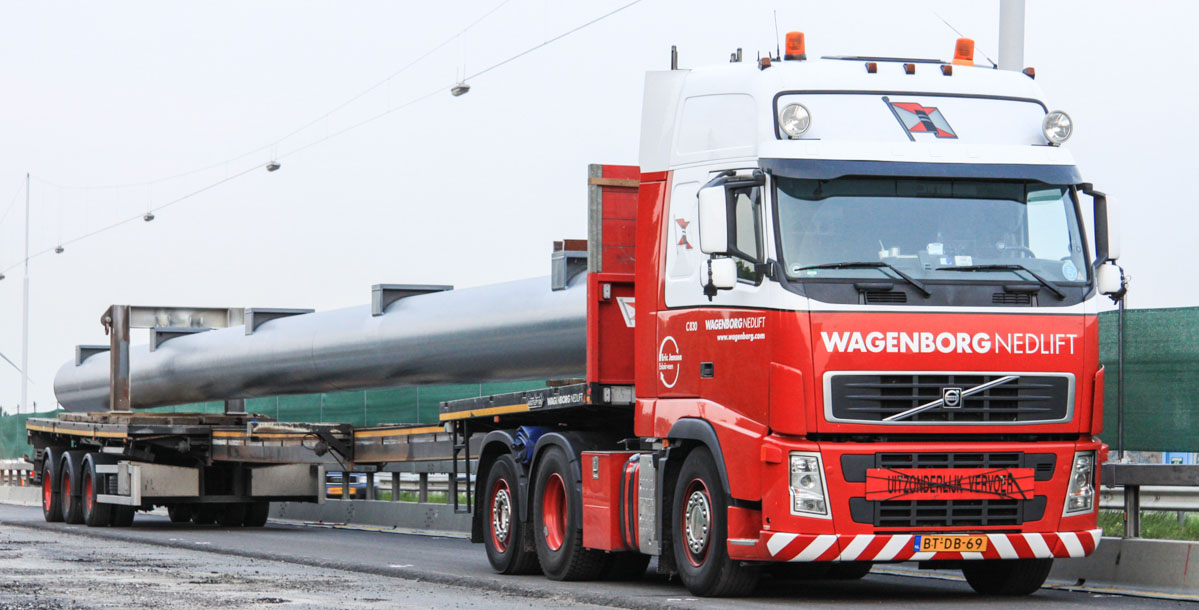

The two-part beam tube was also transported by Wagenborg Nedlift. It is about two tube beams from 29.9 and 29.3 meters long and resp. 23.3 and 22.3 tons heavy.

These beams are engineerd and made by Birkhoff Staalbouw from Pernis (NL).

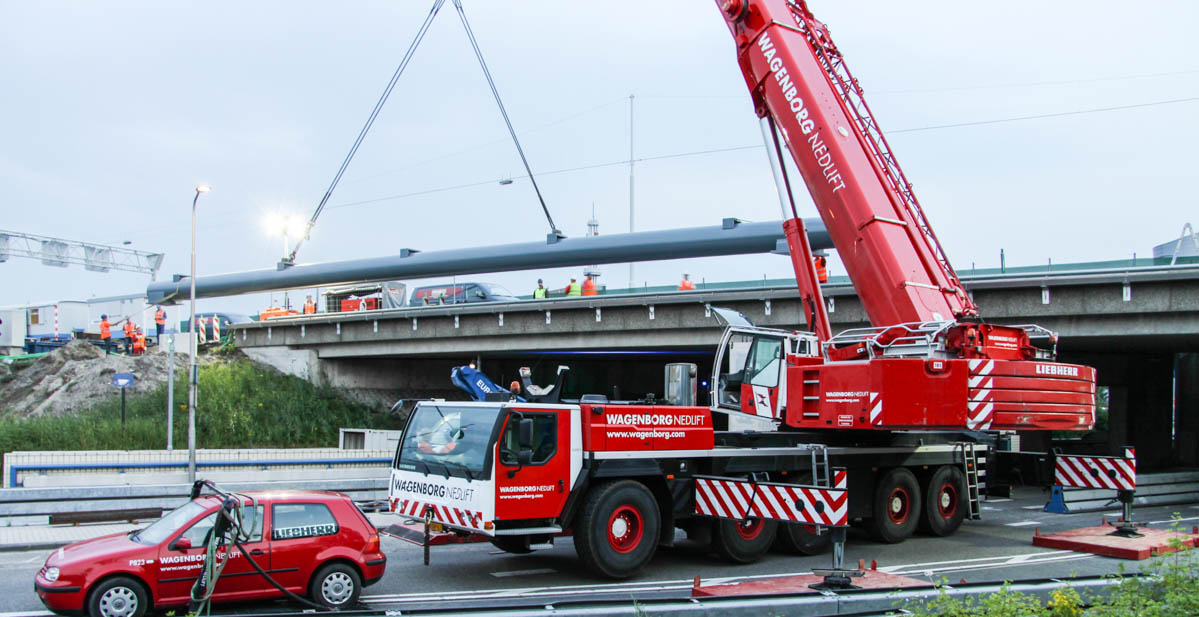

The first beam is lifted from the truck, the radius is about 13 meters.

The beam is mounted near a existing highway overpass. Constructor Ballast Nedam has build two foundations to mount these beams up to.

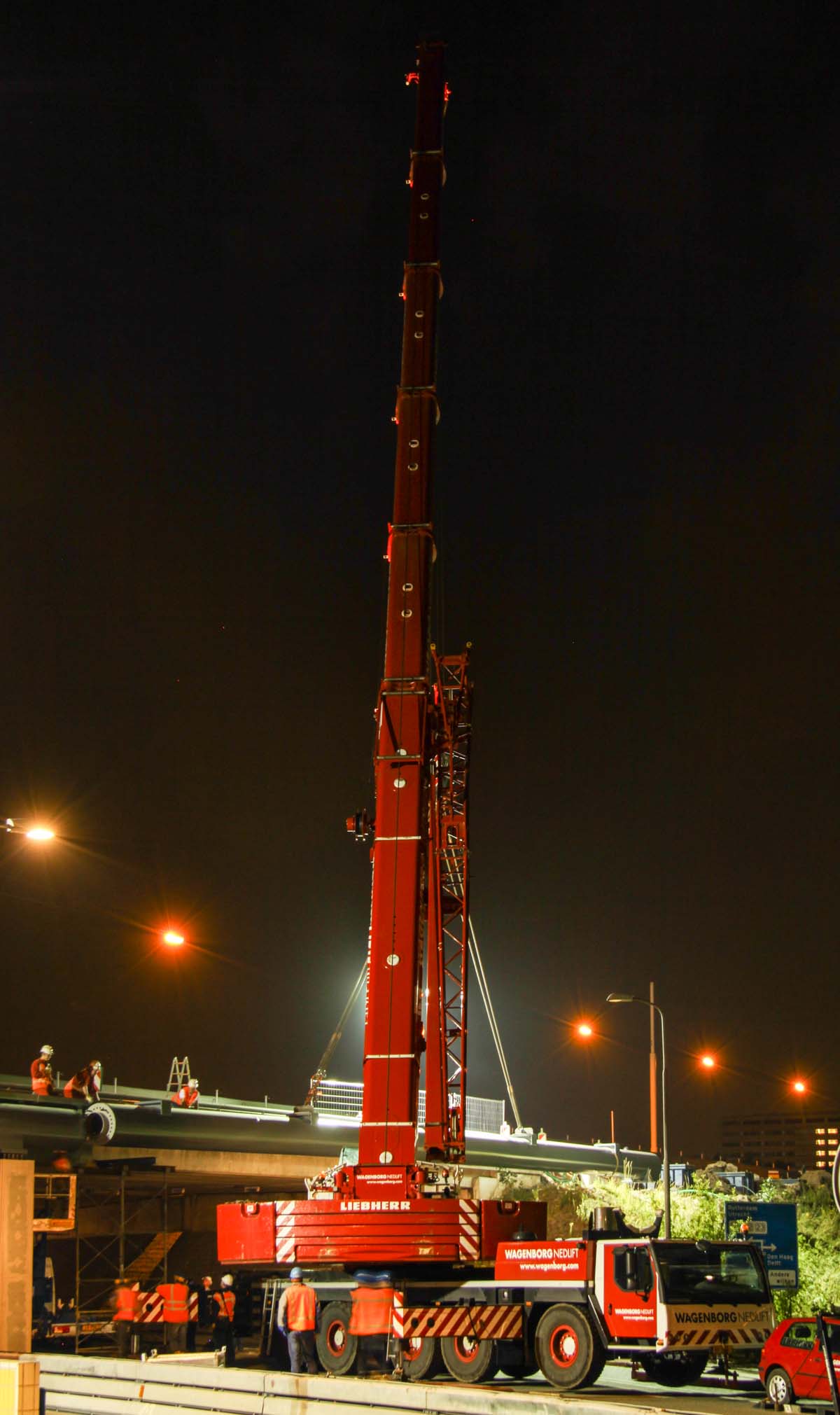

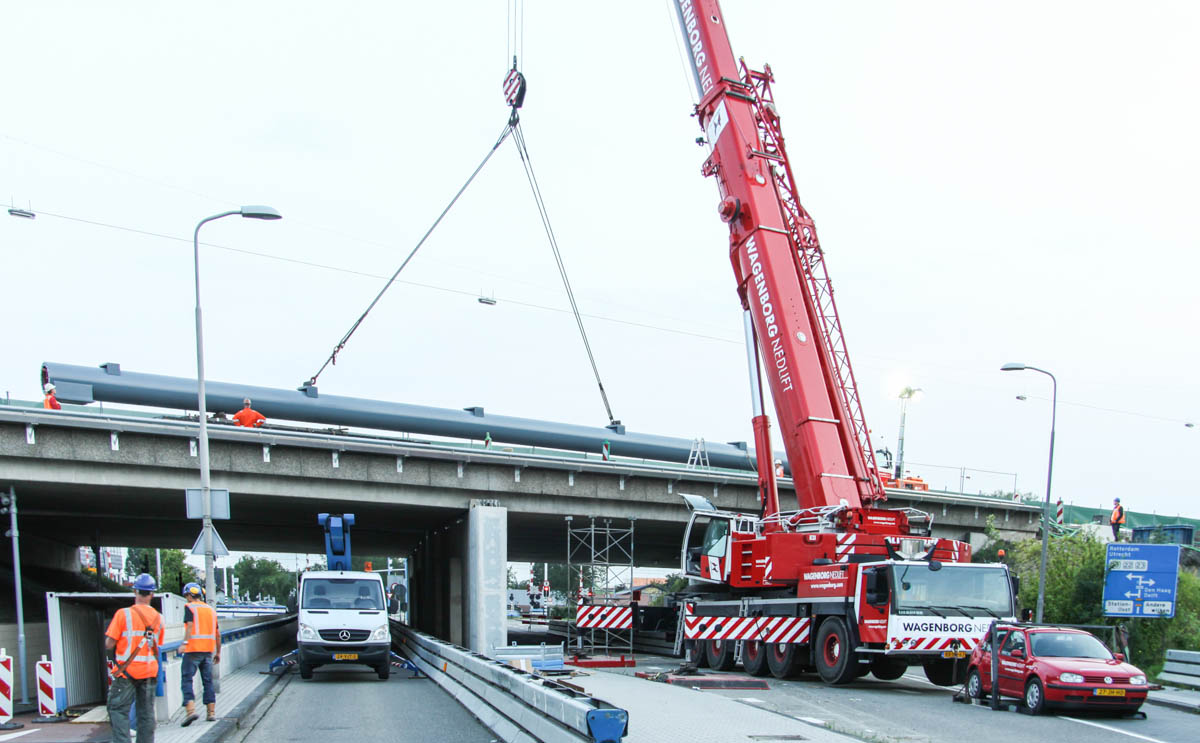

The second beam is lifted here. The crane boom is extended up to 35.8 meters, the max. boomlength is 72 meters.

A very beautiful crane!
