Schmidbauer from Memmingen (DE) is operating this sharp Liebherr LTC 1045-3.1 with year of manufacture 2012.

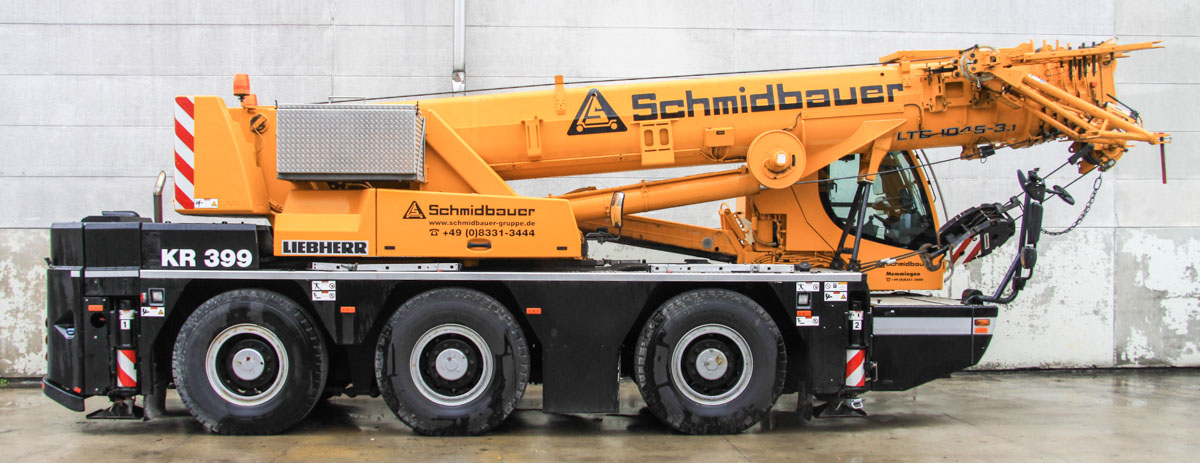

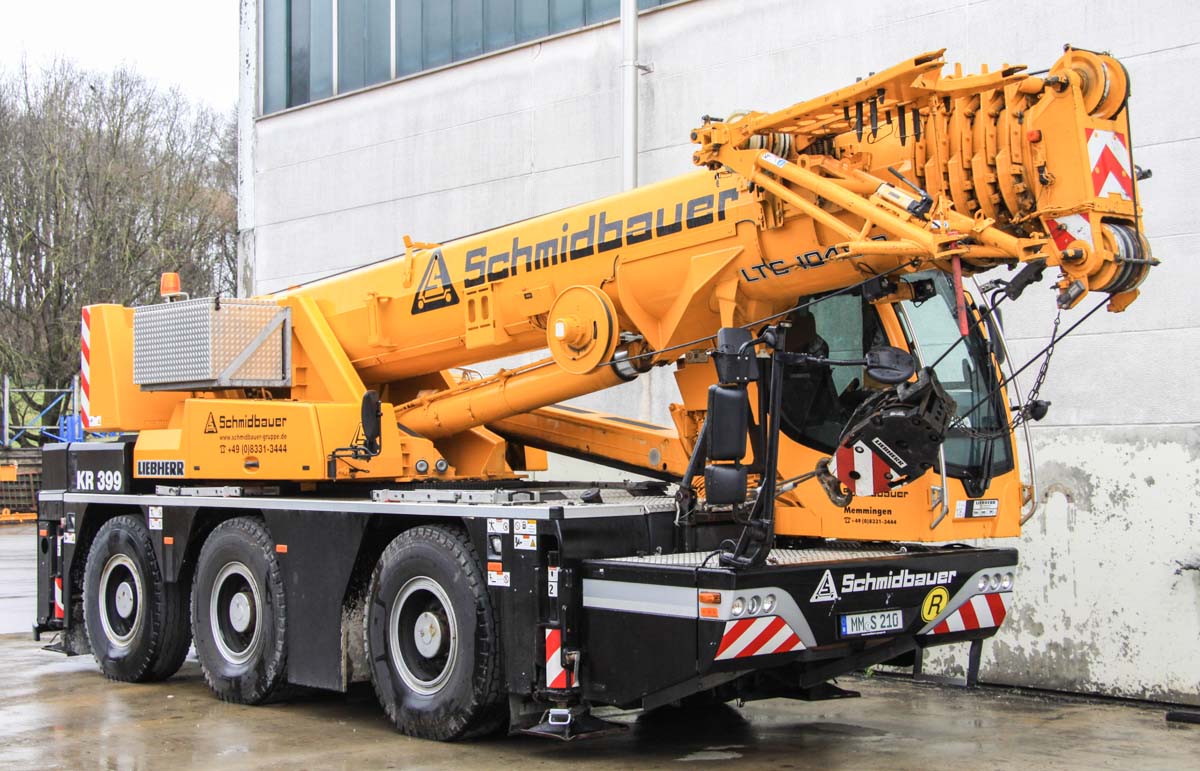

It is a 2-axle compact crane with a single crane from where the crane is driven and operated. During transport over the road is the crane 10.41 meters long, 2.54 meters wide and 3.8 meters high. For driving in constrained areas is it possible to reduce the high to 3.06 meters.

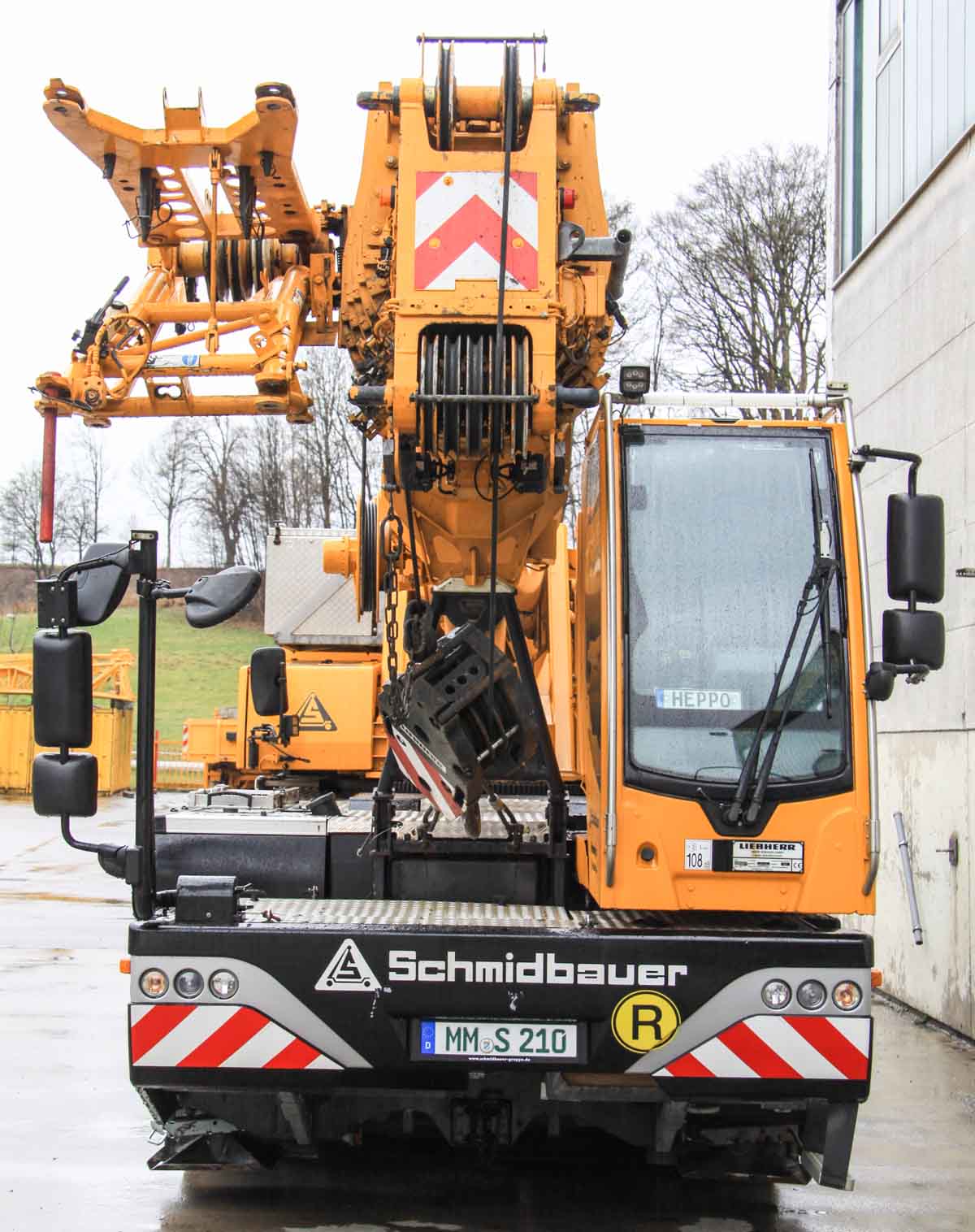

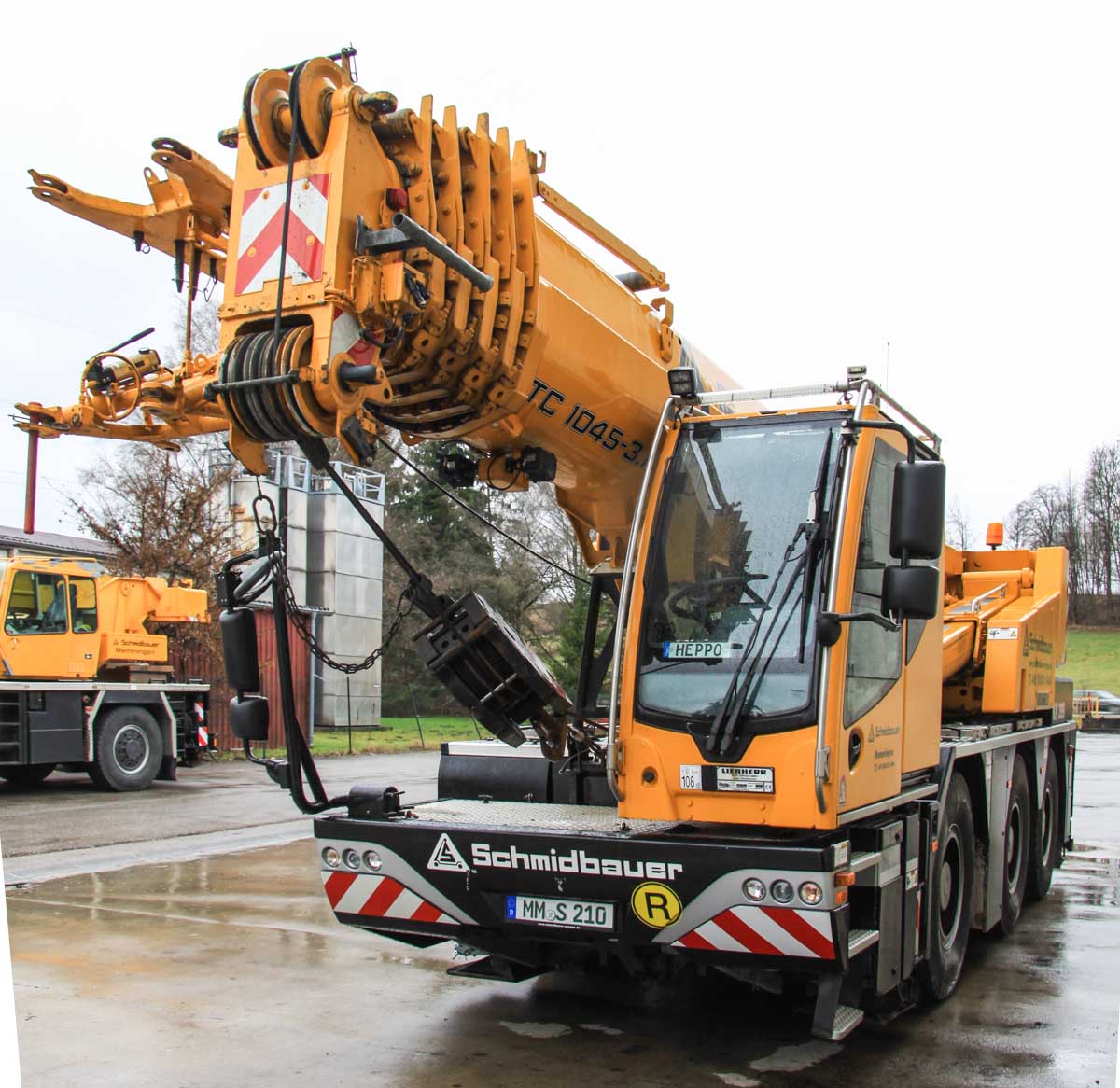

The adjustable cabin is an option for this crane and gives the crane operator a height of 7.8 meters. The cabin is attached to a small extendable boom.

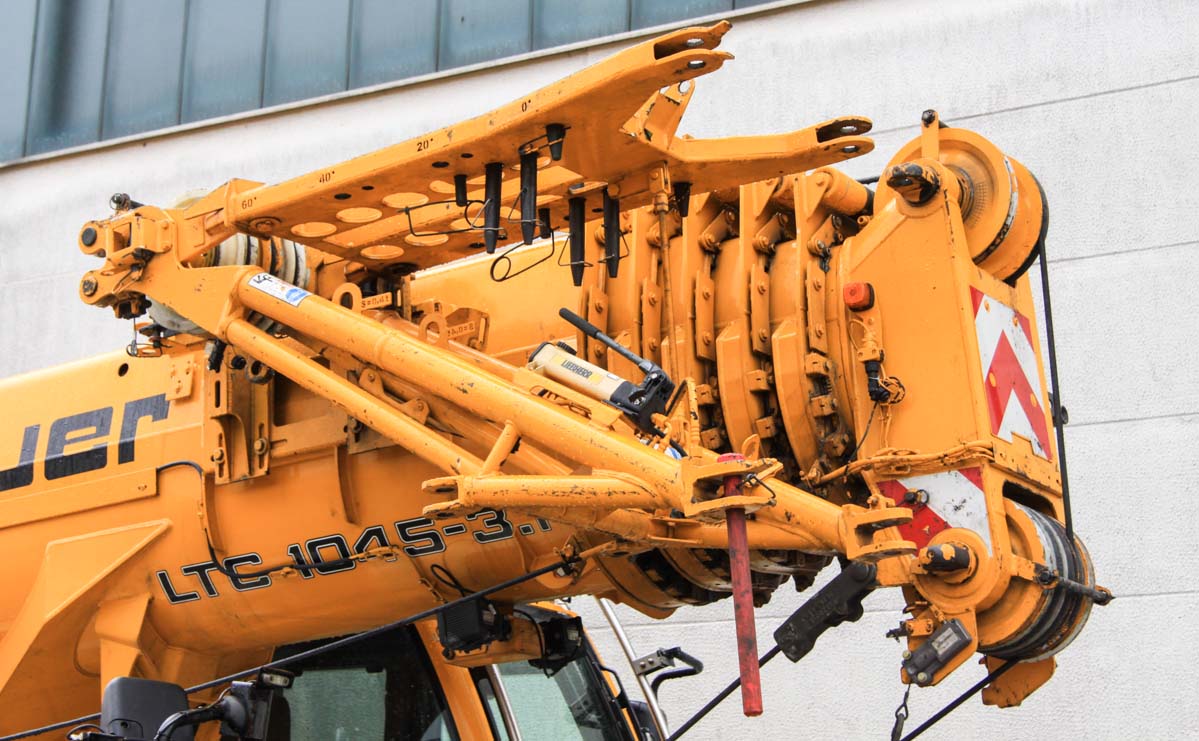

The main boom has a 8.2 meter base length and extends five times to a total length of 36 meters. The small assembly jib is 1.5 meters long and under 0, 20, 40 and 60 degrees mountable.

The outrigger base of the crane is 6.4 x 6.2 meters, or half 6.4 x 4.4 meters.

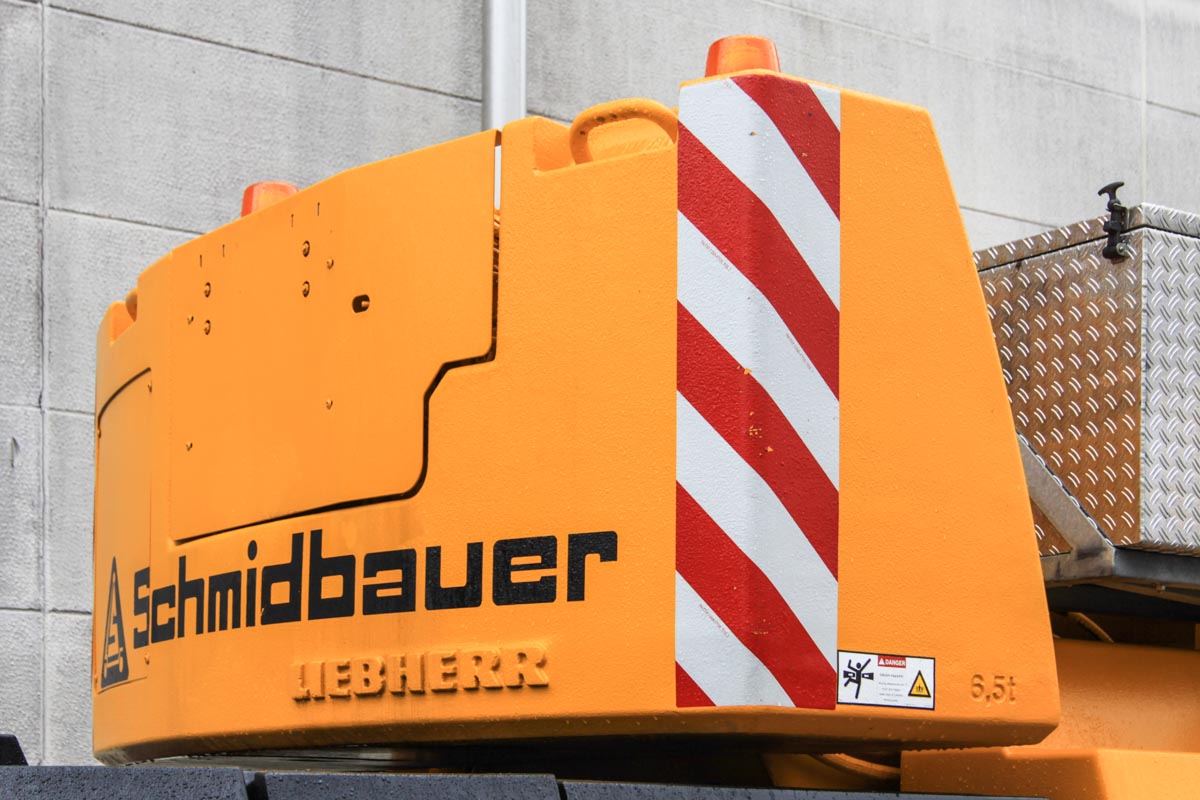

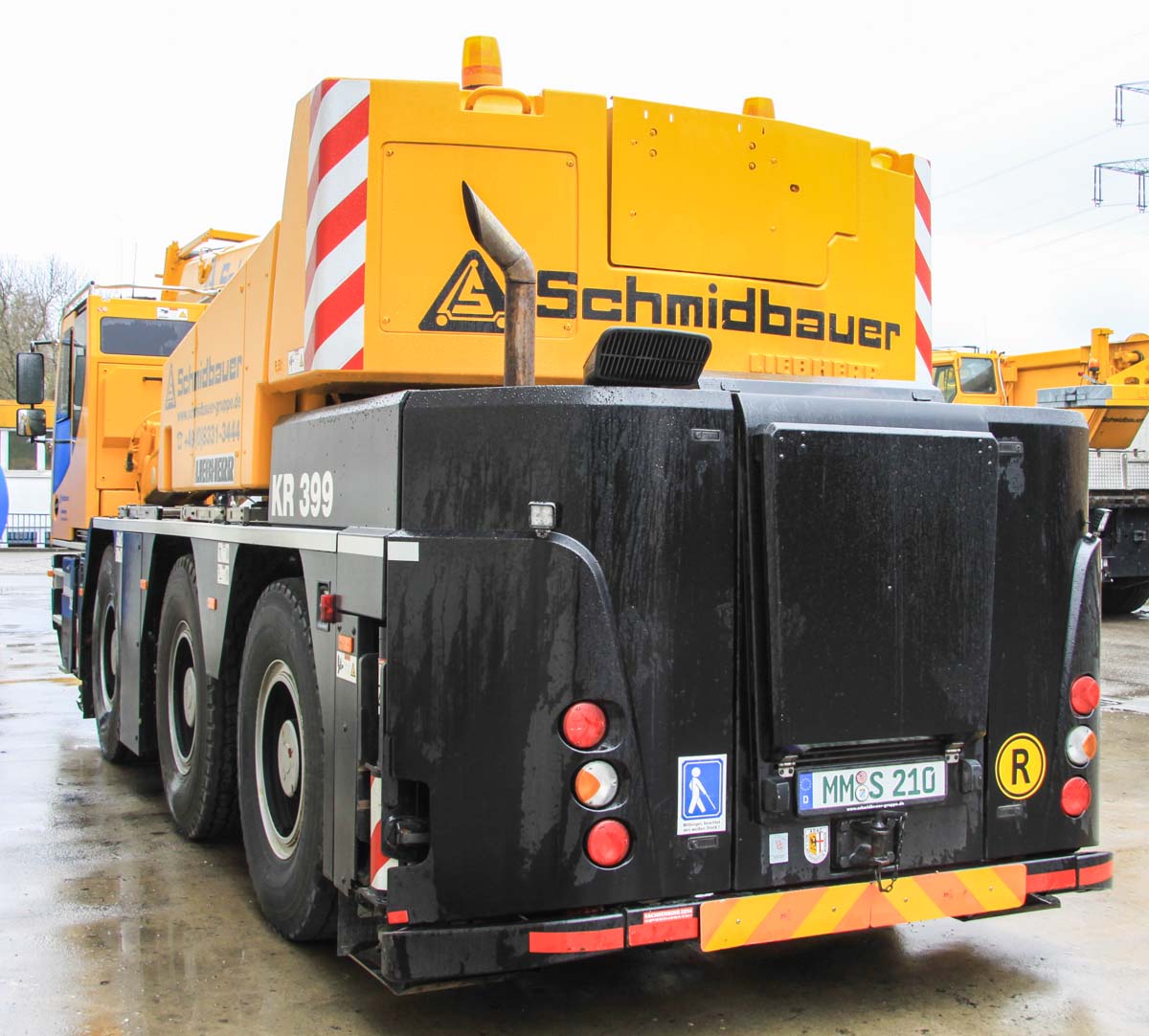

The counterweight weights 6.5 tonnes and has a 3.2 meter tailswing.

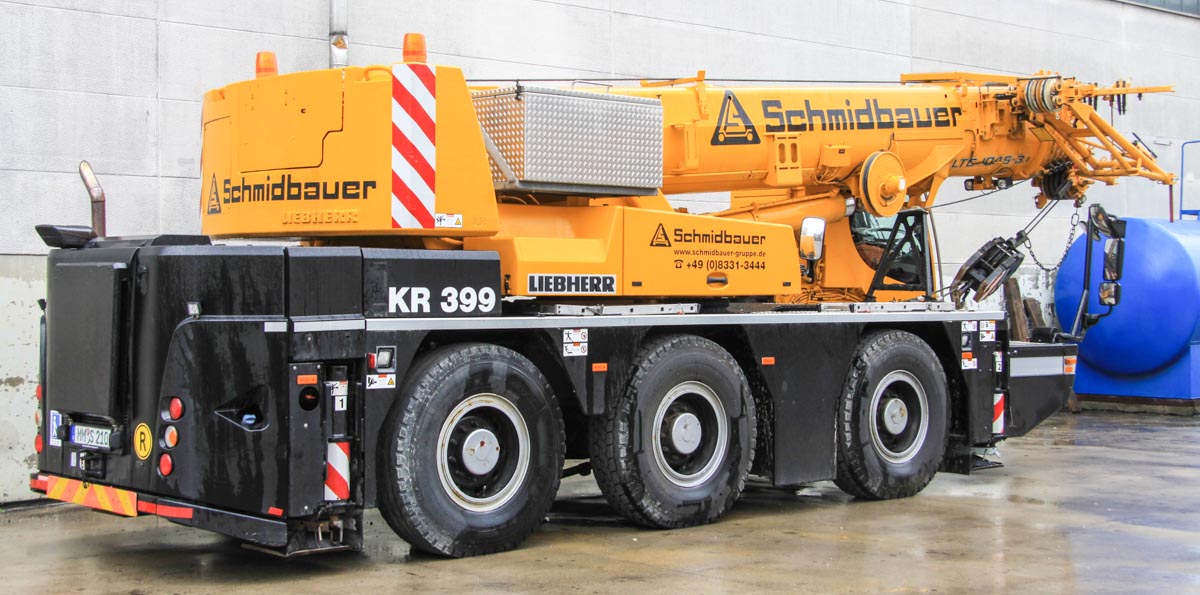

The crane is powered by a Mercedes-Benz OM 926 LA, a 6-cylinder diesel engine with a power of 240 kW (326 hp). The engine is installed at the rear and powers on this crane all axles, which is optional. All axles are steerable also.

A sharp crane!
