Liebherr HS 855 HD - LT SAMBO

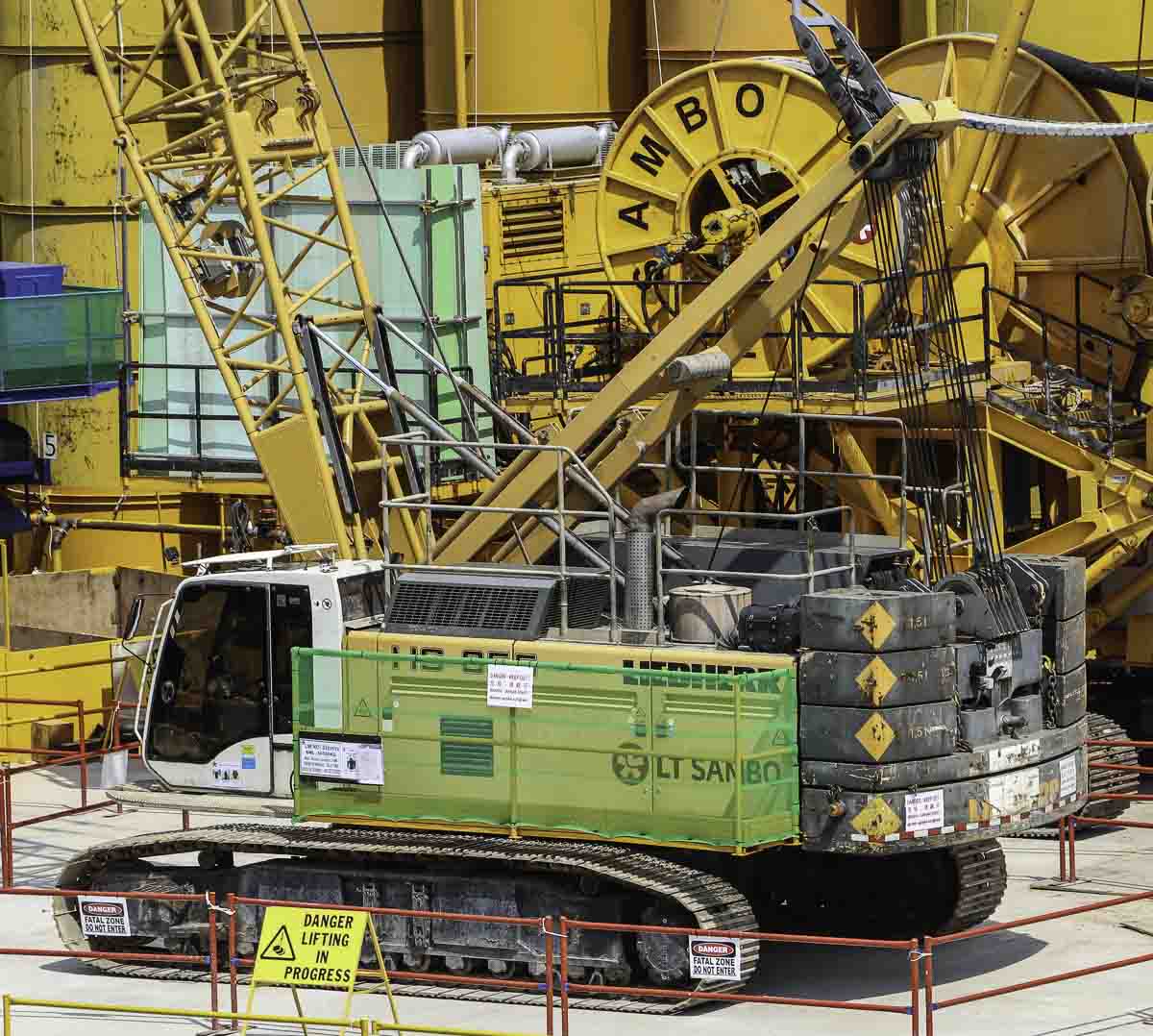

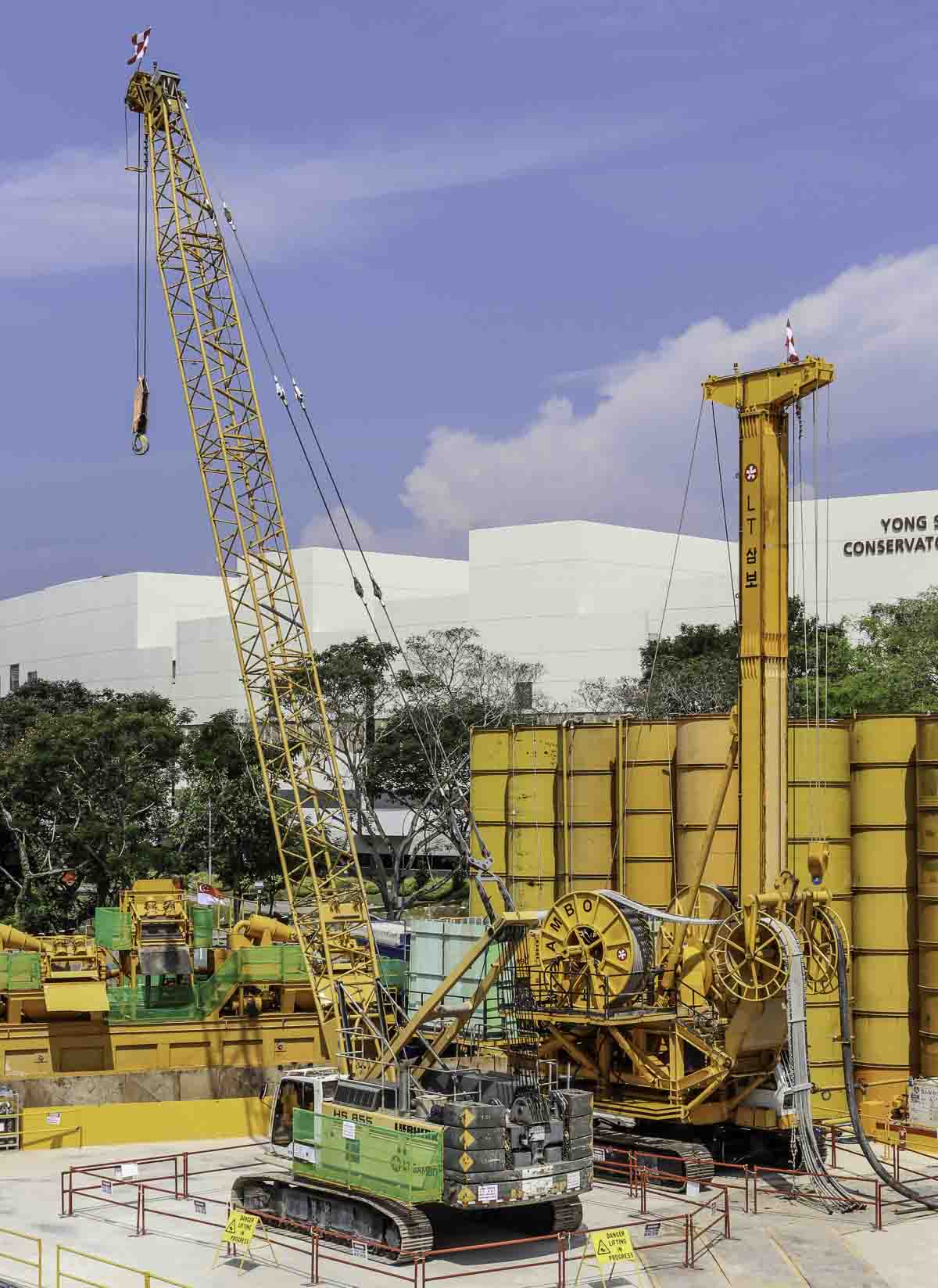

This sharp Liebherr HS 855 HD of LT SAMBO from Singapore (SG) was used there on a construction site as an assist crane. It is a 90-tonne heavy duty crawler crane.

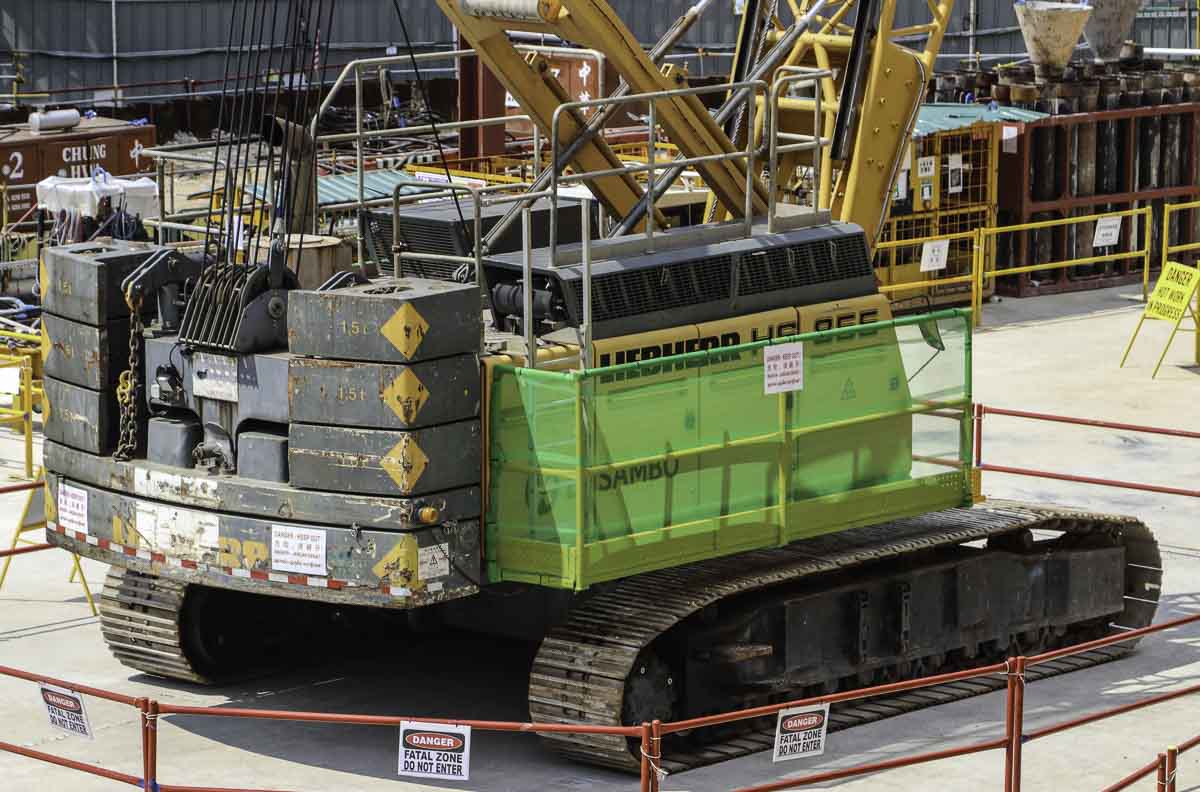

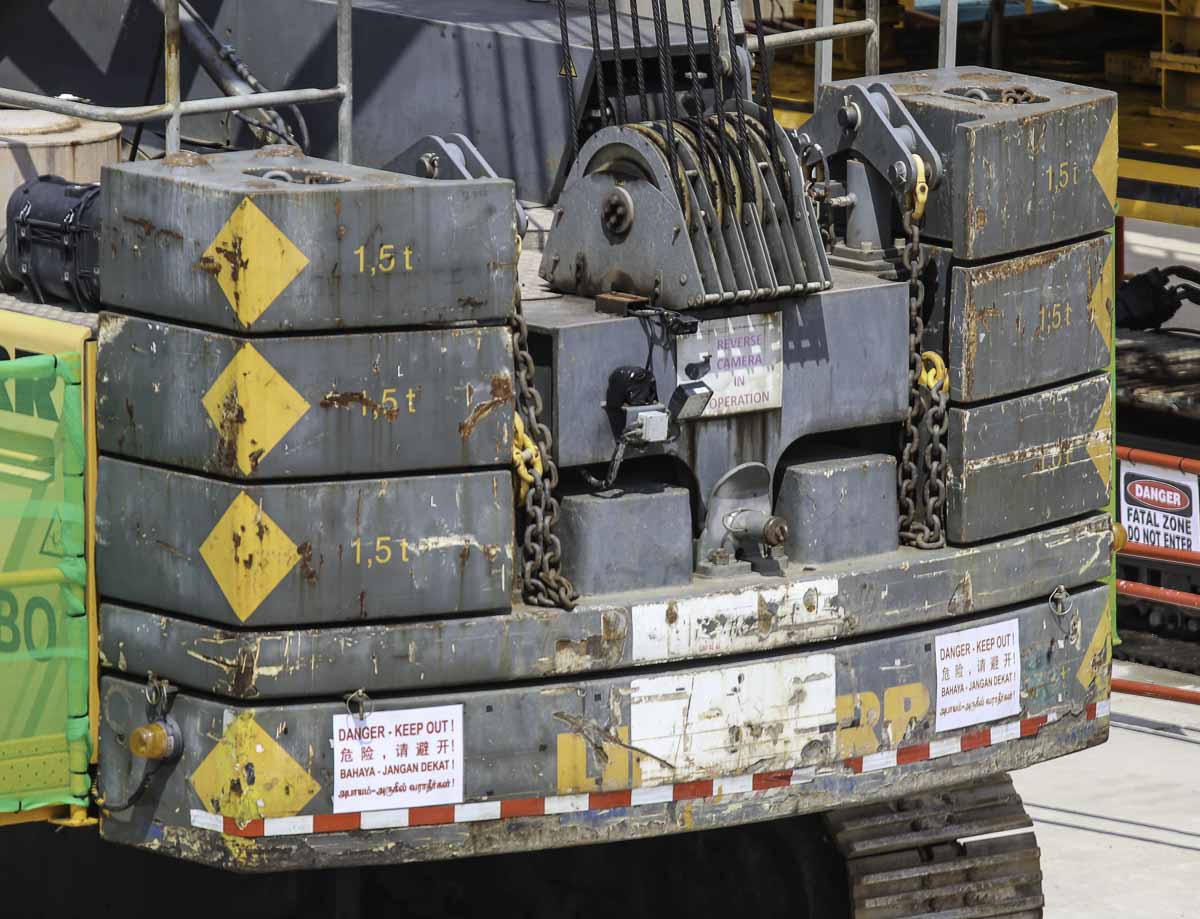

Here is the crane fitted with a counterweight of 26.3 tonnes, the full counterweight is 32.3 tonnes and has a 4.7 meter tailswing.
The undercarriage is 6.46 meters long and 4.95 meters wide. For the transport over the road is the width to be reduced to 3.4 meters. The crane is powered by a Liebherr D 9508 A7, a diesel engine with a power of 450 kW (612 hp).

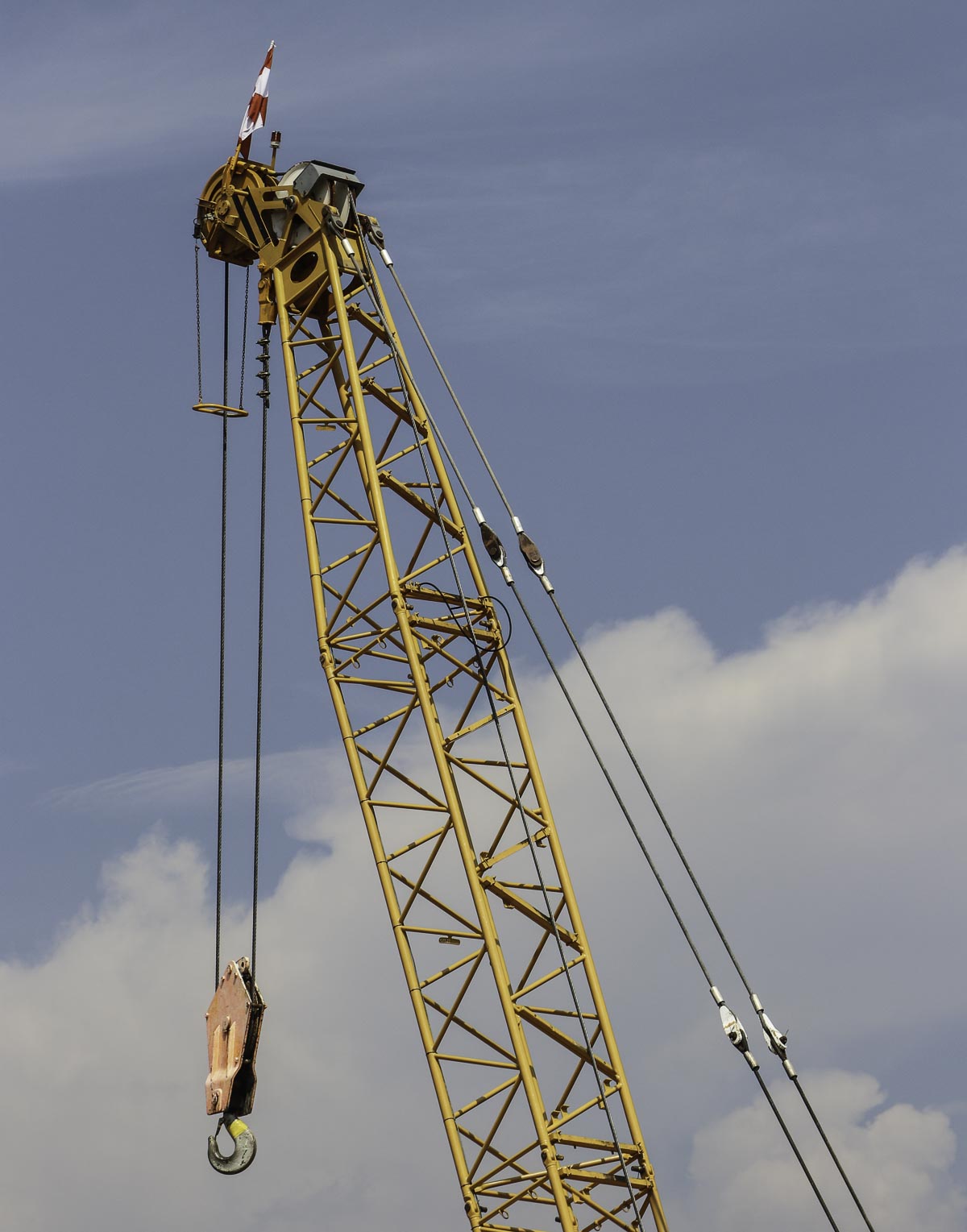

The main boom has an 11 meter base length and can be extended in 3 meter steps to a maximum length of 68 meters. The crane could be fitted with three different winches; with a 16, 20 or 25 tonne line pull.
Here was the crane fitted with a 29 meter long main boom. In this configuration is the crane able to hoist maximum 51.6 tonnes on a 5 meter radius of 6.3 tonnes to a 28 meter radius. A sharp crane of LT SAMBO.
