Liebherr LTR 1100 - Rothmund

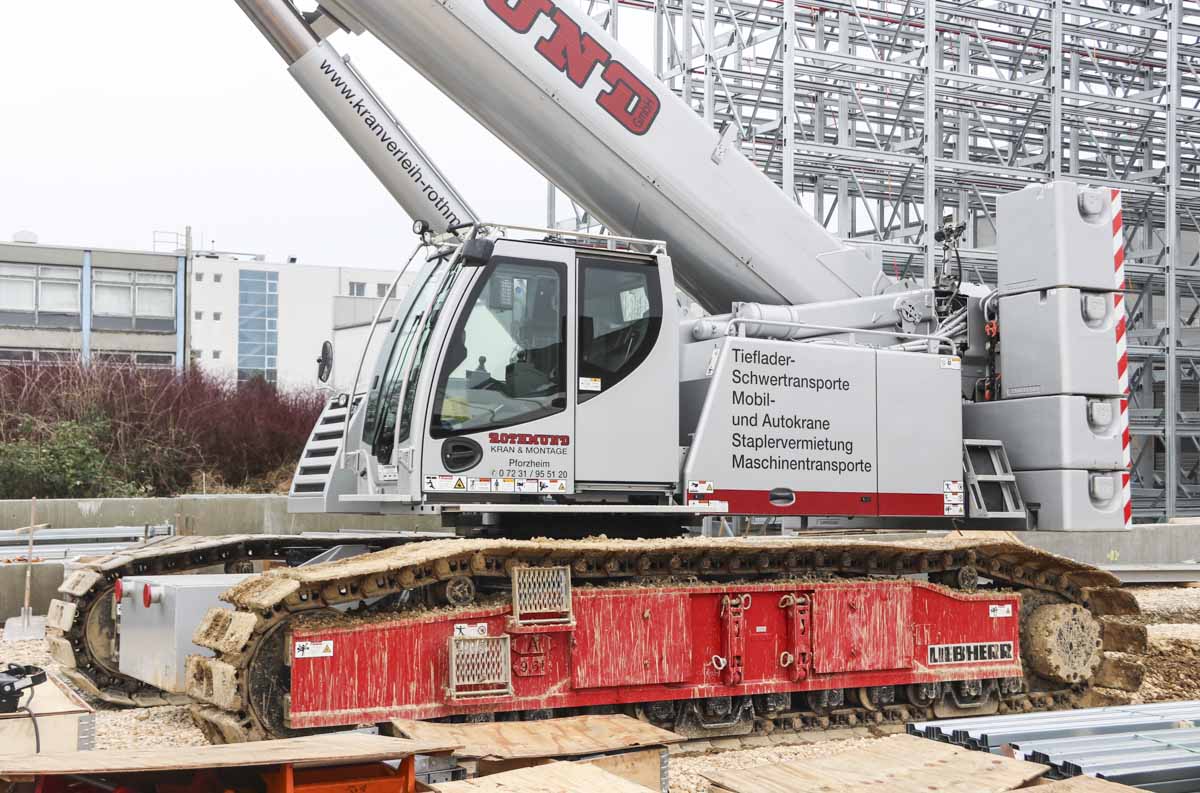

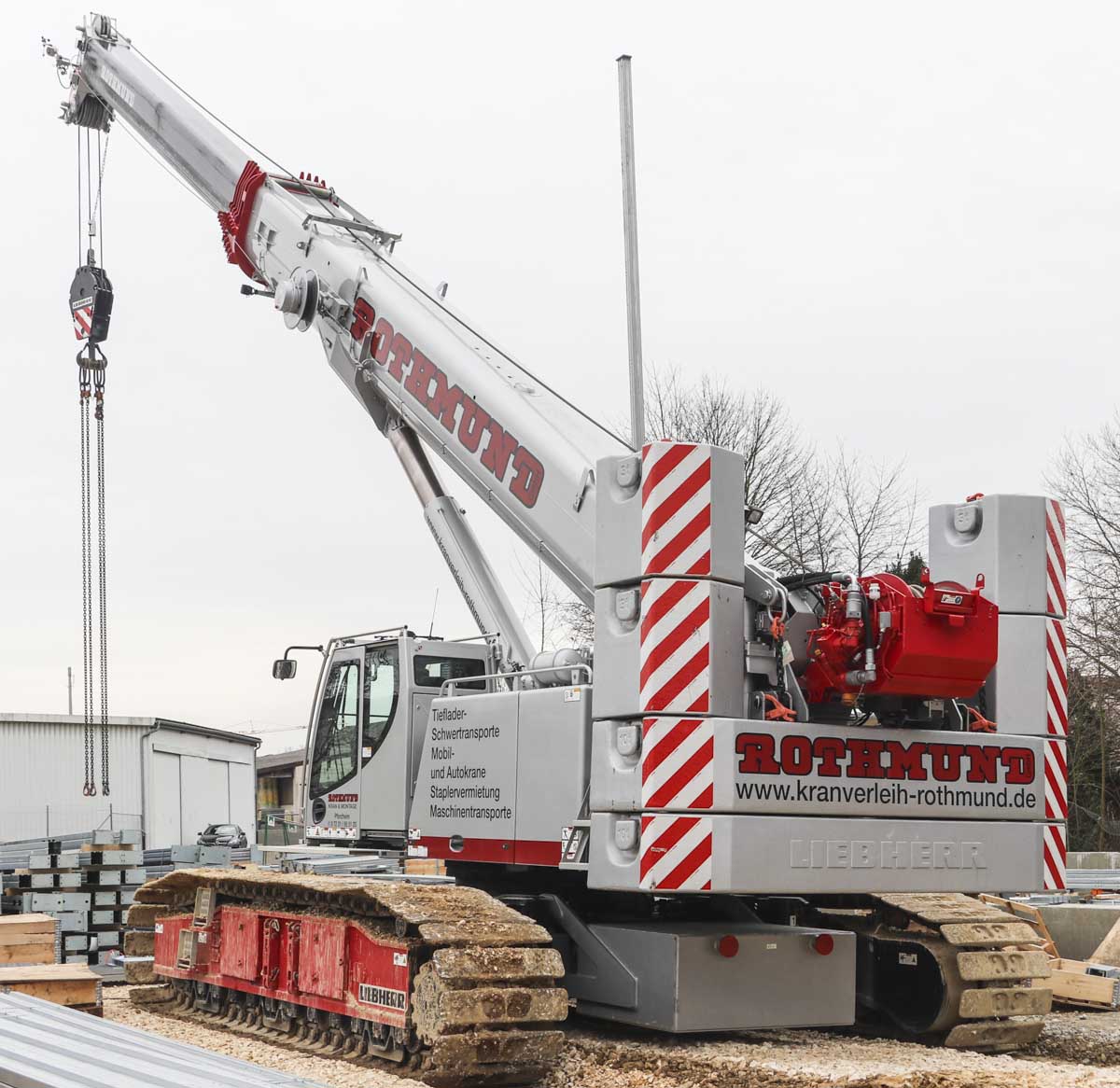

This sharp Liebherr LTR 1100 of Rothmund from Pforzheim (DE) was used by the construction of a large storage building in Laupheim (DE). It is a 100-tonne crawler crane with year of manufactur 2016.

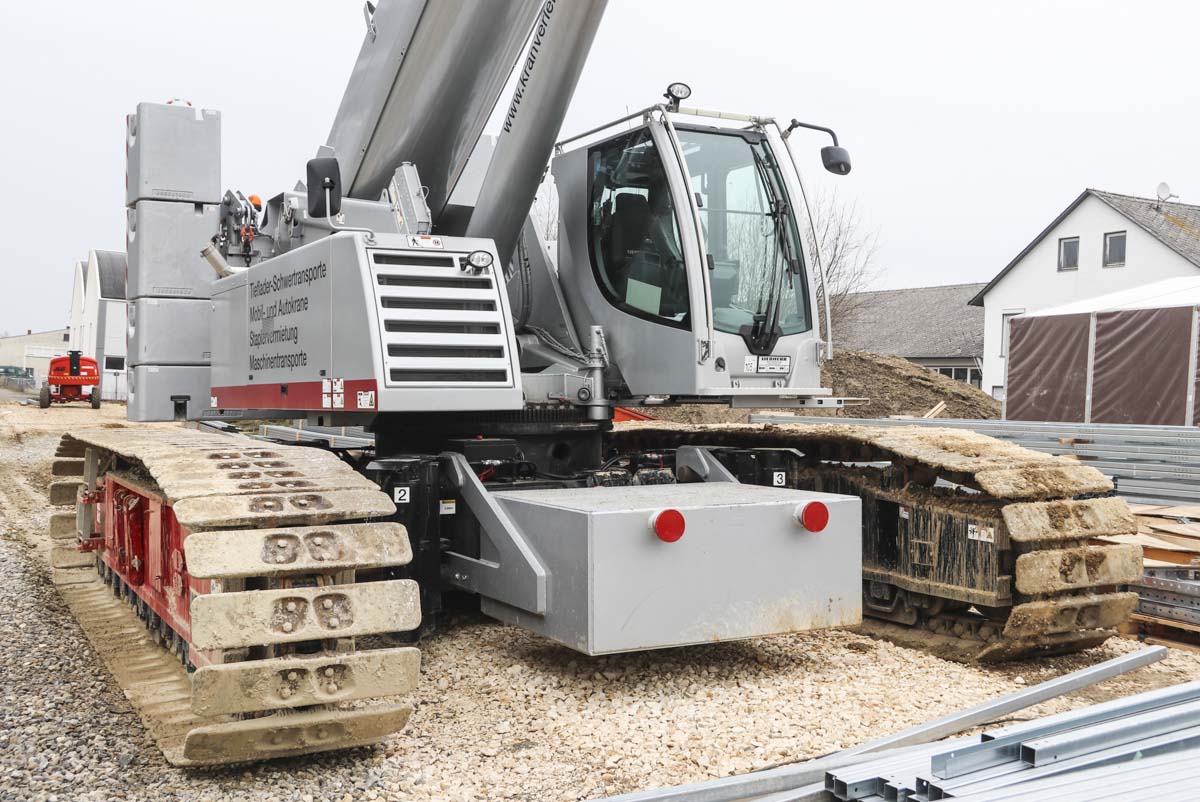

The undercarriage is 6.413 meters long and 5.05 meters wide. For the transport over the road is the width to be reduced to 3.5 meters. It is also possible to remove the tracks fromt the body to reduce the transport mass and dimensions.

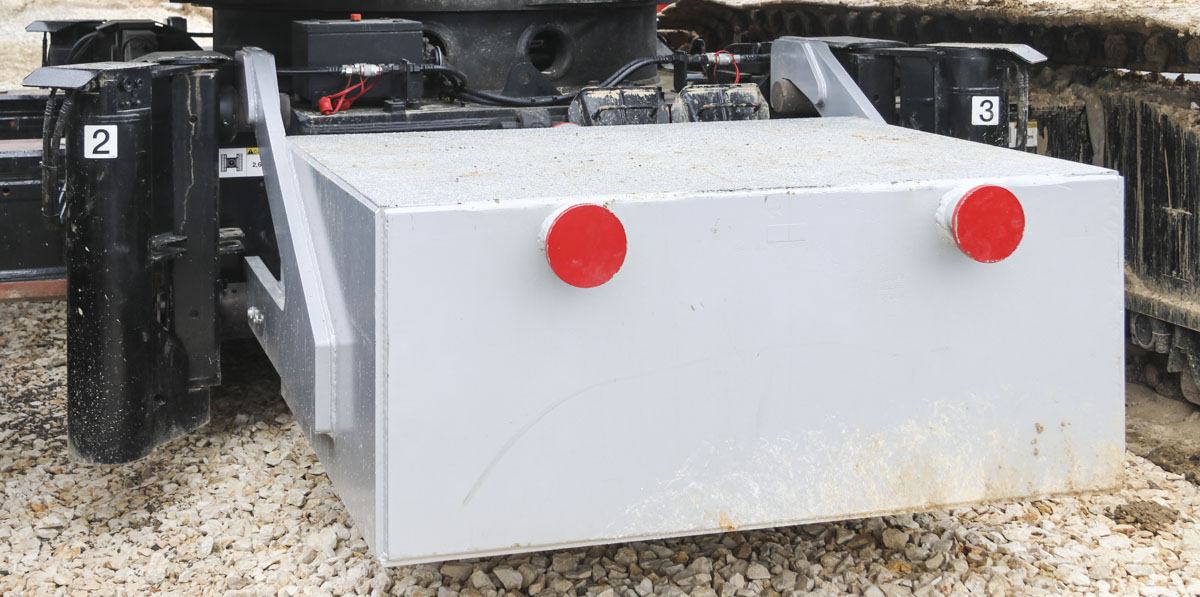

Attached to the undercarriage is in total 15 tonnes of central counterweight, that exists out of two slabs with each 7.5 tonnes. Next the counterweight are the hydraulic outriggers vissible where the crane is supported by once the crawlers are dismantled.

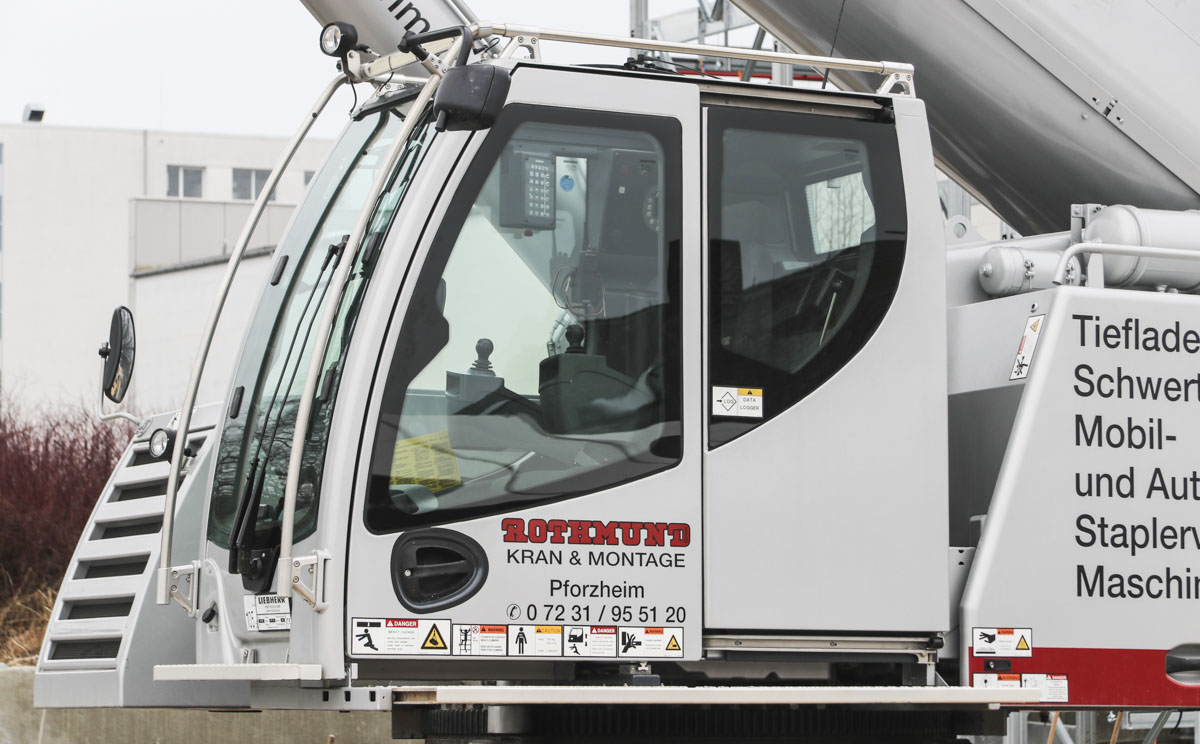

The superstructure is powered by a 4-cylinder Liebherr diesel engine with a power of 129 kW (175 hp).

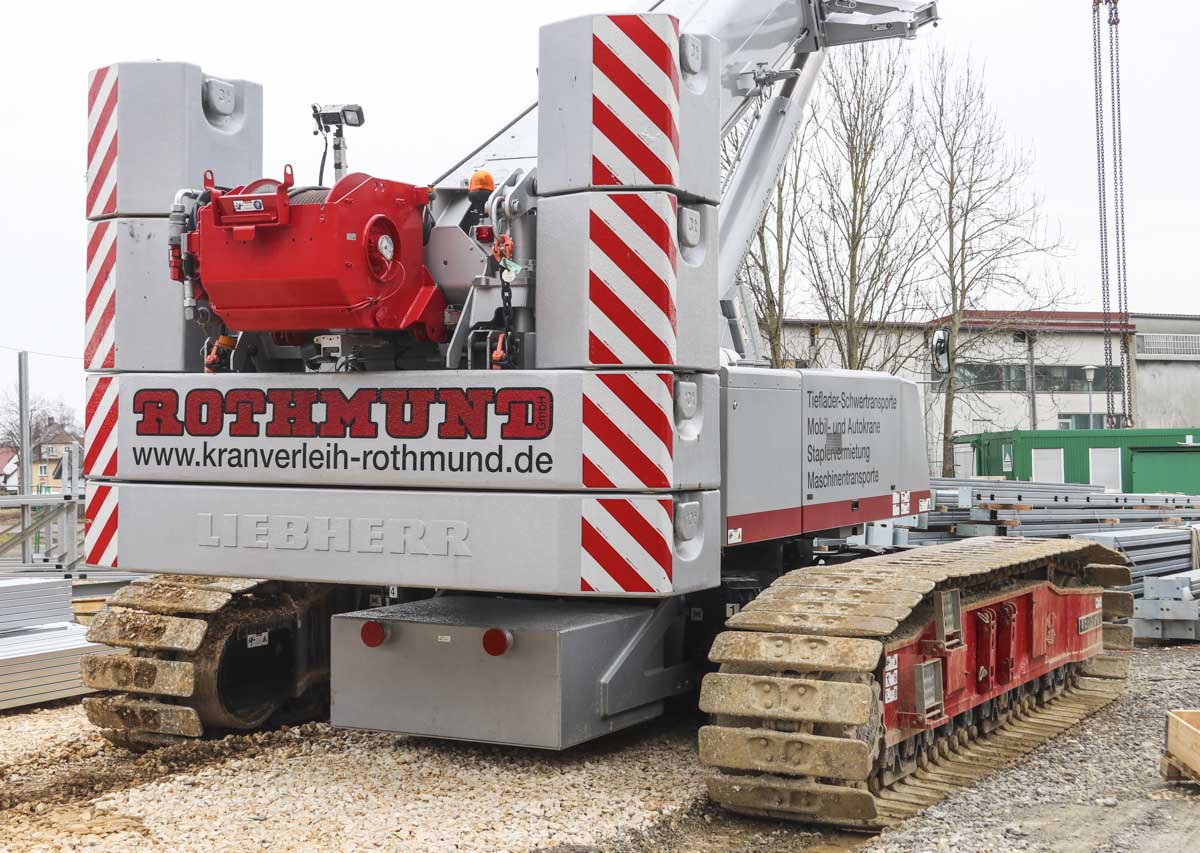

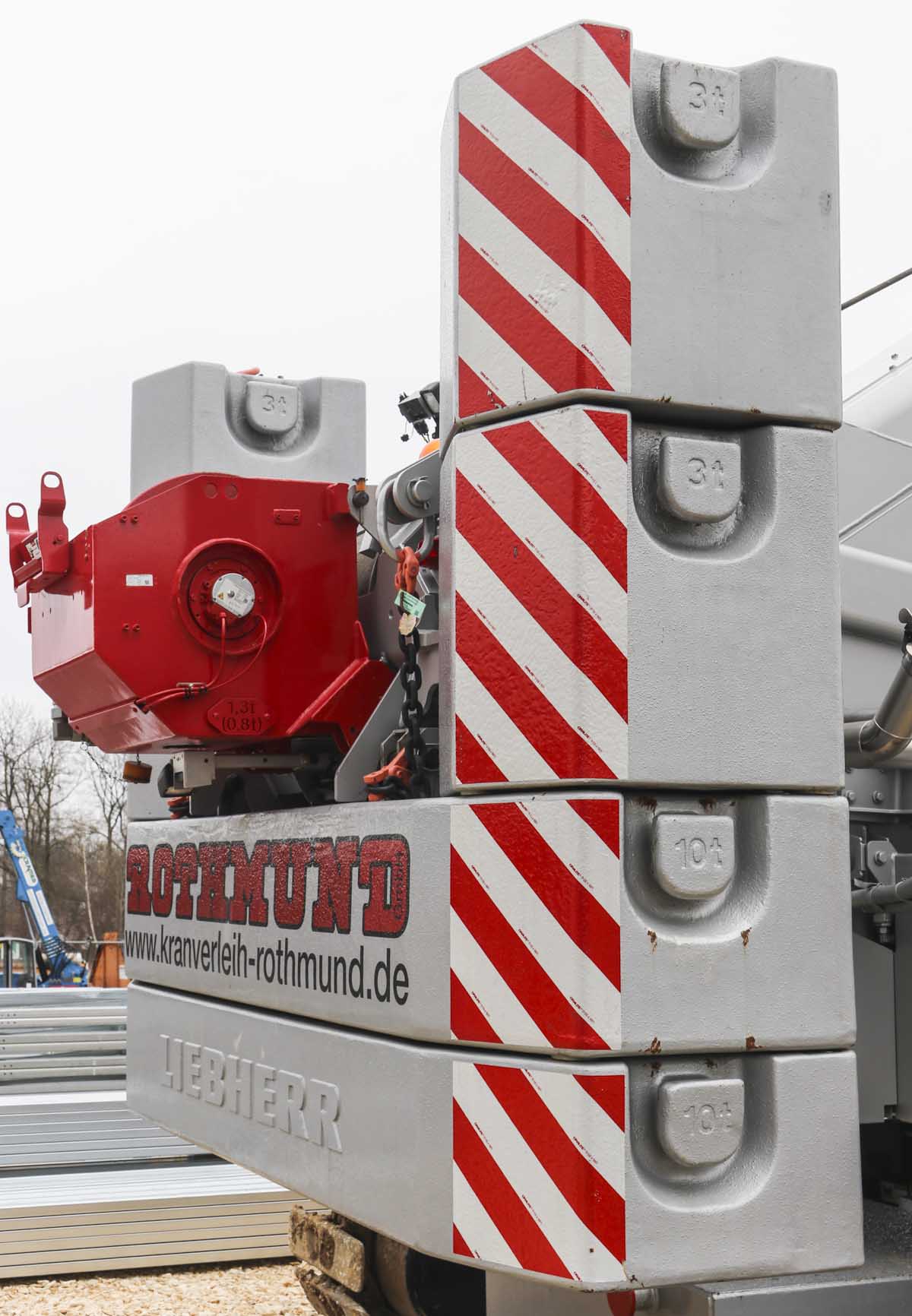

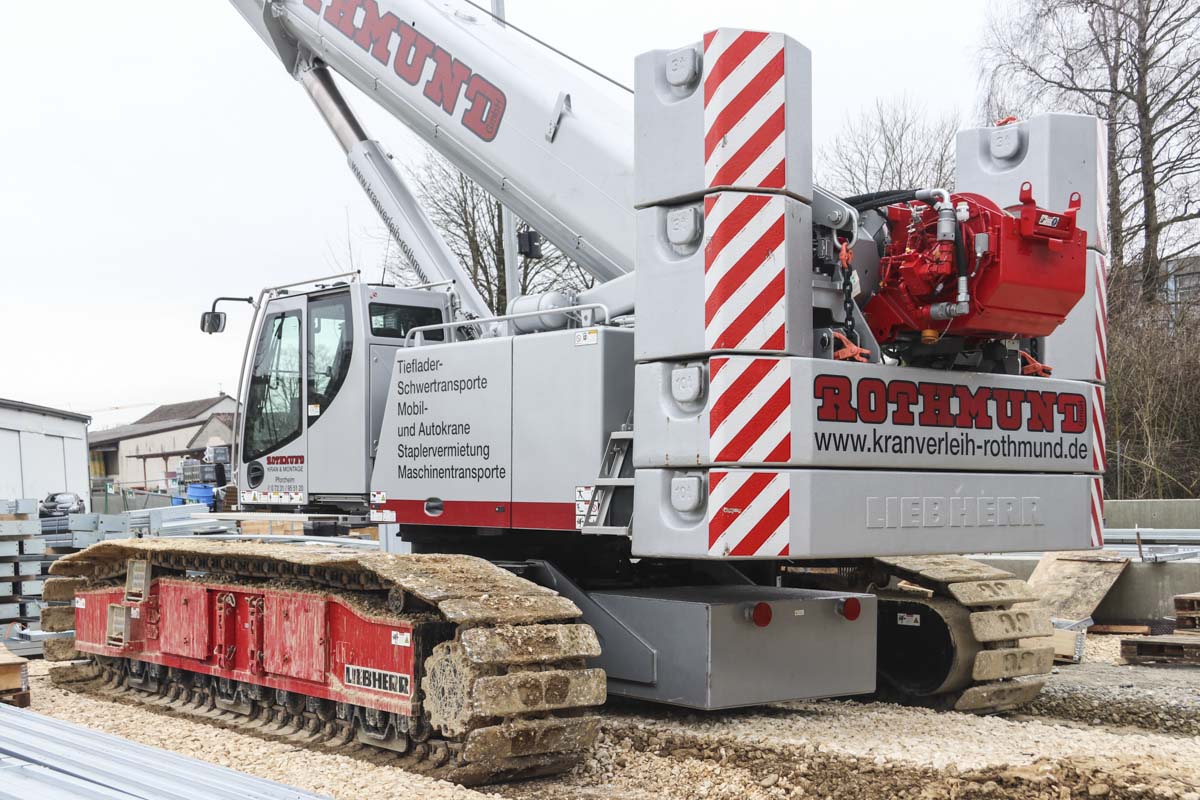

Here was the crane fitted with the full counterweight of 32 tonnes, that has a 4.42 meter tailswing. The counterweight exists out of two wide slabs with each 10 tonnes and four blocks with each 3 tonnes. The crane is fitted with a second winch, but wasn't in use here.

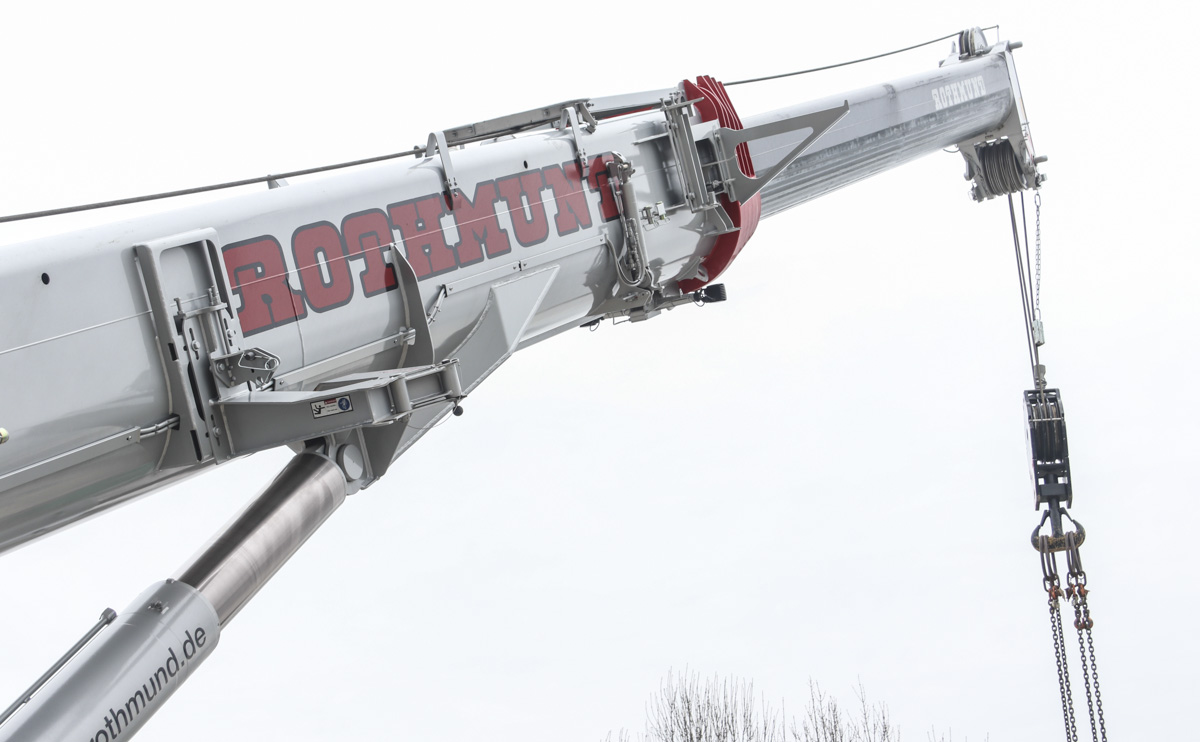

The main boom has an 11.5 meter base length and extends five times to a maximum length of 52 meters.
A very sharp crane in the colours of Rothmund, a company that is deploying cranes with lifting capacities up to 350 tonnes.
