Liebherr LTM 1350-6.1 - Richi

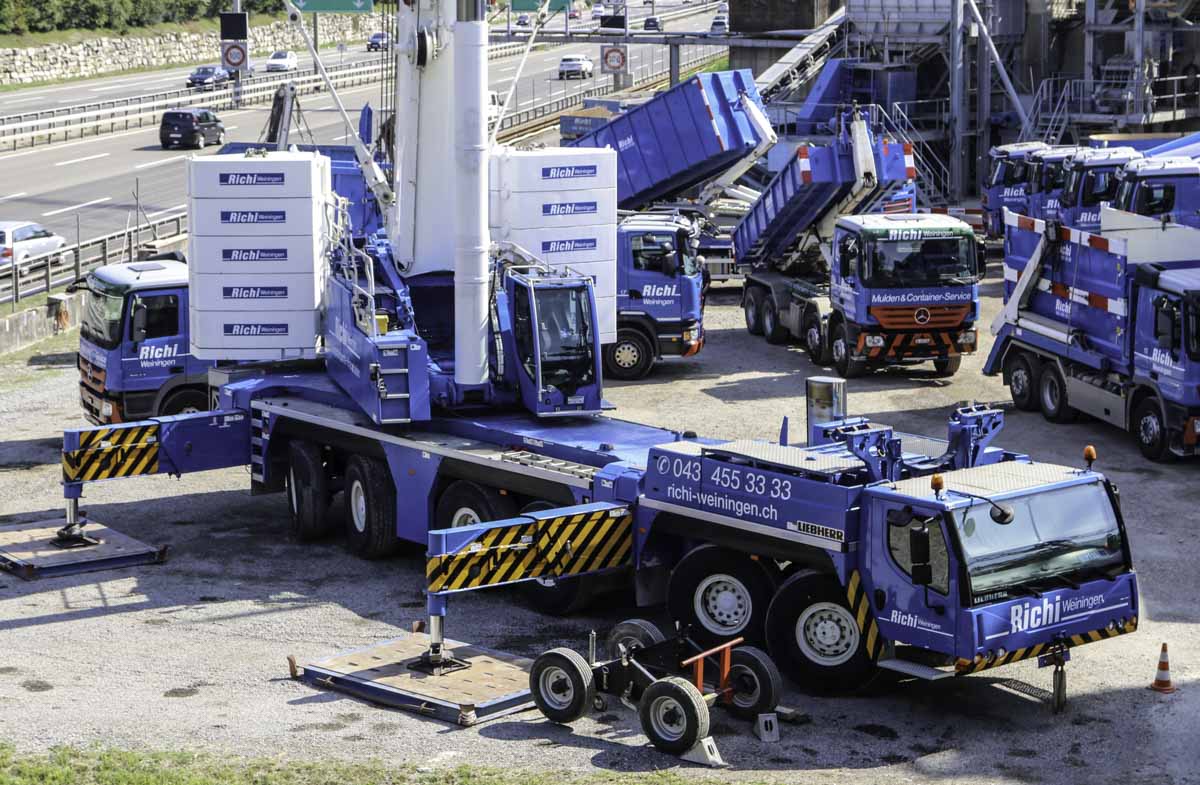

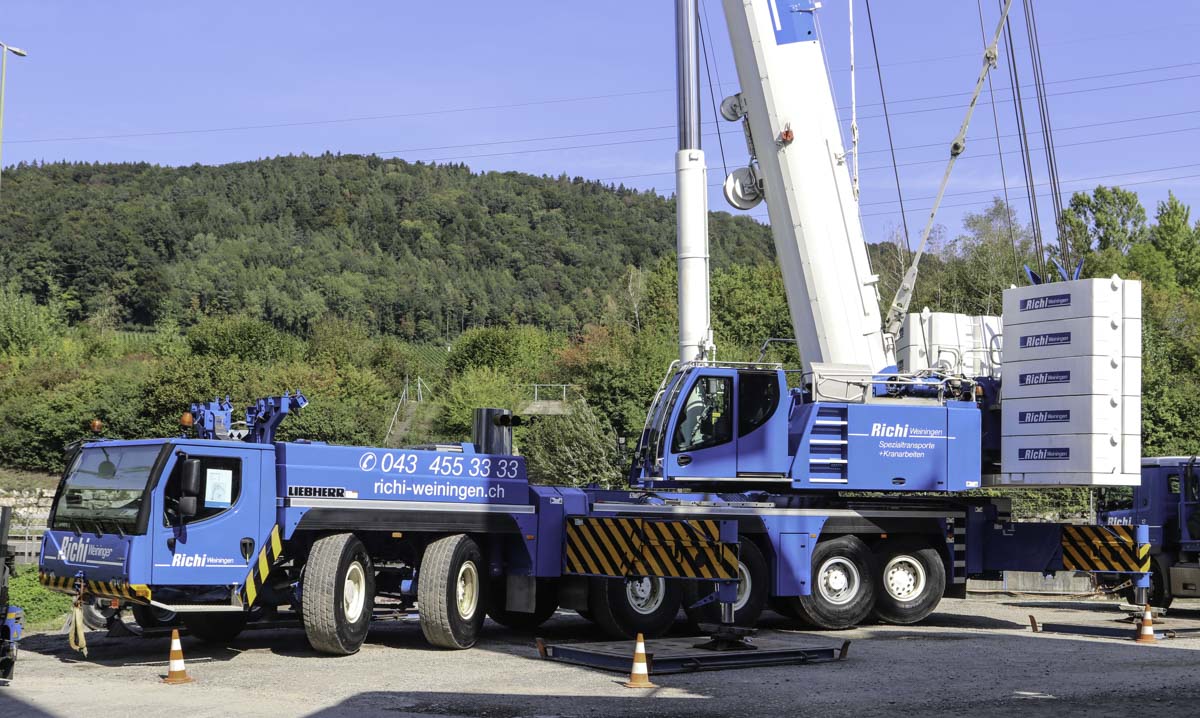

The largest crane that is deployed by Richi from Weiningen (CH) is this sharp Liebherr LTM 1350-6.1 with year of manufacture 2010. During their open day stood the crane erected in their yard.

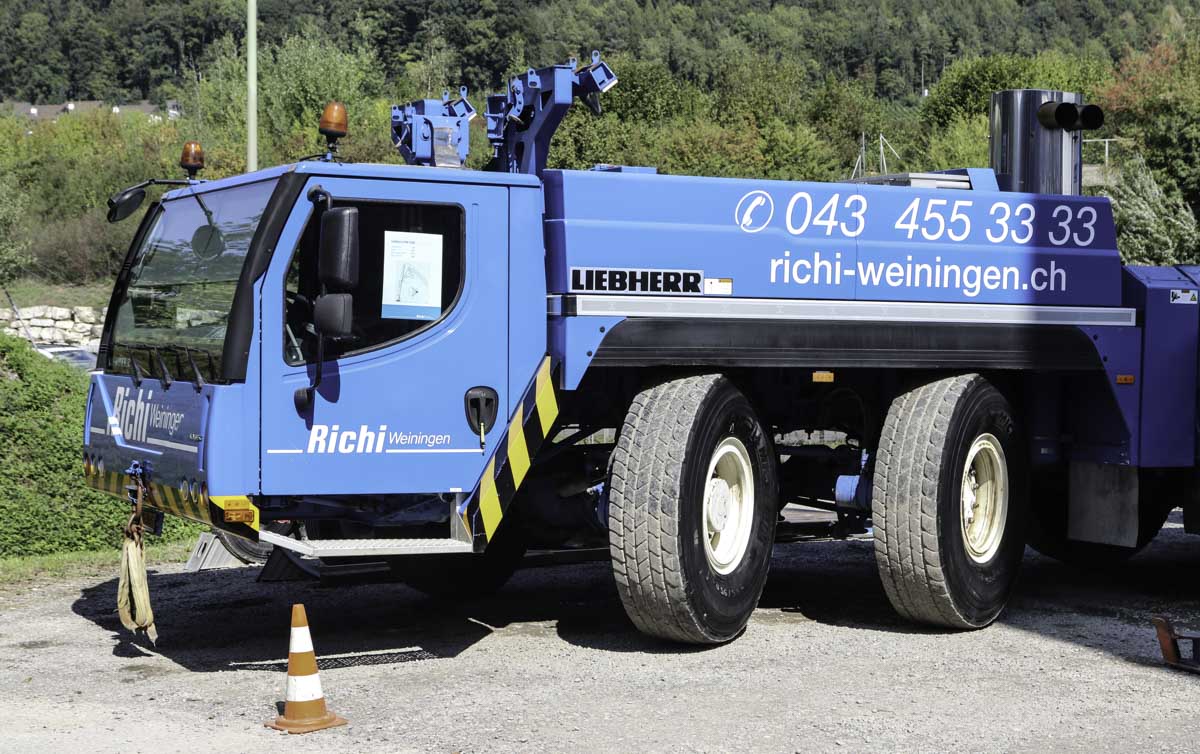

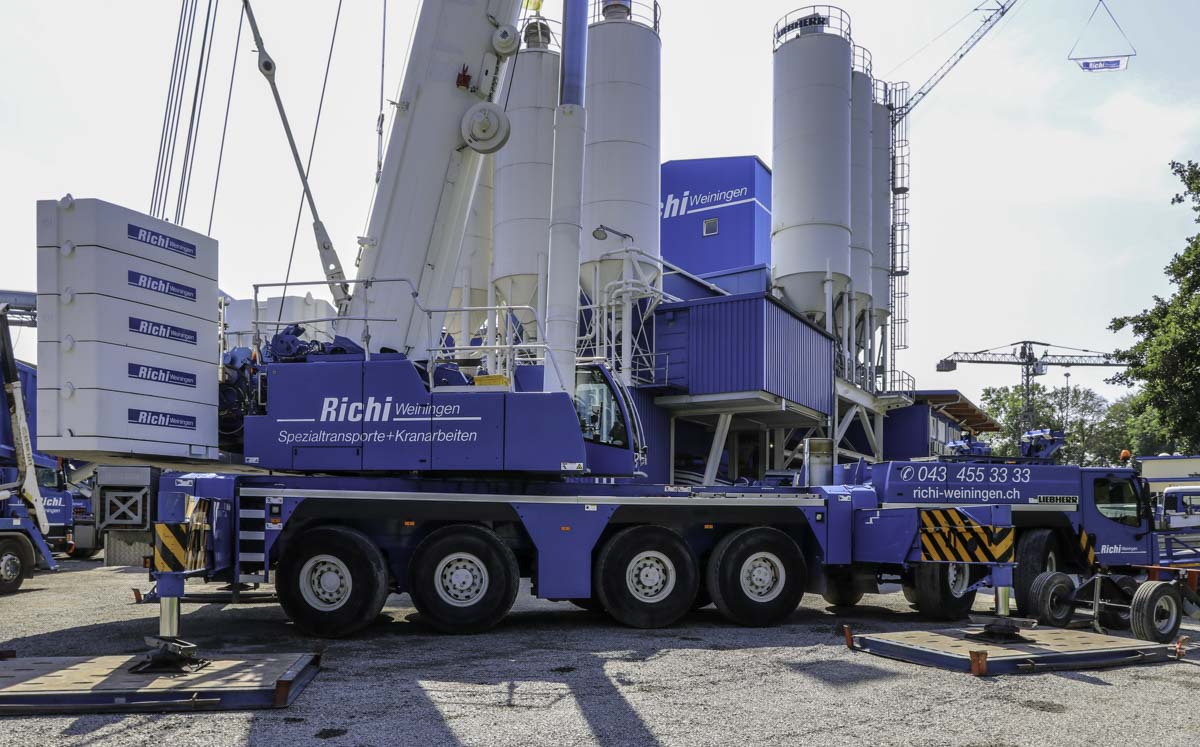

The 6-axle undercarriage is powered by a Liebherr 8-cylinder diesel engine with a power of 450 kW (612 hp). This crane has the optional 12x8x12-drive line, where the axles 1, 3, 4 and 5 are powered and all axles are steerable.

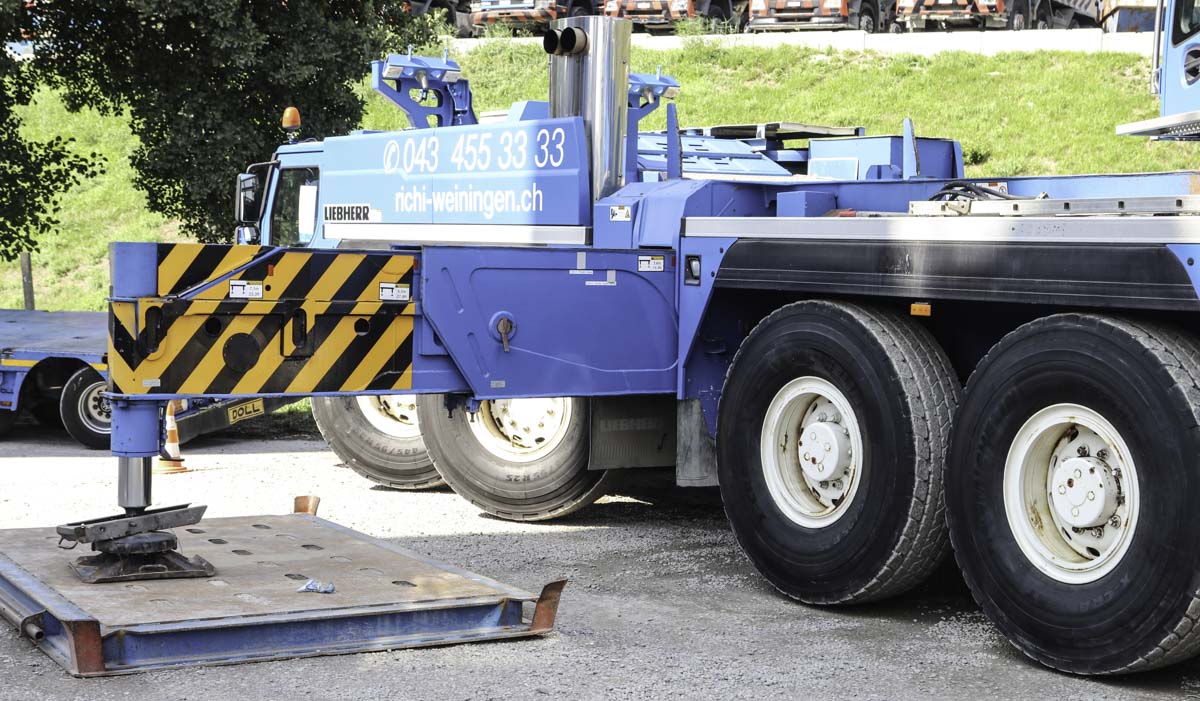

The outrigger base of the crane measures 8.93 x 8.53 meters, or half 8.93 x 5.6 meters.
In transit is the crane 17.8 meters long, 3 meters wide and 4 meters tall. The transport mass is 72 tonnes.

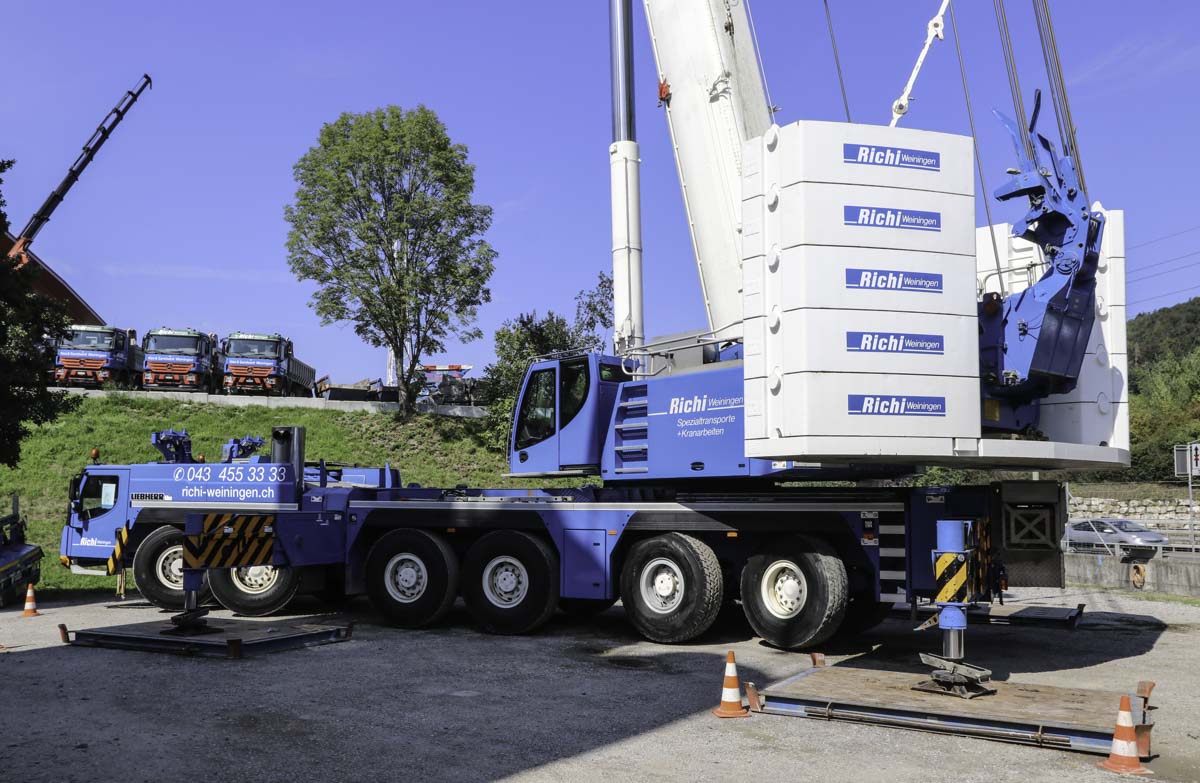

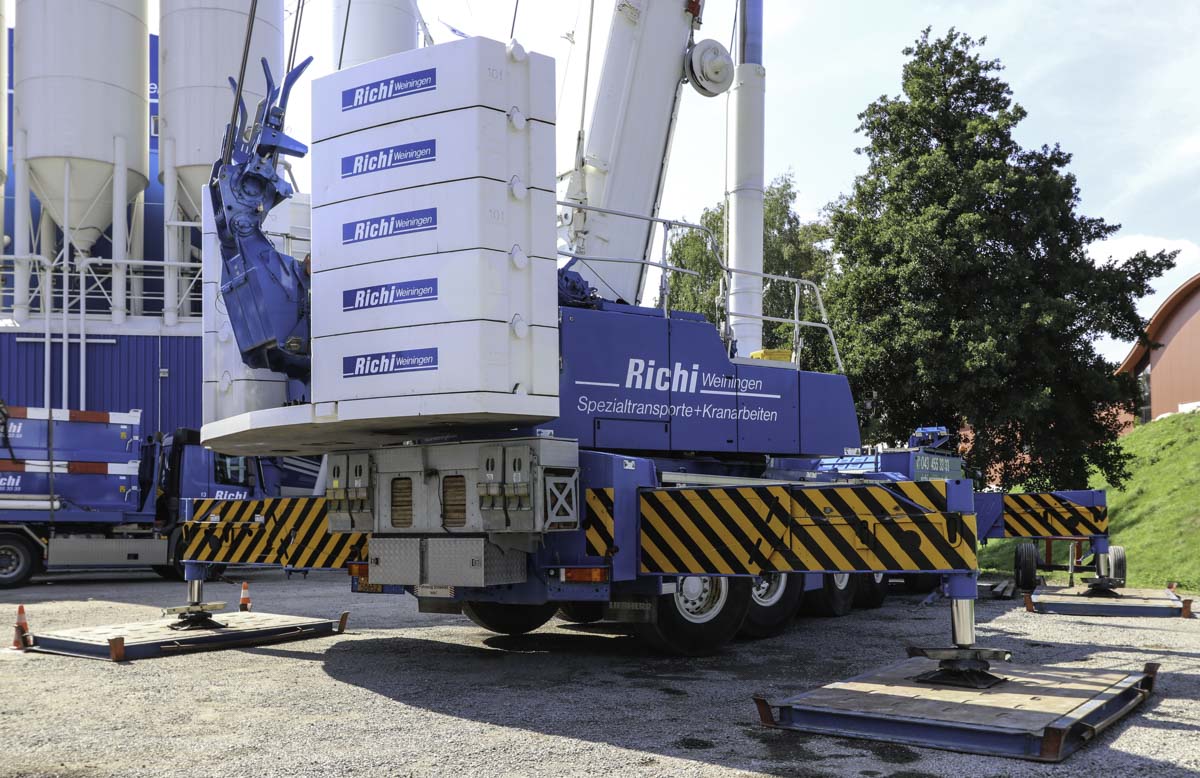

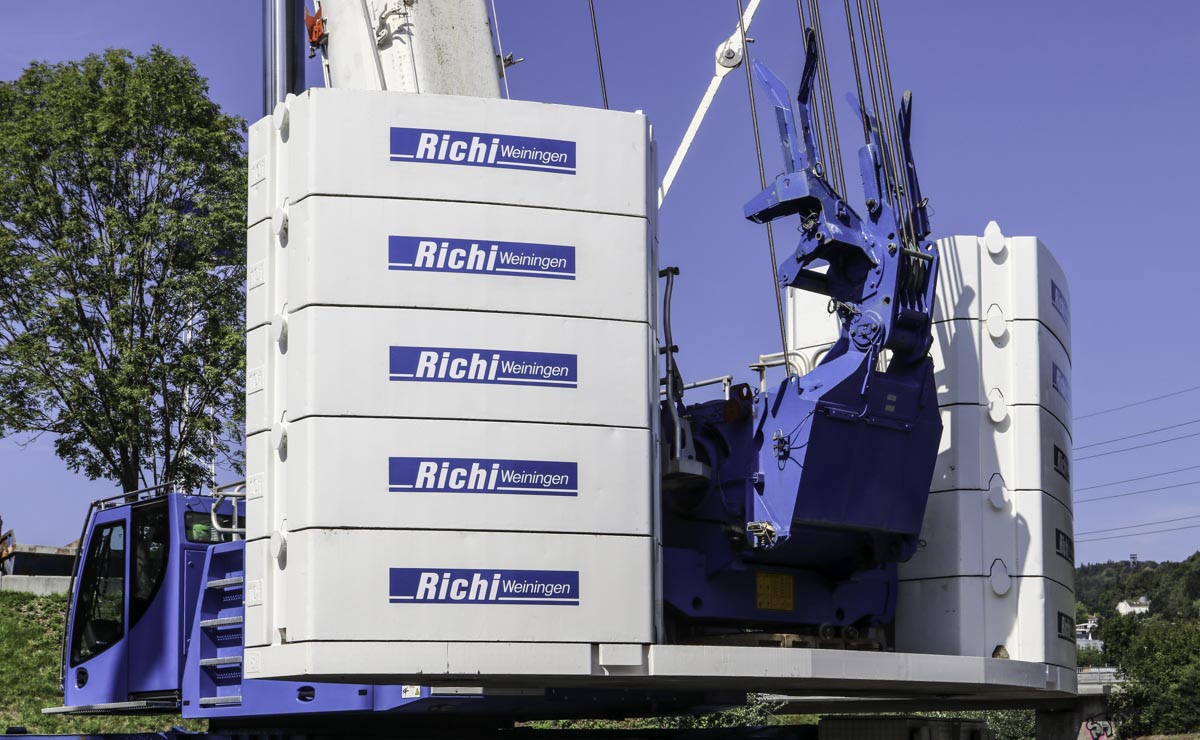

Here was the crane fitted with 120 tonnes of counterweight, that has a 5.7 meter tailswing. The full counterweight is 140 tonnes.

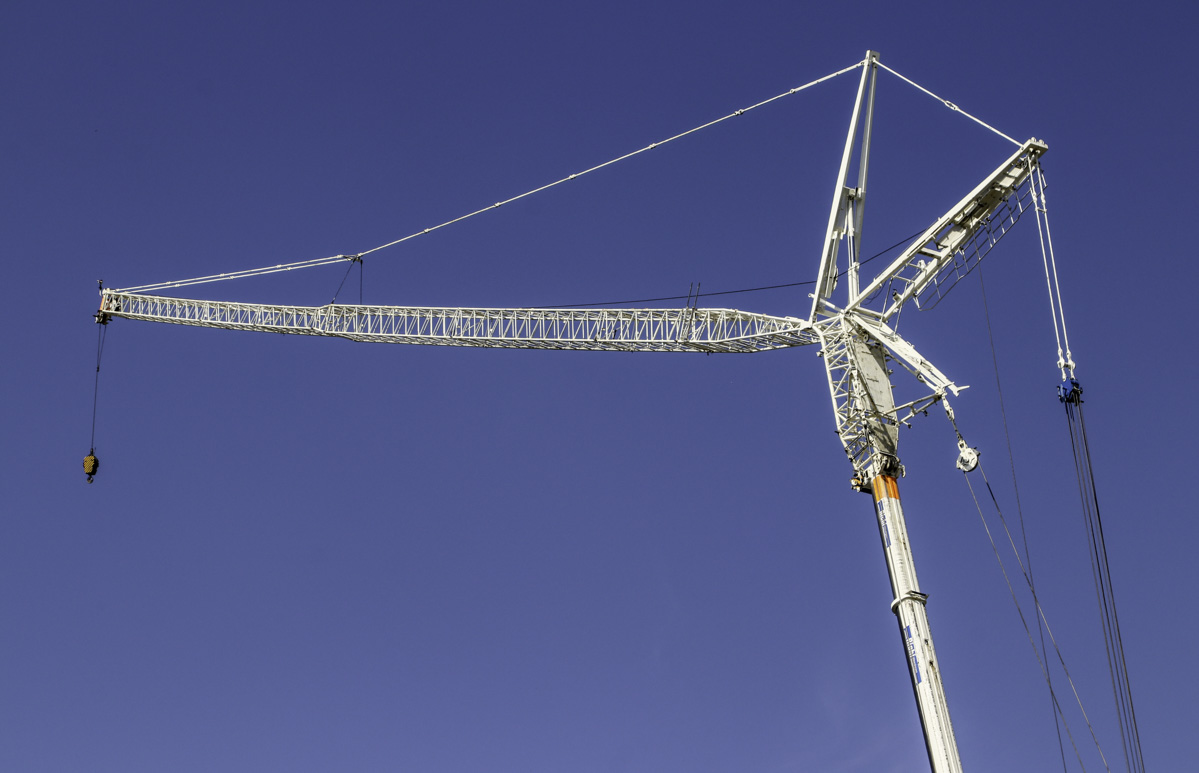

Here was the crane erected with a 66 meter long luffing jib, the maximum length of the luffing jib is 78 meters.

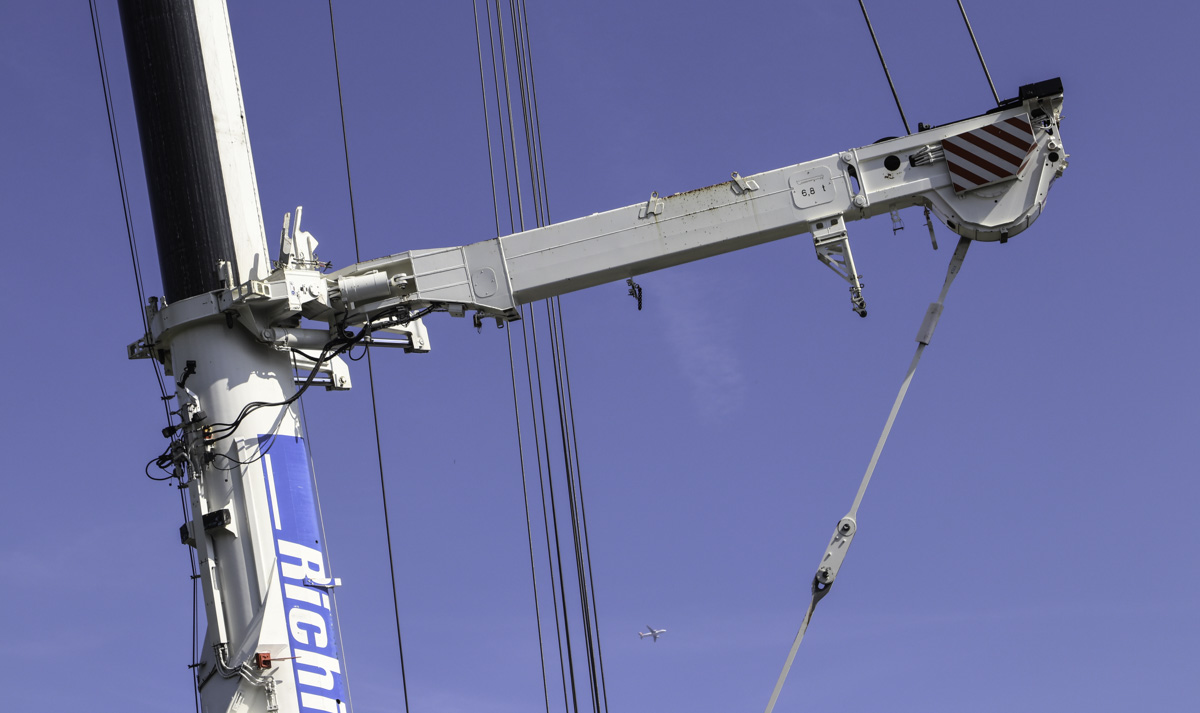

The 6-part main boom has a 14.9 meter base length and extends five times to a maximum length of 70 meters. The 66 meter long luffing jib can be used on a maximum 65.6 meter long main boom.
A very fresh crane in the colours of Richi!
